stilum tabula User manual

© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • All rights and product modications reserved
Mounting instructions bench „tabula“
Item-No. 57 1028 402
State: 25.11.2015 p. 1
Diagram 1: Overall view of the bench
© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • All rights and product modications reserved
Mounting instructions bench „tabula“
Item-No. 57 1028 402
State: 25.11.2015 p. 2
1. Set the location.
2. Carry out excavation work for two foundations as shown in Diagram 1.
After excavation, compress the foundation oor.
3. Set up the concrete foundations acc. to the dimensions indicated
in the quality class C20/25.
4. After a setting period of 8 -10 days, depending on weather conditions and
foundation size, clean the surface of the foundations.
Place the base plates of the bench onto the foundations and screw it onto the
foundation using the dowels M10 for heavy loads included in the delivery.
5. Seal the foundation with surface material and compress.
6. Do not allow anyone to use the equipment before the installation has been
nished.
Diagram 1: Foundation
1200
500
2100
780
1900
300
300
150
1550
1020
Behnke
Rev.:
KUNDE:
BESTELL-NR:
ZG-NR:
Tabula Rückenlehne
beidseitig
BENENNUNG:
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI + KAISER GMBH DARF DIESE TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT
NOCH DRITTEN MITGETEILT ODER ZUGÄNGLICH GEMACHT WERDEN NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VERWENDET
WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
25.11.2015
FREIG:
GEPR:
GEZ:
DATUM: NAME:
WERKSTOFF / ROHMAß:

MAßSTAB:
OBERFLAECHEN NACH
DIN ISO 1302 REIHE 2
ZUL. ABWEICHUNG
DIN 2768 - mH
+0,3
-0,3
WERKSTUECKKANTEN
NACH DIN 6784
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
A3
400
600
450
1458
3313
3936
Spielebene
Play level
Erde
Ground
Beton
Concrete
Freie Fallhöhe ≤1500mm
D
E
F
C
1
2
3
4
B
A
3
2
1
5
C
D
4
6
7
8
A
B
Zust.
Änderung
Datum
Datum
Name
Name
Bearb.
Gepr.
Norm
A3
Bl.
Allgemein-
toleranzen
DIN 7168-m
Maßstab 1:1
03.12.2014
M.Boehm
Baumarkt Klettergerät
0133-00-00-Baumarkt Klettergerät1
0133-00-00
Fertigung
E
1x
2057
1900
Rev.:
Projekt:
BESTELL-NR:
ZG-NR:
BENENNUNG:
OHNE SCHRIFTLICHE ZUSTIMMUNG DER CONRADI + KAISER GMBH DARF DIESE TECHNISCHE UNTERLAGE WEDER VERVIELFÄLTIGT
NOCH DRITTEN MITGETEILT ODER ZUGÄNGLICH GEMACHT WERDEN NOCH IN SONSTIGER WEISE MISSBRÄEUCHLICH VERWENDET
WERDEN. ZUWIDERHANDLUNGEN WERDEN URHEBERRECHTLICH VERFOLGT.
FREIG:
GEPR:
GEZ:
DATUM: NAME:
WERKSTOFF

MAßSTAB:
OBERFLAECHEN NACH
DIN ISO 1302 REIHE 2
ZUL. ABWEICHUNG
DIN 2768 - mH
+0,3
-0,3
WERKSTUECKKANTEN
NACH DIN 6784
Gewerbegebiet Larsheck
56271 Kleinmaischeid
Deutschland
A3
25.11.2015
Abmaße:
Fertigung:
Behnke
x
Gewicht:
Reinforcement plan:
Concrete foundation with reinforcement
Main foundation: BSt 500S
Ever 4 stirrups Ø 8 mm lengthwise and cross
Concrete cover h´= 3 cm
Concrete quality class C 20/25
Foundations for attachment parts are no-reinforced
© stilum GmbH, Gewerbegebiet Larsheck, 56271 Kleinmaischeid • Tel. +49 (0) 2689 92790-0 • All rights and product modications reserved
Mounting instructions bench „tabula“
Item-No. 57 1028 402
State: 25.11.2015 p. 3
Attention: If the equipment has been incompletely installed or partly dismantled
when carrying out maintenance and repair work, this may lead to particular risks
of injury for the user. For this reason, make clearly visible that the equipment
shall not be used in such cases.
NOTE: Equipment, which contain components made of stainless steel should
not come with „normal“ steel parts in contact. Those steel parts may rub off and
leave small steel particles in combination with moisture brown rust stains.If such
corrosion occur on stainless steel parts, they are ne with an abrasive (240 grit)
to remove.
Please take care when transporting and setting up the fact that the components
are made of stainless steel with no „normal“ steel parts in contact.
In order to preserve a good visual appearance of your stilum playground equip-
ment over a long period one should take care of maintenance of the stainless
surface even despite of their corrosion resistance.
Especially areas, which can not be reached by rainfall should be frequently clea-
ned from dirt and deposits due to air pollution and dirt caused by the atmosphere.
Light soiling can easily be romoved by using a high pressure cleaner.
For persistent deposits use a clean cloth moistened with a special liquid cleaner
(e.g. on phosphoric acid) and rinse off with clear water after a short application
time. During cleaning with mild abrasive components, only wipe over stainless
steel surface in polishing direction.
For heavily soiled surfaces, polishes can be used (e.g. for cleaning chrome on
cars) or for greasy and oily dirt alcoholic cleaning agents and solvents (e.g. ethyl
alcohol, isopropyl alcohol or acetone).
However, it should be noted that the dissolved soiling is not spread over the surface
again.
Do not use any chlorid or hydrochloric containing cleaning products nor scouring
powder, bleaching - or silver polish cleaner. Cleaning intervals depend on type and
degree of soiling as well as on demands made on optical characteristics. Therefore
cleaning is advisable at intervals of six to twelve months – whereby in the case of
strong soiling it is appropriate to clean the playground equipment at intervals of 3 to
six months.

This manual suits for next models

1

Other stilum Outdoor Furnishing manuals

stilum placidus 2 User manual

stilum

stilum placidus 2 User manual

stilum placidus 3 User guide

stilum

stilum placidus 3 User guide

stilum obsita 57 1033 401 User guide

stilum

stilum obsita 57 1033 401 User guide

stilum papyrus 5A User manual

stilum

stilum papyrus 5A User manual

stilum papyrus 5A with top User manual

stilum

stilum papyrus 5A with top User manual

stilum papyrus 1A User manual

stilum

stilum papyrus 1A User manual

stilum placidus 1 User guide

stilum

stilum placidus 1 User guide

stilum alea abico User manual

stilum

stilum alea abico User manual

stilum sedis1 User guide

stilum

stilum sedis1 User guide

stilum alea mens 57 1526 601 User manual

stilum

stilum alea mens 57 1526 601 User manual

stilum papyrus 1A with top User manual

stilum

stilum papyrus 1A with top User manual

stilum papyrus 2A with top User manual

stilum

stilum papyrus 2A with top User manual

stilum unio 2 User guide

stilum

stilum unio 2 User guide

stilum lubeke 57 1055 401 User manual

stilum

stilum lubeke 57 1055 401 User manual

stilum placidus 3 User manual

stilum

stilum placidus 3 User manual

stilum unio 57 1029 401 User manual

stilum

stilum unio 57 1029 401 User manual

stilum placidus 1 User manual

stilum

stilum placidus 1 User manual

stilum placidus 3 mensa User guide

stilum

stilum placidus 3 mensa User guide

Popular Outdoor Furnishing manuals by other brands

Outsider PLATEAU STREET 207 Mounting guide

Outsider

Outsider PLATEAU STREET 207 Mounting guide

Crosley Furniture Kaplan CO6111 quick start guide

Crosley Furniture

Crosley Furniture Kaplan CO6111 quick start guide

Sunjoy A202010800 quick start guide

Sunjoy

Sunjoy A202010800 quick start guide

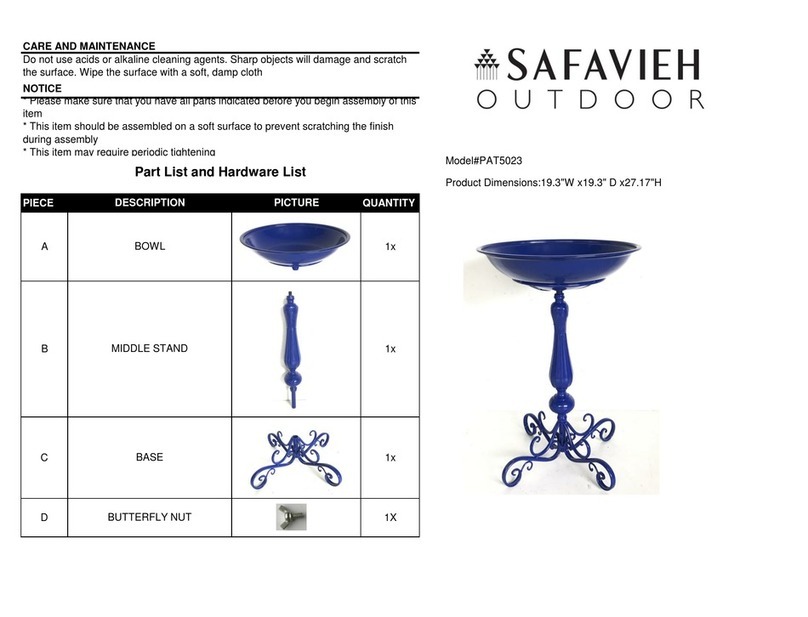

Safavieh Outdoor Orian PAT5023 Assembly

Safavieh Outdoor

Safavieh Outdoor Orian PAT5023 Assembly

Merxx Handels 25121-011 Assembly instructions

Merxx Handels

Merxx Handels 25121-011 Assembly instructions

Pacific Casual Sarasota 217-H40-4DS Use and care guide

Pacific Casual

Pacific Casual Sarasota 217-H40-4DS Use and care guide

CAZEBOO COM-000495 instruction manual

CAZEBOO

CAZEBOO COM-000495 instruction manual

Broyhill A101017510 Assembly instructions

Broyhill

Broyhill A101017510 Assembly instructions

Barton 93506 Owner's manual and safety instructions

Barton

Barton 93506 Owner's manual and safety instructions

Safavieh Outdoor PAT5008A Assembly instructions

Safavieh Outdoor

Safavieh Outdoor PAT5008A Assembly instructions

BCP SKY2642 instruction manual

BCP

BCP SKY2642 instruction manual

SUNVILLA Wills 2127631 Assembly / care & use instructions

SUNVILLA

SUNVILLA Wills 2127631 Assembly / care & use instructions

Outsunny 84C-232 Assembly instructions

Outsunny

Outsunny 84C-232 Assembly instructions

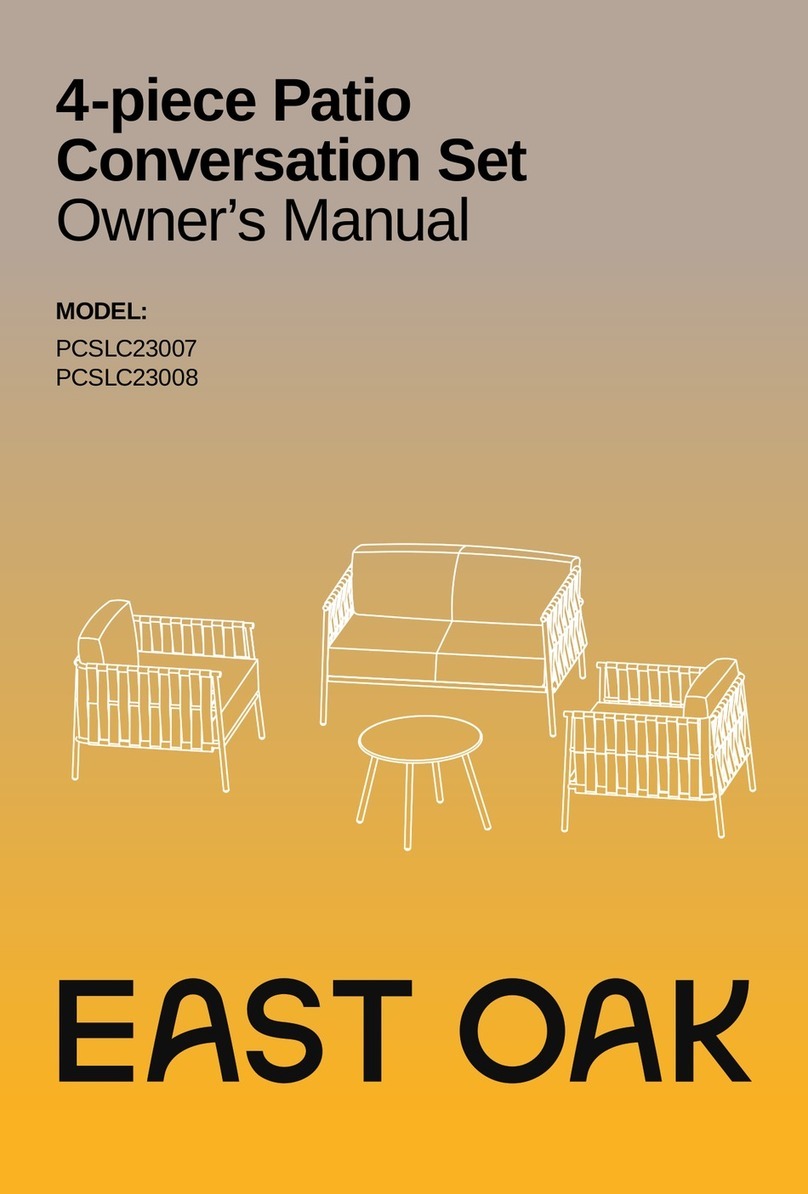

EAST OAK PCSLC23007 owner's manual
