Stone Rhino 43 Series User manual

RhinoTMVibratory Dirt Roller
Operator Manual
Rhino 43/54
REVISION A 10/2011 P/N 56957
Models: SD-43, SD-54, PD-43
PD-54, PDB-43, PDB-54

Stone Construction Equipment, Inc.
Right Built Products From A Right Built Company.
Right Built means tough, reliable,easy to use
machines that lower lifetime costs. They’re designed
to be reliable, productive, operator friendly and
serviceable, always with the end user in mind.

RhinoTM 43/54
3
LIMITED WARRANTY....................................................................................... 5
FOREWORD ................................................................................................... 6
INTRODUCTION .............................................................................................. 7 - 8
TECHNICAL DATA ........................................................................................... 9 - 16
Specifications.................................................................................... 10 - 11
Engine RPM....................................................................................... 10 - 11
Machine Data .................................................................................... 12
Operator Controls............................................................................... 13
Machine Sound Level Test ................................................................... 14
Locking Bar....................................................................................... 14

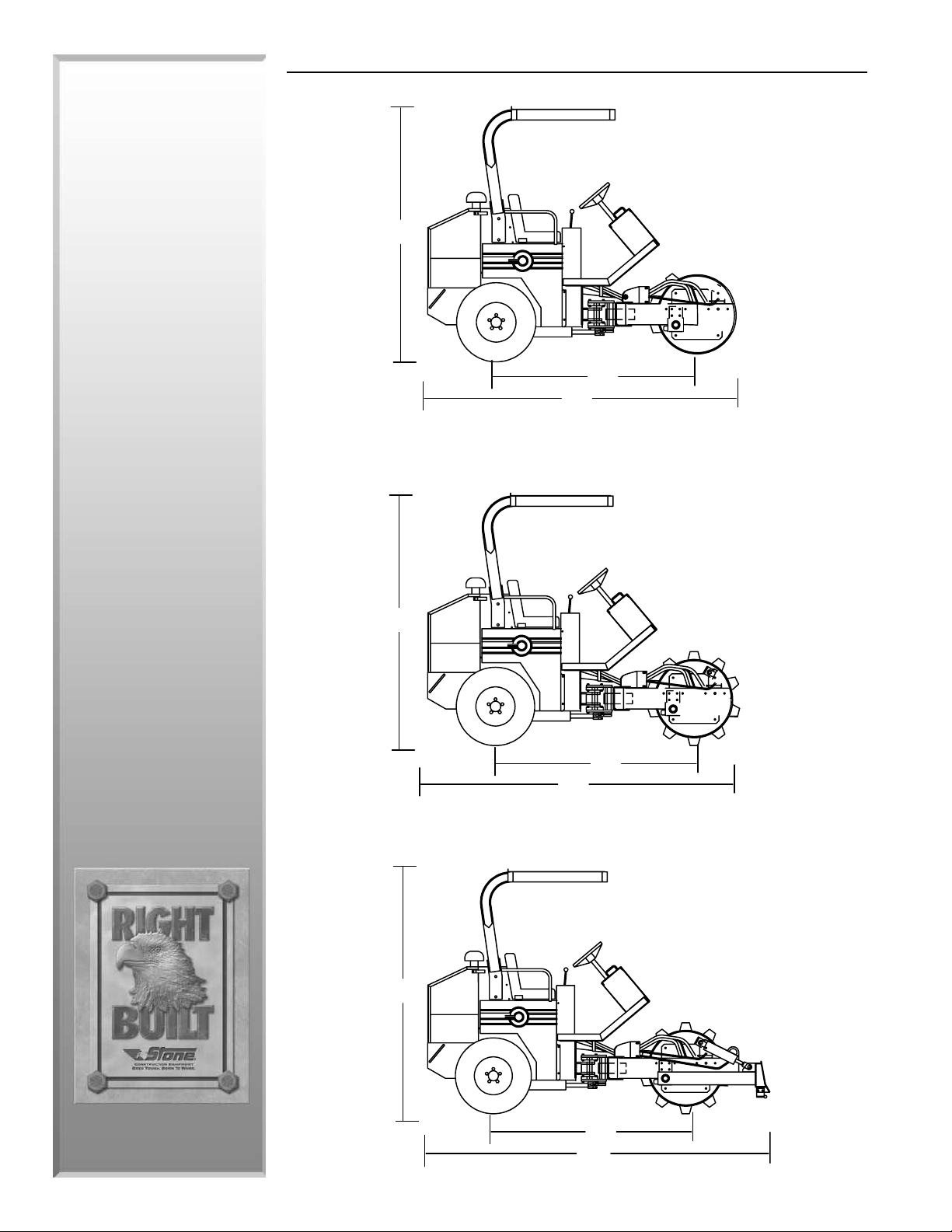

Machine Dimensions........................................................................... 15 - 16
HEALTH & SAFETY ......................................................................................... 17 - 24
OPERATION ................................................................................................... 25 - 38
Delivery Inspection ............................................................................ 26
Break-in Period.................................................................................. 26
Before Starting.................................................................................. 26
Warming Engine................................................................................. 27
Fuel ................................................................................................. 27
Engine Oil Level................................................................................. 28
Air Filter / Fuel Level......................................................................... 28
Hydraulic Oil ..................................................................................... 28
Engine Coolant .................................................................................. 28
Tires/Lug Nuts .................................................................................. 29
Drum/Scrapers .................................................................................. 29
Cleaning ........................................................................................... 29
Eccentrics ......................................................................................... 29
Visual Inspection ............................................................................... 30
Mounting/Dismounting the Machine .................................................... 30
Starting the Machine.......................................................................... 30
Cold Weather Starting......................................................................... 30
To Operate ........................................................................................ 31
Operation on Slopes ........................................................................... 31
Forward/Reverse/Neutral .................................................................... 31
Shutting the Machine Off.................................................................... 31
Parking the Machine .......................................................................... 32
Safety Features.................................................................................. 32
Seat ................................................................................................. 33
Steering Controls ............................................................................... 33
Operator Controls............................................................................... 34
Gauges ............................................................................................. 35
Lights............................................................................................... 35
Air Cleaner........................................................................................ 35
Compaction Tips ................................................................................ 36
Locking Bar....................................................................................... 36
Transportation................................................................................... 36
Tie Downs ......................................................................................... 37
Towing (Bypass) ................................................................................ 38
Storage............................................................................................. 38
MAINTENANCE............................................................................................... 39 - 64
Important......................................................................................... 40
Maintenance Schedule........................................................................ 40
Important Maintenance Information .................................................... 41
Additional Service Information............................................................ 41
Hydraulic Oil/Filter ............................................................................ 42
Hydraulic Breather............................................................................. 43
Table of
Contents

RhinoTM 43/54
4
Adding Engine Coolant ....................................................................... 44
Disposing of Coolant .......................................................................... 44
Air Cleaner........................................................................................ 44
Air Cleaner Replacement ..................................................................... 45
Element Storage................................................................................. 45
In Line Fuel Filter.............................................................................. 46
Engine Fuel Filter .............................................................................. 46
Fuel Tank / Fuel Lines........................................................................ 47
Bleeding Air from Fuel System............................................................. 47
Fan/Alternator Belt ........................................................................... 48
Grease Fittings / Frame Hinge ............................................................. 48
Blade Pins......................................................................................... 49
Battery............................................................................................. 49
Battery Installation ........................................................................... 50
Charging/Jumping Battery.................................................................. 50
Engine Crankcase Vent Tube ................................................................ 51
Engine Valve Clearance ....................................................................... 51
Emission Regulation/Engine RPM......................................................... 51
Fuel Injectors .................................................................................... 51
Test Fuel Injection Nozzles.................................................................. 52
Fuel Tank / Fuel Lines........................................................................ 52
Hydraulic Hoses/Connections .............................................................. 53
Forward/Reverse/Neutral Adjustment ................................................... 53
Neutral Interlock ............................................................................... 53
Control Cables: Forward/Reverse, Throttle, Blade.................................... 54
Eccentrics / Eccentric Housing Oil........................................................ 54
Charge System................................................................................... 55
Panel Fuse 20 Amp............................................................................. 55
Engine Installation Guidelines ............................................................. 55
Engine Mounting ............................................................................... 55
Hardware .......................................................................................... 55
Loctite / Scrapers .............................................................................. 56
Roll Over Protective Structures (ROPS).................................................. 56
Maintenance of ROPS/Seat Belts .......................................................... 56
Horn/Back-Up ................................................................................... 57
Troubleshooting................................................................................. 58 -61
Service Record................................................................................... 62
Parker Hose/Connections Warranty ...................................................... 63
Notes ............................................................................................... 64
CALIFORNIA PROPOSITION 65 WARNING............................................................ IBC

WARRANTY PERIODS
Concrete and Masonry Equipment Compaction Equipment
Mortar Mixers including:
Champion™ Mortar Mixers 1 Year Bulldog® Trench Rollers 2 Year
Buddy™ by Stone Mixers 2 Year - Mixer Drum 3 Year - Microprocessor (ECIB)
Champion™ Hydraulic Mixers Lifetime* - Bearing & Seals 5 Year - Eccentric Bearings
Champion™ Silo Mixers Reversible Plates 1 Year
Champion™ Concrete Mixers 1 Year Rhino®Single-Drum Dirt Rollers 1 Year
2 Year - Mixer Drum Silver Fox™ Forward Plates 2 Year
Lifetime* - Spindle Bearing 2 Year - Eccentric Bearings
Concrete Vibrators 1 Year Stompers®2 Year
Cretemower®Concrete Grinders 1 Year Walk-Behind Rollers 2 Year
1 Year - Diamond Head WolfPac™ Asphalt Rollers 1 Year
Groutzilla™ Placement System 2 Year
Lift Jockey™ Vertical Mast Lifts 2 Year
Mud Buggy™ Material Handlers 1 Year
Smooth Operator™ Power Trowels 1 Year
2 Year - Trowel Gearbox
Saw Devil®Pavement and Block 1 Year
Saws 1 Year - Saw Blades
Power Screeds including:
The Screed Bull™
1 Year
1 Year - Screed Board (Aluminum)
STONE CONSTRUCTION EQUIPMENT, INC.
8662 Main Street
Honeoye, NY 14471-0150
www.stone-equip.com
e-mail: [email protected] P/N 66609 Rev A 9110
Toll-free: 1-800-888-9926
Phone: [phone]
Fax: [phone]
Limited Warranty
Construction Equipment
Right Built. Bred Tough. Born To Work.
The Manufacturer warrants that products manufactured
shall be free from defects in material and workmanship
that develop under normal use for a period as hereinafter
set forth from the date of shipment. The foregoing shall
be the exclusive remedy of the buyer and the exclusive
liability of the Manufacturer.
Our warranty excludes normal replaceable wear items,
i.e. gaskets, wear plates, seals, O-rings, V-belts, drive
chains, clutches, etc. Any equipment, part or product,
which is furnished by the Manufacturer but manufactured
by another, bears only the warranty given by such other
manufacturer.
The Manufacturer’s sole responsibility for any breach of
the foregoing provision of this contract, with respect to
any product or part not conforming to the Warranty or
the description herein contained, is at its option (a) to
repair, replace or refund such product or parts upon the
prepaid return thereof to location designated specically
by the Manufacturer. Product returns not shipped prepaid
or on an economical transportation basis will be refused
(b) as an alternative to the foregoing modes of settlement
- the Manufacturer’s dealer to repair defective units
with reimbursement for expenses, except labor, and
be reviewed with the Manufacturer prior to repair. A
Warranty Evaluation Form must accompany all warranty
claims. Warranty is voided by product abuse, alterations,
and use of equipment in applications for which it was not
intended, use of non-manufacturer parts, or failure to
follow documented service instructions.
* The Manufacturer extends the warranty period to “Lifetime” for
the drum bearings and seals for the mortar mixers, and agrees to
furnish, free of charge, the bearing and seals only upon receipt of
the defective parts. The Manufacturer extends the warranty period
to “Lifetime” for the spindle bearings for the concrete mixers, and
agrees to furnish, free of charge, the bearing and seal only upon
receipt of the defective parts.
Except as set forth hereinabove and without limitation of
the above, there are no warranties or other afrmations,
which extend beyond the description of the products and
the fact hereof, or as to operational efciency, product
reliability or maintainability or compatibility with products
furnished by others. In no event whether as a result of
breach of contract or warranty or alleged negligence, shall
the Manufacturer be liable for special or consequential
damages including but not limited to: Loss of prots or
revenues, loss of use of the product or any associated
product, cost of capital, cost of substitute products,
facilities or services or claims of customers.
No claim will be allowed for products lost or damaged in
transit. Such claims should be led with the carrier within
fteen days.
The foregoing warranty is exclusive of all other warranties
whether written or oral, expressed or implied. No warranty
of merchantability or tness for a particular purpose shall
apply. The agents, dealer and employees of Manufacturer
are not authorized to make modication to this warranty, or
additional warranties binding on Manufacturer. Therefore,
additional statements, whether oral or written, do not
constitute warranty and should not be relied upon.
Effective September 2010.

RhinoTM 43/54
6
These instructions include:
Safety regulations
Operating instructions
Maintenance instructions
· These instructions have been prepared for operation on the construction site and for the
maintenance engineer.
· These instructions are intended to simplify operation of the machine and to avoid mal-
functions through improper operation.
· Observing the maintenance instructions will increase the reliability and service life of
the machine when used on the construction site and reduce repair costs and downtimes.
· Always keep these instructions at the place of use of the machine.
· Only operate the machine as instructed and follow these instructions.
· Observe the safety regulations as well as the guidelines of the civil engineering trade as-
sociation. Observe the safety rules for the operation of road rollers and compactors and
the pertinent regulations for the prevention of accidents.
· Stone Construction Equipment, Inc. is not liable for the function of the machine when
used in an improper manner and for other than the intended purpose.
· Operating errors, improper maintenance and the use of incorrect operating materials are
not covered by the warranty.
· The above information does not extend the warranty and liability conditions of business
of Stone Construction Equipment, Inc.
Stone Construction Equipment, Inc.
P.O. Box 150, Honeoye, New York 14471
Phone: [phone] [phone] Fax: [phone]
Foreword
Please enter the following data. This will help expedite any service or warranty work.
1. Machine Type: ________________________________________________________
Machine S/N: _________________________________________________________
2. Engine Type: __________________________________________________________
Engine S/N: __________________________________________________________
3. VIN: ________________________________________________________________
4. Purchase Date: ________________________________________________________
5. Dealer/Distributor Information:
Name: _______________________________________________________________
Address: _____________________________________________________________
____________________________________________________________________
Phone #: _____________________________________________________________
Fax # ________________________________________________________________
6. Battery Manufacturer: __________________________________________________
Battery Type: _________________________________________________________
Battery S/N: __________________________________________________________
Location of warranty infor-
mation:
1. Information on S/N tag.
2. Information on engine
tag.
3. Information on S/N tag
- if applicable.
4. Date you purchased
machine.
5. Dealer machine was
purchased from.
6. Information on battery
and battery warranty
card.

7
Stone
Construction
Equipment, Inc.
1. Introduction

RhinoTM 43/54
8
Introduction
INTRODUCTION
This roller is ergonomically engineered to optimize operator interface with the total ma-
chine – it’s really “user friendly”. Besides good visibility to the roll-edge, as well as the
work surface, you’ll find that the controls are exactly in the right places for maximum
comfort. And it is very convenient to monitor all the consumables – fuel, hydraulic oil,
etc.
Our common sense approach to servicing is a valuable benefit. Thanks to our modular
design, everything that needs servicing is located behind one of the easy-access service
panels or is under the rear cowl.
For maneuverability and productivity, nothing beats the proven performance of center-
point articulation. Because the drum and tires track each other exactly, tight turns are
achieved smoothly. The roller is equipped with full positive traction, front to rear and
side to side, which keeps the roller moving through various conditions.
There’s power steering – a feature no operator wants to be without. A variable hydro-
static drive system provides infinitely variable speed control – from 0 to 4 mph. The
eccentric delivers a centrifugal force sufficient to compact all types of soil. Superior
vibration isolation to the operator is achieved by mounting heavy-duty shock mounts
between the eccentric and support frames.
The following instructions were compiled to provide you information on how to obtain
long and trouble-free use of the roller. Periodic maintenance of the roller is essential.
Read this manual in its entirety and follow the instructions carefully. Failure to do so
may cause injury to you or a bystander.
MACHINE CONFIGURATION DESCRIPTION
The Stone Rhino is supplied in six configurations:
• SD43 Smooth Drum • SD54 Smooth Drum
• PD43 Pad foot • PD54 Padfoot
• PDB43 Padfoot with blade • PDB54 Padfoot with blade
INTENDED USE
These machines are designed to carry out the function of compacting material of the co-
hesive, bituminous and granular varieties. If used correctly they will provide an effective
and safe means of compaction and meet the appropriate performance standards.
Use of the machine in any other way is considered contrary to the intended use and will
void the warranty.
Danger Zone
While the machine is in use unauthorized persons must remain out side the danger zone.

9
Stone
Construction
Equipment, Inc.
2. Technical Data

10
Technical
Data
RhinoTM 43/54
IDLE RPM 900 + 100 15Hz
FULL RPM 2,200 + 100 36.6Hz
ECCENTRIC FULL SPEED RPM 2,200 +200 35-40Hz
ENGINE RPM
Stone RhinoTM 43 Specifications
Standard Features: 2 drum scrapers; ROPS/FOPS; gauges – oil pressure, volt meter, cool-
ant temp, hour meter, fuel sight, hydraulic oil sight; warning lights - oil pressure and
temperature; horn; back-up alarm; neutral safety start; padded seat w/flip-up arm rests;
seat belt
* See note on page 12.
MODEL STONE SD 43 STONE PD 43 STONE PDB 43
Drum Type Smooth Padfoot Padfoot w/blade
Dimensions
Operating Weight 6100# (2767) 6409# (2907,1) 6771# (3071,3)
Drum Width in (cm) 43” (109,2) 43” (109,2) 43” (109,2)
H x L x W in (cm) 97” x 124” x 51”
(246,4 x 315 x 124,5)
97” x 124” x 51”
(246,4 x 315 x 124,5)
97” x 136” x 57”
(246,4 x 315 x 144,8)
Tire Size (cm) 9.5 x 16 (24,1 x 40.6) 9.5 x 16 (24,1 x 40,6) 9.5 x 16 (24,1 x 40,6)
Tires Profile Diamond Tread Cleated Tractor Cleated Tractor
Operating System
Engine hp* (kW)
66.8 hp* Kubota
(49.8)
66.8 hp* Kubota
(49.8)
66.8 hp* Kubota
(49.8)
Operating Speed RPM (Hz) 2200 (36.7) 2200 (36.7) 2200 (36.7)
Fuel Capacity gal (l) 20 gal. (75,7) 20 gal. (75,7) 20 gal. (75,7)
Steering Power Power Power
Frame Articulating, Oscillating Articulating, Oscillating Articulating, Oscillating
Drive System Positraction Positraction Positraction
Eccentric Drive Hydrostatic Hydrostatic Hydrostatic
Cooling Water Water Water
Parking Brake Mechanical Mechanical Mechanical
Security Braking System Hydrostatic Hydrostatic Hydrostatic
Performance
Centrifugal Force lbs (kN) 12,000# (53,38) 12,000# (53,38) 12,000# (53,38)
Frequency RPM (Hz) 2200 (36,6) 2200 (36,6) 2200 (36,6)
Total Applied Force High
lbs (kN) 14,900# (66,28) 15,209# (67,65) 15,419# (68,59)
Travel Speed MPH
(km/hr) 0-4 mph (0-6,44) 0-4 mph (0-6,44) 0-4 mph (0-6,44)
Amplitude (mm) .071” (1,80) .059” (1,50) .053” (1,35)
Articulating Angle 35o35o35o
Oscillating Angle 9o9o9o
Gradeability 90% 70% 70%
Inside Turning Radius in (cm) 99” (251) 99” (251) 99” (251)
Wall Clearance in (cm) 2 1/2” (6,35) 2 1/2” (6,35) 7” (17,78)
Curb Clearance in (cm) 14” (35,56) 14” (35,56) 14” (35,56)
Area Cap. (Sq.Ft./Hr.) (M2)37,840 sq.ft/hr
.(3515,5)
37,840 sq.ft/hr.
(3515,5)
37,840 sq.ft/hr
. (3515,5)

11
Technical
Data
RhinoTM 43/54
Stone RhinoTM 54 Specifications
ENGINE RPM
Standard Features: 2 drum scrapers; ROPS/FOPS; gauges – oil pressure, volt meter, cool-
ant temp, hour meter, fuel sight, hydraulic oil sight; warning lights - oil pressure and
temperature; horn; back-up alarm; neutral safety start; padded seat w/flip-up arm rests;
seat belt
* See note on page 12.
IDLE RPM 900 + 100 15Hz
FULL RPM 2,200 + 100 36.6Hz
ECCENTRIC FULL SPEED RPM 2,200 +200 35-40Hz
MODEL STONE SD 54 STONE PD 54 STONE PDB 54
Drum Type Smooth Padfoot Padfoot w/blade
Dimensions
Operating Weight 6540# (2966,5) 6880# (3120.7) 7275# (3300)
Drum Width in (cm) 54” (137,2) 54” (137.2) 54” (137,2)
H x L x W in (cm)
97” x 124” x 59”
(246,4 x 315 x
149,9)
97’ x 124’ x 59’
(246.4 x 315 x
149.9)
97” x 136” x 68”
(246,4 x 315 x
172,7)
Tire Size (cm) 9.5 x 16 (24,1 x
40,6)
9.5 x 16 (24.1 x
40.6)
9.5 x 16 (24,1 x
40,6)
Tires Profile Diamond Tread Cleated Tractor Cleated Tractor
Operating System
Engine HP* (kW)
66.8 hp* Kubota
(49.8)
66.8 hp* Kubota
(49.8)
66.8 hp* Kubota
(49.8)
Operating Speed RPM (Hz) 2400 (40) 2400 (40) 2400 (40)
Fuel Capacity gal (l) 20 gal. (75,7) 20 gal (75,7) 20 gal. (75,7)
Steering Power Power Power
Frame Articulating,
Oscillating
Articulating
Oscillating
Articulating,
Oscillating
Drive System Positraction Positraction Positraction
Eccentric Drive Hydrostatic Hydrostatic Hydrostatic
Cooling Water Water Water
Parking Brake Mechanical Mechanical Mechanical
Security Braking System Hydrostatic Hydrostatic Hydrostatic
Performance
Centrifugal Force lbs (kN) 12,000# (53,38) 12,000# (53,38) 12,000# (53,38)
Frequency RPM (Hz) 2200 (36,6) 2200 (36,6) 2200 (36,6)
Total Applied Force
lbs (kN) 15,100# (67,17) 15,808# (70,32) 16,075# (71,51)
Travel Speed MPH
(km/hr) 0-4 mph (0-6,44) 0-4 mph (0-6,44) 0-4 mph (0-6,44)
Amplitude (mm) .062” (1,57) .059” (1,50) .053” (1,35)
Articulating Angle 35o35o35o
Oscillating Angle 9o9o9o
Gradeability 90% 70% 70%
Inside Turning Radius in
(cm) 93.5” (237) 93.5” (237) 93.5” (237)
Wall Clearance in (cm) 2 1/2” (6,35) 2 1/2” (6,35) 7” (17,78)
Curb Clearance in (cm) 14” (35,56) 14” (35,56) 14” (35,56)
Area Cap. (Sq.Ft./Hr.) (M2)47,520 sq.ft/hr.
(4414,8)
47,520 sq.ft/hr.
(4414,8)
47,520 sq.ft/hr.
(4414,8)

12
Technical
Data
RhinoTM 43/54
* Note: Engine power ratings are calculated by the individual engine manufacturer
and the rating method may vary among engine manufacturers. Stone Construction
Equipment, Inc. makes no claim, representation or warranty as to the power rating of
the engine on this equipment and disclaims any responsibility or liability of any kind
whatsoever with respect to the accuracy of the engine power rating. Users are advised
MACHINE DATA
MACHINE DATA
Brakes
Service
Parking
Hydrostatic
Automatic spring applied
Recommended
Fuel
Diesel fuel blend meeting ASTM D975 or EN 590
Premium diesel fuel conditioner is also recommended
Electric 12 Volt system battery BCI group 34
770 CCA 90 amp charge system
Hydraulic Oil Mobilfluid 424
Capacity 20 gallons (76 liters)
Engine Oil SAE 15W/40 API CG-4 or API CF-4 3.5 gallons (13.2 liters)
Engine Coolant 50/50 Mixture antifreeze / distilled water meeting ASTM
4985.
Eccentric Oil
SAE 20W/50 API SJ or API SH
SD / PD 43: 1 quart (.95 liter)
SD / PD 54: 1.5 quarts (1.4 liters)
Engine / HP Kubota V3600 66.8 HP* (49.08 kW) @ 2,600 RPM
Torque 163 ft. lbs. (221 Nm) @ 1,600 RPM
Fuel Economy .454 lb./hp - hr. (277 g/kWh) @ 2,600 RPM

13
Technical
Data
RhinoTM 43/54
OPERATOR CONTROlS
PART NUMBER
REV.
A
REAR_FRAME_SD_V3600
OPERATOR CONTROLS RHINO 43,54
RHV36012_1A.DXF 8/4/08
1
2
8910 3
12 13 14 15
4
5
6
7
1 Keyswitch
2 Throttle
3 Horn
4 E-Stop Button
5 Vibe Button
6 Control Lever
7 Blade Lever (Option)
8 Panel Fuse
9 Hourmeter
10 Engine Pre-Heat Lamp
11 Engine Temperature Gauge
12 Engine Oil Pressure Gauge
13 Engine Warning Light
14 Voltmeter
15 Parking Brake Light

14
Technical
Data
RhinoTM 43/54
LOCKING BAR
1
2
Locking Bar shown in LOCK position.
1 Locking Bar
2 Pin
lOCkING BAR
MACHINE SOUND lEVEl TEST
MACHINE SOUND lEVEl TEST
Machine Type PDB64 Rhino
Sound Level Meter Calibration Date August 6, 1997
Meter Type Simpson Model 886-2 Type 2
Test Date August 6, 1997
Test Conditions:
Temperature 70° Fahrenheit / 20° Celsius
Ambient Sound 60 dba Slow Mode
Soil Condition Silts and Clays
Moisture Limit N/A
Engine Speed 2,500 RPM / 41 Hz
Frequency 2,100 VPM / 34 Hz
Test Site Honeoye, New York, USA
Sound Level at Operator Position 93 dba Without Vibe
93 dba With Vibe

15
Technical
Data
RhinoTM 43/54
MACHINE DIMENSIONS RHINO 43
Dimensions indicated in inches.
124
97
124
97
136
97
76
76
76

16
Technical
Data
RhinoTM 43/54
MACHINE DIMENSIONS RHINO 54
Dimensions indicated in inches.
124
97
124
97
136
97
76
76
76

17
Stone
Construction
Equipment, Inc.
3. Health & Safety

18
Health &
Safety
RhinoTM 43/54
DECAl IDENTIFICATION
Before using this equipment, study this entire manual to become familiar with its opera-
tion. Do not allow untrained or unauthorized personnel, especially children, to operate
this equipment. Use only factory authorized parts for service.
When warning decals are destroyed or missing, contact the Manufacturer immediately at
1-800-888-9926 for replacement. For the safety of your self and others, it is imperative
that the following rules are observed. Failure to do so may result in serious injury or
death.
12
3
4
5
6
7
8
9
10
11
12
13
Safety Decals
1 55128
Decal Danger Fuel Flammable
8 55212
Decal Tie Down Only
2 55149
Decal Wear Ear Protection
9 55416
Decal Warning Hydraulic Breather Cap
3 55215
Decal Caution Pinch Point
10 55371
Decal Caution Hot Surfaces
4 55565
Decal Safety Instructions
11 55422
Decal Caution Mobilfluid 424
5 55541
Decal Notice Missing Decals
12 55372
Decal Warning No Ether
6 55395
Decal Grease Weekly
13 55538
Decal Diesel Fuel Only
7 55564
Decal Warning Read Manual
14 55728
Decal Lights E-Stop
RUN
MARCHA
STOP
APAGADO
EMERGENCY STOP
PARADA DE EMERGENCIA
55728
14

19
Health &
Safety
RhinoTM 43/54
FOllOW SAFETY INSTRUCTIONS
• Carefully read all safety messages and decals in this manual and on your ma-
chine safety signs. Keep decals in good condition. Replace missing or damaged
decals. Be sure new equipment components and repair parts include the current
safety signs. Replacement safety signs and decals are available through your
dealer.
• Learn how to operate the machine and how to use controls properly. Do not let
anyone operate without instruction.
• Keep your machine in proper working condition. Unauthorized modifications to
the machine may impair the function and/or safety and affect machine life.
• If you do not understand any part of this manual and need assistance, contact
your dealer.
UNDERSTAND SIGNAl WORDS
• A signal word – DANGER, WARNING, or CAUTION – is used with the safety-alert
symbol. DANGER identifies the most serious hazards.
• DANGER or WARNING safety signs are located near specific hazards. General
precautions are listed on CAUTION safety signs. IMPORTANT also calls attention
to safety messages in this manual.
• This notation appears before warnings in the text. It means that the step that
follows must be carried out to avoid the possibility of personal injury or death.
These warnings are intended to help the technician avoid any potential hazards
encountered in the normal service procedures. We strongly recommend that the
reader takes advantage of the information provided to prevent personal injury or
injury to others.
PRACTICE SAFE OPERATION
• Users must be trained to operate this roller. Read the Operator’s Manual and
Engine Owner’s Manual. Learn to operate this roller safely.
• Only start engine from operator’s seat.
• Operator must always be seated when roller is running.
• Never allow more than one person on roller.
• Before starting machine, make sure that there are no persons or obstacles near
or under machine.
• Always turn engine off before dismounting from roller.
• Never park roller on a hill.
• Never operate roller on slope greater than 15 degrees.
• Do not operate across the sides of hills, roller may tip over.
• Do not articulate on grades larger than 15o, roller may tip over.
• Do not operate the roller in standing water.
• Do not operate at the edge of mats or roads, roller may tip over.
WARNING

20
Health &
Safety
RhinoTM 43/54
PRACTICE SAFE OPERATION
• Ear protection required when operating this equipment.
• Exposure to loud noise can cause impairment
or loss of hearing.
• For foot protection, wear steel toe shoes or
toe pads.
• Keep away from the machine’s articulation
area (crush zone) when the engine is run-
ning.
PROPER VENTIlATION
• Never operate unit in a poorly ventilated or enclosed area.
• Avoid prolonged breathing of exhaust gases.
• Engine exhaust fumes can cause sickness or death.
PREVENT BYPASS STARTING
• Avoid possible injury or death from engine runaway.
• Do not bypass seat interlock or neutral interlock or engine will start with safety
interlocks bypassed.
• Start engine only from operator’s station with control lever in neutral.
WEAR PROTECTIVE ClOTHING
• Wear close fitting clothing and safety equipment appropriate to the job.
• Prolonged exposure to loud noise can cause impairment or loss of hearing.
• Wear a suitable hearing protective device such as earmuffs or earplugs to protect
against objectionable or uncomfortable loud noises.
• Operating equipment safely requires the full attention of the operator. Do not
wear radio or music headphones while operating machine.
HOT SURFACES
• Muffler, engine, and engine shroud may be hot.
• Allow all components in the engine compartment to cool before performing any
service work.
Pinch Point Symbol
