Strack PowerMax light SN5650-PMOL-0330 User manual

CAM UNIT
SN5650-PMOL-0330 — SN5650-PMOL-1200-V04
OPERATING INSTRUCTIONS
PowerMax
light
the simple solution

2STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
Contents: Page:
Preamble 4
1. Safety instructions. Please absolutely consider! 5
2. After receipt of delivery 6
3. Features 7
3.1 Description of the designs 8
4. Scope of delivery 8
5. Design of the PowerMax side cams 9
6. Preparation of tool and press 10
7. Shouldering 10
7.1.1 Dowel pin (old „Z“) 11
7.1.2 Slot nuts LONG + CROSS (old „N“) 12
7.1.3 Slot nut CROSS + dowel pin 12
7.1.4 Slot nut LONG + dowel pin 12
8. Production 13
8.1 Handling with safety ring bolt (SN1594) 14
8.1.1 Mounting of the cam slide in the cam retainer 14
8.1.2 Mounting of the cam slide with cam retainer in the upper part of the tool 14
with central transport thread
8.1.3 Mounting of the cam slide with cam retainer in the upper part of the tool 14
with lateral transport thread
8.2 Marking of the cams 15

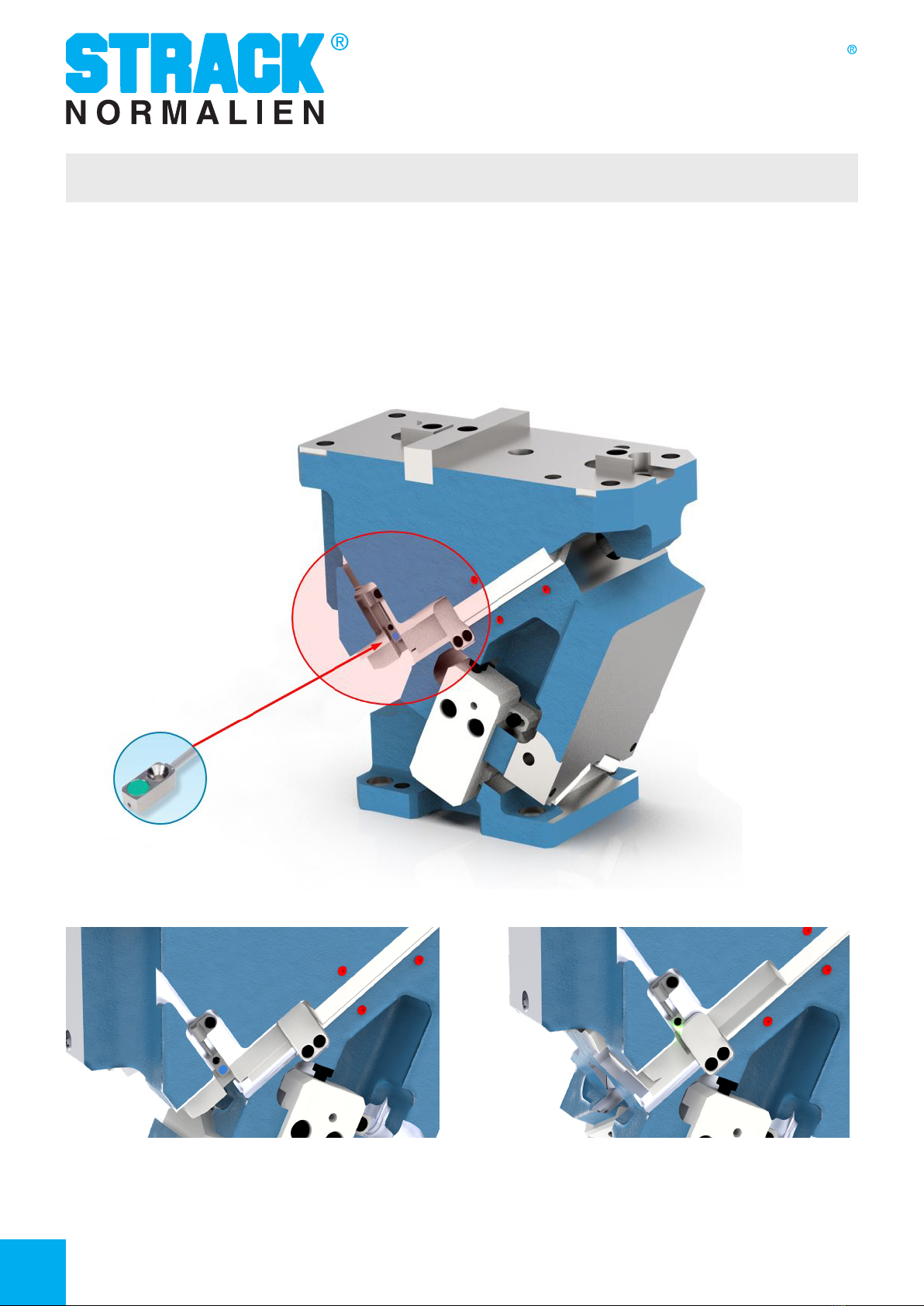

8.3 Optional sensor for position monitoring 16
9. Lock-Out-System SN5654-LOS 17
9.1 Information concering Lock-Out-System SN5654-LOS 21
10. Disassembly / assembly / of the gas spring 22
10.1 Cam lock 23
11. Modification of the system pressure of the gas springs 23
11.1 Releasing of the pressure at a gas spring 23
11.2 Increasing of the pressure / filling of a gas spring 24
12. Standstill and storage 26
13. Maintenance 26
13.1 Pre-adjustment of the active return 27
13.2 Adjustment of the forced return 28
14. Appendix 32
14.1 Internet and CAD 32
14.2 General description gas springs 33
14.3 Maximum working conditions for gas springs 34

3
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
Contents: Page:
14.4 Calculations gas springs 35
14.5 Installation instructions gas springs 36
14.6 Filling pressure table gas springs 37
15. Exploded view and parts list 40

4
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
Preamble
Thank you for your confidence in the product of STRACK NORMA GmbH & Co. KG.
We are pleased that you have chosen a product of STRACK. To facilitate your handling of the product, we
prepared these operating instructions.
This operating manual is an important document for the side cam unit SN5650-PMO and serves for the
safe and efficient operation. It is intended for all persons handling this cam-unit or for persons being res-
ponsible for its safe operation
For reasons of operational safety, a copy of these operating instructions must be left at the machine with
the side cam unit to ensure direct access for the operating staff.
The safety instructions in this operating instruction have to be particularly observed to recognize and to
avoid possible dangers. Read the operating instruction carefully and completely before mounting and
starting-up the cam unit SN5650.
A regular maintenance is necessary to ensure a safe and economic use.
If the regulations and notes of these operating instructions are not considered, any liability on our part for
resulting damages and loss of performance is excluded.

5
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
1. Safety instructions. Please absolutely observe!
Please absolutely read and observe the following safety instructions before mounting and starting-up and
all further works at the STRACK PowerMax cam.
The cam must be used according to this operating instruction. When a new operating instruction is publis-
hed, this version loses its validity.
Service and maintenance work at mounted STRACK nitrogen gas springs may only be effected by per-
sons trained and instructed by STRACK NORMA with good technical knowledge.
If the mounted STRACK nitrogen gas spring is used improperly or for purposes other than those for which
it is intended there is a risk of:
Dangers to health,
Danger to the STRACK nitrogen gas springs and other assets of the user,
Danger to the efficiency of the STRACK nitrogen gas springs.
For all work at the STRACK side cam the valid industrial safety ordinance, section 3, must be observed.
Press, tool, and peripheral devices must be suitable, prepared and coordinated for the use of STRACK
side cams.
Attention:
There is the risk of accident before and during the service- and maintenance works at the
tool or the STRACK cam. For this reason, these works may exclusively be carried out at
retracted side cam units.
Jammed cam unit can lead to abrupt relaxation with intact gas springs and can thus be a
risk of injury.
Damaged gas springs must not be reused. The exchange of individual components has to be discussed
with STRACK NORMA.
PowerMax cam unit SN5650-PMOL-0330 —SN5650-PMOL-1200

6
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
2. After receipt of delivery
Examine the delivery for external damage before opening. Immediately report any damage to the transport
company, that delivered the consignment.
Compare the content of your consignment with the delivery bill or the enclosed parts list (see appendix).
Ensure that all parts are present and unpacked.
Only then dispose of the transport- and packaging material.
If the contents are damaged without external damage of the packaging do not return it for repair or ex-
change.
Please contact STRACK NORMA GmbH & Co. KG in Lüdenscheid for further information.
CONTACT:
Team PowerMax, Automotive
Phone: 02351 / 8701 - 7300
E-Mail: [email protected]

7
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
3. Features
The design of this STRACK cam unit is a „side cam unit type SN5650“. This PowerMax cam unit con-
sists of:
- Cam retainer
- Cam body
- Driver
with the corresponding attachments.
All PowerMax cam units are equipped with gas springs.
As pressure medium for the gas springs in this system nitrogen with a purity level
≥99,8 Vol.-% is used.
Cylinder size, -number and filling pressure (different for the different cam types) determine the availab-
le restoring force.
Please consider that all PowerMax cam units are the successful result of a long development effort.
The resulting technical advantages unfold optimally when the respective cam stroke is completely
used during the working process, i.e., the punching-/bending operation of the cam unit should take
place in the front-end position.
The complete utilization of the cam stroke allows the maximum intervention of the active return and
thus the highest possible provision of retraction- or stripping forces (about 10% of the press force).
At the front-end point of the cam stroke the maximum return force of the gas spring is applied. In ge-
neral, the following applies: The design and the resulting values such as installation height and return
forces require that the cam unit is installed in the specified front-end position.

8
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
3.1 Description of the designs
The cam is equipped with slide elements out of sintered material. The work surface is made of
cast-iron.
Attention:
The installed gas springs serve to additionally retract the cam slide.
The working forces required for this operation are absorbed by the active return.
4. Scope of delivery
The PowerMax cam units are delivered preassembled and adjusted with precise guide play.
The installed gas springs are delivered with the maximum filling pressure unless otherwise reques-
ted.
The working surface can already contain customer-specific machining.
All cams can also be manufactured for the processing of high-strength sheet metal, contrary to the
angles shown in the catalogue in steps of 5, in all intermediate angles according to customer requi-
rements.
Please contact us.

9
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
53
57
60
63
63
60
57
68
75
80
85
85
80
74
249
313
391
517
488
374
300
112
130
148
166
163
145
127
6 x 20
137
17
3 x 15
230
3 x 25 3 x 25
17,5
17,5
159
189
218
253
247
213
184
53
55
55
55
55
55
55
146
146
146
146
146
146
146
67
67
67
67
67
67
67
86
85
85
85
85
85
85
103
102
102
102
102
102
102
122
121
121
121
121
121
121
90
101
111
121
120
110
100
53
55
55
55
55
55
55
67
67
67
67
67
67
67
86
85
85
85
85
85
85
103
102
102
102
102
102
102
122
121
121
121
121
121
121
53
57
60
63
63
60
57
68
75
80
85
85
80
74
112
130
148
166
163
145
127
159
189
218
253
247
213
184
90
101
111
121
120
110
100
F max. = 595 kN
5. Design of the PowerMax side cams
STRACK NORMA PowerMax cams are manufactured with high precision.
The guides, which are ground to a tight guide play, allow highest loads. The side cam units can be loa-
ded with the tool on the work surface. It is important to ensure that the force is applied in the centre of
the work surface.

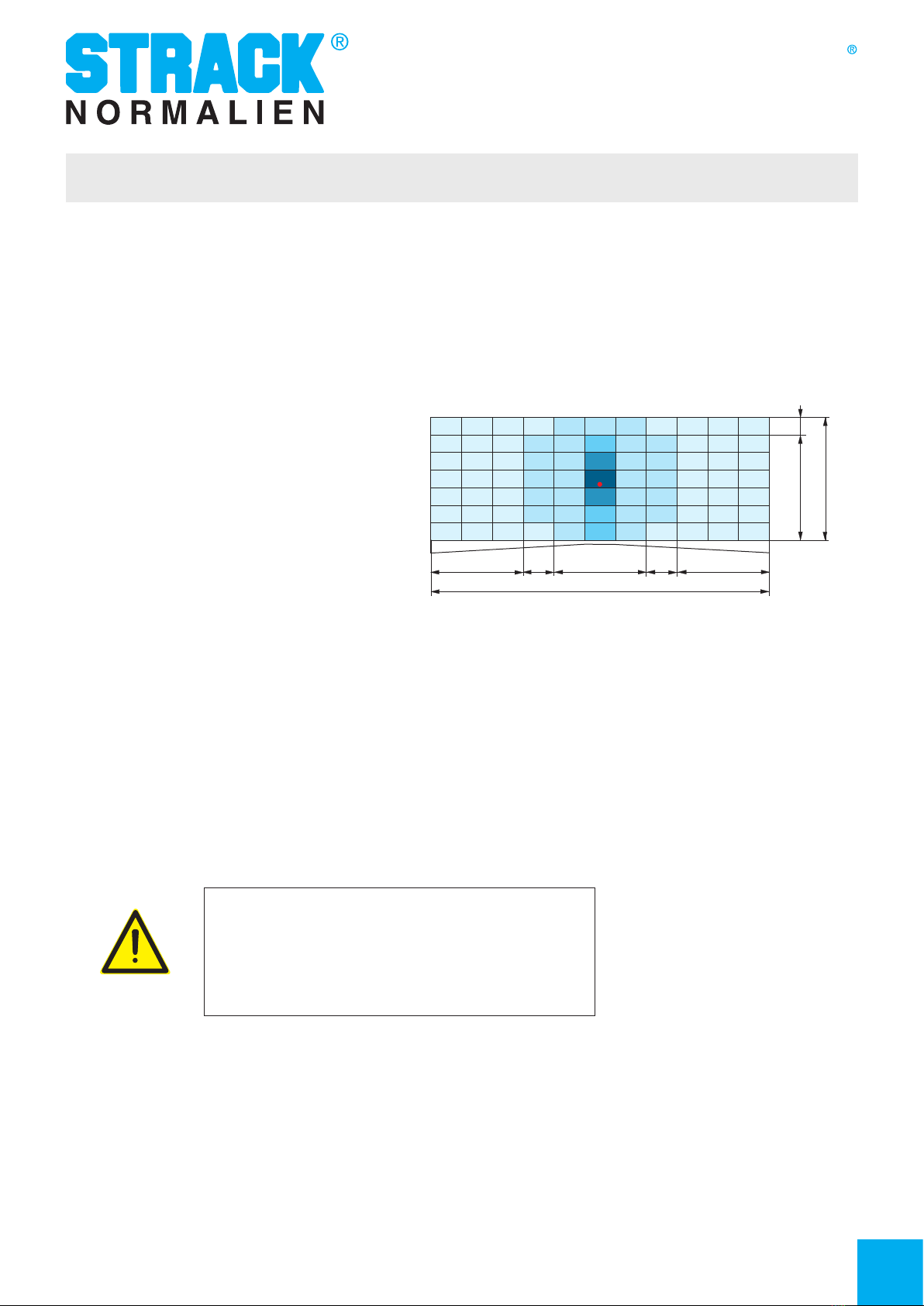

If the load is off-centre, uneven forces are
exerted on the guides and cause increased
wear.
This clearly shows the maximum power outside the centre of action for the X or Y axis. Possible future
changes in position should be considered in advance to select a cam size that corresponds to the force.
In order to be able to guarantee the same service life, the load forces are reduced depending on the
position on the working surface.
For exact details, please refer to the catalogue information for your cam on the internet at
www.strack.de
Attention:
If the cam is to be built over with attachments, a
new calculation is necessary.
Please contact us.

10
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
FP
FS
FW
FA
h1
h2
Fh1
Fh2 W
6. Preparation of tool and press
Tool, press and peripheral devices must be suitable, prepared and coordinated for the use of STRACK
PowerMax cam units according to the specifications of STRACK.
Drain off liquid (e.g., water or drawing oil) in a targeted manner using a drainage system.
Ensure that the punching waste does not fall into or onto the cam guide.
Cam slide and guide can jam. Parts falling down can damage the guides, which may reduce the ser-
vice life of the cam. In case of failure the cam slide cannot be returned to its original position.
7. Shouldering

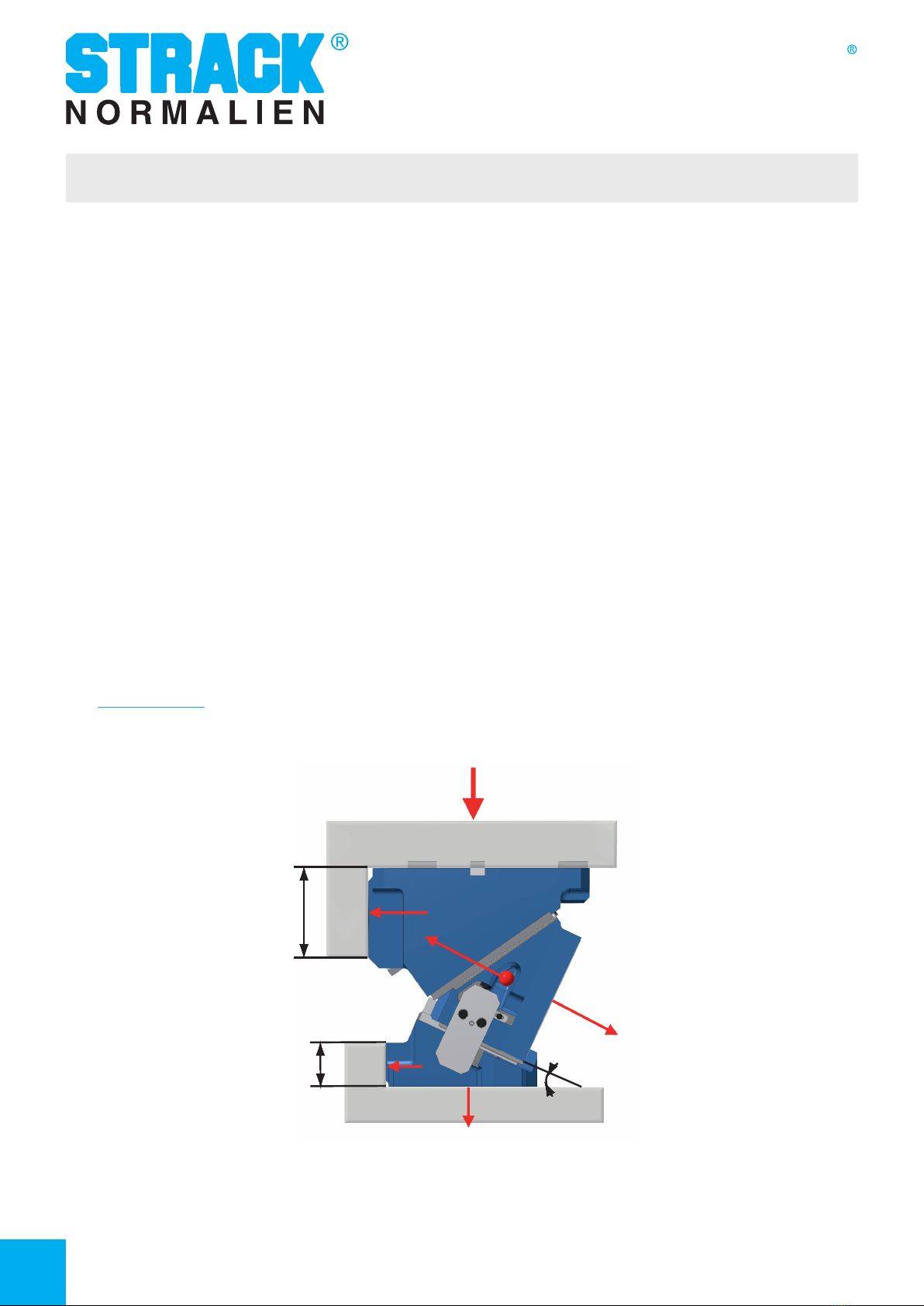

The force distribution of the individual forces in the cam depends on the right shouldering in the tool
and the cam angle.
If the heights h1 and h2 (see figure below) in the tool are reduced, the forces of the shouldering cannot
be fully born.
For exact details, please refer to the catalogue information for your cam on the internet
at www.strack.de

11
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax

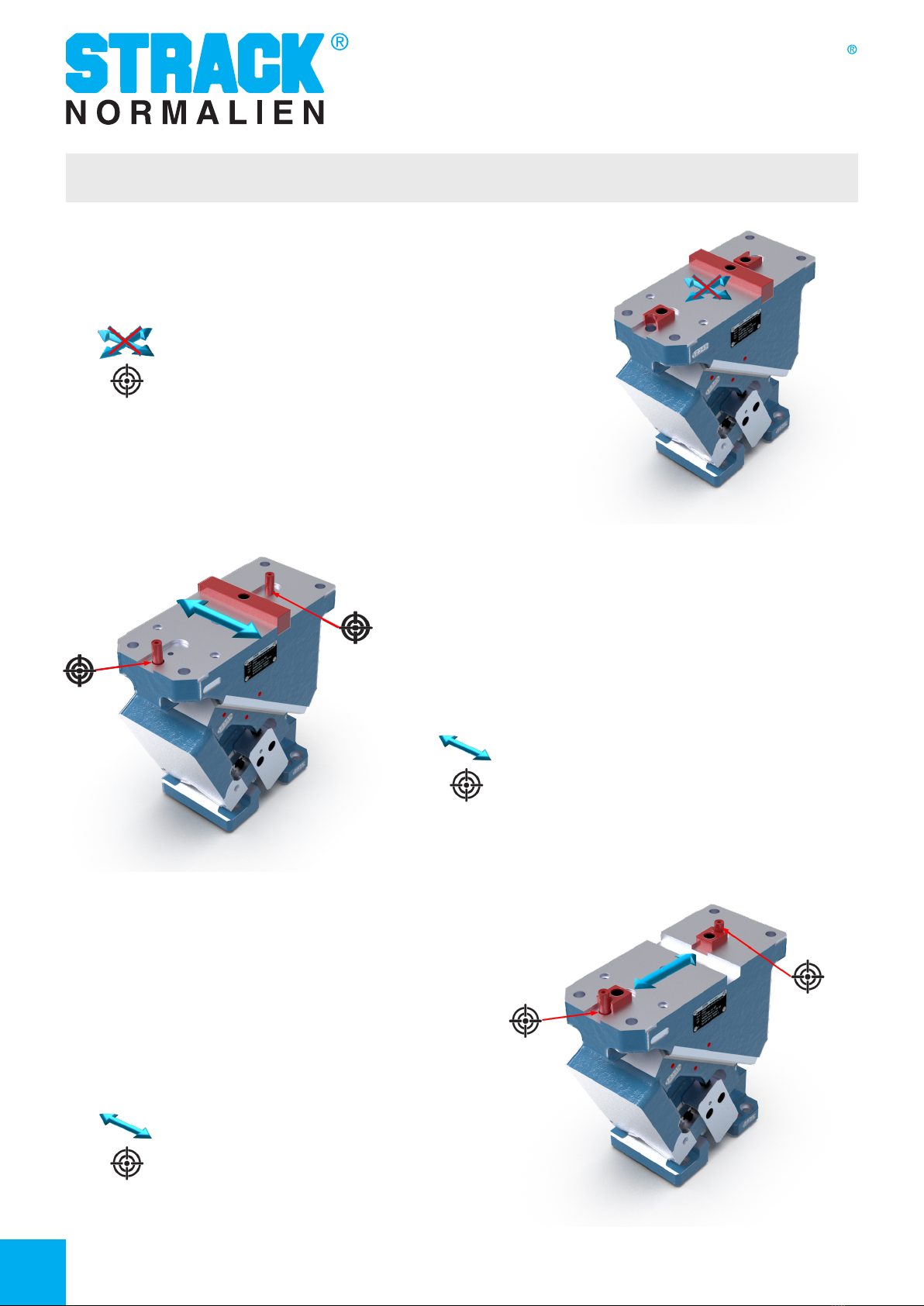

7.1. Centring in the tool by means of dowel pin and/or slot nuts
In version V04 STRACK Norma has combined the „Z“ dowel pin and „N“ slot nut from the familiar centrings
in a new version. This offers the user new flexible possibilities as described under
7.1.1 up to 7.1.4.
COMBINATIONS ARE FREELY SELECTABLE BY THE CUSTOMER:
7.1.1 Dowel pin (old „Z“)
7.1.2 Slot nuts LONG + CROSS (old “N“)
7.1.3 Slot nut CROSS + dowel pin
7.1.4 Slot nut LONG + dowel pin
7.1.1 Dowel pin (old „Z“)
• Position cam retainer in the tool
• Set dowel pin
Direction of fine adjustment possible before pinning in both
positions
End position fixed by dowel pin

12
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
7.1.3 Slot nut CROSS + dowel pin
• Slide retainer fixed in the upper part of the tool in longi-
tudinal axis by feather key.
• Can be moved transversely for fine positioning
• Dowel pin sets final position
Fine adjustment not possible
End position determined by slot nuts
Direction of fine adjustment
End position is determined by dowel pin
Direction of fine adjustment
End position is determined by dowel pin
7.1.2 SLOT NUTS LONG + CROSS (OLD “N“)
• Slot nuts in longitudinal- and transverse direction determine position
7.1.4 Slot nut LONG + dowel pin
• Cam retainer is fixed in the upper part of
the tool in transverse axis by feather key.
• Can be moved longitudinally for fine positioning
• Dowel pin sets final position
PowerMax cam unit SN5650-PMOL-0330 —SN5650-PMOL-1200

13
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax

Schrauben
DIN EN ISO 4762-10.9 M6 M8 M10 M12 M16 M20
Anzugsdrehmoment [Nm] 14 33 65 121 302 590
Alle Angaben
ohne Gewähr.
Company Oils Fat
AGIP Potra ATF Agip GR MU 2
BP Autran DX II Energrease
ESSO ATF Suffix A Nebula EP 2
ESSO ATF - D Beacon EP 2
OMV ATF Serie OMV signum CX 2
SHELL Donax TM Retinax LX
SHELL Donax TF
8. Production
During production no special precautions have to be taken that go beyond the valid Industrial Safe Ordi-
nance paragraph 3.
Attention:
If attachments are dismounted in the assembly process, these must be then
secured again with Loctite 242.
Notes on tightening torques:
Note:
Make sure that the STRACK PowerMax cams, especially the gas springs are not im
mersed in liquid.
If, for example, aggressive drawing oils are used during the production, create a
controlled drain (drainage holes, cut-outs etc.) for this so that the liquids are led
away from the gas springs.
This prevents damage to the seals.
Tip:
Check the nitrogen pressure of the gas springs at regular intervals to detect
changes in the pressure level in time. When carrying out maintenance work make
sure that the cam slide is properly returned
Note:
The PowerMax cam units are equipped with low-maintenance slide elements out of
SNS-sintered metal. Normally a lubrication is not necessary.
If necessary, lubrication may only be carried out with the following lubricants:

14
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
8.1 Handling with safety ring bolt (SN1594)
8.1.1 Mounting of the cam slide in the cam retainer
From cam widths 330 onwards, the cam retainer and slide can
be mounted together in a simplified manner by means of the safety
ring bolt SN1594 as the different positions of the threads of the
supporting screws facilitate the threading of the cam slide in
the cam retainer.
8.1.2 8.1.2 Mounting of the cam slide with cam retainer in the upper part of the
tool with central transport thread
By changing of the position of the safety ring
bolt, the cam retainer and cam slide can be
mounted more easily together in the tool.
8.1.3 Mounting of the cam slide with cam retainer in the upper part of the tool
with lateral transport thread
Installation of cam retainer with cam slide in the tool with lateral
thread for flexible installation and turning of the cam.

15
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
8.2 Marking of the cams
All PowerMax cams are equipped with a type plate.
The name and the serial number are lasered onto this type plate.
Cam designation
6-digit serial number for
additional information of
the customer
The serial number refers to all cams of an order and is different from order to order. The PowerMax-cams
were adjusted at STRACK. For this purpose, the hardened steel slide bars were ground to the appropriate
size. The corresponding screws were additionally secured with Z9093 screw locking adhesive.
To avoid confusion within a series, the assemblies of the individual sliders within a series are marked with
serial numbers (see picture below). During the mounting make absolutely sure that the components are cor-
rectly assigned in order to avoid problems.
Additional markings on the cam retainer and cam body
make it possible to control the position of the cam in the
tool.
When the cam is retracted the upper markings are stan-
ding together, at extended cams the lower markings are
standing together.
If the marking on the cam body is between those of the
retainer, the whole cam is not returned to the correct
starting position.
ATTENTION: Do not remove these bars. If this should become necessary in the event of a
crash, the replacement bars must be adjusted accordingly.

16
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
8.3 Optional sensor for position monitoring
Optionally the PowerMax cams can be ordered with a sensor for position monitoring. The sensor plate
contacts the inductive limit switch Z7685 during the upward movement and signals to the machine that
the cam slide is in the rearmost position.

17
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
9. Lock-Out-System SN5654-LOS
SN5654-LOS
SN5654-LOS-Type
Mat.: ST more details: www.strack.de
SN5651-LOS-DS
SN3500
PMOL 0330
SN5654-PMO-LOS-0330-00 00° SN3500-M12-110 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-05 05° SN3500-M12-110 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-10 10° SN3500-M12-100 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-15 15° SN3500-M12-80 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-20 20° SN3500-M12-80 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-25 25° SN3500-M12-70 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-30 30° SN3500-M12-70 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-35 35° SN3500-M12-60 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-40 40° SN3500-M12-65 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-45 45° SN3500-M12-60 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-50 50° SN3500-M12-60 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-55 55° SN3500-M12-60 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-60 60° SN3500-M12-65 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-65 65° SN3500-M12-65 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0330-70 70° SN3500-M12-65 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
Type Screw Pcs. Screw Pcs. Pressure piece Pcs.

18
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
Type Screw Pcs. Screw Pcs. Pressure piece Pcs.
PMOL 0400
SN5654-PMO-LOS-0400-00 00° SN3500-M12-110 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-05 05° SN3500-M12-110 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-10 10° SN3500-M12-100 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-15 15° SN3500-M12-80 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-20 20° SN3500-M12-80 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-25 25° SN3500-M12-70 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-30 30° SN3500-M12-70 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-35 35° SN3500-M12-60 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-40 40° SN3500-M12-65 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-45 45° SN3500-M12-60 1 SN3500-M12-45 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-50 50° SN3500-M12-60 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-55 55° SN3500-M12-60 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-60 60° SN3500-M12-65 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0400-65 65° SN3500-M12-65 1 SN3500-M12-50 1 SN5651-LOS-DS-50x20 1
PMOL 0460
SN5654-PMO-LOS-0460-00 00° SN3500-M12-110 3 SN3500-M12-110 - SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-05 05° SN3500-M12-110 3 SN3500-M12-110 - SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-10 10° SN3500-M12-90 3 SN3500-M12-90 - SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-15 15° SN3500-M12-90 3 SN3500-M12-90 - SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-20 20° SN3500-M12-90 3 SN3500-M12-90 - SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-25 25° SN3500-M12-70 3 SN3500-M12-80 2 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-30 30° SN3500-M12-80 3 SN3500-M12-80 - SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-35 35° SN3500-M12-70 3 SN3500-M12-70 - SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-40 40° SN3500-M12-80 3 SN3500-M12-80 - SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-45 45° SN3500-M12-70 3 SN3500-M12-70 - SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-50 50° SN3500-M12-70 3 SN3500-M12-70 - SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-55 55° SN3500-M12-60 3 SN3500-M12-60 - SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-60 60° SN3500-M12-60 3 SN3500-M12-70 2 SN5651-LOS-DS-50x20 1
SN5654-PMO-LOS-0460-65 65° SN3500-M12-50 3 SN3500-M12-65 2 SN5651-LOS-DS-50x20 1
PMOL 0580
SN5654-PMO-LOS-0580-00 00° SN3500-M12-170 1 SN3500-M12-100 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0580-05 05° SN3500-M12-150 1 SN3500-M12-100 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0580-10 10° SN3500-M12-150 1 SN3500-M12-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0580-15 15° SN3500-M12-150 1 SN3500-M12-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0580-20 20° SN3500-M12-140 1 SN3500-M12-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0580-25 25° SN3500-M12-140 1 SN3500-M12-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0580-30 30° SN3500-M12-140 1 SN3500-M12-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0580-35 35° SN3500-M12-140 1 SN3500-M12-70 2 SN5651-LOS-DS-50x20 2

19
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
Type Screw Pcs. Schraube Pcs. Pressure piece Pcs.
PMOL 0580
SN5654-PMO-LOS-0580-40 40° SN3500-M12-140 1 SN3500-M12-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0580-45 45° SN3500-M12-140 1 SN3500-M12-70 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0580-50 50° SN3500-M12-140 1 SN3500-M12-70 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0580-55 55° SN3500-M12-130 1 SN3500-M12-60 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0580-60 60° SN3500-M12-120 1 SN3500-M12-70 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0580-65 65° SN3500-M12-120 1 SN3500-M12-70 2 SN5651-LOS-DS-50x20 2
PMOL 0700
SN5654-PMO-LOS-0700-00 00° SN3500-M12-170 1 SN3500-M12-100 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-05 05° SN3500-M12-150 1 SN3500-M12-100 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-10 10° SN3500-M12-140 1 SN3500-M12-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-15 15° SN3500-M12-150 1 SN3500-M12-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-20 20° SN3500-M12-150 1 SN3500-M12-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-25 25° SN3500-M12-140 1 SN3500-M12-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-30 30° SN3500-M12-140 1 SN3500-M12-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-35 35° SN3500-M12-140 1 SN3500-M12-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-40 40° SN3500-M12-140 1 SN3500-M12-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-45 45° SN3500-M12-140 1 SN3500-M12-70 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-50 50° SN3500-M12-140 1 SN3500-M12-70 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-55 55° SN3500-M12-130 1 SN3500-M12-65 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-60 60° SN3500-M12-120 1 SN3500-M12-70 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0700-65 65° SN3500-M12-120 1 SN3500-M12-70 2 SN5651-LOS-DS-50x20 2
PMOL 0850
SN5654-PMO-LOS-0850-00 00° SN3500-M16-130 1 SN3500-M16-100 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-05 05° SN3500-M16-120 1 SN3500-M16-100 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-10 10° SN3500-M16-120 1 SN3500-M16-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-15 15° SN3500-M16-120 1 SN3500-M16-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-20 20° SN3500-M16-130 1 SN3500-M16-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-25 25° SN3500-M16-110 1 SN3500-M16-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-30 30° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-35 35° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-40 40° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-45 45° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-50 50° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-55 55° SN3500-M16-110 1 SN3500-M16-70 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-60 60° SN3500-M16-110 1 SN3500-M16-70 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-0850-65 65° SN3500-M16-100 1 SN3500-M16-70 2 SN5651-LOS-DS-50x20 2

20
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel [phone] · www.strack.de
07.2022
IOperating Instructions -- PowerMax Scam unit PMOL
PowerMax
Type Screw Pcs. Screw Pcs. Pressure piece Pcs.
PMOL 1000
SN5654-PMO-LOS-1000-00 00° SN3500-M16-130 1 SN3500-M16-100 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-05 05° SN3500-M16-120 1 SN3500-M16-100 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-10 10° SN3500-M16-120 1 SN3500-M16-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-15 15° SN3500-M16-120 1 SN3500-M16-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-20 20° SN3500-M16-130 1 SN3500-M16-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-25 25° SN3500-M16-110 1 SN3500-M16-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-30 30° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-35 35° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-40 40° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-45 45° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-50 50° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-55 55° SN3500-M16-110 1 SN3500-M16-70 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-60 60° SN3500-M16-110 1 SN3500-M16-70 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-65 65° SN3500-M16-100 1 SN3500-M16-70 2 SN5651-LOS-DS-50x20 2
PMOL 1200
SN5654-PMO-LOS-1000-00 00° SN3500-M16-130 1 SN3500-M16-100 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-05 05° SN3500-M16-120 1 SN3500-M16-100 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-10 10° SN3500-M16-120 1 SN3500-M16-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-15 15° SN3500-M16-120 1 SN3500-M16-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-20 20° SN3500-M16-130 1 SN3500-M16-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-25 25° SN3500-M16-110 1 SN3500-M16-90 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-30 30° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-35 35° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-40 40° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-45 45° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-50 50° SN3500-M16-110 1 SN3500-M16-80 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-55 55° SN3500-M16-110 1 SN3500-M16-70 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-60 60° SN3500-M16-110 1 SN3500-M16-70 2 SN5651-LOS-DS-50x20 2
SN5654-PMO-LOS-1000-65 65° SN3500-M16-100 1 SN3500-M16-70 2 SN5651-LOS-DS-50x20 2
