STREET WISE SW3N1C28 User manual

Revised 10-10-2018
SW3N1C28 3N1 Charger
Instruction Manual
CHARGING
The 3N1 Charger is equipped with Battery Life LED’s (8) so you know how much battery power is
remaining. The four LED’s represent 25% power each. (4 LED’s 75%-100%, 3 LED’s 50%-74%, 2
LED’s 25%-49%, and 1 LED less than 24%)
The rechargeable batteries are already installed. Please do not attempt to open the unit, as this
will void the warranty. IMPORTANT: Do not charge for more than 12 hours at a time.
Overcharging can damage the unit and void the warranty. When used infrequently the unit will
need to be charged for 5 hours every 60 days. If the flashlight is not as bright or if the electrical
current becomes noticeably weaker, the unit will need to be recharged. To charge follow the
instructions below:
1. Plug the Mini USB plug into the Mini USB Charging Port (6) on the side of the 3N1 Charger.
2. Plug the other end into a USB charging device (wall plug, car plug, or computer).
3. Once connected the Battery Life LEDs (8) will flash indicating that the unit is charging.
4. To reduce charging time turn flashlight off.
5. When all four LEDs are showing a solid blue light the charging is complete and the battery is
fully charged.
USING AS A POWER BANK
1. If the device to be charged uses a mini USB plug you can use the included cord, if not you
will need to use the USB cord that came with your device.
2. Move the function Select Switch to the middle (Off or Charging) position.
3. Plug the smaller end of the charging cord into the charging port of the device to be charged.
1. Stun Contact Probes
2. LED Flashlight
3. Function Select Switch
4. USB Power Port
5. Stun Activation Button
6. Mini USB Charging Port
7. Stun Safety Cover
8. Battery Life LEDs
2
3
6
1
5
4
7
8

Revised 10-10-2018
4. Plug the USB plug (larger end) into the USB Power Port (4) on the bottom of the 3N1
Charger.
5. To reduce charging time turn flashlight off.
6. Once the attached device is fully charged disconnect the device you are charging to
conserve the remaining battery power stored in the 3N1 Charger.
7. The Battery Life LEDs (8) will let you know how much battery power is remaining.
NOTE: The 3N1 Charger can be used to charge any device that has a USB charging cord
supplied by its manufacturer. However, Streetwise Security Products cannot be held responsible
for any damage caused to a device that is charged using the 3N1 Charger. The flashlight can still
be used while charging a device, however this will reduce the total amount of power available for
transfer to the device being charged.
USING THE FLASHLIGHT
1. Slide the Function Select Switch (located on the side of the unit) up to the top (flashlight)
position.
2. To turn the light off move the switch back down to the middle position.
3. You can check the Battery Life LEDs (8) on the bottom of the unit to see the remaining
battery power.
TESTING THE STUN GUN
We recommend test firing the stun gun and becoming familiar with its operation before you need
to use it to defend yourself. WARNING: Do not test fire the stun gun for more than 1 second as
this will damage the unit and void the warranty.
1. Before using the stun gun you will need to remove the Stun
Safety Cover.
2. Slide the Function Select Switch (located on the side of the unit)
down to the STUN position.
3. Press the Stun Activation Button to test fire the unit. Do not hold
down the button for more than 1 second. You will see and hear a
charge fire across the top of the unit between the Stun Contact
Probes.
4. Important: Once you have finished testing the stun gun move the
Function Select Switch up to the middle (OFF or Charging) position and replace the Stun
Safety Cover.
USING THE STUN GUN IN SELF DEFENSE
1. With the Stun Safety Cover removed and the Function Select Switch (located on the side of
the unit) in the bottom position as explained above, touch your assailant’s body with the
contact probes and press the Stun Activation Button.

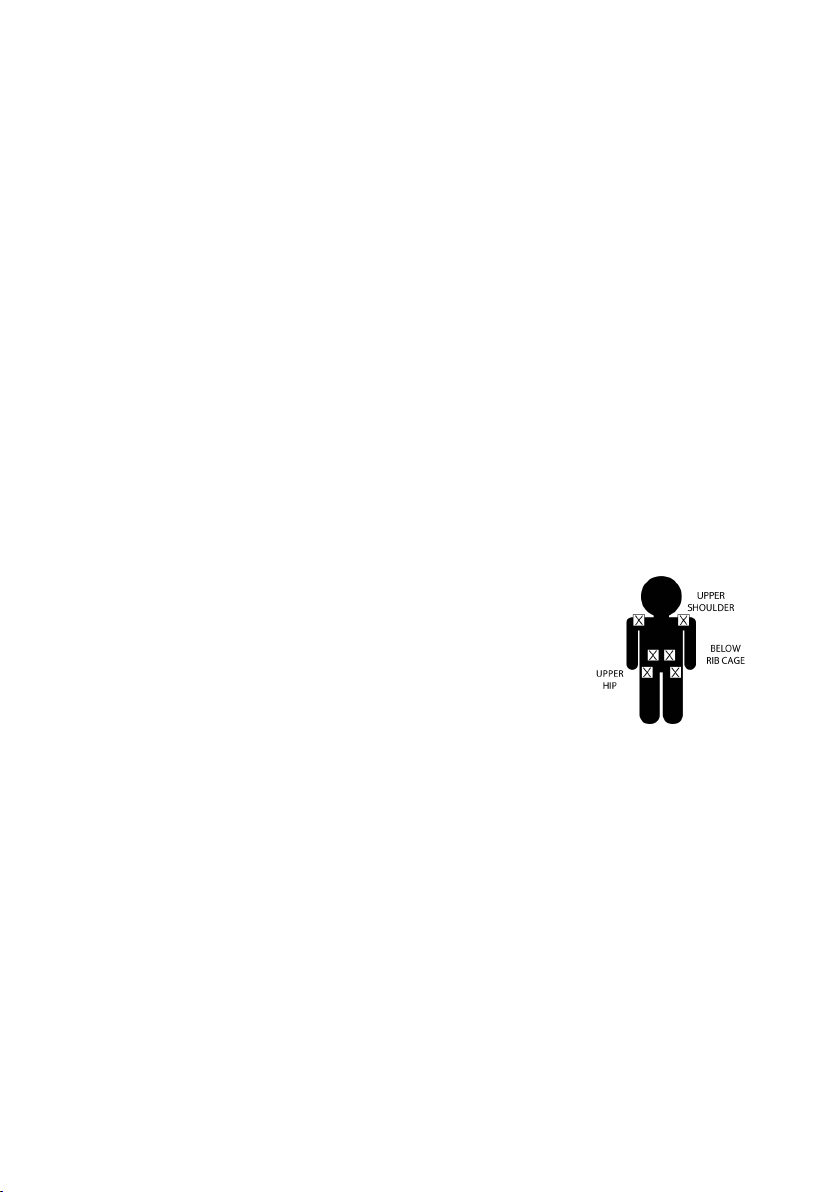

2. Touching anywhere on the assailant’s body will have an effect. However, the maximum effect
is achieved in the areas to the right:
3. When touching the assailant’s body, you will not see or hear the electrical charge as you do
when the unit is test fired. You can hold down the Stun Activation Button for more than 1
second, as this will not damage the unit, as it will when being test fired.
4. You do not have to be concerned about the effects of the charge
being transferred to you. Even if the assailant touches you while
being stunned, you will not feel the effects of the charge.
EFFECTS OF THE UNIT ON AN ASSAILANT
1. Touching an assailant for less than 1 second will cause minor muscle contractions and have
a repelling effect.

Revised 10-10-2018
2. Touching an assailant for 1 to 2 seconds will cause muscle spasms and a dazed mental
state.
3. Touching an assailant for 3 to 5 seconds will cause loss of balance and muscle control, total
mental confusion, and disorientation. All effects to the assailant are temporary; the stun gun
can cause no permanent harm. NOTE: The device should not be used for longer than 5
seconds.
WARRANTY: Streetwise Security Products extends a lifetime warranty to the 3N1 Chargerfor
the product against defects in materials or workmanship, with the following exceptions:
1. The warranty does not cover damage resulting from accident, misuse or abuse, lack of
reasonable care, moisture or water, the affixing of any attachment not provided with the
product, loss of parts, or recharging the unit in any manner not in accordance with the
included instructions.
2. The warranty will be voided if the unit has been opened or tampered with in any way (unless
by an authorized dealer) or if any unauthorized replacement parts have been used.
NOTICE: Purchaser must check and abide by all local laws governing the possession and use of
stun guns. In addition, the stun gun must only be used in a lawful manner for self-defense. NOTE:
Not to be used on children, persons with heart disease, or any vital part of the human body. Not
to be stored or used in environments where it is damp or humid or where there are extreme hot or
cold temperatures. Do not use on metal objects.
Conditions of Sale: Purchase of this product is an agreement by the purchaser/user to hold all
sellers and manufacturers harmless of all liabilities and damages.
To Obtain Service: Contact the Authorized Dealer from whom you purchased this unit for a
Return Merchandise Authorization. The return unit must be sent postage prepaid and proof of
purchase is required. Damage or loss occurring during shipment is not covered by this warranty.
