Redpro RP-DC80 User manual

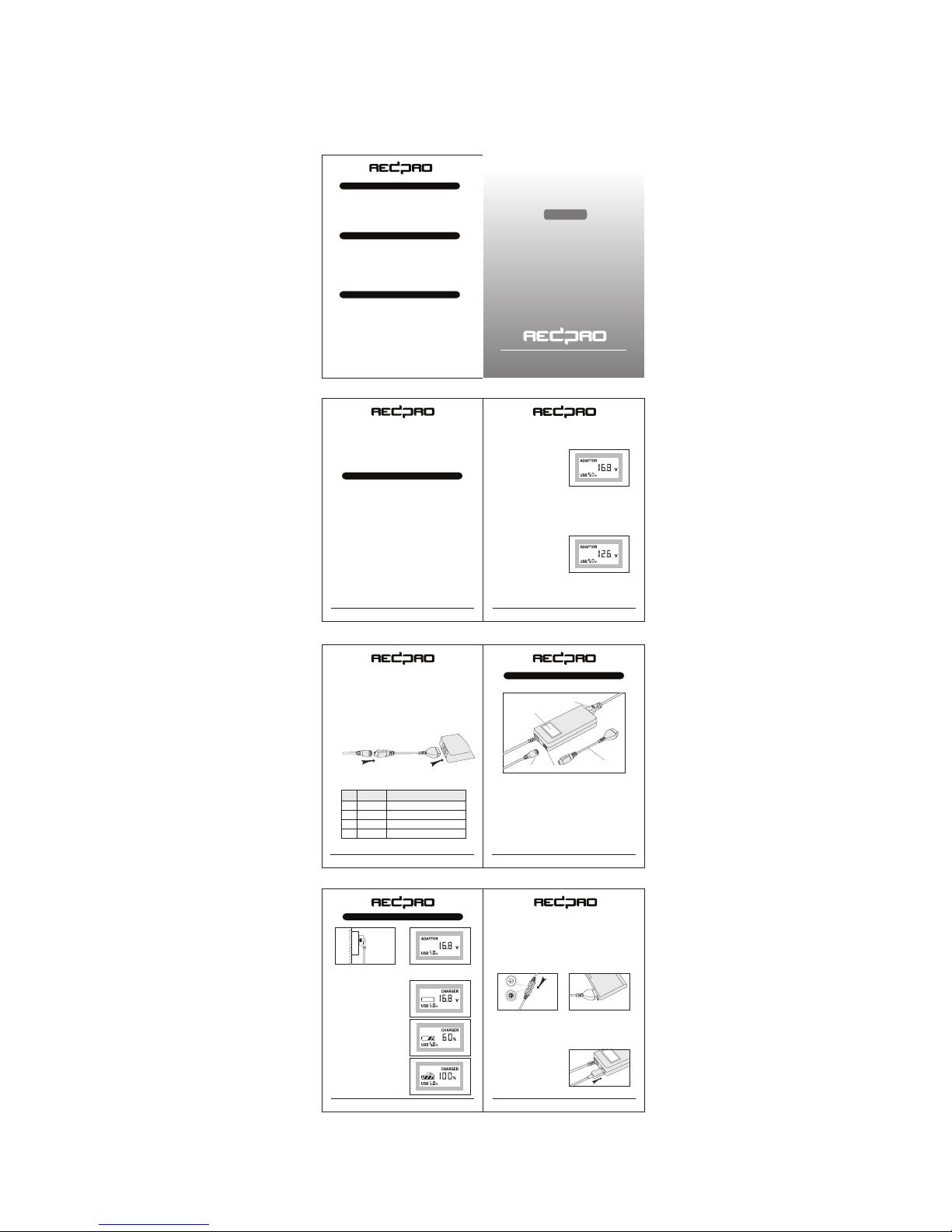

Page 1
Page 5
Specification of Extended Adaptor Cables
Page 6
A
1. Plug the Power Cord on the AC power (picture A). The LCD screen background
shows a blue color, with AC Power Adaptor informations (picture B)
Page 2
E
J
Page 4Page 3
C
D
CHARGING BATTERY PACK:
2. To Charge Professional Battery Pack
with this Charger please use the supplied
Extended Power Cable RPC-DT. Use the
DC Joint Jack on the end of the Power
Cable and plug in to the DC Joint Plug of
the Charger Cable (picture F). When you
connect Charger to the Battery on the
Charger LCD screen indicates Charger
status with Red background, indicate the
charging voltage ( picture C) and the
charging percentage (picture D). The
Battery sign on LCD screen will show
Battery charging level.
3. When the Battery is full. the LCD
screen turns on Blue background color to
indicate that the charging proces is done
and that the Battery is full ( picture E).
RP-DC80
Digital Multi-Function
AC Adaptor & Charger
User Manual
www.red-pro.com
Thank you for your purchase of the Digital Multi-Function AC Adaptor & Battery
Charger RP-DC80. This inteligent charger for Digital Camera and Camcorder
Batteries was designed with advanced power charging technology, allowing you to
charge your Professional Batteries at Studio place, or at the home.The Charger is
compatibile with Li-Ion Rechargeable Batteries that run on power voltage of 14.4V to
14.8V. Please read these operating instructions carefully before operating use this unit
to power up Professional Camcorder or to Charge Battery Pack.
Product Features
1. Charge a Professional Battery Pack that run on 14.4V to 14.8V
2. Supply Power for Professional Studio Cameras, LED Light, Field Recorders etc.
3. Charge or supply power for MP3, Mobile Phones, Ipods, Ipeds, LED lights and
other related device with standard USB output;
4. LCD screen displays the charging and power status with red and blue dual-colors;
6. Provide constant Output voltage of: 12.6V / 63W and 16.8V / 90W
7. Worldwide use with input between 100-240V;
8. With advanced MCU Micro-Computer Chip control, charger fully control the
charging proces of the Li-Ion Professional Battery, the 1.6-inch LCD Screen
indicated output voltage, and the battery charging status.
9. 100,000 level of Anti-Static design, High Temperature and Fire-Proof crust makes it
safer.
10. Passed MBTR 5000H test and own its patent with more reliable quality warranty;
11. Safety protection：
- Over temperature protection reaches at 85℃,
- Over voltage protection reaches at 24V,
- Over current protection reaches at 6.5A,
and have Short circuit protection & Charging time protection.
LCD screen
USB output
AC Power
Cord
DC Joint Jack
Overview
Product Components:
1. Main Body of RP-DC80
2. Charging Cable with DC Joint Connector
Power Feed 1: 12.6V , 63W / 5A ( max )
Power Feed 2: 16.8V , 90W / 5A ( max )
Battery Charging: 16.8V , 2.3A
3. AC Power Cord ( Depends on the market the Charger is equiped with
AU-Plug, EUR-Plug, US-Plug or UK-Plug Power Cord) 110V - 220V
4. Adaptor Cable RPC-DT ( For charging REDPRO bateries)
5. USB 5V 1A Power Output
6.1.6-inch LCD Screen
Operation Instruction:
B
CHARGING REDPRO BATTERY PAC
4. To Charge RedPro Professional Battery Packs on D-Tap input socket, please
use the Extended Adaptor Cable ( RPC-DT supplied in the package Box).
5. Use the DC Joint Jack on the end of the Charger Power Cable and connect
the DC Joint Plug of the Extended Adaptor Cable RPC-DT (picture F)
6. Use the other end DC D-Tap Plug, and plug in to the DC D-Tap Jack input on
the REDPRO Battery that you want to power ( picture G).
The LCD screen indicates Charging status with Red background (picture C,D)
7. When the Battery is full. the LCD screen turns on Blue background to indicate
that the charging proces is done and that the Battery is fully charged ( picture E)
CHARGING ON USB:
8. When using the USB function,
connect the charging cable of mobile
phone, MP3, Ipod, Iped or other
relative device to the USB output of
AC Adaptor, then it can be used for
charging. (picture J)
Model
No.
Jack & Plug
description On use Description
RPC-DT
To use to charge REDPRO Battery Packs on D-Tap input and
all other battery that can charge thru D-Tap plug 16.8V 2.3A
DC Joint Jack
D-Tap Plug
RPC-HY
To use to power SOUND DEVICE and all other units that need
4-pin Hirose Plug, and can run on 12.6V 63W / 5A ( Max )
DC Joint Jack
HR10A-7P-4P 4-pin Plug
RPC-SO
To use to power SONY PMW-EX1/EX3/100/150/200/300 - F3
PXW-X160/X180/X200 PXW-FS7 12.6V 63W / 5A ( Max )
DC Joint JackC-PIN 5.5mm Angle Plug
C-PIN 5.5mm Angle Plug
RPC-4X
To use to power all Professional Camcorders and all other units
that need 4-pin XLR Plug, and run on 16.8V 90W / 5A( Max)
DC Joint Jack
4-pin XLR Plug
Please go and visit our Web site www.red-pro.com to find other models of extended adaptor cables
that are not listed here
Input : AC 100-240V~ 1.8A 50-60Hz
Output: ADAPTOR : DC 12.6V - 16.8V 5A 90W (max)
CHARGER: DC 16.8V 2.3A 50W (max)
USB: DC 5V 1A 5W (max)
LCD Screen: 1.6-inch LCD Back lite Display Dual Color
Output Conection: DC Joint multi pin
Operating Temp.: -10 to 40 C
Dimensions: 132 x 58 x 30 cm
Weight: 365g
Please check that the components size and voltages will be compatible according to
your Camcorder DC Voltage Input or Battery Pack Charging Voltage and Current.
Please use the manual instruction of the Camcoreder or Battery Pack, and read this
manual carefully before using the unit with this AC Adaptor / Charger.
We are not responsible for any damage caused by incorrect use or operation.
1. This device is for indoor use only, don’t put or use it in high temperature and high
moisture environment;
2. It’s a common phenomenon for the unit to feel hot when using;
3. Avoid falling and bumping otherwise the electrical components will be damaged;
4. Don’t try to disassemble or open the cover under any circumstance in order to
avoid danger.
Notice
Caution
Specification
POWERING ON AC ADAPTOR MODE :
1.To Power any Professional Camcorder or any other unit with constant power,
use the apropriate Power Extension cable from the table list belove.
2. Use the DC Joint Jack on the end of the Power Cable and connect the DC
Joint Plug of the Extended Adaptor Cable ( lower illustration )
3. Use the other end DC Plug ( depending on model cable that you have chosen
from the table list) and plug in to the DC Jack input on the apropriate unit that
you want to power ( lower illustration ).
The LCD screen indicates Charging status with Blue background (picture B)
AC Adapto & Charger
DC Joint Jack
Adaptor Cable
DC Joint Plug
Adaptor Cable
DC Plug Charging
Unit
G
D-Tap
Battery
D-Tap
F
D-Tap
Adaptor Cable
RPC-DT
F
G
POWERING ON AC ADAPTOR MODE WITH 12.6V 63W / 5A :
1.To Power Professional Camcorder or any other unit with constant power of
12.6V and 63W max current, please use the apropriate Power Extension cable
- RPC-XY / HR10A-7P-4P 4-pin Plug
- RPC-SO / C-PIN 5.5mm Angle Plug
2. Use the DC Joint Jack on the end of
the Power Cable and connect the DC
Joint Plug of the Extended Adaptor Cable
3. Use the other end DC Plug
( depending on model cable you chose) and plug in to the DC Jack input on the
apropriate Pro Camcorder, or unit that you want to power ( left illustration ).
The LCD screen indicates Charging status with Blue background (picture F)
POWERING ON AC ADAPTOR MODE WITH 16.8V 90W / 5A :
1.To Power Professional Camcorder or any other unit with constant power of
16.8V and 90W max current, please use the apropriate Power Extension cable
- RPC-4X / 4-pin XLR Plug
2. Use the DC Joint Jack on the end of
the Power Cable and connect the DC
Joint Plug of the Extended Adaptor Cable
3. Use the other end DC Plug
( depending on model cable you chose) and plug in to the DC Jack input on the
apropriate Pro Camcorder, or unit that you want to power ( left illustration ).
The LCD screen indicates Charging status with Blue background (picture G)
( Constant Power Extension Cables need to be ordered seperatly )
