Operations Manual
Ambulance Cot Fastener
6393 6370
6371
6377
6378
6391

sample text

2018/06 C.0 6370-109-005 REV C www.stryker.com
Ambulance Cot Fastener
6393 6370
6371
6377
6378
6391
Operations Manual

sample text

www.stryker.com 6370-109-005 REV C
English
EN
Symbols
Operating instructions/Consult instructions for use
General warning
Caution
Catalogue number
Lot (batch) code
Serial number
For US patents see www.stryker.com/patents
Manufacturer
Date of manufacturer
Safe working load

sample text

www.stryker.com 6370-109-005 REV C 1-1
English
EN
Table of Contents
Warning/Caution/Note Definition ...............................................................................................................1-2
Summary of safety precautions.................................................................................................................1-3
Introduction...........................................................................................................................................1-4
Product description...........................................................................................................................1-4
Indications for use............................................................................................................................1-4
Expected service life.........................................................................................................................1-4
Contraindications .............................................................................................................................1-4
Specifications..................................................................................................................................1-4
Product illustration............................................................................................................................1-5
Contact information ..........................................................................................................................1-6
Serial number location ......................................................................................................................1-6
Date of manufacture.........................................................................................................................1-6
Cot compatibility ..............................................................................................................................1-6
Installation............................................................................................................................................1-8
Installing the cot fastener...................................................................................................................1-8
Selecting the vehicle safety hook ........................................................................................................1-8
Vehicle configuration ........................................................................................................................1-9
Positioning of the vehicle safety hook, front to back .............................................................................. 1-10
Positioning of the vehicle safety hook, side to side ................................................................................ 1-11
Installing the vehicle safety hook ....................................................................................................... 1-12
Installing the floor plate ................................................................................................................... 1-13
Installing the wall plate .................................................................................................................... 1-17
Installation checklist.............................................................................................................................. 1-22
Operation ........................................................................................................................................... 1-23
Mass casualty incident planning........................................................................................................ 1-23
Adjusting the rail assembly............................................................................................................... 1-23
Testing the cot fastener................................................................................................................... 1-25
Cleaning............................................................................................................................................. 1-26
Suggested cleaners........................................................................................................................ 1-26
Preventive maintenance ........................................................................................................................ 1-27

English
EN
1-2 6370-109-005 REV C www.stryker.com
Warning/Caution/Note Definition
The words WARNING,CAUTION, and NOTE carry special meanings and should be carefully reviewed.
WARNING
Alerts the reader about a situation which, if not avoided, could result in death or serious injury. It may also describe
potential serious adverse reactions and safety hazards.
CAUTION
Alerts the reader of a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the
user or patient or damage to the product or other property. This includes special care necessary for the safe and
effective use of the device and the care necessary to avoid damage to a device that may occur as a result of use or
misuse.
Note: Provides special information to make maintenance easier or important instructions clearer.

English
EN
www.stryker.com 6370-109-005 REV C 1-3
Summary of safety precautions
Always read and strictly follow the warnings and cautions listed on this page. Service only by qualified personnel.
WARNING
• Always replace the cot fastener if it has been involved in an accident.
• A height limit kit is recommended for vehicle deck heights less than 30 in. (67 cm).
• Install the cot fastener by qualified personnel only. Improper installation could result in injury to the patient or
operator.
• Always make sure that all cots meet the installation specifications for the Stryker cot fastener system.
• Failure to install the vehicle safety hook may cause injury to the patient or operator.
• Always make sure that the safety bar connects with the vehicle safety hook before you remove the cot from the
vehicle patient compartment to avoid the risk of injury.
• Do not allow the rail clamp to overlap the red adjustment limit label on the rail tube. To prevent the rail jaws from
releasing the cot frame, the space between the rail clamp and the rail stationary jaw must never exceed 1 in. (2.5
cm).
• Do not use hand or fingers to press the release button when the rail jaws are open. The rail clamp fastener closes
with a strong spring action.
• Always test the fastener using AMD Standard 004 as a minimum. Improper testing can result in injury.
• Always wipe the product with clean water and dry after cleaning. Some cleaning products are corrosive in nature
and may cause damage to the product. Failure to properly rinse and dry the product leaves a corrosive residue on
the surface of the product and may cause premature corrosion of critical components.
CAUTION
• Improper usage of the product can cause injury to the patient or operator. Operate the product only as described in
this manual.
• Do not modify the product or any components of the product. Modifying the product can cause unpredictable
operation resulting in injury to patient or operator. Modifying the product also voids its warranty.
• Always set the cot load height to the proper stop height before operation.
• Always have a certified mechanic, familiar with ambulance vehicle construction, install the vehicle safety hook.
Consult the vehicle manufacturer before you install the vehicle safety hook. Make sure that the installation of the
vehicle safety hook does not damage or interfere with the brake lines, oxygen lines, fuel lines, fuel tank, or
electrical wiring of the vehicle.
• Do not use screws smaller than the 3/8 in. diameter specified to anchor the floor plates.
• Do not use a screw smaller than the 5/16 in. diameter specified to anchor the wall plate.

English
EN
1-4 6370-109-005 REV C www.stryker.com
Introduction
This manual assists you with the operation or maintenance of your Stryker product. Read this manual before operating
or maintaining this product. Set methods and procedures to educate and train your staff on the safe operation or
maintenance of this product.
CAUTION
• Improper usage of the product can cause injury to the patient or operator. Operate the product only as described in
this manual.
• Do not modify the product or any components of the product. Modifying the product can cause unpredictable
operation resulting in injury to patient or operator. Modifying the product also voids its warranty.
Notes
• This manual is a permanent part of the product and should remain with the product even if the product is sold.
• Stryker continually seeks advancements in product design and quality. This manual contains the most current
product information available at the time of printing. There may be minor discrepancies between your product and
this manual. If you have any questions, contact Stryker Customer Service or Technical Support at 1-800-327-0770.
Product description
The Stryker Ambulance Cot Fastener is designed to hold a compatible ambulance cot in an emergency vehicle for
patient transport purposes. The Ambulance Cot Fastener performs this function after the user manually loads the
compatible cot into the emergency vehicle and guides it into the fastener.
Indications for use
The Stryker Model 6370/6371/6377/6378/6391/6393 cot fasteners are not designed for any purpose other than to
restrict movement of an ambulance cot being transported in the patient compartment of an ambulance under normal
conditions.
Note: Usage of these products in any other way becomes the complete responsibility of the owner or user. The Model
6370/6371/6377/6378/6391/6393 cot fasteners comply to the Ambulance Manufacturers Division specification 004.
Caution must be used at all times during placement of the cot into the ambulance.
Expected service life
Cot fasteners have a seven year expected service life under normal use conditions and with appropriate periodic
maintenance.
Contraindications
None known.
Specifications
Model Type Part number
6371 Wall mounted 6371-000-000
6370 Floor mounted 6370-000-000
6377 Floor mounted 6377-000-000

English
EN
www.stryker.com 6370-109-005 REV C 1-5
Introduction
Specifications (Continued)
Model Type Part number
6378 Floor mounted (reduced length) 6378-000-000
6391 Wall mounted mass casualty Power-
LOAD
6391-001-001
6391 Floor mounted mass casualty Power-
LOAD
6391-001-002
6393 Wall mounted mass casualty
Performance-LOAD
6393-001-001
6393 Floor mounted mass casualty
Performance-LOAD
6393-001-002
WARNING
• Always replace the cot fastener if it has been involved in an accident.
• A height limit kit is recommended for vehicle deck heights less than 30 in. (67 cm).

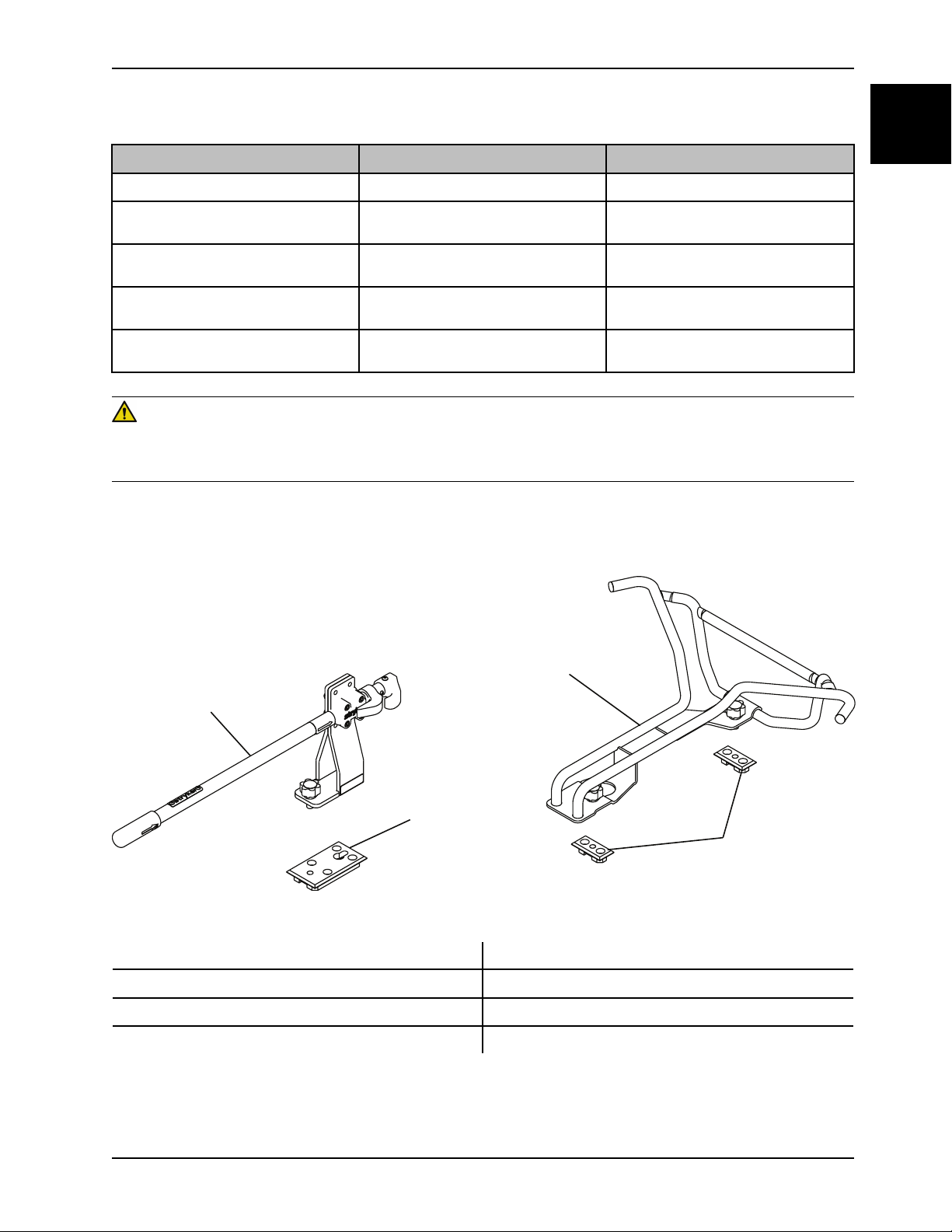

Product illustration
A
B
C
D
Figure 1-1: Product illustration
A Rail assembly
B Floor plate
CFloor plates
D Antler assembly

English
EN
1-6 6370-109-005 REV C www.stryker.com
Introduction
Contact information
Contact Stryker Customer Service or Technical Support at: 1-800-327-0770.
Stryker Medical
3800 E. Centre Avenue
Portage, MI 49002
USA
To view your operations or maintenance manual online, see https://techweb.stryker.com/.
Have the serial number (A) of your Stryker product available when calling Stryker Customer Service or Technical
Support. Include the serial number in all written communication.

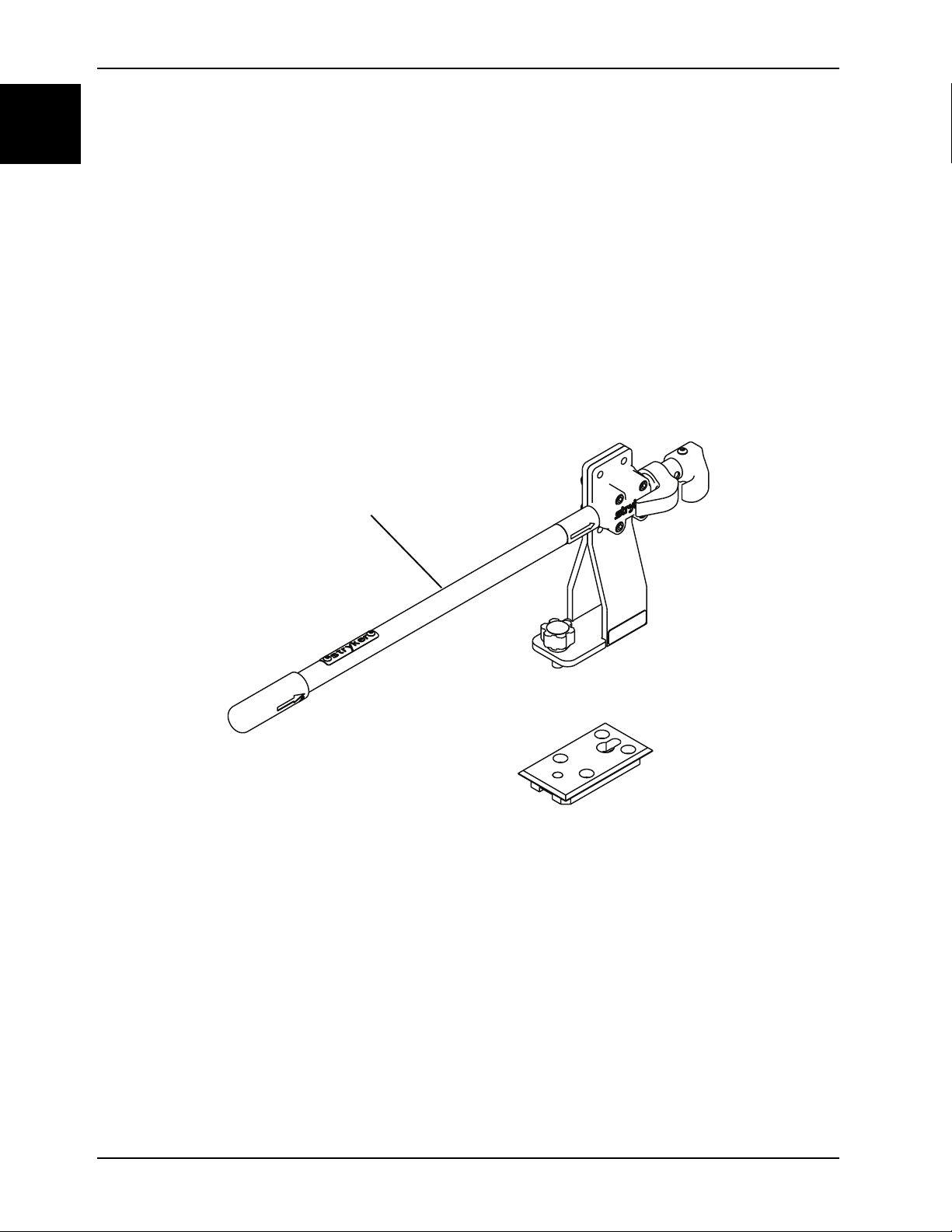

Serial number location
A
Figure 1-2: Serial number location
Date of manufacture
The year of manufacture is the first 2 digits of the serial number.
Cot compatibility
The Stryker 6370/6371/6377/6378/6391/6393 cot fastener systems are compatible only with cots that conform to the
installation specifications.

English
EN
www.stryker.com 6370-109-005 REV C 1-7
Introduction
Cot compatibility (Continued)
WARNING
• Install the cot fastener by qualified personnel only. Improper installation could result in injury to the patient or
operator.
• Always make sure that all cots meet the installation specifications for the Stryker cot fastener system.
Ambulance cots which currently meet these specifications are:
Stryker
• Model 6060 DX Emergency Transport
• Model 6070 LX Emergency Transport
• Model 6080 MX-PRO
• Model 6081 MX-PRO Incubator Transporter
• Model 6082 MX-PRO
• Model 6083 MX-PRO Bariatric Transport
• Model 6085 Performance-PRO XT
• Model 6086 Performance-PRO XT
• Model 6090 EZ-PRO
• Model 6091 EZ-PRO 2
• Model 6092 EZ-PRO R3
• Model 6092 EZ-PRO R4
• Model 6500 Power-PRO XT
• Model 6506 Power-PRO XT
• Model 6510 Power-PRO IT
• Model 6516 Power-PRO IT
Ferno-Washington
• Model 29-M Three Level Roll-In Cot*
• Model 93 ES Squadmate™*
• Model 93 EX Squadmate™*
• Model 35-A Mobile Transporter™*
• Model 35-A+ Mobile Transporter Plus™*
• Model 35-IT Incubator Transporter*
• Model 93P PROFlexx®
• Model 35X PROFlexx®
• Model 28Z PROFlexx®
•PowerFlexx®
Notes
• Adjustment of the rail clamp assembly may be required in order to compensate for any variation in cot retaining
post position depending on the ambulance cot manufacturer and model number.
• * 1999 model year or earlier. Styker is not responsible for changes in specifications to other manufacturer’s cots.

English
EN
1-8 6370-109-005 REV C www.stryker.com
Installation
Installing the cot fastener
The Stryker cot fastener systems are compatible only with cots that conform to the installation specifications.
WARNING
• Install the cot fastener by qualified personnel only. Improper installation could result in injury to the patient or
operator.
• Always make sure that all cots meet the installation specifications for the Stryker cot fastener system.
Note: You may need to adjust the rail clamp assembly to compensate for any variation in the cot retaining post position
depending on the cot manufacturer and model number.
These instructions are intended for cots with antler style cot fastener systems. For crash-rated cot fasteners, see the
appropriate operations manual for installation instructions.
Selecting the vehicle safety hook
The vehicle safety hook is a device that ships with the cot. The cot safety bar and vehicle safety hook keep the cot from
being accidentally removed from the vehicle and provide increased operator assurance and confidence when loading
and unloading.
Note: These instructions are intended for cots with antler style cot fastener systems. For crash-rated cot fasteners, see
the appropriate operations manual for installation instructions. Crash-rated cot fasteners are shipped and installed with
their own vehicle safety hook, thus no additional hook is needed.

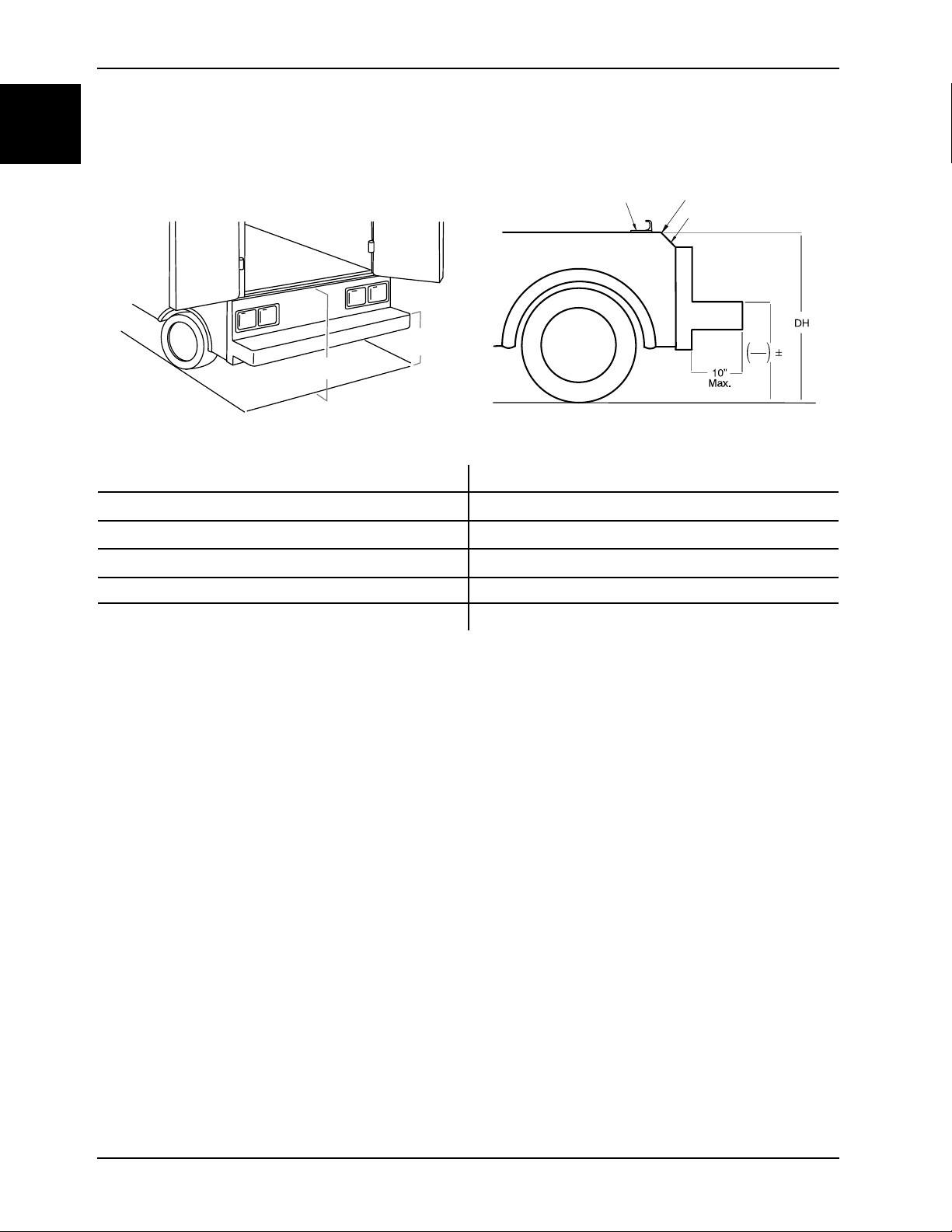

The vehicle safety hook was designed for compatibility and proper operation when loading and unloading the cot from a
vehicle that is compliant with Federal Regulation KKK-A-1822. Stryker offers three different types of vehicle safety
hooks that are ordered and shipped with your cot. These vehicle safety hook types meet the needs of various
emergency vehicle configurations, specifically the length and location of the floor structure support that is located in the
rear of the vehicle.
To select which vehicle safety hook is appropriate for your vehicle configuration:
• Consider the location of the floor structure support where there is adequate room to mount the vehicle safety hook.
• Mount the vehicle safety hook into the back of the vehicle. Provide bumper clearance to allow the operators to load
and unload the cot from the vehicle.
• Note the differences in vehicle design. Each vehicle safety hook provides a different mounting location option to
maintain the appropriate distance between the face of the vehicle safety hook and the edge of the door sill.
Due to the differences in vehicle dimensions and the floor structure support locations, each vehicle safety hook allows
for a different mounting location. Select the correct position for your vehicle safety hook installation.
•Positioning of the vehicle safety hook, front to back on page 1-10
•Positioning of the vehicle safety hook, side to side on page 1-11
Note: When you replace an existing vehicle safety hook with a new style, adjust the mounting location to maintain the
proper position of the vehicle safety hook face.

English
EN
www.stryker.com 6370-109-005 REV C 1-9
Installation
Selecting the vehicle safety hook (Continued)
Figure 1-3: Vehicle safety hook types
Vehicle configuration
CAUTION
• Always set the cot load height to the proper stop height before operation.
• Always have a certified mechanic, familiar with ambulance vehicle construction, install the vehicle safety hook.
Consult the vehicle manufacturer before you install the vehicle safety hook. Make sure that the installation of the
vehicle safety hook does not damage or interfere with the brake lines, oxygen lines, fuel lines, fuel tank, or
electrical wiring of the vehicle.
The cot is compatible with all vehicle deck heights that meet the Federal Specification for the Star-of-Life Ambulance
KKK-A-1822. See specifications for maximum load height.
According to Federal Specification for the Star-of-Life Ambulance KKK-A-1822:
• The rear of the ambulance shall be furnished with a sturdy, full-width, rear bumper, with step secured to the
vehicle’s chassis frame.
• The tread of the step shall have a minimum depth of 5 in. (13 cm) and a maximum depth of 10 in. (25 cm).
• If the step protrudes more than 7 in. (18 cm) from the rear of the vehicle, a fold-up step shall be furnished.
According to federal regulations (reference KKK-A-1822), the bumper height of the vehicle shall be installed equidistant
2 in. (± 5 cm) from the vehicle floor to the ground level, which is defined as the vehicle deck height. Installation of the
vehicle safety hook into any vehicle compliant with this federal specification provides adequate clearance for the cot
base to lower to its fully extended position.

English
EN
1-10 6370-109-005 REV C www.stryker.com
Installation
Vehicle configuration (Continued)
DH
22
A
B
C D
E
F
A
B
Figure 1-4: Deck and bumper height
A Deck height (DH)
B Bumper height
C Vehicle safety hook
DSill edge
ESill
F Bumper depth
Positioning of the vehicle safety hook, front to back
Check the front to back and side to side positioning when unloading and loading the cot to make sure that you install the
vehicle safety hook correctly.
To check the front to back positioning:
1. Select the appropriate vehicle safety hook (Selecting the vehicle safety hook on page 1-8).
2. Position the vehicle safety hook at least 3-3/4 in. from the leading edge of the door sill (A). The recommended
distance from the face of the safety hook to be no less than 3-3/4 in.
3. Make sure that you can secure the vehicle safety hook to the mount in the back of the vehicle.
4. Make sure that you have adequate bumper clearance to allow the cot to be loaded and unloaded from the vehicle.
5. Confirm the side to side placement of the vehicle safety hook (Positioning of the vehicle safety hook, side to side on
page 1-11).

English
EN
www.stryker.com 6370-109-005 REV C 1-11
Installation
Positioning of the vehicle safety hook, front to back (Continued)
A
B
Figure 1-5: Vehicle safety hook placement
ASill
B Floor structure support
Positioning of the vehicle safety hook, side to side
Before you install the vehicle safety hook, check the front to back and side to side positioning, when you unload and
load the cot.
To check the side to side positioning:
1. Remove the cot from the cot fastener and unload it from the vehicle.
2. Note the position of the cot load wheels and the cot safety bar when you are remove the cot.
3. Mark the center of the cot safety bar on the vehicle floor.
4. Make sure that the position marked in step 3 is where the cot safety bar connects with the vehicle safety hook every
time when you unload the cot in a variety of positions (such as all the way to the left and all the way to the right).

English
EN
1-12 6370-109-005 REV C www.stryker.com
Installation
Positioning of the vehicle safety hook, side to side (Continued)
Notes
• If the cot safety bar does not connect with the vehicle safety hook in any of these positions (left, center, or
right), modify the vehicle. Do not modify the cot or the vehicle safety hook.
• If the cot safety bar connects with vehicle safety hook every time, install the vehicle safety hook.
Installing the vehicle safety hook
Before installing the vehicle safety hook, the certified mechanic should plan for the placement of the vehicle safety
hook in the rear of the vehicle patient compartment.
WARNING
• Failure to install the vehicle safety hook may cause injury to the patient or operator.
• Always have a certified mechanic, familiar with ambulance vehicle construction, install the safety hook.
• Always make sure that the safety bar connects with the vehicle safety hook before you remove the cot from the
vehicle patient compartment to avoid the risk of injury.
Hardware required (not supplied):
• (2) Grade 5, minimum 1/4”-20 socket head cap screws * for the short vehicle safety hook or long vehicle safety
hook
• (2) Grade 5, minimum 1/4”-20 flat socket head cap screws * for the J vehicle safety hook
• (2) Flat washers
• (2) Lock washers
• (2) 1/4”-20 nuts
Note: The length of the socket head cap screws depend on the thickness of the vehicle floor. Use screws that are long
enough to go completely through the vehicle patient compartment floor, washer, and nut, with at least two full threads in
the nut.
1. Determine the correct vehicle safety hook front to back and side to side positioning, so the cot safety bar connects
to the vehicle safety hook every time.
•Positioning of the vehicle safety hook, front to back on page 1-10
•Positioning of the vehicle safety hook, side to side on page 1-11
2. Drill the holes for the screws.
3. Fasten the vehicle safety hook to the vehicle patient compartment floor.
4. Make sure that the cot safety bar connects with the vehicle safety hook before you remove the cot from the vehicle
patient compartment.

English
EN
www.stryker.com 6370-109-005 REV C 1-13
Installation
Installing the vehicle safety hook (Continued)

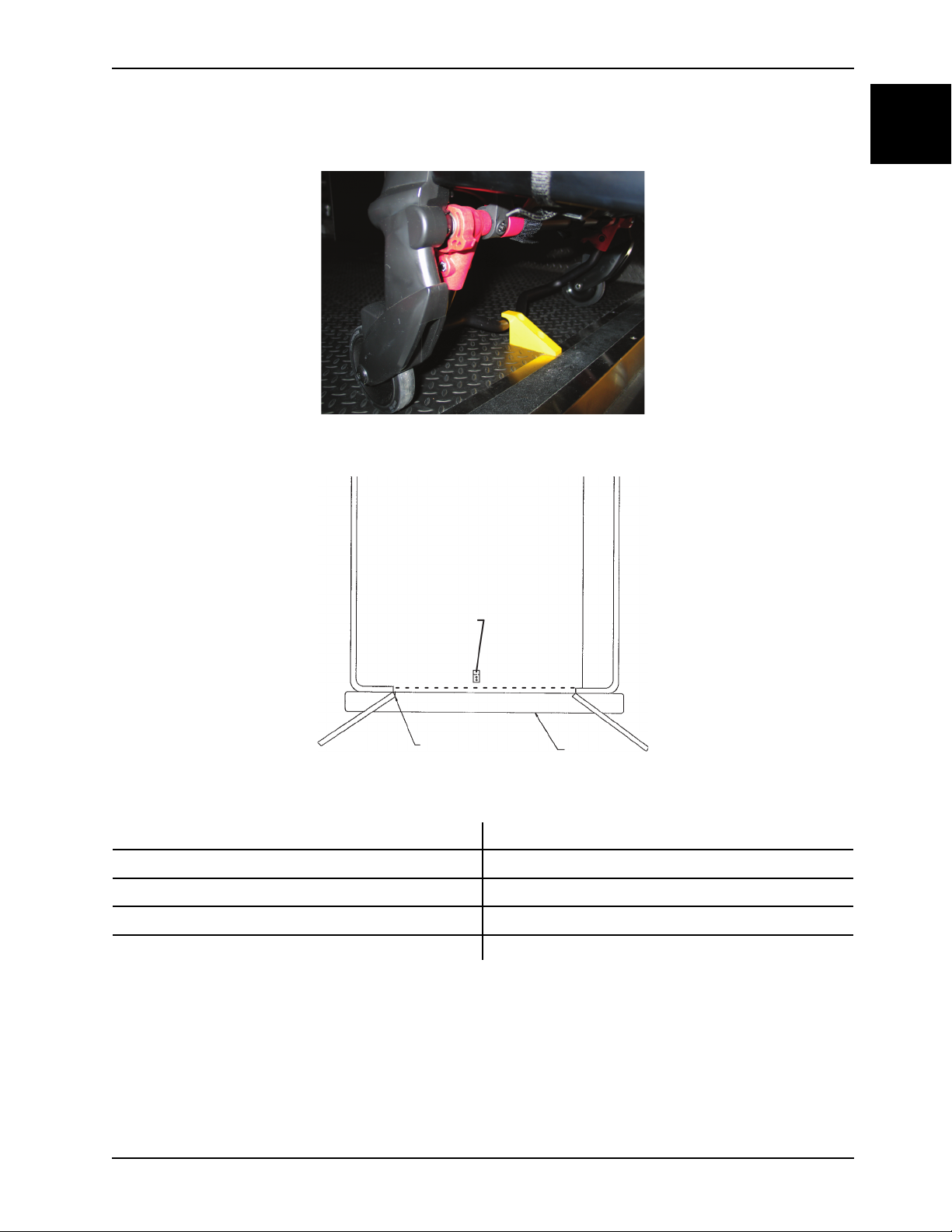

Figure 1-6: Safety bar secured in the vehicle safety hook
A
B
C
DE
Figure 1-7: Vehicle safety hook placement
ATop view of vehicle
BVehicle safety hook
C Squad bench
D Bumper
EDoor frame
After installation, make sure that the cot legs lock into the load position without contacting the vehicle bumper.
Installing the floor plate
The Stryker cot fastener system for the floor plate mounting model is compatible only with cots that conform to the floor
plate mounting installation specifications.

English
EN
1-14 6370-109-005 REV C www.stryker.com
Installation
Installing the floor plate (Continued)
To position the antler floor mounting plates:
1. Determine the desired position of the cot inside the vehicle to allow for proper clearance around the cot.
Note: Federal ambulance specifications regarding aisle width and attendant seating may affect positioning of the
mounting brackets. If specifications do not apply, the installer should be certain that there is adequate clearance for
proper patient access, traction splint projection, rear door closure, and so on.
2. Using the dimensions shown in Figure 1-8 on page 1-14, locate and drill the points where the floor plates will attach.
12-5/8” (32 cm)
24.000
(Ref.)
(61 cm)
6-1/8”
(15,6
cm)
14-15/16”
(37,9 cm)
37-5/8”
(95,6 cm)
80.000 (Ref.)
(203 cm)
2-5/8”
(6,6 cm)
14-5/8” (Ref.)
(37,1 cm)
ABC
D
E
F
G
Figure 1-8: Floor plate installation locations
ARail support bracket floor plate E Cot center line
B Wall of vehicle F Cot perimeter
CAntler floor plates G Cot head end
D Rear of ambulance
3. Cut 1 in. x 2-1/2 in. x 9/16 in. deep recessed openings (A) into the floor centered over the locating holes (Figure 1-9
on page 1-15).
Other manuals for 6370
1
This manual suits for next models
5
Table of contents
Languages:
Other Stryker Tools manuals
