STS M3-D User manual

Surface to Surface Inc. ®
Operators Manual
** M3-D **
USE IN CONJUNCTION WITH OEM MANUALS (ENCLOSED)
Unit Serial No. _______________
Yanmar Engine
L100V – Serial No. ______________
Gorman-Rupp® Pump
STS-83A2 – Serial No. ________________
Links relating to this Manual
www.stsmixers.com
www.grpumps.com
www.yanmar.com
STS-111 Rev. 11/07/23 www.stsmixers.com
Dealer

2
TABLE OF
CONTENTS
PAGE
STS Inc. Warranty………………………………………………………….. 5
Safety Statements………………………………………………...………… 6-9
Safety Markings……………………………………………………………. 10

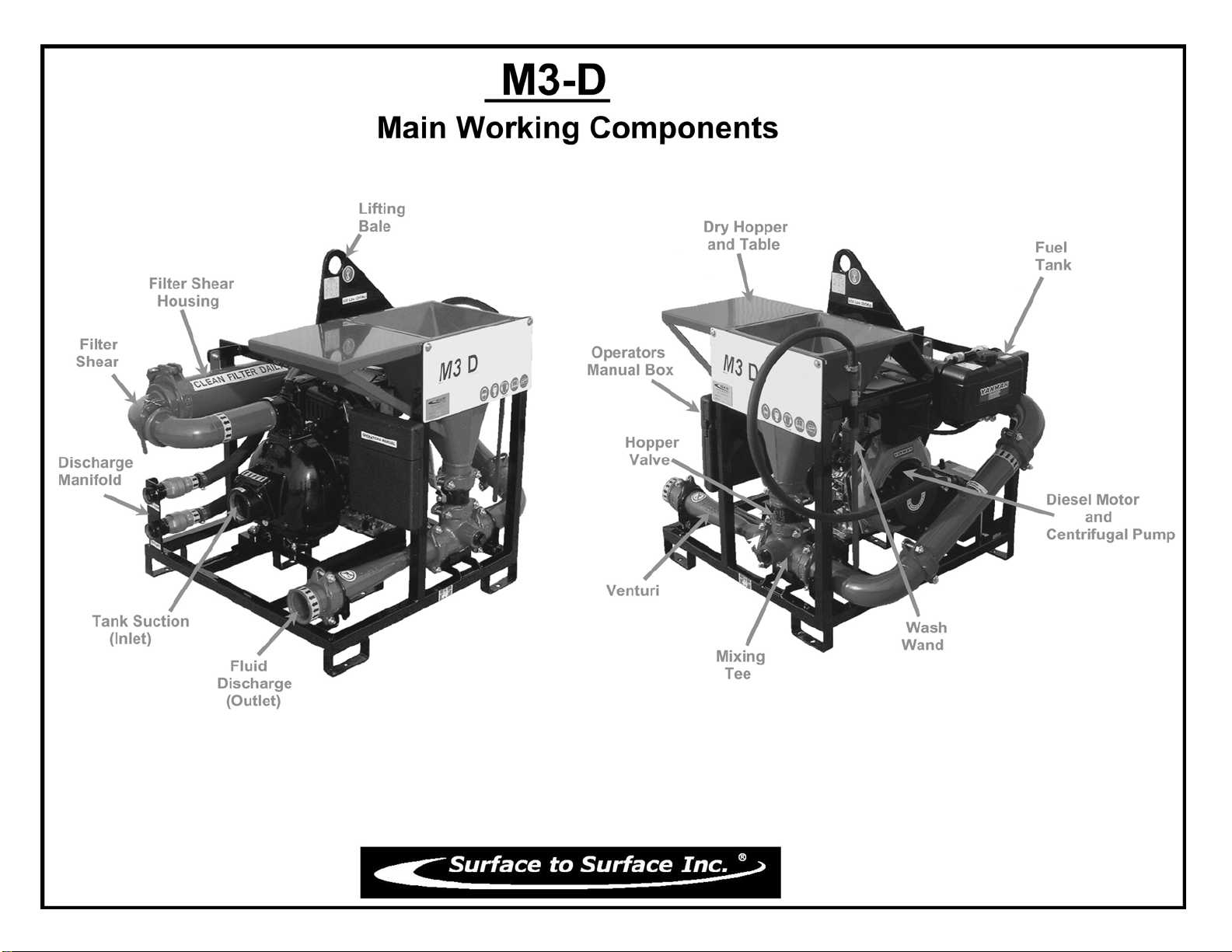

Main Working Components (Photo)……………………………………… 11
M3 Hose Connections ……………….……………………………………. 12
Introduction to the M3-D ……………….………….………….…………. 13

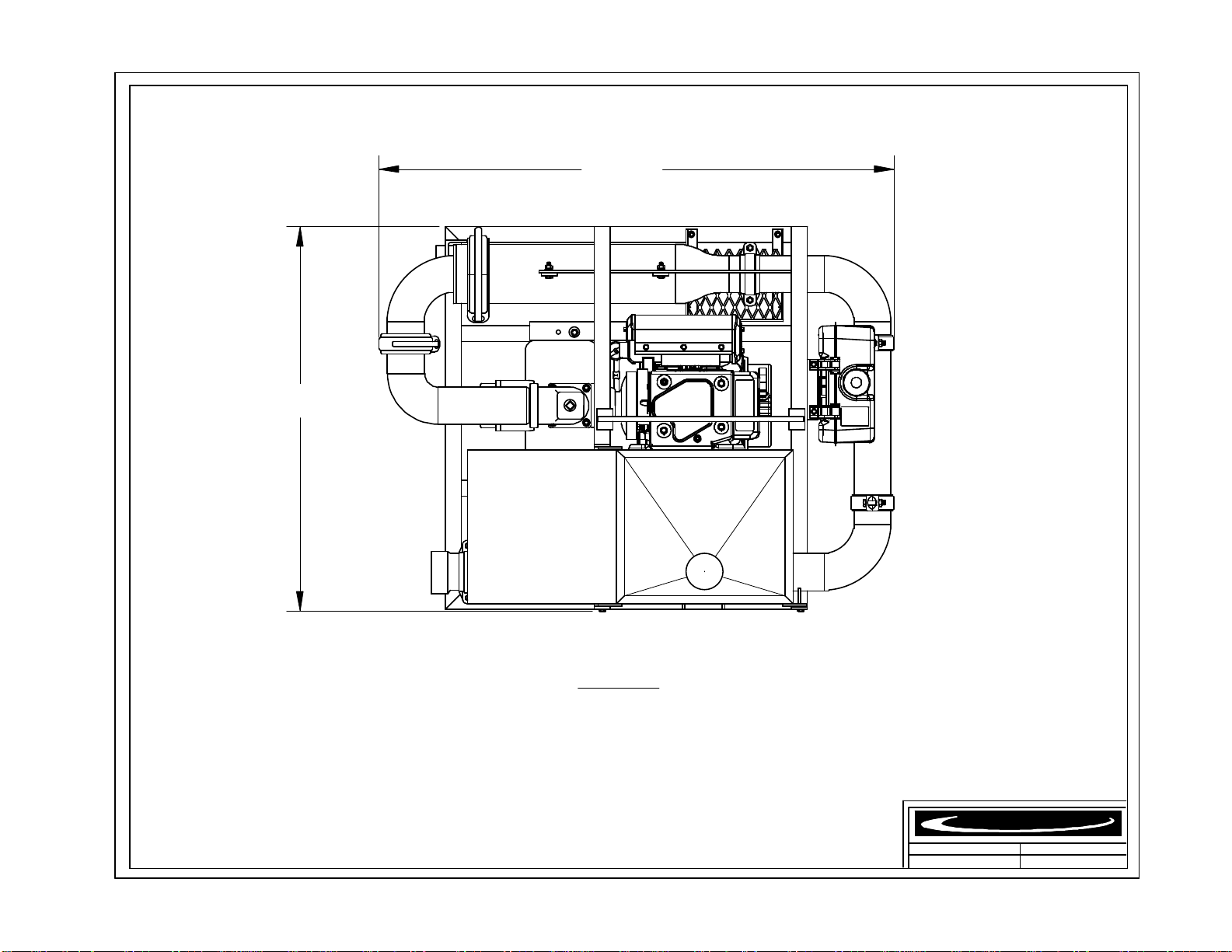

M3-D Foot Print (top view)………………………………………………… 14

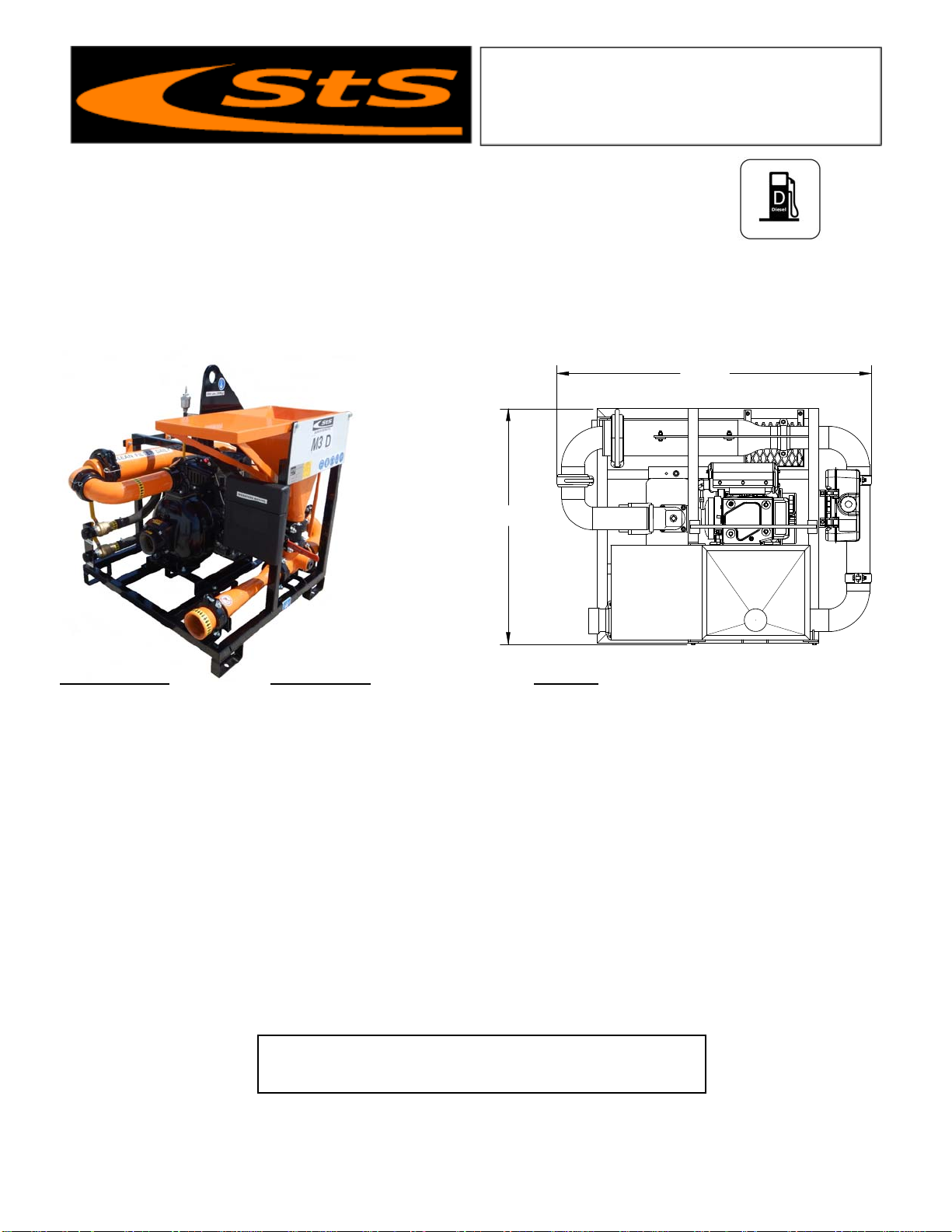

M3-D General Data Sheet…………………………………………………. 15
Identifying Your Machine & Components………………………………. 16
SECTION II (Description, Care and Maintenance)
Diesel powered centrifugal pump.…….…………….………….…. 18-21
Filter shear system……………………………………………………. 22-23
Venturi mixing tee……………………………..………..……………. 24
Wash wand……………………………………………………...……. 25
Dry hopper with table & hopper valve…………………………..…… 26
Internal tank jets ……………………………………...……………… 27-28
Mixing Tee shut of valve (optional) ………….…….….….…….…… 29
SECTION III (Set-up and installation of unit in Detail)
Permanent mounting of unit…………………………...…………….. 31
Portable use of unit…………………….…………………….………. 31

3
TABLE OF
CONTENTS
PAGE
SECTION IV (Operating the M3 Unit.)
Site set-up and pre-check…………………………………………….. 33
Starting the engine driven pump…………….….…....…….……… 34
Typical mixing operation……………………….……………………. 35
Typical transfer / off-loading operation……………………………… 36
Shutdown, cleanup & storage
Warm weather…………………………………….…………. 37
Cold/ freezing weather………………………………….…… 38
Prolonged periods of storage………………………………… 39
**Optional self-loading feature……………………………...………… 40
SECTION V (Trouble shooting)
Trouble Shooting the M3 ……………….…………………....……… 42-43
SECTION VI (Periodic Maintenance & Repair Information)
Maintenance Schedule…………………….….………………….…... 45
Centrifugal Trash Pump Seal Replacement………………………..… 46
Bolt torque Specifications…………………………………….……... 47
Notes…………………………………………………….…………… 48

4
TABLE OF
CONTENTS
PAGE
SECTION VII (OEM Repair / Information)
GR Centrifugal Pump Owner’s Manual……………………..………… 50-61
Engine Manufacture Customer Help (web site) …….….… .…. …. …. 62
Gruvloc® Pipe Couplings ………….…….….….………………..…… 63-65
SECTION VIII (Parts Manual)
M3-D PARTS MANUAL…………………….……………….……. 67-69

5
Limited Warranty
United States and Canada
Surface to Surface Inc. or its subsidiary which last sold the product, warrants new products sold by it for use in the
United States and Canada to be, at the time of manufacture, free from defects in workmanship and materials. This
warranty covers for a period of Twelve (12) Months of operation from the date of delivery for initial use, whichever
comes first.
Exclusions and Additional Limitations
1. This warranty relates to the condition of the product at the time of manufacture and does not cover parts or
service as a result of:
(a) Normal wear and tear or required maintenance including, without limitation, adjustments or replacement of
components subject to wear and tear, such as belts, hoses, seals and/or packing, fuses, bulbs,
switches and ignition parts.
(b) Abuse including, without limitation, neglect, improper operation, misapplication, overloading, accident or
alterations not approved by Surface to Surface Inc.
(c) Lack of maintenance, including, without limitation, failure to inspect and maintain, improper repair, use of
“unapproved parts”, cracked engine heads and blocks unless caused by the failure of
an internally lubricated part or repair of engine valves, rings or guides.
2. The Company’s warranty does not apply to purchased components manufactured by others where separate
warranty is made by the manufacture of such components and will be applied as interpreted by
the supplier.
3. All claims under his warranty shall be submitted in writing by the distributor to the Company, which will be the
sole judge in determining the merits of the claim.
4. The company shall have the right to have all products or parts claimed to be defective returned to it and the
cost of shipping such items shall be borne by the distributor.
……………………………………………………………………………………
Warranty Registration Card
In order to help us provide complete service for our product, please complete this card and return it.
If not returned, all requests for warranty will be denied.
Print Name: …………………………………………………………………….….
Address: …………………………………………………………………………...
City: ……………………State/Province………………Zip/PC…………………...
Model No. ………………………….. Serial No. …………………………………
Date of Purchase ………………………… Dealer ………………………………..
Return to: Surface to Surface Inc.
5150 Forest Rd. RR#3
Watford, Ontario, Canada
N0M 2S0
01/14/08

6
M3-D
SAFETY STATEMENTS
Your personal safety and the safe operation of this unit are the concern of Surface to Surface Inc., and by
reading and understanding this manual and understanding the safety statements, you will decrease the risk of
personal and equipment damage.
Safety statements are listed here and throughout this manual to draw your attention to potential hazards that
may be encountered while operating this piece of equipment. While reading this manual, you will notice that
certain safety statements will relate directly to the operation, or maintenance of that particular part of the unit and
should be followed carefully. Decals on the unit also follow the same format as the warnings in this manual, and
therefore should be kept in good repair to alert the operator and others of the potential hazard.
The engine / motor manual also contains hazard warnings which pertain to the engine / motor and should
also be followed.
This safety alert symbol appears with most safety statements.
It means attention, become alert, your safety is involved!
Please read and abide by the message that follows the safety alert symbol.
DANGER
WARNING CAUTION
CAUTION
Caution "without the safety alert symbol"
indicates an potentially hazardous
situtation that can cause damage to the,
machine, personal property and / or the
environment or cause the machine to
operate improperly.
Danger (the word "DANGER" is in white
letters with a red rectangle behind it)
indicates an imminently hazardous
situation, which, if not avoided, will
result in death or serious injury.
Danger is limited to the most extreme
situations.
Warning (the word "WARNING" is in black
letters with an orange rectangle behind it)
indicates an potentially hazardous
situation which, if not avoided, could
result in death or serious injury.
Caution (the word "CAUTION" is in black
letters with a yellow rectangle behind it)
indicates an potentially hazardous
situation which, if not avoided, may
result in minor or moderate injury.

7
M3-D
SAFETY STATEMENTS
The following caution statements have been drawn from the instructions in this manual. They
have been assembled here for ready reference.
DANGER
IN AN EMERGENCY
rotate the throttle control lever to
the STOP position
to halt engine, pump, and fluid flow
DANGER
NEVER ATTEMPT REPAIRS
OR DISASSEMBLY
without shutting off the engine / motor
and disconnecting the power source.
Serious personal injury will result.
WARNING
NEVER USE BODY PARTS,
OR FOREIGN OBJECTS
in an attempt to unplug or clean the
hopper valve or mixing tee.
Serious personal injury or
damage will result.
WARNING
Serious personal injury will result.
DO NOT REMOVE OR MODIFY
SAFETY COVERS OR GUARDS.
WARNING
while the unit is in operation.
Serious personal injury will result.
NEVER ATTEMPT TO REMOVE
OR CLEAN THE FILTER SHEAR
CAUTION
DO NOT POSITION
ANY PART OF YOUR BODY
over the hopper, valve,
or mixing tee while cleaning.
CAUTION
WHEN THE UNIT
IS IN OPERATION,
the fluid in the piping may reach
pressures up to 50 p.s.i.
When the engine is idling, the system is
still pumping fluid under pressure.

8
M3-D
SAFETY STATEMENTS continued
The following caution statements have been drawn from the instructions in this manual. They
have been assembled here for ready reference.
CAUTION
TRAPPED FLUID MAY BE PRESENT
and will spill out when piping, hoses,
pump or filter shear are removed.
CAUTION
AVOID ALLOWING FOREIGN MATERIAL
into the Venturi Mixing Tee thru the
Hopper, by keeping the valve closed
when not in use.
CAUTION
NEVER LEAVE LIQUID IN THE
PUMP CASING, PIPING, OR HOSES
during freezing weather conditions,
as damage will result.
Follow instruction for winterizing.
CAUTION
CAUTION
CARE MUST BE TAKEN WHEN
INSTALLING THE COUPLER GASKETS.
If the gaskets are not properly lubricated
and installed, a leak may develop.
CAUTION
BEFORE STARTING OR RESTARTING
the engine and centrifugal pump, make
sure any valves installed on the pump
suction inlet line are open, and the
fluid level in the tank is above
the suct ion line.
IMPROPER INSTALLATION OF THE
MECHANICAL or GREASE SEAL
will result in leakage and possible
damage t o the seal. All maintenance,
operating and repair of this unit, must be
done per the instructions in the operators
manual for safety and reliability.
CAUTION
WHEN TRANSFERRING FLUID
to the drill rig, fluid pressure may
reach or exceed 50 p.s.i.
CHECK t he drill rig manufacturers
specifications regarding maximum inlet
pressures allowed for their pump.
CAUTION
BEFORE STARTING THE ENGINE,
BE SURE THE PUMP IS PRIMED!
Check the pump by slowly & carefully
opening the plug located on the top
of the centrifugal pump discharge elbow.
A visual inspection can be made if the fluid
escapes around the plug as it is loosened.
Remove the plug to view inside fluid level.
The centrifugal pump seal WILL be
damaged if allowed to cavitate or run dry.

9
M3-D
SAFETY STATEMENTS continued
The following caution statements have been drawn from the instructions in this manual. They
have been assembled here for ready reference.
CAUTION
The manu factur e r sho uld be consu lted
whe n cons idering alternativ e uses
for this piece of equipment.
This unit was de signe d for t he mix ing
and sheari ng of a dry additive, into a
liquid stre am.
Other uses may c reate unfores een sa fety
issues and personal inj ury r isk.
CAUTION
LIFTING LU GS OR THE L IFTING POINT(S)
identified and labelled on the skid
structure must be used in orde r to
safe ly lift and tra nspor t the unit.
WARNING
REFER TO THE SAFETY
STATEMENTS IN THE
OEM SUPPLIED MANUALS
AND
THIS MANUAL
REGARDING THESE
OPERATIONS.

10
M3-D
Safety Markings
Hazard and warning markings have been placed at appropriate points on the unit. International symbols
have been used, in order to ensure universal understanding of the nature of the hazard. Please comply
with all warnings and markings to ensure safe use of the equipment. These include but are not limited to:
a) Lifting points b) Flammable Liquids
c) High temperature areas d) Personal Protection recommendations
e) Personal dangers f) Equipment dangers
g) Operating instructions h) Fluid flow direction
SOME EXAMPLES FOUND ON THE EQUIPMENT
Liftin
g
Point
Personal Protection
,
Read and understand O
p
erator’s manual and Maintenance manual
Hot Surface
Fluid Flow Direction
Maintenance Instructions
Liftin
g
Point
CLEAN FILTER DAILY
Flammable Li
q
uid

11

12

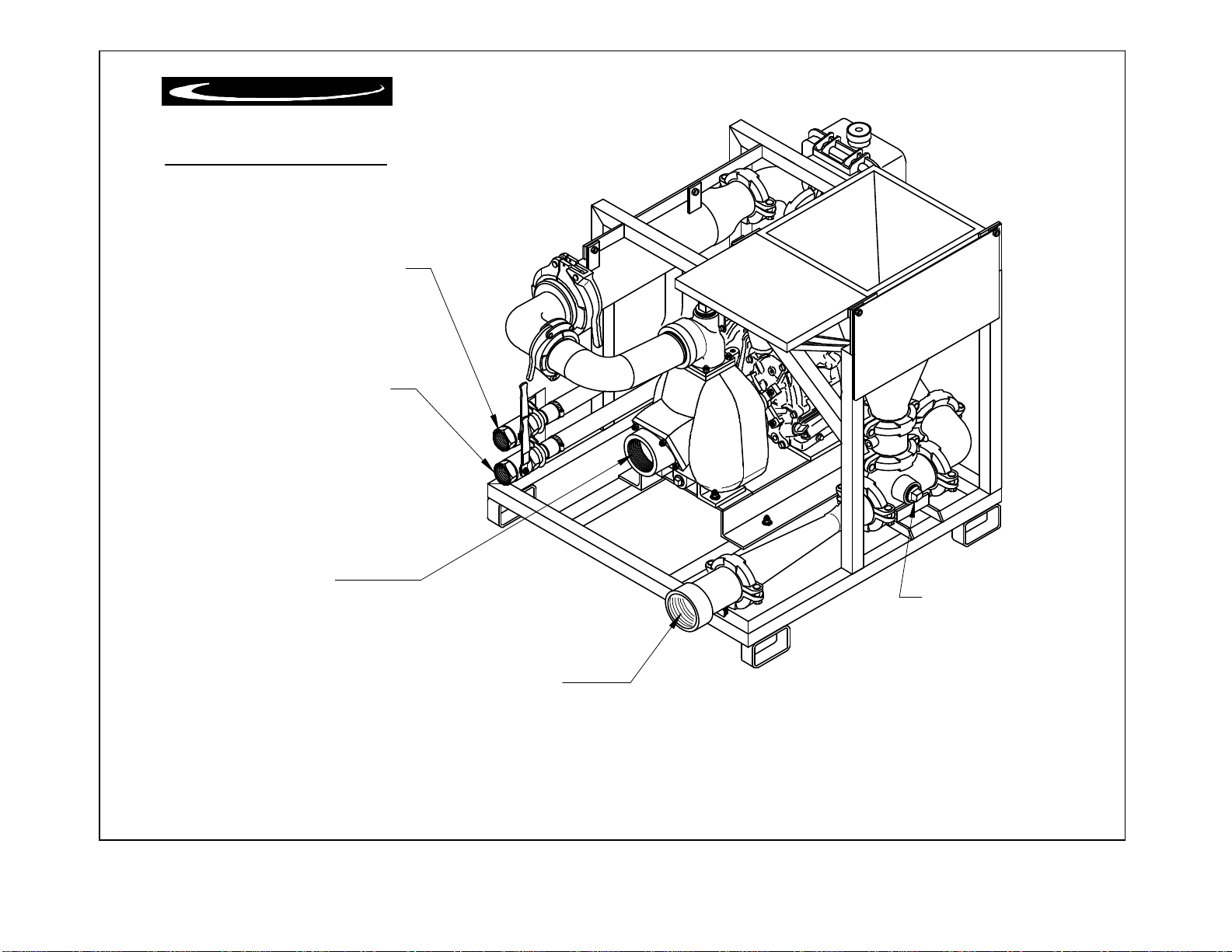

** 1 1/2" NPT **
DRILL FLUID OUT
[to Drill Rig]
** 1 1/2" NPT **
OUT FLOW
[to Tank Gun(s)]
"ALL HOSES SHOULD BE KEPT TO THE SHORTEST LENGHT POSSIBLE TO ACHIEVE MAXIMUN PREFORMANCE."
FLUID RETURN
[out to Tank]
This lineshould discharge above the maximun fill line
of the tank.The air space will stop the siphon action of the fluid.
** 3" NPT **
PUMP INTAKE
[in from Tank]
This line should have a valve installed at
the tank to facilitate shut down or reapirs.
** 3" NPT **
OPTIONAL INTAKE
[can be used to draw in
fresh water]
** 1 1/2" NPT **
(Hose Hook-ups)
Surface to Surface Inc.
M3Series

13
M3-D
Operators Manual
Congratulations on your acquisition of the world renowned M3 Mixing System. You have acquired the
fastest and most efficient mixing system manufactured for mixing Bentonite drilling slurry (mud). As a
manufacturer of HDD support equipment, we are well aware of the extreme conditions that HDD
equipment is exposed to on a daily basis. Surface To Surface Inc. strives to overcome these conditions,
with better design and manufacturing practices. Please feel free to call our toll free number
(1-800-567-0978) if you have any questions or concerns about your M-3.
Thank you, for choosing the M3 series mixer.
The M3 mixing unit was designed to mix dry or liquid drilling products with clean
water, into a slurry. The slurry is continually circulated through the mixing cycle until it
reaches the desired consistency. The operator can then transfer the final product to a holding
reservoir or directly to the drilling equipment.
The M3 mixing unit consists of a diesel powered centrifugal pump, filter/shear unit, venturi
mixing tee assembly, dry hopper with a table, a set of tank internal jets.
These components are all mounted on a frame type skid, built for lifting or solid mounting.
For ease of interpretation, looking at the mixing unit hopper straight on will be considered
looking at the front of the unit. Hence the other long side, will be the rear and the ends will be
right or left end.
RECORD OF OWNERSHIP:
• Unit Serial No. __________________________________________
• Engine Serial No.________________________________________
• Pump Serial No:_________________________________________
• Date Purchased/Leased:___________________________________
• Dealer Purchased/Leased From:_____________________________
• Special Custom Features:__________________________________

14
REV.
DATE.DWR. NUM.
* Due to our continuing product improvement, specifications are subject to change without notice. *
Surface to Surface Inc.
Height 35 1/2"
DRY WEIGHT
650 lbs.
M3-D
M3-D
02 / 03 / 12
36"
48 1/2"

15
Features and Benefits M3-D Mixer
The M3-D universal mixer is designed around the time proven M series mixers of STS. Powered by a 9 hp air-cooled
diesel engine, driving a 3” centrifugal pump makes effective use of the proprietary 4 point mixing system. The M3-D
can be used as a new installation or retro fitted into an existing system of tank(s). Since the unit is connected by hose
and not hard pipe, the placement of the mixer verses the tank(s) is less restricted and a configuration to suit the needs
of the contractor are easier to achieve. The small size also makes it a portable, independent unit that is easier to
transport from site to site.
Specifications M3-D Mixer Benefits
Dimensions 36” W x 48½ ” L x 43½” H Small space saving footprint.
Weight 650 Lbs Light weight for easy transportation.
Hopper Height 35-1/2” High Waist high hopper reduces back strain.
Mixing System 3” Proprietary StS Mixing System Fast & efficient with high shearing ability.
Flow Valves Brass and Steel construction Withstand the abuse of daily operations
Skid Frame 1½” steel tube with fork pockets Built tough for the construction trade.
Engine 9.0 hp air-cooled, manual start Industrial rated for longer service life.
Pump 3” Cast iron centrifugal trash pump Rugged & repairable for extended service life
Pump Coupling Direct coupled engine & pump No expensive couplers or inserts to replace.
Vacuum Port 1½” NPT Inlet Draw Fluid into system without additional pump.
Pipe Couplers Bolt & Snap-groove type Fast cold weather draining of system.
Pressure Wand Hopper maintenance wand Removal of blockages caused by additive.
Internal Jet Guns TurboMix™ Eductor Nozzles Fast and effective rolling and mixing action.
Mechanical Seal Self-pressurizing Grease Seal Greaseable seal for more rugged working conditions
Replaceable Wear Plate Hardened plate ahead of Impeller Less wear on internal pump parts and is replaceable.
Also available in Electric (M3-E) , Hydraulic (M3-H) or Gasoline (M3-G) models.
∗∗∗
A
ll S
p
ecifications Sub
j
ect to Chan
g
e Without Notice ∗∗∗
Surface to Surface Inc.
Universal 3” Mixer
Model M3-D
Surface to Surface Inc.
5150 Forest Road, R.R.#3, Watford, Ontario, N0M 2S0
Tel: [phone]
Check our website for the latest products and specifications
www.stsmixers.com
07/28/23
36"
48 1/2"

16
M3-D
Identifying Your Machine & Components
Location of Tags and PIN Plates

17
SECTION #II
Description, Care and Maintenance

18
M3-D
Description, Care and Maintenance
Diesel Powered Centrifugal Pump
Care and maintenance of the engine and pump are covered in this manual and/or the manufacturer
operator’s manuals supplied and should be read and understood. We suggest the following daily checks be
carried out prior to using the system. Check the diesel fuel tank is full. Check oil level by removing the oil
plug / dip stick, and viewing the oil level. Check the pump seal grease cup is full (see grease cup instructions
Fig.5). Check that any water intake valve(s) are open and the reservoir tank has sufficient liquid to supply
the centrifugal pump.
The pump is mounted directly to the engine, so there is no “drive coupler” to check or maintain. The pump
is the primary component that will see the most wear due to the nature of the material it is handling
therefore it will require regular checks, adjustments and maintenance.
There is a section of this manual dedicated to the pump itself and should be read and understood
which will help should any problems or concerns arise in the field.
The pump should never be allowed to start or run dry, as this WILL damage the internal pump seal (grease
seal) and render the unit inoperable until the seal is fixed.
To prime the pump or check to visually see if the pump is primed, slowly undo the plug (priming
port) on top of the pump discharge elbow (see Fig.4) and stop after about 3 turns. If the pump is primed,
fluid & air will escape from around the plug threads. This indicates that the pump housing is full, and the
plug can be tightened back up. If no fluid is escaping from around the threads, completely remove the plug.
Drill fluid or water can be poured into this opening to fill the pump cavity, and a visual of the fluid level
inside the pump can be made. The level should be approximately to the top of the pump housing.
Another way to prime the pump is to have the tank FULL of fluid, and standing off to the side of the
hopper, rotate the hopper valve SLOWLY to the open position. As the valve is opened, you will hear air
escaping followed by fluid, into the hopper itself. Close the valve as the fluid enters the hopper. This means
the fluid in the tank has filled the pump cavity of the pump and flowed from the outlet of the pump to the
remaining piping on the unit.
CAUTION
IMPROPER INSTALLATION OF THE
MECHANICAL or GREASE SEAL
will result in leakage and possible
damage to the seal. All maintenance,
operating and repair of this unit, must be
done per the instructions in the operators
manual for safety and reliability.
DANGER
IN AN EMERGENCY
rotate the engine speed control lever
to the STOP position
to halt engine, pump, and fluid flow
DANGER
NEVER ATTEMPT REPAIRS
OR DISASSEMBLY
without shutting off the engine / motor
and disconnecting the power source.
Serious personal injury will result.
CAUTION
BEFORE STARTING THE ENGINE,
BE SURE THE PUMP IS PRIMED!
Check the pump by slowly & carefully
opening the plug located on the top
of the centrifugal pump discharge elbow.
A visual inspection can be made if the fluid
escapes around the plug as it is loosened.
Remove the plug to view inside fluid level.
The centrifugal pump seal WILL be
damaged if allowed to cavitate or run dry.

19
M3-D
Description, Care and Maintenance
Diesel Powered Centrifugal Pump
CAUTION
NEVER LEAVE LIQUID IN THE
PUMP CASING, PIPING, OR HOSES
during freezing weather conditions,
as damage will result.
Follow instruction for winterizing.
CAUTION
TRAPPED FLUID MAY BE PRESENT
and will spill out when piping, hoses,
pump or filter shear are removed.
Fig.4
CAUTION
BEFORE STARTING OR RESTARTING
the engine and centrifugal pump, make
sure any valves installed on the pump
suction inlet line are open, and the
fluid level in the tank is above
the suction line.
WARNING
REFER TO THE SAFETY
STATEMENTS IN THE
OEM SUPPLIED MANUALS
AND
THIS MANUAL
REGARDING THESE
OPERATIONS.

20
M3-D
Description, Care and Maintenance
Diesel Powered Centrifugal Pump
Grease cup instructions (Fig.5)
Fill the grease cup through the grease fitting with No. 2 lithium base grease until grease escapes from the
relief hole. Turn the grease cup arm counterclockwise until it is at the top of the stem; this will release the
spring to apply grease to the seal.
NOTE:
Some smoking and leakage may occur after installing
a new seal assembly. This should stop after the pump
has run a while and the lapped seal faces have seated
in.
Fig.5
