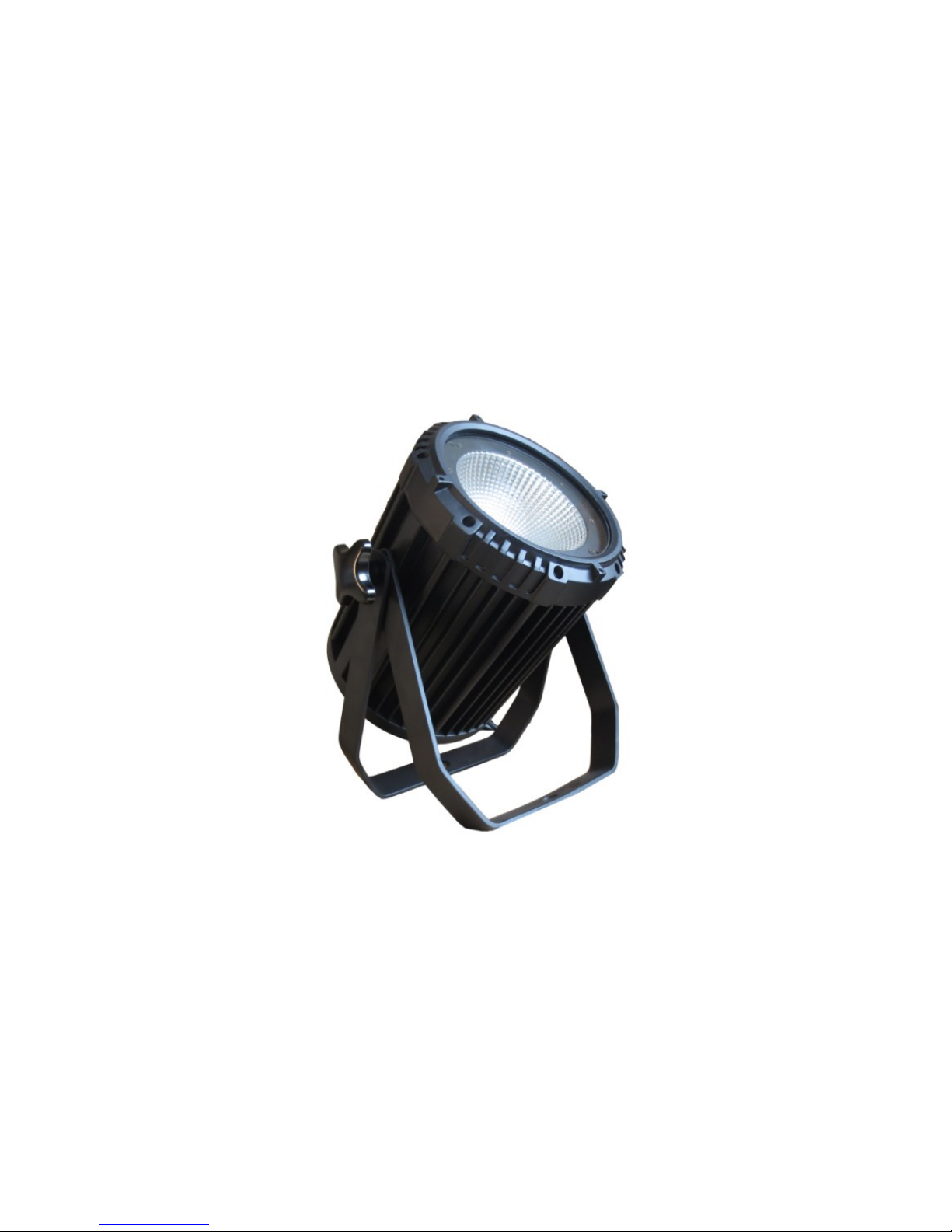

STSLITE COB PAR 100SQ WASH User manual

COB PAR 100SQ WASH
User Manual
Ver1.0

1
Table of contents
INTRODUCTION ……………………………………………….…………………………..2
SAFETY INSTRUCTIONS…………………………………………………………………2
OPERATING DETERMINATIONS…………………………………………….…………..3
DESCRIPTION OF THE DEVICE…………………………………………………………4
INSTALLATION………………………………………………………………….…………..5
OPERATION……………………………………………………………………….………...6
Stand alone operation…………………………………………………………….…………6
Master slave operation…………………………………………………………….……..…6
DMX controlled operation………………………………………………………….…….…6
Addressing…………………………………………………………………………….…..…6
Control board………………………………………………………………………….…..…6
DMX protocol………………………………………………………………………….…..…7
TECHNICAL SPECIFICATIONS…………………………………………………….……7

2
Every person involved with installation. operation and maintenance of this fixture has to
- be qualified
- follow the instruction of this manual
- consider this manual to be part of the total product
- Keep this manual for the entire service life of the product
- pass this manual to every future owner or use of the product
INTRODUCTION
Thank you for choosing our fixture, if you follow up the instruction given in this manual we be sure that
you will enjoy this product for a long period of time
SAFETY INSTRUCTION
This device has left our premises in absolutely perfect condition .In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety instruction and
warning notes written in this user manual.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution! Never touch them with wet hands .as this could lead
to mortal electrical shock. Never modify, bend, strain mechanically, put pressure on, pull or heat up the
power cord. Never operate next to sources of heat or cold. Disregard can lead to power cord damages,
fire or mortal electrical shock .The cable insert or the female part in the device must never be strained.
There must always be sufficient cable to the device. Otherwise, the cable may be damaged which may
lead to mortal electrical shock. Make sure that the power-cord is never crimped or damaged by sharp
CAUTION!
Be careful with your operations, With a dangerous voltage you can suffer a dangerous electric
shock when touching the wires.
CAUTION !
Keep this device away from rain and moisture
Unplug mains lead before opening the housing
For your own safety, please read this user manual carefully before you initially start-up

3
edges. Check the device and the power-cord from time to time. If extension cords are used, make sure
that the core diameter is sufficient for the required power consumption of the device. All warnings
concerning the power cords are also valid for possible extension cords.
OPERATING DETERMINATIONS
This device is designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects. Do not shake the device. Avoid brute force when
installing or operation the device. Never lift the fixture by holding it at the projector-head. As the
mechanics may be damaged. When choosing the installation-spot, please make sure that the device is
not exposed to extreme heat, moisture or dust. There should not be any cable lying around. Please
make sure that the fixture can not be touched or bumped. Your endanger your own and the safety of
others.
device are forbidden due to safety reasons! Never remove the serial barcode from the device as this
would make the guarantee void. If this device will be operated in any way different to the one described
in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any
other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
DESCRIPTION OF THE DEVICE
Features
> 11 channel DMX-512 .in optional
> Variable electronic strobe.
> Variable electronic dimmer (0-100%).and 4 type in optional
> LED operation menu with function buttons
> Reset to factory settings option. Color temperature setting
> Build-in program with speed adjustment
> 16 bit dimmer effect and White balance
> Temperature sensor via software to control fans speed against overheat
> 6 different DMX channel mode. Including STAG, ARC1,AR1D,ARC2,AR2D,AR2S and HSV
INSTALLATION
Rigging
The installation of the projector has to be built and constructed in a way that it can hold 10 times the
weight for 1 hour without any harming deformation.
IMPORTANT!OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating
working load limits, installation material being used, and periodic safety inspection of all installation
material and the projector. If you lack these qualifications, do not attempt the installation yourself, but
instead use a professional structural rigger. Improper installation can result in bodily injury and or
damage to property. The projector had to be installed out of the reach of people
DANGER OF FIRE! When installing the device, make sure there is no highly-inflammable

4
material(decoration articles, etc.)within a distance of min.0.5m.
DMX 512 connection/ connection between fixture
The wires must not come into contact with each other, otherwise the fixture will not work at all or
properly. Please note the starting address depends upon which controller is being used. Only use a
DMX cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one
fixture to another
Connection with the mains.
The earth has to be connected. The device must only be connected with an electric installation carried
out in compliance with IEC standards.
OPERATION
After you connected the effect to the mains, The fixture starts running
Stand Alone operation
In the stand alone mode, the fixture can be use without controller
Master/slave-operation
The master/slave-operation enables that several devices can be synchronized and controlled by one
master-device
DMX controlled operation
You can control the projectors individually via your DMX-controller
Addressing
The control board allows you to assign the DMX starting address,
Note;it’s necessary to insert the XLR termination plug (with 120ohm) in the last device in the link in order
to ensure proper transmission on the DMX data link.
CONTR O L BOAR D
The control board offer several features :you can simple set the starting address, run the
pre-programmed program or make a reset

5
he main menu is accessed by pressing the Mode/Esc-button, Browse through the submenu by pressing
Up or Down .Press the Enter-button in order to select the desired menu. You can change the selection
by pressing Up or Down, Confirm every selection by pressing the Enter-button. You can leave every
mode by pressing the Mode/Esc-button .The functions provided are described in the following setting.
OMENU MAP
The device has two operation modes, It can be operated in Stand Alone or in DMX controlled
When in Master/Slave Synchronization Mode, only one in a series chain can be set as the master
STAT
R.000 Adjust red color from 0~255
G.000 Adjust green color from 0~255
B.000 Adjust blue color from 0~255
W.000 Adjust warm white from 0~255
ST.00 Adjust strobe effect from 0~20
AUTO
AT From AT01 to AT10 with 10 different auto mode
PR From PR01 to PR10 with 10 different built-in program mode,can be
customized per below EDIT
SOUD
MOD1 Sound control with color change
MOD2 Sound control with color strobe
RUN
DMX and SLAV mode for selection
DMX
Adjust DMX value from 001 to 512
PERS
STAG Run static mode ,11channel with details on dmx protocol
ARC.1 Run 3 channel mode Red/Green/Blue/warm white
AR1.d Run 4 channel mode Dimmer/Red/Green/Blue/warm white
ARC.2 Run 4 channel mode Red/Green/Blue/warm white
AR2.d Run 5 channel mode Dimmer/Red/Green/Blue/warm white
AR2.5 Run 6 channel mode Dimmer/Red/Green/Blue/warm white/Strobe
HSV. Adjust Color in Hue (0~255),Saturation (0~255)and Value (0~255)
ID
ID01 to ID66 to set different fixture(see detail setting on DMX channel 12)
TEMP
CURR show current fixture temperature
EDIT
This function is working for Auto PR01 to PR10,each PR with 30 sense,each
sens with 8 step
PR.01 to PR.10 to set 10 programmer
SC.01 to SC.30 to set 30 different sense
R.000 select red color from 0~255
G.000 select green color from 0~255
B.000 select blue color from 0~255
W.000 select warm white color from 0-255
ST.00 select strobe speed t from 0~20
T.000 select auto mode total running time
F.000 select auto mode fade time
SET
UPLD sending data to next fixture with self-built in program
REST reset fixture
ID OFF/ON
RGBW OFF/ON Adjust the correct color per RGBWA
POW HIGH/NORM select different power consumption with HIGH 100%
and Norm 33%

6
DIM OFF/DIM1/DIM2/DIM3/DIM4
CAL 1
White balance adjustment
WT01 to WT.11 to adjust R/G/B/W from 0~255
Ps:when run stat dmx mode, channel 9 can show 11 different white color
CAL 2
RGBW adjust correct color
RGB adjust from 25~255
Master/slave mode(auto-running、sound control)
This mode will allow you to link up 32 units together without a controller.
Use standard DMX cables to daisy chain your units together via the DMX connector on the rear of
the units.Proper performance it may be necessary to use a terminator at the last fixture.
DMX-pr o tocol
Channel
Value
Function
1
0-255
Dimmer
0-100% dimmer
2
0-255
Red
0-100% Red
3
0-255
Green
0-100% Green
4
0-255
Blue
0-100% Blue
5
0-255
Warm white
0-100% Warm white
6
0-5
6-20
21-30
31-50
51-70
71-90
91-110
111-130
131-150
151-170
171-190
191-200
201-255
Color Change
No function
Color change
No function
R 100%/G 0~100%/B 0%/W 0%
R 100%~0/G 100% /B 0% /W 0%
R 0% /G 100% /B 0~100%/W 0%
R 0% /G 100%~0 /B 100% /W 0%
R0~100% /G 0% /B 100% /W 0%
R 100% /G 0% /B 100%~0 /W 0%
R 100% /G0~100% /B0~100% /W 0%
R 100%~0 /G100%~0 /B 100% /W 0%
R 100% /G 100% /B 100% /W 100%
Different white color select from each dmx value 5
7
0-10
11-255
Strobe
No function
Strobe with increasing speed
8
Built-in program

7
0-20
21-30
31-120
121-130
131-220
221-240
241-255
No function
Fixed program AT01
Fixed program AT02~AT10
Build-in program PR01
Build in program from PR02-PR10
Color change via sound
Flash effect via sound
9
0-255
Speed for Fixed program AT01-AT10
Speed from slowly to fast
10
0-9
10-29
30-69
70-129
130-189
190-255
Dimmer Optional (1st channel Dimmer be open)
Dimmer speed
No function
Dimmer 1
Dimmer 2
Dimmer 3
Dimmer 4
11
0-9
10-211
211-222
ID selection (After select the fixture per ID1~ID66, control via
DMX when open value as below per each model even they are at
same dmx value )
No function
Each 10 value with a ID from ID1 until ID19
Each value with a ID from ID20 until ID66
TECHNICIAL SPECIFICATIONS
Model
COB PAR 100SQ WASH
Voltage
110V- 250V / 50-60Hz
Power consumption:
120w
LED
RGBW QUAD COB LEDs
Gross Weight
6.5Kgs
Dimensions
370(H) x250(W) x250(L)mm
