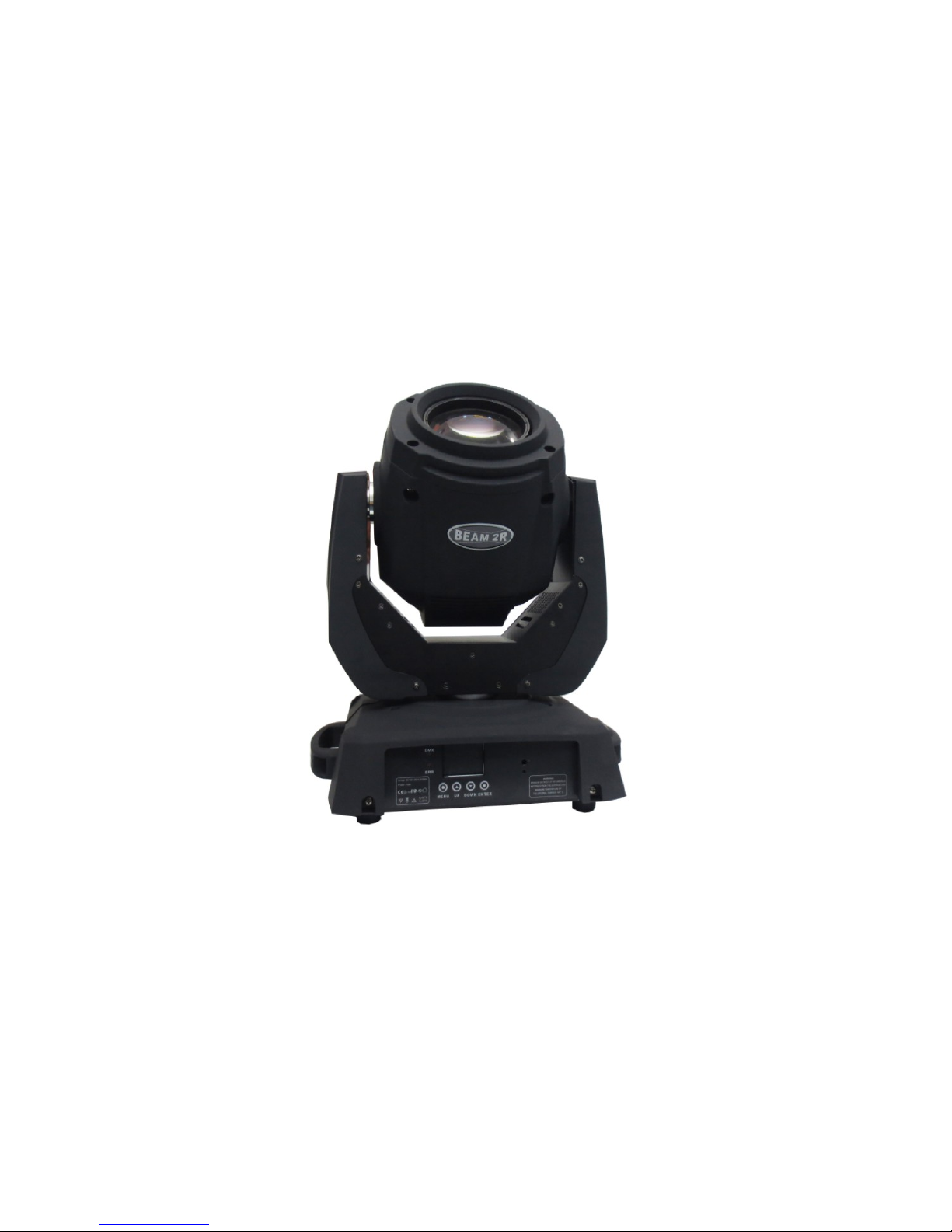

STSLITE M Beam 2R MOVING HEAD User manual

‘、
M BEAM 2R MOVING HEAD
User Manual
Ver1.0

1
Table of contents
INTRODUCTION ……………………………………………….…………………………..2
SAFETY INSTRUCTIONS…………………………………………………………………2
OPERATING DETERMINATIONS…………………………………………….…………..3
DESCRIPTION OF THE DEVICE…………………………………………………………4
INSTALLATION………………………………………………………………….…………..5
OPERATION……………………………………………………………………….………...6
Stand alone operation…………………………………………………………….…………6
Master slave operation…………………………………………………………….……..…6
DMX controlled operation………………………………………………………….…….…6
Addressing…………………………………………………………………………….…..…6
Control board………………………………………………………………………….…..…6
DMX protocol………………………………………………………………………….…..…7
TECHNICAL SPECIFICATIONS…………………………………………………….……7

2
Every person involved with installation. operation and maintenance of this fixture has to
- be qualified
- follow the instruction of this manual
- consider this manual to be part of the total product
- Keep this manual for the entire service life of the product
- pass this manual to every future owner or use of the product
INTRODUCTION
Thank you for choosing our fixture, if you follow up the instruction given in this manual we be sure that
you will enjoy this product for a long period of time
SAFETY INSTRUCTION
This device has left our premises in absolutely perfect condition .In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety instruction and
warning notes written in this user manual.
OPERATING DETERMINATIONS
This device is designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects. Do not shake the device. Avoid brute force when
installing or operation the device. Never lift the fixture by holding it at the projector-head. As the
mechanics may be damaged. When choosing the installation-spot, please make sure that the device is
not exposed to extreme heat, moisture or dust. There should not be any cable lying around. Please
make sure that the fixture can not be touched or bumped. Your endanger your own and the safety of
others.
DESCRIPTION OF THE DEVICE
Features
CAUTION!
Be careful with your operations, With a dangerous voltage you can suffer a dangerous electric
shock when touching the wires.
CAUTION !
Keep this device away from rain and moisture
Unplug mains lead before opening the housing
For your own safety, please read this user manual carefully before you initially start-up

3
> High power 2R lamp
>50000 hours lifetime and lower power consumption
> 15 or 19 DMX channel in optional
> Beam angle 4 degree,
>540/630 degree PAN and 270 degree tilt movement
>1 Color wheel with 8 diachronic colors plus open
> 1 Gobo wheel with 8 gobos plus open.
> Rotated 3 facet prism with speed adjustable and variable direction
> Infinite electric focus with 2m range, and shutter with variable speed
> 0~100% linear dimmer and 1-18 times/sec high speed electronic strobe
> DMX512, master-slave and sound activated controllable and auto with 8 built-in programs
INSTALLATION
Rigging
The installation of the projector has to be built and constructed in a way that it can hold 10 times the
weight for 1 hour without any harming deformation.
IMPORTANT!OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating
working load limits, installation material being used, and periodic safety inspection of all installation
material and the projector. If you lack these qualifications.
DANGER OF FIRE! When installing the device, make sure there is no highly-inflammable
material(decoration articles, etc.)within a distance of min.0.5m.

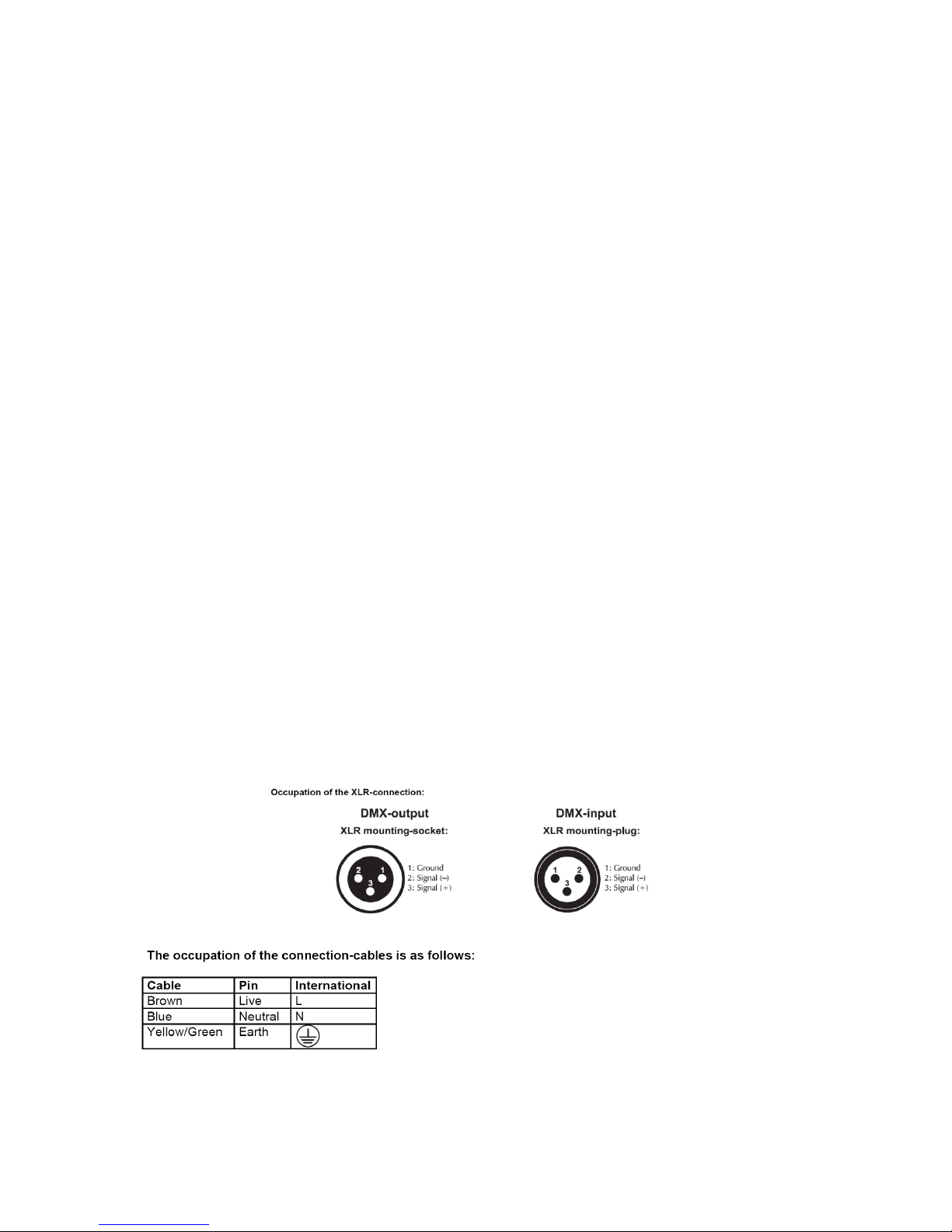

DMX 512 connection/ connection between fixture
The wires must not come into contact with each other, otherwise the fixture will not work at all or
properly. Please note the starting address depends upon which controller is being used. Only use a
DMX cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one
fixture to another
Connection with the mains.
The earth has to be connected. The device must only be connected with an electric installation carried
out in compliance with IEC standards.
OPERATION

4
After you connected the effect to the mains, The fixture starts running
Stand Alone operation
In the stand alone mode, the fixture can be use without controller
Master/slave-operation
The master/slave-operation enables that several devices can be synchronized and controlled by one
master-device
DMX controlled operation
You can control the projectors individually via your DMX-controller
Addressing
The control board allows you to assign the DMX starting address,
Note;it’s necessary to insert the XLR termination plug (with 120ohm) in the last device in the link in order
to ensure proper transmission on the DMX data link.
CONTRO L B O ARD
The control board offer several features :you can simple set the starting address, run the
pre-programmed program or make a reset
MENU MAP
The device has two operation modes, It can be operated in Stand Alone or in DMX controlled
Mode
DMX
Auto 1 /Auto 2 Auto 3 /Auto 4
XY effect 1/ XY effect 2 / XY effect 3 /XY effect 4
Random effect /Sound
DMX address
Setting DMX address from 001-512
Channel mode
Select 14 or 18 DMX channel
X reverse
ON/OFF
Y reverse
ON/OFF
XY exchange
ON/OFF
XY encoder
ON/OFF
Screen mode
ON display no light after 30 seconds
OFF display light always on
Version
Software version/DMX channel/run time/Total use time
Reset
ON/OFF
DMX-pr otoc o l
15/19 DMX channel mode
channel
value
function
1
0-255
Pan movement
Pan movement
2
0-255
Pan Fine
Pan fine movement
3
0-255
Tilt movement
Tilt movement
4
Tilt Fine

5
0-255
Tilt fine movement
5
0-255
Pan Tilt speed
Pan/Tilt movement with increasing speed
6
0-3
4-251
252-255
Shutter/Strobe
Shutter close
Strobe with increasing speed
Shutter open
7
0-255
Dimmer
0~100% linear dimmer
8
0
1-10
11-20
21-30
31-40
41-50
51-60
61-70
71-80
81-90
91-100
101-110
111-120
121-130
131-140
141-255
Color Wheel
White
Color 1
Color 2
Color 3
Color 4
Color 5
Color 6
Color 7
Color 8
Color 9
Color 10
Color 11
Color 12
Color 13
White
Rainbow effect
9
0-4
5-9
10-14
15-19
20-24
25-29
30-34
35-39
40-44
45-49
50-54
55-59
60-64
65-69
70-74
75-130
131-185
186-190
191-195
Gobo Wheel
Open/White
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Gobo 10
Gobo 11
Gobo 12
Gobo 13
Gobo 14
Gobo change in clockwise from fast to slowly
Gobo change in anti-clockwise from slowly to fast
Gobo 1 shaking
Gobo 2 shaking

6
196-200
201-205
206-210
211-215
216-220
221-225
226-230
231-235
236-240
241-245
246-250
251-255
Gobo 3 shaking
Gobo 4 shaking
Gobo 5 shaking
Gobo 6 shaking
Gobo 7 shaking
Gobo 8 shaking
Gobo 9 shaking
Gobo 10 shaking
Gobo 11 shaking
Gobo 12 shaking
Gobo 13 shaking
Gobo 14 shaking
10
0-255
Focus
0~100% from far to near adjustment
11
0-127
128-255
Prism
No function
Prism effect
12
0-63
64-127
128-191
192-255
Rotated prism
Prism angle adjustment slowdown speed
Rotated prism with increasing speed in anti-clockwise
Rotated prism with increasing speed in clockwise
Rotated prism shake with double direction in
increasing speed
13
0-50
51-100
101-150
151-255
Macro function
No function
Buitl-in Program 1
Buitl-in Program 2
Buitl-in Program 3
14
0-255
Frost
Frost effect
15
0-25
26-76
77-127
128-255
Rest
No function
Reset for
Gobo/color/prism/rotated gobo/rotated prism/focus/
Rest for X/Y
All rest
16
0-4
5-9
10-14
15-19
20-24
25-29
30-34
35-39
40-44
Color wheel effect
White
White+Red
Red
Red+Light blue
Light blue
Light blue+dark blue
Dark blue
Dark blue +yellow
Yellow

7
45-49
50-54
55-59
60-64
65-69
70-74
75-79
80-89
85-89
90-94
95-99
100-104
105-109
110-114
115-119
120-124
125-129
130-134
135-139
140-144
145-152
153-160
161-168
169-176
177-184
185-192
193-200
201-208
209-216
217-224
225-232
233-240
241-248
249-255
Yellow+CTO
CTO
CTO+purple
Purple
Purple+green
Green
Green+pink
Pink
Pink+Orange
Orange
Orange+light yellow
Light yellow
Light yellow+light green
Light green
Light green+CTB
CTB
CTB+dark red
Dark red
Dark red+white
White
Red
Light Blue
Dark blue
Yellow
CTB
Purple
Green
Pink
Orange
Light yellow
Light green
CTO
Dark red
White
17
0-255
Color wheel Speed
Color wheel in decreasing speed
18
0-255
Dimmer/Prism Speed
Dimmer/Prism in decreasing speed
19
0-255
Gobo wheel Speed
Gobo wheel in decreasing speed
TECHNICIAL SPECIFICATIONS
Model
M Beam 2R MOVING HEAD
Voltage
110V- 250V / 50-60Hz
Power consumption:
300w

8
LED
2R high power lamp
Net Weight / Gross Weight
11.5Kgs/13kg
Fixture dimensions
33x24x36cm
