Lanta Fireblock Hex Batt WIFI User guide

Owner Handbook
Fireblock Hex Batt WIFI™
Battery Powered 5in1 LED PAR

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
October 16 - Version 2
Fireblock Hex Batt WIFI Owner Handbook™
For your Safety
• Follow all instructions to maintain Manufacturer Warranty and for your own safety.
• There are no user replacement parts inside the product. Do not open the product for
any reason. This will invalidate your Manufacturer Warranty and may impair the safety
features of the product.
• All Lanta products designed for indoor use. Under no circumstances must these
products be used outdoors unless the product specification specifically defines the
product as being water resistant.
• Do not expose this product to moisture, rain or other fluids.
• Do not use if the product if you suspect it has been damaged in any way, including
being dropped, is malfunctioning, or has been exposed to liquids or moisture. The unit must
be repaired by an authorised service centre only. Manufacturer Warranty is void if the unit is
opened or adapted in any way. Operator safety may be compromised if this product is not
operated and maintained in accordance with the details contained in this Owner Handbook.
• This appliance must be earthed. Do not remove the earth connection in the plug or any
other location- it is essential for user safety.
• Be aware that products are mains powered and may be capable of producing high
voltages from its outputs and has mains voltages inside the cabinet.
Product Installation, Use & Maintenance
• Keep this Owner Handbook safe for future reference.
• Clean the product with a clean and dry, non-abrasive cloth. Do not use solvents or
liquids to clean the product.
• To prevent overheating, do not obstruct any ventilation opening, fan cover or vent. Do
not install near any sources of heat such as radiators, heaters or other heat producing
items such as amplifiers, power units etc.
• Never lift, move or carry the product by any other means other than the case as a
whole or handle if provided.
• Power connection to the product is via a UK 240 Volt AC three-pin mains plug. Do not
remove or adapt this plug. If necessary, only replace the plug top fuse with one of the
same type, size and value.
• The mains lead must not be crushed or damaged. If any damage occurs, disconnect
from the mains immediately. Replace the damaged cable, or if the mains lead is
captive, return the product to an authorised repair centre for cable replacement. Do
not attempt to repair the cable - it must be discarded and destroyed.
• To maintain the Manufacturer Warranty, only attach authorised accessories and external
devices. This includes cables, connectors and other electrical and/or mechanical devices.
• Unplug the product from the mains during lightning storms or periods of mains
fluctuations. If the product is going to be unused for long periods, unplug from the mains.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
October 16 - Version 2
Fireblock Hex Batt WIFI Owner Handbook™
Product Quality & Compliance
Products from Lanta Lighting meet all required safety standards in force at the time of
manufacture and are fully compliant with them.
Unpacking & Inspection
• Inspect the packaging before opening. If the packaging appears to have sustained
significant damage, please take extra care before using the product. If you are in any
doubt, consult a suitably qualified professional.
• If you suspect the product has been damaged, do not use it. Return it to your original
supplier without delay.
• Keep all packaging in a safe place for storage or transportation in future.
Manufacturer Warranty
• This Manufacturer Warranty is valid in the UK only.
• Lanta Lighting warrants that this product is free from workmanship defects and material
failure during normal use and operation for a 12 month period from original date of
sale, providing all of the terms indicated in the warranty section have been fully
complied with. Please refer to your suppliers T&C’s for warranty details.
• Expressly excluded is our liability for any directly connected or indirectly connected item
or items or any consequential loss associated with the failure of the product however
caused.
• If the product has been opened, modified, tampered with, incorrectly connected,
used inappropriately or in conflict with the instructions herein, or the product model
or serial number has been damaged, removed, tampered with, obliterated or made
partly unreadable by any person or persons, the Manufacturer Warranty is irrevocably
null and void.
• No extension, adaption, alteration or modification to the terms of this Manufacturer
Warranty will be permitted, unless expressly authorised in writing (excluding email and
fax) by a Director of Lanta Lighting. Warranty is transferrable during the Warranty period.
For Further Information about Lanta Lighting
Our website can be found at www.lantalighting.com and is available for the benefit
of customers worldwide. Please consult for information, advice and support on this and
other high quality products from Lanta.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
October 16 - Version 2
Fireblock Hex Batt WIFI Owner Handbook™
IMPORTANT!
Battery Operated Products
Some Lanta products include an internal battery for portable use. These batteries are
high energy rechargeable devices and for safety and product performance purposes
these batteries have a permanent connection between the appliance and the battery.
The batteries are constructed from Lithium Ion materials, a much safer product than
older generation primary Lithium batteries. Great care must be exercised when handling
and disposing of these batteries and they must only be accessed and/or serviced by an
authorised Lanta service centre.
DO NOT ATTEMPT TO ACCESS, MODIFY OR DISPOSE OF THE BATTERY!
End of life disposal of the product and/or the battery must not be disposed
in domestic rubbish or other non-specific recycling centre.
Only disposal sites that fully conform to the requirements of the EU Battery
Directive are permitted to recycle these products and batteries.
Please visit www.gov.uk for further information.
About Lanta Lighting™
Based in the UK, Lanta are committed to providing high quality products at cost-effective
prices to the professional lighting market. Since the first product was launched in 2006,
Lanta has established a reputation for reliability, common sense design and customer
support that has become the envy of others. All Lanta products are specifically designed
for UK operation and are optimized for 240VAC 50Hz UK mains power.
The Lanta Lighting range includes:-
Professional Lighting
Focussing on the use of LED technology, Lanta offer distinctive lighting effects for install
and mobile applications. From washes to floods, spots to projectors, LED technology now
outperforms traditional lights while at the same time requiring significantly lower power
and generating far less unwanted heat.
Atmospheric Effects
When you need special atmospheric effects, Lanta have everything from bubble
machines to fake snow, hazers and foggers. There’s also a range of fluids and consumables
specially designed to get the best from the range.
Control Gear
Lightweight and portable, Lanta Control Gear is robust enough to survive life on the road
and smart enough to control DMX kit whatever the venue.
Visit us at www.lantalighting.com for more details.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
October 16 - Version 2
Fireblock Hex Batt WIFI Owner Handbook™
Getting to know your Lanta product
Adding a further dimension to the tri-colour concept, Lanta’s Fireblock Hex Batt WIFI™
mixes pure white, amber and UV colours into the traditional red, green and blue mix.
Delicate and subtle pastels and intense whites can now be added into the full colour
spectrum for flexibility in any venue.
It has a built in colour switching, fading and pattern sequencing facilities and can also be
sound activated. A range of features can be DMX controlled from any of the LANTA DMX
controllers (or equivalent products) and additionally via a handheld IR remote control.

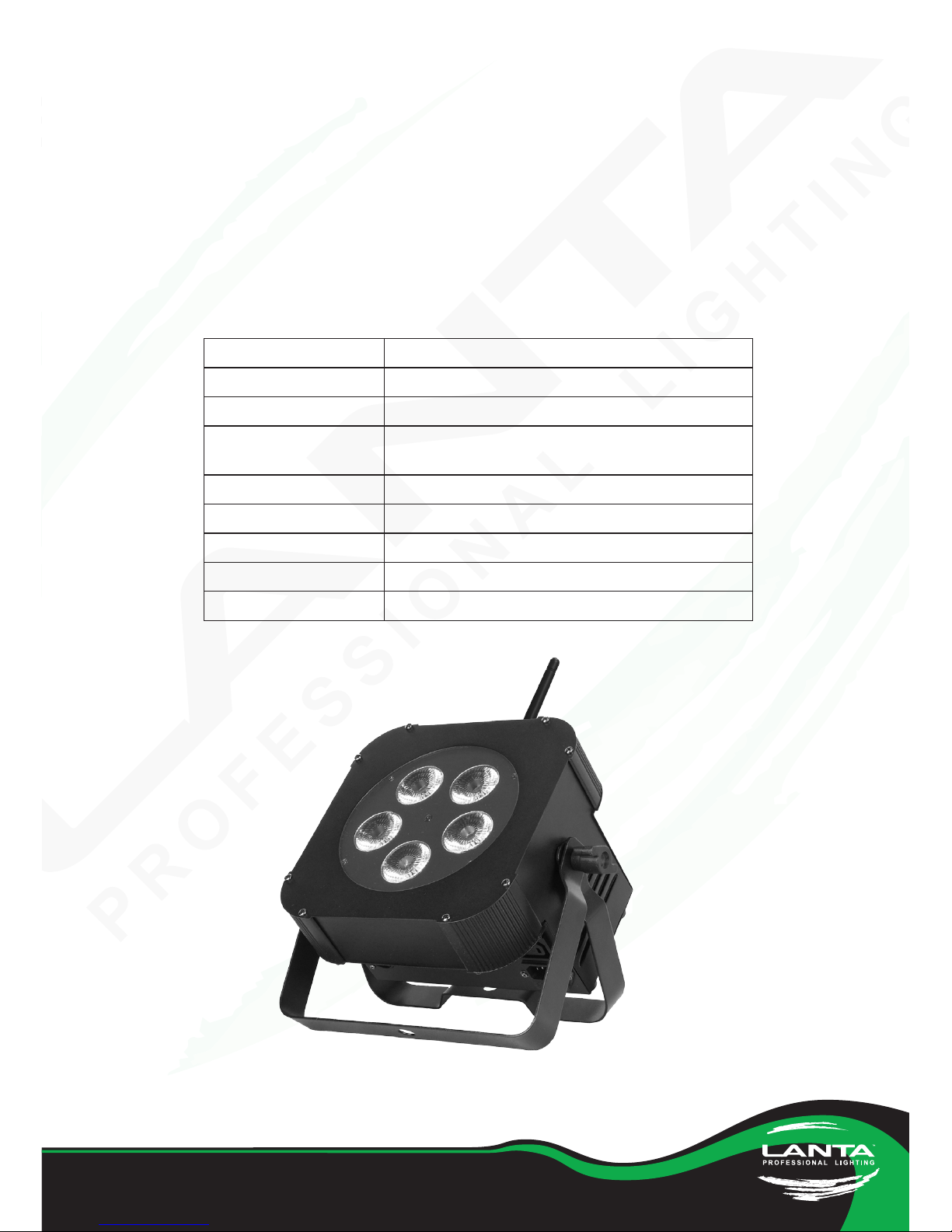

LEDs 5 18W RGBWAUV LED
DMX Control 2, 3ch1, 3ch2, 4, 5, 6 or 9 Channel
Wireless DMX Control Wifi model only
Control Connections 3 Pin Female XLR socket
3 Pin Male XLR socket
Remote Control Yes - (optional accessory)
Power Requirement 240 Volt AC 50Hz
Power Consumption 100 Watts
Dimensions W x D x H 256mm x 233mm x 151mm
Weight 2.5Kg

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
October 16 - Version 2
Fireblock Hex Batt WIFI Owner Handbook™
Operation of the Lanta Fireblock Hex Batt WIFI™
To select the various different modes of operation, there is a 4 button keypad and a 4
digit LED display on the rear of the product.
To begin, press the button marked “MENU”. Each press will choose one of the working
modes described below. Once the desired mode has been selected, the button marked
“ENTER” will allow the user to select a parameter that they wish to change (such as speed
etc). To choose a value of the parameter, press either the “UP” or “DOWN” buttons until
the desired setting is achieved.
Note: The LED display will enter power saving mode after 60 seconds after the last button
press. It will turn on again after pressing any button.
Note: When first powered on, the display will briefly show the firmware version
programmed into the memory of the controller. This is displayed as a “CP” followed by
the version number. (e.g. “CP56”)
1- DMX Mode
It is possible to operate the Lanta Fireblock Hex Batt WIFI™ from a remote location by
using either a DMX controller or a PC or laptop with a DMX interface. Lanta products
use a 3 pin XLR style connector and usually have an input and output DMX connector.
This allows multiple lighting products to be “daisy-chained” together to build a display
controlled by just one cable back to the DMX controller.
Note: In larger installations, there may be limitations regarding the maximum length of
DMX cables and the maximum number of devices that can be used in one daisy-chain
(or node).
Note: It is often desirable to terminate the last device on the node to minimize noise
and interference. Interference on a DMX network can make some lighting products
to behave erratically; this is most noticeable with moving head or other motorized
products. This is not a fault with the lighting product.
Please see your DMX controller handbook for further details.
To use the built-in DMX function, it is necessary to set the DMX address. To do so, first
choose the correct mode by pressing the “MENU” button until the LED display shows “A”
followed by a 3-digit number (e.g. A007). Press “Enter”and this will flash. The “UP” and
“DOWN” buttons allow the selection of the DMX address and can be selected between
001 and 512. Press “Enter” to store.
The Lanta Fireblock Hex Batt WIFI™ uses several adjacent CHANNELS of DMX and the first
will be determined by the DMX address setting - as described above - and the second
CHANNEL will be one CHANNEL higher and so on. E.g. if the DMX address has been set to
105, then the Lanta Fireblock Hex Batt WIFI™ will be operated by channels 105 and 106 etc.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
October 16 - Version 2
Fireblock Hex Batt WIFI Owner Handbook™
In most applications, it is sufficient to set the DMX address to 001 as shown in the table
overleaf.
When the Lanta Fireblock Hex Batt WIFI™ is connected to the DMX controller, each
CHANNEL will be controlled by a slider or similar control. When the slider is at the bottom
the VALUE is 0. When the slider is at maximum, the VALUE is 256. The value can be set at
any level at any time.
2CH/3CH1
2CH 3CH1 Value Function
1 1 000-255 Full Dimmer,0-100%
2 000-255 LED Colour Select
2 000-255 Strobe,Speed from slow to fast
3
000-004 Black out
005-080 LED colour select (1-63 types)
081-150 Jump Mode
151-220 Fade Mode
221-255 Sound control mode
3CH2/4CH/5CH
3CH2 4CH 5CH Value Function
1 1 1 000-255 R Dimmer,0-100%
2 2 2 000-255 G Dimmer,0-100%
3 3 3 000-255 B Dimmer,0-100%
4 4 000-255 W Dimmer,0-100%
5000-255 A Dimmer,0-100%

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
October 16 - Version 2
Fireblock Hex Batt WIFI Owner Handbook™
6CH/9CH
6CH 9CH Value Function
1 000-255 LED full dimmer, 0-100%
2 000-255 Strobe,speed from slow to fast
1 3 000-255 R Dimmer,0-100%
2 4 000-255 G Dimmer,0-100%
3 5 000-255 B Dimmer,0-100%
4 6 000-255 W Dimmer,0-100%
5 7 000-255 A Dimmer,0-100%
6 8 000-255 UV Dimmer,0-100%
9
000-004 Remain unchanged
005-080 LED static colour select (1-63 types)
081-150 Jump mode
151-220 Fade mode
221-255 Sound control mode
2- Colour Match Mode
To use Colour Match Mode, keep pressing the “MENU” button until the LED display shows
“C000”. Press “Enter” and the display will show “C1xx”, press “Enter” again and the display
will flash, using “Up” & “Down” the Red value can be set between “C100” &” C199”. Press
Enter to store. Use the “Up” button to access other colours.
Red C100 - C199
Green C200 - C299
Blue C300 - C399
White C400 – C499
Amber C500 – C599
UV C600 – C699
Strobe CF00 – CF99
3- Static Colour Mode
To select a Static Colour, keep pressing the “MENU” button until the LED display shows
“Cnxx”. Press “Enter” and the display will flash. Using “Up” & “Down” a value between
“Cn01” &” Cn63” can be selected. Press Enter to store.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
October 16 - Version 2
Fireblock Hex Batt WIFI Owner Handbook™
4- Colour Jump Mode
In this mode the light will step sequence through the in-built fixed colours. To select Colour
Jump, keep pressing the “MENU” button until the LED display shows “JU00”. To set the
speed of change, press “Enter” and the display will show “JUxx”, press “Enter” again and
the display will flash, using “Up” & “Down”select a value between “JU01” &” JU99”. Press
“Enter” to store.
To add a strobe effect, press “Down” and the display will show “JF00”. Press “Enter” again
and the display will flash, using “Up” & “Down” select a value between “JF00” &” JF99”.
Press “Enter” to store.
5- Colour Fade Mode
In this mode the light will fade sequence through the in-built fixed colours. To select Colour
fade, keep pressing the “MENU” button until the LED display shows “FA00”. To set the
speed of change, press “Enter” and the display will show “FAxx”, press enter again and
the display will flash, using up & down select a value between “FA01” &” FA99”. Press
“Enter” to store.
To add a strobe effect, press “Down” and the display will show “FF00. Press “Enter” again
and the display will flash, using “Up” & “Down” select a value between “FF00” &” FF99”.
Press “Enter” to store.
6- AUTO Mode
To use the built-in Auto mode – a library of exciting colour changes, keep pressing the
“MENU” button until the LED display shows “AUTO”. In this mode the unit will run through a
pattern of built colours. This creates an ever-changing light show without the need for the
operator to intervene.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
October 16 - Version 2
Fireblock Hex Batt WIFI Owner Handbook™
7- IR Remote Control
Many of the functions of the light can be controlled using an optional IR remote control
that can be purchased separately.
Blackout Mode
The Blackout (BL) button will switch off the light, regardless of mode selected, pressing it
again will reactivate the previously set mode.
Fixed colours
Pressing“CM+” & “CM-” will cycle through the preset colours of Red, Green, Blue, White,
Amber, UV & Yellow. Brightness and Strobe can then be added to provide the required
effect.
Colour Jump
Pressing “Ju” will select Jump mode and light will step sequence through the in-built fixed
colours. Brightness and Strobe can then be added to provide the required effect.
Colour Fade
Pressing “Fa” will select Fade mode and light will step sequence through the in-built fixed
colours. Brightness and Strobe can then be added to provide the required effect.
Auto
Pressing “Au” will select Auto mode and light will run through a library of colour changes.
Brightness and Strobe can then be added to provide an ever changing effect.
Sound
Pressing “Su” will activate sound mode. The speed button can be used to change the
sensitivity through 4 levels.
Speed
Pressing “SP” will adjust the through four levels. Each press of the button will move the level
one step up or down.
Dimmer
Pressing Brightness (☼) will adjust the through four levels. Each press of the button will
move the level one step up or down.
Strobe
Pressing (FL) will active the strobe which can be set to one of three speeds or off.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
October 16 - Version 2
Fireblock Hex Batt WIFI Owner Handbook™
Custom colours
Tints of white / pastel colours can be produced by using the R, G & B buttons to adjust the
brightness of each colour can be controlled to produce a custom colour. Each press
of the button moves the brightness of that colour up and down through 5 levels. The
resulting colour can then be combined with Dimmer & Strobe as above.
White, Amber & UV are not adjustable for this model and these buttons have no function.
Note: The IR receiver is on the front face of the light. Ensure you point the remote directly
at the light.

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
October 16 - Version 2
Fireblock Hex Batt WIFI Owner Handbook™
8- DMX Wireless Control (Wifi Models Only)
The Lanta Fireblock Hex Batt WIFI™ is designed to work with a W-DMX transmitter.
To link, first ensure your DMX desk is connected to the wireless controller and the DMX
settings in the light are correct. (Refer to section 1)
Power on the Wireless transmitter and then turn on the wireless receiver in the Lanta
Fireblock Hex Batt WIFI™ using the separate switch. Press the function button on the
transmitter to start the link process. On first use, the light should automatically search and
connect to the receiver. The Green LED will flash to indicate communication is being
established and then be steady.
Your Lanta Fireblock Hex Batt WIFI™ should then respond to the control signal from your
DMX desk.
Should it fail to connect, or you wish to link to a different controller , reset the wireless
settings in the Lanta Fireblock Hex Batt WIFI™ by pressing and holding the Wifi Reset button
for at least 3 seconds and the green LED goes out. Repeat the link process with the
transmitter, the Green LED will flash to indicate communication is being established and
then be steady.
Connection Status Indication (Green LED)
Continuously Off = not assigned to a transmitter
On 900ms / Off 100ms = assigned to a transmitter, but no DMX present
Continuously On = assigned to a transmitter and DMX present
On 100ms / Off 100ms = link to transmitter lost or linking to transmitter

© Lanta Lighting™ 2016. Terms Apply. All trademarks are the property of their
respective owners. E&OE. All specifications and details are correct at time of print.
October 16 - Version 2
Fireblock Hex Batt WIFI Owner Handbook™
9- Power Charging
The battery is a 22V, 4Ah Lithium Ion battery, which requires 4 hours to fully charge and
then will provide up to 5 hours operation depending on the mode set. A LED will flash red
when connected to the main and charging, it will change to steady green when fully
charged. When disconnected from the mains, the ‘powerbar’ will show a visual indication
of charge remaining.
Do not leave the battery discharged for long periods of time. To maximise battery life, it
should be recharged as soon as possible after use and every 2 months if not in regular
use.

www.lantalighting.com
