Stuv 16-up User manual

05-2013 – SN 97951 > ...

installation instructions

Stûv 16-up [en]

FOR INSTALLATION ENGINEERS

2Stûv 16-up - installation [en] - 05-2013

SN 97 851 - ...

Contents

This Stûv stove has been designed

to offer you maximum comfort and

safety. It has been manufactured

with the greatest of care. If however

you should find the slightest

dissatisfaction with it, please contact

your supplier.

PRESENTATION OF THE PRODUCT 3

Standards, certification and technical characteristics 3

Dimensions 4

Overview 5

Recommandations 5

Tools 6

INSTALLATION 7

Installing the S16-Up bracket 7

CONTACTS 11

We recommend that you read these

instructions prior to installation.

Some configurations might have an

impact on the sequence of operations to

be performed.

Stûv 16-up - installation [en] - 05-2013

SN 97 851 - ...

Standards, certification and technical characteristics

The Stûv 16-up stoves

(for intermittent operation) comply

with the requirements of EN European

Standards in terms of efficiency,

gas emissions, safety etc….

Data provided in this notice are

supplied by a certified laboratory.

The Stûv 16-up stove technically

comprises a Stûv 16-cube installed on

a base. All information concerning the

Stûv 16-cube thus applies to the Stûv

16-up.

Test results according to EN13240 : 2001

and 13240-A2 :2004 standards (stoves)

Stûv sa

B-5170 Bois-de-Villers (Belgium)

10 QA101322906

EN 13240: 2001 / A2 : 2004

Wood stove Stûv 16/58-Up

Minimum safety distance from

adjacent combustible materials:

– behind: 5cm

– on the sides: 15cm

– below: 0cm

Recommended fuel: wood logs only

CO emissions: < 0.09%

Average smoke temperature

at rated power: 283° C

Nominal heat power: 8kW

Efficiency: 80%

Particle emissions: 73mg/Nm3

Please read the installation

instructions and directions for use!

Stûv sa

B-5170 Bois-de-Villers (Belgium)

10 QA101322906

EN 13240: 2001 / A2 : 2004

Wood stove Stûv 16/68-Up

Minimum safety distance from

adjacent combustible materials:

– behind: 5cm

– on the sides: 15cm

– below: 0cm

Recommended fuel: wood logs only

CO emissions: < 0.09%

Average smoke temperature

at rated power: 330°C

Nominal heat power: 9kW

Efficiency: 77%

Particle emissions: 72mg/Nm3

Please read the installation

instructions and directions for use!

Stûv sa

B-5170 Bois-de-Villers (Belgium)

10 QA101322906

EN 13240: 2001 / A2 : 2004

Wood stove Stûv 16/78-Up

Minimum safety distance from

adjacent combustible materials:

– behind: 7cm

– on the sides: 15cm

– below: 0cm

Recommended fuel: wood logs only

CO emissions: < 0.09%

Average smoke temperature

at rated power: 378°C

Nominal heat power: 10kW

Efficiency: 75%

Particle emissions: 70mg/Nm3

Please read the installation

instructions and directions for use!

PRESENTATION OF THE PRODUCT

A B C D

Stûv 16/58-cube 580 448 290 430

Stûv 16/68-cube 680 548 340 530

Stûv 16/78-cube 780 648 390 630

421

506

documentation technique S16 up

265

Ø 180

678

Ø 63,5

5271 36

203

MAX

330

495

545

180

421

506

documentation technique S16 up

265

Ø 180

678

Ø 63,5

5271 36

203

MAX

330

495

545

180

421

506

documentation technique S16 up

265

Ø 180

678

Ø 63,5

5271 36

203

MAX

330

495

545

180

Stûv 16-up - installation [en] - 05-2013

SN 97 851 - ...

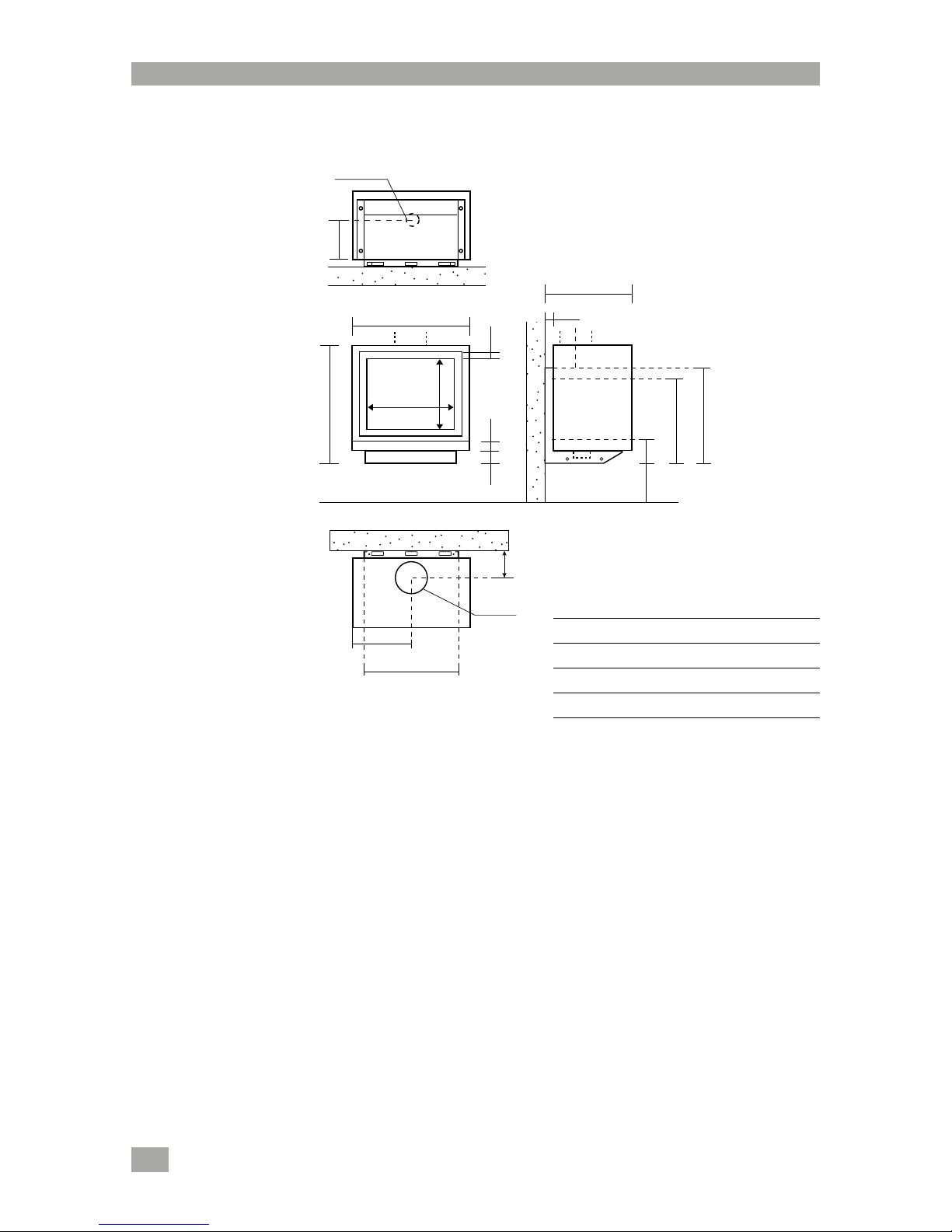

Dimensions

view from above

front and proﬁle views

view from below

Outside air inlet

Stûv 16-up

Stûv 16-up - installation [en] - 05-2013

SN 97 851 - ...

Recommandations

We strongly recommend you entrust

the installation of this Stûv to a

qualified professional who is able to

ensure that the characteristics of the

smoke flue correspond to the stove

installed.

The installation of the stove, its

accessories and surrounding materials

must adhere to all regulations (local

and national) and all standards

(national and European).

Some national and local regulations

require the installation of an access

flap in the connection between the

stove and the smoke flue.

The stove has to be installed in such

a way as to facilitate access to sweep

the stove, the connection duct and

the smoke flue.

Any modification made to the system

may be dangerous and will invalidate

the guarantee.

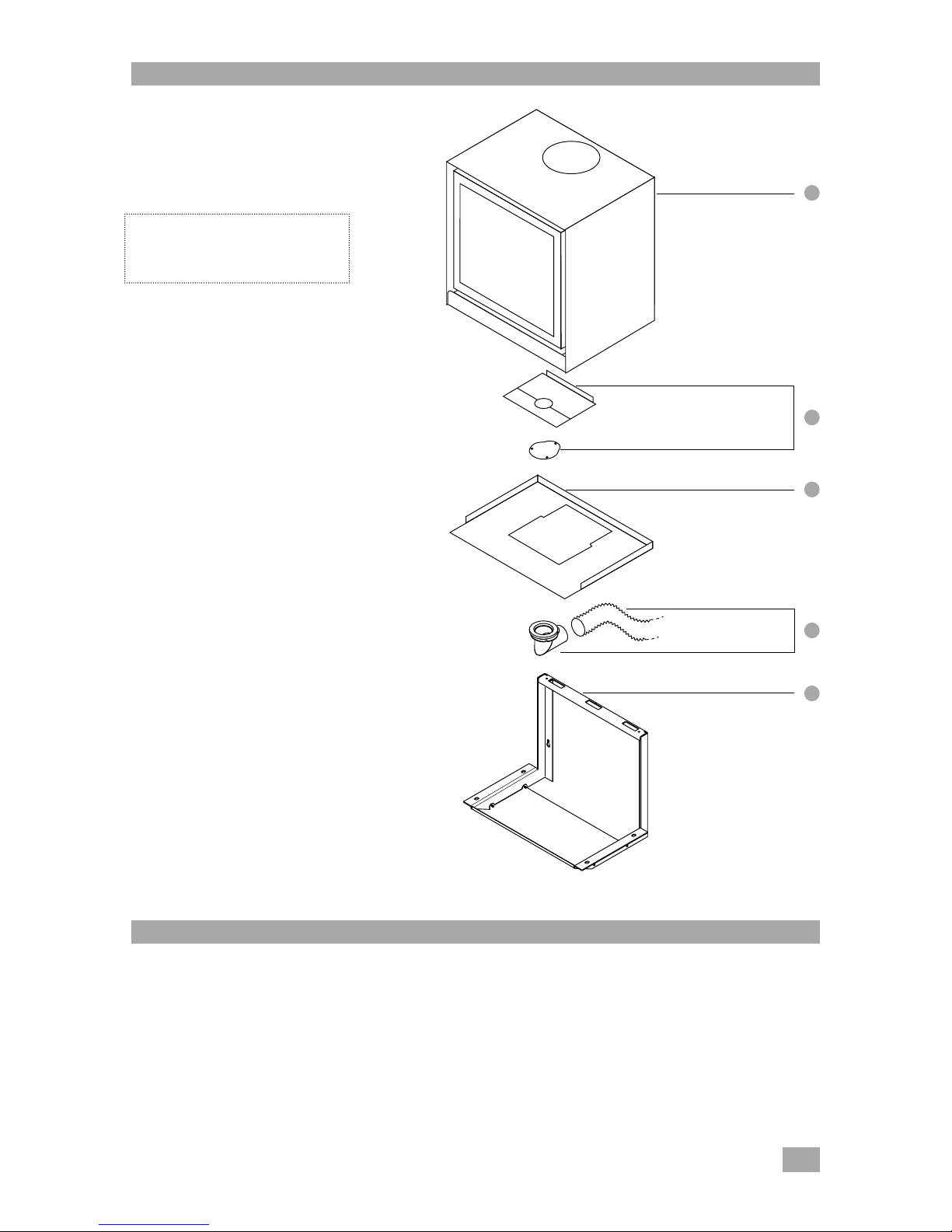

Overview

Included with the stove (basic)

[1] fireplace

[2] cable outlet

[3] support plate

Option

[4] Outside air intake kit: Flue outlet

+ Ø 63 mm flexible tubing (3m)

[5] S16-Up bracket

10 cm

10 8 7

2,5 3 5

ph 2

0,4 x 2,5

21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

21 3 4 5 6 7 8 9 10 11

10 cm

10 8 7

2,5 3 5

ph 2

0,4 x 2,5

21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

21 3 4 5 6 7 8 9 10 11

Torx

10 cm

10 8 7

2,5 3 5

ph 2

0,4 x 2,5

21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

21 3 4 5 6 7 8 9 10 11

10 cm

10 8 7

2,5 3 5

ph 2

0,4 x 2,5

21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

21 3 4 5 6 7 8 9 10 11

10 cm

10 8 7

2,5 3 5

ph 2

0,4 x 2,5

21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

21 3 4 5 6 7 8 9 10 11

10 cm

10 8 7

2,5 3 5

ph 2

0,4 x 2,5

21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

21 3 4 5 6 7 8 9 10 11

10 cm

10 8 7

2,5 3 5

ph 2

0,4 x 2,5

21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

21 3 4 5 6 7 8 9 10 11

10 cm

21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

21 3 4 5 6 7 8 9 10 11

Torx n°

Allen n°

214

360°

10 cm

10 8 7

2,5 3 5

ph 2

0,4 x 2,5

21 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

21 3 4 5 6 7 8 9 10 11

Stûv 16-up - installation [en] - 05-2013

SN 97 851 - ...

Tools

Stûv 16-up - installation [en] - 05-2013

SN 97 851 - ...

INSTALLATION

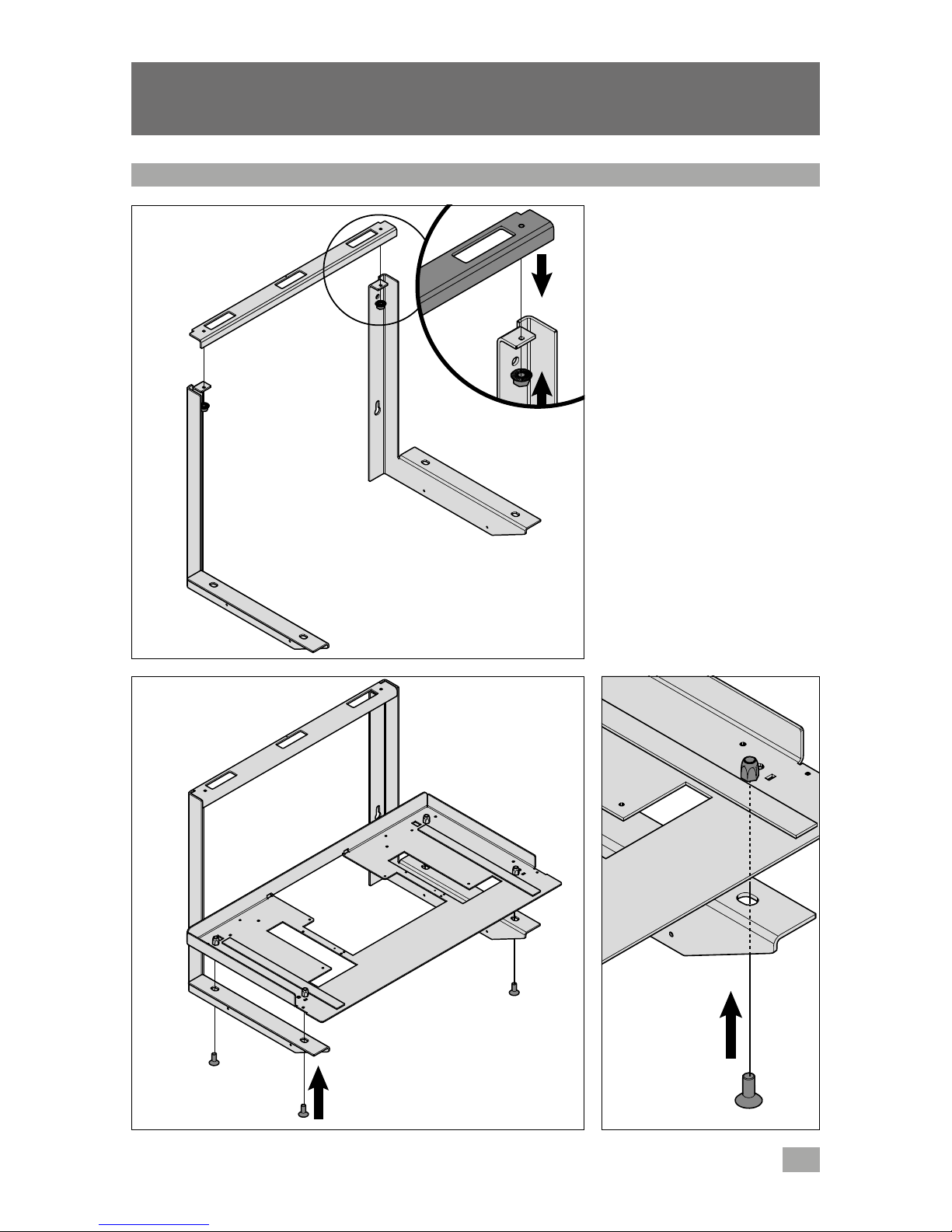

Installing the S16-Up bracket

When fitting the pre-installation plate

[diagrams 2 & 3], engage the screws

but do not tighten them. Final fixing

does not take place until the stove has

been positioned

Max 533 mm

8 9

6 7

Stûv 16-up - installation [en] - 05-2013

SN 97 851 - ...

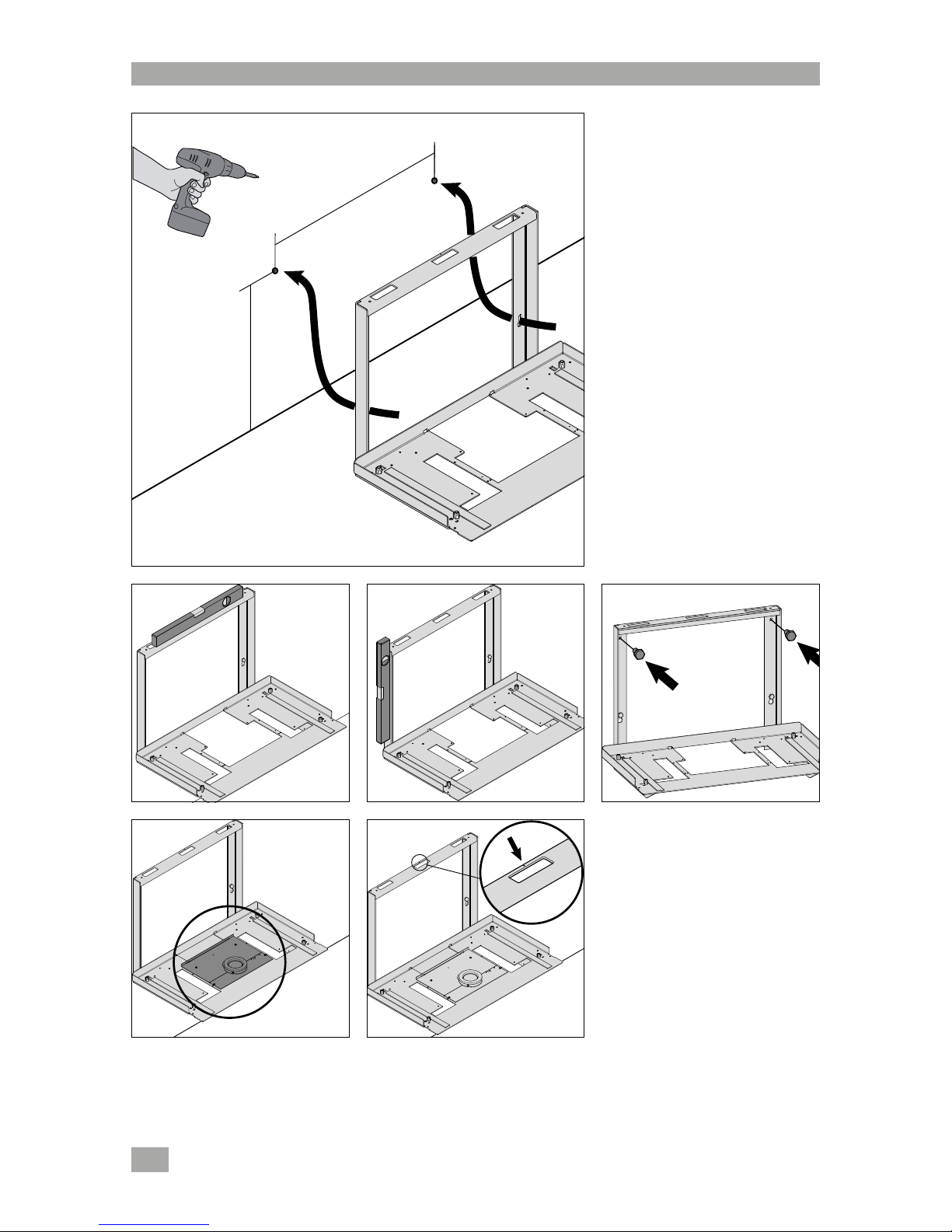

Installing the S16-Up bracket (continued)

When installing the external air

feed [image 8]refer to the Stûv 16

installation instructions, Chapter

""Combustion air connection"".

The centre corresponding to the

vertical from the smoke outlet is

indicated by a mark on the top rule

[diagram 9].

Take care to fix the bracket through

the 2 keyholes at the bottom

The maximum height measurement is

603 mm.

The width measurement is [Y]:

- 380 mm for S16/58

- 480 mm for S16/68

- 580 mm for S16/78

The wall-mounting screws [diagrams4

& 7] are not supplied by Stûv. Be sure

to use equipment appropriate for the

nature of the wall.

Warning!

The space provided for inserting

the screw is 100 mm: take car to

use a compatible size. Do not use

countersunk screws.

Stûv 16-up - installation [en] - 05-2013

SN 97 851 - ...

When installing the stove [image

12]refer to the Stûv 16 installation

instructions, Chapter "Positioning of

the stove".

Installing the S16-Up bracket (continued)

Stûv 16-up - installation [en] - 05-2013

SN 97 851 - ...

Stûv stoves are designed and

manufactured in Belgium by:

Concept & Forme sa

rue Jules Borbouse 4

B-5170 Bois-de-Villers (Belgium)

[email protected] – www.stuv.be

Importer for the UK

Jet Master Fires Ltd – Unit 2

Peacock trading Estate, Goodwood Rd

S050 4NT Eastleigh – Hampshire

T 0870 727 0105

[email protected]

www.jetmaster.co.uk

Importer for Finland

Ilkka Alatarvas OY

Pikkujärventie 4B

01680 Vantaa

T 400 872 858

www.takkamaailma.com

Importer for Sweden

Eldoform Sverige AB

Slipgatan 2 – 117 39 Stockholm

T 0707 883 53 – www.eldoform.se

Importer for Denmark

Stove APS

Aldershvilevej 84 – 2880 Bagsvaerd

T 51 33 10 93

Importer for Estonia

Tulering Kaminasalong Oü

Sopruse 145 – 13417 Tallinn

T +372 56 249 004 - www.tulering.ee

CONTACTS

05-2013 – SN 97951 > …

printed on 100% recycled paper

Stûv reserves the right to make changes without prior notice.

These instructions have been produced with the greatest of care.

However, we do not accept responsibility for any errors that may have been made.

Editor: Gérard Pitance – rue Jules Borbouse 4 – 5170 Bois-de-Villers – Belgium

93104512 Notice d’installation 16-up [EN]

[nl] [de] [it] [es] [pt] [cz] [en] [fr] >

This document is available in several

languages: Contact your distributor or visit

www.stuv.com
