Style selections TPGAZ9116 User manual

1
GAZEBO
ITEM #1839857/ #2808043/ #2808044
MODEL #TPGAZ9116/ #TPGAZ9116B/ #TPGAZ9116A
31.ploñapsE
Serial Number ____________________________ Purchase Date _________________________
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-877-888-8225, 8 a.m. - 8 p.m., EST, Monday - Sunday.
AR19062
Style Selections is a trademark or registered
trademark of LF, LLC. All Rights Reserved.

2
TABLE OF CONTENTS
Package Contents ...........................................................................................................................3
Hardware Contents .........................................................................................................................4
Safety Information ...........................................................................................................................5
Preparation .....................................................................................................................................5
Assembly Instructions .....................................................................................................................6
Care and Maintenance .................................................................................................................12
Warranty ........................................................................................................................................12
Replacement Parts List ................................................................................................................12

3

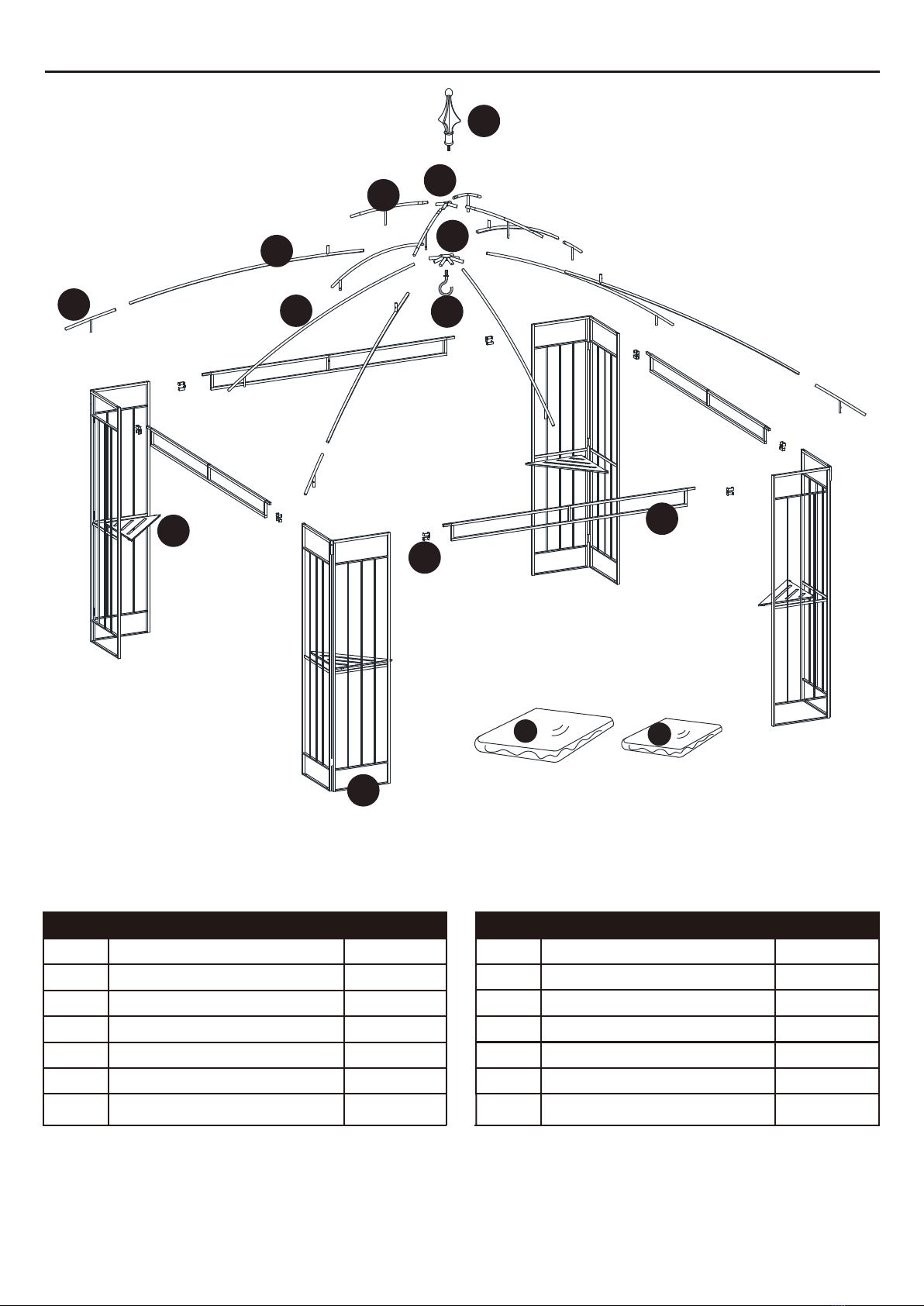

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Corner Panel 4
B Crossbeam 4
CShelf 4
D Connector 8
E Small Top Connector 1
F Small Top Beam 4
G 1
H Long Corner Bar
Short Corner Bar
4
I
4
PART DESCRIPTION QUANTITY
J Middle Bar
4
K
L
M
N
Finial
Hook
Large Canopy
Small Canopy
1
1
1
1
E
K
F
G
H
I
C
A
B
D
JL
Top Connector
MN

4

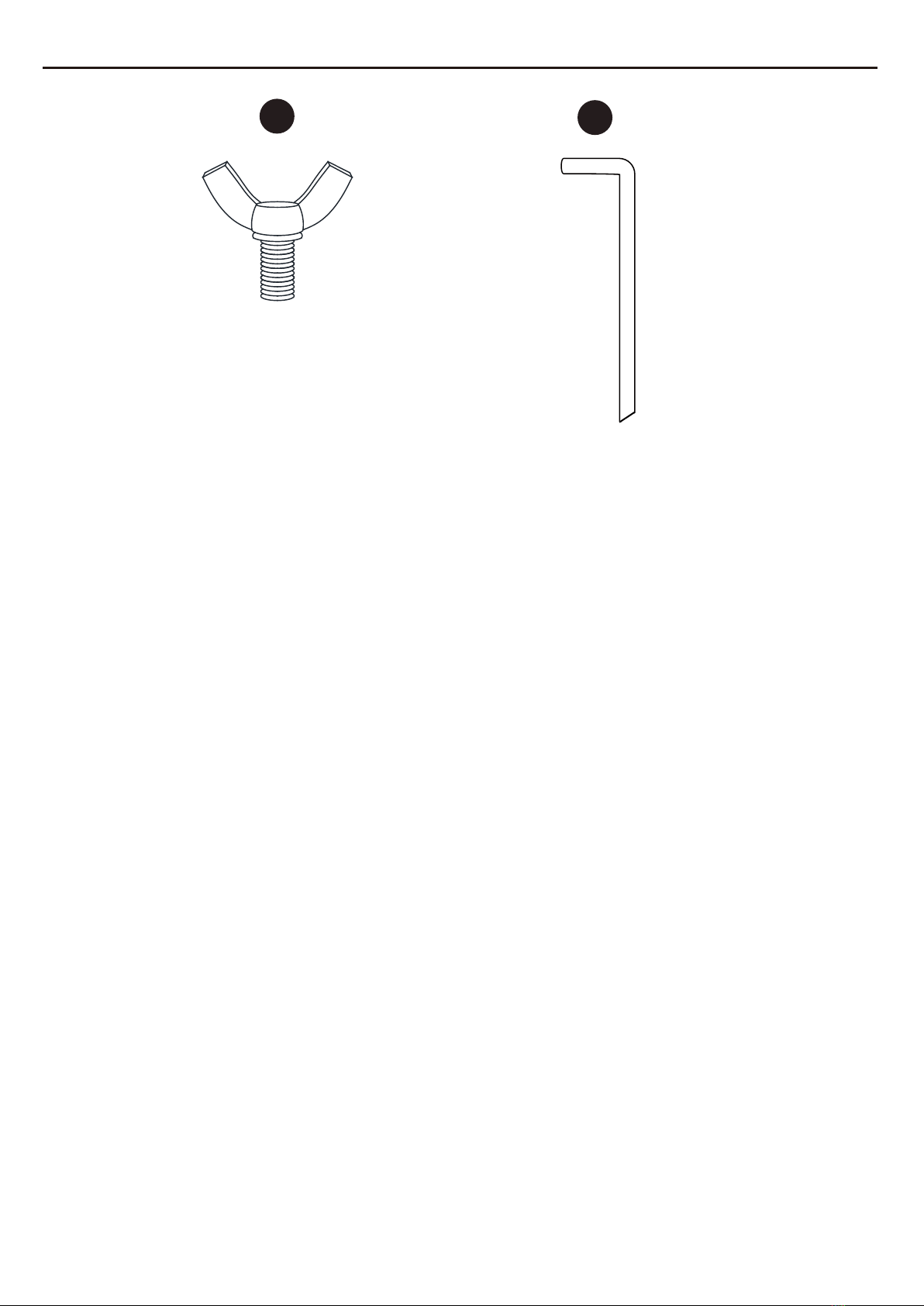

HARDWARE CONTENTS (shown actual size)
AA BB
Stake
Qty. 16
(Not to scale)
M10 x 15 mm Bolt
Qty. 8 + 1 Extra

5
SAFETY INFORMATION
PREPARATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
WARNING
• Maximum load for the roof hook: 26 lbs.
• WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC.
This tent meets the CPAI-84 flammability requirements. The fabric may burn if left in continuous
contact with any flame source. The application of any foreign substance to the tent fabric may
render the flame-resistant properties ineffective.
CAUTION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 30 minutes
Tools Required for Assembly (not included): Safety goggles, Gloves, Hardhat, Stepladder.
SET UP YOUR GAZEBO PROPERLY
• 2 people are recommended for safe assembly.
• Keep all children, pets and other obstructions away from assembly area.
• If any part is missing or damaged, do not attempt to assemble the product.
• In order to avoid damage to the gazebo and its components please use appropriate tools.
• Do not use the structure as support.
• Check all bolts on a regular basis to maintain the solidity of the structure.
• Keep instructions for future use.
• Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury,
possibly even death.
EXAMINE YOUR GAZEBO
• Examine occasionally to ensure there are no loose parts.
If loose parts are found, they should be retightened immediately.
•If high winds, heavy rains or snow occurs, remove roof, and check for damage before continued use.
Safety goggles Gloves Stepladder
Hardhat

1. Unfold two corner panels (A).
6
ASSEMBLY INSTRUCTIONS
1
AA
Hardware Used
x 8M10 x 15 mm Bolt
A
A
A
A
A
B
B
BB
D
2. Attach the crossbeam (B) to the Corner panel (A)
with connector (D) and Bolt (AA).
Repeat the procedure for the remaining
corner panels (A) and crossbeams (B).
2
D
A
B
AA
A
B
D
B
A
A
B

7
ASSEMBLY INSTRUCTIONS

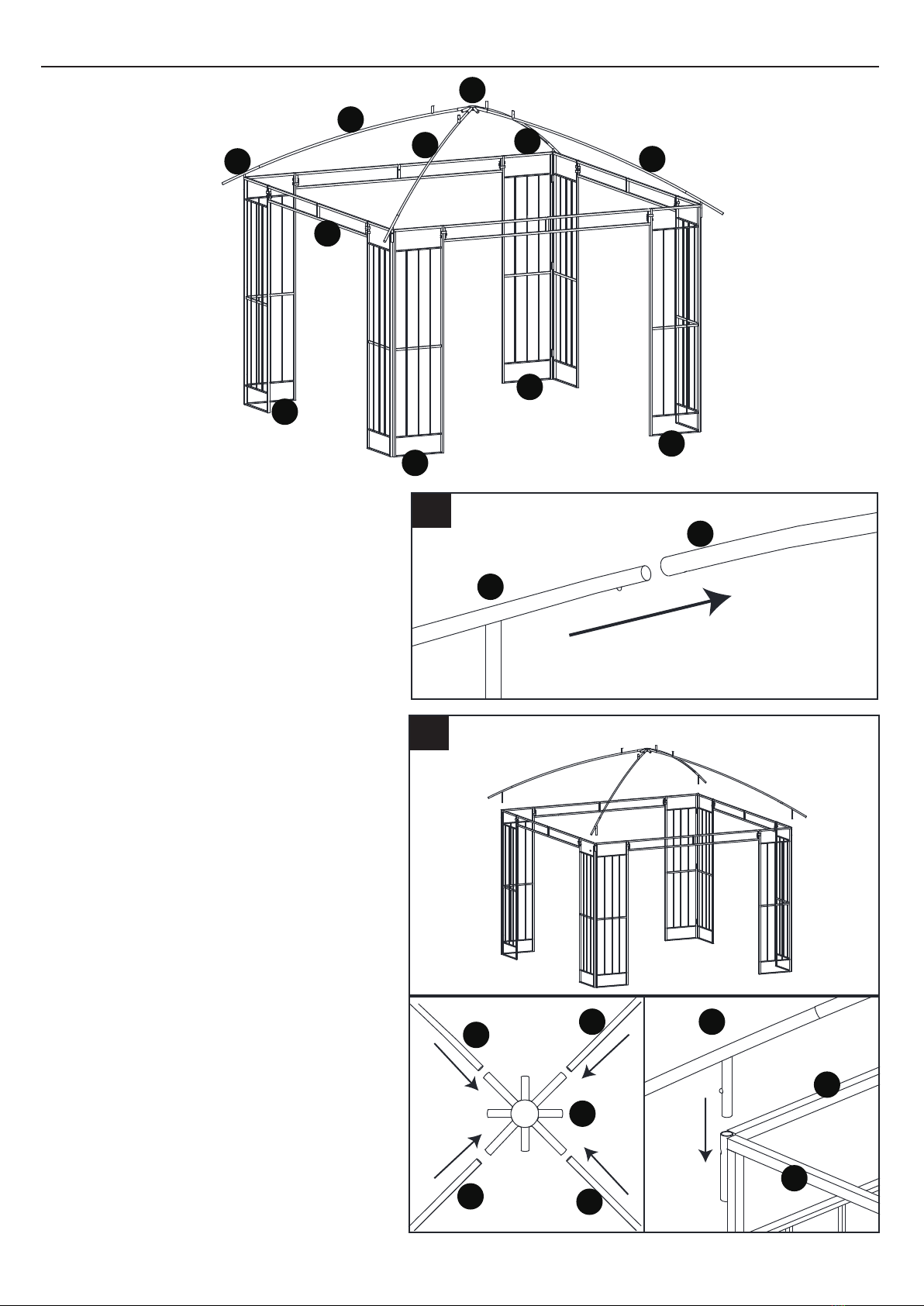

3. Insert short corner bar (I) into long
corner bar (H). Repeat for remaining
long corner bars (H) and short
corner bars (I).
4. Insert the bottom part of long
corner bar (H) into top connector (G).
Reapeat for remaining long corner
bars (H). Insert short corner (I) bar into
corner panel (A).
3
I
I
A
A
A
A
H
HH
H
G
I
B
H
4
H
H
H
G
H
A
A

A
B
H
G
J
I
I
J
J
J
H
H
H
I
A
A
A

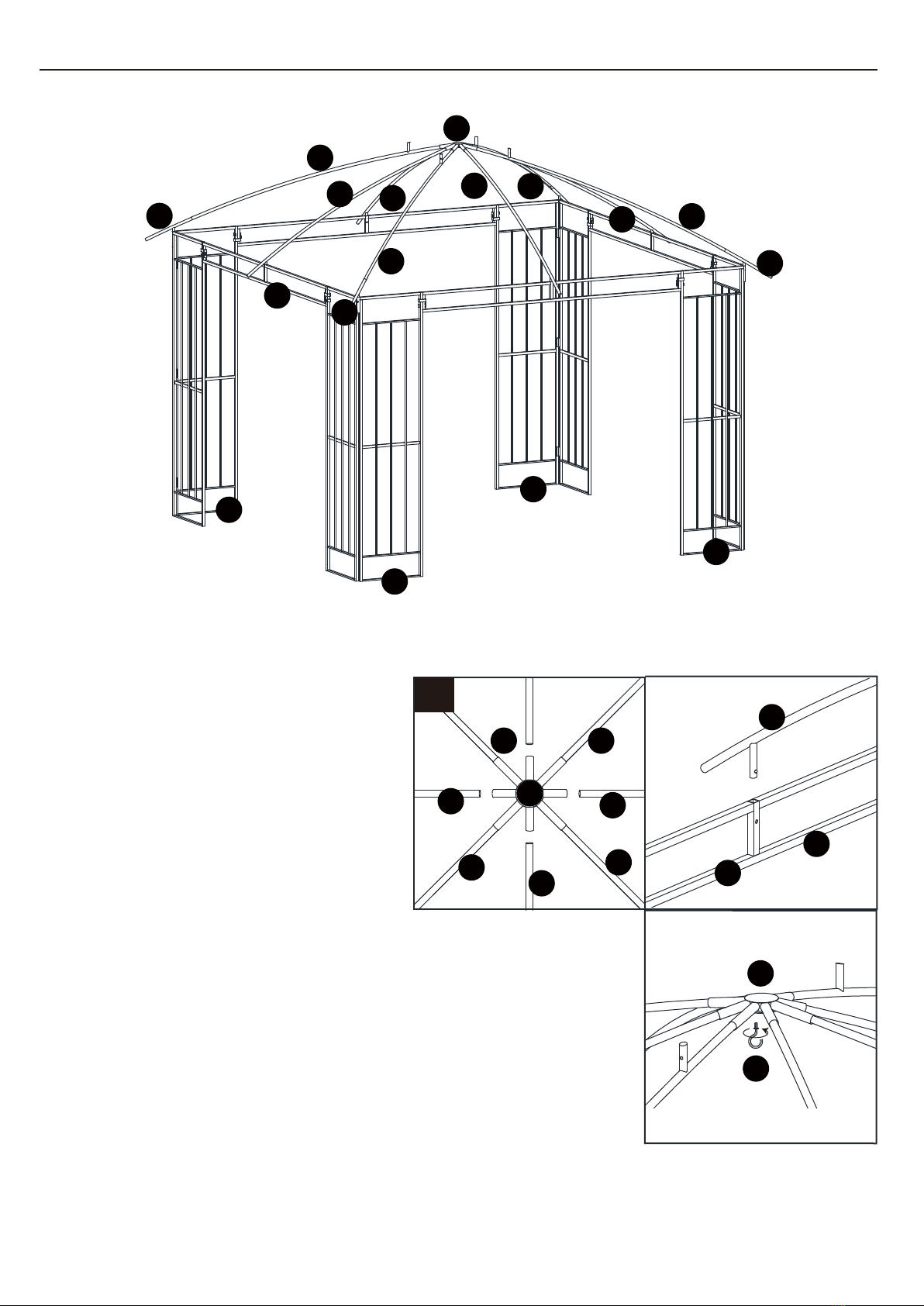

ASSEMBLY INSTRUCTIONS
(J)rabelddimfotrappotehttresnI..5
into top connector (G). Repeat for all
middle bars (J). Insert middle bar (J)
into crossbeam (B).
Attach hook (L) to top connector (G).
5
G
H
HH
H
J
J
J
B
B
J
L
G
8

9
ASSEMBLY INSTRUCTIONS
A
M
N
A
C
A
A
ebozagfopotno)M(yponacegralecalP..6
assembly. Do not spread canopy yet. 6
M

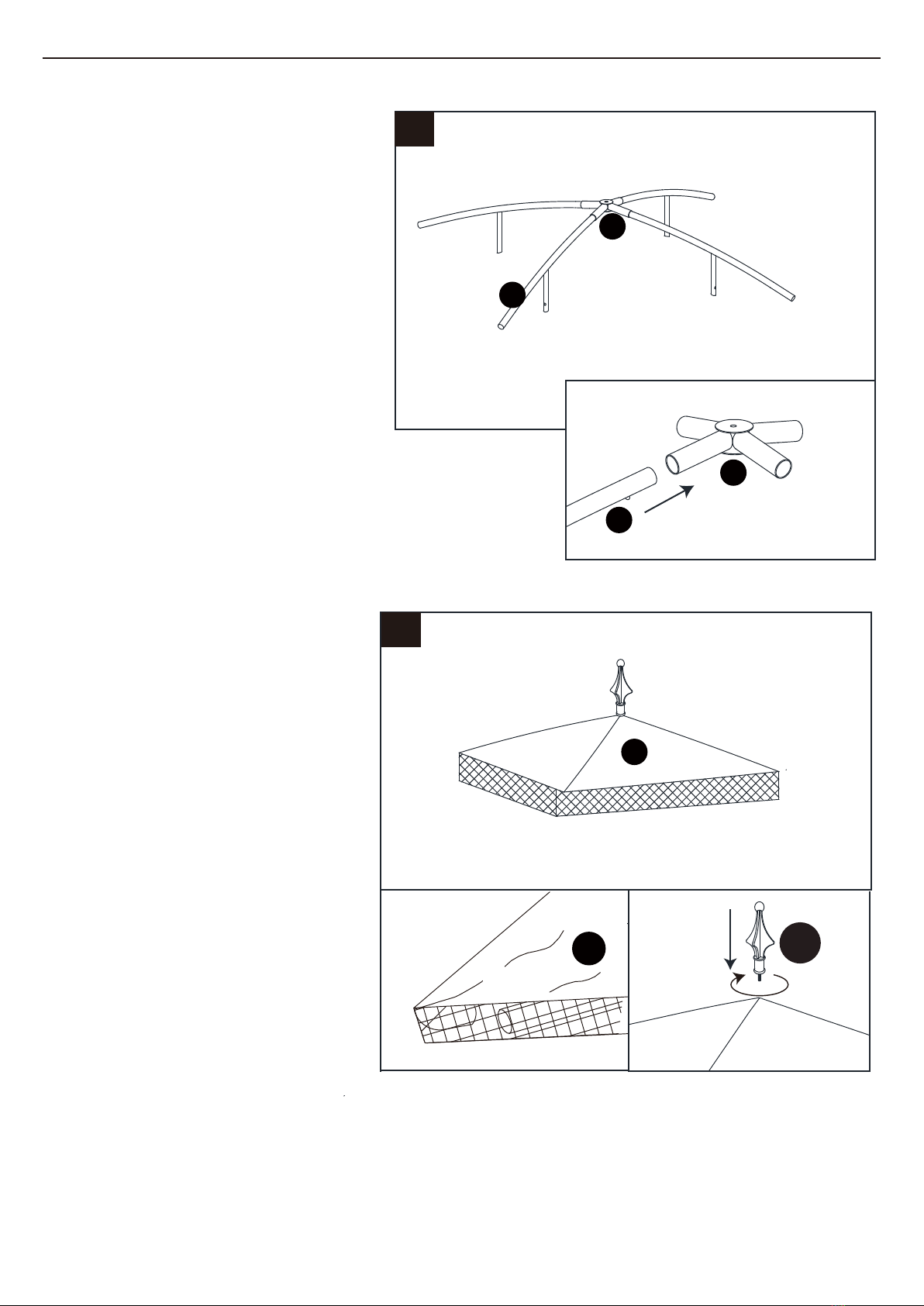

7. Insert small top beam (F) into small
top connector (E).
8. Attach small canopy (N) to
small top beam (F), aligning
the corners and stretching it
to fit. Attach final (K) to small
top connector (E).
10
ASSEMBLY INSTRUCTIONS
E
F
7
F
E
N
8
NK

11

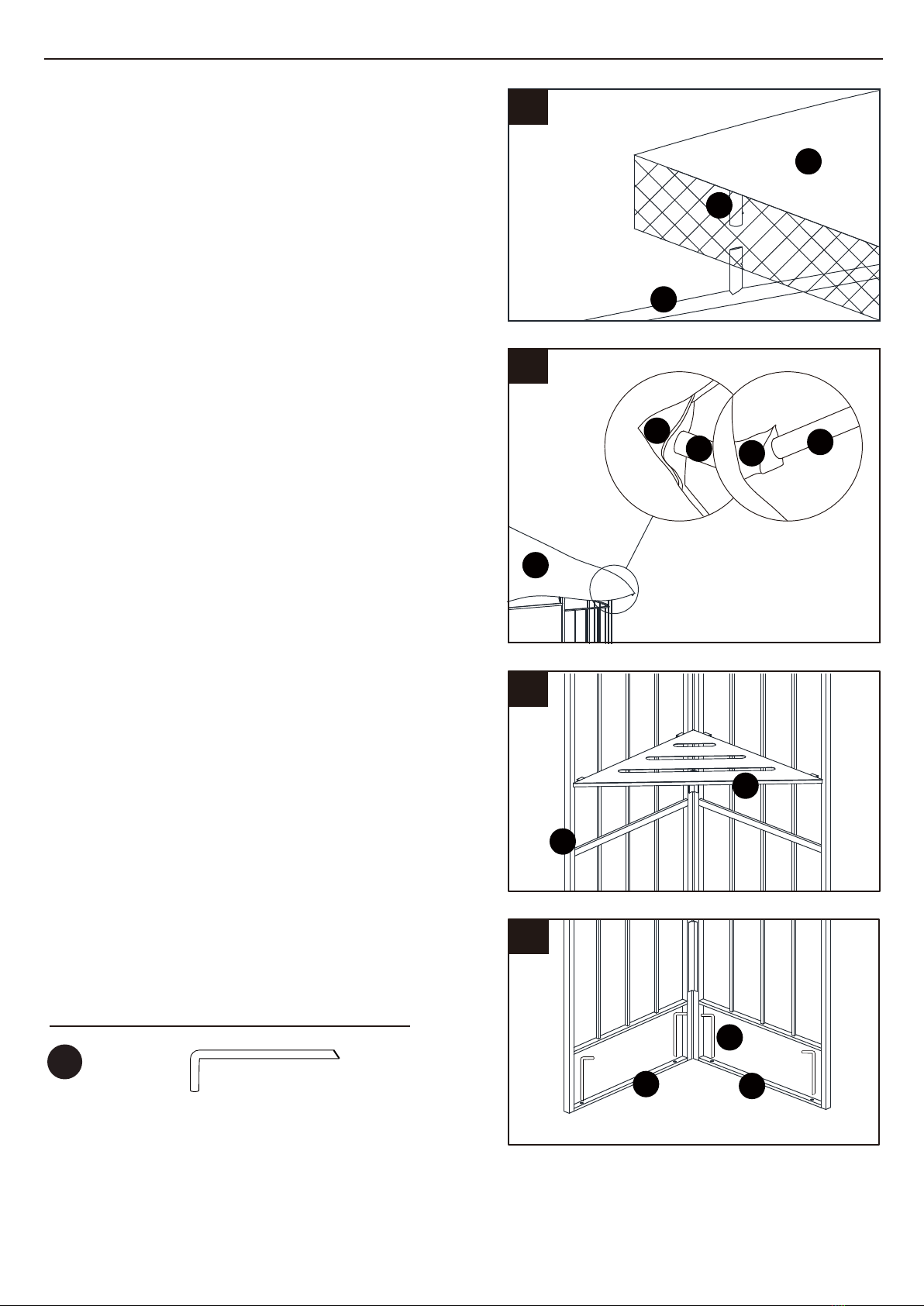

9. Insert small top beam (F) into long corner bar (H),
Repeat for all small top beams.
Note: Put each small top beam (F) loosely
on each long top connector bar (H) first,
then insert together, otherwise the last one
won’t insert correctly.
10. Attch large canopy (M) to the roof along the short
corner bars (I) and middle bar (J), aligning the
corners and streting it to fit.
11. Place shelves (C) onto corner panels (A) as
desired.
12. Secure gazebo assembey to the ground with
stakes (BB) through the bottom of corner
panels (A).
ASSEMBLY INSTRUCTIONS
N
M
M
9
10
11
H
IJ
M
A
A
BB
A
C
F
BB
Hardware Used
x 16
Stake
12

M10 x 15 mm Bolt
12

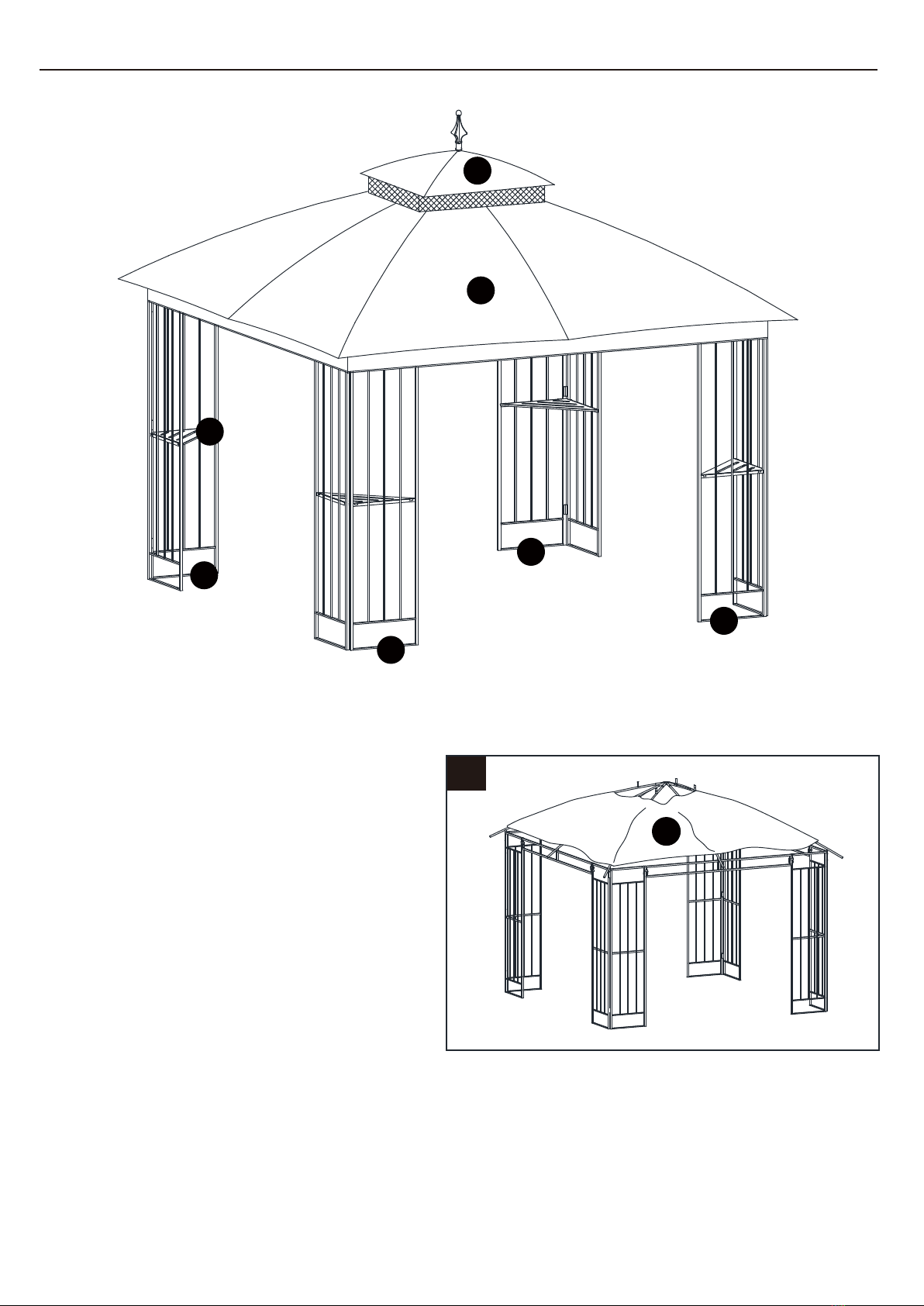

CARE AND MAINTENANCE
WARRANTY
1 YEAR WARRANTY FOR FRAME AND FABRIC.
•WHAT IS COVERED
We provide warranty to the original purchase for 1 year for frame and fabric from the date of purchase,
and the fabric and frame will be replaced at no charge due to manufacturing defects.
•WHAT IS NOT COVERED
We do not reimburse for transportation costs. This warranty does not cover the damage caused by commercial
use, acts of nature, fire, freezing, and abusive use. Discoloration or fading of the finish or fabrics as a result
of chemicals or spills is not covered.
Contact the Customer Service Team at 1-877-888-8225.
•For cleaning, use a mild detergent solution, rinse with water, and allow to air dry.
Do not use acetone, abrasive, or other special detergents as they would be harmful to the product’s finish.
•Due to the nature of steel, surface oxidation (rusting) will occur if this protective coating is scratched.
This is a natural process. To minimize this condition, it is recommended that care be taken when assembling
and handling the product in order to prevent the paint from being scratched.
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-877-888-8225, 8 a.m. - 8 p.m., EST,
Monday - Sunday.
Printed in China
PART DESCRIPTION PART #
AA 1
M10 x 15 mm Bolt
AA

13
GAZEBO
ARTÍCULO #1839857/ #2808043/ #2808044
MODELO #TPGAZ9116/ #TPGAZ9116B/ #TPGAZ9116A
_________________________arpmocedahceF________________________eiresedoremúN
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, llame a nuestro
Departamento de Servicio al Cliente al 1-877-888-8225, de lunes a domingo de
8 a.m. a 8 p. m., hora estándar del Este.
AR19062
Style Selections es una marca o marca registrada
de LF, LLC. Todos los derechos reservados.

14
ÍNDICE
Contenido del paquete...................................................................................................................15
Aditamentos...................................................................................................................................16
Información de seguridad...............................................................................................................17
Preparación....................................................................................................................................17
Instrucciones de ensamblaje..........................................................................................................18
Cuidado y mantenimiento...............................................................................................................24
Garantía..........................................................................................................................................24
Lista de piezas de repuesto............................................................................................................24

15
CONTENIDO DEL PAQUETE
PIEZA DESCRIPCIÓN CANTIDAD
A Panel de esquina 4
B Viga transversal 4
CEstante 4
D Conector 8
E Conector superior pequeño 1
F Viga superior pequeña 4
G 1
H Barra de esquina larga
Barra de esquina corta
4
I
4
PIEZA DESCRIPCIÓN CANTIDAD
J Barra central
4
K
L
M
N
Remate
Gancho
Toldo grande
Toldo pequeño
1
1
1
1
E
K
F
G
H
I
C
A
B
D
JL
Conector superior
MN

16
ADITAMENTOS (se muestran en tamaño real)
AA BB
Estaca
Cant. 16
(no está a escala)
Perno M10 x 15 mm
Cant. 8 + 1 adicional

17
INFORMACIÓN DE SEGURIDAD
PREPARACIÓN
.otcudorpleralatsniorasu,ralbmasneratnetniedsetnalaunametseotelpmocropadnerpmocyaeL
ADVERTENCIA
• Carga máxima para el gancho del techo: 26 lb.
• ADVERTENCIA: MANTENGA LA TELA DE LA TIENDA ALEJADA DE LAS LLAMAS Y LAS
FUENTES DE CALOR.
Esta tienda cumple con los requisitos de inflamabilidad de la norma CPAI-84. La tela podría
quemarse si se encuentra en continuo contacto con cualquier fuente de calor. La aplicación de
cualquier sustancia extraña a la tela de la tienda puede hacer que sus propiedades ignífugas se anulen.
PRECAUCIÓN
Antes de comenzar a ensamblar el producto, asegúrese de tener todas las piezas. Compare las
piezas con la lista del contenido del paquete y la lista de aditamentos. No intente ensamblar el
producto si falta alguna pieza o si estas están dañadas.
Tiempo estimado de ensamblaje: 30 minutos
Herramientas necesarias para el ensamblaje (no se incluyen): gafas de seguridad, guantes, casco,
escalera de tijera.
ENSAMBLE EL GAZEBO ADECUADAMENTE
• Se recomienda que haya 2 personas para un ensamblaje seguro.
• Mantenga a niños, mascotas y otras obstrucciones alejados del área de ensamblaje.
• No intente ensamblar el producto si falta alguna pieza o si estas están dañadas.
• Para evitar que se produzcan daños en el gazebo y sus componentes, use las herramientas
correspondientes.
• No utilice la estructura como soporte.
• Revise todos los pernos regularmente para mantener la solidez de la estructura.
• Conserve las instrucciones para usarlas en el futuro.
• No trepe a la parte superior del gazebo. Las caídas desde el gazebo podrían provocar lesiones
graves o incluso la muerte.
EXAMINE EL GAZEBO
• De vez en cuando, examínelo para asegurarse de que no haya piezas sueltas.
Si encuentra piezas sueltas, ajústelas de inmediato.
• Si el viento es fuerte, hay lluvia torrencial o si cae mucha nieve, quite el techo y compruebe si hay
daños antes de continuar con usándola.
Gafas de seguridad Guantes Escalera de tijera
Casco

1. Despliegue dos paneles de esquina (A).
18
INSTRUCCIONES DE ENSAMBLAJE
AA
Aditamentos utilizados
x 8Perno M10 x 15 mm
A
A
A
A
B
B
BB
D
2. Fije la viga transversal (B) al panel de
esquina (A) con el conector (D) y un
perno (AA). Repita este procedimiento con
los paneles de esquinas (A) y las vigas
transversales (B) restantes.
1
A
2
D
A
B
AA
A
B
D
B
A
A
B

19
INSTRUCCIONES DE ENSAMBLAJE

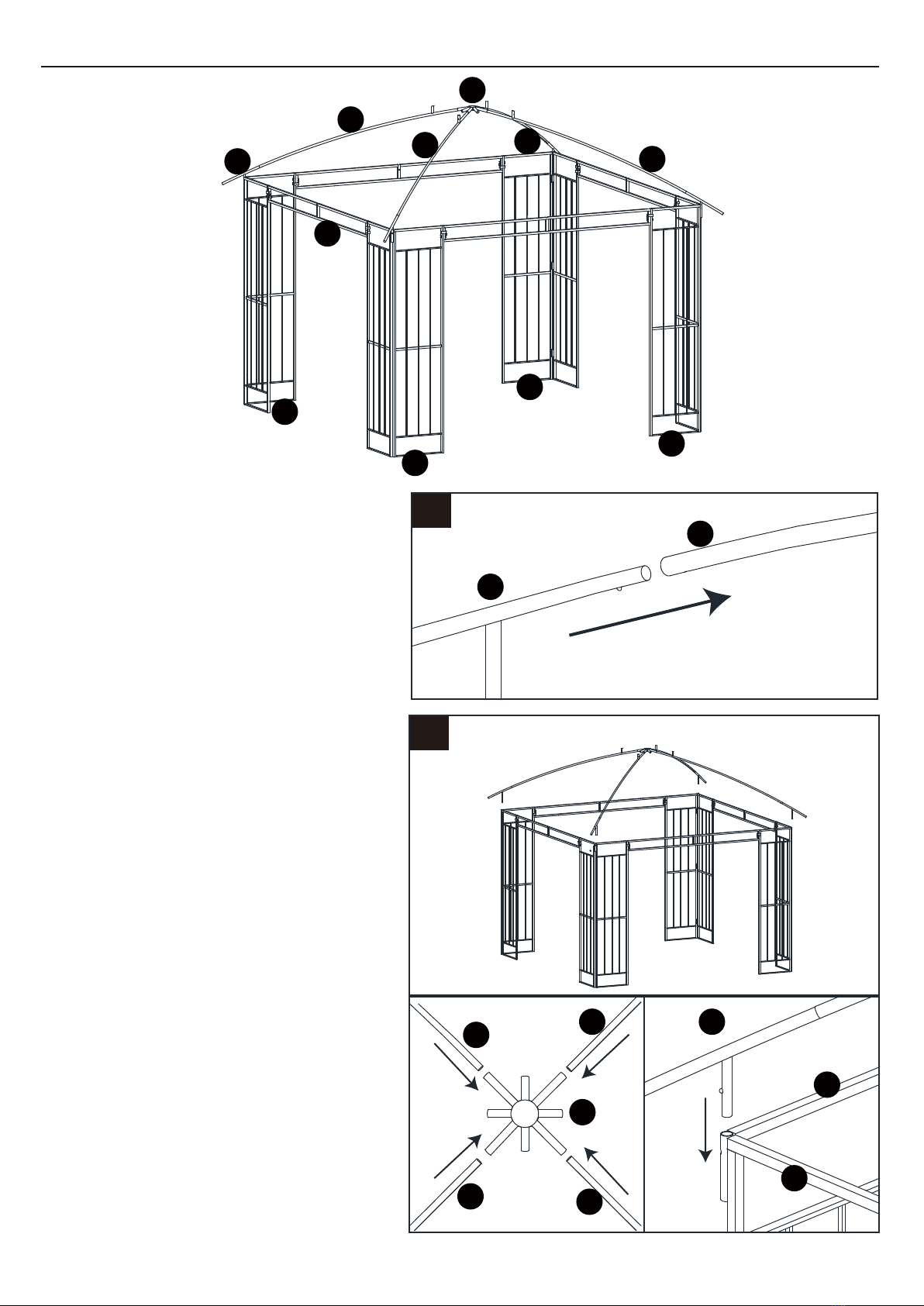

3. Inserte la barra de esquina corta (I) en
la barra de esquina larga (H). Repita el
procedimiento con las barras de
esquina largas (H) y cortas (I) restantes.
4. Inserte la parte inferior de la barra de
esquina larga (H) en el conector
superior (G). Repita el procedimiento
con las barras de esquina largas (H)
restantes. Inserte la barra de esquina
corta (I) en el panel de esquina (A).
A
A
A
A
H
HH
H
G
I
B
3
I
I
H
4
H
H
H
G
H
A
A

20
5. Inserte la parte superior de la barra
central (J) en el conector superior (G).
Repita el procedimiento para todas las
barras centrales (J). Inserte la barra
central (J) en la viga transversal (B).
Fije el gancho (L) al conector
superior (G).
INSTRUCCIONES DE ENSAMBLAJE
5
G
H
HH
H
J
J
J
B
B
J
L
G
A
B
H
G
J
I
I
J
J
J
H
H
H
I
A
A
A
