Subaru H001sxc100 User manual

1 OF 12

ISSUE

-DATE

10 Jan 2018 SUBARU OF AMERICA

PART NUMBER

H001SXC100

PART NUMBER: H001SXC100

DESCRIPTION: LONG RANGE TURN START

REMOTEENGINESTARTSYSTEM

ASCENT

INSTALLATION

INSTRUCTIONS

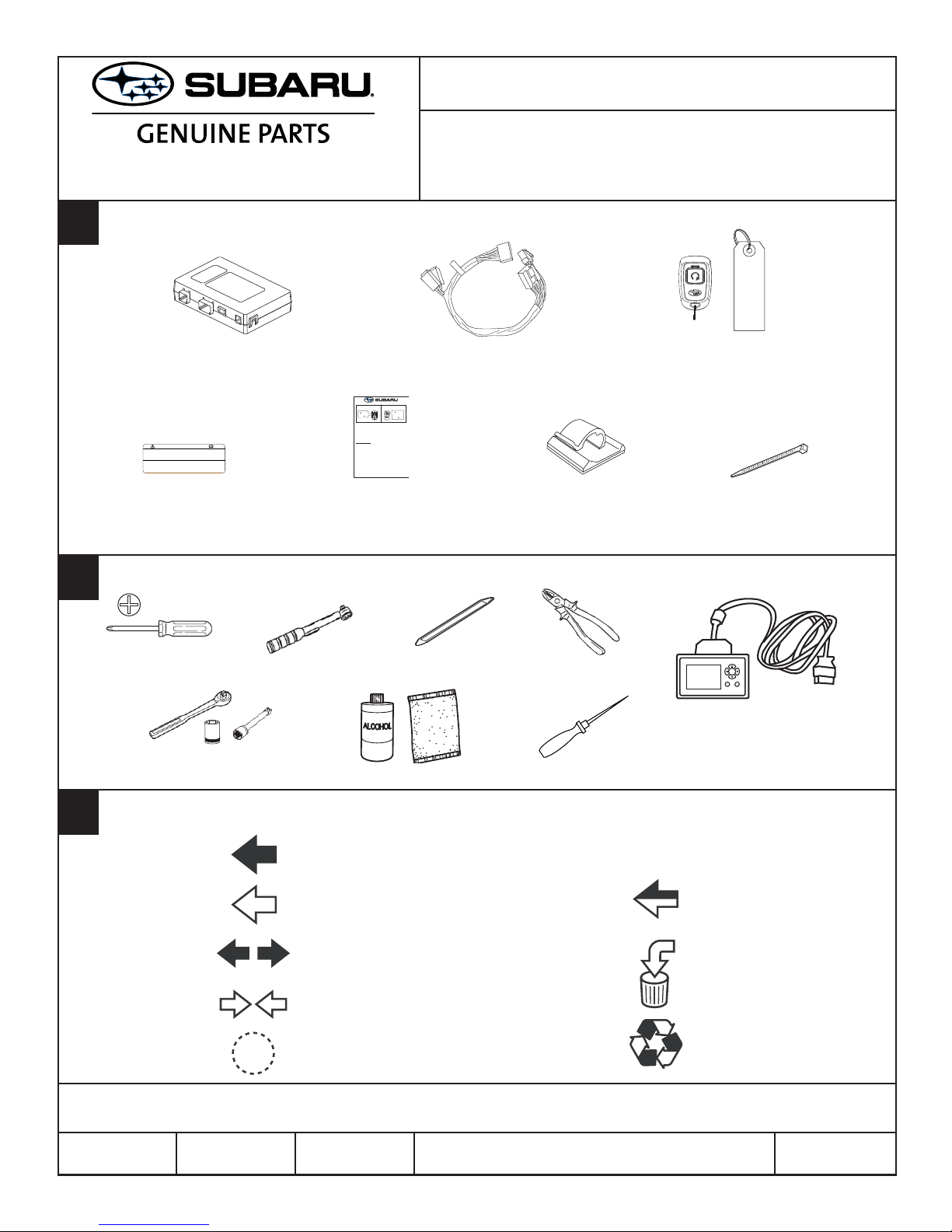

KIT CONTENTS

TOOLS REQUIRED

MEANING OF CHARACTERS

CAUTION: DO NOT SECUREANY REMOTE START HARNESSES TOANYYELLOW HARNESSES / CONNECTORS

(AIRBAG SYSTEM) IN THE VEHICLE.

SSM IV (DST-i)

Diagnostic Interface

Phillips Screwdriver

Short and Standard Wire Cutters

Panel Removal Tool

: Remove : Tighten Torque

: Install

: Disconnect

: Connect

: Location of Clip or Screw

: Loosen

: Discard

: Re-use

Ratchet, 10mm Socket &

Extension

Remote Engine Start

Control Module (ECU)

Quantity=1

Remote Engine Start

Wire Harness

Quantity=1

Remote Engine Start

Transmitters w/ Warning Tags

Quantity=2

Under Hood

Warning Label

Quantity=1

Tie Wraps

39cm Quantity=6

REMOTE STARTQUICK REFERENCE*

RemoteStart Activation

Press Two(2)Times

WithinThree (3) Seconds

RemoteStart Activation

Press Two(2)Times

Within(2) Seconds, Then

Pressand Hold For Three (3)

Seconds

LONGRANGE ACTIVATION -ALL MODELS ALTERNATE ACTIVATION-

PUSHBUTTON START MODELS

RemoteStart Shutdown

Pressand Hold For

Two(2) Seconds

RemoteStart Shutdown

Pressand Hold For

Three(3) Seconds

NOTE: All vehicle doors, hood, trunk or rear gate must be closed prior to activating the remote engine start

system. Any open entry point will prevent starting or cause the system to shut down.

Uponsuccessful activation, the remote start fob will ﬂash and beep one (1) time**, the horn will honk one (1) time

andthe side marker lights, tail lights and parking lights will ﬂash one (1) time. Thesystem will check certain safety

preconditionsbefore starting and if all conditions are met, the engine will start within ﬁve (5) seconds. Afterthe

enginestarts, the remote start fob will ﬂash and beep two (2) times**, the horn will honk one (1) time and the side

markerlights, tail lights and parking lights will ﬂash one (1) time. Whilethe engine is running via the remote engine

startsystem, the remote start fob will continue to ﬂash one (1) time every three (3) seconds, the side marker lights,

taillights and parking lights will remain illuminated and the power window switches will be disabled. Theengine

willcontinue to run for ﬁfteen (15) minutes unless one of the safety parameters below is triggered. Thesystem also

hasa timer that will allow the system to operate for a maximum of twenty (20) minutes (under multiple remote start

activations). Using the factory ignition key (Turn start models) or Access key (Push button start models) to turn on the

ignitionresets the twenty (20) minute timer.

Ifthe engine turns over but does not start (or starts and stalls) the remote engine start system will power off and then

attemptto start the engine three (3) additional times. Thesystem will not attempt to restart the engine if it determines

avehicle malfunction is preventing it from starting. Ifthe engine does not start after the three (3) additional attempts,

theremote engine start request will be aborted.

RemoteStart Safety Parameters

Forsafety and security reasons, the system will fail to start or shut down the engine during remote start operation if

anyof the following occur:

• Theremote start system has operated for twenty (20) minutes between ignition “ON” cycles

Thehorn will honk three (3) times and the parking lights will ﬂash three (3) times

• Anyof the vehicle’s doors, trunk or rear gate are open

Thehorn will honk six (6) times and the parking lights will ﬂash six (6) times

• Thevehicle’s hood is open

Thehorn will honk two (2) times and the parking lights will ﬂash two (2) times

• Theignition key is resting in the ignition cylinder (Turn start models)

Thehorn will honk two (2) times and the parking lights will ﬂash two (2) times

• Thetransmission shifter is not in the “park” position

Thehorn will honk two (2) times and the parking lights will ﬂash two (2) times

• Thevehicle’s brake pedal is pressed before the vehicle ignition is turned “ON”

Thehorn will honk two (2) times and the parking lights will ﬂash two (2) times

• Thevehicle’s engine idle speed has reached a level over 3,500 RPM (this will cause the vehicle to shut down)

• Thevehicle’s security system is triggered by opening the door, trunk or rear gate (if the security system is armed

atthe time of remote start activation)

Inaddition to the items above, if the vehicle’s engine management system determines there is a safety risk due to a

vehiclerelated problem, the engine will shut down.

WARNING: TO AVOIDDANGER OF CARBON MONOXIDE, NEVER REMOTE START A VEHICLE IN ACLOSED

SPACESUCH AS A CLOSED GARAGE.

NOTE: Laws in some communities require that the vehicle be within view of anyone using the Remote Engine

Start. In some areas, use of the Remote Engine Start may violate state, provincial or local laws. Beforeusing

theRemote Engine Start, check your state, provincial and local laws.

*See the vehicle owner’s manual for more details.

**Provided that the remote start fob is within the operating range of the system. P/N: 4280648, Rev -

Quick

Reference Card

Quantity=1 English,

1 French

Torque Wrench

WARNING: / AVERTISSEMENT

This vehicle is equipped with a remote controlled engine starter.

To reduce the risk of serious Injury or death, switch engine starter

system into service mode and disconnect the vehicle battery

before performing any service on the vehicle.

Ce véhicule est doté d'un démarreur à distance. Pour réduire les

risques de blessures graves ou mortelles, mettre le démarreur à

distance en mode service et débrancher la batterie du véhicule

avant d'effectuer des travaux d'entretien sur celui-ci.

Pick Tool

Alcohol and Towel

Wire Harness

Clip

Quantity=5

2 OF 12

PART NUMBER

H001SXC100 ISSUE

-DATE

10 Jan 2018 SUBARU OF AMERICA

1. Using a 10mm socket/ratchet, disconnect the negative battery

terminal. (FIGURE A)

NOTE: Do not disconnect the battery cable from the battery

post.

NOTE: DO NOT PROCEED TO THE NEXT STEP FOR ONE (1)

MINUTE TO ALLOW TIME FOR THE AIRBAG POWER SUPPLY

TO DISCHARGE.

2. Using a panel removal tool, carefully remove the left side dashboard

panel by starting at the top and working downward to disengage six

(6) pressure clips. (FIGURE B)

3. Using a Phillips screwdriver, remove one (1) Phillips screw securing

the lower dashboard panel on the lower right side of the dashboard

panel. (FIGURE C)

4. Using a panel removal tool, carefully remove the driver’s side

dashboard panel by pulling straight out to disengage seventeen (17)

pressure clips. Unplug all connectors attached to the dashboard

panel. (FIGURE D)

4VEHICLE PREPARATION

FIGURE A

FIGURE B

FIGURE D

FIGURE C

3 OF 12

ISSUE

-DATE

10 Jan 2018 SUBARU OF AMERICA

PART NUMBER

H001SXC100

4VEHICLE PREPARATION, continued

FIGURE F

SRS-AIRBAG

FIGURE E

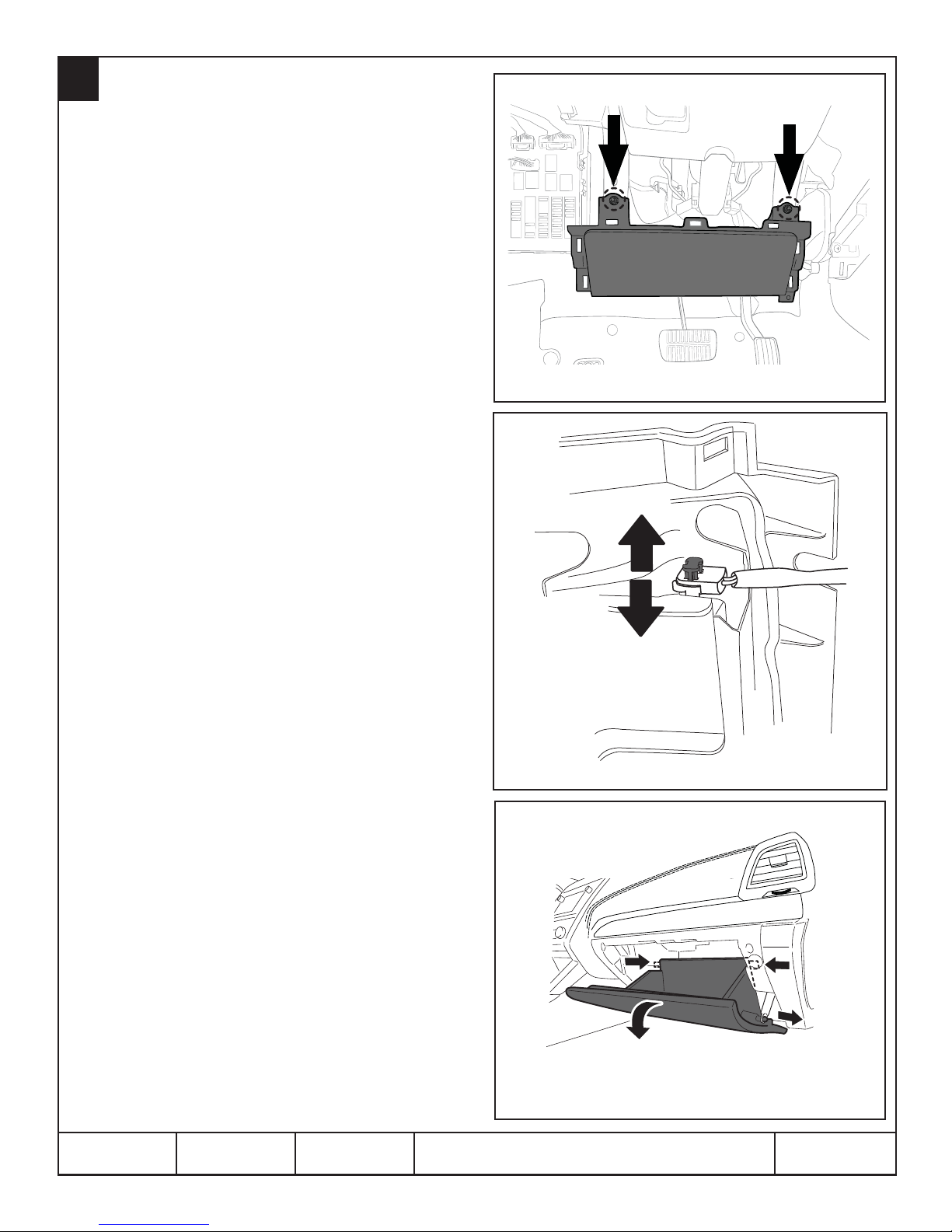

5. Usinga10mmsocket/ratchet/extension, remove thetwo

(2) 10mm nuts securing the driver’s side lower airbag/

knee bolster. (FIGURE E)

6. Remove thelowerairbag/kneebolster. Usingapicktool,

disengage the yellow connector lock by lifting upward.

(FIGURE F)

Using a panel removal tool, carefully lift upward to

unplug the electrical connector and place the airbag/

knee bolster panel in a safe area.

7. Open the glove box and press inward on the sides of

the glove box to disengage the retaining tabs from the

glove box inner cover. Disconnect the strut from the

glove box. (FIGURE G)

FIGURE G

4 OF 12

PART NUMBER

H001SXC100 ISSUE

-DATE

10 Jan 2018 SUBARU OF AMERICA

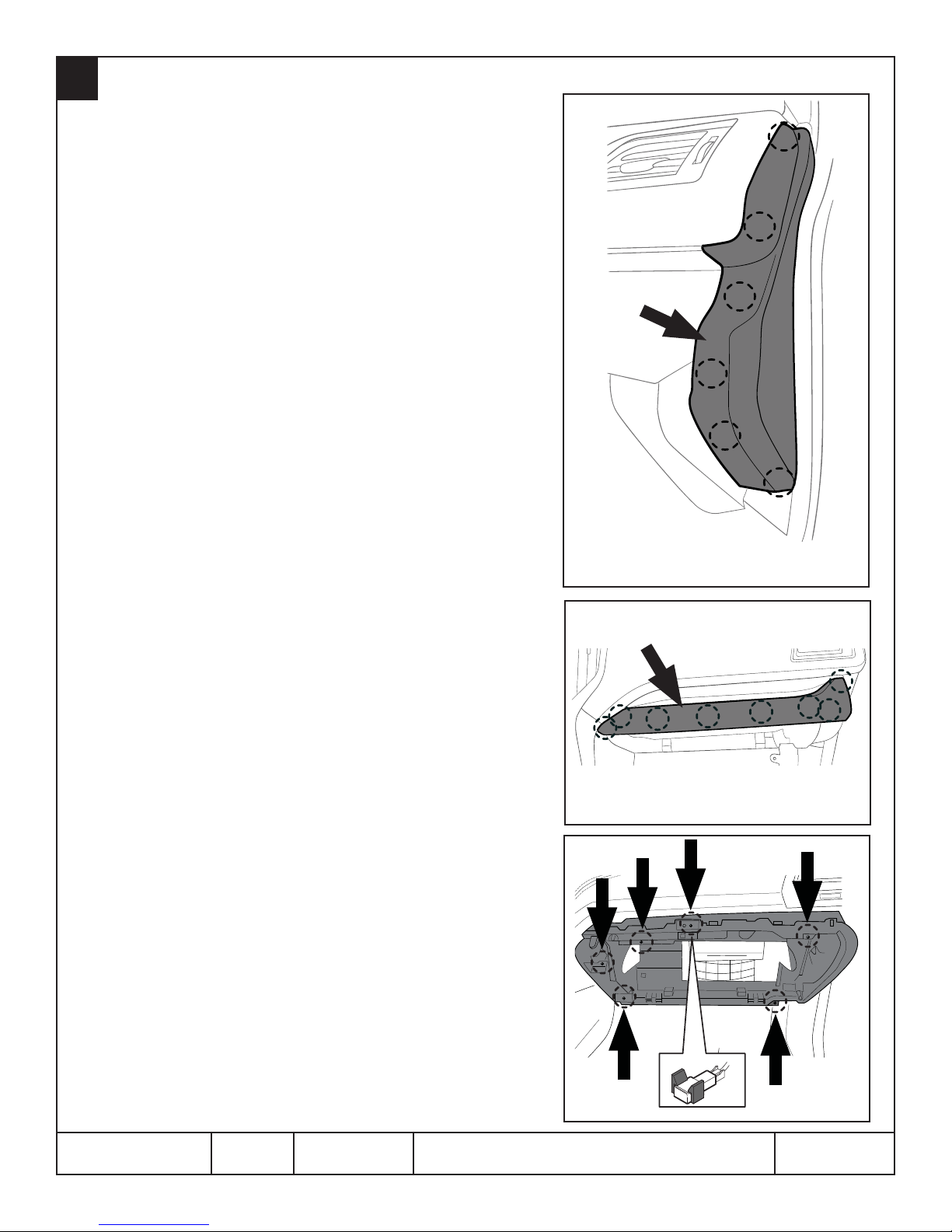

8. Using a panel removal tool, carefully remove the right side

dashboard panel by starting at the bottom and working

upward to disengage six (6) pressure clips. (FIGURE H)

FIGURE H

FIGURE I

FIGURE J

9. Usingapanelremovaltool,carefully remove thepassenger’s

side ornament panel by lifting upward to disengage eight (8)

pressureclipsandthenpullingtowardtherearofthevehicle.

(FIGURE I)

10.Using a Phillips screwdriver, remove six (6) Phillips screws

securing the glove box inner cover. Disengage the six (6)

pressure clips and disconnect the glove box lamp connector

to remove the glove box inner cover. (FIGURE J)

4VEHICLE PREPARATION, continued

5 OF 12

ISSUE

-DATE

10 Jan 2018 SUBARU OF AMERICA

PART NUMBER

H001SXC100

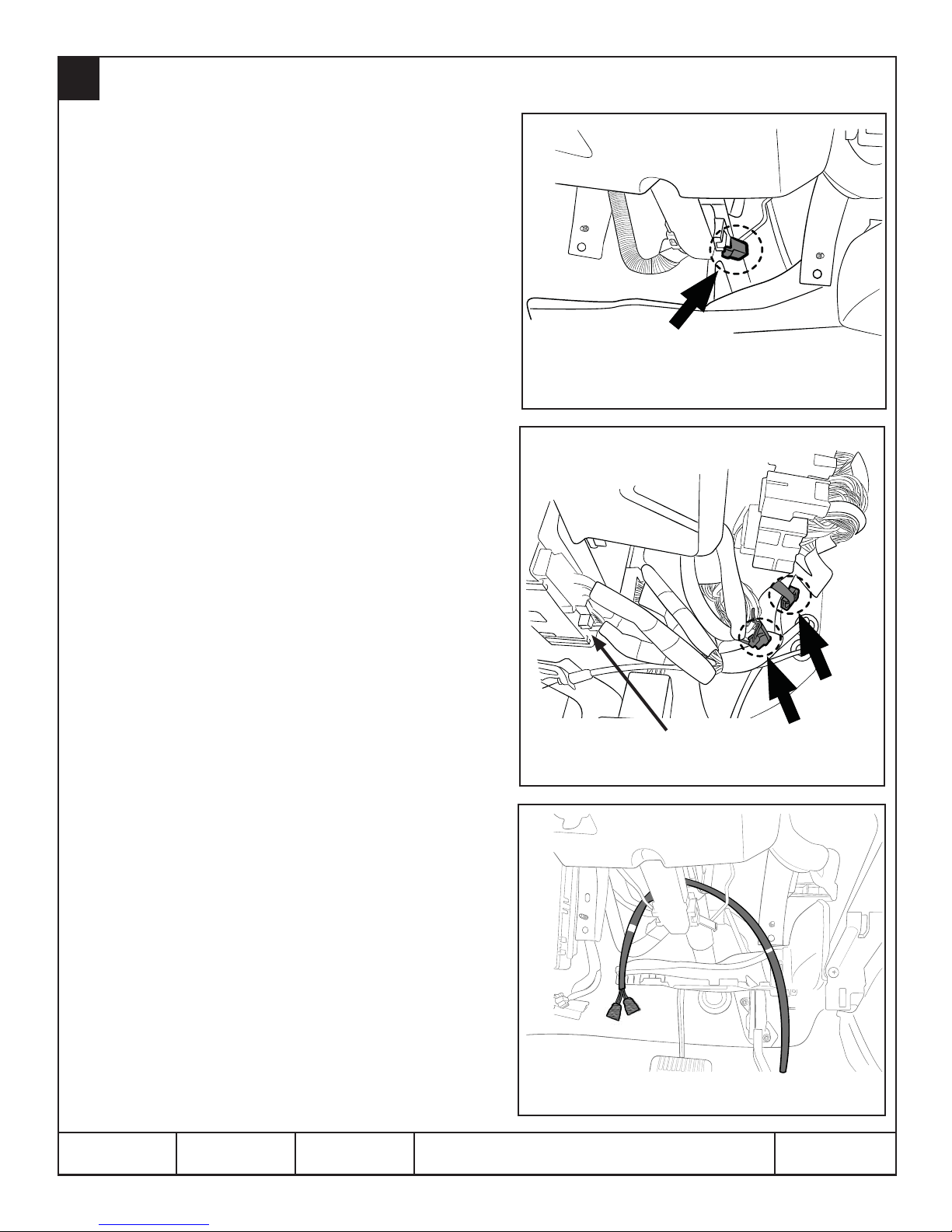

1. Locateandreleasethe vehicle’s6-pin pre-ﬁtignitionconnector

secured to the vehicle’s wire harness with breakaway tape

near the base of the steering column. (FIGURE K)

2. Locate and release the vehicle’s 4-pin and 2-pin pre-fit

connectors secured to the vehicle’s wire harness with

breakaway tape near the upper driver’s side kick panel area.

(FIGURE L)

3. Whenthevehicle’s4-pin and 2-pin pre-ﬁt connectors are free

fromthebreakawaytape, unplug anddiscardthe2-pinmating

connector/wire jumper. (This is used for the power window

interrupt circuit).

4. Route the remote engine start harness 4-pin and 2-pin

connectors over the steering column toward the driver’s side

kick panel area. (FIGURE M)

REMOTE ENGINE START WIRE HARNESS CONNECTIONS / ROUTING

FIGURE L

FIGURE K

FIGURE M

Back of

Fuse Box

6 OF 12

PART NUMBER

H001SXC100 ISSUE

-DATE

10 Jan 2018 SUBARU OF AMERICA

5REMOTE ENGINE START WIRE HARNESS CONNECTIONS / ROUTING, continued

FIGURE O

FIGURE N

FIGURE P

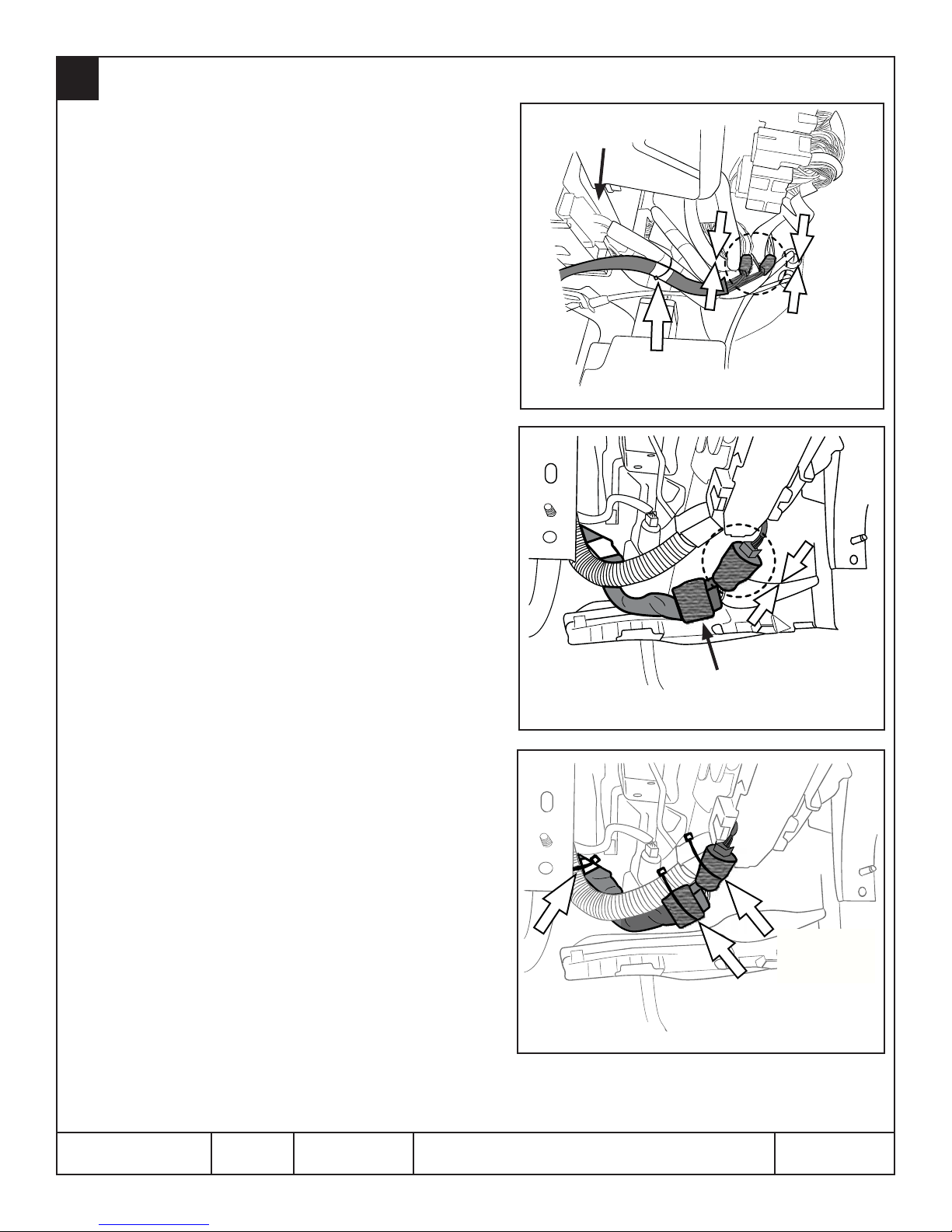

5. Plug the remote engine start harness 4-pin and 2-pin

connectors into the corresponding pre-fit connectors.

(FIGURE N) Using one (1) of the supplied 39cm tie wraps,

secure the remote engine start harness to the vehicle wiring

harness at the white tape ring on the remote engine start

harness. Tuck the 4-pin and 2-pin connectors behind the

vehicle wiring harness. (FIGURE N)

6. Plugtheremoteenginestartharness6-pinconnectorintothe

corresponding pre-ﬁt ignition connector. (FIGURE O)

7. Using three (3) of the supplied 39cm tie wraps, secure the

remote engine start harness to the vehicle wiring harness.

Working from right to left; attach one (1) tie wrap around the

6-pin pre-ﬁt ignition connection, one (1) tie wrap around the

remote engine start fuse holders and one (1) tie wrap at the

white tape ring on the remote engine start harness. Trim off

the excess wire ties. Exercise the tilt and telescopic steering

wheel after securing the tie wraps to ensure the wire harness

is not stressed. (FIGURE P)

Remote Engine Start

Fuse Holders

Remote Engine Start

Fuse Holders

Pre-ﬁt Ignition

Connection

Back of

Fuse Box

7 OF 12

ISSUE

-DATE

10 Jan 2018 SUBARU OF AMERICA

PART NUMBER

H001SXC100

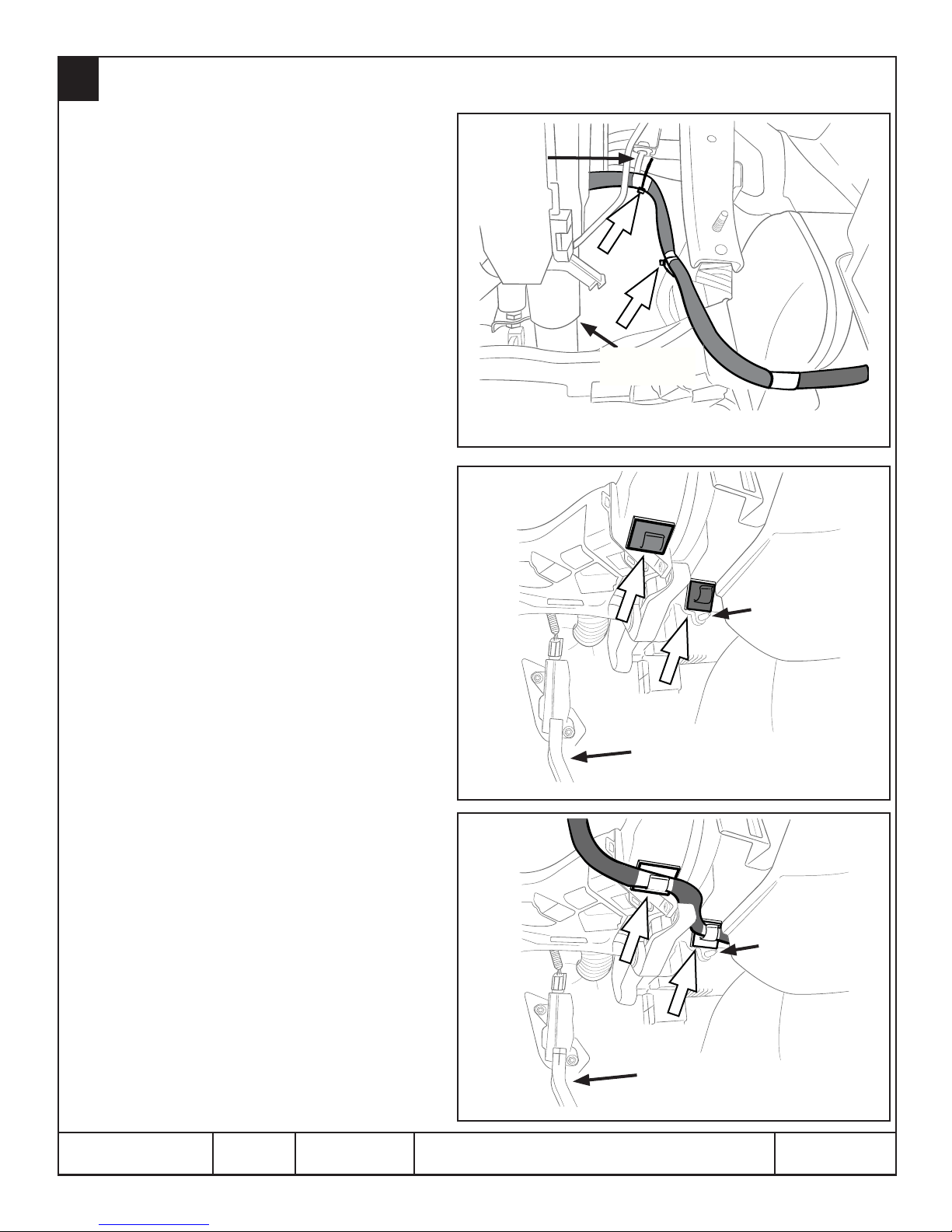

8. Using two (2) of the supplied 39cm tie wraps,

secure the remote engine start harness to the

vehicle wiring harness. Attach one (1) tie wrap to

therightofthe factory tiewrapatthewhite tape ring

ontheremoteenginestartharness. Attachone(1)

tie wrap to the right of the steering column, above

the air duct at the white tape ring on the remote

engine start harness. (FIGURE Q)

9. Using alcohol, clean the air duct surface to the

left of the center console, as shown. Remove the

release liners from two (2) of the supplied wire

harnessclips. Applytotheair duct and pressﬁrmly

in place for at least ten (10) seconds. (FIGURE R)

NOTE: Ensure the openings ofthe wire harness

clips face upward.

10.Route the remote engine start harness toward the

passenger’s side of the vehicle behind the center

console area. Secure the remote engine start

harness to the previously installed wire harness

clips. (FIGURE S)

REMOTE ENGINE START WIRE HARNESS CONNECTIONS / ROUTING, continued

FIGURE Q

FIGURE R

FIGURE S

Accelerator

Pedal

Accelerator

Pedal

Hose Port

Factory

Tie Wrap

Steering

Column

8 OF 12

PART NUMBER

H001SXC100 ISSUE

-DATE

10 Jan 2018 SUBARU OF AMERICA

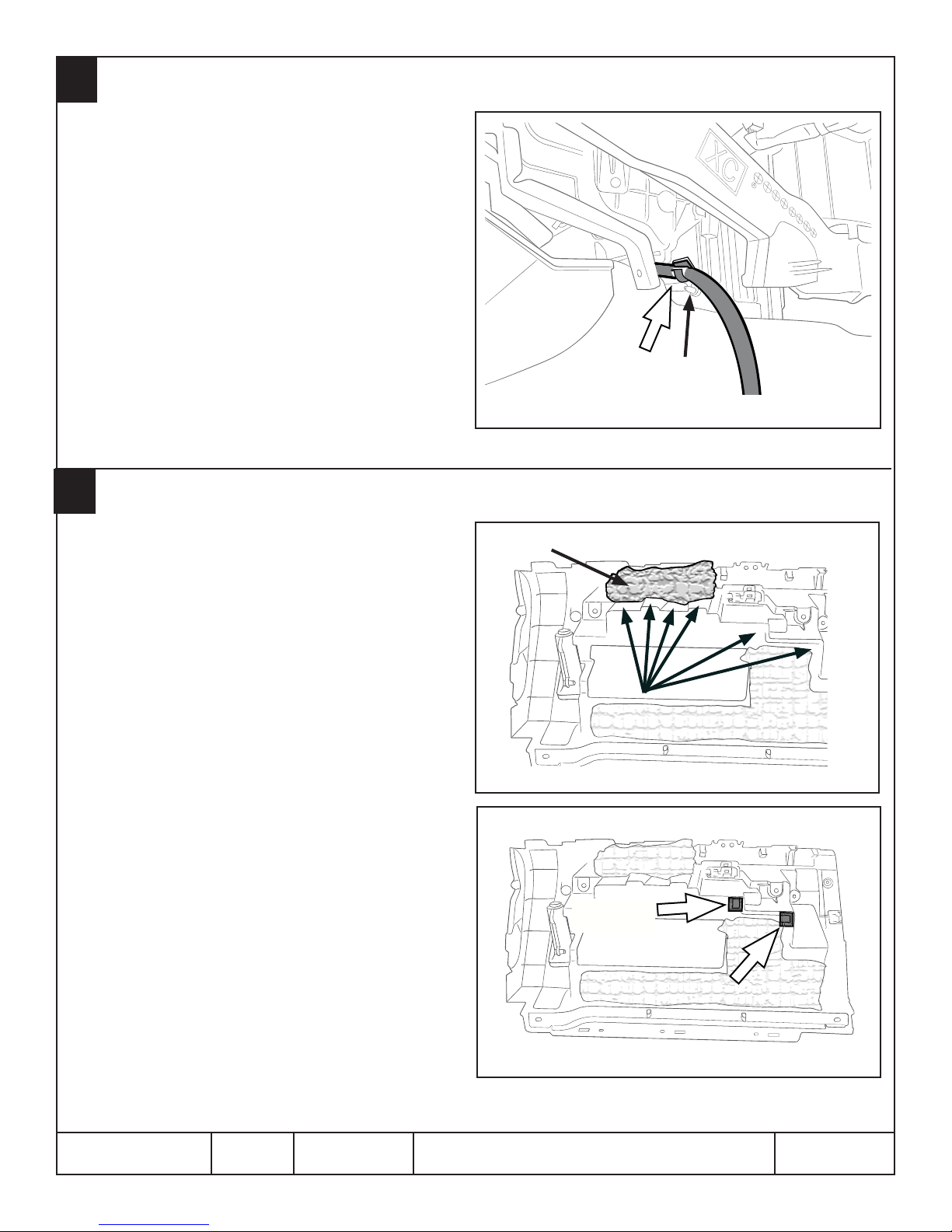

11.Using alcohol, clean the air duct surface to the right of

thecenterconsole,asshown. Remove the release liner

from one (1) of the supplied wire harness clips. Apply

to the air duct above the hose port and press ﬁrmly in

place for at least ten (10) seconds. Secure the remote

enginestartharnesstothewire harness clip atthewhite

tape ring. (FIGURE T)

NOTE: Ensure the opening of the wire harness clip

faces upward.

REMOTE ENGINE START WIRE HARNESS CONNECTIONS / ROUTING, continued

FIGURE T

FIGURE U

FIGURE V

SUBARU

>PP-TD20

C16010099

REMOTE ENGINE START ECU MOUNTING

1. Locate the glove box inner cover and carefully pull back

theinsulationpad fromthetop andbackareas,as shown.

Using alcohol, clean the top and back of the glove box

inner cover, as shown. (FIGURE U)

NOTE: Ensure the glove box inner cover is

completely dry.

2. Remove the release liners from two (2) of the supplied

wire harness clips. Apply to the back of the glove box

inner cover and press ﬁrmly in place for at least ten (10)

seconds. (FIGURE V)

NOTE: Ensure the opening of the left wire harness

clip faces upward and the opening of the right wire

harness clip faces the passenger door when the

glove box inner cover is reassembled.

Insulation

Clean with

Alcohol

Hose Port

Right Clip

Left Clip

9 OF 12

ISSUE

-DATE

10 Jan 2018 SUBARU OF AMERICA

PART NUMBER

H001SXC100

WARNING: / ADVERTISSEMENT

3. Remove the four (4) release liners from the remote

engine start ECU foam tape and attach it to the glove

box inner cover, as shown. Press ﬁrmly in place for at

least thirty (30) seconds. (FIGURE W)

NOTE: Ensure the Remote Engine Start ECU

connectors will be facing forward, toward the

vehicle’s dashwall when reassembled.

4. Plug the remote engine start harness 12-pin and

8-pin connectors into the remote engine start ECU.

(FIGURE W)

5. Secure the remote engine start harness to the wire

harness clips. (FIGURE W)

NOTE: Ensure the Remote Engine Start Harness is

NOTtootight toavoidstress ontheECU connectors.

REMOTE ENGINE START ECU MOUNTING, continued

FIGURE W

7UNDER HOOD WARNING LABEL MOUNTING

1. Using alcohol, clean the top, right side of the radiator

core support.

2. Remove the release liner from the under hood

warning label and secure to the top of the radiator

core support, as shown. (FIGURE X)

FIGURE X

10 OF 12

PART NUMBER

H001SXC100 ISSUE

-DATE

10 Jan 2018 SUBARU OF AMERICA

PANEL RE-ASSEMBLY

1. Plug the yellow electrical connector into the airbag/knee bolster. Verify that the yellow connector is fully seated.

Failure to seat the connector lock could result in the instrument cluster airbag light remaining illuminated. Reinstall

the airbag/knee bolster and torque the two (2) 10mm nuts to 7.5 Nm +/- 2 Nm (0.76 Kgf-m +/- 0.2 Kgf-m, 5.5 ft-lbs

+/- 1.5 ft-lbs).

2. Pluginanypreviouslyremovedconnectors and re-install the driver’sside dashboard panel byengagingtheseventeen

(17) pressure clips.

3. Re-install the one (1) Phillips screw on the lower right side of the dashboard panel.

4. Re-install the left side dashboard panel by engaging the six (6) pressure clips.

5. Re-connect the glove box lamp connector to the lamp on the glove box inner cover. Re-install the glove box inner

cover by engaging the six (6) pressure clips and secure with six (6) Phillips screws.

6. Re-install the passenger’s side ornament panel by engaging the eight (8) pressure clips.

7. Re-install the right side dashboard panel by engaging the six (6) pressure clips.

8. Re-install the glove box and strut.

9. At the end of the installation, insert the Quick Reference Cards into the Owner’s Information Kit.

SYSTEM POWER-UP

1. After all the connections are complete, re-connect the vehicle’s negative battery terminal. Using a 10mm socket/

torque wrench, tighten the 10mm nut to 7.5 Nm +/- 2 Nm (0.76 Kgf-m +/- 0.2 Kgf-m, 5.5 ft-lbs +/- 1.5 ft-lbs).

2. Start the vehicle at least one (1) time using the ignition key prior to activating the remote engine start system. This

is required to allow the vehicle’s electronic systems to re-synchronize.

3. With the vehicle running via the ignition key, verify that the instrument cluster airbag light turns off. If the airbag light

remains on, refer to the vehicle service information for troubleshooting.

4. With the vehicle running via the ignition key, apply the brake pedal and shift the transmission out of park. Turn off

the engine and conﬁrm the ignition key cannot be removed from the ignition switch. If it can, conﬁrm the key lock

solenoid connector is connected and the delivery (test) mode fuse is removed, then re-check.

5. Refer to the vehicle Owner’s manual for the Power Window Reset Procedure to restore the power window functions.

11 OF 12

ISSUE

-DATE

10 Jan 2018 SUBARU OF AMERICA

PART NUMBER

H001SXC100

SYSTEM REGISTRATION

DST-i SETUP

REGISTRATION

Insert an ignition key

into the ignition

cylinder and turn to

Press and hold the DST-i

“B” and “A” buttons

simultaneously for

approximately 5 seconds

to enter stand alone mode

DST-i screen will

display "Press YES if

it is a smart system,

otherwise press NO.

Using the arrows

on the DST-i, select

“Name”

DST-i screen will

display "Execute

Remote Engine Start

CM Registration?

Press YES or NO

Registration

Complete

PRESS

Plug the DST-i Using the arrows on the

DST-i, select Diagnostic

and Press “A” to proceed

to Registration

diagnostic plug

diagnostic connector

into the vehicle’s

Using the arrows

on the DST-i, select

“Ascent”

Using the arrows

on the DST-i, select

“Model year”

Using the arrows on

the DST-i, select the

vehicle model year

“XXMY”

Using the arrows

on the DST-i, select

“Immobilizer”

Using the arrows

on the DST-i, select

“NO”

DST-i screen will

display "Check if

Ignition SW is

turned ON.”

Using the arrows

on the DST-i, select

“YES”

Using the arrows

on the DST-i, select

“Remote Engine Start

CM Registration”

DST-i screen will

display "Successful

[Remote Engine Start

CM Registration]

Press OK”

Using the arrows

on the DST-i, select

“YES”

PRESS

Using the arrows

on the DST-i, select

“OK”

the ON position

NOTE: Once the Ignition is turned ON, the system will exit System Registration after 2 minutes.

12 OF 12

PART NUMBER

H001SXC100 ISSUE

-DATE

10 Jan 2018 SUBARU OF AMERICA

POST INSTALLATION CHECKLIST

1. REMOTEENGINESTART-Makesurethekeyisremovedfromtheignition switch, the engine hood, all doors

and rear gate are closed. Press the START button on the remote start transmitter two (2) times within three

(3) seconds. The vehicle’s parking lights should ﬂash and the vehicle’s horn should honk one (1) time and

then the vehicle should crank and start. Once started, the transmitter LED will ﬂash two (2) times and the

parking lights will turn on and stay on signifying the vehicle is running. The transmitter LED will ﬂash one

(1) time every three (3) seconds signifying the vehicle is still running.

2. SHUT DOWN WITH DOOR OPENING - While the vehicle is running by the remote engine start, wait at

least ﬁve (5) seconds and then conﬁrm that all functions (lock, unlock & rear gate, but not panic) operate

properly on the FACTORY transmitter. Once the FACTORY transmitter functionality is conﬁrmed, press the

UNLOCK button on the FACTORY transmitter and open any vehicle door. The remote engine start should

shut down and the transmitter LED should ﬂash three (3) times indicating the system has shut down.

3. ACTIVATION WITH DOOR OPEN - Ensure the key is removed from the ignition switch and the engine hood

andreargateareclosed. Openthedriver’s door, press the STARTbuttonontheremotestarttransmittertwo

(2) times within three (3) seconds. The vehicle’s parking lights should ﬂash and the vehicle’s horn should

honk six (6) times. The vehicle should not start with any door or rear gate opened.

4. BRAKE PEDAL SAFETY - While sitting in the vehicle with the engine hood, all doors and rear gate closed,

activate the remote engine start and press the brake pedal. The vehicle should shut off.

5. KEY-IN-SENSE - While sitting in the vehicle with the engine hood, all doors and rear gate closed, insert the

ignition key into the ignition switch, but keep it in the OFF position. Activate the remote engine start. The

vehicle’s parking lights should ﬂash and the vehicle’s horn should honk two (2) times. The vehicle should

not start since the key is in the ignition switch.

6. HOOD SAFETYSWITCH- Open the enginehoodandactivatetheremote engine start. The vehicle’sparking

lights should ﬂash and the vehicle’s horn should honk two (2) times. The vehicle should not start since the

hood safety switch is activated.

7. HEATER /A/C FUNCTION - Using the ignition key, turn the ignition to the ON position. Preset the vehicle’s

heater or air conditioning to the ON position. Turn the ignition OFF and remove the ignition key. Activate

the remote engine start and verify that the heater or air conditioning turns on to the preset setting for manual

climate controlled vehicles or turns to the “Full Auto” setting for electronic climate control vehicles.

8. 15 MINUTE RUN TIME - Activate the remote engine start and allow the system to run for the 15 minute

preset run time. The remote engine start should shut down after 15 minutes (+/- 10 seconds).

9. TRANSMITTER FUNCTIONALITY VERIFICATION - Activate the remote engine start using both of the

supplied single button remote start transmitters.

FUNCTIONAL TESTING IS NOW COMPLETE.

4280768 Rev - 1/10/18

1 DE 12

VERSION

-DATE

10 janvier 2018 SUBARU OF AMERICA

NUMÉRO DE PIÈCE

H001SXC100

NUMÉRO DE PIÈCE : H001SXC100

DESCRIPTION : SYSTÈMEDEDÉMARRAGEÀ

LONGUEDISTANCEPARCLÉ

DE CONTACT SUR ASCENT

INSTRUCTIONS

D’INSTALLATION

CONTENU DE LA TROUSSE

OUTILS REQUIS

SIGNIFICATION DES SYMBOLES

MISE EN GARDE : N’ATTACHEZ JAMAIS LE FAISCEAU DU DÉMARREUR À DISTANCE À DES FAISCEAUX OU

CONNECTEURS JAUNES (SYSTÈME DE COUSSINS GONFLABLES) DANS LE VÉHICULE.

Interface diagnostic

SSM IV (DST-i)

Tournevis Phillips,

court et standard Coupe-ﬁls

Outil de dépose

de panneau

: Retirer : Couple de serrage

: Installer

: Déconnecter

: Connecter

: Emplacement de l’attache

ou de la vis

: Desserrer

: Jeter

: Réutiliser

Clé à rochet, douille de

10 mm et rallonge

Module de commande (ECU)

du démarreur à distance

Quantité = 1

Faisceau de câblage

du démarreur à distance

Quantité = 1

Télécommandes de

démarrage à distance avec

étiquettes de mise en garde

Quantité = 2

Étiquette de mise en garde

du compartiment moteur

Quantité = 1

Attaches autobloquantes

39 cm, quantité = 6
