SUGATSUNE LAMP HG-JH210 User manual

1
STAINLESS STEEL
LIFT-ASSIST HINGE HG-JH210
INSTALLATION INSTRUCTION
Thank you for selecting our product. Before starting installation, please
read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
●Easy to lift heavy top-opening lid with spring tension
(lift assist function).
●Supplied damper prevents top-opening lid from slamming shut.
Caution
If these cautions are not followed, it may result in injury or damage.
Make sure to follow the designated measurements, specifications, and horizontal/vertical angles.
It is necessary to manufacture the cabinet with sufficient strength so as to endure the weight of the lid.
Be sure to install the JH-210 (2 pcs - recommended) at parallel position.
To avoid pinching fingers, it is recommended to set residual moment at 0ﾟin positive value. (A catch for lid may be necessary.)
Make sure to check the screws for slack at regular intervals (one month from first usage, half year and then one time every
year is recommended).
Prohibited
Warning
Caution Required
Meaning of symbols
Assist torque 20.6 N
・ｍ
Built-in damper max. load torque 7 N
・ｍ
Damper effective angle
Approx. 30°or more
Ambient temperature 0 -40℃
Hinge operating angle 0 -110°
SUS316
Close
Open
PAT.P
14
167
100
35
35 50
100
10
25 50
25 16
29
144
18
(173)
110°
2×I8.5
4×M8Depth14
2×M8Depth13
6SHFL¿FDWLRQV
・Screws are not provided.
ABOUT THE PRODUCT
DIMENSIONS, SPECIFICATIONS
FOR YOUR SAFE WORK AND CORRECT INSTALLATION

2

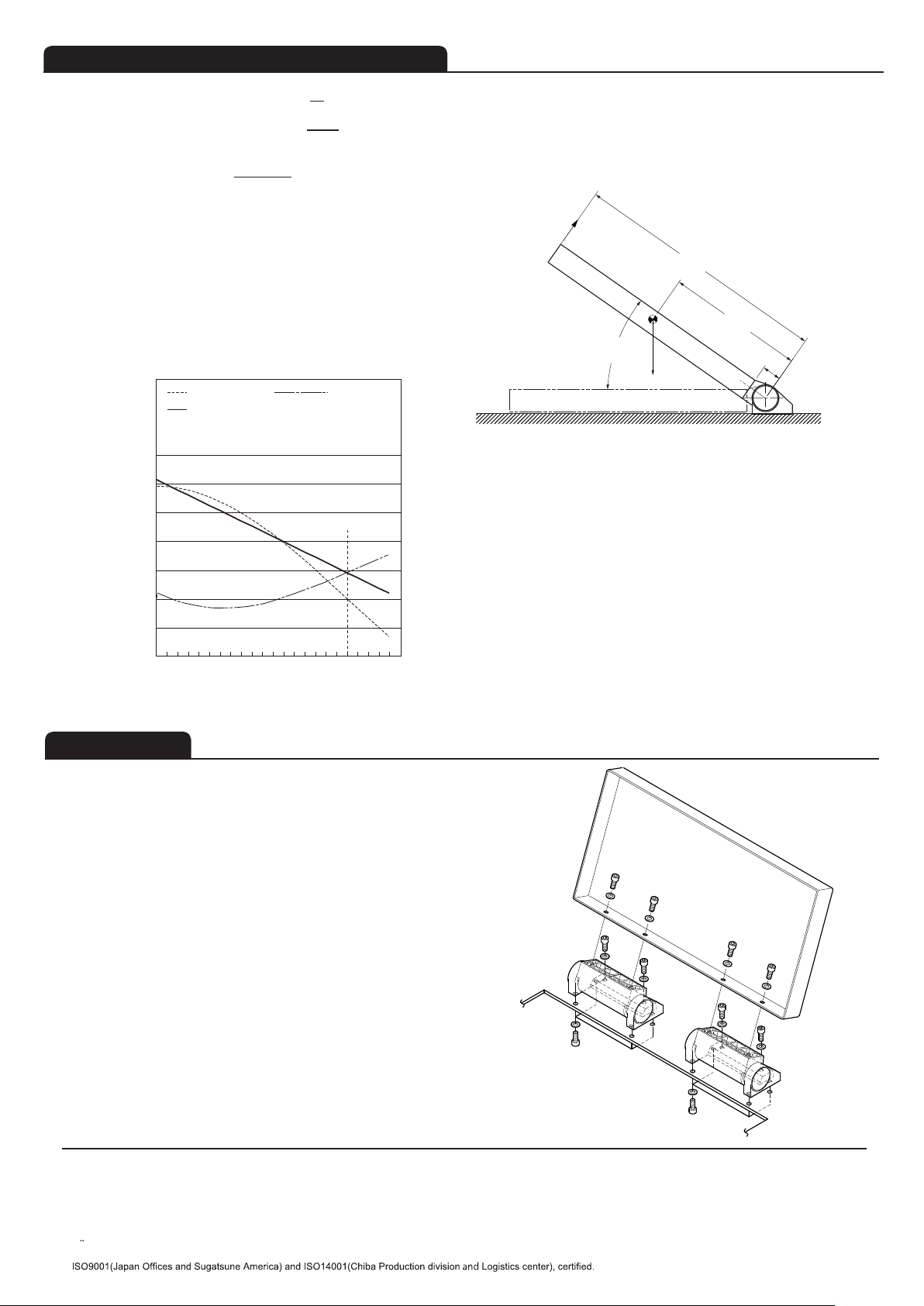

Lid moment: Mt
HingeMoment: Mh
Residual moment: Mz
Operating force: F
=W×cosθ×
=Mm×(1−）
=Mh−Mt
=
L
2
θ
115
Mt−Mh
L
Ｗ：Lid weight
θ：Lid opening angle
Ｌ：Lid length
Mm : Max. moment of hinge
【1】Mount hinges at opened status as the right figure.
【2】Fix the hinges with screws.
(Two screws from top or four screws from bottom).
【3】Check the movement of lid by opening and closing.
●Residual Moment (Mh-Mt)
[-] Forcing in closing direction
[+] Forcing in opening direction
●Left figure shows an example of L= 60 cm,
W = 13 kg with 2 pcs of HG-JH210.
Design a lid with its residual moment does not
exceed 14 N·m with two hinges.
x4
x4
2SHQLQJ$QJOHș
Hinge Moment (N·m)
−20
−10
10
20
30
40
50
0
Lid (Mt)
Hinge(Mh)

Residual
(Mz)
10 20 30 40 50 60 70 80 90
100
110
Assist Hinge Moment W
F
3.5
L/2
L
θ
