Sumitomo TYPE-Q102-CA + User manual

Splice program Heater program Wireless LAN SD Power Time
Heater panel
Control panel
Using Keypad
Home Screen icons
Start and cancel
heating cycle
Power ON/OFF
Reset
Set
TYPE-Q102-CA
Quick Reference Guide
Display the Settings panel
Power source type
Change image view
Display/Non-display icons
Start the splicing process
Start the arc test
Start the heating process on heater 1 and 2
View splice data after splicing
Adjust the zoom of a fiber image
Adjust display brightness
Adjust the focus of a fiber image
Capture a fiber image
Heater 1
Heater 2
Heater 1
Heater 2
To display the Settings panel, tap the
Settings panel icon ( ) on Home screen.
■Settings panel
■Home screen
Heater 1
Heater 2
Log in to Administrator
mode by entering passcode.
Adjust the volume.
Display the menu screen.
Set up Heater Program.
■New Technology
When the NanoTune™ is applied to poor fiber end face, a
NanoTune™ screen appears. Even in AUTO NanoTune program, the
Nanotune™ is not applied to good end face, and the usual splice
screen is displayed.
NanoTune™
Play a help video.
Settings panel icons
Set up Splice Program.
While splice program is selected to “AUTO
NanoTune”, the NanoTune™analyzes the
cleaved fiber surface and then sets up optimal
splice condition.
The splice error prevention system

2 Perform an arc test
1. Tap Arc Test icon ( ). 2. After “Arc Test Ready
”
appears, tap Set icon .An
arc test is started.
3. When the splicer shows
“Good arc state”, prepare fiber
again to proceed to the
splicing process. *Fibers are
not spliced in the arc test.
3 Start splicing process / Start heating cycle
1. Tap Set icon or press
Set key to start the
splicing process.
2. Fusion splicing is completed. 3. Open the wind hood. A proof
test is automatically carried
out.
4. Remove the fiber from the
splicer. Center the protection
sleeve over the splice and
load the fiber in the heat
shrink oven.
5. Press Heater key to
start the heating process.
Sumitomo Electric Industries, Ltd. reserves the right to change the specification or design
without notice and may therefore not coincide with the contents of this quick reference guide.
E&OE
For further detailed operating instructions and functions, please see Operation manual.
The Operation manual can be downloaded via http://www.rim-plus.sei.co.jp/index.html *AS24H107*
OME2024009-2/Ver.1.02
Heater
p
ro
g
ress bar
* Repeat fiber preparation and arc tests
until “Good arc state.” is displayed.
Heating in progress
Pre-heating
Cooling
Standby

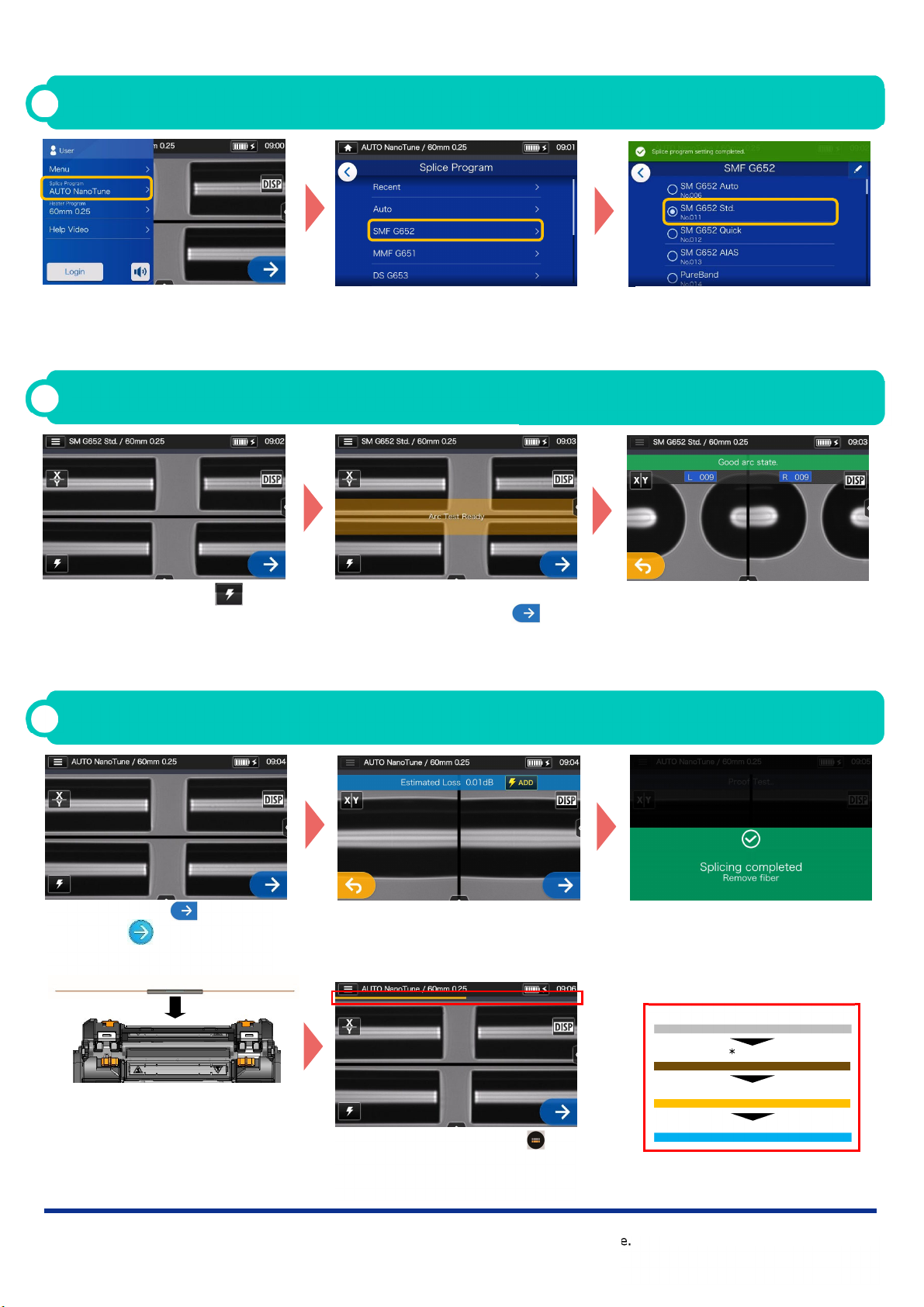

Operating Procedures
1 Splice program setting
1. Tap the Splice program label
on the Settings panel.
2. Select fiber category. 3. Tap the splice program you
would like to use.
* Setup and change the Heater program in the same procedures as described above.
*”Quick” heater program only
