Summer Baby Pixel User manual

Thank you for purchasing the Baby Pixel™Digital Color Video
Monitor by Summer Infant. Please read the following
instructions and warnings carefully. Keep this instruction
manual for future reference.
Moonlite™ Night Vision Boost
The MoonliteTM Night Vision Boost feature is to help provide better
viewing of your baby, temporarily, when the room is dark. Press and
hold the MOONLITE button to illuminate a small LED light on the
camera. A MOONLITE icon will appear in the lower right-hand
corner of the screen while button is pressed. When you release the
button, the camera will return to normal black & white night vision.
Moonlite will automatically turn off after several seconds.
Depending on how far you have placed the camera from the crib,
you can optionally adjust the MOONLITE brightness.
Charge the Handheld
Charge for 7 hours before
first use.
Install the Camera
For best picture focus, place camera 6 to 8 ft. from crib. Plug in
camera. Place camera on a flat surface, such as a tabletop, or
shelf or mount the camera on a wall using the screw and wall
anchor provided.
tabletop wall mount
MONITOR USER GUIDE
SET-UP
1
SET-UP (continued)
1
or
Secure the Camera Cord
NEVER place the camera or
cords within 3-feet of the
crib. Secure the cord to your
wall using the 6 security clips
included to keep the cord
away from baby’s reach.
3ft.
Congratulations! You are now ready
to use your Baby Pixel™ Digital Color
Video Monitor!
3 sec.
Power on the Camera and
Handheld
Press the power/nightlight button on
the camera and hold for 3 seconds.
A green light will appear near the
lens.
Press and hold the power button on
the handheld unit for 3 seconds. The
handheld will automatically sync
with the camera. (The handheld unit
and the camera are paired at the factory
for privacy reasons. If the handheld and
camera are not paired with each other for
any reason, see Adding a Camera in the
user guide.)
Screen Icons
Function Buttons
Clock 12/24 HR
Vox Indicator
Zoom
Nightlight
Temperature
Reception
Camera Selection
Battery Life/ Plugged In
Power/Menu
Moonlite™
Zoom/Video
Camera Steering
Volume
Moonlite™ Brightness
Camera Options
Time / Temp Settings
Screen Brightness
Talk-back
SleepZone™
Vox on / off
Nightlight
SCREEN ICONS & FUNCTION BUTTONS
2
29790
7hr.
Summer Infant, Inc. | 1275 Park East Drive | Woonsocket,RI 02895 | 401-671-6551 12/17
STRANGULATION HAZARD:
Children have strangled
in cords. Keep this cord
out of the reach of
children (more than 3 ft.
(0.9m) away).
WARNING
Read all warnings prior to using this product.
Touch Screen Function
Buttons
10:50 AM
10:50 AM
USING THE HANDHELD
3
Moonlite™ Brightness
Adjustment
Press the MENU button.
Touch the MOONLITE icon in
the touchscreen. Press
either the plus or minus icon
to adjust the moonlight
brightness. Caution: Do not
stare directly at Moonlite
LED for prolonged periods of
time.
Menu/Power
Press the MENU/POWER
button to access the
touchscreen menu
features screen. Press
and hold the
MENU/POWER button
for 3 seconds to turn off
handheld.
Sound Activated Lights
The LED light bar on the top of the
handheld will light up as it picks up
noises, even in power save mode.
When battery is low, the first LED
flashes red and handheld beeps.
3 sec.
Flip out the kick-stand and place the
monitor on a stable, level surface.
Talkback
Press the MENU button.
Touch and hold the
TALKBACK icon in the
touchscreen. You can
speak with your baby.
Release the button when
done talking to the baby. The
icon will reduce down
to the smaller talkback
icon. The TALKBACK icon will
remain on the screen for 10
seconds. You can begin
talking again by pressing and
holding the icon within that
time. To exit talk-back mode,
press the menu button once
or wait 10 seconds to
automatically exit talk-back
mode.
Brightness
Press the MENU button.
Touch the BRIGHTNESS
icon in the touchscreen
menu. Press either the
plus or minus icon to
adjust brightness.
Nightlight
Press the MENU button.
Touch the NIGHTLIGHT
icon in the touchscreen.
Touch the BLUE
NIGHTLIGHT ICON and
the camera will emit a
soft blue glow. Touch the
RED NIGHTLIGHT ICON
and the camera will emit
a warm red glow. Nightlights are comforting to little ones,
especially toddlers who become scared in a pitch black room.
Touch the GRAY NIGHTLIGHT ICON to turn off.
Vox (Voice Activated
Video) On/Off
The Vox feature, when on,
will turn on your screen
when it is power save
mode and the camera
picks up a sound. To turn
Vox mode off, press the
MENU button. Press the
VOX icon. Turn vox alert
on or off. Vox icon is
displayed on indicator
bar when active.
SleepZone™ Virtual
Boundary
The SleepZoneTM feature
creates a virtual boundary
area within your screen view
and is designed to help alert
you with a sound on your
handheld if any object
crosses through this boundary
box. To use SleepZone, first
press the MENU button. Press
the SLEEPZONE icon. Press the
MINUS/PLUS icon on the
lower left-hand side of your
screen to adjust between the
two box size options – small
or large. You can use camera
steering and the zoom button
to position the box around
your baby. Choose alert
volume level by pressing one
of the alert icons on the right
side of the screen. Press
CHECK to complete
SleepZone set up.
Xicon and boundary box will
stay visible while in the
SleepZone mode. To exit out
of SleepZone mode, press the
Xicon.
Recommended to plug in
your handheld when using
the SleepZone feature to
extend battery life.
Volume
Use the up/down arrow
buttons to increase and
decrease the volume.
1 sec.
Video On/Off Power Save
To conserve battery power,
press and hold the VIDEO
button for 1 second to turn off
the handheld’s video. The
screen will go dark. This feature
allows you to preserve battery
life when not plugged into A/C
adapter. The audio feature will
remain activated allowing you
to monitor sounds. You can turn
the screen back on by pressing
the video button or tapping
the screen or moving the
handheld. When handheld is
not plugged in, screen will
automatically turn off after 30
seconds.
If Vox feature is on, video will
turn on automatically when
sound is detected.
360Tilt™ Camera Steering
Press and hold the camera steering button. This feature allows you
to control the camera viewing position remotely by tilting the
handheld backward and forward and side to side. The camera will
replicate the position of the handheld until you release the button.
Touchscreen Camera Steering
Tap the camera steering button once. Four camera steering arrows
will appear on the screen. Touch or hold the arrows to reposition
the camera.

MONITOR USER GUIDE
29790
FCC INFORMATION
PROBLEM SOLVING
REPLACEMENT PARTS CONTACT
IMPORTANT SAFETY INSTRUCTIONS
1) Read Instructions - All the safety and operating instructions should be read before the product is operated.
2) Retain Instructions - The safety and operating instructions should be retained for future reference.
3) Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.
4) Follow Instructions - All operating and use instructions should be followed.
5) Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6) Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7) Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use
only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should
use a mounting accessory recommended by the manufacturer.
9) Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surfaces. This product should not be placed in a built-in installation such as a bookcase
or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.
10) Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your
product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
11) Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at
plugs, convenience receptacles, and the point where they exit from the product.
12) Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits.
When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
13) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
14) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
15) Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
16) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions. Adjusting only those controls that are covered by the operating instructions as an improper adjustment of
other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits a distinct change in performance - this indicated a need for service.
17) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
18) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
19) Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
20) Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
DO NOT EXPOSE TO RAIN OR MOISTURE
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
CAUTION: Changes or modifications not expressly approved by Summer Infant may void the users authority to operate this equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiver
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help
CAUTION: 1. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained
between the antenna of this device and all persons. 2. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Summer Infant, Inc. Monitor Warranty Policy
Summer Infant, Inc. will repair or replace (at our option) your unit free of charge for 12 months from the date of purchase if the unit is
defective in workmanship or materials. To claim your repair/replacement, the product must be returned to Summer Infant along with a
copy of the original purchase receipt. In the absence of the purchase receipt, the warranty will be 12 months from the date of
manufacture. This warranty does not apply to normal wear or damage from misuse, abuse, improper storage and handling, installation,
accident, unauthorized repair or alteration. Please contact our Customer Service Department by phone at 401-671-6551 or via e-mail at
summerinfant.com/contact for details. For sale and use in the USA. The warranty is null and void if used outside its intended territory.
Tools required for wall mount: Screwdriver and drill (not included). For adult use only.
WARNING:
THIS PRODUCT CANNOT REPLACE RESPONSIBLE ADULT SUPERVISION.
•STRANGULATION HAZARD - Children have STRANGLED in cords. Keep this cord out of reach of children (more than 3 feet (0.9 m) away
from the crib). Use enclosed Security Clips to help secure cord away from baby’s reach. Never use extension cords with AC Adapters. Only
use the AC Adapters provided.
•When an AC Adapter is plugged into an electrical outlet, do not touch the exposed end.
•Test monitor before first use, periodically, and when changing location of the Camera.
•Do not use monitor near water (such as bathtub, sink, etc.).
•Keep monitor away from heat sources (such as stoves, radiators, etc.).
• Make sure there is proper ventilation around all monitor components. Do not place on sofas, cushions, beds, etc. which may block
ventilation.
•This product is not a toy. Do not allow children to play with it.
•This product contains small parts. Adult assembly required. Exercise care when unpacking and assembling the product.
WARNING:
Adult assembly required. Keep small parts away from children when assembling.
BATTERY WARNING:
• Use only the original rechargeable battery provided. Please contact Summer Infant, Inc. for replacement battery. Contact information
can be found on the back page of these instructions or on the battery itself.
•Do not short-circuit supply terminals.
•Only the recommended battery or equivalent are to be used, volts and size.
•Remove battery when product is stored for long periods of time or when battery is exhausted.
•Dispose of exhausted battery properly.
•Keep all batteries away from children.

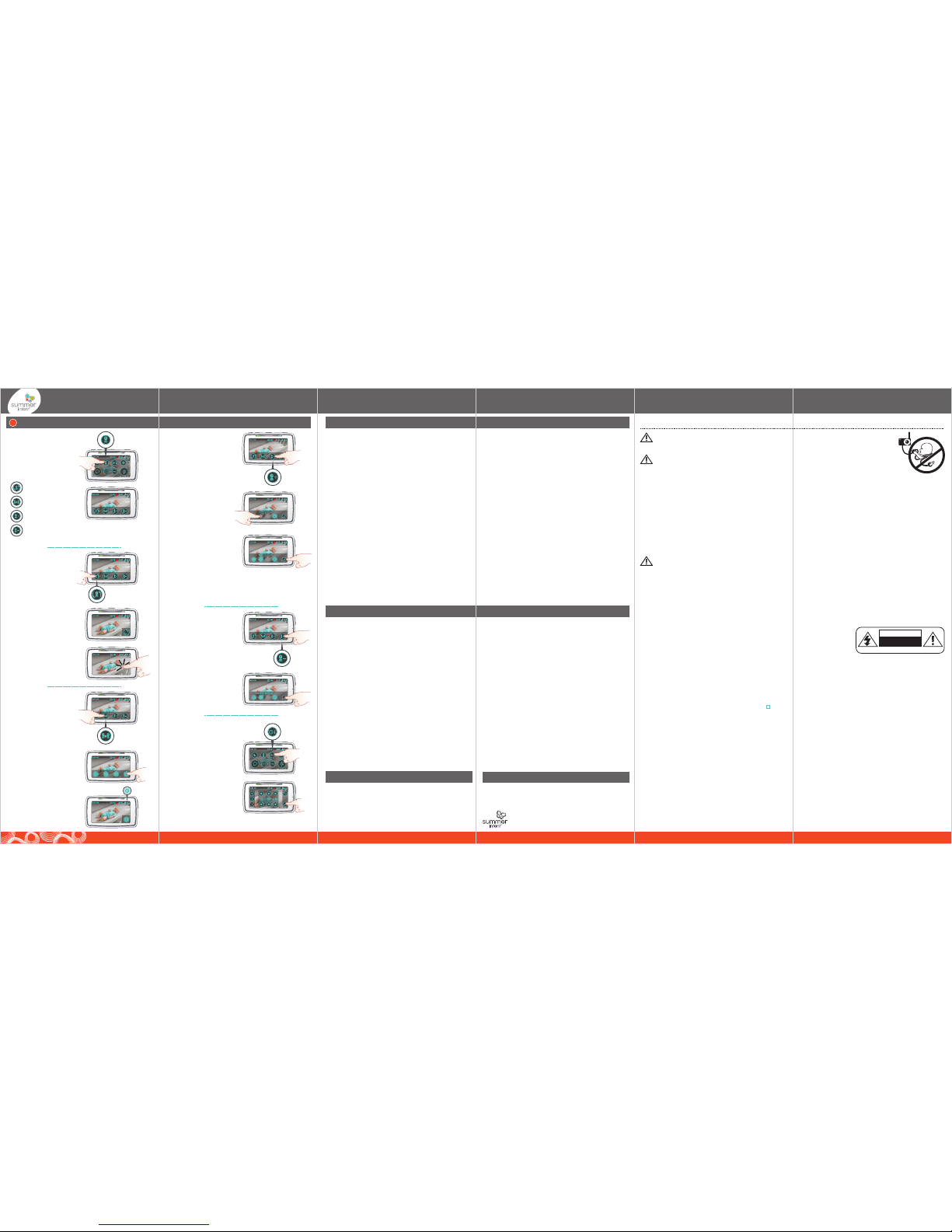

Scan
View Cam
Add Cam
Delete Cam
Time and Temperature
Press the MENU button. Touch
the TIME/TEMP icon in the
touchscreen. Touch the arrows
to set the time. Select either
Fahrenheit or Celsius. Select
either 12hr or 24hr clock
setting. Press CHECK icon to
accept changes.
Camera Options Menu
Press the MENU button. Touch
the CAMERA icon in the
touchscreen. Scan, view
cam, add cam, and delete
cam icons will appear on the
bottom of the screen.
Scanning Cameras
When using multiple
cameras, go into scan
mode by touching the
SCAN icon. Scanning
cameras will begin. Scan
icon will appear in the
lower right-hand corner
of the screen cycling
through each active
camera every 8 seconds.
To stop scanning, tap the
anywhere on the screen.
Deleting a Camera:
Touch the DELETE
CAMERA icon. Select
camera to delete. Touch
the CHECK icon.
Select Camera
Touch the SELECT
CAMERA icon. Touch
NUMBER icon to select an
available camera (blue
color indicates paired
cameras).
Selected camera’s view
will appear on the
handheld screen. An icon
showing camera number
will appear in the lower
right-hand corner of the
screen for 3 seconds.
Camera number on
indicator bar will change
to selected camera.
Adding a Camera:
Follow instructions and
warnings to set up
additional camera. Turn
on camera, then press
and hold the camera
power button for
approximately 7 seconds.
Blue lights will flash on
camera while syncing. On
the handheld, touch the
ADD CAMERA icon in the
camera options menu.
Touch a gray camera
icon and press the CHECK
icon. Synced cameras are
shown in blue. Icons for
additional cameras not
yet synced are shown in
gray. If sync is successful,
you will see video from
newly added camera. If
“NO SYNC” appears on
screen, try again from the
top of this section.
(Note: This product can accept up to 4 cameras and operates on audio and video
auto-scan to view each camera on an 8-second rotation. To order an additional
camera (item #29970), please contact our Consumer Relations Team by phone at:
401-671-6551 or via email at: www.summerinfant.com/contact for details.)
Summer Infant stands behind all of its products. If you are not
completely satisfied or have any questions, please contact our
Consumer Relations Team at 401-671-6551 or
www.summerinfant.com
© 2017 Summer Infant, Inc.
Colors and styles may vary.
Please retain information
for future reference.
MADE IN CHINA. 12/17
Summer Infant, Inc.
1275 Park East Drive
Woonsocket, RI 02895
401-671-6551
REPLACEMENT PARTS
If you need to order a replacement part or want to order an
Extra Camera, you can contact our Customer Relations Depart-
ment at 401-671-6551 or via email at www.summerinfant.com
• Extra Camera: #29970
• Camera AC Adapter: #29580-05
• Handheld AC Adapter: #29580-13
• Handheld rechargeable Ni-MH battery pack: #29580-10
No picture or sound
• Make sure the camera and handheld monitor unit are turned on
• Make sure the camera and handheld monitor unit are paired
• Make sure the AC adapters are plugged in
• Make sure the outlets are working
Sound but no picture
• Press the Zoom/Video Button once to turn on video mode
• Check to make sure nothing is blocking the camera
• Test reception by moving the handheld unit and/or camera to different
locations
• Make sure the camera and handheld monitor unit are paired.
Picture but no sound
• Power the handheld completely off,then turn handheld back on.
• Turn up the volume using Volume Control.
Picture not clear
• Position the handheld unit closer to the camera.
• Move the handheld unit away from other electronic devices, cordless
phones, etc.
• Adjust the brightness using the Brightness Control
• Test reception by moving the handheld unit and/or camera to different
locations
• Place camera 6 to 8 ft. from crib for optimized focus. Make sure to follow
instructions and warnings for camera placement.
Squealing sound coming from speaker on Handheld Unit
• Move the handheld unit and camera further away from each other
• Turn the volume down using Volume Control
• Power the handheld completely off, remove and re-insert the battery
then turn handheld back on.
Video keeps coming on when screen should be off
• Follow instructions to turn off Vox (Voice Activated Video) feature
• Handheld screen automatically “wakes up” by touching or moving
handheld. Make sure handheld is put on a stable surface like a tabletop.
Handheld is beeping
• If no video, turn on camera.
• If battery is low, charge battery.
Temperature listed as LL or HH
• Room temperature is outside of the thermometer limits. The thermometer
is effective in between 32°F – 100°F (0°C – 38°C). If you receive a false
error message, please contact our consumer relations.
Camera isn’t syncing with handheld
• Delete camera and add it back.
SleepZone™ frequent alerts
• Adjust size of boundary box or zoom out so there is room for your child to
move a little without setting off alerts
• Check for objects casting shadows into the SleepZone boundary area
SleepZone™ not sounding alerts
• Check to make sure that SleepZone feature is activated and that motion
is occurring across the boundary box
• Increase volume of SleepZone alerts
If you experience a problem that is not noted in this manual,
please do not return the product to the store. Our Customer
Service Department may have a simple solution to your problem.
Please contact us at 401-671-6551 or email us at
summerinfant.com.
USING THE HANDHELD (continued)
3
732-2979000-0700
