Summit S4600 User manual

0
S46
00
USERS MANUAL

1
TABLE OF CONTENTS
PREFACE........................................................................................2
GENERAL INFORMATION..............................................................2
SAFETY INSTRUCTIONS ...............................................................2
ENVIRONMENTAL INFORMATION ................................................3
CLEANING.......................................................................................3
MAINTENANCE...............................................................................3
WEIGHING OPERATIONS..............................................................4
WARRANTY - LIABILITY................................................................. 4
DISPOSAL .......................................................................................5
SPECIFICATIONS ...........................................................................6
LCD DISPLAY..................................................................................7
KEY FUNCTIONS............................................................................ 8
USING THE HOLD FUNCTION.......................................................9
INSTRUCTIONS FOR THE BMI FEATURE..................................... 9
INSTRUCTIONS FOR CHARGING AND CONNECTING.............. 10
ERROR MESSAGES.....................................................................11

2
PREFACE
Thank you for choosing a SUMMIT product. All features of this product
were designed to state of the art specifications and are optimized for
simple, straightforward use. If you have any questions or experience any
problems not addressed in the Operating Instructions, please contact your
SUMMIT service partner, or visit us on the Internet at
www.quickmedical.com.
GENERAL INFORMATION
We strongly recommend that you use your scale on a flat, hard surface.
Soft surfaces, such as carpet, will cause inaccuracy.
SAFETY INSTRUCTIONS
Before putting your scale into use, please carefully and completely read
the information provided in the Users Manual / Operating Instructions.
They contain important information about the installation, proper use, and
maintenance of your scale. The manufacturer shall not be liable for
damages arising out of failure to comply with the Users Manual /
Operating Instructions.
 When using electrical components under increased safety requirements, always
comply with the appropriate regulations.
 Improper installation will render the warranty null and void.
 Ensure that the voltage marked on the power supply unit matches your buildings
main power supply.
 This device is designed for indoor use.
 Observe the permissible ambient temperatures for use of your scale.
 This device meets the requirements for electromagnetic compatibility. Do not
exceed the maximum values specified in the applicable standards.
 Ensure that the patient does not lean against the device to avoid the risk of falling.
If you have any problem with your scale, contact your local SUMMIT service partner.

3
ENVIROMENTAL
 All batteries contain toxic compounds; disposal of batteries should be
delegated to a competent organization, complying with the Deposit Of
Poisonous Waste Regulation, 1972.
 Please do not incinerate batteries.
 The optimum operating temperature for the scale is 5°C to +35°C;
although it will operate at higher and lower temperatures, the scale’s
battery life will be adversely affected.
 It is recommended to turn in used batteries / rechargeable batteries to
a local collection point so that they can be disposed of in an
environmentally-friendly way. When buying new batteries, select
batteries low in harmful substances and containing no mercury (Hg),
cadmium (Cd), or lead (Pb).
CLEANING
 It is recommend to use alcohol based wipes or the equivalent when
cleaning your scale.
 Please do not use large amounts of water when cleaning your scale as
this will cause damage to its electronics. Refrain also from using
corrosive liquids or high pressure washers.
 Always disconnect your scale from the building’s power supply before
cleaning.
MAINTENANCE
This scale does not require any routine maintenance. However, it is
recommended to check the scale’s accuracy at regular intervals. The
frequency of these checks is dependent upon the level of use and the
condition of the scale. If inaccuracies occur, please contact your local
dealer or SUMMIT service partner.

4
WEIGHING OPERATION
Before reading the detailed instructions on how to use all the weighing
functions that are built into your scale, please read the following important
guidelines:
 Always be sure that the display shows ‘Zero’ before use. If it does not,
please press the ZERO key.
 The Professional Medical Hoist scale is designed to detect whenever
a stable weight is achieved. Your reading should be taken at that point.
WARRANTY-LIABILITY
 If a fault or defect is present upon receipt of the unit which is within
SUMMIT’s scope of responsibility, SUMMIT shall have the right to
either repair the fault or supply a replacement unit. Replaced parts
shall become the property of SUMMIT. Should the fault repairs or
replacement delivery be non-successful, the statutory provisions shall
be valid. The period of warranty shall be two years, beginning on the
date of purchase. Please retain your receipt as proof of purchase.
Should your scale require servicing, please contact your dealer or
SUMMIT Customer Service.
 No responsibility shall be accepted for damage caused via any of the
following reasons: Unsuitable or improper storage or use; incorrect
installation or commissioning by the owner or third parties; natural
wear; changes or modifications; incorrect or negligent handling;
overuse; chemical, electrochemical, or electrical interference or
humidity; unless any of these are attributable to negligence on the part
of SUMMIT.
 If operating, climatic, or any other influences lead to a major change in
conditions or material quality, the guarantee of proper unit functioning
shall be rendered null and void. If SUMMIT provides an individual

5
warranty, this means that the unit supplied will be free of faults for the
length of the warranty period.
DISPOSAL
 This product is not to be treated as regular household waste, but
rather should be turned in to an electrical / electronic equipment
recycling center.
 You can obtain further details from your local council, your municipal
waste disposal company, or the company from which you purchased
the product.

6
SPECIFICATION
Model S-4600
Capacity 300kg x 0.05kg / 660lb x 0.1lb
Weight Units kg/lb
LCD Display 1.0 inch LCD display with 5 and 1/2 digits
Dimensions Platform size: 415(L) x 352(W) x 150(H) mm
Key Functions ON/OFF, UNIT , HOLD/BMI , TARE
Power Supply
Power: 6 AA Batteries / AC adapter 15V
300mA
Operational
Temperature
5°C ~ 35°C

7

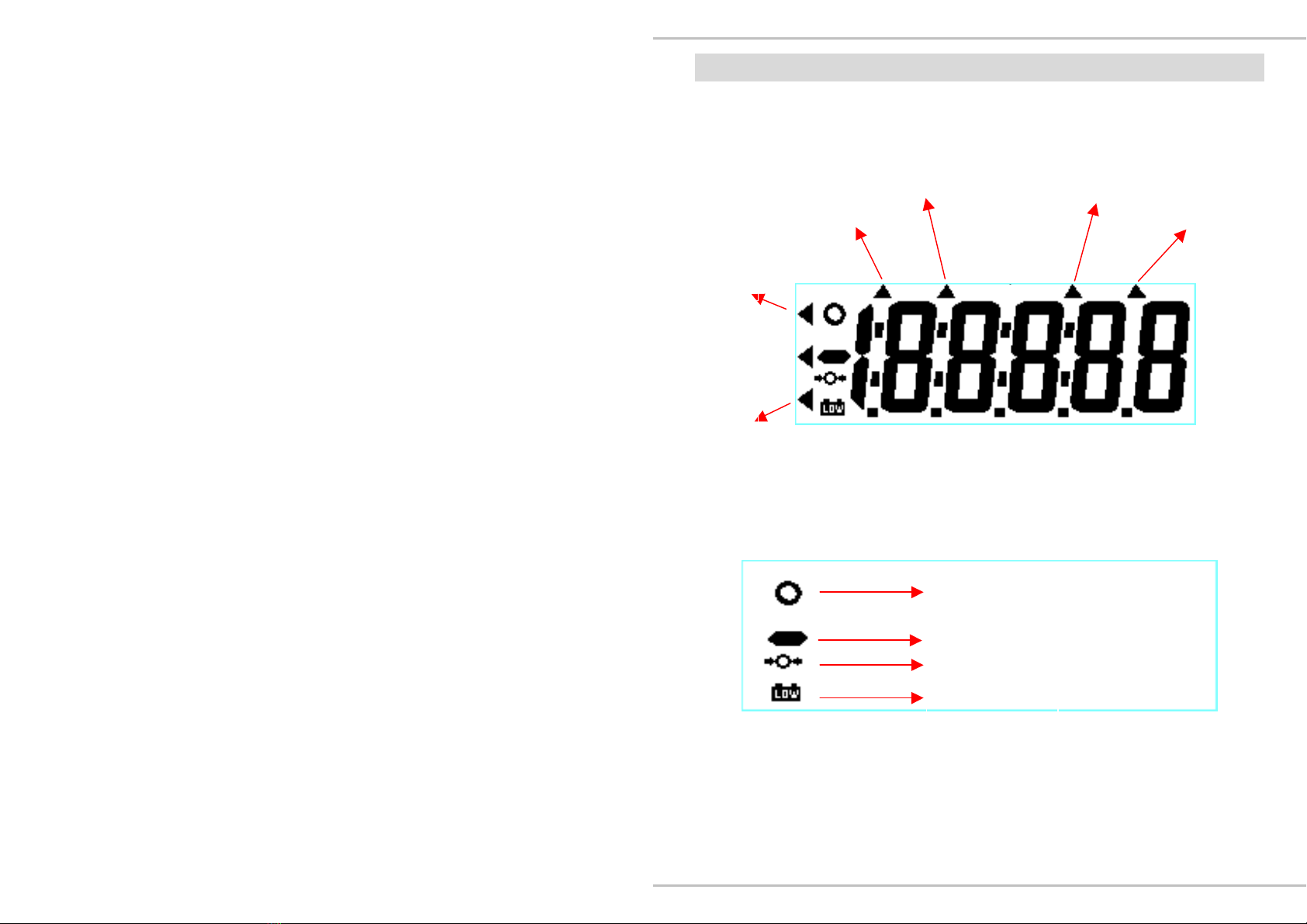

LCD DISPLAY
Hold indicator
kg
BMI indicator
Net indicator
Weight indicator
lb
Stable symbol
Minus symbol
Zero symbol
Low Battery

8
KEY FUNCTIONS
Description
 ON/OFF Press to power unit on and power unit off.
 UNIT Press to select weight unit (kg, lb).
 HOLD/BMI
Press to lock weight while weighing. Press again to release.
Continue to press the HOLD/BMI key for 3 seconds to enable BMI function.
 BMI operation: please refer to page 11.
 TARE Press to tare the weight of the target.
POWER SUPPLY
 The S-4600 uses either normal battery or AC adaptor.
When the indicator displays (low battery indication), please plug
in theAC adaptor for proper operation and recharging.

9
USING THE HOLD FUNCTION
1. Press ON/OFF to turn on the scale.
2. Let the person onto the scale after the LCD shows “0.0” and a
stable symbol.
3. Press HOLD/BMI key to lock the weight that is given by the
device.
4. Let the person off of the scale.
5. Check the weight value has been locked.
6. Press HOLD/BMI to release the function.
7. Press ON/OFF to end the measuring procedure.
Only by pressing the HOLD button can you perform disabling and
enabling the weighing lock function.
INSTRUCTIONS FOR THE BMI FEATURE
1. Power on the device.
2. You will need to know the height of the person being weighed,
so it is best to measure the person’s height before starting the
weighing procedure.
3. Proceed to weigh as normal. After the weight is stable, press the
HOLD/BMI key for 3 seconds to enter into BMI mode.
4. The display will then change to display the height.
5. The person being measured can now get off the scale as the
scale has memorized his/her weight.
6. Then the operator starts to enter the height of the person (the
height should be measured in centimeters).
7. Press TARE to change the height of the person. Press
HOLD/BMIto move to the next digit.
8. When the correct number (in centimeters) is displayed in the
height display, press UNIT to finish setting.
9. The display will then show the B.M.I. reading.
10.Press the UNIT key again to exit the B.M.I. mode.

10
CHARGING AND CONNECTING INSTRUCTIONS
If
is displayed on the LCD, you should
charge your scale with a specialized ad
aptor for the
S-4600.
Locate
adaptor plug at the
back
of indicator.

11

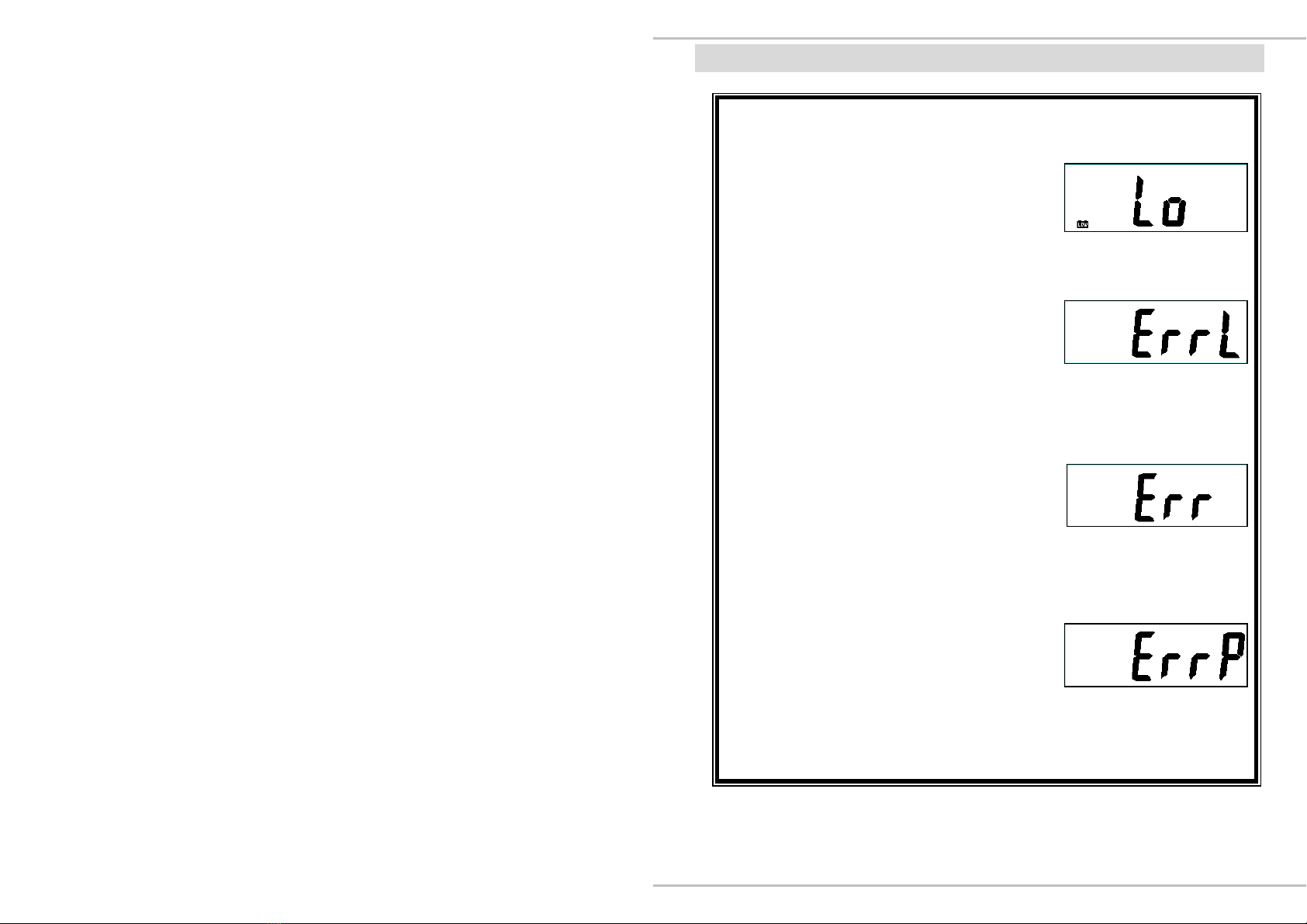

ERROR MESSAGES
 Low battery :
The voltage of the battery is too low
to use. Please replace with new batteries
or plug in the AC adaptor for operation.
 Counting error ( too low ):
The load is lower than the limit when
power is on. Please increase the load
and try again. If the trouble still exists,
please call your local service provider.
 Overload or counting error( too high ):
The load is over-limit when power is on.
Please reduce the load and try again.
If the trouble still exists, please call your
local service provider.
 EEPROM Error :
The program of the scale has an error.
Please call your local service provider.
