DATASHEET
1
SME5224AUPA-400
UltraSPARC™-II CPU Module
400 MHz CPU, 4.0 MB E-Cache
MODULE DESCRIPTION
The UltraSPARC™–II, 400 MHz CPU, 4.0 Mbyte module, (SME5224AUPA-400) delivers high performance
computing in a compact design. Based on the UltraSPARC™-II CPU, this module is designed using a small
form factor board with an integrated external cache. It connects to the high bandwidth Ultra™ Port Architec-
ture UPA bus via a high speed sturdy connector. The UltraSPARC™–II, 400 MHz CPU, 4.0 Mbyte module, can
plug into any UPA connector, saving system design costs and reducing the production time for new systems.
Heatsinks are attached to components on the module board. The module board is encased in a plastic shroud.
The purpose of this shroud is to protect the components and channel airflow. Module design is geared
towards ease of upgrade and field support.
Module Features Module Benefits
Ease of System Design • Small form factor board with integrated external cache
and UPA interface
• JTAG boundary scan and performance instrumentation
• PCB provides a multi-power plane bypass, reducing
systemboard design requirements
Performance • High performance UltraSPARC™ CPU at 400MHz
• Four megabytes of external cache using high speed
register-latch SRAMs
• Dedicated high bandwidth bus to processor
Glueless MP Support •
• Implements the high performance AUPA interface
• Supports up to 16 Mbyte of external cache in a
four-way MP system
Simplify System Qualifications by
Complying with Industry and Government
Standards • Backwards compatibility with systems implementing a
UPA interface
• Plastic shroud protects components and channels
airflow
• Multi-layer PCB controls EMI radiation
• Edge connectors and ejectors
• Small form factor board encased in a heat resistant
shroud
• On-board voltage regulator accepts 2.6 volts for the
Vdd_core; compatible with existing systems
July 1999

2
SME5224AUPA-400 400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module
July 1999
Sun Microsystems, Inc
CPU DESCRIPTION
UltraSPARC-II CPU
The UltraSPARC™-II CPU is the second generation in the UltraSPARC™ s-series microprocessor family.
A complete implementation of the SPARCV9 architecture, it has binary compatibility with all previous ver-
sions of the SPARC™ microprocessor family.
The UltraSPARC™-II CPU is designed as a cost effective, scalable and reliable solution for high-end worksta-
tions and servers. Meeting the demands of mission critical enterprise computing, theUltraSPARC™-II CPU
runs enterprise applications requiring high data throughput. It is characterized by a high integer and floating
point performance: optimally accelerating application performance, especially multimedia applications.
Delivering high memory bandwidth, media processing and raw compute performance, the UltraSPARC™-II
CPU incorporates innovative technologies which lower the cost of ownership.
CPU Features CPU Benefits
Architecture • 64-bit SPARC-V9 architecture increases the
network computing application’s performance
•Thirty-two 64-bit integer registers • Allows applications to store data locally in the
register files
•Superscalar/Superpipelined • Allows for multiple integer and floating point
execution units leading to higher application
performance
•High performance memory interconnect • Alleviating the bottleneck of bandwidth to main
memory
•Built-in Multiprocessing Capability • Delivering scalability at the system level, thus
increasing the end user’s return on investment
•VIS multimedia accelerating instructions • Reducing the system cost by eliminating the
special purpose media processor
•100% binary compatibility with previous versions
of SPARC™ • Increasing the return on investment of software applications
•Uses 0.25 micron technology and packaging • Enhanced processor performance with decreased
power consumption, thus increasing the reliability
of the microprocessor
Performance
•Integer • 17.4(SPECint95)
•Floating Point • 25.7 (SPECfp95)
•Bandwidth (BW) to main memory • 1.6 Gbyte/sec (peak) with a 100MHz UPA
Unique Features
•Block load and store instructions • Delivering high performance access to large
datasets across the network
•JTAG Boundary Scan and Performance
Instrumentation • Enabling UltraSPARC™ based systems to offer features such as: power management, automatic
error correction, and lower maintenance cost

3
400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module SME5224AUPA-400
Advanced Version
July 1999 Sun Microsystems, Inc
DATA BUFFER DESCRIPTION
UltraSPARC-II Data Buffer (UDB-II)
The UltraSPARC™-II module has two UltraSPARC-II data buffers (UDB-II) - each a 256 pin BGA device - for
a UPA Interconnect system bus width of 128 Data + 16 ECC.
There is a bidirectional flow of information between the external cache of the CPU and the 144-bit UPA inter-
connect. The information flow is linked through the UDB-II, it includes: cache fill requests, writeback data for
dirty displaced cache lines, copyback data for cache entries requested by the system, non-cacheable loads and
stores, and interrupt vectors going to and from the CPU.
Each UDB-II has a 64-bit interface plus eight parity bits on the CPU side, and a 64-bit interface plus eight error
correction code (ECC) bits on the system side.
The CPU side of the UDB-II is clocked with the same clock delivered to UltraSPARC-II (1/2 of the CPU pipe-
line frequency).
EXTERNAL CACHE DESCRIPTION
The external cache is connected to the E-cache data bus. Nine SRAM chips are used to implement the four
megabyte cache. One SRAM is used as the tag SRAM and eight are used as data SRAMs. The tag SRAM is
128K x 36, while the data SRAMs are 256K x 18. All nine SRAMs operate in synchronous register-latch mode.
The SRAM interface to the CPU runs at one-half of the frequency of the CPU pipeline. The SRAM signals
operate at 1.9V HSTL. The SRAM clock is a differential low-voltage HSTL input.[1]
1. PECL (Positive Emitter Coupled Logic) clocks are converted on the module to the HSTL clocks, for the E-cache
interface.

4
SME5224AUPA-400 400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module
July 1999
Sun Microsystems, Inc
MODULE COMPONENT OVERVIEW
The UltraSPARC™–II, 400 MHz CPU, 4.0 Mbyte module, (SME5224AUPA-400), (see Figure 1), consists of the
following components:
• UltraSPARC™-II CPU at 400 MHz
• UltraSPARC-II Data Buffer (UDB-II)
• 4.0 Megabyte E-cache, made up of eight (256K X 18) data SRAMs and one 128K X 36 Tag SRAM
• Clock Buffer: MC100LVE210
• DC-DC regulator (2.6V to 1.9V)
• Module Airflow Shroud
Block Diagram
The module block diagram for the UltraSPARC™–II, 400 MHz CPU, 4 Mbyte E-cache module
is illustrated in Figure 1.
Figure 1. Module Block Diagram
Tag SRAM
128K x 36 SRAM
256K x 18
Tag SRAM ADDR [17:0] + Control
Tag SRAM DATA [24:0] UltraSPARC-II
CPU
UDB-II UDB-II
SRAM ADDR [19:0] + Control
DATA [71:0]DATA [143:72]
UDB-II
Control
UPA Connector
Clock Buffer
Clocks
UPA ADDR [35:0] + Control
SRAM
256K x 18
DC-DC
Regulator
2.6V
1.9V
UPA_DATA [143:0]

5
400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module SME5224AUPA-400
Advanced Version
July 1999 Sun Microsystems, Inc
SYSTEM INTERFACE
Figure 2 shows the major components of a UPA based uniprocessor system. The system controller[1] for the
UPA bus arbitrates between the UltraSPARC™–II, 400 MHz CPU, 4.0 Mbyte module, and the I/O bridge chip.
The figure also illustrates a slave-only UPA graphics port for Sun graphics boards.
The module UPA system interface signals run at one-quarter of the rate of the internal CPU frequency.
UPA Connector Pins
The UPA edge connector provides impedance control. The pin assignments are shown with the physical mod-
ule connector and are represented on page 24 and page 25.
UPA Interconnect
The UltraSPARC™–II, 400 MHz CPU, 4.0 Mbyte module, (SME5224AUPA-400), supports full master and
slave functionality with a 128-bit data bus and a 16-bit error correction code (ECC).
All signals that interface with the system are compatible with LVTTL levels. The clock inputs at the module
connector, CPU_CLK, UPA_CLK0, and UPA_CLK1, are differential low-voltage PECL compatible.
1. Only two megabytes of external cache are recognized and supported when using the
Dual Processor System Controller (DSC, Marketing Part No.STP2202ABGA).
Figure 2. Uniprocessor System Configuration
I/O Bridge
Chip
UltraSPARC-II
Module
SME5224AUPA-400
Memory
SIMMs
Memory Data Bus
Cross Bar
Switch
UPA Address Bus 0
UPA Data Bus
144
72
UPA Data Bus
72
Expansion Bus
UPA
Graphic
Device
System
Controller UPA Address Bus 1
UPA Data Bus

6
SME5224AUPA-400 400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module
July 1999
Sun Microsystems, Inc
Module ID
Module IDs are used to configure the UPA address of a module. The UPA_PORT_ID[4:3] are hardwired on
the module to “0”. UPA_PORT_ID[1:0] are brought out to the connector pins. Each module is hardwired in
the system to a fixed and unique UPA address. This feature supports systems with four or fewer processors.
For systems that need to support eight modules, UPA_SPEED[1] is connected to SYSID[2] in UDB-II to pro-
vide UPA_PORT_ID[2].
Systems which support more than eight modules must map the limited set of UPA_PORT_IDs from this mod-
ule to the range of required UPA_PORT_IDs, by implementation-specific means in the system.
System firmware (Open Boot Prom) uses UPA_CONFIG_REG[42:39] for generating correct clocks to the CPU
module and the UPA system ASICs. These bits are hardwired on the module and are known at MCAP[3:0] at
the UltraSPARC-II pins. The 4-bit MCAP value for this module is 0111b.
Module Power
Two types of power are required for this module: VDD at 3.3V, and VDD_CORE at 2.6V. The VDD_CORE supplies the
DC-DC regulator which in turn supplies 1.9 volts to the core of the processor chip, the UDB-II external cache
interface I/O, and the SRAM I/O. A resistor located on the module sends the program value to the power
supply so it generates VDD_CORE at 2.6V to the regulator.
JTAG Interface
The JTAG TCK signal is distributed to UDB-II, SRAMs and the CPU. For additional information about the
JTAG interface, see "JTAG Testability," on page 22, and "JTAG (IEEE 1149.1) Timing," on page 23.

7
400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module SME5224AUPA-400
Advanced Version
July 1999 Sun Microsystems, Inc
SIGNAL DESCRIPTION[1]
System Interface
Signal Type Name and Function
UPA_ADDR[35:0] I/O Packet switched transaction request bus. Maximum of three other masters and one
system controller can be connected to this bus. Includes 1-bit odd-parity protection.
Synchronous to UPA_CLK.
UPA_ADDR_VALID I/O Bidirectional radial UltraSPARC-II Bus signal between the UltraSPARC-II CPU and the
system. Driven by UltraSPARC-II to initiate UPA_ADDR transactions to the system.
Driven by system to initiate coherency, interrupt or slave transactions to
UltraSPARC-II CPU. Synchronous to UPA_CLK. Active high.
UPA_REQ_IN[2:0] I UltraSPARC-II system address bus arbitration request from up to three other
UltraSPARC-II bus ports, which may share the UPA_ADDR. Used by the
UltraSPARC-II for the distributed UPA_ADDR arbitration protocol. Connection to other
UltraSPARC-II bus ports is strictly dependent on the Master ID allocation.
Synchronous to UPA_CLK. Active high.
UPA_SC_REQ_IN I UltraSPARC-II system address bus arbitration request from the system. Used by the
UltraSPARC-II CPU for the distributed UPA_ADDR arbitration protocol.
Synchronous to UPA_CLK. Active high.
UPA_S_REPLY[4:0] I UltraSPARC-II system reply packet, driven by system controller to the UPA port.
Synchronous to UPA_CLK. Active high. UPA_S_REPLY [4] is a no-connect.
UPA_DATA_STALL I Driven by system controller to indicate whether there is a data stall. Active high.
UPA_P_REPLY[4:0] O UltraSPARC-II system reply packet, driven by the UltraSPARC-II to the system.
Synchronous to UPA_CLK. Active high.
UPA_DATA[127:0] I/O UPA Interconnect data bus.
UPA_ECC[15:0] I/O ECC bits for the data bus. 8-bit ECC per 64-bits of data.
UPA_ECC_VALID I Driven by the system controller to indicate that the ECC is valid for the data on the
UPA interconnect data bus: active high.
UPA_REQ_OUT I/O Arbitration request from this module: active high.
UPA_PORT_ID[1:0] I Module’s identification signals: active high. UPA_SPEED[1] acts as a
UPA_PORT_ID[2]
1. For the modular connector pin assignments (UPA pin-out assignments) see page 24 and page 25.
Clock Interface
Signal Type Name and Function
UPA_CLK[1:0]_POS
UPA_CLK[1:0]_NEG I UPA Interconnect Clock: two copies are provided, one for the CPU and one for the
UDBs
CPU_CLK_POS
CPU_CLK_NEG I Differential Clock inputs to the clock buffer on the module
UPA_RATIO I This is not used.
UPA_SPEED [0] O UPA_SPEED [0] is an output tied low on the module
UPA_SPEED [1] I/O UPA_SPEED[1] is tied low with 510 ohms and high to 3.3V with 4.7k ohms. It is
also connected to the SYSID [2] on each UDB-II.
UPA_SPEED [2] O UPA_SPEED [2] is tied low on the module

8
SME5224AUPA-400 400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module
July 1999
Sun Microsystems, Inc
JTAG/Debug Interface
Signal Type Name and Function
TDO O IEEE 1149 test data output. A three-state signal driven only when the TAP controller is
in the shift-DR state.
TDI I IEEE 1149 test data input. This pin is internally pulled to logic one when not driven.
TCK I IEEE 1149 test clock input. This pin if not hooked to a clock source must always be
driven to a logic 1 or a logic 0.
TMS I IEEE 1149 test mode select input. This pin is internally pulled to logic one when not
driven. Active high.
TRST_L I IEEE 1149 test reset input (active low). This pin is internally pulled to logic one when not
driven. Active low.
Initialization Interface
Signal Type Name and Function
UPA_RESET_L I Driven by the system controller for the POR (power-on) resets and the fatal system
reset. Asserted asynchronously. Deasserted synchronous to UPA_CLK. Active low.
UPA_XIR_L I Driven to signal externally initiated reset (XIR). Actually acts like a non-maskable
interrupt. Synchronous to UPA_CLK. Active low, asserted for one clock cycle.
Miscellaneous Signals
Signal Type Name and Function
TEMP_SENSE_NEG
TEMP_SENSE_POS O Connected to a thermistor[1] adjacent to the CPU package.
1. The thermistor used on the module (SME5224AUPA-400) is manufactured by KOA. Operating at 47K the thermistor has KOA part
number NT32BT473J.
POWER_SET_POS
POWER_SET_NEG O POWER_SET_NEG is tied to GND on the module. POWER_SET_POS is connected
to GND via a 1690-ohm resistor. Sets voltage of programmable supply.
POWER_OV O Connected to GND via a 1180-ohm resistor. Sets overvoltage level for programmable
supply.

9
400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module SME5224AUPA-400
Advanced Version
July 1999 Sun Microsystems, Inc
UPA AND CPU CLOCKS
Module Clocks
The module receives three differential pair low voltage PECL (LVPECL) clock signals (CPU_CLK, UPA_CLK0
and UPA_CLK1) from the systemboard and terminates them. The CPU_CLK is unique in the system, but the
UPA_CLKs are two of many UPA clock inputs in the system.
The CPU_CLK operates at 1/2 the CPU core frequency. The UPA_CLKs operate at the UPA bus frequency.
The CPU to UPA clock ratios refer to the CPU core to UPA bus clock signal frequency. The CPU on the module
will automatically sense the clock ratio driven by the systemboard as long as the module clock timing is
satisfied.
The UltraSPARC-II CPU and UDB-II data buffers detect and support multiple CPU to UPA clock frequency
ratios. The UltraSPARC™–II, 400 MHz CPU, 4.0 Mbyte module is production tested in the 4:1 ratio (400 MHz
CPU and 100 MHz UPA). It can be qualified at other ratios in specific systemboards.
System Clocks
The systemboard generates and distributes the CPU and UPA LVPECL clocks. The systemboard includes a
frequency generator, frequency divider, clock buffers, and terminators.
The buffers fan-out the LVPECL clocks to the many UPA devices: the module, cross-bar data switches, system
controller, FFB, and the system I/O bridge. The LVPECL clock trace pairs are routed source-to-destination.
Each net is terminated at the destination. Most destinations are to single devices. The PCB traces for the
LVPECL clocks are balanced to provide a high degree of synchronous UPA device operation.
System Clock Distribution
The goal of this clock distribution is to deliver a quality clock to each system UPA device simultaneously and
with the correct clock relationships to the module clocks. For a discussion on how to layout and balance the
systemboard LVPECL clock signals and UPA bus signals, see the UPA Electrical Bus Design Note (Document
Part Number: 805-0089).
The effective length of the CPU_CLK, UPA_CLK0, and UPA_CLK1 clocks signals on the module are provided
in the UPA AC Timing Specification section of this data sheet.
The block diagram for the LVPECL clocks "Clock Signal Distribution," on page 10, illustrates a typical system
clock distribution network. Each clock line is a parallel-terminated, dual trace LVPECL clock signal for the
CPU, the UPA and the SRAM devices.
UltraSPARC-II CPU Module Tested CPU to UPA
Frequency Ratio Other supported CPU to UPA Frequency Ratios
400 MHz, 4 Mbyte E-cache 4:1 3:1, 5:1, 6:1

10
SME5224AUPA-400 400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module
July 1999
Sun Microsystems, Inc
.
LOW VOLTAGE PECL
Two trace signals compose each clock: one positive signal and one negative signal. Each signal is 180-degrees
out of phase with the other. Signal timing is referenced to when the positive LVPECL signal transitions from
low to high at the cross-over point, when the negative signal transitions from high to low. The trace-pair are
routed side-by-side and use parallel termination, (specific routing techniques are require).
CPU CLOCK INPUT
The PLL in the CPU doubles the clock frequency presented at its clock pin. So, for a 400 MHz core CPU clock
frequency, the CPU_CLK signal is 200 MHz. Therefore, for the CPU, actions will appear to occur at both tran-
sitions of the input CPU_CLK.
CLOCK TRACE DELAYS
The LVPECL propagation time is constant for all clock signals so all balancing is based on length rather than
time. All LVPECL traces are striplines (dielectric and power planes top and bottom) with a fixed 180 ps per
inch propagation time using the FR4, PCB Dielectric.
Clock Buffer
SRAM
SRAM
SRAM
SRAM
SRAM
SRAM
SRAM
SRAM
UDB-II
SRAM/TAG
UltraSPARC-II
CPU
Clock
Buffer
Clock
Divider
CPU_CLK
UPA_CLK0
UPA_CLK1
UPA_CLK2
UPA_CLKx
UPA_CLK
UPA Device
Module
Connector
Module Boundary
Clock
Generator
UDB-II
UPA Device
Serial
Parallel
Figure 3. Clock Signal Distribution

11
400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module SME5224AUPA-400
Advanced Version
July 1999 Sun Microsystems, Inc
ELECTRICAL CHARACTERISTICS
Absolute Maximum Ratings[1]
1. Operation of the device at values in excess of those listed above will result in degradation or destruction of the device. All voltages
are defined with respect to ground. Functional operation of the device at these or any other conditions beyond those indicated under
“recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may
affect device reliability.
Symbol Parameter Rating Units
VDD Supply voltage range for I/O 0 to 3.8 V
VDD_CORE [2]
2. The VDD_CORE supplies voltage to the onboard DC-DC regulator. The onboard DC-DC regulator then powers the CPU core and the
SRAM I/O bus interface. The VDD_CORE must be lower than VDD, except when the CPU is being re-cycled, at which time the VDD can
be lower than VDD_CORE for 30 ms or less, provided that the current is limited to twice thew maximum CPU rating.
Supply voltage range for CPU core 0 to 3.0 V
VIInput voltage range[3]
3. Unless otherwise noted, all voltages are with respect to the VSS ground.
-0.5 to VDD + 0.5 V
VOOutput voltage range -0.5 to VDD + 0.5 V
IIK Input clamp current ±20 mA
IOK Output clamp current ±50 mA
IOL Current into any output in the low state 50 mA
TSTG Storage temperature (non-operating) -40 to 90 °C
Recommended Operating Conditions
Symbol Parameter Min Typ Max Units
VDD Supply voltage for I/O 3.14 3.30 3.46 V
VDD_CORE Supply voltage for the CPU core[1]
1. A current of 2.6V supplies power to the DC-DC regulator which in turn supplies 1.9V to the CPU core.
2.47 2.60 2.73 V
VSS Ground – 0 – V
VIH High-level input voltage 2.0 – VDD + 0.2 V
VIL Low-level input voltage -0.3 – 0.8 V
IOH High-level output current – – -4 mA
IOL Low-level output current – – 8 mA
TJOperating junction temperature – – 85 °C
TAOperating ambient temperature – – –[2]
2. Maximum ambient temperature is limited by airflow such that the maximum junction temperature does not exceed TJ. See the section
"Thermal Specifications," on page 18.
°C

12
SME5224AUPA-400 400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module
July 1999
Sun Microsystems, Inc
Module Power Consumption
This UltraSPARC-II module requires two supply voltages. The required voltages (provided to the module) for
the VDD and VDD_CORE, are respectively 3.30V and 2.6V. The estimated maximum power consumption of the
UltraSPARC™–II, 400 MHz CPU, 4.0 Mbyte module (SME5224AUPA-400) is 70 watts at 400 MHz.
The estimated maximum power consumption includes the CPU, the SRAMs, the clock logic and the 8 watts
consumed by the DC-DC regulator.
DC Characteristics[1]
1. Note that this tables specifies the DC characteristics at the UPA 128M connector.
Symbol Parameter Conditions Min Typ Max Units
VOH High-level output voltage VDD = Min, IOH = Max 2.4 – – V
VIH High-level input voltage, PECL clocks, 2.28 – – V
High-level input voltage,
except PECL clocks 2.0 – – V
VIL Low-level input voltage, PECL clocks – – 1.49 V
Low-level input voltage,
except PECL clocks – – 0.8 V
VOL Low-level output voltage VDD = Min, IOL = Max – – 0.4 V
IDD Supply current for VDD [2] [3]
2. The supply current for the VDD includes the supply current for the CPU, UDB-II, and the SRAMs.
3. The typical DC current values represent the current drawn at nominal voltage with a typical, busy computing load. Variations in the
device, computing load, and system implementation affect the actual current. The maximum DC current values will rarely, if ever, be
exceeded running all known computing loads over the entire operating range. The maximum values are based on simulations.
VDD = Max, Freq.=Max – 9.3 12.04 A
IDD_CORE Supply current for VDD_CORE [4] [3]
4. The supply current for the VDD_CORE includes the supply current for the CPU, UDB-II, SRAMs, via the DC to DC regulator.
VDD_CORE = Max, Freq.=Max – 10.05 11.6 A
IOZ High-impedance output current
(Outputs without pull-ups) VDD = Max, VO= 0.4V to 2.4V – – 30 µA
– – -30 µA
High-impedance output current
(Outputs with pull-ups) VDD = Max, VO= VSS to VDD – – 250 µA
IIInput current (inputs without pull-ups) VDD = Max, VI= VSS to VDD ––±20 µA
Input current (inputs with pull-ups) VDD = Max, VI= VSS to VDD – – -250 µA
IOH High level output current 4 – – mA
IOL Low level output current 8 – – mA

13
400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module SME5224AUPA-400
Advanced Version
July 1999 Sun Microsystems, Inc
UPA Data Bus SPICE Model
A typical circuit for the UPA data bus and ECC signals is illustrated in Figure 4:.
Figure 4. Module System Loading: Example for UPA_DATA, UPA_ECC
3.1 nH
1.0 pF
Edge Connector
UDB-II Driver Trace 1
0.5 nH 2 nH
50 Ω
via 0.6 pF
7 pF
Trace 2
XB1 BGA Package Loading
3.1 nH
Edge Connector
Trace 3
0.5 nH 2 nH
50 Ω
via 0.6 pF
7 pF
UDB-II of Second Module
Package Loading
Trace 4
Measure point for XB1
Measure point for CPU
Worst Case: Z0=60Ω,T
P= 180 ps/inch, Trace 1 Length = 4.4”, Trace 2 Length = 0.6”, Trace 3 Length
= 1.2”, Trace 4 Length = 4.4”
Best Case: Z0=50Ω,T
P= 160 ps/inch, Trace 1 Length = 2.2”, Trace 2 Length = 0.2”, Trace 3 Length
= 0.2”, Trace 4 Length = 2.2”
1.0 pF
1.0 pF1.0 pF

14
SME5224AUPA-400 400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module
July 1999
Sun Microsystems, Inc
UPAACTIMING SPECIFICATIONS
The UPA AC Timing Specifications are referenced to the UPA connector. The timing assumes that the clocks
are correctly distributed, (see the section "System Clock Distribution," on page 9). The effective PCB clock
trace lengths (CPU_CLK, UPA_CLK0 and UPA_CLK1) are used to calculate a balanced clock system.
UPA_CLK Module Clocks
All the UPA_CLKx trace pairs are the same length coming from the clock buffer and going to each load. To
calculate UPA_CLK0 and UPA_CLK1 for the module, assume the trace lengths on the module are 9 inches,
(which includes the module connector).
CPU_CLK Module Clock
The CPU_CLK trace on the system board is typically only a few inches long. It is the length of the traces used
for the UPA_CLKs from the clock buffer plus the length of UPA_CLK from the clock divider to the clock
buffer minus the effective trace length of CPU_CLK on the module, 18 inches, including the module
connector.
Clock Buffers
The Clock buffer on the systemboard and the clock buffer on the module are assumed to have similar delays.
The clock buffers have a 600 ps delay.
Timing References
The setup, hold and clock to output timing specifications are referenced at the module connector for the sig-
nal and at the system UPA device pin. There is no reference point associated with the module since the
module trace lengths provided above are effective lengths only and may not represent actual traces.
The following table specifies the AC timing parameters for the UPA bus. For waveform illustrations see the
illustration, "Timing Measurement Waveforms," on page 15.
Static signals consist of: UPA_PORT_ID[1:0], UPA_RATIO, and UPA_SPEED[2:0].
Setup and Hold Time Specifications
Symbol Setup Signals and Hold Time Signals Waveforms
400 MHz CPU
100 MHz UPA
UnitMin Max
tSU
Setup time UPA_DATA [127:0] 1 3.4 – ns
UPA_ADDR [35:0]
UPA_ADDR_VALID, UPA_REQ_IN [2:0],
UPA_SC_REQ_IN, UPA_DATA_STALL,
UPA_ECC_VALID, UPA_RESET_L, UPA_XIR_L
1 2.9 – ns
UPA_ECC [15:0] 1 3.4 – ns
UPA_S_REPLY [3:0] 1 3.4 – ns

15
400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module SME5224AUPA-400
Advanced Version
July 1999 Sun Microsystems, Inc
The following table, "Propagation Delay, Output Hold Time Specifications," specifies the propagation delay
and output hold times for the UltraSPARC™–II, 400 MHz CPU, 4.0 Mbyte module with a 4 Mbyte E-cache.
Timing Measurement Waveforms
tH
Hold time UPA_DATA [127:0] 1 0.4 – ns
UPA_ADDR [35:0]
UPA_ADDR_VALID, UPA_REQ_IN [2:0],
UPA_SC_REQ_IN, UPA_DATA_STALL,
UPA_ECC_VALID, UPA_RESET_L, UPA_XIR_L
1 0.4 – ns
UPA_ECC [15:0] 1 0.4 – ns
UPA_S_REPLY [3:0] 1 0.4 – ns
Propagation Delay, Output Hold Time Specifications
Symbol Clock-to-Out Signals and Output-Hold Signals Waveforms
400 MHz CPU
100 MHz UPA
UnitMin Max
tP
Clock-to-
Out
UPA_DATA [127:0] 2 – 3.8 ns
UPA_ADDR [35:0]
UPA_ADDR_VALID, UPA_P_REPLY[4:0],
UPA_REQ_OUT
2 – 3.1 ns
UPA_ECC [15:0] 2 – 3.8 ns
tOH
Output-
Hold
UPA_DATA [127:0] 2 1.1 – ns
UPA_ADDR [35:0]
UPA_ADDR_VALID, UPA_P_REPLY[4:0] 2 1.1 – ns
UPA_ECC [15:0] 2 1.1 – ns
Setup and Hold Time Specifications
Symbol Setup Signals and Hold Time Signals Waveforms
400 MHz CPU
100 MHz UPA
UnitMin Max
Figure 5. Timing Measurement Waveforms
Data Input
tH
2.0V 2.4V
0.4V
xx_CLKx_NEG
tSU
2.4V
1.6V
2.0V
Waveforms 1
xx_CLKx_POS
Data Input
tH
0.8V
2.4V
0.4V
tSU
0.8V
Rising Edge
Output 2.0V 2.4V
0.4V
xx_CLKx_NEG
tOH
2.4V
1.6V
0.8V
Waveforms 2
xx_CLKx_POS
Falling Edge
Output
2.4V
0.4V
tp
tOH
tp
0.8V
2.0V

16
SME5224AUPA-400 400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module
July 1999
Sun Microsystems, Inc
MECHANICAL SPECIFICATIONS
The module components and dimensions are specified in Figure 6,Figure 7,Figure 8 and Figure 9.

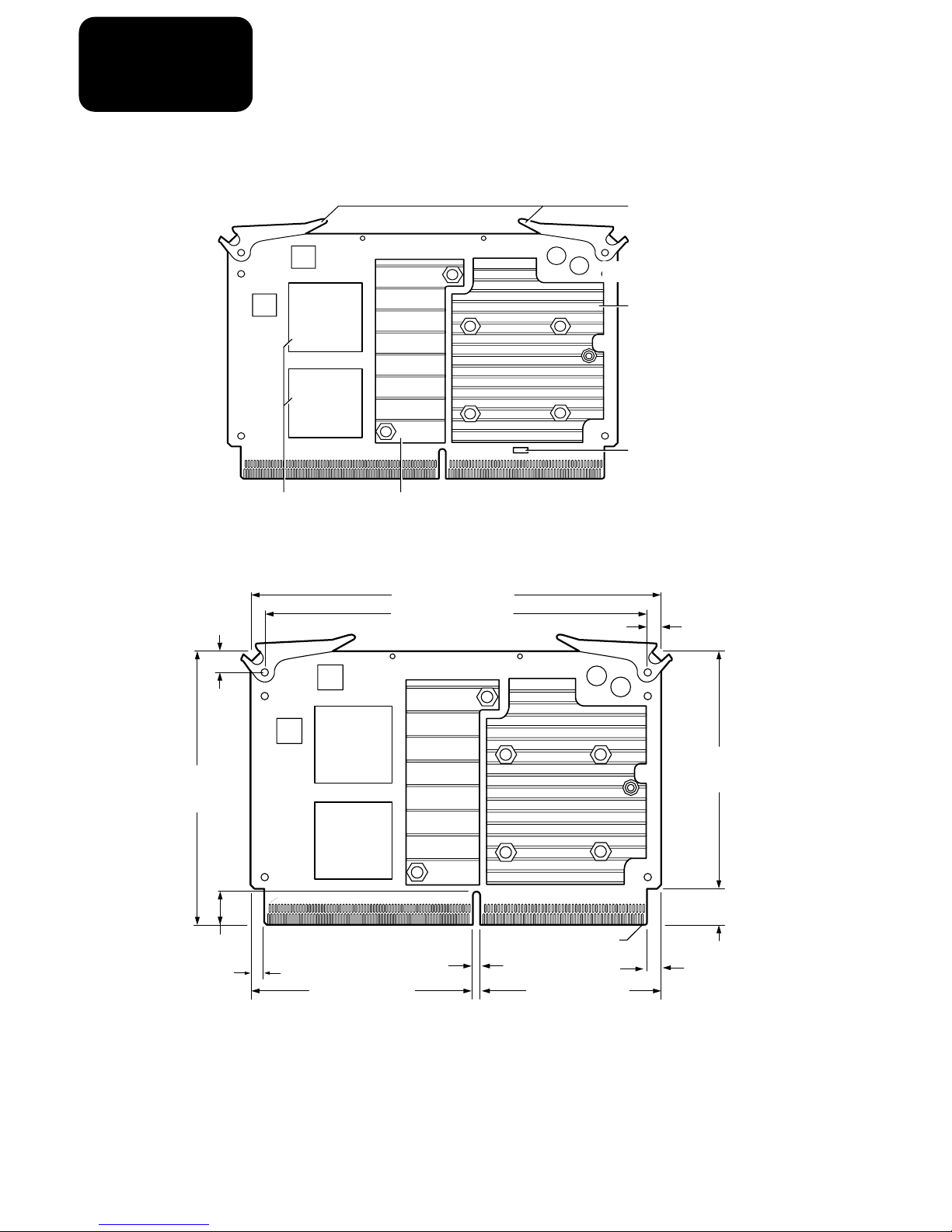

Figure 6. CPU Module Components
Figure 7. CPU Module (Component Dimensions)
Module Ejectors
CPU/Voltage Regulator Heat Sink
Thermistor Location (RT0201)
UDB Heat Sinks
Front SRAM Heat Sinks
0.179 [4.55]
0.315
[8.00]
4.250
[107.95]
3.680
[93.47]
0.570 [14.48]
0.535 [13.59]
0.540 [13.72]
6.250 [158.75]
3.213 [81.61]
Pin 328
Pin 1
2.551 [64.79]
0.112 [2.86 ] 0.174 [4.41]
5.890 [149.61]
.200 [5.08]
Dimensions: inches [millimeters]

17
400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module SME5224AUPA-400
Advanced Version
July 1999 Sun Microsystems, Inc

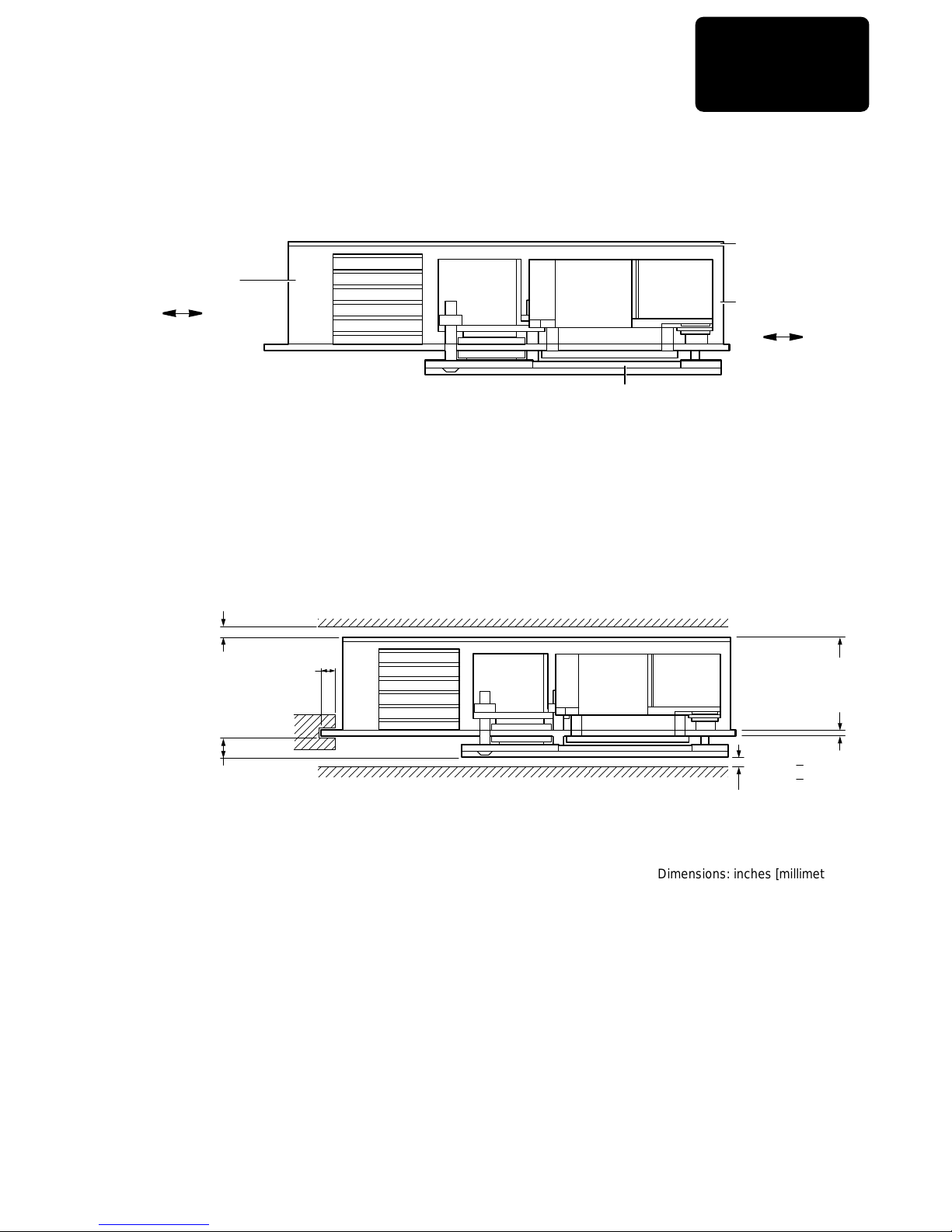

Figure 8. CPU Module Side View
Figure 9. CPU Module Side View Dimensions
NOTE: A minimum backside clearance is required for airflow cooling of the backside heatsink.
Module
Shroud
Bidirectional
Airflow
Backside SRAM
Heat sink
Bidirectional
Airflow
1.318
[33.48]
Maximum
Provide Minimum
0.079 [2.00] Backside Clearance
0.298
[7.57] Maximum
Maximum Card Guide Depth
0.087 [2.201]
Provide Minimum Frontside Clearance
0.079 [2.00]
0.062 + 0.008
[1.57 + 0.20]
,,,,,,,,,,,,
,,,,,,,,,,,,
,,
,,
Dimensions: inches [millimeters]

18
SME5224AUPA-400 400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module
July 1999
Sun Microsystems, Inc
THERMAL SPECIFICATIONS
The maximum CPU operating frequency and I/O timing is reduced when the junction temperature (Tj) of the
CPU device is raised. Airflow must be directed to the CPU heatsink to keep the CPU device cool. Correct air-
flow maintains the junction temperature within its operating range. The airflow directed to the CPU is usually
sufficient to keep the surrounding devices on the topside of the module cool, including the SRAMs and clock
circuitry. The cooling of the backside SRAMs is less critical, but still requires airflow according to the specifi-
cations found in the section "Airflow Bottomside," on page 20.
The CPU temperature specification is provided in terms of its junction temperature. It is related to the case
temperature by the thermal resistance of the package and the power the CPU is dissipating.
The case temperature can be measured directly by a thermocouple probe, verifying that the CPU junction
temperature is correctly maintained over the entire operating range of the system. This includes both the
compute load and the environmental conditions for the system. If measuring the case temperature is prob-
lematic, then, measure the heatsink temperature and calculate the junction temperature. Both approaches for
calculating junction temperature are explained in this section. Irrespective of which method is used, accurate
measurement is required.
Two Step Approach to Thermal Design
Step One determines the ducted airflow requirements based on the CPU power dissipation, the thermal char-
acteristics of the CPU package, and the surrounding heatsink assembly.
See "Thermal Definitions and Specifications," on page 19 for the modules specifications. The specifications for
the heatsinks are found in the table "Heatsink-to-Air Thermal Resistance," page 20.
Step Two verifies the cooling effectiveness of the design, by measuring the heatsink or case temperature
and calculating the junction temperature. The junction temperature must not exceed the CPU specification.
In addition, the lower the junction temperature, the higher the system reliability. The CPU temperature
must be verified under a range of system compute loads and system environmental conditions, using one of
the temperature measuring methods described herein.

19
400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module SME5224AUPA-400
Advanced Version
July 1999 Sun Microsystems, Inc
Thermal Definitions and Specifications
Term Definition Specification Comments
Tj Maximum device
junction
temperature
85 °C, The Tj can't be measured directly by a thermo-couple
probe. It must always be estimated as Tj or less. Less is
preferred.
Tc Maximum case
temperature 76.7 °C Measurable at the top-center of the device. Requires a hole in the base of the heatsink to allow the thermocouple to be
in contact with the case. Maximum case temperature is
specified using a CPU device at its maximum power
dissipation.
Ts Heatsink
temperature 75 °C Measurable at the temperature of the base of the heatsink. The best approach is to embed a thermocouple in a cavity
drilled in the heatsink base. An alternative approach is to
place the thermocouple between the fins/pins of the heat-
sink (insulated from the airflow) and in contact with the
base plate of the heatsink.
Ta Module ambient air
temperature see page 20 The air temperature as it approaches the heatsink.
Pd Typical power
dissipation of the
CPU
19.0 W The worst case compute loads over the entire process
range.
θjc Maximum
junction-to-case
thermal resistance
of the package
0.5°C/W The specification for the UltraSPARC™–II, 400 MHz CPU
in a ceramic LGA package.
θcs Case-to-heatsink
thermal resistance 0.1 °C/W Accuracy of this value requires that good thermal contact is made between the package and the heatsink.
θsa Heatsink-to-air
thermal resistance see page 20 This value is dependent on the heatsink design, the airflow direction, and the airflow velocity.
Va Air velocity see page 20 The ducted airflow.

20
SME5224AUPA-400 400 MHz CPU, 4.0 MB E-Cache
UltraSPARC™-II CPU Module
July 1999
Sun Microsystems, Inc
Temperature Estimating and Measuring Methods
The following methods can be used to estimate air cooling requirements and calculate junction temperature
based on thermo-couple temperature measurements.
Airflow Cooling Measurement Method
The relationship between air temperature and junction temperature is described in the following thermal
equation:
Tj = Ta + [Pd (θjc + θcs + θsa)]
Note: Testing is done with the worst-case power draw, software loading, and ambient air temperature.
Determination of the ambient air temperature (Ta) and the “free-stream” air velocity is required in order to
apply the airflow method. The table "Heatsink-to-Air Thermal Resistance," illustrates the thermal resistance
between the heatsink and air (θsa).
Note that the airflow velocity can be measured using a velocity meter. Alternatively it may be determined by
knowing the performance of the fan that is supplying the airflow. Calculating the airflow velocity is difficult.
It is subject to the interpretation of the term “free-stream.”
Note: The Airflow Cooling Estimate method is an estimate. Use it solely when an approximate value
suffices. Accuracy can only be assured using the Case Temperature measuring method or the
Heatsink Temperature measuring method. Apply these methods to insure a reliable performance.
"Heatsink-to-Air Thermal Resistance," specifies the thermal resistance of the heatsink as a function of the air
velocity.
Air Velocity Specifications
These specifications are recommended for a typical configuration:
Airflow Topside
150 LFM @ 30 °C up to 2,000 feet, altitude, maximum
300 LFM @ 40 °C up to 10,000 feet, altitude, maximum
Airflow Bottomside
100 LFM @ 30 °C up to 2,000 feet, altitude, maximum
150 LFM @ 40 °C up to 10,000 feet, altitude, maximum
Heatsink-to-Air Thermal Resistance
Air Velocity
(ft/min)[1]
1. Ducted airflow through the heatsinks.
150 200 300 400 500 650 800 1000
θSA (°C/W)[2]
2. Airflow direction parallel to the shorter axis of the pin-fin heatsink (1.9"L x 3.6"W x 1.1"H)
1.21 1.05 0.91 0.84 0.78 0.72 0.67 0.64
