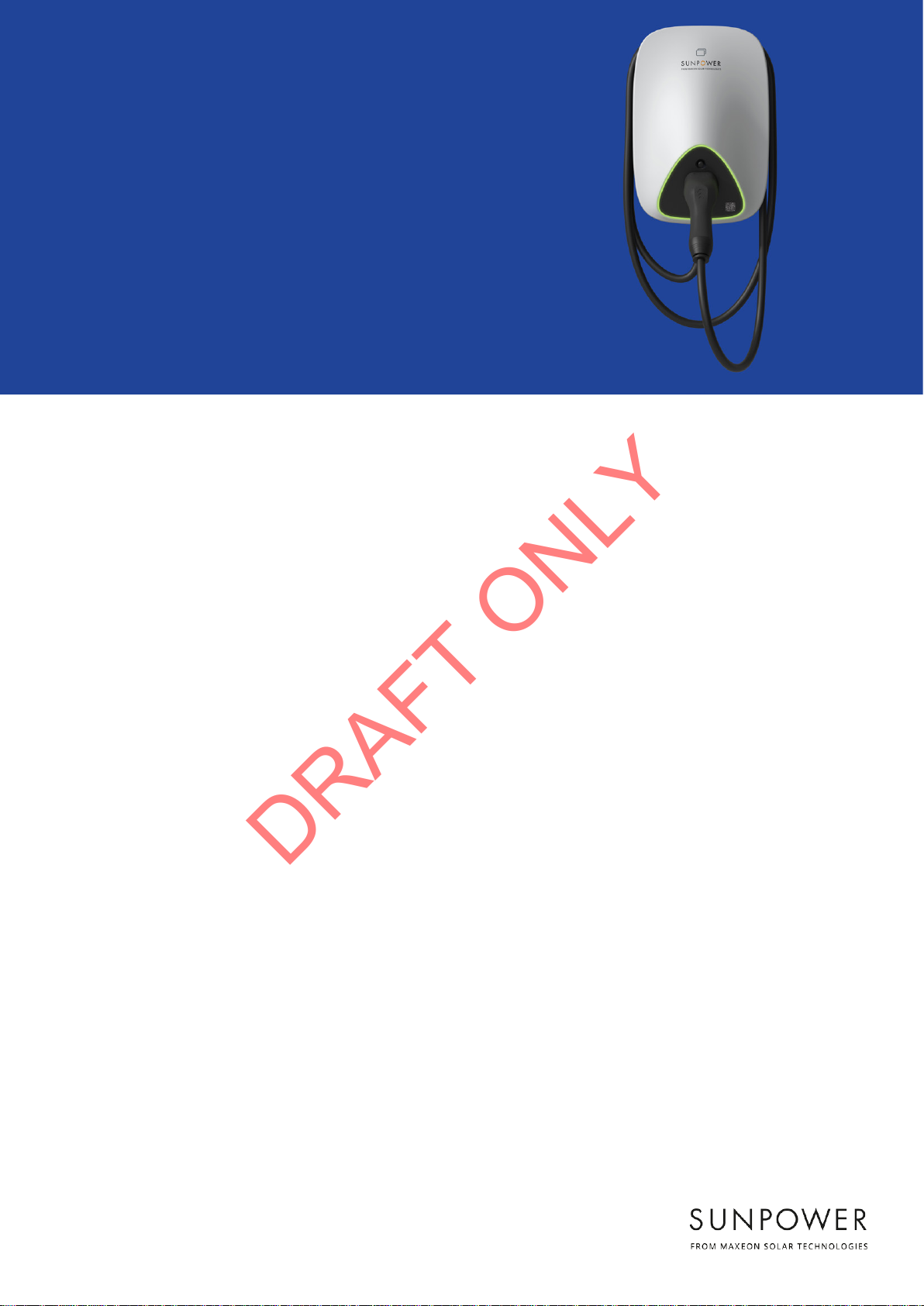

Sun Power DRIVE-EVSE-1-ACP7-L1-T5-MR-INT Setup guide

©May 2023 Maxeon Solar Technologies, Ltd.
All rights reserved. Specications included in this document are subject to change without notice
SunPower
Drive
Wall mounted
EV Charger
Safety & Installation Instructions
Revision A
Published Month 2023
Document 549549
This document is valid for installing the SunPower Drive wall mounted EV Charger including:
DRIVE-EVSE-1-AC-P7-L1-T5-MR-INT
DRIVE-EVSE-1-AC-P22-L3-T5-R-INT
This document describes the mounting, installation, commissioning, conguration, operation,
troubleshooting and decommissioning of the products, as well as the operation of the
product user interface. The enclosed documentation is an integral part of this product. Keep
the documentation in a convenient place for future reference and comply with all provided
instructions.
Illustrations in this document are reduced to the essential information and may deviate from
the real product. Product made in China by Wanbang Digital Energy Co., Ltd. for Maxeon Solar,
Pte. Ltd.
For the latest version please refer to
www.sunpower.maxeon.com/int/InstallGuideDrive
Contents are subject to change without notice.
Maxeon Solar Technologies, Ltd.
sunpower.maxeon.com
DRAFT ONLY

©May 2023 Maxeon Solar Technologies, Ltd.
All rights reserved. Specications included in this document are subject to change without notice 2
1.0 Copyright, Trademarks, and Disclaimer 4
1.1. Copyright 4
1.2. Trademarks 4
1.3. Disclaimer 4
2.0 Safety and Usage Instructions 5
2.1. General safety 5
2.2. Disposal 5
2.3. Summary of safety symbols on the equipment 6
3.0 Technical Parameters 7
3.1. Product Model 7
3.2. Technical Specications 7
3.3. Warranty, Services, Certications and Compliance 8
4.0 Product Overview 9
4.1. Appearance Overview 9
4.2. Storage of charging cable and connector 9
4.3. LED status Indicators 10
5.0 Installation 11
5.1. Preparation for installation 11
5.1.1. Installation tools 11
5.1.2. Supply 12
5.2. Unpacking list 13
5.3. Wall mounting 14
5.4. Post-installation inspection 19
5.4.1. Inspection 19
6.0 Commissioning 20
6.1. Safety instructions before commissioning 20
6.2. Connection 20
6.2.1. Ethernet / LAN 20
6.2.2. WiFi 21
6.2.3. Software Settings 21
6.2.3.1.1. Network Priority Settings 22
6.2.3.1.2. Modbus tcp 22
6.2.3.1.3. 4G conguration 23
6.2.3.1.4. Ethernet/LAN conguration 23
DRAFT ONLY

©May 2023 Maxeon Solar Technologies, Ltd.
All rights reserved. Specications included in this document are subject to change without notice 3
6.2.3.1.5. WiFi conguration 24
6.2.4. Software Settings 25
6.3. Customer Handover 25
7.0 Maintenance 26
7.1. Routine Maintenance 26
8.0 Troubleshooting 27
8.1. The Charging station cannot be powered ON 27
8.2. The Charging station is connected to the vehicle but charging
doesn’t get recognized by the EV 27
8.3. Input Overvoltage is observed 28
8.4. Not fully charged, report that the battery is full or the
connection is unsuccessful 28
9.0 Customer Support 28
10.0 Appendix Peak Controller 29
11.0 Appendix Commissioning Report 33
DRAFT ONLY

©May 2023 Maxeon Solar Technologies, Ltd.
All rights reserved. Specications included in this document are subject to change without notice 4
1.0 Copyright, Trademarks, and Disclaimer
1.1. Copyright
All rights reserved. The disclosure, duplication, distribution and editing of this document, or
utilization and communication of the content are not permitted, unless authorized in writing. All
rights, including rights created by patent grant or registration of a utility model or a design, are
reserved.
1.2. Trademarks
SUNPOWER, SUNPOWER DRIVE, and SUNPOWER RESERVE are registered trademarks in
dierent jurisdictions. Visit https://corp.maxeon.com/trademarks for more information.
1.3. Disclaimer
• This document has been subject to rigorous technical review before being published. It
will subsequently be revised at regular intervals. Any modications or amendments will be
included in the future. Content of this document is compiled for information purposes only.
• Although SunPower has put its best eorts to keep the document as precise and up-to-
date, SunPower shall not assume any liability for defects and damages which may result
from the usage of information contained herein.
• In no event will SunPower be liable for direct, indirect, special, or consequential damages
(incl. loss of prots) resulting from any errors or omissions in this manual. All obligations of
SunPower are stated in the relevant contractual agreements. SunPower reserves the right to
revise this document from time to time.
• Any deviation to the products including, but not limited to, customer-specic modications
(like placing stickers, SIM cards or the usage of dierent colors), hereafter referred to as
’Customization’, can alter the nal product’s user experience, appearance, quality and / or
lifespan.
• SunPower is not liable for any damage to or caused by the product Customization.
• Contact your dealer for more information on Customization versus the Standard product.
DRAFT ONLY

©May 2023 Maxeon Solar Technologies, Ltd.
All rights reserved. Specications included in this document are subject to change without notice 5
2.0 Safety and Usage Instructions
2.1. General safety
SunPower Drive equipment is intended exclusively for charging Electric Vehicles (EV). To ensure
proper usage of the charging station (hereinafter can be referred to as Electric Vehicle Supply
Equipment / EVSE or the Charger), the instructions in this manual must always be complied
with. Installation, Commissioning, Maintenance and Replacement of this equipment shall only
be performed by a qualied electrician (SunPower certied partner).
This device must not be repaired.
All applicable local, regional and national regulations must be complied with during the
installation, use, maintenance and replacement of this device.
SunPower cannot be held responsible in the event of non-compliance with the instructions in
this document and in the documents to which it refers.
The service instruction must be observed throughout the life time of this device.
Operation of this product is prohibited in the following situations:
•In the vicinity of explosives or Highly ammable substances
•If the product is in or close to water sources
•If the product as a whole or individual components of the product are visibly damaged
•Risks on operation by children or individuals not properly assessed associated with using
this product
2.2. Disposal
In accordance with the European Directive 2002/96/EC, Waste Electrical and Electronic
Equipment (WEEE) and its implementation in national law, the electrical devices
including chargepoints which are used must be collected separately and recycled in an
environmentally responsible manner. We recommend that you return your used device
to your dealer or obtain information regarding a local, authorised collection and disposal
system. Failure to comply with this EU Directive may result in a negative impact on the
environment.
DRAFT ONLY

©May 2023 Maxeon Solar Technologies, Ltd.
All rights reserved. Specications included in this document are subject to change without notice 6
„Waste disposal, which indicates electrical and electronic waste.
This symbol is located on the product, in the instruction manual or
on the packaging, indicating that the electrical and electronic
equipment and its Materials can be reused based on their markings.
By reusing old equipment materials and other
forms of reuse, you can make a signicant
2.3. Summary of safety symbols on the equipment
“Electric hazard”, which indicates danger.
Failure to pay attention to the procedures, practices or improper
implementation may cause injuries or death. Only after the conditions
referred to are fully understood and fullled, can the operation
accompanied by the „Electric hazard“ symbol be performed.
CAUTION
HAZARD
Attention: Extensive safety information is available in the relevant sections of this document.
The safety instructions are intended to ensure proper practical usage. If these safety
regulations and instructions are not complied with, the user may expose herself / himself to the
risk of electric shock, re and / or severe injuries
“Caution”, which indicates a hazard.
Failure to pay attention to the procedures, practices or improper
implementation may cause product damage. Only after the conditions
referred to are fully understood and fullled, can the operation
accompanied by the „Caution“ symbol be performed.
TIP
TIP provides information for the optimal installation and operation of the
product.
DRAFT ONLY

©May 2023 Maxeon Solar Technologies, Ltd.
All rights reserved. Specications included in this document are subject to change without notice 7
3.0 Technical Parameters
•Suitable for all vehicles complying with IEC 62196-2.
3.1. Product Model
Power Model No. Connector Remakes
7.4 kW
Single Phase
DRIVE-EVSE-1-AC-
P7-L1-T5-MR-INT
Type 2 Tethered, 5m
Emergency stop button;
MID meter
Emergency stop button;
MID meter
22 kW
Three Phase
DRIVE-EVSE-3-AC-
P22-L3-T5-R-INT Type 2 Tethered, 5m Emergency stop button
3.2. Technical Specications
Technical Specications
Electrical 7.4 kW | 1P 22 kW | 1P/3P
Nominal Charging
Power 7.4 kW 22 kW
Nominal Charging
Voltage 230 VAC ±10% 230 / 400 VAC ±10%
Nominal Frequency /
Range 50 / 60 Hz 50 / 60 Hz
Rated Output Current 32 A 32 A
Interconnection Single Phase Single / Three Phase
Grid type TN-S, TN-C, TN-C-S, TT TN-S, TN-C, TN-C-S, TT
Metering MID-certied energy meter Onboard
Mechanical
Weight Approx. 5.4 kg including cable Approx. 7.5 kg including cable
Dimensions (HxWxD) 409 x 282 x 148 mm
Charging Outlet 5 m tethered cable with Type 2 connector (IEC 62196-2)
Charging Protocol Mode 3 (IEC 61851-1)
Enclosure IP Rating IP 55
Enclosure Impact
Rating IK 10
Mounting Wall Mounting
DRAFT ONLY

©May 2023 Maxeon Solar Technologies, Ltd.
All rights reserved. Specications included in this document are subject to change without notice 8
Technical Specications
Communication Ethernet / LAN, 4G, Wi-Fi, OCPP 1.6J
Status indication LED Indicator
Environmental
Operating Tempera-
ture -30°C to 50°C
Humidity 5% to 95%
Altitude ≤2000m above sea level
Additional
Protection
Overcurrent, Overvoltage, Undervoltage, Residual current
(Type A 30 mA AC + 6 mA DC), Over temperature, Ground fault, Inte-
grated surge protection
Optional accessories
Peak Controller
(Dynamic load balancing kit, please refer to Appendix for more
information)
3.3. Warranty, Services, Certications and Compliance
Warranties 3-year product warranty
Monitoring & Services
SunPower One platform access with companion app for com-
missioning, warranty registration
Mobility services provided through partnership with ev.energy
Certications &
Compliance IEC 61851-1, IEC 61851-21-2, LVD 2014/35/EU, RED 2014/53/EU, CE
DRAFT ONLY

©May 2023 Maxeon Solar Technologies, Ltd.
All rights reserved. Specications included in this document are subject to change without notice 9
4.0 Product Overview
4.1. Appearance Overview
A Cable winding trough
B Emergency stop button
C Charging connector unlock button
DRFID card reader
ELED Status Indicator
FCharging connector
G Charge Point ID (CPID) QR Code
A
B
C
E
F
G
D
4.2. Storage of charging cable and connector
When the charging station is not used, the charging cable should be rolled up and put back into
the cable winding trough in position [A], and the charging connector should be inserted into the
designated position [F] for safe storage.
Figure 1 Product appearance overview
DRAFT ONLY

©May 2023 Maxeon Solar Technologies, Ltd.
All rights reserved. Specications included in this document are subject to change without notice 10
4.3. LED status Indicators
SunPower Drive is equipped with a color LED to visualize the working status of the charging
station.
Lighting eects Meanings Subsequent operation
Green indicator
is normally on.
The charging station is
in standby state without
failure.
Correctly connect the charging
connector to the vehicle.
Blue indicator is
always on.
The charging connector is
connected.
Start charging through the
ev.energy app
Blue indicator is
ashing quickly.
RFID card authentication
(when activated in the
ev.energy app settings)
Wait for authentication to com-
plete
Blue indicator is
breathing. Charging is in progress
The vehicle is in a charging state
(when smart charging is enabled
in the ev.energy app settings,
charging is managed automati-
callyand vehicle will be charged
according to charing schedule)
Blue indicator is
ashing slowly. Suspended charging
Check the vehicle screen for fai-
lure:
If any failure is found, replace the
charger to charge; if the failure is
still displayed, please consult the
vehicle dealer If not, the grid side
has limited the charging capacity.
Continuous red
indicator
Failure or E-Stop is activa-
ted.
Remove the faults according to
the troubleshooting measures in
the „Troubleshooting“ section; if
the
problem cannot be solved, please
contact your dealer or service
provider.
DRAFT ONLY
