Sunfox Spandan ECG User manual

Spandan ECG
User’S Manual

Thank you for purchasing the Spandan Portable ECG Device.
It measures your ECG and cardiac arrhythmia simply and
quickly. After your checkup, you can easily share it with your
Doctors in the PNG or PDF format through WhatsApp, e-mail
and other social platforms.
Spandan ECG device and Android Application is mainly
designed for general household use, Hospitals and clinics.
Spandan ECG is a unique technology in its clan which
provides patients and health conscious people, access to
their heart health. This manual will guide you to use
Spandan ECG device and Application smartly. Needed as
the Important Safety Information in this instruction manual
before using the unit. For specific information about your
own ECG, Consult your doctor.
What is Spandan?
1

Safety Information
Buy the electrodes at www.sunfox.in
Do not disassemble
the unit.
Use only the approved
leads and device for
this unit.
If there are any
abnormalities during the
measurement, remove
the leads or change
electrode pads.
Always consult your doctor.
Self-diagnosis of measurement
and self-treatment/ diagnosis
is dangerous.
People with prior heart disorders,
should consult a doctor before
and after using the unit.
2

(a) Arrhythmia Test
This test is recommended when chest Palpitations
or Chest Pains are felt spontaneously, it is helpful in
a couple of minutes of a Cardiac arrest. Hence,
Doctors and Cardiologists can take initial overview
of the cardiac anomaly that a patient is going
through. Spandan Portable ECG device and Android
Application is capable of detecting 21 classified
Arrhythmia’s with the help of Intelli- ECG technology
developed in research labs of “SUNFOX
TECHNOLOGIES PVT. LTD.”.
Many Enthusiast also uses Arrhythmia tests to
monitor their workout stamina via heartbeats and
other variables and it is also helpful for a health
conscious person.
What kind of Test, Spandan ECG Device
and Application performs ?
3

Go to Google Play Store and
Download Spandan Portable ECG
Application.
Step 1
Open Spandan Application
on your smartphone.
Step 2
To perform an Arrhythmia test via Spandan
Portable ECG device follow these steps.
4

Connect Spandan ECG
Device to your Android
smartphone with given
micro USB cable.
Step 3

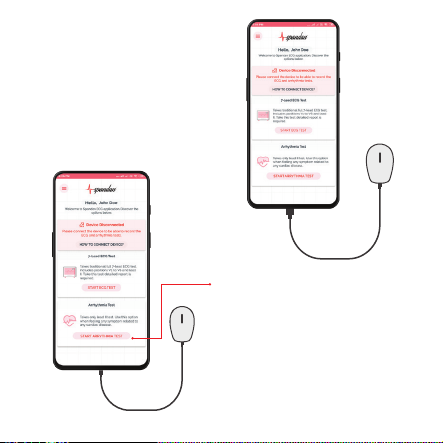

Select option Arrhythmia test
and grant Access to the
Spandan Application to access
the Spandan ECG device by
Pressing “OK”.
5
Step 4

“Generate Report” and
save it for future use.
Step 6
Connect the chest leads as
shown in the app screen and
Press the Start Test button to
start the test.
Step 5
6

Generate PDF reports
and share it with your
Consult Doctors from
Remote area.
Step 8
Receive the Spandan
AI reports at the
registered email
account.

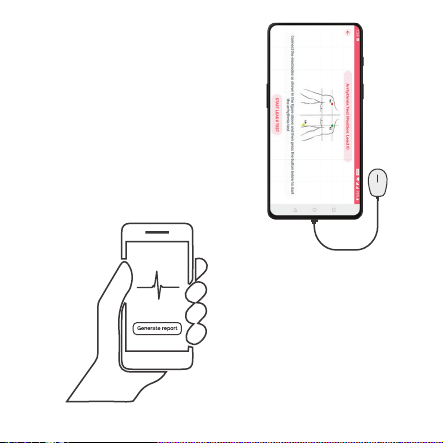

Step 7
7

(b) ECG Test
For ECG test tap
on the 7-lead ECG
test and follow the
process.
1
8

9
2

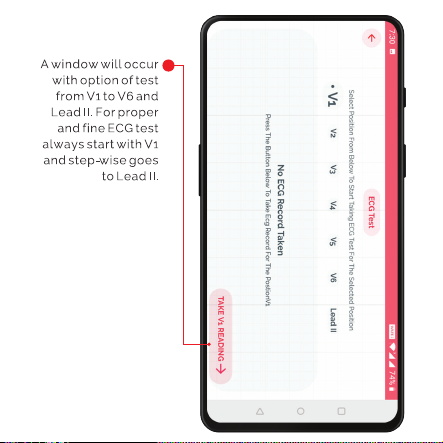

R e p e a t t h e “ S t a r t
R e c o r d i n g
P r o c e d u r e ” h e n c e a t
l a s t t a k i n g r e a d i n g
f r o m V 1 t o V 6 ,
l e a d I I and
“Generate Report”.

10
A f t e r c o m p l e t i n g t h e
t e s t T a p o n “ G e n e r a t e
R e p o r t “ i c o n .
6

F i l l u p y o u r
Information
A n d T a p o n
“ Proceed Button”.
3
11

T a p o n “ S ave B u t t o n ”
to s a v e y o u r r e p o r t s .
Y o u c a n e x p o r t i t o r
s h a r e i t a s P N G o r P D F
o n y o u r m a i l , Wha t s a p p
a n d o t h e r so c i a l me d i a
p l a t f o r m s w i t h y o u r
do c t o r s a n d p h y s i c i a n s
4
5
12

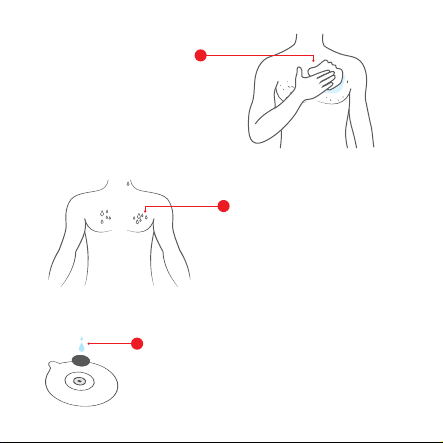

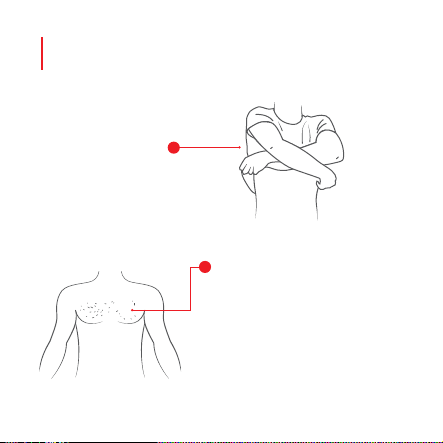

Take off your shirt.
Make sure your skin is dry,
hairless, and oil-free. Shave hair
that can possibly prevent
electrode placement. Electrodes
should have full contact with the
patient's skin (This is to minimize
your pain as leads consists jelly
like liquid which cause pain when
these are removed).
Correct Posture instructions for accurate ECG
and Arrhythmia Test?
1
2
13

For better electrode
adhesion and oil-free skin,
rub the area with an alcohol
prep pad or gauze pad with
benzoin tincture.
Make sure the electrode conducting
gel is fresh and adequately moist. A dry
electrode with inadequate gel reduces
the conduction of the ECG signal.
Promote an environment that
prevents the patient from
sweating in large amount.
3
4
5
14

Often, electrode gel dry-out is a
result of incorrect storage. Store
electrodes as instructed by
manufacturer and do not remove
from their pouch until they are
ready for use.

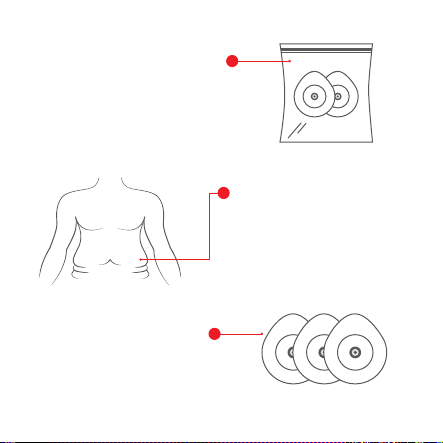

Do not place electrodes on
skin over bones, incisions (a
surgical cut made in skin) ,
irritated skin, and body parts
where there is lots of possible
muscle movement.
Use electrodes of the same
brand. Using different
brands with dissimilar
composition can hinder an
accurate ECG trace.
7
6
8
15

To take ECG, you need
to be relaxed and
comfortably seated,
under comfortable room
temperature. No bathing,
drinking alcohol or
caffeine, smoking,
exercising or eating.
Sit upright with your
back straight.
10
9
16

Spandan ECG Device
World’s smallest ECG device, which can measure your
ECG and 21 types of Arrhythmia’s. Connect the device
with your smartphone using leads and electrodes and
perform your test. It gives you the result within
30 seconds. Our device is well tested and authorizes in
the labs of SUNFOX TECHNOLOGIES.
Three Lead Electrodes
A lead is a glimpse of the electrical activity of the heart
from a particular angle. These 3 views are collected by
placing electrodes or small sticky patches on the chest
and Stomach. These electrodes are connected to the
Spandan Device which is connected to your smart
phone that registers your heart's electrical activity. The
main purpose of the 3-lead ECG is to screen patients for
possible cardiac ischemia. It helps to quickly identify 21
types of Arrthymia.
What you will get inside Spandan ECG
Device Packaging?
17

USB Cable
The main objective of these cables is to effectively,
quickly and properly gather or transfer data from one
device to another. All you need to do is to connect USB
cable to the mobile phone and the other one to your
Spandan Device.
Electrodes
We are providing 12 AGCL equipped Electrodes with
one unit of Spandan device and single electrode can be
used for 2 or 3 times. And in case if you have used your
all electrodes you can buy it from market electrodes
are easily available in the market. You can also buy the
electrodes at www.sunfox.in.
18

Spandan Healthy Heart Programme
Spandan ECG Application is equipped with Special
programme started to provides better guidance to use
Spandan Portable ECG device. “Spandan Healthy Heart
Programme” this feature provides the patient to go through
the Blogs and Articles available about the different kinds of
Arrhythmia, Leads Placements etc.
Spandan Healthy Heart Programme is a futuristic approach as
it shares the history of the report and records the episodes,
which is accessible by the patient and the Doctor simultane-
ously. It is also a concise guide to maintain a healthy life style
by being a proud customer of Spandan portable ECG device.
Features of ECG Device
12 Classified heart
Dysfunctions.
Chest lead ECG
(Doctor’s Recommended)
21 Classified
arrhythmia detection
Intelli - ECG
Technology.
Recommended
by Cardiologists.
1 Year Hardware
Warranty.
Spandan Heart Blog
for Intense care.
Advanced reports
by Spandan AI
19
