Sunny X-BIKE PRO User manual

FULL BODY FOLDABLE MAGNETIC
X-BIKE PRO
SF-B223012
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1-877-90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this
equipment correctly. It is important to read this entire manual before assembling and using the
equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained,
and used properly. It is your responsibility to ensure that all users of the equipment are informed of
all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you
have any medical or physical conditions that could put your health and safety at risk or prevent
you from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest,
irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If
you do experience any of these conditions, you should consult your physician before continuing
with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of
the equipment can only be maintained if it is regularly examined for damage and/or wear and
tear.
6. Always use the equipment as indicated. If you find any defective components while assembling
or checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may
become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 lbs (135 kgs).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving are
required.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in extreme
cold, hot, or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only; it is not intended for commercial use.

2
PRE-ASSEMBLY CHECKLIST
Before you start to assemble, please make sure all parts are included
No.
Description
Spec.
Qty.
No.
Description
Spec.
Qty.
1
Front Main Frame Post
1
30
Seat
1
2
Rear Support Frame
1
91
Back Seat Post
1
3
Front Stabilizer
1
92
Back Seat Connect Post
1
4
Rear Stabilizer
1
93
Mesh Cushion
1
5
Seat Support Post
1
97
Round Knob
M8*20
1
6
Handlebar Connect Post
1
99
Rear Handlebar Post
1
7
Front Handlebar Post
1
100
Handlebar Cover
1
12
Computer
1
104
Rope Group
2
22
Bottle Cover
1
A
Hardware Package
1
23
Left Bottle Cover
1
B
Thank You Card
1
24
Right Bottle Cover
1
C
Manual
1
28
Left Pedal
1
D
Battery
AAA
1
29
Right Pedal
1

3
HARDWARE PACKAGE
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓The model number (found on cover of manual)
✓The product name (found on cover of manual)
✓The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the end
of the manual)
Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).

4
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 1:
Pull the Ring Spring Pin (No.53) out and
open the Rear Support Frame (No.2) and
the Front Main Frame Post (No.1) as the
direction of the arrow shown in Figure.
Insert the Ring Spring Pin (No.53) into the
hole A in the steel plate of the Front Main
Frame Post (No.1).
STEP 2:
Attach the Front Stabilizer (No. 3) to the
Front Main Frame Post (No. 1) with 2 Bolts
(No. 33)and 2 Big Curve Washer (No. 15),
2 Nuts (No. 16). Tighten and secure with
Spanner (No. 113).
Attach the and Rear Stabilizer (No. 4) to the
Rear Support Frame (No. 2) with 2 Bolts
(No. 33)and 2 Big Curve Washer (No. 15),
2Nuts (No. 16). Tighten and secure with
Spanner (No. 113).

5
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 3:
Remove 6 Bolts (No. 17), 4 Curve Washers
(No. 18) and 2 Washers (No.19) from the
Handlebar Connect Post (No. 6) with Allen
Wrench (No. 115).
Attach the Bottle Cover (No. 22) into the
Handlebar Connect Post (No. 6).
Connect the Computer Wire II (No. 20) with
Computer Wire I (No. 26). Then insert it into
the Rear Support Frame (No. 2).
Attach the Handlebar Connect Post (No. 6)
to the Rear Support Frame (No. 2) with 6
Bolts (No. 17), 4Curve Washers (No. 18)
and 2 Washers (No.19) that were removed.
Tighten and secure with Allen Wrench (No.
115).
STEP 4:
Attach the Left Bottle Cover (No. 23) and
Right Bottle Cover (No. 24) to the Rear
Support Frame (No. 2) with 4 Screws
(No. 25),1 Screw (No. 11). Tighten and
secure with Spanner (No. 113).
Lower the Bottle Cover (No. 22)to fit in
the Left Bottle Cover (No. 23) and Right
Bottle Cover (No. 24).

6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 6:
Remove 3 Washers (No. 31), 3 Nuts (No.
32) from the Seat (No. 30)with Spanner
(No. 113)
Attach the Seat (No. 30)to the Seat
Support Post (No. 5) with 3 Washers (No.
31), 3 Nuts (No. 32) that were removed.
Tighten and secure with Spanner (No.
113).
Loosen and pull out 1 Spring Pin Knob
(No. 27) in the Front Main Frame Post
(No. 1) by hand.
Attach the Seat Support Post (No. 5) into
the the Bushing (No. 39)which is in the
Front Main Frame Post (No. 1) with 1
Spring Pin Knob (No. 27) that was loosen.
Tighten and secure by hand.
Attach theBack Seat Post (No. 91)to the
Seat Support Post (No. 5) with 2 Bolts
(No. 98) 2 Washers (No. 31), 2 Nuts (No.
16). Tighten and secure with Spanner (No.
113).
STEP 5:
Attach the Front Handlebar Post (No. 7)
to the Handlebar Connect Post (No. 6)
with 2 Square Neck Bolts (No. 14),2 Big
Curve Washer (No. 15), 2 Nuts (No. 16).
Tighten and secure with Spanner (No.
113).

7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 7:

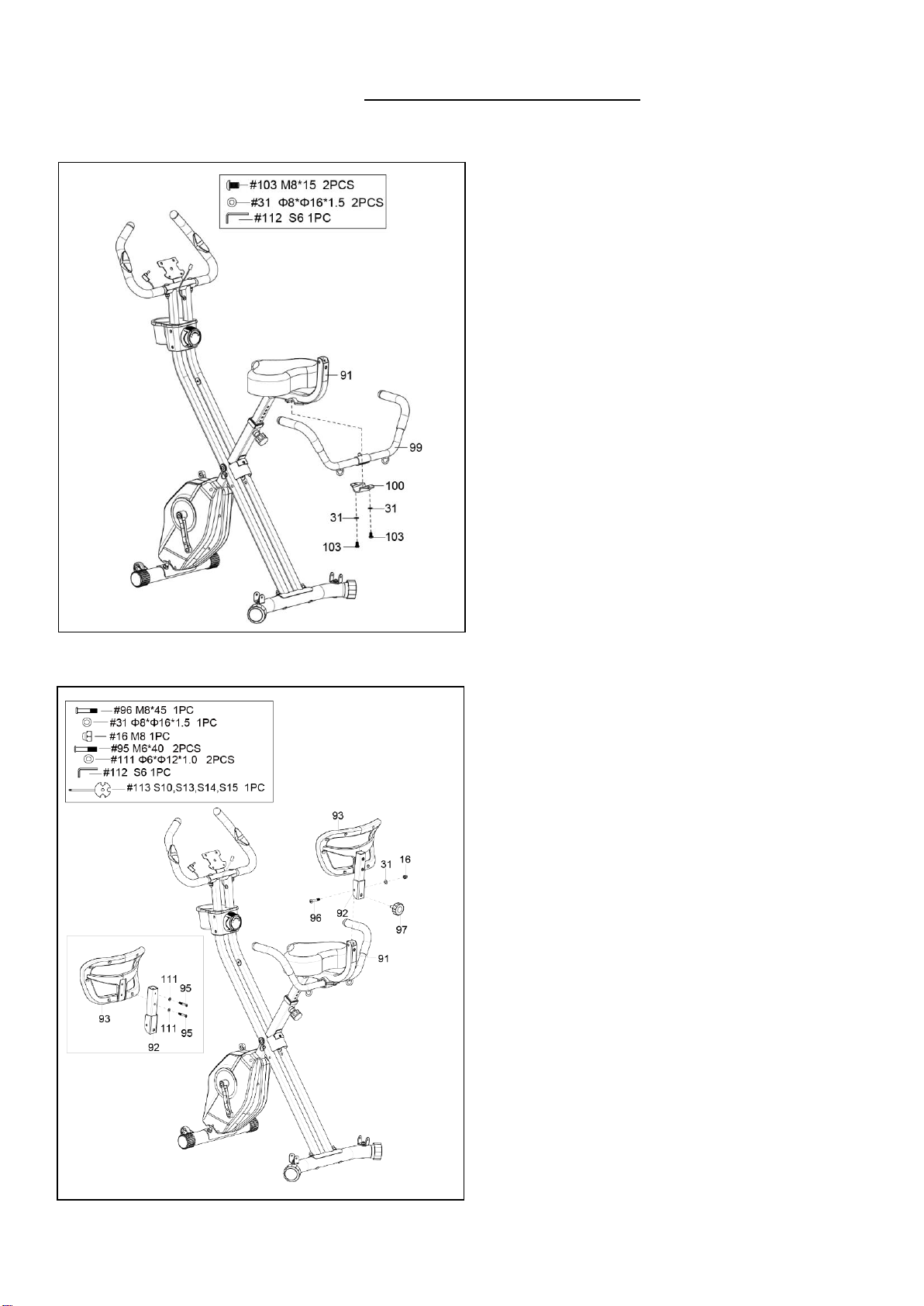

Attach the Rear Handlebar Post (No. 99)
to the Back Seat Post (No. 91) with 1
Handlebar Cover (No. 100) 2 Washers
(No. 31), 2 Bolts (No. 103). Tighten and
secure with Allen Wrench (No. 112).
STEP 8:
Attach the Mesh Cushion (No. 93)to the
Back Seat Connect Post (No. 92) with 2
Washers (No. 111), 2 Bolts (No. 95).
Tighten and secure with Spanner (No.
113).
Attach the Back Seat Connect Post (No.
92)to the Back Seat Post (No. 91) with 1
Washer (No. 31), 1 Bolt (No. 96) 1 Nut
(No. 16). Tighten and secure with Allen
Wrench (No. 112) and Spanner (No. 113).
take the 1 Round Knob (No. 97) to the
Back Seat Post (No. 91). Tighten and
secure by hand.

8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at suppo[email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 9:

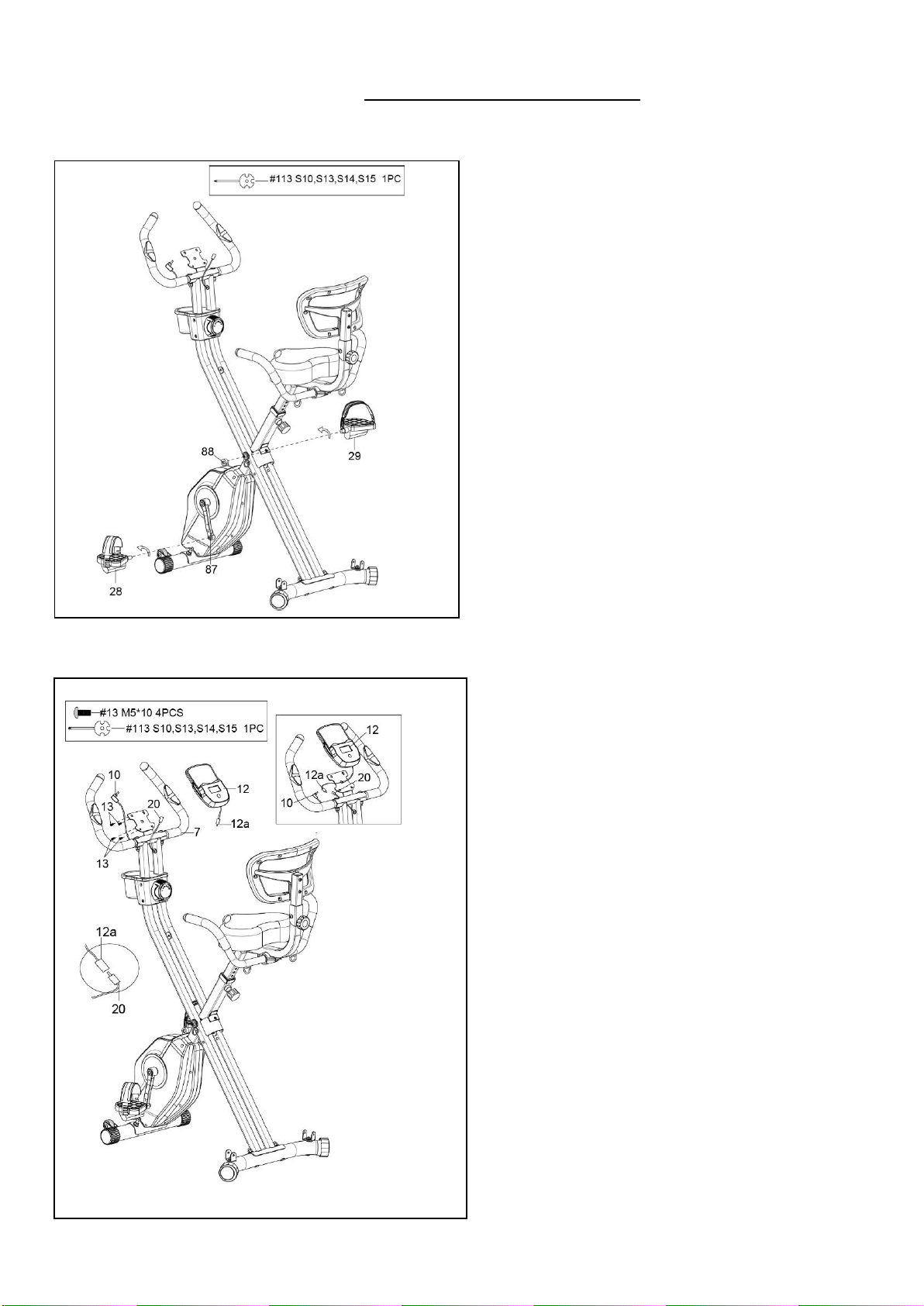

Keep Left Pedal (No. 28) and Left Crank
(No. 87) at 90°and then gently insert Left
Pedal (No. 28) into the cLeft Crank (No.
87), then turn the Left Pedal (No. 28)
counter-clockwise as tightly as you can
with your hands, then use Spanner (No.
113) to tighten securely.
Keep Right Pedal (No. 29) and Right
Crank (No. 88) at 90°and gently insert
Right Pedal (No. 29)into the Right
Pedal (No. 29). Then turn the Right
Pedal (No. 29) clockwise as tightly as
you can with your hands, then use
Spanner (No. 113) to tighten securely.
STEP 10:
Remove 4 Pan Screws (No. 13) from the
back of the Computer (No. 12) with the
Spanner (No. 113).
Attach Computer (No. 12) to the top end
of the Front Handlebar Post (No. 7) with
4 Pan Screws (No. 13)that were
removed. Tighten and secure with
Spanner (No. 113).
Connect the Computer Wire II (No. 20)
with Computer Wire A (No. 12a).
NOTE: Computer Wire A (No. 12a) has
to go through the hole in the middle Front
Handlebar Post (No. 7) Connect the
wire in the back of the Front Handlebar
Post (No. 7)
Insert the Hand Pulse Sensor with Wire
(No. 10) into the Pulse Input jack on the
back of Computer (No. 12).

9
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 11:

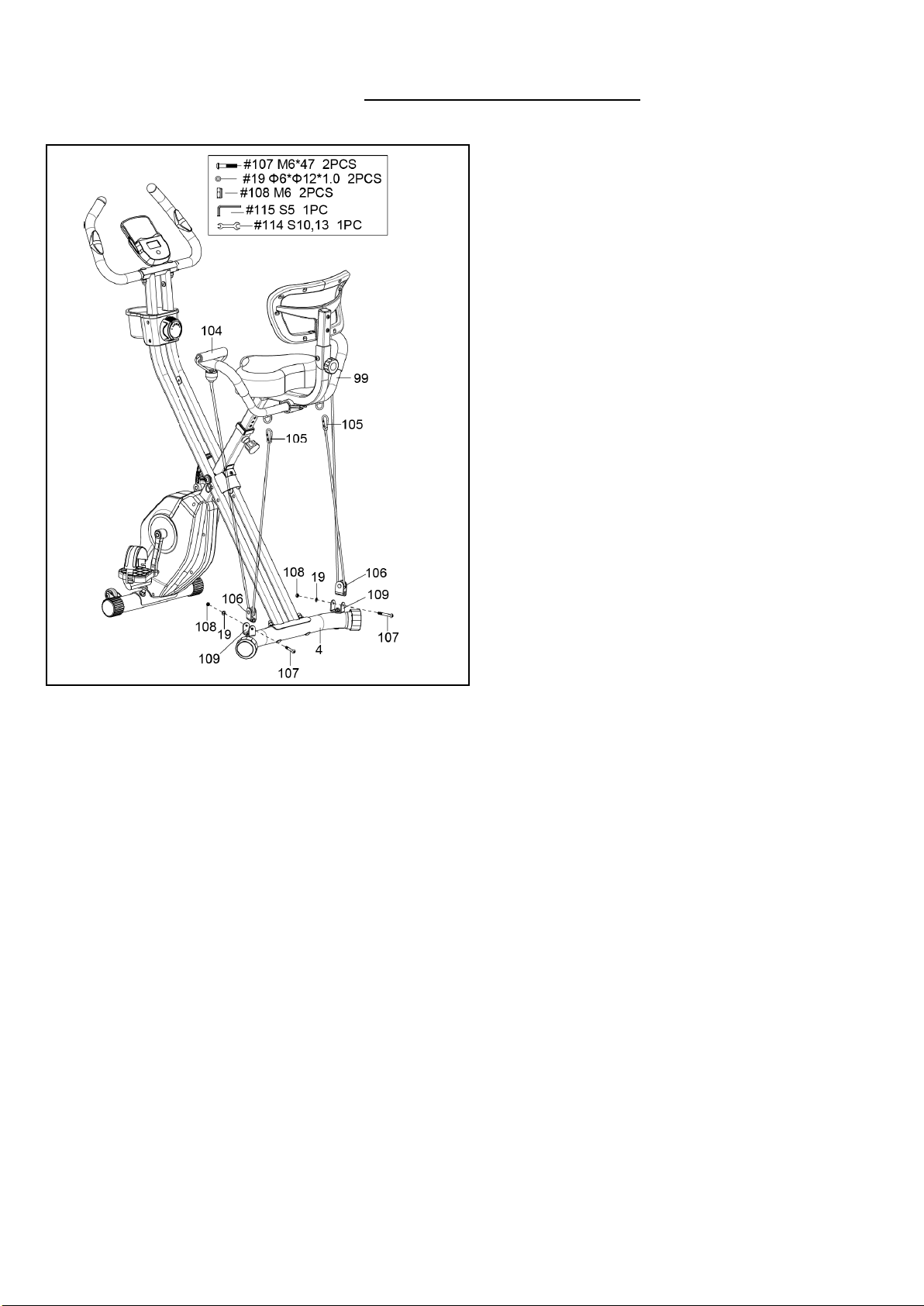

Attach 2 Plastic Pulley Blocks (No. 106)
to the Swivel blocks (No. 109) which is in
the Rear Stabilizer (No. 4) with 2 Bolts
(No. 107), 2 Washers (No. 19), 2 Nuts
(No. 108). Tighten and secure with Allen
Wrench (No. 115) and Spanner (No. 114).
Attach2 Gourd Hooks (No. 105) into two
hooks in the below of Rear Handlebar
Post (No. 99)
Attach 2 Rope Groups (No. 104) to the
Rear Handlebar Post (No. 99)
The assembly is complete!

10
STORAGE GUIDE
Pull the Ring Spring Pin (No.53) out and fold the Rear Support Frame (No.2) to the Front
Main Frame Post (No.1) as the direction of the arrow shown in Figure.
Turn the Round Knob (No.97)out and fold the Back Seat Connect Post (No.92)to the Rear
Support Frame (No.2) as the direction of the arrow shown in Figure.
Insert the Ring Spring Pin (No.53) into the hole A in the steel plate of the Front Main Frame
Post (No.1).
Turn the Round Knob (No.97)into the Back Seat Connect Post (No.92).
WARNING: WATCH OUR HANDS WHEN YOU FOLD THE BIKE.

11
ADJUSTMENTS GUIDE

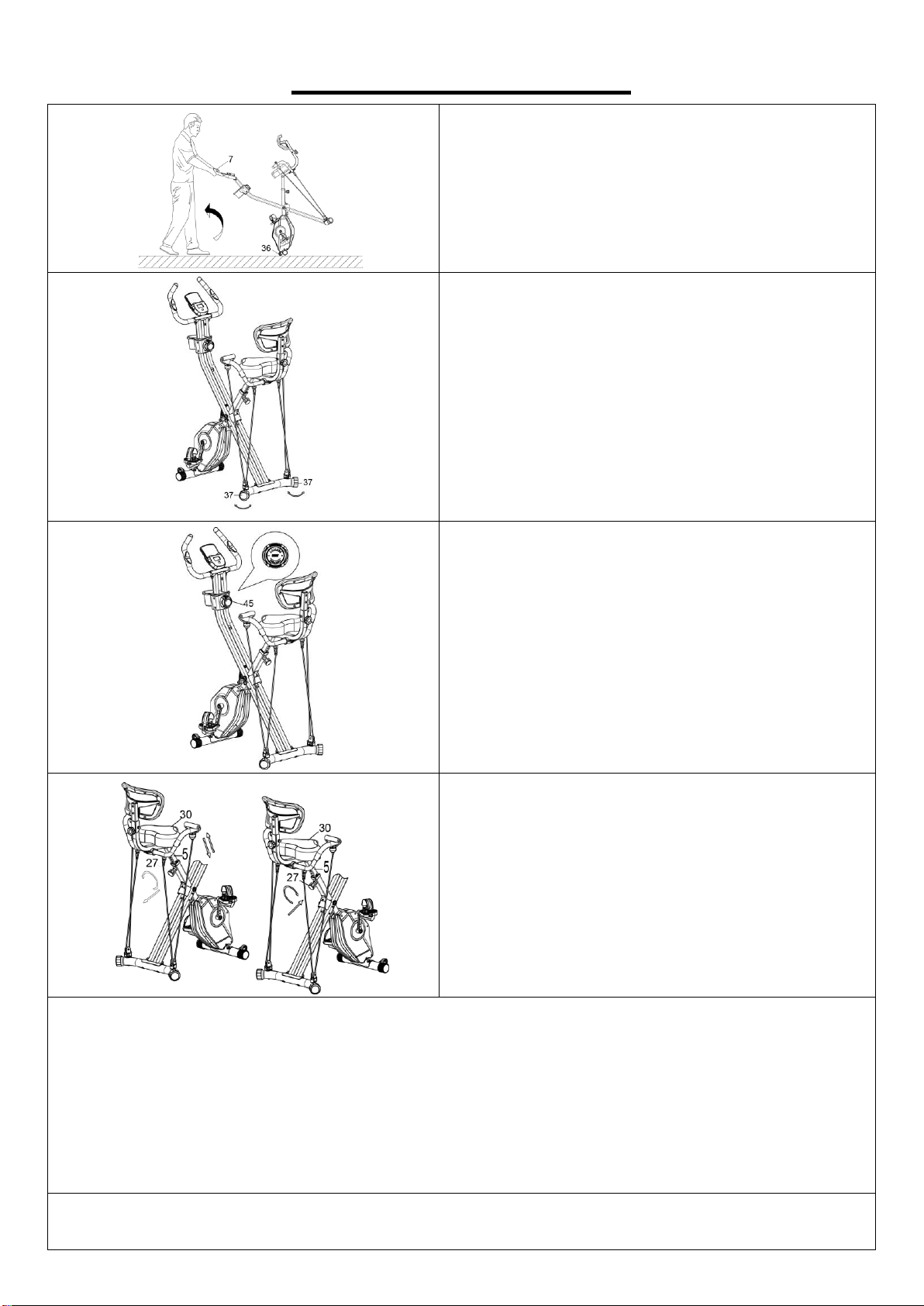

MOVING THE RECUMBENT BIKE
Hold the Front Handlebar Post (No. 7) and tilt the
bike until the 2 Transportation Wheels (No. 36)
touch the ground. Now you can transport the bike
to the desired location with ease.
ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable ride,
you must ensure that the bike is stable and
secured. If you notice that the bike is unstable
during use, you should adjust the Rear Stabilizer
End Caps (No. 37)until the bike becomes levelled
with the floor surface.
ADJUSTING THE TENSION
Adjust the tension by rotating the Tension Control
Knob (No. 45)clockwise to increase the level of
resistance. Rotate the Tension Control Knob (No.
45)counter-clockwise to decrease the level of
resistance.
Tension levels are set at Level 1 being the lowest
and Level 14 being the highest.
ADJUSTING THE SEAT
Loosen and pull out the Spring Pin Knob (No. 27)
to adjust the height of the Seat (No. 30). When
adjusting, you will see a limit on the Seat Support
Post (No. 5). DO NOT lift the posts passed this
mark. Always check the Spring Pin Knob (No. 27)
and to ensure that they are fully secured when you
finish making an adjustment.
CLEANING
The bike can be cleaned with a soft, clean, damp cloth. Do not use abrasives or solvents on plastic
parts. Please wipe your perspiration off the recumbent bike after each use. Be careful not to get
excessive moisture on the computer display panel as this might cause electrical hazard or
electronics to fail. Please keep the bike, especially the computer, out of direct sunlight to prevent
screen damage. Please inspect all assembly bolts and pedals on the recumbent bike for proper
tightness every week.
STORAGE
Store the recumbent bike in a clean and dry environment, away from children.

12
BATTERY INSTALLATION & REPLACEMENT
BATTERY INSTALLATION
1. Take out 2 AAA batteries from computer box.
2. Press the buckle of battery cover on the Computer (No. 12), then remove battery cover.
3. Install 2 AAA batteries into the battery case on the back of the Computer (No. 12). Pay attention
to the battery + and –poles before installing.
4. Press the buckle of battery cover, then put the battery cover back to the back of the Computer
(No. 12).
The installation is complete!
BATTERY REPLACEMENT
1. Press the buckle of battery cover on the back of the Computer (No. 12), then remove battery
cover.
2. Remove the 2 old AAA batteries in the battery case and install 2 new AAA batteries into the
battery case on the back of the Computer (No. 12). Pay attention to the battery + and –poles
before installing.
3. Press the buckle of battery cover, then put the battery cover back to the back of the Computer
(No. 12).
The replacement is complete!
BATTERY DISPOSAL
Dispose the batteries according to the laws and regulations of your local region. Some batteries
may be recycled. When disposing or recycling, do not mix battery types.

13
EXERCISE COMPUTER
KEY FUNTION:
⚫This key lets you to select and lock on to a particular function you want.
SCAN→TIME→SPD →DIST →CAL→ODO →RPM →PULSE
⚫Pressing and hold with 3 seconds to reset the value to zero (without ODO).
SLEEP MODE
⚫The system turns off automatically when the sensor has no signal input or no key are pressed
for approximately 4 minutes.
⚫The system turns on when the MODE key is depressed or a signal input from the sensor.
FUNCTION
⚫SCAN: Display changes according to the next diagram every 6 seconds.
⚫TIME: The total working time with starting exercise.
⚫SPD: The current speed with starting exercise.
⚫DIST: The current distance with starting exercise.
⚫CAL: The current calories burned with starting exercise.
⚫ODO: Counts the total distance with from start to finish. If the battery is replaced, the value
returns to zero.
⚫RPM: The average number of turns per minute of the wheel to measure the speed of the pedal.
⚫PULSE: The current pulse rate.
SPECIFICATIONS
FUNCTION
SCAN
6 S
TIME
0:00-999:59 M：S
SPEED
0.0~99.99 M/H
DIST
0.0~9999.9 M
ODO
0.00~9999.9 M
CAL
0.0~9999.9 Kcal
RPM
0~299
PULSE RATE
40~240 BPM
BATTERY
SIZE-AAA*2
Operating temperature
0~40℃(32℉-104℉)
Storage temperature
-10~60℃((14℉-140℉)

14
APP CONNECTION:
1. Scan the QR code below to download the SunnyFit app onto your mobile device.
2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your
free SunnyFit account and log in.
3. Ensure that the Bluetooth function is turned on from your mobile device.
4. To connect the equipment to the SunnyFit app:
a. From the “Workout” tab, press on the “Search” button to search for your equipment.
b. Once your equipment appears on the list, tap the “Select” button to confirm.
c. Note: If your equipment does not appear on the "Searching for Equipment" list,
check the EXERCISE COMPUTER on your equipment to ensure that it is not in
sleep mode and your phone's Bluetooth function is on, then tap "Retry" to search
again.
d. Once your equipment shows up on the “Workout” tab as “Currently Selected”, your
equipment is now ready to display, track, and record your equipment’s workout
stats on the app!
5. If you are unable to replicate these steps, or have any other issues with the SunnyFit app,
please contact SunnyFit support at [email protected], or use the in-app “Contact Us”
form to request support (“Me” tab -> “Contact Us”).

15
EXPLODED DIAGRAM 1

16
EXPLODED DIAGRAM 2

17
TROUBLESHOOTING
PROBLEM
SOLUTION
There is no display on the computer.
1. Remove the computer and verify that the
wire from the computer is properly
connected to the wire that comes from the
front post.
2. Check if the batteries are correctly
positioned and battery springs are in proper
contact with batteries.
3. The batteries in the computer may be
unresponsive. Change to new batteries.
The bike wobbles when in use.
Turn the adjustable end caps on the front and
rear stabilizers as needed to level the bike.
The bike makes squeaking noise when in
use.
Some bolts on the bike might have become
loose. Please inspect all the bolts and tighten
any loose bolts.

18
PARTS LIST
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
1
Front Main Frame Post
1
34
Cap
2
2
Rear Support Frame
1
35
Bolt
M8*40
2
3
Front Stabilizer
1
36
Transportation Wheel
Ф8*Ф16*1.5
2
4
Rear Stabilizer
1
37
Rear Stabilizer End Cap
2
5
Seat Support Post
1
38
Seat Post
1
6
Handlebar Connect Post
1
39
Bushing
1
7
Front Handlebar Post
1
40
Plastic Shaft Sleeve
φ30*φ22*L12
6
8
Front Handlebar Foam
Grip
2
41
PC Pad
1
9
Round Cap
4
42
Wire Plug I
2
10
Hand Pulse Sensor with
Wire
L=550mm
2
43
Screw l
M8*20
6
11
Screw
ST4.2*20
3
44
Spring Washer
Φ8
6
12
Computer
HT060
1
45
Tension Control
Knob
1150mm
1
12a
Computer wire A
1
46
Big Flat Washer
Φ5*Φ15*1.0
1
13
Pan Screw
M5*10
5
47
Bolt
1
14
Square Neck Bolt
M8*40
2
48
Seat Support Block
1
15
Big Curve Washer
φ8*φ20*2.0
6
49
Screw
M5*8
1
16
Nut
M8
9
50
Bolt
M8*20
2
17
Bolt
M6*12
6
51
Big Flat Washer
Φ8*Φ25*2.0
2
18
Curve Washer
φ6
4
52
Mandrel
1
19
Washer
Φ6*Φ16*1.2
2
53
Ring Spring Pin
Φ8*108
1
20
Computer Wire II
L=200MM
1
54
Shaft Circlip
Φ17
6
21
Wire Plug II
1
55
Bolt
M6*12
6
22
Bottle Cover
1
56
Plastic Bearing Seat
2
23
Left Bottle Cover
1
57
Bearing
6003ZZ
2
24
Right Bottle Cover
1
58
Flywheel
Φ165
1
25
Screw
ST4.2*15
8
59
Magnetic Plate Post
1
26
Computer Wire I
L=950MM
1
60
Washer
Φ5*Φ12*1.0
1
27
Spring Pin Knob
1
61
Magnet
20*20*8
8
28
Left Pedal
YH-30X
1
62
Square Magnet
20*10*5
3
29
Right Pedal
YH-30X
1
63
Magnet Plate
3
30
Seat
1
64
Spring
1
31
Washer
Ф8*Ф16*1.5
18
65
Nut
M6
3
32
Nut
M8 S13
7
66
Bolt
M6*20
1
33
Bolt
M8*60
4
67
Belt Pully Crank
1

19
PARTS LIST
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
68
Belt
240 PJ4
1
92
Back Seat Connect
Post
1
69
Belt
230 PJ3
1
93
Mesh Cushion
1
70
Screw
M5*10
1
94
Square End Cap
1
71
Big Flat Washer
Φ20*Φ8*2.0
1
95
Bolt
M6*40
2
72
Bearing
φ35*φ15*15
1
96
Bolt
M8*45
1
73
Pulley Shaft
Φ17*33
1
97
Round Knob
M8*20
1
74
Nut
M10
1
98
Pan Bolt
M8*45
2
75
Sensor Wire
L=250MM
1
99
Rear Handlebar Post
1
76
Screw
M4*10
1
100
Handlebar Cover
1
77
Driven Plate
1
101
Rear Handlebar Foam
Grip
Φ24*Φ30*240
2
78
Bearing
608
2
102
Handrail swivel
1
79
Driven Shaft
1
103
Bolt
M8*15
2
80
Pulling Bolt
M6*36
2
104
Rope Group
Φ7*1160
2
81
Nut
M10*1.0
2
105
Gourd hook
2
82
Shaft Circlip
1
106
Plastic pulley block
2
83
Nut
M10*1*3
1
107
Bolt
M6*47
2
84
Screw
ST4.2*25
6
108
Nut
M6
2
85
Left Cover
1
109
Swivel block
2
86
Right Cover
1
110
Plastic Washer
Φ8.5*Φ24*2.0
2
87
Left crank
1
111
Washer
Φ6*Φ12*1.0
10
88
Right crank
1
112
Allen Wrench
S6
1
89
Nut
M10*1.25
2
113
Spanner
S10,13,14,15
1
90
Crank Cover Cap
2
114
Spanner
S10,13
1
91
Back Seat Post
1
115
Allen Wrench
S5
1
Version 1.0
