Sunny SF-B1509 User manual

BELT DRIVE PREMIUM
INDOOR CYCLING BIKE
SF-B1509
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE
CONTACTED US:[email protected] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the equipment properly. Your physician’s advice is essential if you are taking
medication that affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness or nauseous feeling. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has
been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 300 pounds (135 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/ or damage to the product or property, proper lifting and moving are
required.
12.Your product is intended for use in cool and dry conditions. You should avoid storage in extreme
cold, hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only; it is not intended for commercial use.

2
EXPLODED DIAGRAM
1
6
7
9
9
1 0
1 0
1 0
91 2
1 2
1 3
1 3
1 4
1 5
1 5
1 6
1 6
1 9
2 0
2 1
2 3
2 2
1 6
2 5
1 8
2 6
2 7
2 8
2 9
2 9
3 0
3 1
3 1
3 2
3 3
3 4
3 5
1 1
3 6
3 7
3 8
3 9
4 0
4 0
4 1 L
4 2
4 2
4 3
4 3
4 4
4 5
4 7
4 6
8 5
5 0
5 1
5 3
5 4
5 5
5 7
1 7
1 7
6 1
6 3
6 2
6 0
4 8
5 2
6 7
6 8
4 5
6 4
6 4
5 6
4 1 R
6 5
4 8
4 8
7 0
5
5
6 6
6 6
5 9
5 9
5 9
5 9
2
8
4
3
7 4
7 3
7 2
7 4
7 4
7 4
7 4
5 8
7 5
7 6
8 3
2 5
7 7
7 7
6 4
7 6
1 8
2 4
7 4
7 7
7 7
7 7
2 5
7 7
8 4
4 8
4 8
7 7
7 7
1 5
4 8
4 8
1 5
4 8
4 8
HARDWARE PACKAGE

3
PARTS LIST
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
1
Main Frame
1
35
Middle Axle
20*184*43*10.5*74.
5*4-10.1*105
1
2
Seat Post
1
36
Left Crank
170 “L” 9/16
1
3
Handlebar
1
37
Belt Wheel
204*20*5PK
1
4
Handlebar Post
1
38
Belt
5PK1320
1
5
Adjusting Screw
2
39
Screw
M10*16*S6 grade
8.8
4
6
Front Stabilizer
1
40
Crank Cap
25*7
2
7
Rear Stabilizer
1
41L/R
Pedal
9/16
2
8
Seat Slider Tube
1
42
Bearing
6004-2RS
2
9
Screw
M10*25*S6
4
43
C-Clip
d20
2
10
Flat Washer
d10*20*2.0
4
44
Wave Washer
d20*26*0.3
1
11
Right Crank
170 “R” 9/16
1
45
Nut
M10*1.25*H7.5*S14
2
12
Transportation
Wheel
71*19*24
2
46
Nut
M8*H5.5*S14
1
13
Screw
7.8*30*M6*15*S5
2
47
Tension Knob
58*44*M8*18
1
14
Screw
M6*12*S5
2
48
Nut
M10*H7*S17
9
15
Foot Leveler
M10*30*52*49
4
49
N/A
-
16
Adjustment Knob
M16*1.5*18*56
3
50
Bushing
20*20*74
1
17
Screw
M5*20*8.5
2
51
Spring
2.0*15*60*N12
1
18
Bushing
PT45*51*2*PTB35*41*L1
98 PP
2
52
Square Nut
15*15*25*M10
1
19
Screw
M10*25*S6 (black)
2
53
Nut
M6*H14*S10
1
20
Flat Washer
d10*20*1.5 (black)
2
54
Spring Piece
t2.0*15.8*153
1
21
Water Bottle
Holder
1
55
Brake Board
12*25*138
1
22
Screw
M5*16*10
2
56
EVA Pad
10*22*95
1
23
Washer
d5*13*1
2
57
Cow Leather
t5*25*138
1
24
Bushing
PT45*51*PT35*41*L198
1
58
Left Stay Cover
1
25
End Cap
PTB35*41*2.5*L20
3
59
Bearing
608ZZ*8
4
26
Seat
1
60
Screw
M5*12*10
1
27
Flywheel
18*460*80*30*55*42*PK
1
61
Nut
M5*H4*S8
1
28
Inertial Axle
15*166*M12*1*29*2
1
62
Washer
d6*16*1.5
2
29
Bearing
6202-2RS C&U
3
63
Bolt
M6*16*S10
2
30
Spacer
20*15.1*28
1
64
Screw
M6*10*12
4
31
Nut
M12*1*H6*S19
2
65
Nut
M5*H9*S8
1
32
Nut
M12*1*H19.5*S19
1
66
Nut
M8*H7.5*S13
2
33
Washer
d12*24*2
1
67
Inner Belt Cover
1
34
Nut
M12*1.0*H11*S18
1
68
Outer Belt Cover
1

4
No.
Description
Spec.
Qty
No.
Description
Spec.
Qty
69
N/A
-
78
Open End
Wrench
S13-15
1
70
Plug
38*34
1
79
Allen Wrench
S6
1
71
N/A
-
80
Spanner
S14-15-17
1
72
Left Cant Beam
Cover
1
81
N/A
-
73
Right Cant Beam
Cover
1
82
N/A
-
74
Screw
ST4.2*16*10.5
6
83
Front Cover
1
75
Upper Flywheel
Cover
1
84
Middle Axle
Cover
1
76
Screw
M5*8*8
3
85
Brake Rod
10*255*M8*20*M6*7
*M10*95
1
77
Screw
ST4.2*16*8
10
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
The model number (found on cover of manual)
The product name (found on cover of manual)
The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of
the manual)
Please contact us at [email protected] or 1- 877 - 90SUNNY (877-907-8669).

5

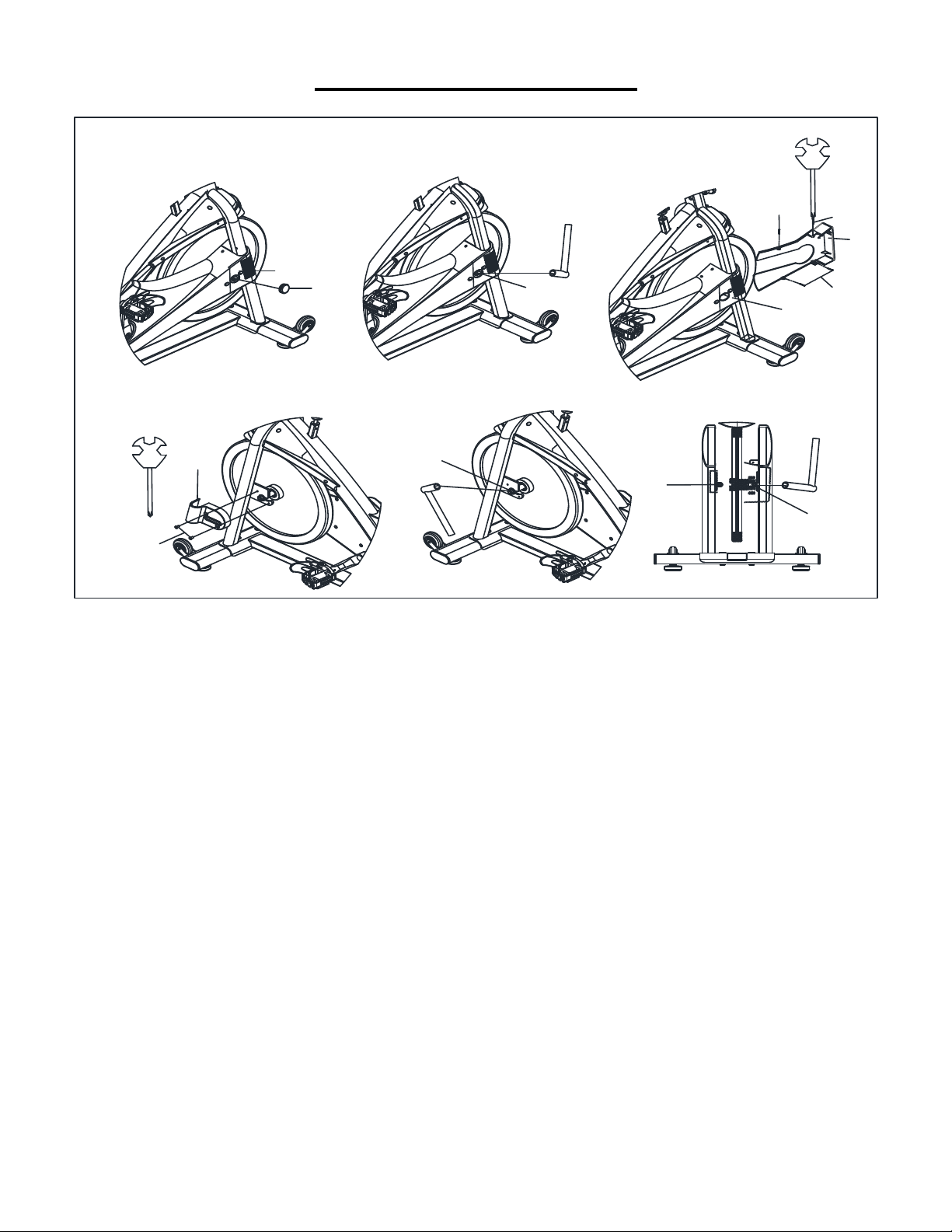

ASSEMBLY INSTRUCTIONS
#9 M10*25*S6 4PCS
#10 d10*Φ20*2.0 4PCS
9
10
9
10 1
S6
7
6
#79
#22 M5*16*Φ10 2PCS
#23 d5*Φ13*1 2PCS
1
41L
41R
21
23
22
11
36
STEP 1:
Attach the Front and Rear Stabilizers (No. 6 &No.
7) to the Main Frame (No. 1) using 4 Screws (No. 9)
and 4 Flat Washers (No. 10). Tighten and secure
with Allen Wrench (No. 79).
STEP 2:
Connect the Left and Right Pedals (No. 41L &No.
41R) to the Left and Right Crank (No. 36 &No. 11).
Before you begin, immobilize the crank arms by
turning the tension knob all the way to the right.
The Left and Right Pedals (No. 41L &No. 41R) are
marked Lfor the left pedal and Rfor the right pedal.
Left Pedal: Align the Left Pedal (No. 41L) with the
Left Crank (No. 36) at 90 degrees. Gently insert the
pedal into the crank arm, turn the pedal counter-
clockwise as tightly as you can with your hand.
Tighten and secure with Open End Wrench (No. 78).
Right Pedal: Align the Right Pedal (No. 41R) with the
Right Crank (No. 11) at 90 degrees. Gently insert the
pedal into the crank arm, turn the pedal clockwise as
tightly as you can with your hand. Tighten and secure
with Open End Wrench (No. 78).
Attach the Water Bottle Holder (No. 21) to the Main
Frame (No. 1) using 2 Screws (No. 22) and 2
Washers (No. 23). Tighten and secure with Spanner
(No. 80).

6
4
3
1
16
S6
#19 M10*25*S6 2PCS
#20 d10*Φ20*1.5 2PCS
19
20
#79
STEP 3:
Loosen and remove the Adjustment Knob (No. 16).
Insert the Handlebar Post (No. 4) into the tube
located on the front of the Main Frame (No. 1).
Adjust the Handlebar Post (No. 4) to the desired
position then secure it in place by reinserting and
tightening the Adjustment Knob (No. 16).
Attach the Handlebar (No. 3) to the Handlebar Post
(No. 4) using 2 Screws (No. 19) and 2 Washers
(No. 20), tighten and secure with Allen Wrench (No.
79).
The assembly is complete!

7

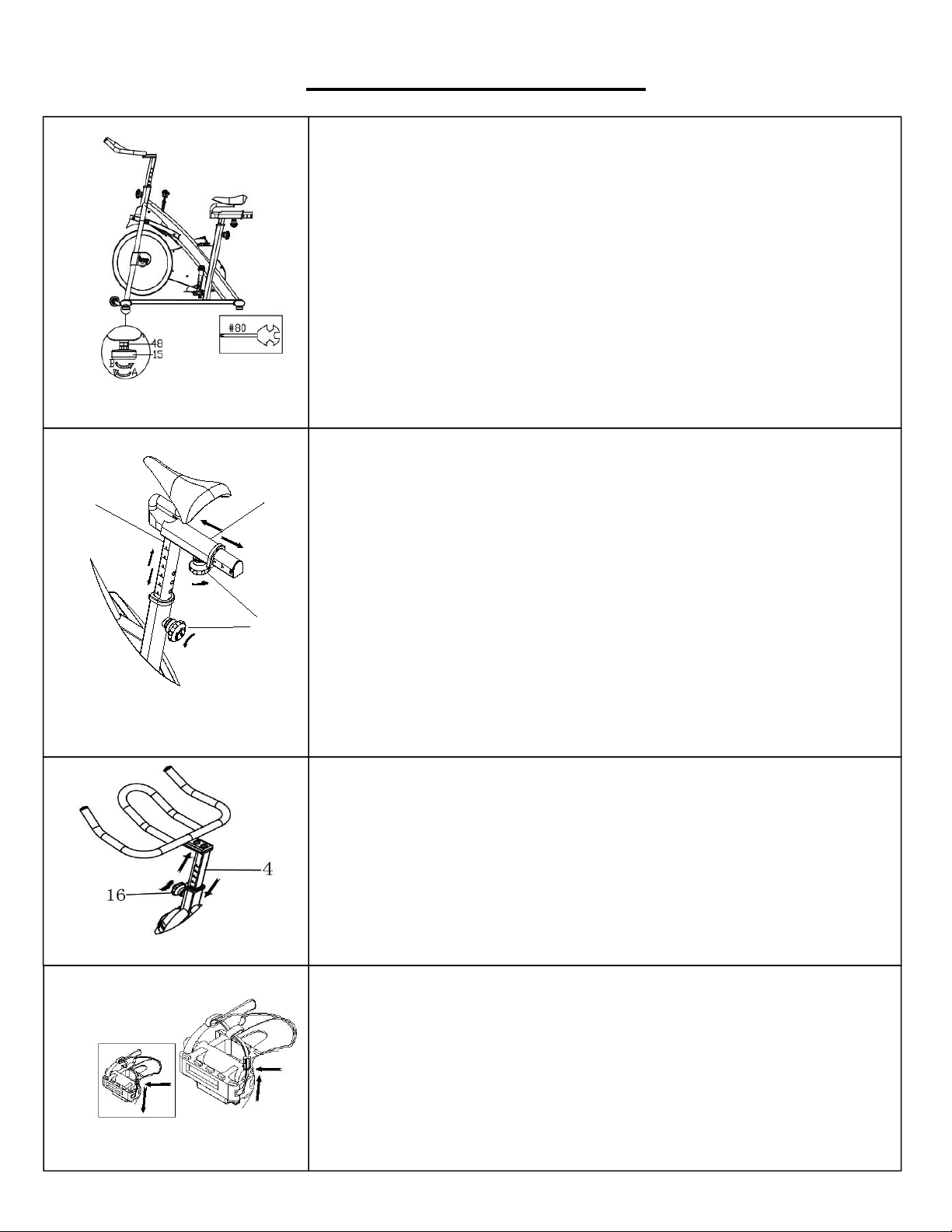

ADJUSTMENTS GUIDE
16
8
2
ADJUSTING THE HEIGHT AND BALANCE
In order to achieve a smooth and comfortable ride, you must
ensure that the stability of the bike is secured. If you notice that the
bike is unbalanced during use, you should adjust the foot levelers
located beneath the Front and Rear Stabilizers of the bike. To do
so, use Spanner (No. 80) to loosen 2 Nuts (No. 48) by turning it
clockwise (direction A). With the nut loosened, rotate the Foot
Leveler (No. 15) until it sits level with the surface that the bike is
on. When you have finished adjusting the foot leveler, use
Spanner (No. 80) to re-tighten the 2 Nuts (No. 48) by turning it
counter-clockwise (direction B). If required, repeat this process to
adjust the remaining foot levelers.
ADJUSTING THE SEAT
The seat of this bike is fully adjustable as it moves Up,Down, Fore
(forward), Aft (backward).
To adjust the height of the Seat Post (No. 2), loosen and pull the
Adjustment Knob (No. 16) outward, then raise or lower the seat
to the desired height. Once adjusted, re-insert and tighten the
Adjustment Knob (No. 16) to secure the seat in place.
To adjust the seat back and forth, loosen and pull Adjustment
Knob (No. 16) outward, then slide the Seat Slider Tube (No. 8) to
the desired position. Once positioned, re-insert and tighten the
Adjustment Knob (No. 16) to secure the seat slider tube in place.
ADJUSTING THE HANDLEBAR
It is important that the handlebar and seat are both set to the
correct height of your body. To adjust the handlebar height, loosen
and pull the Adjustment Knob (No. 16) outward, then slide the
Handlebar Post (No. 4) up or down to the desired height. Once
adjusted re-insert and tighten the Adjustment Knob (No. 16) to
secure the handlebar post in place.
PEDAL STRAP ADJUSTMENT
Your feet should be secured in the toe clips during exercise. Place
your feet as far forward into the toe-clips as you can. With your
feet in place, turn the crank to bring one foot to within arm’s reach,
grasp the pedal strap and pull it upward to tighten the toe-clip
cage, then insert the strap back into the hoop of the toe-clip.
Repeat this process to secure your other foot.

8
ADJUSTING THE RESISTANCE
Adjust the resistance of the bike using the Tension Knob (No.
47). Increase the level of resistance by turning the tension knob
to the RIGHT (clockwise), decrease the level of resistance by
turning the tension knob to the LEFT (counter-clockwise).
EMERGENCY BRAKE
During use, users can stop the bike completely by pushing down
on the Tension Knob (No. 47). Pushing down on the tension
knob will enforce the brake and bring the bike to an immediate
stop.
TRANSPORTING THE BIKE
To move the bike, first ensure that the Handlebar (No. 3) is
properly secured. If the handlebar is loose, tighten the
Adjustment Knob (No. 16) to secure it. Next, stand at the front
of the bike so that you’re directly in front of the handlebar. Firmly
grasp and hold each side of the handlebar, place one foot on the
front stabilizer and tilt the bike towards you until the
transportation wheels on the front stabilizer touch the ground.
With the wheels on the ground, you can transport the bike to the
desired location with ease.
NOTE: When moving the bike, always use caution as
unexpected impact, such as dropping the bike, may cause injury
and affect the bike’s performance.
DISMOUNTING
For your safety, it is recommended that you never attempt to dismount or remove your feet from the
pedals until both the flywheel and pedals/crank have come to a complete stop. Failure to follow this
recommendation may lead to loss of control and/or serious injury.
Here are a few examples of how to safely dismount the bike:
1. Reduce the pedal speed until the pedals/crank come to a complete stop.
2. Increase the resistance until the pedals/crank come to a complete stop.
3. Push and hold the tension knob down until the pedals/crank come to a complete stop.

9
BELT ADJUSTMENTS
A B
E
D
6 8
7 0
S 1 9
3 2
6 8
7 7
S 1 3
6 6
6 6
C
6 4
5 8
F
3 4
S 1 8
# 8 0
# 8 0
7 7
8 3
7 7
*NOTE: Tools S19, S18, & S13 (Socket Wrenches) are not included.
Remove the Plug (No. 70) from the Outer Belt Cover (No. 68) as indicated above in Figure A.
Unscrew and remove the Nuts (No. 32) on the right side of the flywheel using Socket Wrench S19
as indicated above in Figure B.
Unscrew and remove 4 Screws (No. 77) using Spanner (No. 80), then remove the Front Cover (No.
83) as indicated above in Figure C.
Unscrew and remove Screws (No. 64) using Spanner (No. 80). Remove the Left Stay Cover (No.
58) as indicated above in Figure D.
Unscrew and remove Nut (No. 34) on the left side of the flywheel using Socket Wrench S18 as
shown in Figure E.
As shown in Figure F, secure Nuts (No. 66) onto both sides of the Flywheel (No. 27) using Socket
Wrench S13 and tighten. While tightening, check the Belt (No. 38) to ensure that it’s secured and
does not slip. Lastly, ensure that the Flywheel (No. 27) is properly centered.
Re-install and tighten Nuts (No. 32 &No. 34) to their respective sides of the Flywheel (No. 27) using
Socket Wrench S19. Next, secure the Front Cover (No. 83) to the Outer Belt Cover (No. 68) using
Screws (No. 77) and tighten with Spanner (No. 80). Secure the Left Stay Cover (No. 58) to the
Main Frame (No. 1) using Screws (No. 64). Attach Plug (No. 70) to the Outer Belt Cover (No. 68).

10
MAINTENANCE INSTRUCTIONS
This is general information for daily, weekly and monthly maintenance to be performed on your bike.
Version 4.1
DAILY MAINTENANCE
After each exercise session, wipe down all
the equipment: seat, frame, handlebars. Pay
special attention to the seat post, handlebar
post and belt/chain guard. Sweat is very
corrosive and may cause problems that
require parts replacement later.
1. Get on the bike and engage the drive
train.
2. Pay attention to any vibrations felt through
the pedals. If you feel any vibrations, you
may need to tighten the pedals, bottom
bracket, or adjust the drive chain/chain
tension.
3. Use a wrench to tighten the pedals until
they are secure.
MONTHLY MAINTENANCE
1. Check if all hardware is secure, such as:
water bottle holder, flywheel nuts, belt/chain
guard bolts, brake caliper lock nuts and brake
caliper tension rod nuts.
2. Inspect the brake tension rod for signs of
wear such as missing threads. Clean and
lubricate the brake tension rod.
3. Clean and lubricate the seat post, handlebar
post and seat slider. Remove any build up of
foreign material.
WEEKLY MAINTENANCE
1. Inspect moving parts and tighten the
hardware.
2. Inspect pull pin frame fittings to make sure
the fittings are snug. Loose frame fittings
may strip out threads over time and cause
extensive damage.
3. Clean and lubricate pop pin assemblies.
Pull on the pin and spray a small amount
of lubricant onto the shaft.
4. Tighten the seat hardware, making sure
the seat is level and centered.
5. Brush and treat the resistance pads.
Remove any foreign material that may
have collected on the pads. Spray the
pads with silicone lubricant. This helps to
reduce noise from friction between the
pads and the flywheel.
6. Visually inspect the bottom bracket, toe
clips and toe straps. If any of them are
loose or disconnected, attach and tighten.
LEATHER BRAKE PAD CARE (If Applicable)
1. Perform this maintenance when the brake pad
is first installed and for the life of the brake
pad. Following these simple guidelines can
increase the life of your brake pads.
2. Some brake pad assemblies are pre-
lubricated. Squeeze the brake pad. If lubricant
is released, then the pad has been pre-
lubricated.
3. If the brake pad is dry, then coat the brake
pad with 3-n-1 oil. Brush the leather with a
clean, wire bristle brush, and then apply the
oil. The oil should be allowed to soak in to the
pad. Repeat 4-5 times until the pad is
saturated, but not dripping with oil. When the
pad is saturated, it will no longer absorb oil.
4. Inspect the brake pad weekly and lubricate if
needed. The pad should not have a glazed
appearance. If the pad appears glazed, then
brush it with wire brush and apply lubricant as
needed. If any of the sponge padding is
showing through the leather pad, the brake
pad should be replaced.
