SUNSTONE SUN3B-LP User manual

Read all instructions before you operate your grill.
Save these instructions!
Conforms to
ANSI STD Z21.58b-2012
Certified to CSA STD 1.6b-2012
Outdoor Cooking Gas Appliance
To installer or person assembling grill:Leave this manual with grill for future reference.
To consumer: Keep this manual for future reference.
www.sunstonemetalproducts.com
3174816
USE & CARE GUIDE
SUNSTONE® SERIES
GRILL
GAS GRILLS

Welcome & Congratulations
Congratulations on your purchase of a new Sunstone grill! We are very proud of our product and we are
completely committed to providing you with the best service possible. Your satisfaction is our #1 priority.
Please read this manual carefully to understand all the instructions about how to install, operate and
maintain for optimum performance and longevity. We know you’ll enjoy your new grill and thank you for
choosing our product. We hope you consider us for future purchases.
How to Obtain Service
Before you call
Is there Gas supplied to the Grill?
Have you recently refilled the LP Tank?
Please make sure you have the following information:
MODEL NUMBER | DATE OF PURCHASE| INVOICE NUMBER.
For warranty service, contact SUNSTONE Customer Service Department at (888)-934-9449 Option #1
Mustkeepcopy of yoursales slip for proof of purchase.
NAME_________________________________ DATE OF PURCHASE _______________________
ADDRESS_______________________________________________________________________________
MODEL NO_____________________________INVOICE NO_______________________________________
COMPANY THAT YOU PURCHASED FROM ________________________________________________
SUNSTONE METAL PRODUCTS LLC.
16004 Central Commerce Dr, Pflugerville Texas 78660.
Business Hours.
Mon. to Thur. 9:00AM to 4:30PM
Closed Fri/Sat/Sun
Tel: 512-487-5116
Toll Free: 888-934-9449 (Technical Support Line)
Fax: 512-487-7016

INDEX DIRECTORY
GRILL SPEC. & PARTS LIST
SUN3B/SUN3BIR --------------------
1-3
SUN4B/SUN4BIR ----------------
4-6
SUN5BIR --------------------------
7-9
GRILL INSTALLATION
Removing Burner Bolts ---------
10
GFCI Transformer for lights ---------
---------------
11
Overview & Requirements----------
-----------------
12
Airflow & Prevailing Wind ----------
-----------------
13
ISLAND LOCATION
Open Area Install ----------------------
-----
14
Enclosed Area Install ------------
15
GAS INSTALLATION
LP Gas Hook-Up------------------------
---
16
NG Gas Installation--------------
17
GRILL START-UP
Lighting the Grill -----------------
18
Rot-Rod Setup -----------------------
19-
20
Knob Maintenance --------------
21
Sunstone Warranty -------------
22
ATTENTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
personal injury, or property damage.
WARNING:Indicates an imminently hazardous situation
which, if not avoided, will result in deathorserious
injury.
VOLTAGE:Indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
electrical shock.
EXPLOSION:Indicates an imminently hazardous situation
which, if not avoided, will result in possible
explosion and cause death or severe injury.
BODILY INJURY:Indicates a potentially hazardous
situation which, if not avoided, may result in minor or
moderate personal injury, or property damage.
HOT SURFACE:Indicates an imminently hazardous
hotsurface which, if not avoided, will result inserious
burn or injury.
LIVE CIRCUIT:Indicates a potentially hazard from
Liveelectrical current that if extreme caution is
notused, may result in minor or moderatepersonal
injury, or property damage.
HAZARDS & WARNING SIGNS

START-UP
CHECKLIST
“FIRST TIME STARTUP CHECKLIST”
AA Battery is installed into Black Cap Igniter Box.
Burner Mounting Bolts are “Removed” – see page 10
Transformer Electrical Plug is properly installed.
Installationofthe propergastypeandregulatorsettings.
TheproperRegulator & Gas Connectioniscomplete.
Minimum24” Inch to Combustible Clearancesare maintained.
All packaginghas beenremoved from Interior of Grill
All partsand componentsare properlyinstalled.
An installer-suppliedmanual gasshut-offvalve isfullyaccessible.
ATTENTION:Neveroperate thegrill unattended.
EXPLOSION:When Igniting the Grill –Always keep
the Hood Open.
ATTENTION:Neveroperate thegrill unattended.

LP hose is clean and inspected for cuts, wear, abrasion, or leaks.
Replace if necessarywith a suitable UL,ETLorCSAListed partwith
internallythreadedconnection.
ATTENTION:All Gas Grill Installations MUST HAVE MINIMUM TWO AIR-FLOW VENTS, either in
ELEVATED POSITION for Natural Gas or LOWERED POSITION for Liquid Propane. Your Warranty may
be VOID if island does not meet basic setup requirements.

Hood Closed
OverallWidth-------------------- 28"
OverallHeight------------------- 26"
Overall Depth-------------------- 25-1/4"
ControlPanelHeight-----------11-1/8"
Hood Open Size
Counter toTop------------------ 26-1/4"
Overall Depth-------------------- 27"
HoodOverhang----------------- 2”
Cut out Size
Width------------------------------ 25”
Depth------------------------------- 21-3/4”
Height------------------------------ 10-7/8”
GRILL SPEC. & PARTS LIST –SUN3B/SUN3BIR –LP/NG
PAGE 1

Page 45
GRILL SPEC. & PARTS LIST –SUN3B/SUN3BIR –LP/NG
PAGE 2

SUN3B/SUN3B-IR-LP/NGParts List
1 Upper Hood 1 Hood-3B
2 HoodHandle 1 Hood-3B-H
3 HoodThermometer 1 P-TMeter
4 WarmingRack 1 P-WR
5 GrillUpperBack Body 1 P-GUBB
6 LightCover 2 P-Lcover
7 IR Burner(Back Burner) 1 P-IRburner
8 ImpulseIgniterWire 1 P-IIW
9 GrillGrates 2 P-GSet3B
10 Gas ManifoldPipe 1 P-GMP
11 SafetyValve 1 P-SAIvalve
12 Auto-Ignition Valve 1 P-AIvalve
13 Standard Valve 2 P-Rsvalve
14 ImpulseIgniterBox 1 P-IIB
15 SmallKnobRubberBand 1 P-Knob-S-RB
16 SmallKnob 1 P-Knob-S
17 Large KnobRubberBand 3 P-Knob-L-RB
18 LargeKnob 3 P-Knob-L
19 Front ControlPanel 1 P-CP
20 Drip Tray 1 P-Dtray
21 ControlPanelFrame 1 P-CPF
22 I-Burner 3 P-GBurner
23 Flavorizer 3 P-FL-3B
24 Flame Divider 2 P-FDivider
25 GrillBottomSupportFrame 1 P-GBSF
26 LightSwitchBox 1 P-LSB
27 RotisserieRodstowawayBracket
1
P-RRSR
28 SmokerBox 1 P-SMBox
29 Light Transformer 1 P-LT
30 HoodAxle Bolt 2 P-HAB
31 RotisserieHardwareGroup 5 P-RHG
32 Rotisserie Motor 1 P-Rmotor
33 RotisserieFork 2 P-Rfork
34 RotisserieRod 1 P-RR
35 HoodRubberStopper 2 P-HRS
GRILL SPEC. & PARTS LIST –SUN3B/SUN3BIR –LP/NG
SUNSTONE 3 BURNER GRILL
& SUNSTONE 3 BURNER
W/IR GRILL ARE COMBINED
IN THIS LIST
PAGE 3

Hood Closed
OverallWidth-------------------- 34"
OverallHeight------------------- 26"
Overall Depth-------------------- 25-1/4"
ControlPanelHeight-----------11-1/8"
Hood Open Size
Counter toTop------------------ 26-1/4"
Overall Depth-------------------- 27"
HoodOverhang----------------- 2”
Cut out Size
Width------------------------------ 30-3/4”
Depth------------------------------- 21-3/4”
Height------------------------------ 10-7/8”
GRILL SPEC. & PARTS LIST –SUN4B/SUN4BIR –LP/NG
PAGE 4

GRILL SPEC. & PARTS LIST –SUN4B/SUN4BIR –LP/NG
PAGE 5

SUN4B-IR-LP/SUN4B-IR-NG Parts List
1 Upper Hood 1 Hood-4B
2 HoodHandle 1 Hood-4B-H
3 HoodThermometer 1 P-TMeter
4 WarmingRack 1 P-WR
5 GrillUpperBack Body 1 P-GUBB
6 LightCover 2 P-Lcover
7 IR Burner(Back Burner) 1 P-IRburner
8 ImpulseIgniterWire 1 P-IIW
9 GrillGrates 2 P-GSet3B
10 Gas ManifoldPipe 1 P-GMP
11 SafetyValve 1 P-SAIvalve
12 Auto-Ignition Valve 1 P-AIvalve
13 Standard Valve 3 P-Rsvalve
14 ImpulseIgniterBox 1 P-IIB
15 SmallKnobRubberBand 1 P-Knob-S-RB
16 SmallKnob 1 P-Knob-S
17 LargeKnobRubberBand 4 P-Knob-L-RB
18 LargeKnob 4 P-Knob-L
19 Front ControlPanel 1 P-CP
20 Drip Tray 1 P-Dtray
21 ControlPanelFrame 1 P-CPF
22 I-Burner 4 P-GBurner
23 Flavorizer 4 P-FL-4B
24 Flame Divider 3 P-FDivder
25 GrillBottomSupportFrame 1 P-GBSF
26 LightSwitchBox 1 P-LSB
27 RotisserieRodstowawayBracket
1
P-RRSR
28 SmokerBox 1 P-SMBox
29 Light transformer 1 P-LT
30 HoodAxle Bolt 2 P-HAB
31 RotisserieHardwareGroup 5 P-RHG
32 Rotisserie Motor 1 P-Rmotor
33 RotisserieFork 2 P-Rfork
34 RotisserieRod 1 P-RR
35 HoodRubberStopper 2 P-HRS
GRILL SPEC. & PARTS LIST –SUN4B/SUN4BIR –LP/NG
SUNSTONE 4 BURNER GRILL
& SUNSTONE 4 BURNER
W/IR GRILL ARE COMBINED
IN THIS LIST
PAGE 6

Hood Closed
OverallWidth-------------------- 42"
OverallHeight------------------- 26"
Overall Depth-------------------- 25-1/4"
ControlPanelHeight-----------11-1/8"
Hood Open Size
Counter toTop------------------ 26-1/4"
Overall Depth-------------------- 27"
HoodOverhang----------------- 2”
Cut out Size
Width------------------------------ 39-1/2”
Depth------------------------------- 21-3/4”
Height------------------------------ 10-7/8”
GRILL SPEC. & PARTS LIST –SUN5BIR –LP/NG
PAGE 7

Page 54
GRILL SPEC. & PARTS LIST –SUN5BIR –LP/NG
PAGE 8

SUN5B-IR-LP/SUN5B-IR-NG Parts List
1 Upper Hood 1 Hood-5B
2 HoodHandle 1 Hood-5B-H
3 HoodThermometer 1 P-TMeter
4 WarmingRack 1 P-WR
5 GrillUpperBack Body 1 P-GUBB
6 LightCover 2 P-Lcover
7 IR Burner(Back Burner) 1 P-IRburner
8 ImpulseIgniterWire 1 P-IIW
9 GrillGrates 3 P-GSet5B
10 Gas ManifoldPipe 1 P-GMP
11 SafetyValve 1 P-SAIvalve
12 Auto-Ignition Valve 1 P-AIvalve
13 Standard Valve 4 P-Rsvalve
14 ImpulseIgniterBox 1 P-IIB
15 SmallKnobRubberBand 1 P-Knob-S-RB
16 SmallKnob 1 P-Knob-S
17 LargeKnobRubberBand 5 P-Knob-L-RB
18 LargeKnob 5 P-Knob-L
19 Front ControlPanel 1 P-CP
20 Drip Tray 1 P-Dtray
21 ControlPanelFrame 1 P-CPF
22 I-Burner 5 P-GBurner
23 Flavorizer 5 P-FL-5B
24 Flame Divider 4 P-FDivder
25 GrillBottomSupportFrame 1 P-GBSF
26 LightSwitchBox 1 P-LSB
27 RotisserieRodstowawayBracket
1
P-RRSR
28 SmokerBox 1 P-SMBox
29 Light PowerBox 1 P-LPB
29 Light transformer 1 P-LT
30 HoodAxle Bolt 2 P-HAB
31 RotisserieHardwareGroup 5 P-RHG
32 Rotisserie Motor 1 P-Rmotor
33 RotisserieFork 2 P-Rfork
34 RotisserieRod 1 P-RR
35 HoodRubberStopper 2 P-HRS
GRILL SPEC. & PARTS LIST –SUN5BIR –LP/NG
PAGE 9

GRILL INSTALLATION –BURNER BOLT REMOVAL
PAGE 10
Why is this Important!
The intensity of the Gas Burners will gradually erode layers of materials of the Stainless-Steel Burners
causing them to eventually Burn-Through, thus causing Flare-Ups. When this happens, you will need to
replace the Burners, and if the Burner Bolts are still attached, they may have Corroded and become
difficult to later remove. By removing these before installation, the burners will be easily removed at any
later time, either for replacement or for annual cleanings.

1.Locatethetransformer
Removethetransformerfrom theplasticbaglocated
intheinteriorofgrill.MakesuretheTransformeris
complete,anddouble check thegrilllight plugcordis
properlysecured to transformer,andall wiresare firmly
fixedinto plastic clipplug.
2.MountTransformer
Usingmetalscrews andattach thetransformer tothe
backinnerwallofyourislands cabinetwall, somewhere
near thealready installedGFCIelectrical outlet. When
youplugthetransformerin,double check thenGFCI
breaker switch,that theoutlet has power.
4.MakeConnections
LocatetheLightSwitchonLeftsideof grillcontrol
panel.The Transformer'selectricalconnectionto
grillislocated behindcontrolpanel,next tolight
switch. The connectionclips together toforma
secureconnection.Doublecheck that allwiresare
tightlypushedintoplugsockets, soall wiresmake
properconnections. Youcantuck wireintobodyof
grillorislandframe,soit's upandout of theway.
3.InstalltheGroundWire
Theshortgreenwireextendingfromoffthe
transformerelectricaladapterisrequiredto be
grounded.Dependingonthelocation youdecideto
installtransformer,itmay benecessary toextend
the wireso thatitcanreachagroundingstructure. A
groundingstructureisanysolidstructure that makes
contact with the earth.
LIVE CIRCUIT:Indicates a potentially hazard from Liveelectrical current that if extreme caution is notused,
may result in minor or moderatepersonal injury, or property damage.
GRILL INSTALLATION –GFCI TRANSFORMER FOR LIGHTS
PAGE 11

Sunstone Series Grill Island Cut-Out Dimensions
ITEM NO.
WIDTH
DEPTH
HEIGHT
SUN3B/IR –LP/NG
25” Inch
21-3/4” Inch
10-7/8” Inch
SUN4B/IR –LP/NG
30-3/4” Inch
21-3/4” Inch
10-7/8” Inch
SUN5BIR –LP/NG
39-1/2” Inch
21-3/4” Inch
10-7/8” Inch
ATTENTION:Never build shelf or enclose interior space under the BBQ Cut-Out. The Grill is Self-
Rimming and is supported by the top counter surface on the Back and Sides, the front of grill is
designed to Free-Hang. The bottom of Grill needs to be open to allow for proper ventilation.
Grill Cut-Out
Your grill is SELF-RIMMING, meaning the lip of grill rests on top of the counter edge around the cut-out
with the front of grill which is Free-Hanging from counter top. Because of this, there is No Need for any
Trim-Kit like with many other grill in the market.
1. M
a
i
n
t
a
i
n
2
4
”
C
l
e
a
r
a
n
c
e
f
r
o
m
a
n
y
C
o
m
b
u
s
t
i
b
l
e
GRILL INSTALLATION –OVERVIEW & REQUIRMENTS
PAGE 12

InFIG.B,Excess heatleaves throughbackofgrill, butis
blocked by PrevailingWind,causingoverheatingofgrill.
1.Slide GrillinPlace
YourSunstone™ grillisspecially designed with
aninternalbuiltinhangerlip locatedat the
Right,Left andBacksides. Thegrilllipallows it
tohangbythe threesupported edgeson the
right,leftandback. The front controlpanel
requiresnosupportingedge;itisdesigned to
hangdownthefrontofyourcut-out.
2.Allow for Ventilation
YourSunstone™ grillis engineered withspecial
ventsonthebackof unit,whichallowproper
airflow out of thebackofgrill,alsoincreased
airflow intoInfra-redBurnergaschamber. Be
sureyouallow aminimumof 4"behindgrillfor
properairventilation. Slidegrillallthe way into
cut-out,sotherearenogaps present toinside
ofislandframe.
3.SecuringinPlace
Thecontrol panel isdesigned to sit flushagainstthe
islandface. If counter top extends beyondtheislands
face,creatinga countertop overhang, itmust becut
flushwith theislandfacewherethewidthof the
control panelor a gapwillbecreated exposing the
forward portionsof theleftandright-side firewalls.
Also,besuretoallowatleasta1" of clearance below
Drip pan, as given in the cut-out height dimensions.
GRILL INSTALLATION –AIRFLOW & PREVAILING WIND
PAGE 13

ATTENTION:Take special precaution when installing grill in open Breezy area, check the direction of
Prevailing Wind Direction, if back of grill is facing any oncoming wind or breeze, be sure to protect the
back of grill, erect a partition wall, or only use grill with hood open on breezy days.
Windy Conditions
Your grill is specially designed to draw fresh air in through the front, and direct it to the bottom burners.
When grilling the hot gases are then released through the back of grill through a venting system. Using
your grill in windy conditions may disrupt the front-to-back air flow.
1. For breezy days, be careful not to leave the front hood down for more than 15 minutes,when the
burners are on. (Never leave grill unattended when in operation)
2. If you suspect the grill is overheating, using an oven mitt, open the front hood. Thenadjust the
burner control knob to off position.
3. Orient the grill so the Prevailing winds are not blowing into the rear or side of grill.
Windy Area
Positioning your grill in your backyard is more often thought of how it is pleasing to the eye, but more
important than this is how that it functions correctly. Unlike an indoor appliance, your grill has to combat
many outside weather influences in an all manner of weather related instances, most severely is Wind.
4. Maintain proper Prevailing wind, grill direction –with the front of grill facing in to the wind, and
the back of grill in the direct wind is blowing.
5. If direction of wind is unclear, or difficult to combat even with preventative measures, then always
grill with the hood open, and when hood is closed –always be within close proximity to grill and
monitor it that it does not overheat.
6. If wind or breeze is in the direction of back of grill, you must erect partition wall of 14” height so
that the top of grill hood is covered by several inches. If this is not done, you must grill with hood
open and or when hood is closed stand in close area to grill and monitor if the grill overheats.
ISLAND LOCATION –OPEN AREA INSTALL
PAGE 14
ATTENTION:If you do not have a partition wall, always Grill with the Hood Open, and additionally
completely open the bottom Access Doors below the Grill, in order to vent out excess heat buildup.
ATTENTION:All Gas Grill Installations MUST HAVE MINIMUM TWO AIR-FLOW VENTS, either in
ELEVATED POSITION for Natural Gas or LOWERED POSITION for Liquid Propane. Your Warranty may
be VOID if island does not meet basic setup requirements.

Minimum Distances to Combustible Materials or other
Appliance ONLY, Non-Combustible materials do not apply!
From Counter to Overhead Structure
4’ to 6’ ft. Min.
Clearance
From Counter to Outdoor Vent Hood
48" Min. Clearance
From Floor to Counter Top
42" Min. Clearance
From Grill to Vent Hood Width
4”-6" Min. Clearance
From Appliance to Appliance
3" Min. Clearance
From Appliance to Combustible Material
24" Min. Clearance
Clearances to Non-Combustible Construction*:
A minimum of 4” to 6” clearance from the back of the grill to non-combustible construction is required for
the purpose of allowing the lid to open fully. It is desirable to allow at least 6” rear and side clearance to
construction above the cooking surface for counter space. If you’ll be using the rotisserie option, the space
is essential for motor and skewer clearance.
BODILY INJURY:Failure to maintain required clearances creates a fire hazard that may
result in property damage or serious personal injury.
Clearances to Combustible Construction**:
Minimum of 24” from the sides and rear of grill must be maintained to adjacent vertical combustible
construction, above the counter top level. You should take in account that there is a large volume of heat,
and smoke will exhaust from the rear of the grill. This may discolor or damage unprotected areas, do not
install under unprotected combustible construction without using a fire safe ventilation system.
A 24” minimum clearance must be maintained under the counter top to combustible construction. The
clearance can be modified by a use of an insulated jacket.
** DEFINITION OF COMBUSTIBLE MATERIAL - Anymaterials of a building structure or decorative
structure made of wood, compressed paper, plant fibers, vinyl/plastic or other materials that are capable of
transferring heat or being ignited and burned. Such material shall be considered combustible even though flame-
proofed, fire-retardant treated or surface-painted, or plastered.
ISLAND LOCATION –ENCLOSED INSTALL
PAGE 15
ATTENTION:All Gas Grill Installations MUST HAVE MINIMUM TWO AIR-FLOW VENTS, either in
ELEVATED POSITION for Natural Gas or LOWERED POSITION for Liquid Propane. Your Warranty may
be VOID if island does not meet basic setup requirements.
This manual suits for next models
9
Table of contents
Other SUNSTONE Grill manuals

SUNSTONE
SUNSTONE OUTDOOR CHARCOAL GRILL User manual

SUNSTONE
SUNSTONE Ruby Companion Pro User manual

SUNSTONE
SUNSTONE SUNPLT40 User manual

SUNSTONE
SUNSTONE 304 series User manual

SUNSTONE

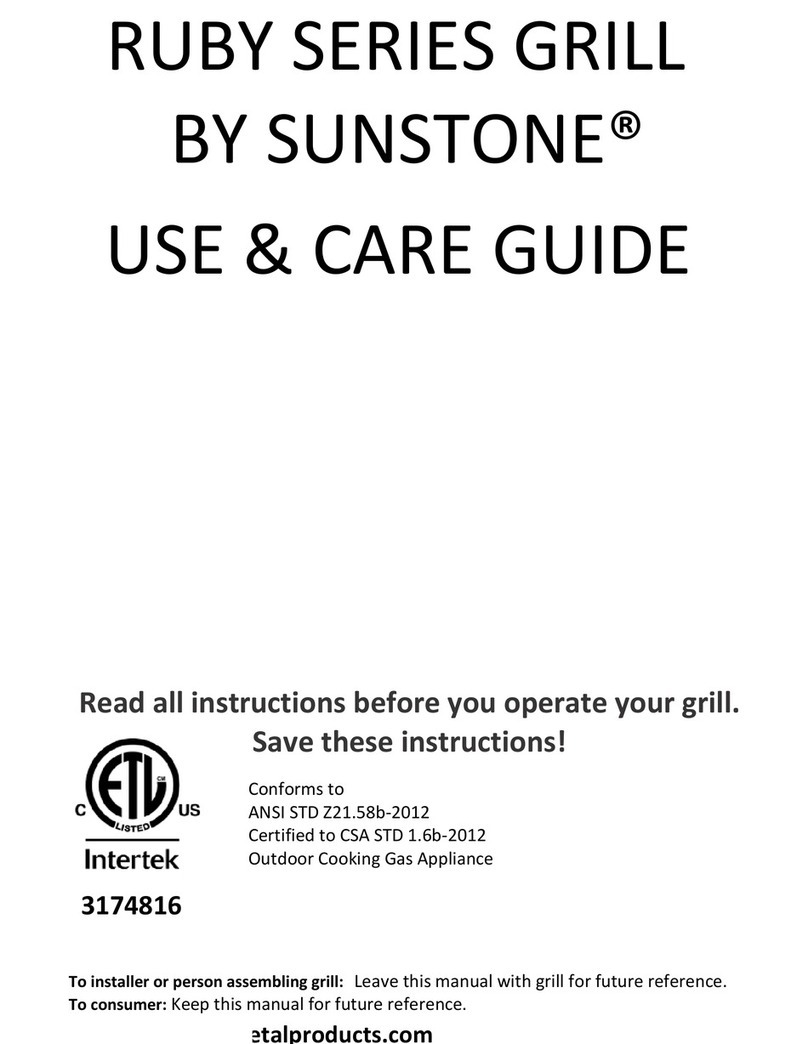

SUNSTONE ruby series User manual

SUNSTONE

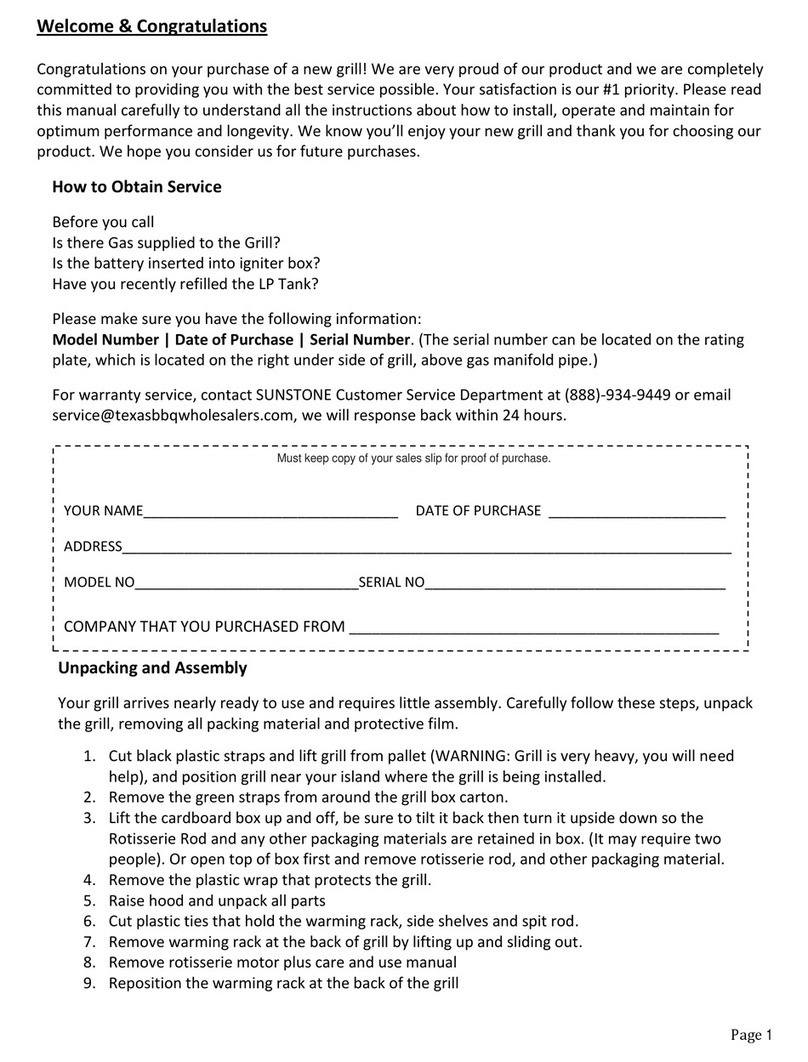

SUNSTONE SUN4B User manual

SUNSTONE
SUNSTONE SUNCHSZ30 User manual

SUNSTONE
SUNSTONE SUNCHDZ28 User manual
Popular Grill manuals by other brands

Memphis
Memphis VGB0001S user manual

Napoleon
Napoleon PRESTIGE II PRESTIGE II 600 user manual

GreenPan
GreenPan Premiere XL Smokeless Grill & Griddle user guide

Moffat
Moffat Waldorf SN8200G Technical data sheet

Sunco living
Sunco living SC5812 Assembly & operating manual

George Foreman
George Foreman GFGBBQ4B manual
