SunSun Wavemaker JVP-130 User manual

Operation Manual
SunSun JVP Wavemaker Pump
52006, 52007, 52008, 52009, 52012, 52013, 52014
Similar to image, may vary depending on model
Read and follow the operating instructions and safety information before use.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ slightly.

© by WilTec Wildanger Technik GmbH Artikel 52006 Seite 2
http://www.WilTec.de
http://www.aoyue.eu 08 2020-1
http://www.teichtip.de
The information contained in this document may alter at any time without previous notice. It is prohibit-
ed to copy or spread any parts of this document in any way without prior written allowance. All rights
reserved.
The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this
operating manual, nor in the diagrams and figures shown.
Even though, the WilTec Wildanger Technik GmbH has undergone biggest possible efforts to ensure
that the operating manual is complete, faultless and up to date, mistakes cannot be entirely avoided.
If you should find a mistake or wish to make a suggestion for improvement, we look forward to hearing
from you.
Send an e-mail to:
[email protected]
or use our contact form:
https://www.wiltec.de/contacts/
The most recent version of this manual in various languages can be found in our online shop via:
https://www.wiltec.de/docsearch
Our postal address is:
WilTec Wildanger Technik GmbH
Königsbenden 12
52249 Eschweiler
Germany
Do you wish to pick goods up? Our pick-up address is:
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
Germany
To shorten the waiting time and allow for a rapid on-site transaction, we ask you to call us previously
or placing your order via the webshop.
E-mail: [e-mail]
Tel:[phone]
Fax: [phone]
To return orders for exchange, repair or for other purposes, please use the following address. Atten-
tion! To allow for a smooth execution of your complaint or return, it is important to contact our custom-
er service team before returning the goods.
Returns Department
WilTec Wildanger Technik GmbH
Königsbenden 28
52249 Eschweiler
E-mail: [e-mail]
Tel:[phone]
Fax: [phone]

© by WilTec Wildanger Technik GmbH Artikel 52006 Seite 3
http://www.WilTec.de
http://www.aoyue.eu 08 2020-1
http://www.teichtip.de

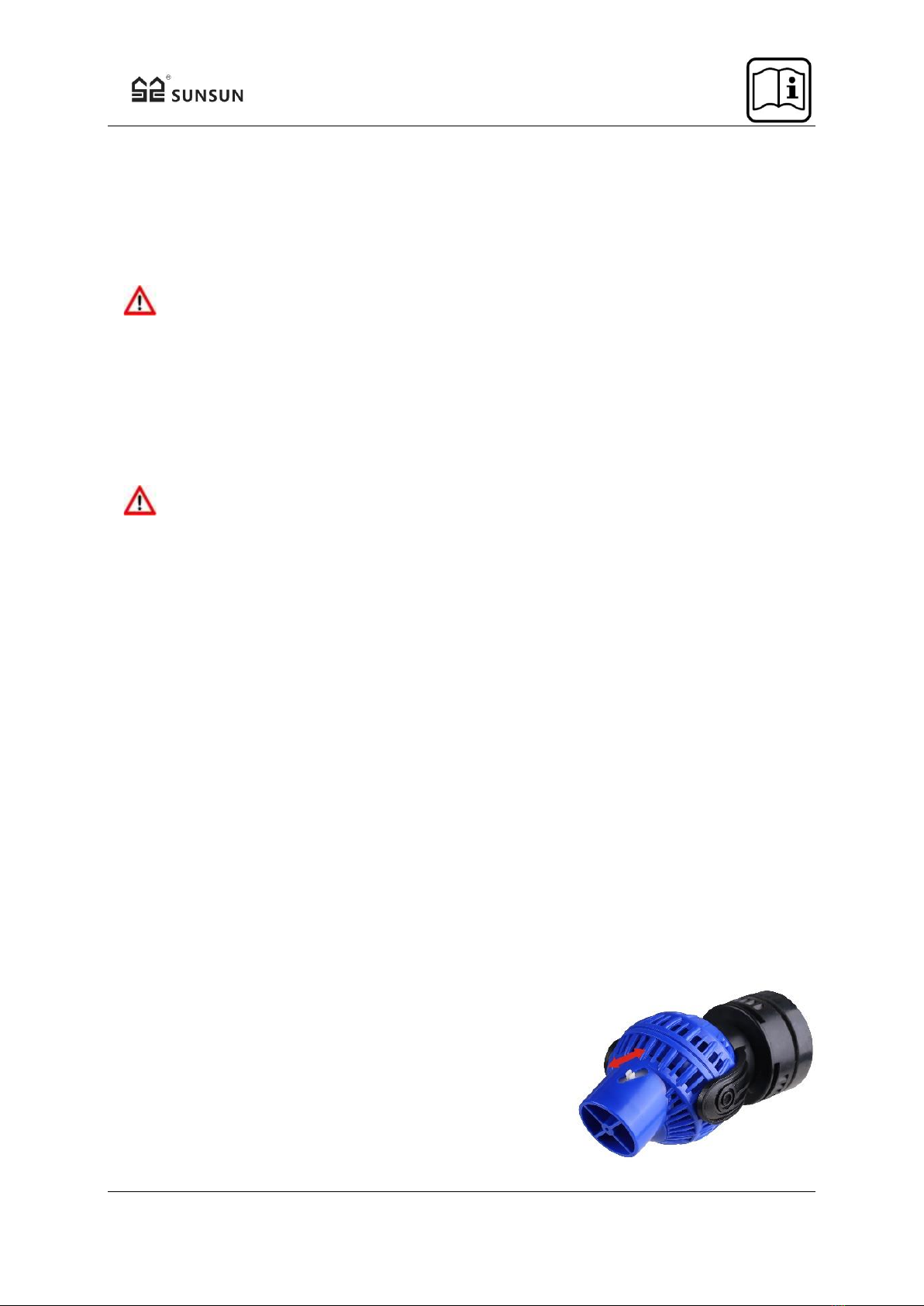

Introduction
Thank you very much for buying this quality product. To reduce the risk of injury, we ask you to regard
some basic safety instructions, when using this product. Please read the operating manual thoroughly
and make sure you have understood them. Keep the operating manual safe for future reference.
Safety Notes
Careful:
The use of the device is only allowed with a residual current circuit breaker with a nominal current of
up to 30 mA (according to VDE 0100 part 702 and 738).
The device is not meant to be operated by people (including children) with limited physical, sensory or
mental abilities or or with lack of experience and/ or knowledge, unless they are being supervised by a
person responsible for their health and safety or have been instructed on how to use the device.
Children should be supervised to ensure that they do not play with the device.
Attention:
•Before every use, visually examine the device. Do not use the device if safety measures are
damaged or worn. Never overrule safety measures.
•Only use the device for the purpose stated in this operating manual.
•You are responsible for the safety in the working area.
•If the cable or the mains plug should be damaged due to external influences, the cable cannot
be repaired! The cable needs to be exchanged by a qualified technician!
•The rated voltage of 230 V AC on the type label needs to comply with the existing voltage.
•Never lift, transport or attach the device by its electricity cable.
•Make sure that all electrical plug connections are in an area that cannot be flooded and are
protected from humidity.
•Before carrying out any work on the device, pull the electricity plug.
•Avoid the device being exposed to water streams or rain.
•The operator is responsible for the compliance with local safety and assembly rules. (If neces-
sary, ask a qualified technician.)
•In case the device should break down, repair work should only be carried out by a qualified
technician. Damages that occur from an improper repair or maintenance are not the manufac-
turer’s responsibility.
•Read all safety notes and instructions. Non-compliance with the safety notes and instructions
can lead to electrical shock, fire and/ or serious injury.
•Keep the safety notes and instructions for future reference.
Functions
•New design –flexible adjustment of the wave direction
•Regulation valve on the pump’s outlet
•Flexible mounting via a magnet.

© by WilTec Wildanger Technik GmbH Artikel 52006 Seite 4
http://www.WilTec.de
http://www.aoyue.eu 08 2020-1
http://www.teichtip.de
Mounting

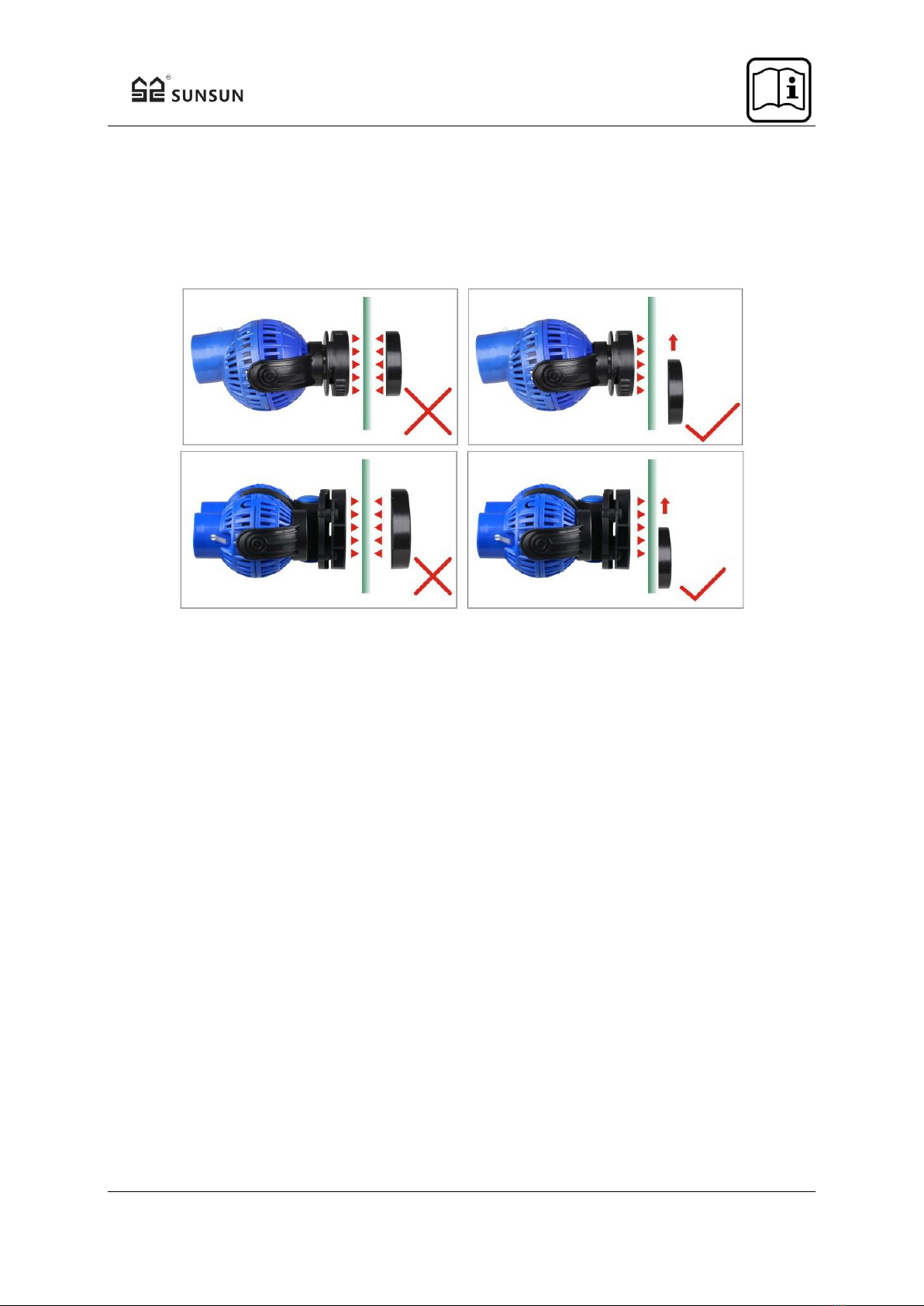

Separate the two magnets from each another. Take the pump into one hand and the holder with the
magnet into the other. Place the pump onto the glass in the desired area inside the aquarium and
push the holder with the magnet upwards onto the position of the pump. Please do not put both mag-
nets together immediately. The strong magnet can cause injury.
Notes
•Make sure that the pump does not run dry. The pump needs to be fully immersed before being
turned on.
•Do not place the magnets immediately onto each other. Slowly push the magnets on top of
each other, to avoid the glass getting damaged.
•Only connect the device to the electricity supply after installing it.
•Do not use the device if the motor or the cable is damaged.
Maintenance
Please clean the Wavemaker pump regularly. The casing can be opened by turning. Clean the
rotor with a soft cloth and swill the pump casing thoroughly with water. Please do not use any
cleaning detergents, as these can contaminate the water.
Technical Data
JVP-130/131/132/133
Model
Item no.
Voltage
Power
Output
Size
JVP-130
52006
220 –240 V/
50 HZ
6 W
4000 L/H
66*61*114 mm
JVP-131
52007
8 W
6000 L/H
77*70*126 mm
JVP-132
52008
12 W
8000 L/H
87*80*135 mm
JVP-133
52009
16 W
1000 0L/H
98*91*144 mm
JVP-230/231/232
Model
Item no.
Voltage
Power
Output
Size
JVP-230
52012
220 –240 V/
50 HZ
8 W
6000 L/H
118*61*122 mm
JVP-231
52013
12 W
8000 L/H
128*69*132 mm
JVP-232
52014
26 W
15000 L/H
162*80*150 mm

© by WilTec Wildanger Technik GmbH Artikel 52006 Seite 5
http://www.WilTec.de
http://www.aoyue.eu 08 2020-1
http://www.teichtip.de
Parts List
JVP-130/131/132/133 (item no.: 52006-52007-52008-52009)
No.
Name
No.
Name
1
Front casing
5
Frame
2
Flow regulator
6
Spring holder
3
Rotor
7
Inner magnet holder
4
Back casing
8
Outer magnet holder
JVP-230/231/232 (item no.: 52012-52013-52014)
No.
Name
No.
Name
1
Front casing
6
Spindle
2
Flow regulator
7
Fixture
3
Rotor
8
Spring holder
4
Back casing
9
Inner magnet holder
5
Frame
10
Outer magnet holder

© by WilTec Wildanger Technik GmbH Artikel 52006 Seite 6
http://www.WilTec.de
http://www.aoyue.eu 08 2020-1
http://www.teichtip.de
Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple-
mented in the law related to electrical and electronic equipment and appliances.
All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry EAR under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the item or on its packaging points out
that this item must not be treated as normal household
waste but must be disposed of at a recycling collection
point for electronic and electrical waste equipment. By
contributing to the correct disposal of this item you
help protect the environment and the health of fellow
human beings. The environment and the health of
living beings are threatened by inappropriate disposal.
Recycling materials helps reduce the consumption of raw materials.
Additional information on recycling this item can be provided by your local community, municipal waste
disposal facilities or the shop where this item was purchased.
Address:
WilTec Wildanger Technik GmbH
Königsbenden 12/ 28
D-52249 Eschweiler
Important note:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instruction
manual requires the written permission of the WilTec Wildanger Technik GmbH.
