SunSynk SUNSYNK-29.9K-SG01HP3-EU-BM3 User guide

v.23 (10/17/23)
SUNSYNK-29.9K-SG01HP3-EU-BM3
SUNSYNK-30K-SG01HP3-EU-BM3
SUNSYNK-35K-SG01HP3-EU-BM3
SUNSYNK-40K-SG01HP3-EU-BM4
SUNSYNK-50K-SG01HP3-EU-BM4
THREE-PHASE
HYBRID INVERTER
PLEASE RETAIN FOR
FUTURE REFERENCE
INSTALLER MANUAL
www.sunsynk.com
[email protected]
[email protected]

THREE PHASE HI 29.9/50kW | Installer Manual2
PREFACE
This Installer Manual contains information for proper installation, operation, maintenance, and care of the
Sunsynk Three-Phase Hybrid Inverter. A deep understanding of the instructions described in this document
will help you get the most out of your new inverter.
This document should be read thoroughly, and all the procedures described in this manual should be
followed carefully. If you have questions or concerns about this product's operation and maintenance,
please get in touch with our customer support.
All personnel involved in this machine's installation, setup, operation, maintenance, and repair should read
and understand this manual, mainly its safety instructions. Substandard performance and longevity, property
damage, and personal injury may result from not knowing and following these instructions.
In order to ensure long product life, Sunsynk recommends that you utilize the product and perform
maintenance by correctly following the instructions described in this guide. The manufacturer's warranty
does not cover any damage resulting from the neglect of these instructions.
Sunsynk assumes no liability for damage caused by the operation contrary to what is specied in this
operating manual.
All information in this User Guide is based on the latest product information available at the time of printing
approval. Sunsynk reserves the right to make changes at any time without notice and without incurring any
obligation.
Please always keep this manual with the inverter as a reference for everyone using this product.

THREE PHASE HI 29.9/50kW | Installer Manual3
SAFETY 4
General Safety 4
Symbols/Safety Signs 4
Safety Instructions 6
Product Disposal 6
PRODUCT INTRODUCTION 7
System Overview 7
Product Size 8
Features 9
Basic System Architecture 10
Product Handling Requirements 10
TECHNICAL SPECIFICATIONS 11
INSTALLATION 13
Parts List 13

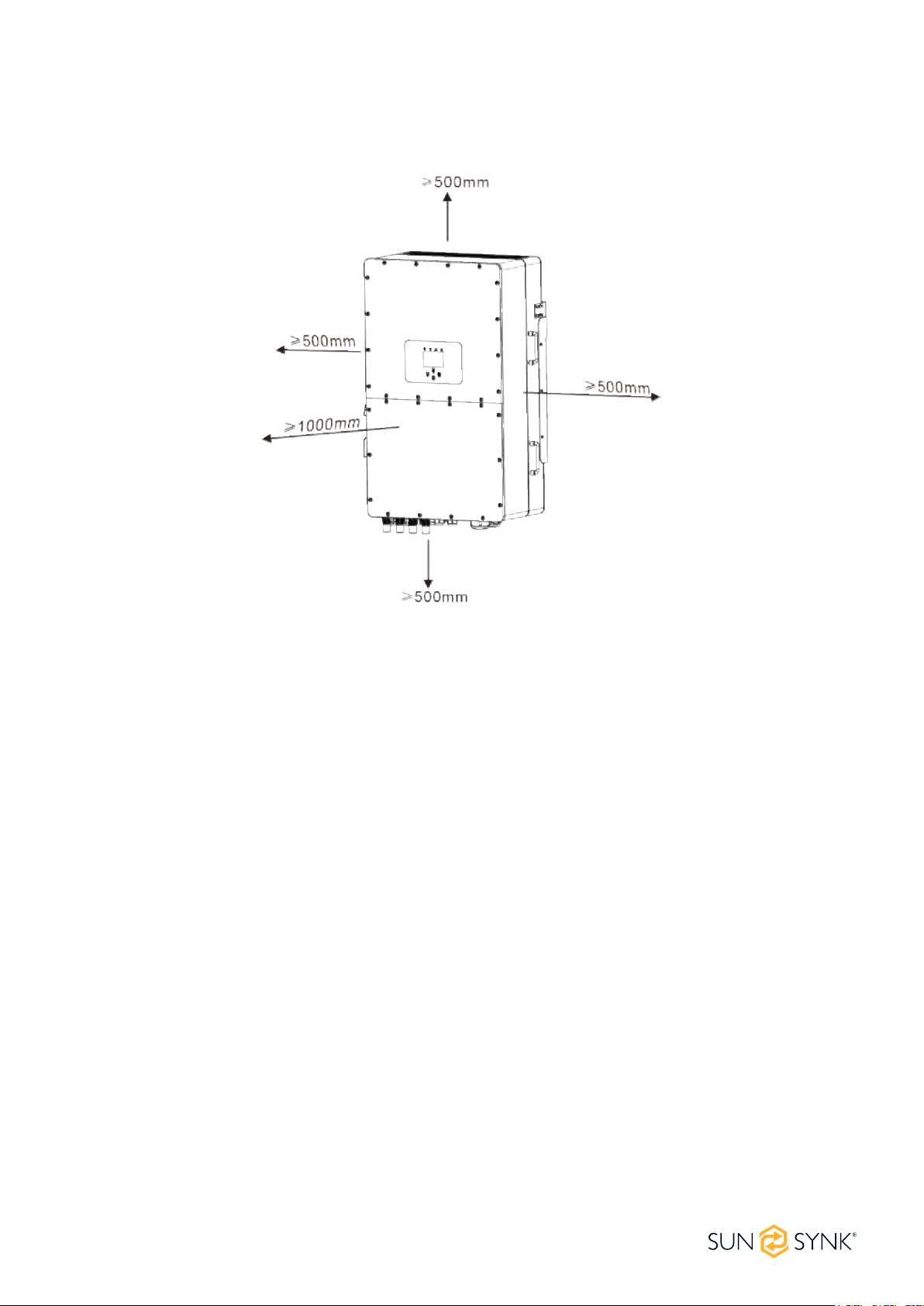

Selecting the Mounting Area 14
Mounting the Inverter 15
Battery Connection 16
Function Port Denition 18
Grid and Backup Load Connection 19
PV Connection 20
PV Module Selection 20
PV Module Wiring 20
Connecting the CT Coil 22
Meter Connection 23
CHNT Meter 23
CHNT Meter with CT Coil 24
Earth Connection (MANDATORY) 25
Wiring System for Inverter 26
Wiring Diagram 27
Typical Application of Diesel Generator 29
Three Phase Parallel Connection 30
OPERATION 31
Switching ON/OFF 31
Display 31
LED indicators 31
Function buttons 31
LCD operation ow chart 32
Home page 33
Status Page 33
System Flow Page 34
Setup Page 35
Basic Setup 36
Set Time (Clock) 36
Set Company Name / Beeper / Auto dim 36
Factory Reset and Lock Code 37
Inverter Remote Control 38
Battery Setup Page 38
Generator & Battery Page 39
Battery Discharge Page 41
Setting Up a Lithium Battery 42
Program Charge & Discharge Times 45
Grid Supply Page 49
Paralleling Inverters Advanced Settings 53
Connecting the DRM’s 56
Solar Power Generated 57
Grid Power 57
Advanced Settings for Wind Turbines 58
Advanced Settings for Auxiliary Load 59
OPERATION MODES 62
Mode I: Basic 62
Mode II: With Generator 62
Mode III: With Smart-Load 63
Mode IV: AC Couple 63
Mode V: Grid-Tied 64
FAULT CODES 64
COMMISSIONING 69
Start-Up / Shutdown Procedure 69
Inverter Commissioning Info 69
GDFI Fault 70
MAINTENANCE 70
APPENDIX A 71
APPENDIX B 73
Table of Contents

THREE PHASE HI 29.9/50kW | Installer Manual4
SAFETY
This device should only be used in accordance with the instructions within this manual and in compli-
ance with local, regional, and national laws and regulations. Only allow this device to be installed, oper-
ated, maintained, and repaired by other people who have read and understood this manual. Ensure the
manual is included with this device should it be passed to a third party.
DO NOT allow minors, untrained personnel, or person(s) suering from a physical or mental impairment
that would aect their ability to follow this manual, install, maintain or repair this device.
Any untrained personnel who might get near this device while it is in operation MUST be informed that it
is dangerous and instructed carefully on how to avoid injury.
General Safety
Symbols/Safety Signs
This symbol indicates information that if
ignored, could result in personal injury,
physical damage or even death due to
incorrect handling.
CE mark is attached to the solar
inverter to verify that the unit follows
the provisions of the European Low
Voltage and EMC Directives.
Risk of burn. Refer to the operating instructions.
5min
Risk of electric shock.
DO NOT touch the terminal or remove
the shell within 5 minutes after discon-
necting all power.
The UKCA marking is used for products
placed on the market in Great Britain
(England, Scotland and Wales). The
UKCA marking applies to most prod-
ucts for which the CE marking could be
used.
Keep the equipment well-ventilated.
ONLY qualied personnel should install
or perform maintenance work on the
units.
This product's batteries contain an ex-
plosive, self-reactive material that could
blow up when heated.
Warranty Void if Seal is Broken
Be careful when touching the inverter!
It is an electrical product with risk of
electric shock and heating.
Store below 25°C.
Indicates that this product is recyclable. Keep the product out of reach of chil-
dren!
Keep away from open ames and
moisture.
Avoid unsuitable shoes for installing
and operating the inverter.

THREE PHASE HI 29.9/50kW | Installer Manual5
V DC 48 V
230V
15.70 A
BATTERY INPUT
Battery Discharge Voltage, Battery
Discharge Current, Input Voltage Type,
Battery Discharge Power.
V DC 48 V
230V
15.70 A
AC OUTPUT
Output Voltage, Input Voltage Type, Ac
Output Rated Current, Max AC Current,
Output Frequency, Max AC ISC, Power
Factor & AC Output Rated Power.
V DC 48 V
230V
15.70 A
TEMPERATURE
Ambient, Min & Max.
V DC 48 V
230V
15.70 A
PV INPUT
PV Input Voltage, Number of MPPT's,
MPPT Input Current & Max PV ISC.
V DC 48 V
230V
15.70 A
Net Weight in Kilograms.
V DC 48 V
230V
15.70 A
Protective Conductor Terminal or Earth
Ground Terminal.
V DC 48 V
230V
15.70 A
Single Phase.
V DC 48 V
230V
15.70 A
Three Phase.
V DC 48 V
230V
15.70 A
Inverter DC to AC.
WARRANTY REGISTRATION
Scan the QR code to access our web-
site and sign up for the manufacturer’s
warranty.
MANUAL DOWNLOAD
Download the latest version of the
instruction manual by scanning the QR
code.
Do not dispose the device, accesso-
ries, and packaging with regular waste.
Follow local ordinances or contact the
manufacturer for disposal guidance.
V DC 48 V
230V
15.70 A
CONTINUOUS OUTPUT
CURRENT
Maximum Continuous Output Current,
Output Frequency and Voltage, & AUX
(programmable AC output on battery
SOC).
3

THREE PHASE HI 29.9/50kW | Installer Manual6
Safety Instructions
This chapter contains important safety and operating instructions. Read and keep this manual for future
reference.
Before using the inverter, please read the instructions and warning signs of the battery and correspond-
ing sections in the instruction manual.
Do not disassemble the inverter. If you need maintenance or repair, take it to a professional service
center.
Improper reassembly may result in electric shock or re.
To reduce risk of electric shock, disconnect all wires before attempting any maintenance or cleaning.
Turning o the unit will not reduce this risk.
Never charge a frozen battery.
For optimum operation of this inverter, please follow required specication to select appropriate cable
size. It is very important to correctly operate this inverter.
Be very cautious when working with metal tools on or around batteries. Dropping a tool may cause a
spark or short circuit in batteries or other electrical parts, even cause an explosion.
Please strictly follow installation procedure when you want to disconnect AC or DC terminals.
Please refer to "Installation" section of this manual for the details.
Grounding instructions - this inverter should be connected to a permanent grounded wiring system. Be
sure to comply with local requirements and regulation to install this inverter.
Never cause AC output and DC input short circuited. Do not connect to the mains when DC input short
circuits.
Product Disposal
DO NOT dispose this product with domestic waste!
Electrical devices should be disposed of in accordance with regional directives on electronic and/ or elec-
tronic-waste disposal. In case of further questions, please consult your supplier. In some cases, the supplier
can take care of proper disposal.
WARNING
HIGH LIFE RISK DUE TO FIRE OR ELECTROCUTION.
Sunsynk Three-Phase Hybrid Inverter can only be installed by a qualied licensed electrical contractor.
This is not a DIY product.

THREE PHASE HI 29.9/50kW | Installer Manual7
PRODUCT INTRODUCTION
The Sunsynk Three-Phase Hybrid Inverter is a multifunctional inverter, combining functions of inverter, solar
charger and battery charger to oer uninterruptible power support with portable size. Its comprehensive
LCD display oers user congurable and easy accessible button operation such as battery charging, AC/solar
charging, and acceptable input voltage based on dierent applications.
System Overview
1. Inverter Indicators 7. Parallel Port 13. Grid
2. LCD Display 8. CAN Port 14. Function Port
3. Function Buttons 9. DRM Port 15. Load
4. Power on/o button 10. BMS Port 16. PV Input
5. DC switch 11. RS485 Port 17. Battery Input
6. Meter Port 12. Generator Input 18. WiFi Interface
1
2
3
4
5
16
17
18
7
6
8
9
11
10
12
13
14
15

THREE PHASE HI 29.9/50kW | Installer Manual8
Product Size
Inverter Size

THREE PHASE HI 29.9/50kW | Installer Manual9
Features
INTERACTIVE
Easy and straightforward to understand LCD display;
Supporting Wi-Fi or GSM monitoring;
Visual power ow screen;
Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker;
Smart settable 3-stage MPPT charging for optimised battery performance;
Auxiliary load function;
Multi-inverter function: grid-tied and o-grid;
COMPATIBLE
Compatible with mains electrical grid voltages or power generators;
Compatible with wind turbines;
230V/400V Three-phase Pure Sinewave Inverter;
It can power up both single-phase and 3-phase loads;
Self-consumption and feed-in to the grid;
Auto restart while AC is recovering;
Maximum charging/discharging current of 50A + 50A;
DC and AC coupled to retrot existing solar system;
Compatible with high-voltage batteries (600V);
CONFIGURABLE
Fully programmable controller;
Programmable supply priority for battery or grid;
Programmable multiple operation modes: on-grid/o-grid & UPS;
Congurable battery charging - current/voltage based on applications by LCD setting;
Congurable AC / solar / generator charger priority by LCD setting;
6 time periods for battery charging/discharging;
SECURE
Overload/over-temperature/short-circuit protection;
Smart battery charger design for optimised battery protection;
Limiting function installed to prevent excess power overow to the grid;
Isolation transformer design;
APPLICATIONS
Marine (vessel power management);
Power shedding (home/oce/factory);
UPS (fuel-saving systems);
Remote locations with solar and wind generators;
Building sites;
Telecommunication;

THREE PHASE HI 29.9/50kW | Installer Manual10
Basic System Architecture
The following diagram explains the basic application and architecture of this 3-Phase Inverter.
It also includes the following devices to have a Complete running system.
Generator or Utility
PV modules
Batteries
Normal and smart loads
Monitoring system
Consult with your system integrator for other possible system architectures depending on your require-
ments.
This inverter can power all kinds of appliances in the home or one environment, including motor-type appli-
ances such as refrigerators and air conditioners.
Product Handling Requirements
Two people stand on both sides of the machine, holding two handles to lift the machine.

THREE PHASE HI 29.9/50kW | Installer Manual11
TECHNICAL SPECIFICATIONS
Model
SUNSYNK-
29.9K-SG01HP3-
EU-BM3
SUNSYNK-
30K-SG01HP3-
EU-BM3
SUNSYNK-
35K-SG01HP3-
EU-BM3
SUNSYNK-
40K-SG01HP3-
EU-BM4
SUNSYNK-
50K-SG01HP3-
EU-BM4
Battery Input Date
Battery Type Li-Ion
Battery Voltage Range 160~800V
Max. Charging Current 50A+50A
Max. Discharging Current 50A+50A
Number of battery input 2
Charging Strategy for Li-
lon Battery Self-adaption to BMS
PV String Input Data
Max. DC Input Power 38870W 39000W 45500W 52000 65000W
Max. DC Input Voltage 1000V
Start-up Voltage 180V
MPPT Range 150-850V
Full Load DC Voltage
Range 360-850V 360-850V 420-850V 360-850V 450-850V
Rated DC Input Voltage 600V
PV Input Current 36+36+36A 36+36+36+36A
Max.PV Isc 55+55+55A 55+55+55+55A
No. Of MPPT Trackers 3 4
No. Of Strings Per MPPT
Tracker 2+2+2 2+2+2+2
AC Output Data
Rated AC Output and
UPS Power 29900W 30000W 35000 40000W 50000W
Max. AC Output Power 29900W 33000W 38500 44000W 55000W
Peak Power(o grid) 1.5 time of rated power, 10 S
AC Output Rated Current 45.4/43.4A 45.5/43.5A 53.1/50.8A 60.7/58.0A 75.8/72.5A
Max. AC Current 45.4/43.4A 50/47.9A 58.4/55.8A 66.7/63.8A 83.4/79.8A
Max. Three-phase Unbal-
anced Output Current 60A 60A 60A 70A 83.3A
Max. Continuous AC Pass
through 200A
Power Factor 0.8 leading to 0.8 lagging
Output Frequency and
Voltage 50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type Three Phase
Total Harmonic Distor-
tion (THD) <3% (of nominal power)
DC injection current (mA) <0.5%In
Eciency
Max. Eciency 97.60%
Euro Eciency 97.00%
MPPT Eciency >99%

THREE PHASE HI 29.9/50kW | Installer Manual12
Model
SUNSYNK-
29.9K-SG01HP3-
EU-BM3
SUNSYNK-
30K-SG01HP3-
EU-BM3
SUNSYNK-
35K-SG01HP3-
EU-BM3
SUNSYNK-
40K-SG01HP3-
EU-BM4
SUNSYNK-
50K-SG01HP3-
EU-BM4
Protection
PV Input Lightning Pro-
tection Integrated
Anti-islanding Protection Integrated
PV String Input Reverse
Polarity Protection Integrated
Insulation Resistor De-
tection Integrated
Residual Current Moni-
toring Unit Integrated
Output Over Current
Protection Integrated
Output Shorted Protec-
tion Integrated
Output Over Voltage
Protection DC Type II / AC Type III
Battery Over Current
Protection Fuses
Certications and Standards
Grid Regulation VDE4105,IEC61727/62116,VDE0126,AS4777.2,CEI 0 21,EN50549-1,
G98,G99,C10-11,UNE217002,NBR16149/NBR16150
EMC/Safety Regulation IEC62109-1/-2, NBT32004-2018, EN61000-6-1,EN61000-6-2,
EN61000-6-3, EN61000-6-4
General Data
Operating Temperature
Rande -40~60 ºC, >45 ºC Derating
Cooling Intelligent air cooling
Noise ≤65 dB
Communication with
BMS RS485; CAN
Weight 80 Kg
Size 527W×894H×294D mm
Protection Degree IP65
Installation Style Wall-mounted
Warranty 5 years

THREE PHASE HI 29.9/50kW | Installer Manual13
INSTALLATION
Parts List
Check the equipment before installation. Please make sure nothing is damaged in the package. You should
have received the items in the following package:
Three-Phase Smart Meter
SET ESC
Hybrid Inverter
x1
Wall Mounting
Bracket x1
Stainless Steel Anti-Colli-
sion Bolt M12x60 x4
L-type Hexagon Wrench
x1
Parallel Communication
Cable x1
Stainless Steel Mounting
Screws M4*12 x2
Meter (Opitional)
x1 User Manual x1 Data Logger x1
Battery Plug Connectors
x4
DC+/DC- Plug Connector
Including Metal Terminal
xN
T-type Wrench
x1
Sensor Clamp
x3
BMS Magnetic Ring
x2

THREE PHASE HI 29.9/50kW | Installer Manual14
Selecting the Mounting Area
For proper heat dissipation, allow a clearance of approximately 500mm to the side, 500mm above and below
the unit, and 1000mm to the front of the unit.
DO NOT install the inverter in the following areas:
Areas with high salt content, such as the marine environment. It will deteriorate the metal parts and
possibly lead to water/dampness penetrating the unit.
Areas lled with mineral oil or containing splashed oil or steam, such as those found in kitchens. It will
deteriorate plastic parts of the unit, causing those parts to fail or allowing water/damp to penetrate the
unit.
Areas that generate substances that adversely aect the equipment, such as sulphuric gas, chlorine gas,
acid, or alkali. These can cause the copper pipes and brazed joints to corrode and fail to conduct elec-
tricity reliably.
Areas that can cause combustible gas to leak, which contains suspended carbon-bre or ammable
dust, or volatile inammable such as paint thinner or gasoline.
Areas where there may be gas leaks and where gas may settle around the unit as this is a re risk.
Areas where animals may urinate on the unit or ammonia may be generated.
High altitude areas (over 2000 metres above sea level).
Environments where precipitation or humidity is above 95%
Areas where the air circulation is too low.
ALSO CONSIDER:
Installing the indoor unit, outdoor unit, power supply cable, transmission cable, and remote control cable
at least 1 metre away from any television or radio receiver. This will prevent TV reception interference or
radio noise. This will prevent radio signal interference from external units that might interfere with the
Wi-Fi or GSM monitoring.

THREE PHASE HI 29.9/50kW | Installer Manual15
Mounting the Inverter
Select installation locations that are adequate to support the weight of the converter.
Install this inverter at eye level to allow the LCD to be read anytime.
To ensure optimal operation, an appropriate ambient temperature is between -40 and 60°C.
Be sure to keep other objects and surfaces, as shown in the gure to guarantee sucient heat dissipa-
tion and have enough space to remove wires.
WARNING
Risk of injury (Heavy Object).
Remember that this inverter is heavy, so users must carefully handle the unit during installation,
especially when mounting or removing it from a wall.
Choose the recommended drill head (as shown below) to drill 4 holes on the wall, 62-70mm deep.
1. Use a proper hammer to t the expansion bolt into the holes.
2. Carry the inverter and hold it, ensure the hanger aims at the expansion bolt, and x the inverter on the
wall.
3. Fasten the screw head of the expansion bolt to nish the mounting.
If children under 10 years old may approach the unit, take preventive measures so they cannot reach
and touch the unit.
Install the indoor unit on the wall where the oor height is higher than 1600mm.
Before connecting all wires, please take the metal cover o, removing the screws as shown below:
62-70mm
[(2.44in) to (2,75in)]

THREE PHASE HI 29.9/50kW | Installer Manual16
Inverter Hanging Plate Installation
Battery Connection
For safe operation and compliance, an individual DC overcurrent protector or disconnection device is
required to connect the battery and the inverter. Users are recommended to utilise a suitable fuse and DC
isolator (see next page). Switching devices may not be required in some applications, but overcurrent pro-
tectors must be used. Please refer to the typical amperage in the table below for the required fuse or circuit
breaker size.
Model Cross Section (mm2)
Range Recommended Value
29.9/30/35/40/50kW 16.0~25.0 (6~4AWG) 16.0 (6AWG)
WARNING
Reverse Polarity.
Before making the nal DC connection or closing DC breaker/disconnect, be sure positive (+) must be
connected to the positive (+) and negative (-) must be connected to the negative (-). A reverse polarity
connection on the battery will damage the inverter.
All wiring/connecting must be performed by qualied personnel. In addition, connecting the battery
with a suitable cable is essential for safe and ecient operation of the system
Orange Black
BAT+ Plug Connector BAT- Plug Connector

THREE PHASE HI 29.9/50kW | Installer Manual17
Please follow below steps to implement battery connection:
1. Pass the cable through the terminal:
2. Put on the rubber ring:
3. Crimp terminals:
4. Fasten terminal with a bolt:
5. Fasten the terminal with outer cover:
BMS connection
Pass the BMS communication cable
through the magnetic ring and wrap
it around the magnetic ring four times.
Battery Port
BMS connection
Pass the BMS communication cable
through the magnetic ring and wrap
it around the magnetic ring four times.
Battery Port

THREE PHASE HI 29.9/50kW | Installer Manual18
Function Port Denition
1 2 3 4 5 6 7 8 9 10 1112 1 2 3 4 5 6 7 8 9 10 1112
CT -S
CT -T
CT -R
Gen start-up
N/O Relay
Parallel_1 Parallel_2Meter CAN DRM BMS1 BMS2 RS485
GS (diesel generator startup signal)
relay
coil
open
contact
G S
CN1 CN2
Inverter
SHUT DOWN
B B
CT-R (1,2,7,8): Current transformer (CT-R) for
“zero export to CT” mode clamps
on L1 when in three phase system.
CT-S (3,4,9,10): Current transformer (CT-S) for
“zero export to CT” mode clamps
on L2 when in three phase system.
CT-T (5,6,11,12): Current transformer (CT-T) for
“zero export to CT” mode clamps
on L3 when in three phase system.
Dry-1 (3,4): Dry contact output. When the inverter is
in off-grid mode and the “Signal ISLAND MODE” is
checked, the dry contact will switch on.
SHUT DOWN (9,10,11,12): When the terminal “B”
& “B” is short-circuited with additional wire connection,
or there is 12Vdc input at the terminal “+ & -”, then
the 12Vdc of RSD+ & RSD- will disappear immediately.
RSD+, RSD- (7,8): When the battery is connected
and the inverter is in “ON” status, it will provide
12Vdc.
CN1:
CN2:
G-Start (1,2): Dry contact signal for startup the diesel generator. When the "GEN signal" is
active, the open contact (GS) will switch on (no voltage
output).
Dry-2 (5,6): Reserved.
Parallel A: Parallel communication
port 1 (CAN interface).
Parallel B: Parallel communication
port 2 (CAN interface).
CAN: Reserved.
DRM: Logic interface for
BMS1: BMS port for battery
communication port 1.
AS/NZS 4777.2:2020.
BMS2: BMS port for battery
communication port 2.
Meter: For energy meter
RS485: RS485 port.
communication.

THREE PHASE HI 29.9/50kW | Installer Manual19
Grid and Backup Load Connection
Before connecting to the grid, please install a separate AC breaker between the inverter and the grid.
Also, it is recommended that installs an AC breaker between the backup load and inverter. This will ensure
that the inverter can be securely disconnected during maintenance and fully protected from overcurrent.
For the 29.9/30/35/40/50KW model, the recommended AC breaker for the backup load is 240A. For the
29.9/30/35/40/50KW model, the recommended AC breaker for grid is 240A.
There are three terminal blocks marked as GRID, LOAD, and GEN. Please do not confuse input and output
connections. External AC SPD is compulsory on all Sunsynk inverters.
WARNING
All wiring must be performed by qualied personnel. System safety and ecient operation need to
use appropriate cable for AC input connection. To reduce the risk of injury, please use the proper
recommended cables as below.
Model Wire Size Cable (mm2) Torque Value (max)
29.9/30/35/40/50kW 4/0 AWG 107 28.2Nm
Backup Load Connection
Grid Connection
Model Wire Size Cable (mm2) Torque Value (max)
29.9/30/35/40/50kW 4/0 AWG 107 28.2Nm
Please follow the steps below to implement GRID, LOAD, and GEN port connections:
1. Before making GRID, LOAD, and GEN port connections, make sure to turn o the AC breaker or
disconnector rst.
2. Remove a 10mm sleeve from each wire, unscrew the bolts, insert the cables according to the polarities
indicated on the terminal block and tighten the terminal screws. Ensure the connection is complete.
WARNING
Ensure the AC power source is disconnected before attempting to wire it to the unit.

THREE PHASE HI 29.9/50kW | Installer Manual20
PV Connection
Before connecting to PV modules, please install a separate DC circuit breaker between the inverter and PV
modules. It is very important for system safety and ecient operation to use appropriate cable for PV mod-
ule connection. To reduce the risk of injury, please use the proper recommended cable size as below.
WARNING
To avoid malfunction, do not connect any PV modules with possible leakage current to the inverter.
For example, grounded PV modules will cause leakage current to the inverter. When using PV mod-
ules, please ensure the PV+ & PV- of the solar panel are not connected to the system ground bar.
It is requested to use a PV junction box with surge protection. Otherwise, it will cause damage to the
inverter when lightning occurs on PV modules.
3. Then, insert AC output wires according to the polarities indicated on the terminal block and tighten the
terminal. Make sure to connect corresponding N wires and PE wires to related terminals as well.
4. Ensure the wires are securely connected.
5. Appliances such as air conditioners require at least 2-3 minutes to restart because it requires enough
time to balance refrigerant gas inside the circuit. If a power shortage occurs and recovers in a short time,
it will cause damage to your connected appliances. To prevent this kind of damage, please check with the
air conditioner manufacturer if it is equipped with a time-delay function before installation. Otherwise,
this inverter will trigger an overload fault and cut o output to protect your appliance, but sometimes it
still causes internal damage to the air conditioner
PV Module Selection
When selecting proper PV modules, please be sure to consider below parameters:
1. Open circuit voltage (Voc) of PV modules can not exceed the max. PV array open circuit voltage of the
inverter.
2. Open circuit voltage (Voc) should be higher than min. start voltage.
3. The PV modules connected to this inverter shall be Class A rating certied according to lEC 61730.
Inverter Model 29.9kW 30kW 35kW 40kW 50kW
PV Input Voltage 600V (180V~1000V)
PV Array MPPT Voltage Range 150-850V
No. Of MPP Trackers 3 4
No. Of Strings per MPP Tracker 2+2+2 2+2+2+2
PV Module Wiring
1. Switch the Grid Supply Main Switch (AC) OFF.
2. Switch the DC isolator OFF.
3. Assemble PV input connector to the inverter.
4. Use the MC4 connectors supplied by Sunsynk with the inverter.
