opti-solar SP Series User manual

Solar Hybrid Inverter SP Series
&
SPUPS
User Manual

2
This manual includes 2 sections.
Section1 is for Solar Hybrid Inverter SP Series; and section 2 is for SP
UPS. Please refer to the section depending on what model you bought.

3
(Section 1)
Solar Hybrid Inverter SP Series Manual

4
(Section 1)......................................................................................................3
ⅠPREFACE.................................................................... 5
1-1 Conventions Used............................................................................................5
1-2 Glossary...........................................................................................................5
ⅡINTRODUCTION......................................................... 5
2-1 Description ......................................................................................................5
2-2 Features............................................................................................................6
2-3 Important Notices............................................................................................6
2-4 Appearance......................................................................................................6
2-4-1 Front Panel...........................................................................................6
2-4-2 Outline..................................................................................................8
ⅢINSTALLATION......................................................... 12
3-1 Safety.............................................................................................................12
3-1-1 Positioning..........................................................................................12
3-1-2 Transporting .......................................................................................12
3-1-3 Installation..........................................................................................13
3-1-4 Operation............................................................................................13
3-1-5 Maintenance and Service...................................................................13
3-2 Mounting .......................................................................................................14
3-3 Wiring............................................................................................................15
3-3-1 Inspection...........................................................................................15
3-3-2 Connection .........................................................................................15
ⅣOPERATION.............................................................. 19
4-1 Prior to Startup...............................................................................................19
4-2 Storage Instruction.........................................................................................19
4-3 Operations Procedures for LCD Model.........................................................19
4-4 Operation Modes...........................................................................................26
ⅤNEW LCD SETTINGS............................................... 28
ⅥAPPENDIX ................................................................30
5-1 Specification..................................................................................................30
5-2 Trouble Shooting...........................................................................................36

5
ⅠPREFACE
1-1 Conventions Used
WARNING
Warnings identify conditions that could cause
personal injury or loss of life.
CAUTION
Cautions identify conditions that could cause damage
to the unit, other equipment or devices.
WARNING:
BURN
HAZARD
Keep away from unit because of burn hazard
resulting from high temperature during operation.
WARNING:
RISK OF
ELECTRIC
SHOCK
Risk of electric shock caused by energy stored in
capacitors. Capacitors take time to discharge after
cutting off all power sources.
1-2 Glossary
AC: Alternating Current
DC: Direct Current
LCD: Liquid Crystal Display
LED: Light Emitting Diode
PC: Personal Computer
PV: Photovoltaic
SNMP: Simple Network Management Protocol
ⅡINTRODUCTION
2-1 Description
The Solar SP series is designed to have access to dual input source; one is AC source
from a grid, and the other is DC source from a solar array.
This series is a powerful all-in-one solution, not only delivering unsurpassed clean
true sine wave output power and combining this with a selectable multistage battery
charging current but also converting sunlight into clean energy. This series features
durable and continuous 24-hour operation. Consequently, it is applicable to any kind
of loads such as air conditioner, home appliances, consumer electronic and office
equipment.
The built-in 5-stage intelligent charger automatically charges any type of batteries
without the risk of overcharge. The compact and modular design makes utility
interactive installations easier and more cost effective. It is a high quality product that

6
offers the best price-performance ratio in the industry.
2-2 Features
1. Multiple microprocessor design base
2. Compatible with both linear and non-linear load
3. Stronger charger to support batteries of up to 600AH
4. 24-hour inverter operation
5. DC start and automatic self-diagnostic function
6. THD less than 3%
7. High efficiency design to save electricity
8. Low heat dissipation in extended operation
9. Designed to operate under harsh environment
10. 3U 19” rack mount or wall-mounted design
11. Solar power charger with maximum 50Afrom an array
12. Detachable front panel
2-3 Important Notices
1. Read instructions carefully before operating the Inverter.
2. INVERTER power connect instruction should be followed.
3. Please don‘t open the case to prevent danger.
5. Retain the load within the rating of INVERTER to prevent faults.
6. Keep the INVERTER clean and dry.1.
2-4Appearance
2-4-1 Front Panel
1. LCD: This indicates the Solar SP operation information, including the Solar SP
status, input/output voltage, input/output frequency, battery voltage, battery
capacity left, output load, inside temperature, and the times of history events.

7
2. Up-key: Use to select upward the Solar SP status on LCD.
3. Down-key: Use to select downward the Solar SP status on LCD. Beside, press it
simultaneously with the Up-key to switch off the Solar SP.
4. Enter-Key: It is pressed with the Down-key to turn on the Solar SP. In battery
operation mode, press it with Up-key at the same time to disable the buzzer.
Beside, it is pressed to confirm and enter the item selected.
5. Fault LED (red): Indicates the Solar SP is in fault condition because of inverter
shutdown or over-temperature.
6. Warning LED (yellow): Indicates the Solar SP is in the status of overload, bypass
and battery back-up.
7. Normal LED (green): Indicates the Solar SP is operating normally.
8. ON/TEST/MUTE key: It should be pressed with the control key simultaneously
to switch on Solar SP, do the Solar SP auto-test in normal AC mode and turn off
the buzzer in battery operation.
ATTENTION!
Loads like motors or products employing motors, and copy machines or
products employing heater lamps, may damage your SP inverter. Always
consult with your load device manufacturer for the value of the inrush
current the device draws at startup, so as to make sure it does not exceed
the SP inverters capability to handle such inrush currents. Refer to SP
inverter's specifications for the crest factor value as a measure of its
ability to handle the inrush current of its load.

8
2-4-2 Outline
Rack Mount Type
[1.2KVA]
[2.4KVA/ 3.6KVA]

9

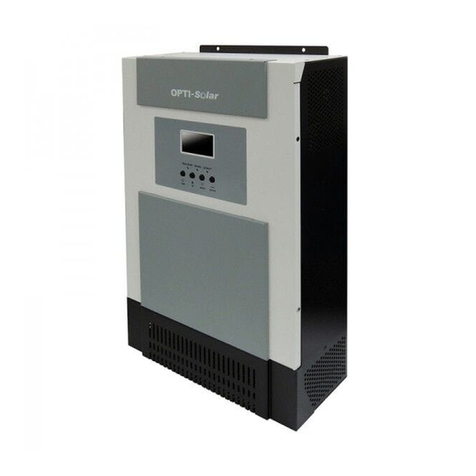

Wall Mounted Type
[1.2KVA]

10
[2.4KVA /3.6KVA]

11
[5KVA/ 6KVA/ 8KVA]

12
ⅢINSTALLATION
3-1 Safety
3-1-1 Positioning
1. Do not put the Solar SP on rugged or declined surface.
2. Do not install the Solar SP system near water or in damp environments.
3. Do not install the Solar SP system where it will be exposed to direct sunlight or
heat.
4. Do not block ventilation openings in the Solar SP system’s housing and don’t
leave objects on top of the Solar SP.
5. Keep the Solar SP far away from heat emitting sources.
6. Do not expose it to corrosive gas.
7. Ambient temperature: 0℃- 40℃
8. Do not position the Solar SP upside down.
9. Do not position the Solar SP where debris such as dust, easily accumulate.
10. The Solar SP should be positioned indoors where people can not touch
it accidentally because of potential skin burns caused from high operating
temperatures.
11. The Solar SP requires at least 30 cm of clearance in between the top and the
bottom for heat dissipation.
3-1-2 Transporting
1. Disconnect all power cables if necessary.
2. Be careful not to damage the Solar SP while transporting.
3. Don‘t move the Solar SP upside down.
4. Please transport the Solar SP system only in the original packaging (to protect
against shock and impact).

13
3-1-3 Installation
1. Connect the Solar SP system only to a grounded shockproof wiring
system to avoid electric shocks resulting from current leakage.
2. Place cables in such a way that no one can step on or trip over them.
3. Keep wire lengths between the array and the Solar SP as short as possible to
minimize copper losses.
4. The installation must be done by qualified personnel.
3-1-4 Operation
1. Do not disconnect the main cable on the Solar SP system or the building
wiring socket outlet during operation. This would cancel the protective grounding
of the Solar SP system and of all connected loads.
2. The Solar SP has its own internal power source (batteries). The output terminals
may be live even when the Solar SP is not connected to the AC supply.
3. Ensure that no fluids or other foreign objects enter the Solar SP system.
4. Disconnect input power in rear panel if you will not use it for long period. If the
Solar SP is stored over 3 months, please supply power to the Solar SP for at least 24
hours to ensure battery fully recharged.
3-1-5 Maintenance and Service
1. Caution - risk of electric shock.
Even after the unit is disconnected from the main power supply (building wiring
socket outlet), components inside the Solar SP system are still connected to the
battery and are still electrically live and dangerous. Before carrying out any kind of
servicing and/or maintenance, disconnect the batteries and verify that no current is
present.
2. Batteries may cause electric shock and have a high short-circuit current.
Please take the precautionary measures specified below and any other measures
necessary when working with batteries:
- remove wristwatches, rings and other metal objects
- use only tools with insulated grips and handles.

14
3-2 Mounting
1. Make sure a wall surface or a solid place can support theSolar SP.
2. Mark the bracket hole positions of the Solar SP on the wall.
Hole Diameter
SP1200~SP3600
SP5000~SP8000
Upper Hole
9.5mm
15mm
Lower Hole
7mm
10mm
3. Use a screw driver to fix the Solar SP.
4. If more holes are required to be drilled on the bracket, make sure no metal shavings
are left inside the Solar SP. It could result in a short circuit when the Solar SP is
operating.
Bracket Holes
Lowe
r
Upp
er

15
3-3 Wiring
3-3-1 Inspection
1. The system may be installed and wired only by qualified electricians in
accordance with applicable safety regulations.
2. When installing the electrical wiring, please note the nominal amperage of your
incoming feeder.
3. Inspect the packaging carton and its contents for damage. Please inform the
transport agency immediately should you find signs of damage. Please keep the
packaging in a safe place for future use.
4. Please ensure that the incoming feeder is isolated and secured to prevent it from
being switched back on again.
3-3-2 Connection
1. Grounding
-AC and DC Grounding: The Solar SP has to be connected to a grounded
permanent wiring system; and the array has to be grounded as well.AC and DC
are separately grounded.
2. AC Input/ Output Terminals:
-Utility (Input):
Recommend AC wire size:
Capacity \ Input voltage
110/ 120V
220/ 230V
1.2KVA
3.5mm2*3C
3.5mm2*3C
2.4KVA
3.5mm2*3C
3.5mm2*3C
3.6KVA
5.5mm2*3C
3.5mm2*3C
5.0KVA
14mm2*3C
5.5mm2*3C
6.0KVA
22mm2*3C
8mm2*3C
8.0KVA
NA
14mm2*3C
-Load (Output):
Recommend AC wire size:
Capacity \ Input voltage
110/ 120V
220/ 230V
1.2KVA
3.5mm2*3C
3.5mm2*3C
2.4KVA
3.5mm2*3C
3.5mm2*3C
3.6KVA
5.5mm2*3C
3.5mm2*3C
5.0KVA
8mm2*3C
3.5mm2*3C
6.0KVA
22mm2*3C
5.5mm2*3C
8.0KVA
NA
8mm2*3C
P.S.: 3C means there are 3 lines representing L, N and G inside a power cord/ cable.

16
3. DC Input Terminals
- Array (Input):
* Make sure the open circuit voltage (Voc) of the PV array is less
than the DC maximum charge voltage (See 6-1 Specification) and the short
circuit current (Isc) is less than DC maximum charge current (50A).
Recommend DC wire size:
Capacity
Size
1.2KVA
5.5mm2(10AWG)
2.4KVA
5.5mm2(10AWG)
3.6KVA
5.5mm2(10AWG)
5.0KVA
5.5mm2(10AWG)
6.0KVA
5.5mm2(10AWG)
8.0KVA
5.5mm2(10AWG)
* Make sure the electric polarity is correct when connecting DC
terminals. Incorrect electric polar connection will damage the Solar SP!
* Whenever a PV array is exposed to sunlight, it converts sunlight
into electric power and results in shock hazard at its output wires and
terminals. To avoid the risk of shock, cover the array with an opaque
material before any wiring connections.
- Solar Connector (Input Media)
* Solar connector is affixed 2 cables with Tyco terminals compatible with
output terminals of a module’s junction box.

17
4. Built-in Fuses/ Breakers
Between Battery and Solar SP:
Model
Fuse
1.2KVA
20A/32VDC * 6pcs
2.4KVA
20A/32VDC * 6pcs
3.6KVA
30A/32VDC * 6pcs
5.0KVA
20A/32VDC * 16pcs
6.0KVA
20A/32VDC * 10pcs
8.0KVA
20A/32VDC *16pcs
Between Solar Array and Battery:
Model
Fuse
1.2KVA
30A/32VDC * 2pcs
2.4KVA
30A/32VDC * 2pcs
3.6KVA
30A/32VDC * 2pcs
5.0KVA
30A/32VDC * 2pcs
6.0KVA
30A/32VDC * 2pcs
8.0KVA
30A/32VDC * 2pcs
Between the Solar SP and theAC Load:
Capacity \ Input voltage
110/ 120V
220/ 230V
1.2KVA
15A / 250Vac
8A / 250Vac
2.4KVA
30A / 250Vac
20A / 250Vac
3.6KVA
40A / 250Vac
20A / 250Vac
5.0KVA
60A / 250Vac
30A / 250Vac
6.0KVA
60A / 250Vac
40A / 250Vac
8.0KVA
NA
40A / 250Vac
5. Communication (as Communications Interface shown on photos) and Remote
Control
The Solar SP could be monitored on a PC via RS232 connection within 10 meters or a
on the Internet via a SNMP card.
The remote control slot is for distant connection by connecting it to the detached LCD
panel with an internet cable (RJ45).

18
6. Battery: Connect the battery’s terminals to the terminals for the battery of the Solar
SP and make sure of the correct connection of the electric polarity.
Recommend AC wire size:
Model
Size
1.2KVA
22mm2
2.4KVA
22mm2
3.6KVA
38mm2
5.0KVA
80mm2
6.0KVA
60mm2
8.0KVA
80mm2
7. Complete Schematic Diagram
DC Input
AC Output
AC Input
Battery
Utility
Loads
DC Input/ Output
Solar Array

19
ⅣOPERATION
4-1 Prior to Startup
1. Ensure the Solar SP is in a suitable position.
2. Check that input cord is secured.
3. Make sure the load is disconnected or in the “OFF” position.
4. Check if input voltage meets the Solar SP rating required.
5. Get batteries and AC cables connected before starting the Solar SP.
4-2 Storage Instruction
Disconnect input power in rear panel if you will not use it for long period. If the
INVERTER is stored over 3 months, please keep supplying power to the
INVERTER for at least 24 hours to ensure battery fully recharged.
4-3 Operations Procedures for LCD Model
Please follow the instructions below for INVERTER operation.
1. Once the AC source is connected, the
LCD Display shall light up immediately
(8~10 seconds in main menu of greeting
context) to standby for Solar SP startup.
2. By pressing the Enter-key and the Down-key simultaneously for 3 seconds, the
Solar SP will start up after two beeps and Normal LED lights up to indicate the power
is from its bypass AC main to the load.
3. When the Down-key and the Up-key are pressed simultaneously for 3 seconds, the
Solar SP will be turned off after two beeps. The Solar SP is on standby status (LCD
illuminates and Normal LED is blinking) untilAC source is disconnected.

20
4. LCD Display Menu
Use Up/Down key to select menu-displays of the LCD described below. This screen
will refresh once the system power is enabled.
Rated Spec
Status
Voltage
Frequency
Battery Status
