Super Handy GUO095 User manual

REV 09/13/22
Operator's Manual
Electric Power Cart
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.

SPECIFICATIONS
POWER CART SAFETY USE WARNINGS
1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Wear shoes with non-slip treads. If you have safety shoes, wear them. Do not use your
power cart while barefoot or wearing open sandals.
3. Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power- tools create parks which may ignite the dust or fumes.
4. Never operate your power cart in the rain or in tall wet grass. Remember, this is an electric
garden cart.
5. Keep children and by standers away while operating a power tool. Distractions can cause
you to lose control.
6. When operating the machine, stand behind the machine and hold the handles firmly.
7. Do not operate the machine while riding on the machine.
8. Do not allow others to ride on the machine.
9. When operating the machine in reverse and walking backward, watch behind you and be
careful not to slip or trip.
10. Do not use the machine when visibility is poor, because there is a risk of striking obstacles.
11. When operating the machine on rough ground, decrease speed and exercise caution.
12. When using the machine, avoid soft ground to prevent overturn due to the shoulder of the
road collapsing.
13. Do not operate the machine on upward slopes greater than 15°.
14. If you find an abnormality, stop the machine on flat ground. Before inspecting the machine,
step the brake lever and lock the brake, and then turn the power off.
15. Before operating the machine, make sure that the lock lever is fully pulled down and
completely locked. If the lock is incomplete, there is a risk of accident or injury as the
carrier or bucket may be tilted and the objects fall when going downhill.
16. Be careful not to entangle the cords with the load or obstacles.
17. Use only manufacturer-recommended replacement parts and accessories.
PERSONAL SAFETY WARNINGS
1. This is not a toy. Children under 14 years of age are not allowed to operate it.
2. Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or
medication.
3. Use personal protective equipment. Always wear eye protection. Protective equipment such
as dust mask,non-skid safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
4. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or BATTERY pack, picking up or carrying the tool.
5. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
6. Do not overreach. Keep proper footing and balance at all times. This enables better control
of the power tool in unexpected situations.
7. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves
away from moving parts.
8. If devices are provided for the connection of dust extraction and collection facilities, ensure
E1
Item No.
Rating
Loading Capacity
Battery Pack
Speed
GUO095
48 Volt DC/500W
230kgs/500lbs
48V,2Ah,96Wh Lithium Battery
Forward:0-7km/h Variable, Reverse: 0-3.5km/h Variable

these are connected and properly used. Use of dust collection can reduce dust-related hazards.
9. Does not let familiarity gained from frequent use of tools allow you to become complacent
and ignore tool safety principles. A careless action can cause severe injury within a fraction
of a second.
10. Always wear protective goggles to protect your eyes from injury when using power tools.
11. It is an employer's responsibility to enforce the use of appropriate safety protective
equipment’s by the tool operators and by other persons in the immediate working area.
OPERATION ON SLOPS WARNINGS
1. Do not cross on slopes. Be sure to decrease speed and exercise caution.
2. Exercise caution when starting or stopping the machine on slopes.
3. As the loads become less stable on slopes, firmly secure the loads with ropes
4. As the machine becomes unstable depending on the condition of the road, keep the load to
a minimum.
5. As the view is obscured on slopes, keep the height of the load to a minimum
6. Never park the machine on steep slopes. Park the machine on flat ground, pull the brake
lever and lock the brake, and then turn the power off.
7. Do not change the direction or speed mode on steep slopes.
8. Do not release the switch trigger on upward slopes. The machine may go in reverse and
cause an accident.
9. Make sure that the remaining battery capacity is enough before operating on slopes. If the
remaining battery capacity is not enough, charge the battery or replace it with a charged one.
LOADING OBJECTIVE WARNINGS
1. Do not overload objects. When loading objects, be sure to follow the instructions and load
limits in the manual.
2. Firmly secure the objects with ropes.
3. Load the objects within the carrier or bucket. If the objects protrude from the carrier or
bucket, there is a risk of accidents due to the objects falling or contact obstacles such as walls.
4. Be sure that loaded objects are below eye level. If the load is too high, it is dangerous
because the view is obscured. Also, there is a risk of overturning and injury because the load
is likely to be unbalanced.
5. Load the objects on the carrier or bucket evenly. If the objects are loaded unevenly, there is
a risk of overturning and injury because the load is likely to be unbalanced.
6. Before loading the objects or operating the machine, make sure that the lock lever is fully
pulled down and completely locked.
7. Load and unload objects on flat ground.
8. When lifting and tilting the carrier or bucket, hold the handles and frame firmly, and work in a
stable posture.
BATTERY POWER TOOL USE AND CARE WARNINGS
1. Ensure the switch is in the off position before inserting battery pack. Inserting the battery
pack into power tools that have the switch on invites accidents.
2. Recharge only with the charger specified by the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire when used with another battery pack.
3. Use power tools only with specifically designated battery packs. Use of any other battery
packs may create a risk of injury and fire.
4. When battery pack is not in use, keep it away from other metal objects like paper clips,
coins, keys, nails, screws, or other small metal objects that can make a connection from one
terminal to another. Shorting the battery terminals together may cause burns or fire.
5. Under abusive conditions, liquid may be ejected from the battery; avoid contact. if contact
accidentally occurs, flush with plenty of soap and water. If liquid contacts eyes, immediately
seek medical help. Liquid ejected from the battery may cause irritation or burns.
E2

6. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
7. Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
8. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
9. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.

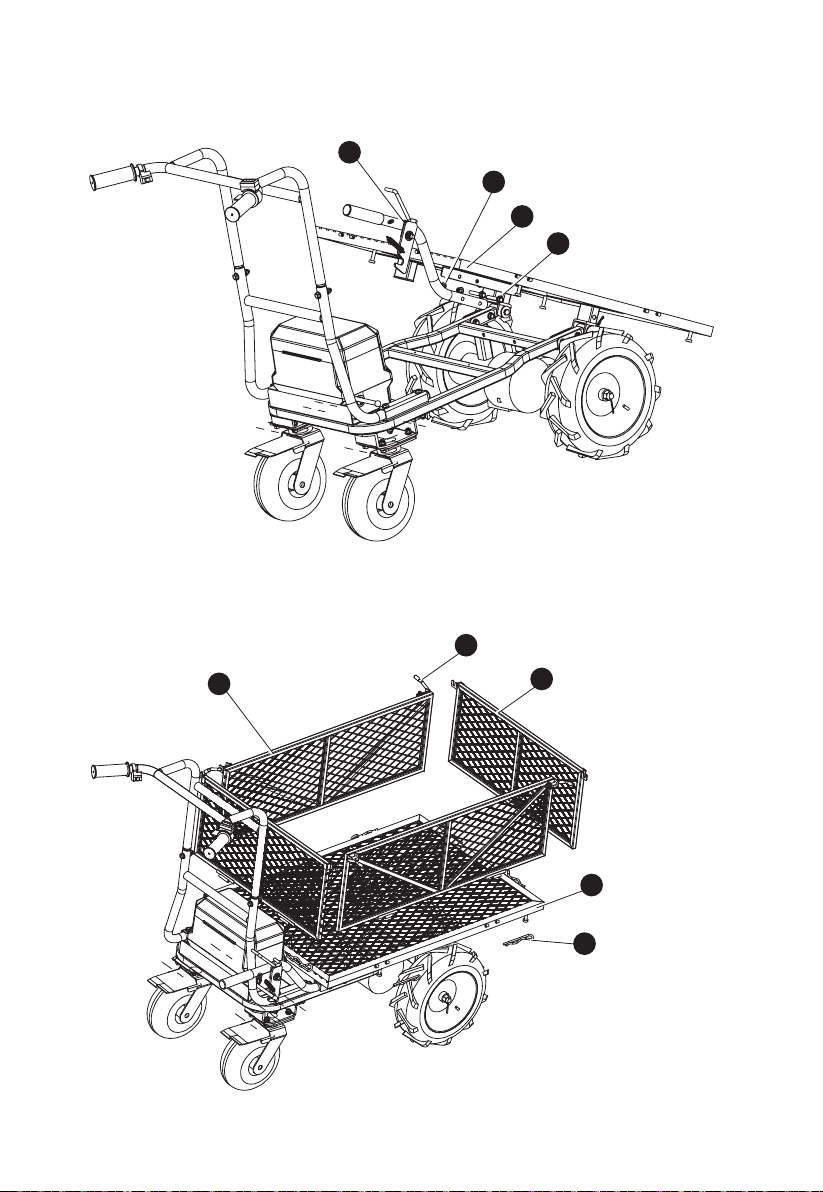

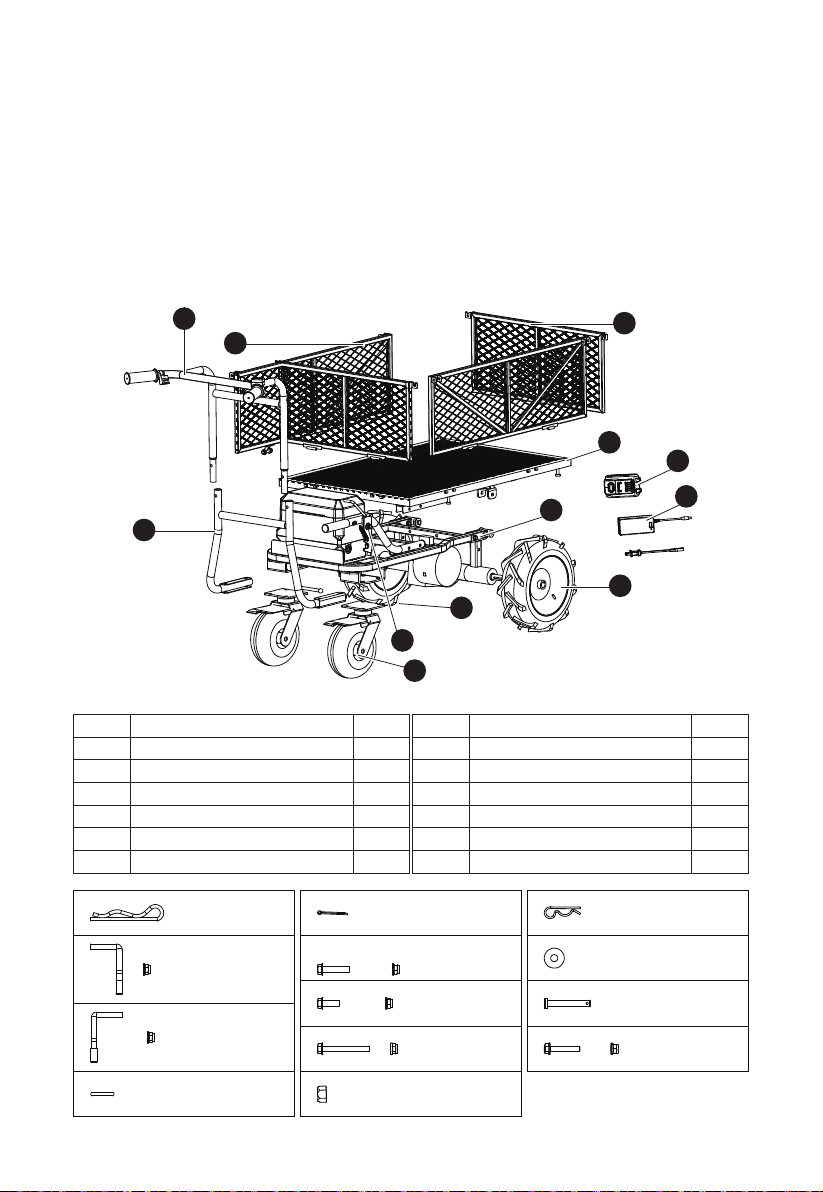

PACKAGE CONTENTS
E3
Part No.
1
2
3
4
5
6
Description
Front & Back frame
Left & Right frame
Handle (Up)
Handle (Down)
Caster
Front wheel (Right)
Q’ty
2
2
1
1
2
1
Part No.
7
8
9
10
11
12
Description
Front wheel (Left)
Handle
Chassis Frame
Charger
Battery
Chassis Frame
Q’ty
1
1
1
1
1
1
1
6
5
7
910
11
12
2
3
8
4
φ5*110 X8 3.2*36 X2 2.5*45 X2
Right Handle X2 M8*40 X2
M8*25 X8
φ10 X4
Left handle X2
5*5*25A X2
Plug X2
M8*70 X4
M14 X2
M8*45 X6

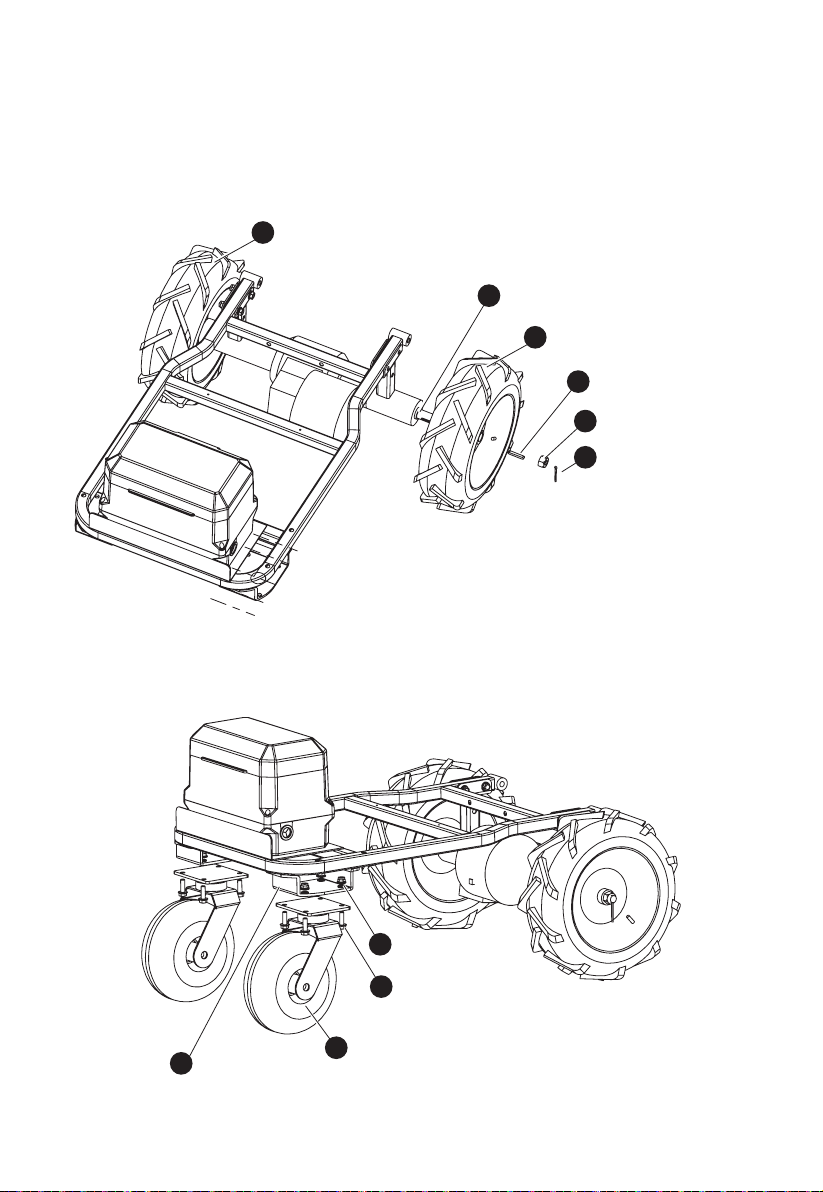

ASSEMBLE WHEEL
1. Unpack the carton and take everything out. Move the cart base and wheels aside for
assembly first.
2. Align the wheel (1) groove with the motor drive axle (2) groove, assemble the wheel on and
put the flat key(3) entirely into the key groove. Tighten the wheel by nut(4) and lock by Cotter
Pin(5).
3. Assemble another wheel (6) in the same way.
ASSEMBLE CASTER WHEEL
1. Use 4pcs part#1 and 4pcs part#3 to fix part#2 on part#4
2. Assemble another wheel in the same way.
E4
1Right wheel x1
6Left wheel x1
3Flatkey 5*5*25A x2
4Flange nut M14 x2
5Cotter Pin 3.2*36 x2
2Motor driver x1
3Flange Nut M8 x8
1Flange bolt M8X25 x8
2Swivel caster x2
4Motor driver x1

ASSEMBLE HANDLE
1. Place the main handle of bottom part (1) into the
base frame (2), fixed by Flange bolt (3) & Flange
Nut(4).
2. Insert the main handle of top part (5) into bottom
part (1) tube, fixed by Flange bolt (6) and nut (4).
ASSEMBLE MAIN FRAME
1.Take the bottom wire deck(2), face the flat wire upside
and position the dumping handle groove side to main
handle. Put the bottom wire deck(2) on to the base
frame (1) , fasten by bolt (3) and washer (4),
locked by the pin (5).
E5
3Flange bolt M8*70 x4
4Flange Nut M8 x6
5Main handle top x1
6Flange bolt M8X40 x2 1Main handle bottom x1
3
Bolt x2
4
Washer 10 x4
5
Pin 2.5*45 x2
2
Bottom x1
1
Motor driver x1

ASSEMBLE MAIN HANDLE
1. Attach the dumping handle(3) to the bottom wire deck(2), screwed by Flange bolt (1) and
nut(4).
ASSEMBLE GUARD BAR
1.Assemble the left & right frame (3), and the front & back frame (1), locked by Pin (5).
2. Locking the entire frame by handle bar (4), the electric cart assembly finished.
E6
1Flange bolt M8X45 x2
2Bottom Wire x1
4Flange Nut M8 x2
3Dumping handle x1
4Left handle x2
1Front & Back frame x2
6Bottom Wire x1
5Pin 5*110 x8
3Left & Right frame x2

The finished power cart can be two types, with the side frames or without side frames. Power
cart without side frames is for abnormal sizes items, which need to be loaded within the loading
capacity and in reasonable size to keep the cart be balance.
OPERATION
1. Open the battery box, turn on the power
switch (1), there are 2 battery
compartments,make sure the
battery switch button on the
right position (2).
2. Press the start switch (1) on the right handle,
then the battery indicator (2) will light up with
all 3 LED lights and machine is ready for
working. Press and hold the Switch
trigger (3) to start working. By
pressing less or more to
control the moving speed.
E7
2
1
2
1
3

3. Use the direction button (1) on the left handle
for forward and reverse.
4. Release the lock lever (1) out from the
dumping handle holder, push the
dumping handle to lift the cart
for dumping.
OPERATION ON SLOPS WARNINGS
1. Do not cross on slopes. Be sure to decrease speed and exercise caution.
2. Exercise caution when starting or stopping the machine on slopes.
3. As the loads become less stable on slopes, firmly secure the loads with ropes.
4. As the machine becomes unstable depending on the condition of the road, keep the load to
a minimum
5. As the view is obscured on slopes, keep the height of the load to a minimum
6. Never park the machine on steep slopes. Park the machine on flat ground, pull the brake
lever and lock the brake, and then turn the power off.
7. Do not change the direction or speed mode on steep slopes
8. Do not release the switch trigger on upward slopes. The machine may go in reverse and
cause an accident.
9. Make sure that the remaining battery capacity is enough before operating on slopes. If the
remaining battery capacity is not enough, charge the battery or replace it with a charged one.
REMAINING BATTERY CAPACITY CHECKING
During the normal working, the 3 LED lights of battery indicator are all on which means the
battery is in full power. When the orange light in the middle starts to flash, it warns the power
shortage and battery need to be charged orchanged to a new one. If the lights turn to red, the
machine stops automatically.
E8
1
1

BATTERY CHARGE
1. Battery charge: When the battery in low capacity, please do recharge. Open the battery box,
unplug the lithium battery, and connected with the charge (1) side., and connect the charge
plug (3) with electric power to start charging. Once the adaptor light (2) turns green, the
battery is fully charged.It usually takes about 1-2 hours. For a long service life of the battery,
please recharge only with charger specified by the manufacture.
TROUBLE SHOOTING
WARRANTY
All new machinery is supplied with limited 12 months Warranty.
1. The manufacturer warrantees this electric power cart against defects in material and
craftsmanship, for a period of 12 months from date of original purchase;
2. Items considered as consumable parts are not normally covered by the warranty, including
but not limited to: Batteries, Electric cables; Filters;
3. This warranty excludes parts that are worn or damaged due to normal wear, routine tune up
or adjustment, abuse/misuse or neglect, overheating lack of maintenance, fittings/fasteners
becoming loose/detached through lack of maintenance.
4. The warranty does not cover damage caused by accident, misuse or faulty installation,
improper handling, routine maintenance items such as O-rings, seals, and lubricants,
accessory parts.
5. The electric power cart must be installed and maintained in compliance with the instructions.
E9
Problem(s)
The power cart does
not run.
The power cart runs
sluggishly.
Possible Cause
Battery is not charged.
The wire is loose.
The controller is damaged.
Battery volume is low.
The battery is old and does not
accept full charge.
The conditions are too stressful
for your power cart.
Corrective Action
Charge the battery pack according to the
instructions included with you model.
Check all the connectors and to see if any
partis loose or not.
Replace the damaged one with specific
controller.
See the battery indicator to check the volume.
Charge the battery pack according to the
instructions included with you model.
Replace the battery with a new one.
The cart is intended for residential use.If slopes
are too steep or the terrain too bumpy,your cart
might experience a noticeable decrease in
performance.
2
3
1

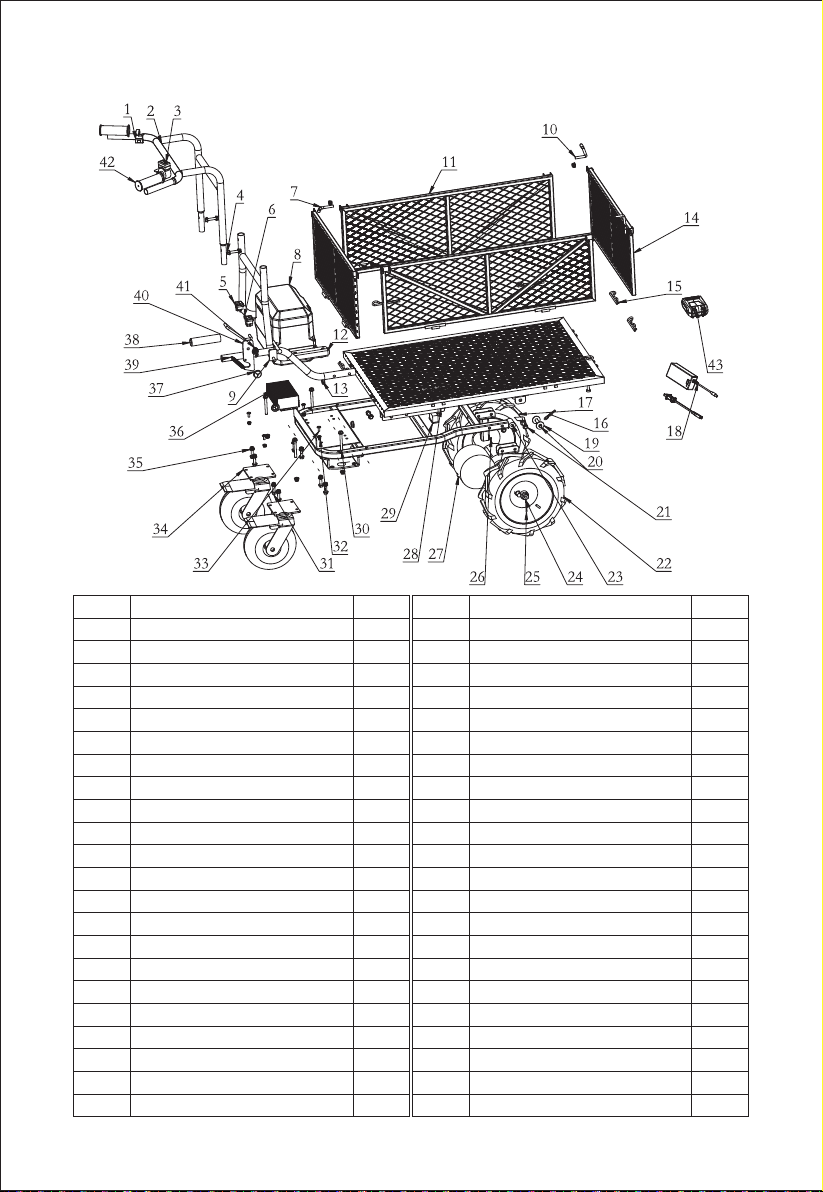

PARTS BREAKDOWN
E10
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Description
Left handle switch
Round tube handle (Up)
Turn right handle
Hexagon flange bolts M8x40
Switch
Transfer switch
Left handle
Battery Box
Handle
Right handle
Left & Right guard bar
Round tube handle (Down)
Round tube plug
Front & Back guard bar
B type pin 5*110
Pin 2.5*45
Left front wheel
Charger
Large washer φ10
Plug
Hexagon flange bolts M8*45
Right front wheel
Q’ty
1
1
1
2
1
1
2
1
1
2
2
1
3
2
8
2
1
1
4
2
6
1
Part No.
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
Description
Chassis Frame
All Metal Hex Lock Nuts M14
Cotter pin 3.2*36
Flat key
Drive axle
Main Frame
Rubber Plug
Hexagon flange bolts M8*70
Hexagon flange bolts M8*25
Hexagon flange bolts M6
Cross Recessed Flat Head Screws M6*15
Caster
Non-metallic insert lock nut M8
Controller
Rubber Plug
Handle Sleeve
Extension Spring
Hook
Washer
Sleeve
Li-Battery
Q’ty
1
2
2
2
1
1
2
4
8
4
4
2
25
1
2
1
1
1
2
2
1

Size: 145x210mm REV 09/13/22157克双铜
Great Circle USA
Support Line: 1-866-493-0524
[email protected]
www.greatcircleus.com
