Superior MAGVIBE PRO User manual

MVP-300_20210713_REV_A
MVP 300 User Manual
P/n: D-17836

MVP-300_20210713_REV_A
General
Safety symbols:
WARNING! If used incorrectly the machine can cause injury.
Please read the Operator’s Manual thoroughly making sure you understand how to use
the machine before use.
Always wear personal protective equipment (PPE) such as gloves, eye protection, hearing
protection, and a hard hat. Jobsites might require certain protective equipment be used
due to national and local regulations and insurance policies. Make sure you check with
the jobsite foreman for requirements before work begins.
Dear Customer,
Thank you for choosing a Isoplam srl product. It is our intent to deliver the best
products possible. Delivering innovative, well-built, ergonomic, efficient products is our
goal to help you do the best job possible. Safety, and innovation are our cornerstone of
design.
This Operator’s Manual is a valuable document. Print it and make sure it is always
accessible when using the machine. If you lend or sell this machine, make sure that this
document is also transferred, so the new user will know how to properly use and
maintain it. It is available for download at: www.superiorinnovationsinc.com\manuals
User Responsibility
It is the owner’s / employer’s responsibility to ensure that the operator is properly
trained and has sufficient knowledge about how to use this machine safely. Supervisors
and operators must read and understand the operators Manual. They must be aware of
the safety instructions, limitations, proper use and maintenance. Local and national
legislation may regulate the use of this machine. Find out what legislations are applicable
in your location before use.

MVP-300_20210713_REV_A
Isoplam srl Reservation
All of the information and data in this Operator’s Manual was up to date at the time the
Operator’s Manual was sent to print. Isoplam srl research and development is
continually working on product development and improvements. Therefore, we
reserve the right to modify the design, appearance and features of the product without
prior notice. The most current version of manuals can be found at:
www.superiorinnovationsinc.com\manuals
Vibration Warning
WARNING! Overexposure to vibration can lead to circulatory damage and or nerve
damage, especially in people who have impaired circulation. Contact your doctor if you
experience symptoms of overexposure to vibration. Symptoms include: numbness, loss
of feeling, tingling, pricking, pain, loss of strength, and changes in skin color and
condition. These conditions normally occur in the fingers, hands or wrists and can be
further increased in cold temperatures.
Transportation and Storage
After work is completed, remove the MagVibe™ Pro and or ProTilt©from the float and
thoroughly wipe down before the concrete has time to setup. DO NOT USE A PRESSURE
WASHER OR SUBMERGE IN WATER! There are sensitive electronics and not all areas can
be water tight.
Secure the equipment during transportation to avoid transport damage and accidents.
Store in a lockable area so that it is not able to be accessed by children or unauthorized
persons.
Due to the lithium ion battery, the temperature cannot exceed 140°F (60°C).
Personal Protective Equipment (PPE)
You must use approved personal protective equipment (PPE) whenever you use the
machine. Personal protective equipment cannot eliminate injury, but it will reduce the
degree of injury if an accident does happen. Ask your dealer for help in choosing the
right protective equipment.
Common Sense
It is not possible to cover every conceivable situation. Exercise care and use common
sense if you get into a situation where you feel unsafe. Stop and seek expert advice
by contacting Isoplam srl, Inc., a service dealer or an experienced user. Do not
attempt any task that you are unsure of.

MVP-300_20210713_REV_A
Work Area Safety
Observe your surroundings to ensure nothing can affect your control of the machine.
Observe your surroundings to ensure there is no risk of people or animals that can come
into contact with the machine while in operation.
Do not use machine in bad weather, such as heavy rain, strong winds, intense cold, or
heavy fog. Working in such weather is trying and can lead to difficult situations.
Ensure that the work area is sufficiently illuminated to create a safe working
environment.
Make sure that there are no electrical cables routed in the working area.
Make sure that the work area is clear, clean and free of obstacles that can cause trips or
spills.
Before Starting
Inspect equipment to ensure that there are no loose fasteners, cracks, leaks, or other
obvious damage. If there are do not use until the problems are corrected.
Make sure that daily maintenance has been completed.
Make sure that the MagVibe™ Pro battery is fully charged.
In the Box
(Optional)
(Optional)

MVP-300_20210713_REV_A
Warranty
New equipment sold by Isoplam srl is warranted to be free from manufacturing defects
under normal service for a period of one (1) year from date of purchase by the original
consumer. Component manufacturers offer separate warranties and are covered
separately. These components are the lithium polymer battery, the electric motor, RF
remote control batteries (27A) and the battery indicator. These components carry a 180-
day warranty from the original date of purchase. For complete information or to request
a return goods authorization number (RGA#) call technical service at [phone].
Superior Innovation’s obligation under this warranty is expressly limited to the
replacement or repair at our service facility or one that has been pre-authorized by
Isoplam srl.
This warranty does not apply to defects caused by damage, unreasonable use, faulty
repairs made by others or defects caused by failure to provide reasonable maintenance,
while in the possession of the consumer. Further, the warranty is void if the product, or
any of its components, is altered or modified by the consumer or if the product is used in
an inappropriate manner not recommended by the manufacturer.
The main case of the MagVibe™ is protected from opening by tamperproof fasteners
and has a void if opened decal to ensure the case is not opened. If the void warranty
decal is torn, removed, or damaged the warranty will be void.
In addition, a color changing water infiltration decal is located inside the MagVibe™ pro
main case. If the decal changes from white to red, the warranty will also be void. This is
due to use of a pressure washer or submersion in water.

MVP-300_20210713_REV_A

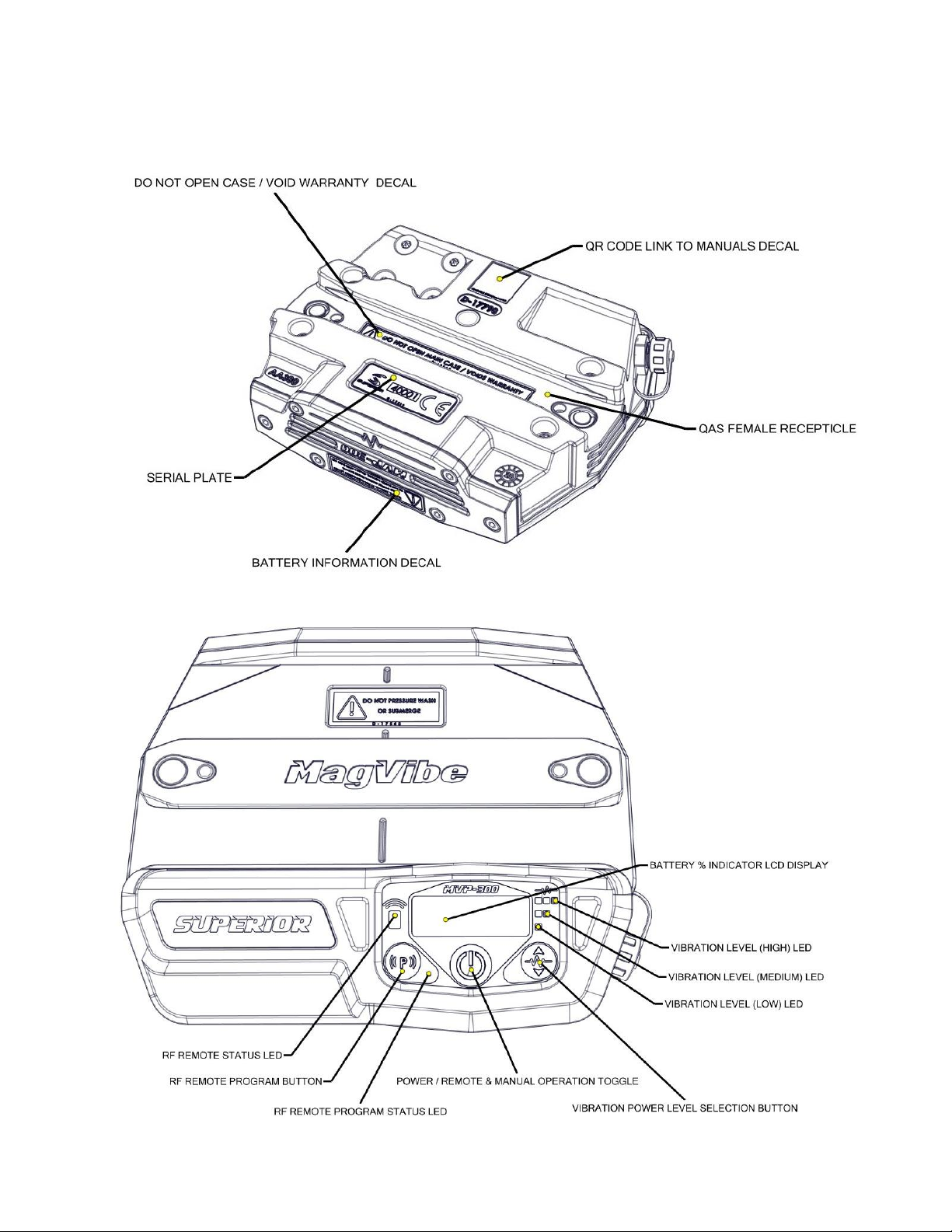

Description / Features / Controls

MVP-300_20210713_REV_A
Description / Features / Controls

MVP-300_20210713_REV_A

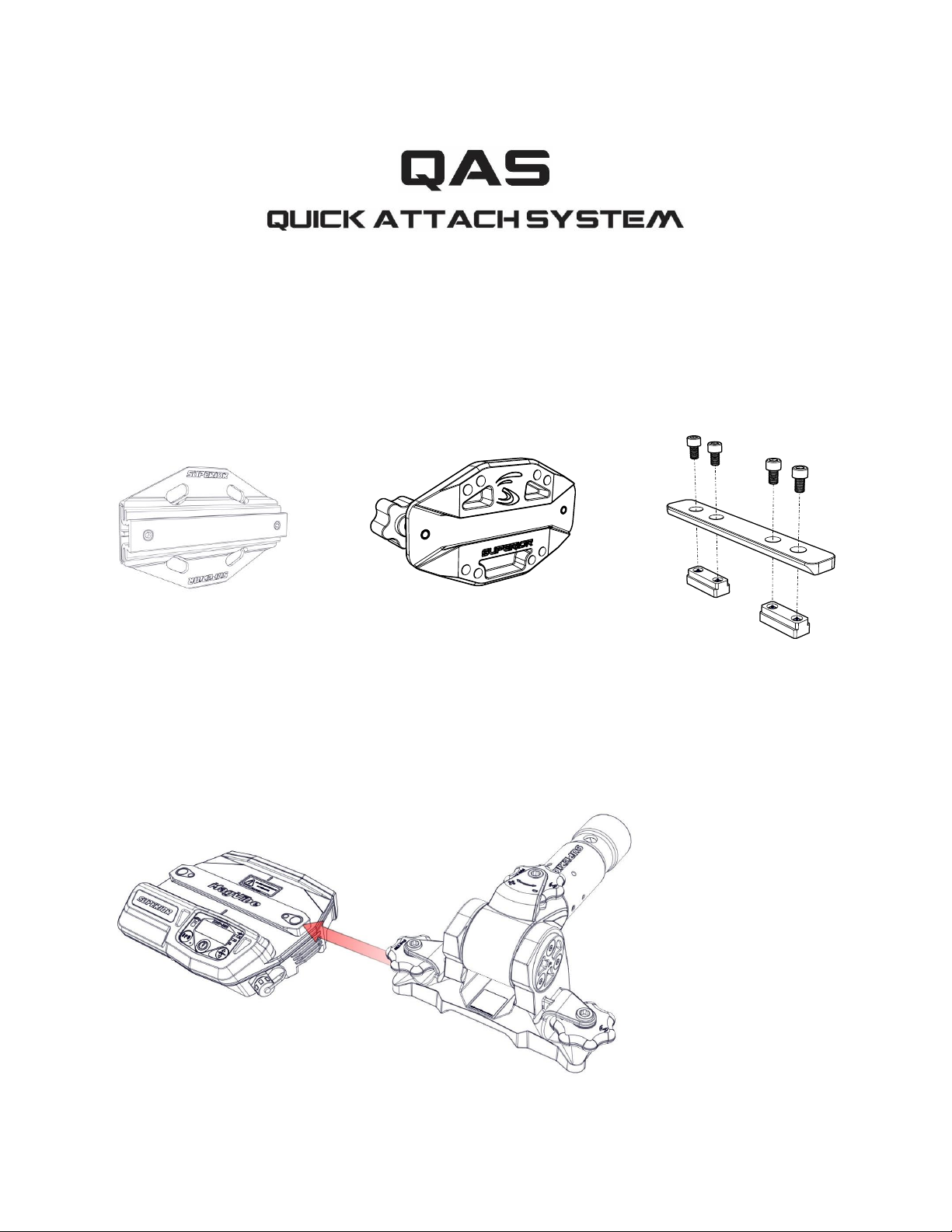

QAS™is a quick attach system designed to make it quick and easy to attach a MagVibe™Pro, ProTilt©, or
accessories to a ProFloat™©, other Superior tools and even other manufacturers floats. The ability to
quickly Remove the pivot allows for stacking of floats for transportation, easier cleanup and the ability to
switch floats or other tools very fast. The MagVibe™Pro, ProTilt©and ProFloat™©have a built-in QAS™
mounts. For other types of floats there are a variety of QAS™adapters: The QAS™-M is a four-bolt
adapter, the QAS™-W is a t-washer adapter for channel mount floats. There is also a QAS™-F adapter
that converts a standard four-bolt pivot to have a quick attach system so you can attach to a ProFloat™©.
MagVibe™ MVP 300 attachment to a ProTilt
Make sure QAS knobs
are loosened and the
shaft is all of the way
up.
Slide ProTilt onto the
QAS male mount
located on the top of
the MagVibe™ MVP
300.
QAS™-M Adapter
QAS™-F Adapter
QAS™-W Adapter

MVP-300_20210713_REV_A
Align the center of the ProTilt with the center mark
on the MagVibe™ as shown. This will help align the
QAS knob shafts with the MagVibe™ shaft extensions.
Slightly tighten the QAS knobs to where the QAS shaft
engages with the MagVibe™ shaft extensions.
Now you are ready to slide the system onto the
ProFloat™ or other tools.
To permanently attach your ProTilt to the
MagVibe™ you can now tighten the two M6 set
screws up against the ProTilt base using a 3mm
Allen key.

MVP-300_20210713_REV_A

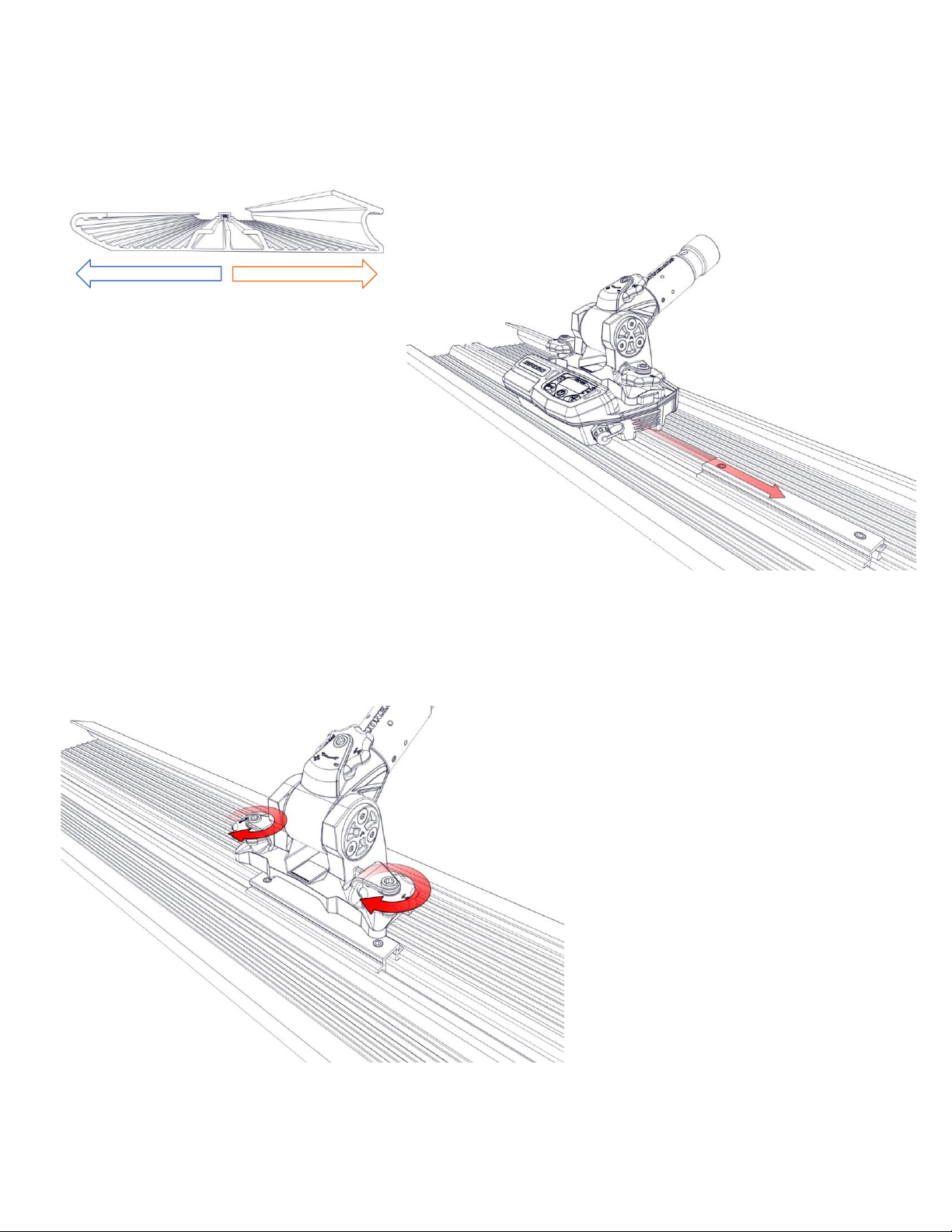

ProFloat™© Attachment
Decide which direction you want to
mount the ProFloat™. We recommend
that the cutting edge be facing the
operator when cutting high spots and
filling low spots. Once this is done the
ProFloat™ can be quickly rotated 180° to
open the concrete on the way out, and
seal on the way back.
Loosen both QAS™knobs by turning
them counter-clockwise.
Align the QAS™ receptacle with the QAS™ dovetail and slide over to engage.
Center the MagVibe Pro™ over the
QAS™dovetail and tighten both
QAS™ knobs by turning them
clockwise. DO NOT OVERTIGHTEN.
Opens Concrete
Seals Concrete

MVP-300_20210713_REV_A
Attaching the Pole Extension
Press and hold the pins in pole extension,
then align and insert into MagVibe™Pro
pivot handle. Push into bore and make
sure that the pins snap through the two
holes in the pivot handle to engage.
Same procedure for an outside pole
extension; except you will slide the pole
extension over the pivot handle. The
MagVibe™Pro pivot handle will
accommodate Ø1-3/8” internal and Ø1-
3/4” external poles.

MVP-300_20210713_REV_A
Turning MagVibe™ Pro On / Off (RF - Remote control Mode)
There are two ways to turn the MagVibe™Pro on and off. The first method is to use the pre-
programmed RF remote control (Optional) and the second is to manually control the MagVibe utilizing
the membrane switch. The following will walk through the controls.
To use the RF remote control, slide the
protective button cover downward to expose
the buttons. There are two buttons: Button
A turns the MagVibe™Pro on and off, and
Button B is an auxiliary RF control for
powered accessories from Isoplam srl.
To turn the MagVibe™Pro on and off with the remote: Press
the power button on the membrane switch to wake the
MagVibe.
When the MagVibe is ready both the blue LED located in the
remote-control icon and the green LED located in low vibration
mode will light. The MagVibe is now ready to receive RF
remote signals.
To turn on, simply press button A and the
vibration will start. When you want to
turn it off, press button A again.

MVP-300_20210713_REV_A

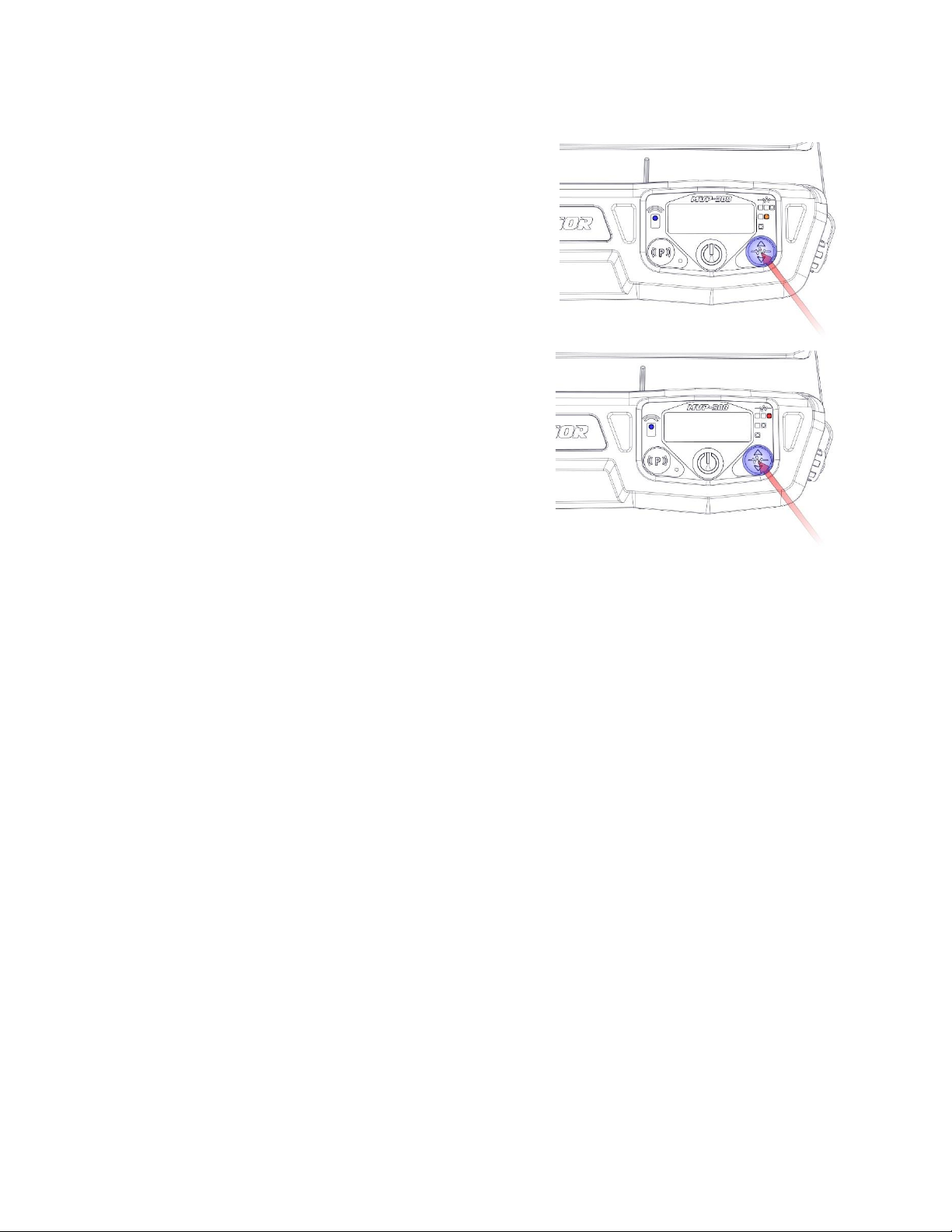

The vibration will start in low level. To change the vibration
intensity, press the vibration power level selection button to
toggle between the three levels of intensity. Pressing the
vibration selector button once will increase the vibration 12%
and the orange LED will light.
If the vibration selection button is pressed again, the vibration
will increase by an additional 21% and the red LED will light. If
the vibration selector button is pressed again, the vibration
will return to low mode.
The remote-control range will depend on surroundings; however, it should have a twenty five-foot line of
sight range.
Note: Since you can accidentally leave the MagVibe on while in remote mode and subsequently drain
the battery, the MagVibe will go into sleep mode after 6 hours of operation (standby).
To put the MagVibe back into sleep mode, press the power button on the membrane switch once and all
lights will go off as a confirmation.

MVP-300_20210713_REV_A
Turning MagVibe™ Pro On / Off (Manual Control)
To turn the MagVibe on manually with the membrane switch,
press the power button twice within a couple of seconds. The
MagVibe will start vibrating in low vibration mode and the
green LED will light.
To change the vibration intensity, press the vibration power
level selection button to toggle between the three levels of
intensity. Pressing the vibration selector button once will
increase the vibration 12% and the orange LED will light.
If the vibration selection button is pressed again, the vibration
will increase by an additional 21% and the red LED will light. If
the vibration selector button is pressed again, the vibration will
return to low mode.
Turning the MagVibe Off
To put the MagVibe back into sleep mode, press the power button on the membrane switch once and all
lights will go off as a confirmation.

MVP-300_20210713_REV_A
Battery Indicator

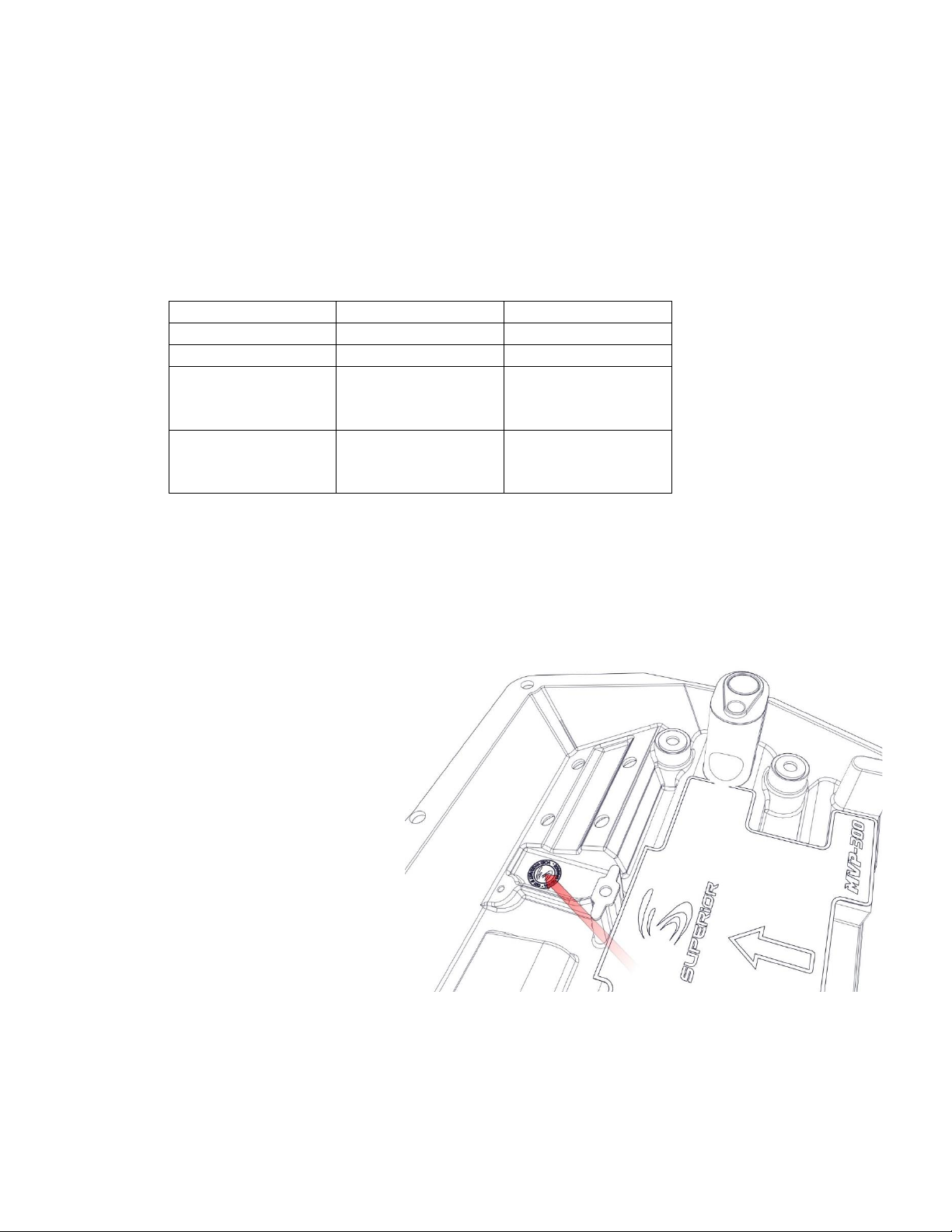

The battery indicator is positioned underneath the
membrane switch’s clear lens so the operator can see
the status of the battery when the MagVibe™ Pro is in
operation. The battery status is converted into percent
remaining.
We have built in an offset of the scale to protect the
battery from getting too low to properly charge (20%).
So, you may notice that your battery indicator displays
0%, but your MagVibe still works. At this point, you
should stop the MagVibe and charge it fully. This will keep the battery conditioned to accept a full
charge.
Never charge your battery inside a car. The extreme temperatures can cause a charging battery to
explode.
For additional battery information please see document: 6S1P222V35AH (D-17556). This technical
document can be found at www.superiorinnovations.com\manuals.

MVP-300_20210713_REV_A
Charging the Battery
The 22.2VDC Lithium Ion battery that is built in to the MagVibe™Pro
has 3500mAh capacity which should yield ~18hrs on a single charge.
To re-charge; follow these steps:
1. Unscrew the charger port canteen seal cap to expose the
charger port.
2. Line up the charger port plug and the indexer on the MagVibe
charger port; push it in and tighten the retaining screw for a
good connection.
3. Plug the LiPo balancing charger (supplied)
into a 120 VAC wall outlet.
4. The LED on the side face of the charger will
turn red when charging. When the battery
is at 95% of full charge the LED will flash
red/green. When the battery is fully
charged, the LED will turn green.

MVP-300_20210713_REV_A
Programming the Remote
If you ordered your MagVibe without a remote and want to add one or you lost
your remote and need to program a replacement, you can do it yourself. You will
need to order part number D-13535. Once you receive your replacement remote
have it ready by sliding down the button cover to expose the two pushbuttons.
Follow these steps to program the MagVibe pro for the RF remote control.
1. Press the power button on the MagVibe to wake it up.
2. Press and hold the “P” button until the blue LED light
flashes (~5 seconds). Then let go of the “P” button and
wait for the blue LED to stop flashing. This clears any
previously stored RF smart codes in the MagVibe.
3. Press the “P” button on the membrane switch again and the blue LED will light. At this point the
MagVibe is ready to read the smart scan code from the RF remote.
4. Push button “A” on the RF remote and let go. The blue LED should
begin to blink.
5. Push button “A” on the RF remote again and the blue LED should go off.
6. Push button “A” again and the MagVibe will begin to vibrate if a
successful pairing has taken place. If it did not turn on repeat from step 3.

MVP-300_20210713_REV_A
Maintenance Statement
The owner is responsible for the performance of all required maintenance, as described in the Operator’s
Manual.
Maintenance Schedule
Daily Maintenance
Weekly Maintenance
Monthly Maintenance
Cleaning (external)
Cleaning (external)
Cleaning (external)
Inspection
Inspection
Inspection
loose fasteners,
cracks, leaks, or other
obvious damage
loose fasteners,
cracks, leaks, or other
obvious damage
loose fasteners,
cracks, leaks, or other
obvious damage
Check battery is
charged and ready to
go.
Check battery is
charged and ready to
go.
Check battery is
charged and ready to
go.
Maintenance
Remove MagVibe™ Pro from the float
and clean after every use. Make sure to
pay special attention to the QAS™
receptacle. If concrete sets-up around
the QAS™ it may become difficult to
use. The MagVibe™ Pro has sensitive
electronics located inside the pivot and
the main body; DO NOT USE A PRESSURE
WASHER OR SUBMERGE IN WATER.
The MagVibe MVP300 has a color
changing water infiltration decal inside
that will only activate if the MagVibe has
been cleaned with a pressure washer or
submerged in water. The presence of
water in the MagVibe will void any
warranty.

MVP-300_20210713_REV_A
Do not attempt to access the internal components of the MagVibe; this will void your warranty. In
addition to tamper-resistant main case fasteners, the MagVibe has a Void Warranty if Seal is Broken
decal. You are able to replace the battery if ever needed. See technical document:
www.superiorinnovations.com
RF Remote Battery Replacement
To replace the battery in the RF remote controller, remove (4) screws on the
back side of the RF remote control cover using a Philips screwdriver.
Remove the RF remote back cover plate.
Make note of the battery polarity.
Remove the RF controller board.
Remove the battery.
Install a new battery. MAKE SURE THAT
THE POLARITY IS CORRECT.
Reinstall the RF controller board.
Place the RF remote back cover plate
making sure to align the screw holes.
Reinstall the (4) screws and tighten using a Philips
screwdriver. You may need to reprogram MagVibe™ Pro RF
receiver if the code was lost during the battery reinstall process.
See Programming a Lost Remote in this manual for instructions.

MVP-300_20210713_REV_A
Technical Data
Dimensions
L
W
H
MagVibe
5.69
(1.44.7mm)
6.59
(167.5mm)
2.82
(71.7mm)
MagVibe and
ProTilt
10.50
(267.7mm)
7.22
(183.49mm)
5.03
(127.70mm)
Mass
MagVibe
2.83# (1.27Kg)
MagVibe and
ProTilt
5.62# (2.55Kg)
Battery
22.2VDC, 3500mAh LiPo Battery, 6 Cell
Motor
24V DC, 0.6A
Runtime
~18Hr.
Charging port
Sealed Canteen-Style
Controls
Membrane Switch with Integrated Timer and 3 speeds
RF Remote Controlled (Optional)
433.92MHz
Antenna
Integrated PCB antenna (Internal)
Mounting / Attachment
Quick Attach System (QAS) integrated in MVP and
ProTilt
Tilt Angle ProTilt G3
210°
Gearbox
Fully Sealed
Bearings
Sealed Ball Bearings
Tensioner
Fine control and pivot Stop
Pole Extension Attachment
1-3/8” and 1-3/4” Pole Attachment
LiPo Battery Level Indicator
LiPo 6S with % charge remaining
Gear Ratio
2.85:1
Hardened Beveled Gears
60HRc (Surface) / 35HRc (core)
Can Use Multiple Units at the same time
Compatibility
Fits on all tools except hand tools
CE
CE Compliant
Die Cast Aluminum
AA380 (Recyclable)
Die Cast Aluminum Finish
hard anodized
Charger
LiPo Smart charger with balancer
