Supermicro Supero SC832 User manual

1.0a
®
SUPER
SC832/SC833 CHASSIS
USER'S GUIDE
MUTE RESET
!
2
1
R

1-2
SUPER SC832/SC833 Chassis User’s Guide
The information in this User’s Guide has been carefully reviewed and is believed to be
accurate. The vendor assumes no responsibility for any inaccuracies that may be
contained in this document, makes no commitment to update or to keep current the
information in this manual, or to notify any person or organization of the updates. Please
Note: For the most up-to-date version of this manual, please see our
web site at www.supermicro.com.
SUPERMICRO COMPUTER reserves the right to make changes to the product described in
this manual at any time and without notice. This product, including software, if any, and
documentation may not, in whole or in part, be copied, photocopied, reproduced, translated
or reduced to any medium or machine without prior written consent.
IN NO EVENT WILL SUPERMICRO COMPUTER BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR
INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, THE VENDOR SHALL NOT HAVE
LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE
PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of
Santa Clara County in the State of California, USA. The State of California, County of
Santa Clara shall be the exclusive venue for the resolution of any such disputes.
Supermicro's total liability for all claims will not exceed the price paid for the hardware
product.
Unless you request and receive written permission from SUPER MICRO COMPUTER, you
may not copy any part of this document.
Information in this document is subject to change without notice. Other products and
companies referred to herein are trademarks or registered trademarks of their respective
companies or mark holders.
Copyright © 2004 by SUPER MICRO COMPUTER INC.
All rights reserved.
Printed in the United States of America

1-3
Chapter 1: Safety Information and Technical Specifications
Table of Contents
Chapter I: Safety Information and Technical Specifications.......... 1-4
1-1. Electrical Safety Guidelines ............................................................. 1-4
1-2. General Safety Guidelines............................................................... 1-5
1-3. ESD Safety Guidelines ....................................................................... 1-6
1-4. Operation Safety Guidelines.......................................................... 1-6
1-5. Product Compliance Information................................................. 1-8
1-6. Packing List and the SC832/SC833 Specifications ............... 1-9
Chapter 2: Chassis Description and Installation Procedures........ 2-1
2-1. Chassis Description ........................................................................... 2-1
A. Contents of the Accessory Kit ............................................................... 2-1
B. Chassis Front View and the Front Control Panel ................................ 2-2
C. Chassis Rear View and the Back Panel .............................................. 2-4
2-2. Chassis Installation ........................................................................... 2-6
A. Important Safety Guidelines ..................................................................... 2-6
B. Tools Needed.............................................................................................. 2-6
C. Accessing the SCA Drive Tray and Installing a HDD.......................... 2-7
D. Removing the Top Cover of the Chassis............................................... 2-8
E. Accessing the Front Chassis Fans ........................................................ 2-9
F. Accessing the Power Supply ................................................................ 2-10
G. Installing the Air Shrouds....................................................................... 2-13
H. Installing the Motherboard ...................................................................... 2-15
I. Installing Chassis Rails ............................................................................ 2-17
J. Rack Installation....................................................................................... 2-19

1-4
SUPER SC832/SC833 Chassis User’s Guide
Chapter 1-Safety Information and Technical
Specifications
1-1 Electrical Safety Guidelines
Warning: To avoid electrical shock, check the power
cords as follows:
Checking the Power Cords
zUse the exact type of power cords as required.
zBe sure to use power cord(s) that came with safety certifications.
zThe power cord(s) must be compliant with the AC voltage requirements in your
region.
zThe power cord plug cap must have an electrical current rating that is at least
125% of the electrical current rating of this product.
zThe power cord plug cap that plugs into the AC receptacle on the power
supply must be an IEC 320, sheet C13, type female connector.
zBe sure to disconnect the power supply before accessing the SC832/SC833
or its components.
zPlug the Power cord(s) into a socket that is properly grounded before
turning on the power.
Warning: Follow the guidelines below to avoid possible
damages to the system or injury to yourself:
General Electrical Safety Guidelines
zBe aware of the locations of the power switches on the chassis and in the
room, so you can disconnect the power supply if an accident occurs.
zTake extra precautionary measures when working with high voltage
components. It is not recommended to work alone.
zBefore removingor installingmainsystem components,be sue todisconnect
the power first. Turn off the system before you disconnect the PS.
Use only one hand when working with powered-on electrical equipment to
avoid possible electrical shock.

1-5
Chapter 1: Safety Information and Technical Specifications
Use rubber mats specifically designed as electrical insulators when working
with computer systems.
The power supply or power cord must include a grounding plug and must
be plugged into grounded outlets.
Motherboard Battery: CAUTION -Make sure not to install the onboard battery
upside down to avoid possible explosion. Make sure that the positive side
should be facing up on the motherboard. This battery must be replaced
only with the same or an equivalent type recommended by the manufac-
turer. Dispose of used batteries according to the manufacturer's instruc-
tions.
CD-ROM Laser: CAUTION - Do not open the enclosures of power supplies
or CD ROM to avoid injury.
1-2 General Safety Guidelines
Warning: Follow these rules to ensure general safety:
Keep the area around the SC832/SC833 clean and free of clutter.
To avoid injuries to the back, be sure to use your leg muscles, keep your
back straight, and bend your knees, when lifting the system.
Avoid wearing loose clothing to preventing it from coming into contact with
After removing the components or chassis covers from the system, place
them on a table for safeguard.
Be sure to remove any jewelry or metal objects before working on the
chassis to avoid short circuits should these objects come into contact
with power circuits.
After accessing the interior of the chassis, be sure to close the chassis
with chassis covers and secure the chassis to the racks with screws.

1-6
SUPER SC832/SC833 Chassis User’s Guide
1-3 ESD Safety Guidelines
Use a grounded wrist strap designed to prevent static discharge.
Keep all components and printed circuit boards (PCBs) in their antistatic
bags until ready for use.
Touch a grounded metal object before removing the board from the antistatic bag.
Do not let components or PCBs come into contact with your clothing, which may
retain a charge even if you are wearing a wrist strap.
Touch a grounded metal object before removing the board from the antistatic
bag.
Handle a board by its edges only; do not touch its components, peripheral
chips, memory modules or contacts.
When handling chips or modules, avoid touching their pins.
Put the motherboard and peripherals back into their antistatic bags when not in
use.
For grounding purposes, make sure your computer chassis provides excel
lent conductivity between the power supply, the case, the mounting
fasteners and the motherboard.
Electric Static Discharge (ESD) can damage electronic com-
ponents. To prevent damage to your system board, it is
important to handle it very carefully. The following measures are
generally sufficient to protect your equipment from ESD.
1-4 Operation Safety Guidelines
Warning: For proper cooling, make sure to install all
chassis covers before turning on the system. If this rule is
not strictly followed, warranty may become void. Do not open
the casing of a power supply. Power supplies can only be
accessed and serviced by a qualified technician of the manufacturer.

1-7
Chapter 1: Safety Information and Technical Specifications
To avoid personal injury and property damage, please carefully
follow all the safety steps listed below:
Before accessing the chassis:
1. Turn off all peripheral devices connected to the SC832/SC833.
2. Press the power button to power off the system.
3. Unplug all power cords from the system or the wall outlets.
4. Disconnect all the cables and label the cables for easy identification.
5. Use a grounded wrist strap designed to prevent static discharge when
handling components.
Removing the chassis covers:
After completing the above steps, you can remove the covers and install
components/peripheral devices into the chassis as described in Chapter 2.
1. Unlock and remove the screws and fasteners to remove the cover or
components.
2. Save all the screws and fasteners for later use. (If necessary, label these
screws or fasteners for easy identification.)
3. Follow the instruction given in Chapter 3 to remove the chassis covers.
Reinstalling the chassis covers:
To maintain proper system cooling and airflow, do not operate the system
without installing all chassis covers back to the chassis. To reinstall the chassis
covers, please follow the steps listed below:
1. Make sure that all components and devices are securely fastened
on the chassis and there are no loose parts/screws inside the chassis.
2. Make sure that all cables are properly connected to the connectors and ports.
3. Use the original screws or fasteners to install the covers to the chassis.
4. Be sure to lock to the chassis or the system to prevent unauthorized access.
5. For proper cooling, enclose the chassis with covers before operating the
system.

1-8
SUPER SC832/SC833 Chassis User’s Guide
Before installing the chassis into a rack:
1. Make sure that the rack is securely anchored onto a unmovable surface or
structure before installing the chassis into the rack.
2. Unplug the power cord(s) of the rack before installing the chassis into the
rack.
3. Make sure that the system is adequately supported. Make sure that all the
components are securely fastened to the chassis toprevent components fall-
ing off from the chassis.
4. Be sure to install an AC Power Disconnect for the entire rack assembly and
this Power Disconnect must be clearly marked.
5. The rack assembly shall be properly grounded to avoid electric shock.
6. The rack assembly must provide sufficient airflow to the chassis for proper
cooling.
1-5 Product Compliance Information
The SC832/SC833 Chassis is compliant with the following safety
standards/requirements:
Product Safety
*Canada/USA--UL60 950-CSA60 950
*European Union--EN 60 950
*International--IEC60 950
Electromagnetic Compatibility (EMC)-Emissions
*European Union--EN55022: 1994
*International--CISPR22
*USA--Title 47 CFR, Part 15
Power Line Harmonics/Voltage Flicker
*European Union--EN61000-3-2/EN61000-3-3
*International--IEC61000-3-2
Electromagnetic Compatibility-Immunity
*European Union--EN55024: 1998
*International--CISPR24

1-9
Chapter 1: Safety Information and Technical Specifications
A. The SC832/SC833 chassis contains the following:
The SC832 chassis:
1-6 Packing List and the SC832/SC833 Specifications
&RPSRQHQW 4XDQWLW\ 3DUW1XPEHU
6&$´'ULYH7UD\V  &6(37%
PP+RW6ZD &KDVVLV)DQ )$1
PP5HDU&KDVVLVIDQ2 WLRQDO )$1
7UL OH5HGXQGDQW:3RZHU6X O\ 3:60:
3RZHU6X O\3RZHU'LVWULEXWRU &6(373':
:3RZHU6X O\  3:6:
 RUW6$7$%DFN ODQH6&72QO\ &6(6$7$
 RUW6&6,%DFN ODQH6&62QO\ &6(6&$6
)OR \'ULYH )3'7($&%
&'520'ULYH 2 WLRQDO &'07($&%





&RPSRQHQW 4XDQWLW\ 3DUW1XPEHU
6&$´'ULYH7UD\V  &6(37%
PP+RW6ZD &KDVVLV)DQ )$1
PP5HDU&KDVVLVIDQ )$1
 &6(37
)DQ6KURXG6HWV
 &6(37
7UL OH5HGXQGDQW:3RZHU6X O\ 3:60:
3RZHU6X O\3RZHU'LVWULEXWRU &6(373':
:3RZHU6X O\  3:6:
 RUW6$7$%DFN ODQH6&72QO\ &6(6$7$
 RUW6&6,%DFN ODQH6&62QO\ &6(6&$6
)OR \'ULYH )3'7($&%
&'520'ULYH 2 WLRQDO &'07($&%


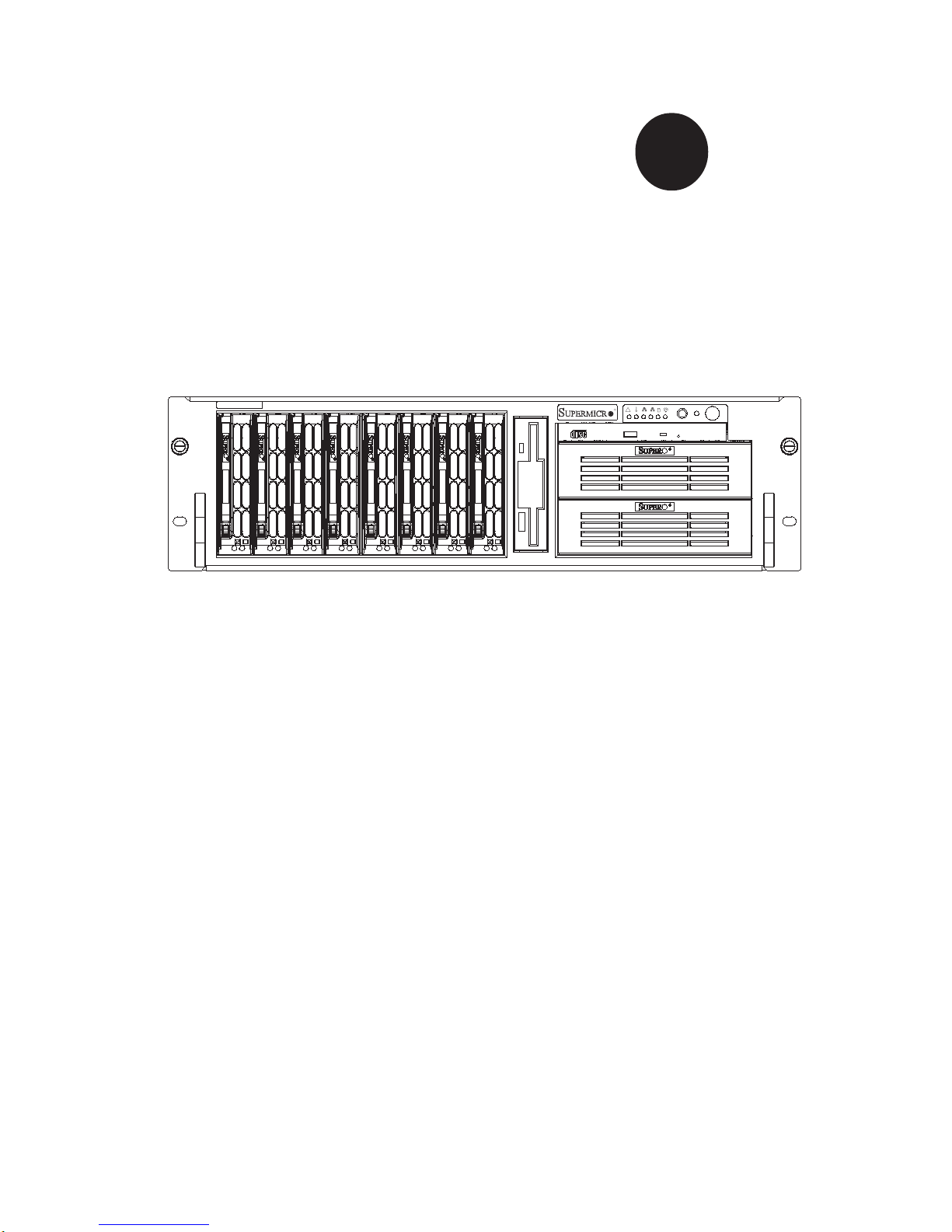

The SC833 chassis:

1-10
SUPER SC832/SC833 Chassis User’s Guide
D. The Power Supply Specifications of the SC832/SC833
The Accessory box contains the following:
C. The Rail Packaging contains the following:
RailPackagingcontains:
B. The Accessory Box and the Rail Packaging contain the
following:
Power supply spec 760W series
550W Series
Mfr. model# 3 x SP382-TS SP550
Mfr. part # 3 x PWS-0050M PWS-0047
Rated AC input voltage 100-240V AC 100-240V AC
Rated input frequency 50-60 Hz 50-60 Hz
Rated input current 14A (115V) 9A(115V)
7A (230V) 4.5A(230V)
Rated output power 760W 550W
Maximum rated BTU 4350 BTUs/Hr 2910 BUTs/Hr
Nominal DC output
+3.3V 36A 30A
+5V 36A 35A
+12V 50A combined 34A
-5V n/a 0.8A
-12V 1A 1A
+5Vsb 3.5A 2A
(*Note: When connecting the 760W Power Supply to the Drive
Backplane, be sure to use the connectors marked "PD" and "PG",
colored in yellow/green stripes.)
&RPSRQHQW 4XDQWLW\
5DFN5DLO$VVHPEO\ VHWV
)URQW%UDFNHWVIRU0RXQWLQJ5DFN5DLO 
5HDU%UDFNHWVIRU0RXQWLQJ5DFN5DLO 
0RXQWLQJ6FUHZV VHW
&RPSRQHQW 4XDQWLW\
:$&3RZHU&RUGV
:
0RWKHUERDUG6FUHZVDQG6WDQGRIIV VHW
+''6FUHZV VHW
:UHQFK 

1-11
Chapter 1: Safety Information and Technical Specifications
E. The Serial ATA Back Panel (*SC832/SC833T Only)
E-1 Jumper Settings and Pin Definitions
E-2 Jumper Setting Locations
A
B
FECD
BUZZER RESET
JP25
FAN#3
JP63 FAN#2
JP26 FAN#1
JP61
JP62
S
UPER SATA833
(*Note: When connecting the 760W Power Supply to the Drive
Backplane, be sure to use the connectors marked "PD" and "PG",
colored in yellow/green stripes.)
 -XPSHUV 'HIDXOW6HWWLQJV 1RWHV
$ -3 2 HQ %X]]HU5HVHW1RWH%HORZ
% -3  2YHUKHDW7HP HUDWXUHDW

&
& -3 2 HQ &RPPRQ$FW,QDQG$FW,Q
' -3 &ORVHG )DQ(QDEOHG6HQVH
( -3 &ORVHG )DQ(QDEOHG6HQVH
) -3 &ORVHG )DQ(QDEOHG6HQVH
1RWH3UHVVWKHEXWWRQRQWKHIURQW DQHORQFHWRGLVDEOHWKHEX]]HU,IWKH
EX]]HUKDVEHHQGLVDEOHG OHDVHEHVXUHWR UHVVWKHEXWWRQRQFHDJDLQWR
UHHQDEOHWKHEX]]HU

1-12
SUPER SC832/SC833 Chassis User’s Guide
F. The SCSI Back Panel (*SC832/SC833S Only)
F-1 Jumper Settings and Pin Definitions
F-2 Jumper Setting Locations
A
DCB
BUZZER RESET
FAN#3
JP43 FAN#2
JP42 FAN#1
JP41
SUPER SCA833S
(*Note: When connecting the 760W Power Supply to the Drive
Backplane, be sure to use the connectors marked "PD" and "PG",
colored in yellow/green stripes.)
 -XPSHUV 'HIDXOW6HWWLQJV 1RWHV
$ -3 2 HQ %X]]HU5HVHW1RWH%HORZ
% -3 &ORVHG )DQ2Q6HQVH
& -3 &ORVHG )DQ2Q6HQVH
' -3 &ORVHG )DQ2Q6HQVH
1RWH3UHVVWKHEXWWRQRQWKHIURQW DQHORQFHWRGLVDEOHWKHEX]]HU,IWKH
EX]]HUKDVEHHQGLVDEOHG OHDVHEHVXUHWR UHVVWKHEXWWRQRQFHDJDLQWR
UHHQDEOHWKHEX]]HU

1-13
Chapter 1: Safety Information and Technical Specifications
F-3 SCSI (Super) GEM Driver Installation (*for Windows OS)
(*Note: This driver is not necessary for other Operating Systems. If
you have two SCA backplanes, you will need to install the driver
twice.)
The driver is located on the Super Micro motherboard driver CD or is
available for download from our FTP site: ftp://ftp.supermicro.com/driver/
Qlogic/
Follow the procedure below to install this driver to your system.
Installing the driver:
1) Right click on “My Computer” and choose “Property”.
2) Select “Hardware” tab and click on “Device Manager”.
3) Open “Other Devices” or wherever “GEM318” is on.
4) Right click on this device and choose “Property”.
5) Click on “Driver” tab and choose “Update Driver”.
6) Click “Next” 2 times, uncheck both “Floppy disk drives” and “CD-ROM
drives”. Then, select the item- “Specify a location,” and choose “Next”.
7) Click on “Browse” and choose D drive or wherever Supermicro Setup
CD is in.
8) Choose “Qlogic” folder and click on “Open”.
9) System will automatically detect GEM318 and install the drive from this
point on.
or,
1) Right click the "My Computer" icon on your desktop and choose
Properties.
2) Click on the Hardware tab and click on "Device Manager" to bring up
the list of system devices.
3) You may see one or two yellow question marks (?) that read QLogic
GEM354 or GEM318 SCSI Processor Device. Right click on these, and
choose to uninstall. If two such question marks are present, uninstall
both.
4) Click on Action tab and choose "Scan for Hardware Changes". The
Hardware Wizard program should start up. Click "Next".
5) At the first prompt, choose “Display a list of known device drivers for
the device so that I can choose a specific driver” and click "Next".
6) Choose “Other Devices” and click Next.
7) Choose “Have Disk”, and specify your floppy drive location in the
options box. Then, click "Next".
8) Highlight “Enclosure Services Device” and click "Next".
9) Ignore the warning prompt by clicking "Yes".

1-14
SUPER SC832/SC833 Chassis User’s Guide
Notes

2-1
Chapter 2: Chassis Description and Installation Instructions
2-1 Chassis Description

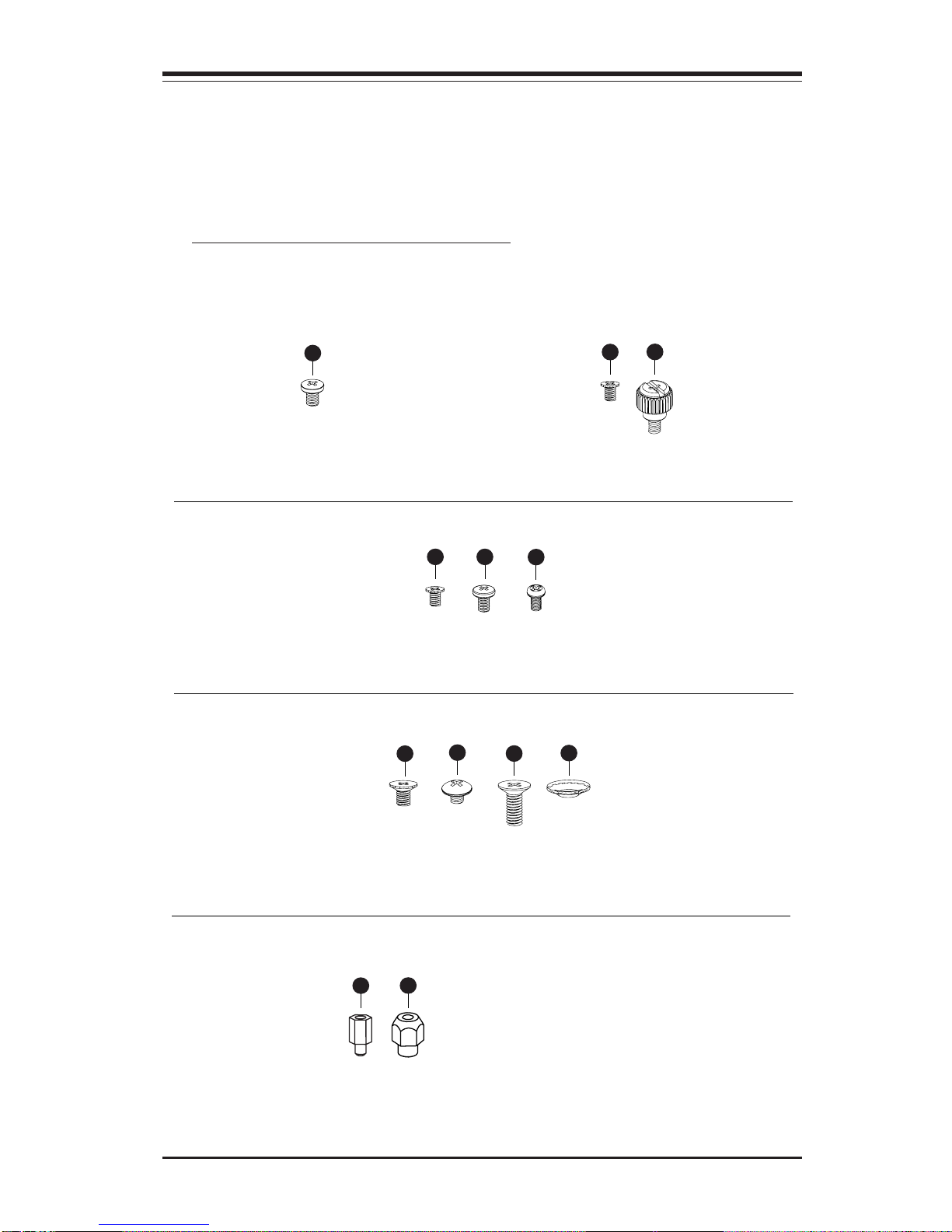

A. Contents of the Accessory Kit:
The following items are included in the Accessory Kit:
Chapter 2: Chassis Description and Installation
Instructions
GH
F
F. Flat head M4 x 4 mm [0.157]
RAIL
I
G. Round head M4 x 4 mm [0.157]
H. Flat head M5 x 12 mm [0.472]
I. Washer for M5
B
B. Flat head 6-32 x 5 mm [0.197]
DRIVE
DE
E. Round head M3 x 5 mm [0.197]
D. Pan head 6-32 x 5 mm [0.197]
A
A. Pan head w/ lock
6-32 x 4.5 mm [0.177]
M/B
B
B. Flat head 6-32 x 5 mm [0.197]
HDD
C
C. Thumb screw 6-32 x 5 mm [0.197]
J
J. M/B standoff, 6-32 to 6-32
M/B STANDOFF
K
K. M/B (CPU) standoff, M5 to 6-32

2-2
SUPER SC832/SC833 Chassis User’s Guide
MUTE RESET
!
2
1
R

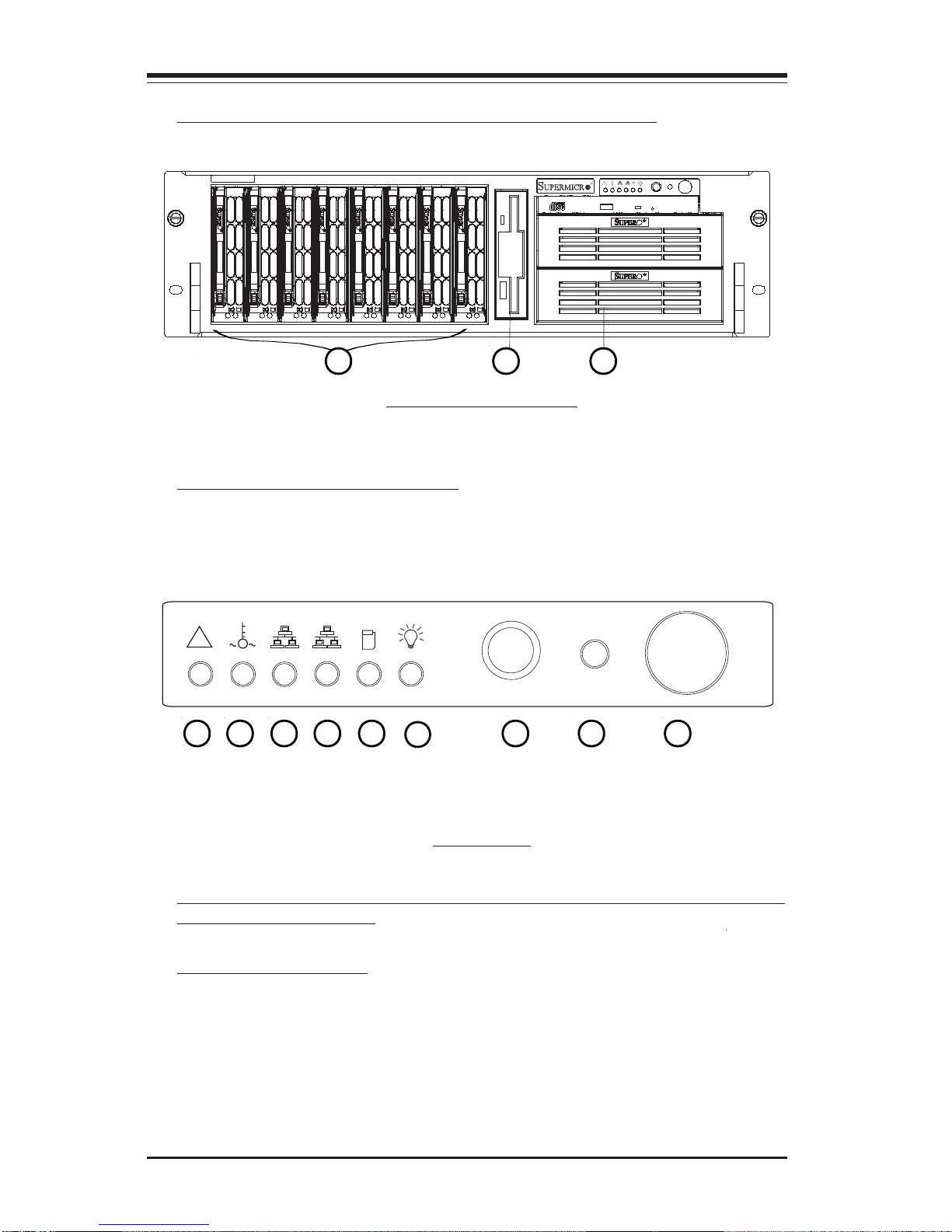

B. Chassis Front View and the Front Control Panel
LED Panel
LED Button Definitions
L.SystemAlert/PowerFailure
K.Overheat
J. LAN2
I. LAN1
H. HDD Activity
G.PowerIndicator
F. Alarm Reset (*Note)
E. Reset
D.PowerButton
Chassis Front Panel
A. SCA Drive Trays(8)
B. Floppy Disk(1)
Front Panel I/O Device Definitions
C. 5.25" Drive Bays(2)
A B C
DEF
G
H
I
J
KL
(*Note: After the Alarm goes off, please press the Alarm Reset button to
reactivate the function.)
(*Note)
!21
MUTE RESET

2-3
Chapter 2: Chassis Description and Installation Instructions
LED Button Descriptions
/('%XWWRQ &RORU &RQGLWLRQ 'HVFULSWLRQ
*UHHQ 2Q 6\VWHP2Q3RZHU
 2II 6\VWHP2II
$PEHU %OLQN +''$FWLYLW\''
 2II 1R$FWLYLW\
*UHHQ 2Q /LQNHG
 %OLQN /$1$FWLYLW\
/$1/$1
 2II 'LVFRQQHFWHG
5HG 2Q 6\VWHP2YHUKHDW2YHUKHDW
 2II 6\VWHP1RUPDO
5HG 2Q RUPRUH3:5PRGXOHVIDLOXUH6\VWHP$OHUW
3RZHU)DLOXUH  2II 6\VWHP1RUPDO


2-4
SUPER SC832/SC833 Chassis User’s Guide
C. Chassis Rear View and the Back Panel
*I/O Back Panel
Back Panel I/O Port Definitions
E.Keyboard&Mouse
SC832/SC833 Chassis Rear View
Back Panel Devices
A. Power Supply Modules (3) (*760W only)
B. Back Panel I/O Ports
C.Rear System FanSlots(2)
F. USB Ports
G.COM/Video Ports
H. LAN1 & LAN2
I.ParallelPort
(*Note: The actual I/O Configuration of your system might be different
from the one shown above.)
A
B
C
D
D. Full size PCI Expansion Slots (6)
I
E F G H

2-5
Chapter 2: Chassis Description and Installation Instructions
Power Module LED Descriptions
&RORU&RQGLWLRQ 'HVFUL WLRQ
*UHHQ 3RZHU6X O\'&2Q
$PEHU 3RZHU6X O\6WDQGE\
3RZHU0RGXOH/('
2II 1R$&3RZHUWRWKHV\VWHP

2-6
SUPER SC832/SC833 Chassis User’s Guide
B. Tools needed
2-2 Chassis Installation
A. Important Safety Guidelines
Stop Thisproductshallonlybe accessed,assembledandserviced
bytechnicallyqualifiedpersonnelortechnicians.
To avoid personal injury and property damage, please read all the information
providedinChapter1, and carefully followalltheSafetyGuidelineslistedbefore
accessingorservicing theSC832/SC833oritscomponents. Foryourconvenience,
someSafetyStepsarealsolistedbelow:
Safety Steps
Beforeaccessingthechassis:
1. Turn off all peripheral devices and turn off the power supply connected to the
SC832/SC833.
2. Unplug all power cords from the system or the wall outlets.
3. Disconnect all the cables and label the cables for easy identification.
4. Use a grounded wrist strap designed to prevent static discharge when han-
dling components.
Removing the chassis covers:
After completing the above steps, you can remove the chassis covers and install
componentsand devices intothe chassis asdescribed inthis chapter.
1.Unlockandremovethescrewsandfastenerstoremovethecoverorcomponents.
2.Saveallthescrewsandfastenersforlateruse.(Ifnecessary,labelthesescrews
orfastenersforeasyidentification.)
3. Follow the instructions given in this chapter to remove the chassis covers.
1. Fillips Screw Driver
2.Antistatic Strap
