User's Guide
Revision 1.0
AOC-2UR68G4-i4XTS
AOC-2UR68G4-i2XT

User's Guide Revision 1.0
Release Date: April 5, 2021
Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.
Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.
Copyright © 2021 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
The information in this user's guide has been carefully reviewed and is believed to be accurate.
The manufacturer's assumes no responsibility for any inaccuracies that may be contained in this
document, and makes no commitment to update or to keep current the information in this user's
guide, or to notify any person or organization of the updates. Please Note: For the most up-to-date
version of this user's guide, please see our Website at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this user's guide at any time and without notice. This product, including software and
documentation, is the property of Supermicro and/or its licensors, and is supplied only under a
license. Any use or reproduction of this product is not allowed, except as expressly permitted by
the terms of said license.
IN NO EVENT WILL SUPER MICRO COMPUTER, INC. BE LIABLE FOR DIRECT, INDIRECT,
SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE
USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC.
SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED
WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING,
INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between the manufacturer and the customer shall be governed by the laws of
Santa Clara County in the State of California, USA. The State of California, County of Santa Clara
shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for
all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class A
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in an industrial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the manufacturer’s instruction manual, may cause harmful interference with
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case you will be required to correct the interference at your own expense.
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproduc�veharm. Formore informa�on, go
to www.P65Warnings.ca.gov.
!

Preface
About this User's Guide
This user's guide is written for system integrators, PC technicians, and
knowledgeable PC users. It provides information for the installation and use of the
AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT add-on card.
About this Add-on Card
Ultra Riser Cards are the most advanced Riser Cards in the market. They provide
PCI-E 4.0 expansion slots for the latest Gen 4 PCI-E add-in cards while also
functioning as networking devices that supports various LAN controllers. The AOC-
2UR68G4-i4XTS and AOC-2UR68G4-i2XT have up to four ports 10GbE networking
based on Intel®X710-TM4 and X710-AT2, along with three PCI-E 4.0 slots to provide
the exbility of conguring Supermicro Ultra systems.
An Important Note to the User
All images and layouts shown in this user's guide are based upon the latest PCB
Revision available at the time of publishing. The card you have received may or
may not look exactly the same as the graphics shown in this user's guide.
Returning Merchandise for Service
A receipt or copy of your invoice marked with the date of purchase is required before
any warranty service will be rendered. You can obtain service by calling your ven-
dor for a Returned Merchandise Authorization (RMA) number. When returning the
motherboard to the manufacturer, the RMA number should be prominently displayed
on the outside of the shipping carton, and the shipping package is mailed prepaid
or hand-carried. Shipping and handling charges will be applied for all orders that
must be mailed when service is complete. For faster service, You can also request
a RMA authorization online (http://www.supermicro.com/RmaForm/).
This warranty only covers normal consumer use and does not cover damages in-
curred in shipping or from failure due to the alternation, misuse, abuse or improper
maintenance of products.
During the warranty period, contact your distributor rst for any product problems.
Preface
iii

iv
Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide
Conventions Used in the User's Guide
Pay special attention to the following symbols for proper system installation and to
prevent damage to the system or injury to yourself:
Warning: Important information given to ensure proper system installation
or to prevent damage to the components or injury to yourself.
Note: Additional information given to di󰀨erentiate between various models
or provides information for correct system setup.
Naming Convention

v
Preface
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
Website: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
[email protected] (Customer Support)
Website: www.supermicro.nl
Asia-Pacic
Address: Super Micro Computer, Inc.
3F, No. 150, Jian 1st Rd.
Zhonghe Dist., New Taipei City 235
Taiwan (R.O.C)
Tel: [phone]
Fax: [phone]
Email: [email protected]
Website: www.supermicro.com.tw

Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide
vi
Table of Contents
Preface
Chapter 1 Overview
1-1 Overview ......................................................................................................... 1-1
1-2 Key Features................................................................................................... 1-1
1-3 Specications .................................................................................................. 1-2
1-4 Available SKUs ............................................................................................... 1-4
Chapter 2 Hardware Components
2-1 Add-On Card Image and Layout..................................................................... 2-1
2-2 Major Components.......................................................................................... 2-4
2-3 Ports................................................................................................................ 2-5
2-4 Connectors ...................................................................................................... 2-5
Chapter 3 Installation
3-1 Static-Sensitive Devices.................................................................................. 3-1
3-2 Before Installation ........................................................................................... 3-2
3-3 Installing the Add-on Card .............................................................................. 3-2
3-4 Installing Drivers for Windows ........................................................................ 3-3
3-5 Installing Driver for Linux ................................................................................ 3-4

Chapter 1: Overview
1-1
Chapter 1
Overview
1-1 Overview
Congratulations on purchasing your add-on card from an acknowledged leader in
the industry. Supermicro products are designed with the utmost attention to detail
to provide you with the highest standards in quality and performance. For product
support and updates, please refer to our website at http://www.supermicro.com/
products/nfo/networking.cfm#adapter.
1-2 Key Features
The key features of this add-on card include the following:
• 2U Networking Ultra Riser cards for 2U Ultra systems
• Up to 4x 10Gbps ports: two RJ45 and two SFP+ connectors
• Intel®X710-TM4 / X710-AT2 Ethernet Controller
• One PCI-E 4.0 x8 (in x16) slot
• One PCI-E 4.0 x16 slot
• One internal PCI-E 4.0 x8 (in x16) slot
• Network Virtualization: VXLAN and NVGRE
• Thermal sensor support
• NC-SI for Remote Management
• Supports RJ-45 Category 6, 6A, and 7 cables (RJ45 ports)
• Supports both Direct Attach Copper and Fiber Cables with optional transceivers
(SFP+ ports)
• RoHS compliant 6/6

1-2
Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide
1-3 Specications
General
• Four 10Gbps ports: two RJ45 and two SFP+ connectors (AOC-2UR68G4-i4XTS)
• Intel®X710-TM4 Ethernet Controller (AOC-2UR68G4-i4XTS)
• Two 10Gbps ports: two RJ45 connectors (AOC-2UR68G4-i2XT)
• Intel®X710-AT2 Ethernet Controller (AOC-2UR68G4-i2XT)
• One PCI-E 4.0 x8 (in x16) slot
• One PCI-E 4.0 x16 slot
• One internal PCI-E 4.0 x8 (in x16) slot
Networking Features
• IEEE 802.3ad, 802.1 AX Link Aggregation
• IEEE 802.1Q VLAN
• MSI and MSI-X support
• Intel® Flow Director
• Jumbo Frames (up to 9.5KB)
• IEEE 802.3x Flow Control
• Teaming support
• Checksum O󰀪oad (IPv4/IPv6, SCTP, TCP, UDP, Tx/Rx)
Virtualization Features
• Virtual Machine Devices queues (VMDq)

Chapter 1: Overview
1-3
• Single-Root I/O Virtualization (SR-IOV)
• VLAN
• VXLAN and NVGRE
• GENEVE
Management Features
• Thermal sensor support
• NC-SI for remote management
• Preboot eXecution Environment (PXE)
Power Savings
• Energy E󰀩cient Ethernet (IEEE 802.3az)
Cable Support
• SFP+ direct attach twin-axial copper cables up to 5m
• Fiber-optic cables (with required optional SFP+ transceivers)
• RJ-45 Category-6 up to 55m; Category-6A and Category-7 up to 100m
Power Consumption
• Maximum power consumption
• AOC-2UR68G4-i4XTS: 14W (+75W for each PCI-E slot if used)
• AOC-2UR68G4-i2XT: 13.5W (+75W for each PCI-E slot if used)

1-4
Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide
Operating Conditions
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Storage humidity: 90% non-condensing relative humidity at 35°C
Supported Platforms
• Supermicro®Ultra systems
1-4 Available SKUs
Add-on Cards Controller Network Ports Supported Speeds
AOC-2UR68G4-i4XTS Intel®X710-TM4 410GbE
AOC-2UR68G4-i2XT Intel®X710-AT2 210GbE
Add-on Cards Connector Types PCI-E slot
AOC-2UR68G4-i4XTS
2x RJ45
2x SFP+
1x PCI-E 4.0 x8 (in x16)
1x PCI-E 4.0 x16
1x PCI-E 4.0 x8 (internal, in x16)
AOC-2UR68G4-i2XT
2x RJ45 1x PCI-E 4.0 x8 (in x16)
1x PCI-E 4.0 x16
1x PCI-E 4.0 x8 (internal, in x16)

Chapter 1: Overview
1-5
Notes

Chapter 2: Hardware Components
2-1
SXB3_3
PCI-E 4.0 x8 (in x16)
SLOT3
SLOT1
JLAN1
JSFP+1 Intel®
X710-TM4
REV:1.01
AOC-2UR68G4-i4XTS
DESIGNED IN USA
PCI-E 4.0 x8 (internal in x16)
Chapter 2
Hardware Components
2-1 Add-On Card Image and Layout
AOC-2UR68G4-i4XTS Image
3
1
2
4
5
AOC-2UR68G4-i4XTS Layout (Top)

2-2
Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide

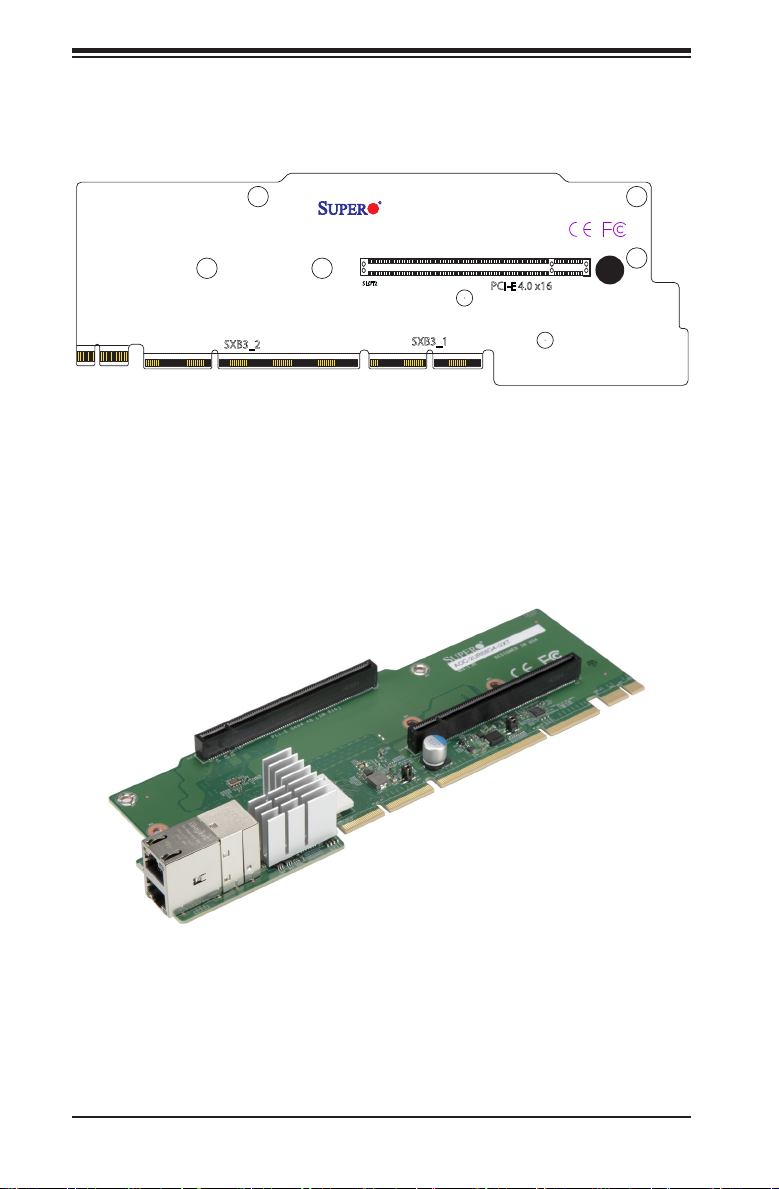

AOC-2UR68G4-i2XT Image
SLOT2 PCI-E 4.0 x16
SXB3_2 SXB3_1
REV:1.01
AOC-2UR68G4-i4XTS
DESIGNED IN USA
AOC-2UR68G4-i4XTS Layout (Bottom)
6

Chapter 2: Hardware Components
2-3
SLOT2 PCI-E 4.0 x16
SXB3_2 SXB3_1
REV:1.01
AOC-2UR68G4-i2XT
DESIGNED IN USA
SXB3_3
PCI-E 4.0 x8 (in x16)
SLOT3
SLOT1
REV:1.01
AOC-2UR68G4-i2XT
DESIGNED IN USA
Intel®
X710-AT2
JLAN1
PCI-E 4.0 x8 (internal in x16)

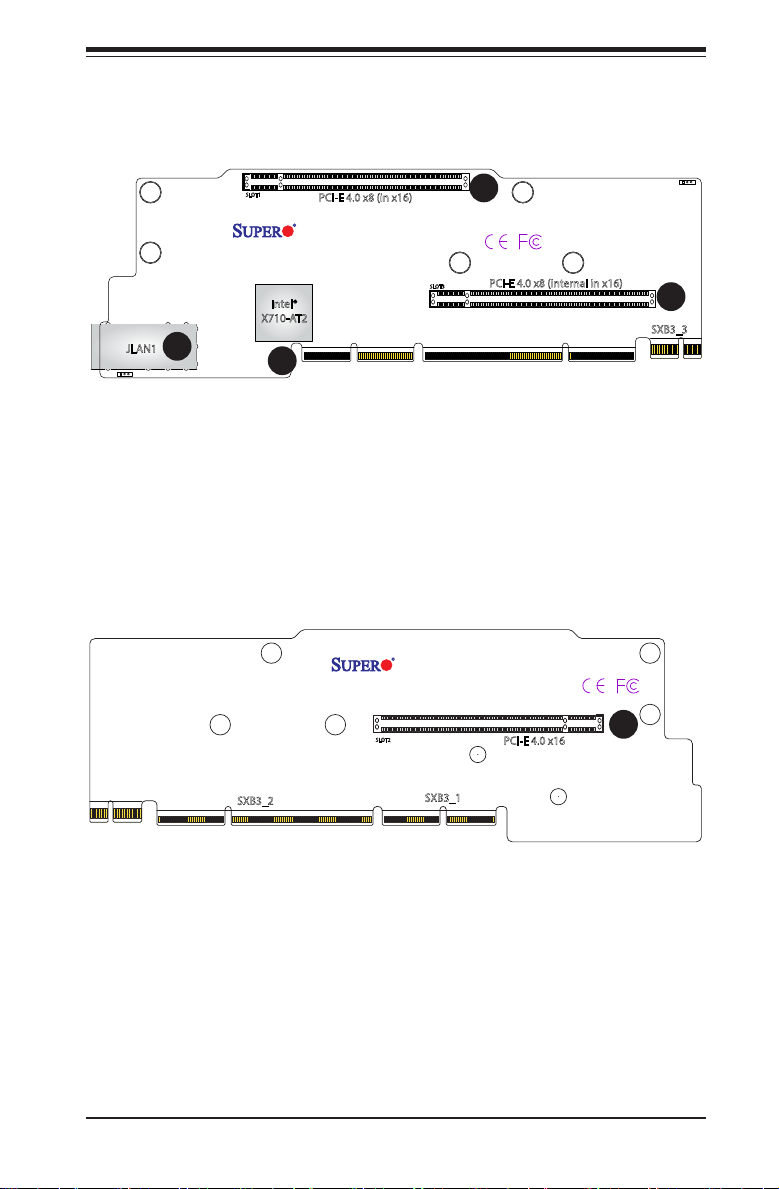

AOC-2UR68G4-i2XT Layout (Top)
AOC-2UR68G4-i2XT Layout (Bottom)
1
2
4
5
6

2-4
Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide
2-2 Major Components
The following major components are installed on the AOC-2UR68G4-i4XTS_i2XT:
AOC-2UR68G4-i4XTS_i2XT Major Components
No Component Name Denition
1Intel®X710-TM4/
Intel®X710-AT2
Ethernet LAN controllers
2JLAN1 RJ45 Ports
3JSFP+1 SFP+ Ports
4PCI-E 4.0 x8 (in x16) Slot 1
5PCI-E 4.0 x8
(internal in x16)
Slot 3
6PCI-E 4.0 x16 Slot 2

Chapter 2: Hardware Components
2-5
2-3 Ports
There are four LAN ports located on the AOC-2UR68G4-i4XTS add-on card and two
located on AOC-2UR68G4-i2XT. Connect a Direct Attach Copper Twin Axial cable
or an LC Fiber-Optic cable to the ports to provide Gigabit Ethernet communication.
Each connector has two ports. The RJ45 ports are for JLAN1, while the SFP+ con-
nector ports are for JSFP+1. Refer to the add-on card layout on Pages 2-1 through
2-3 for the locations of the ports.
LAN Port LEDs
Port LED Color Denition
RJ45 Link Solid Green 10Gbps Link Speed
Solid Yellow 1Gbps Link Speed
Activity Blink Green Activity
SFP+ Link/Act. Green 10Gbps Link Speed/Activity
blinking
Yellow 1Gbps Speed/Activity blinking
2-4 Connectors
SFP+ Port LEDs
The triangular LEDs will be placed as arrows to indicate which LAN it corresponds
to. For example, LED4 pointing upward indicates that it will signal the status for the
upper LAN4 port. The LED3 triangle pointing downwards indicates that it is for the
lower LAN3 port. For more information about the LED signals, see the table below.
RJ45 Port LEDs
Each RJ45 connector has two square LEDs. The LED on the left indicates link
speeds, and the LED on the right of the port indicates the status of activity of the
connector. See the table below for more information.

3-1
Chapter 3: Installation
Chapter 3
Installation
3-1 Static-Sensitive Devices
Electrostatic Discharge (ESD) can damage electronic components. To avoid dam-
aging your add-on card, it is important to handle it very carefully. The following
measures are generally su󰀩cient to protect your equipment from ESD.
Precautions
• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing the add-on card from the
antistatic bag.
• Handle the add-on card by its edges only; do not touch its components, or
peripheral chips.
• Put the add-on card back into the antistatic bags when not in use.
• For grounding purposes, make sure that your system chassis provides excellent
conductivity between the power supply, the case, the mounting fasteners and
the add-on card.
Unpacking
The add-on card is shipped in antistatic packaging to avoid static damage. When
unpacking your component or your system, make sure that the person handling it
is static protected.
Warning: To avoid damaging your components and to ensure proper
installation, be sure to always connect the power cord last, and always
remove it before adding, removing or changing any hardware components.

3-2
Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide
3-2 Before Installation
To install the add-on card properly, be sure to follow the instructions below.
1. Power down the system.
2. Remove the power cord from the wall socket.
3. Use industry standard anti-static equipment (such as gloves or wrist strap)
and follow the instructions listed on Page 3-1 to avoid damage caused by
ESD.
4. Familiarize yourself with the server, motherboard, and/or chassis documenta-
tion.
5. Conrm that your operating system includes the latest updates and hotxes.
3-3 Installing the Add-on Card
Follow the steps below to install the add-on card into your system.
1. Remove the server cover and, if necessary, set aside any screws for later
use.
2. Remove the add-on card slot cover. If the case requires a screw, place the
screw aside for later use.
3. Position the add-on card in the slot directly over the connector, and gently
push down on both sides of the card until it slides into the PCI connector.
4. Secure the add-on card to the chassis. If required, use the screw that you
previously removed.
5. Attach any necessary external cables to the add-on card.
6. Replace the chassis cover.
7. Plug the power cord into the wall socket, and power up the system.

3-3
Chapter 3: Installation
3-4 Installing Drivers for Windows
Follow the steps below to install the drivers needed for your Windows OS support.
The controller comes with a driver on the CD-ROM CDR-NIC.
1. Run the CDR-NIC. (If you do not have a product CD-ROM, download drivers
from the Supermicro Support Website and then transfer them to your system.)
2. When the SUPERMICRO window appears, click on the computer icon next to
the product model.
Note: If the FOUND NEW HARDWARE WIZARD screen displays on your
system, click CANCEL.
3. Click on INSTALL DRIVERS AND SOFTWARE.
4. Follow the prompts to complete the installation.

3-4
Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide
3-5 Installing Driver for Linux
Use the following procedures for installing AOC-2UR68G4-i4XTS and AOC-
2UR68G4-i2XT drivers for the Linux operating system.
1. Download the driver from the Supermicro CDR-NIC LAN driver CD or ftp://ftp.
supermicro.com/Networking_Drivers/CDR-NIC_1.62_for_Add-on_NIC_Cards/
Intel/LAN/PRO40GB/LINUX. Due to the continuous development of the Linux
kernel, the drivers are updated more often than the bundled releases. The
laterst driver can be found on http://downloadcenter.intel.com.
2. Choose the Intel driver package from LAN/PRO40GB/LINUX.
3. Copy the driver to the directory of your choice. For example:
/home/username/i40e
or
/usr/local/src/i40e
4. Untar/unzip archive, where <x.x.x> is the version number for the driver tar le:
tar zxf i40e-x.x.x.tar.gz
5. Change to the driver src directory, where <x.x.x> is the version number for
the driver tar:
cd i40e-x.x.x/src/
make install
This will install the Linux driver to your system. For more driver installation informa-
tion, please refer to the Intel Support Website.
