Safety instructions
Safety instructions
Please read this safety instructions before you use the product to prevent injury to yourself and others and to prevent
property damage. The term ‘product’ in this manual refers to the product and any items provided with the product.
Instructional icons
Warning: This symbol indicates situations that could result in death or severe injury.
Caution: This symbol indicates situations that may result in moderate injury or property damage.
Note: This symbol indicates notes or additional information.
Warning
Installation
Do not install or repair the product arbitrarily.
• This may result in electric shock, fire, or product damage.
• Damages caused by any modifications or failure to follow installation instructions can void your manufacturer’s
warranty.
Do not install the product in a place with direct sunlight, moisture, dust, soot, or a gas leak.
• This may result in electric shock or fire.
Install the product in a well-ventilated and cool place away from direct sunlight to prevent overheating when
installing it outside.
Do not place the product inside the sealed enclosure when installing it outside.
• It increases the internal temperature of the enclosure and this may result in electric shock, fire, or malfunction.
Do not install the product in a location with heat from an electric heater.
• This may result in fire due to overheating.
Install the product in a dry location.
• Humidity and liquids may result in electric shock or product damage.
Do not install the product in a location where it will be affected by radio frequencies.
• This may result in fire or product damage.
Operation
Keep the product dry.
• Humidity and liquids may result in electric shock, fire, or product damage.
Do not use damaged power supply adaptors, plugs, or loose electrical sockets.
• Unsecured connections may cause electric shock or fire.
Do not bend or damage the power cord.
• This may result in electric shock or fire.

4
Safety instructions
Caution
Installation
Do not install the product under direct sunlight or UV light.
• This may result in product damage, malfunction, discoloration, or deformation.
Do not install the power supply cable in a location where people pass by.
• This may result in injury or product damage.
Do not install the product near magnetic objects, such as a magnet, TV, monitor (especially CRT), or speaker.
• The product may malfunction.
Keep the minimum distance between products when installing multiple products.
• The product may be affected by radio frequencies emitted by other products and the product may malfunction.
Use only a power supply adaptor of either D.C 24 V and 800 mA or higher or D.C 12 V and 1,500 mA or higher.
• If the right power supply is not used, the product may malfunction.
Use a separate power supply for the Secure I/O 2, electric lock, and the product.
• If connecting and using the same power supply, the product may malfunction.
Do not connect and use the power supply and Power over Ethernet (PoE) simultaneously.
• The product may malfunction.
Make sure that the cable cover is completely closed after connecting it to the product to maintain the water-
resistant and dust-resistant features (IP65 rating). It is recommended to use the enclosure if the product is
installed outside.
• The product may malfunction if the water-resistant and dust-resistant features are damaged.
Operation
Do not drop the product or cause impacts to the product.
• The product may malfunction.
Do not disconnect the power supply while upgrading the firmware of the product.
• The product may malfunction.
Do not disclose the password to others and change it regularly.
• This may result in illegal intrusion.
Do not press buttons on the product by force or do not press them with a sharp tool.
• The product may malfunction.
Do not store your product in very hot or very cold places. It is recommended to use your product at
temperatures from -20 °C to 50 °C.
• The product may malfunction.
When cleaning the product, mind the following.
• Wipe the product with a clean and dry towel.
• If you need to sanitize the product, moisten the cloth or the wipe with a proper amount of rubbing alcohol and gently
clean all exposed surfaces including fingerprint sensor. Use rubbing alcohol (containing 70% Isopropyl alcohol) and a
clean, non-abrasive cloth like lens wipe.
• Do not apply liquid directly to the surface of the product.
Do not use the product for anything other than its intended use.
• The product may malfunction.

5
Safety instructions
RTC battery
Discard the battery according to the appropriate regional or international waste regulations. Discard the battery according
to the appropriate regional or international waste regulations.

6
Introduction
Introduction
Components
XS2-QAPB
XS2-QDPB
XS2-APB
XS2-DPB
Device and Wall Bracket
(XS2-QAPB, XS2-QDPB)
Device and Wall Bracket
(XS2-APB, XS2-DPB) Drilling Template
Cables Diode 120 Ω resistor
Ferrite Core PVC Anchor x2 Fixing Screw x2 Bracket Fixing Screw
(Star Shaped)
201.00.XS2 V1.00A
X-Station 2
Compact RFID & QR Code Terminal
Open Source Software
Linux Kernel GPL
BoringSSL
Original SSLeay
AOSP Apache
306.00 V1.00A
G
Cable Cover Shrink Tube Quick Guide Open Source Software
Guide
• Components may vary according to the installation environment.
• When assembling the product with the bracket, you can use the included bracket fixing screw (Star Shaped)
instead of the product fixing screw for enhanced security.
• For more details regarding the product installation, visit the Suprema website (https://www.supremainc.com)
and refer to the installation guide.

7
Introduction
Name and function of each part
Camera
LCD screen
RF card and
mobile access card
authentication unit
QR code/Barcode
authentication unit
USB (Type-C) cable slot
Cable connector
Speaker
Name Description
Camera Captures actual images.
LCD screen Provides UI for operation.
RF card and mobile access card
authentication unit Part to scan a RFID card or mobile access card for entrance.
QR code/Barcode
authentication unit Part to scan a QR code or barcode for entrance.
USB (Type-C) cable slot Connects the USB cable.
Cable connector
Connects cables.
• Power supply
• Ethernet + PoE
• RS-485
• Wiegand input and output
• TTL input
• Relay
Speaker Delivers sound.
Only XS2-QAPB and XS2-QDPB models support barcode and QR code authentication.

8
Introduction
Cables and connectors
1
21 22
2
Cable PIN Name Color
RJ-45
(Ethernet +
PoE)
1ENET TXP White
3ENET TXN Orange
5ENET RXP Black
7ENET RXN Yellow
TTL input
9TTL GND Gray
11 TTL IN0 Purple
13 TTL IN1 Brown
RS-485
15 485 GND White (Black stripe)
17 485 TRXN Yellow (Black stripe)
19 485 TRXP Blue (White stripe)
Wiegand
21 WG D1 White
22 WG D0 Green
20 WG GND Black
Relay
18 RLY NO Gray (White stripe)
16 RLY NC Orange (White stripe)
14 RLY COM Green (White stripe)
Power
12 PWR +VDC Red
10 PWR GND Black (White stripe)
RJ-45
(Ethernet +
PoE)
8VB2 Brown
6VB2 Blue
4VB1 Green
2VB1 Red

9
Introduction
How to scan a QR code/barcode
You can issue a QR code/barcode to a user and use it as an authentication method. Scan the QR code/barcode properly
by following the instructions on the screen to increase the recognition rate.
5-20 cm
• Keep 5 cm to 20 cm of distance between the QR code/Barcode
authentication unit of the device and the QR code/barcode.
• Hold the smartphone with the screen facing towards the QR/
Barcode code authentication unit and place the guide beam at
the center of the QR code.
• When authenticating with the QR code/barcode downloaded
to your smartphone, adjust the brightness of your smartphone
so that the device can read the QR code/barcode clearly.
• If you do not follow the instructions on the screen, it may take
a long time to scan the QR code/barcode, or it may fail.
• Only XS2-QAPB and XS2-QDPB models support QR code/barcode authentication.
• You can issue QR codes only on BioStar 2. For more information on how to issue a QR code/barcode, refer to
BioStar 2 Administrator’s manual.

10
Admin Menu
Admin Menu
All Menus
1
Press and authenticate with the Admin level credential.
2
Select the desired menu.
If the administrator has not been designated, the menu screen will be displayed when you press .

11
User
User
Registering user information
The user information including credentials can be registered.
1
Press and authenticate with the Admin level credential.
2
Select USER
→
,and choose a credential you want to register.
There are two steps for the user registration. Some options are available after the credential has been registered.

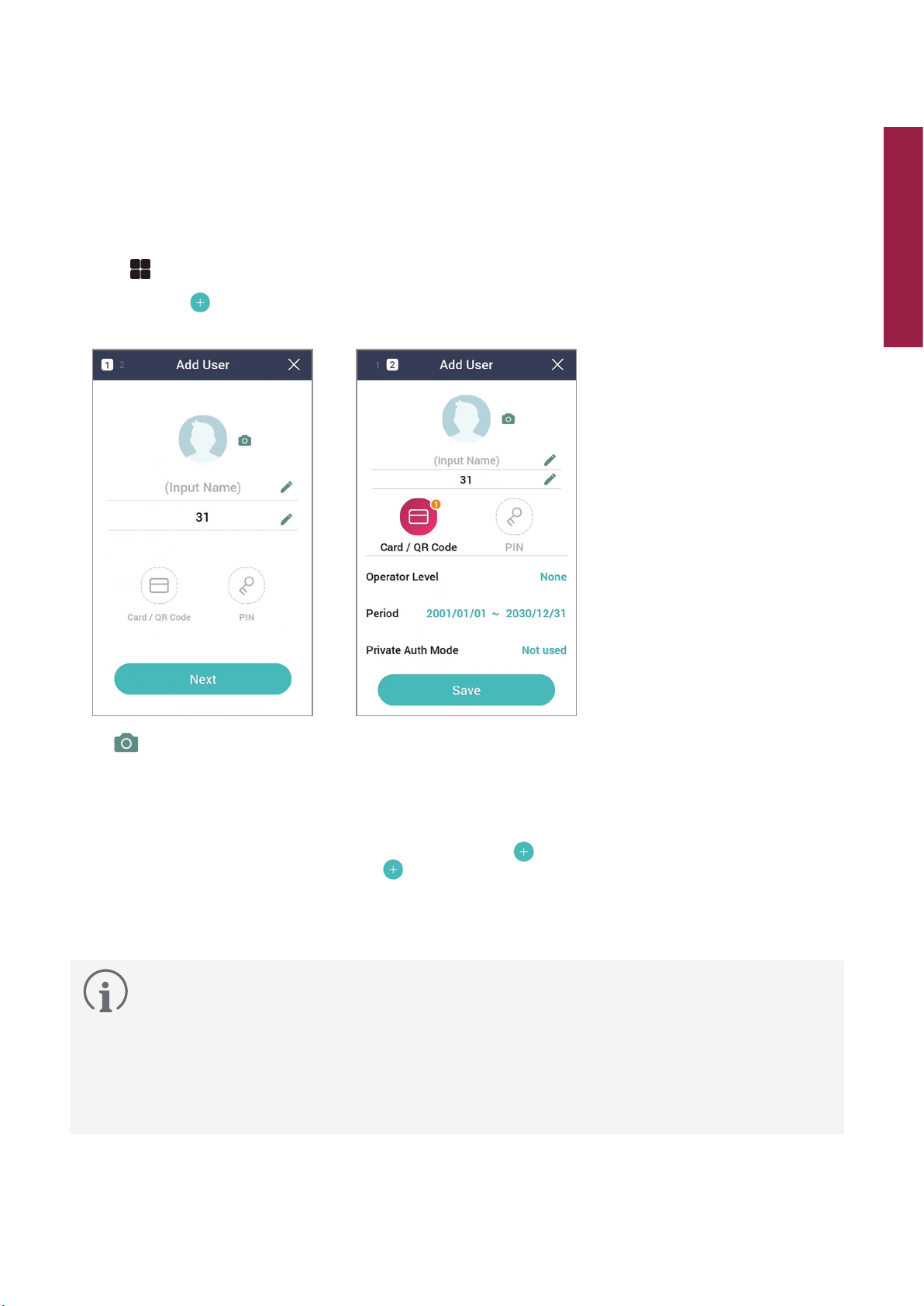

• : Take a picture of a user with the built-in camera.
• Name: Enter the username.
• ID: Enter a number between 1 and 429467295 to register as the user ID. If User ID Type set to Alphanumeric, a
combination of alphanumeric characters and symbols (_, -) can be used for the ID. Up to 32 characters can be
input.
• Card / QR Code: Register a card for user authentication. Press and scan the card which will be assigned to the
user. To register an additional card, press again. You can issue QR codes only on BioStar 2.
• PIN: Enter the PIN you wish to use. Enter the PIN you wish to use, and then enter the same PIN again for
confirmation. Enter a number between 4 and 16 digits to prevent leaking.
• Operator Level: Select the level you wish to assign to a user.
Available menus vary according to the set user level.
• None: This is the general user level and menus cannot be accessed.
• Administrator: All menus can be accessed.
• Configuration: AUTHENTICATION, DISPLAY & SOUND, NETWORK, DEVICE, and EVENT LOG menus can be
accessed.
• User Management: USER and EVENT LOG menu can be accessed.
• Period: Set an expiry date to use the user account.
• Access Group: Select an access group for the user. Access groups can be registered only in BioStar 2.
• Private Auth Mode: Change the authentication method according to the user.

12
User
Modifying User Information
User Management or Administrator can modify the registered user information. A card can be added, and PIN and level
can be modified.
1
Press and authenticate with the Admin level credential.
2
Select USER
→
.
3
Select your search terms. You can search for a user by All, User ID, Name, and Card / QR Code.
4
Select a user you wish to modify.
5
Modify the information by referring to Registering user information and press OK.
• To delete a user, select and then press OK.
Access Group can be registered in BioStar 2. For detailed contents regarding registering an access group, refer
to the BioStar 2 Administrator Manual.
Delete All Users
You can delete all registered users at once.
1
Press and authenticate with the Admin level credential.
2
Select USER
→
.
3
Check Delete All to delete all registered users and press OK.
4
When you press OK, all registered users will be deleted.
View User Usage
You can see the number of registered users, and cards at a glance.
1
Press and authenticate with the Admin level credential.
2
Select USER
→
.User usage information appears.

13
Authentication
Authentication
Auth Mode
Modifying Auth Mode
You can set the authentication method and schedule according to each credential. You can set up to 3 auth modes.
1
Press and authenticate with the Admin level credential.
2
Select AUTHENTICATION
→
Auth Mode.
3
Select the authentication mode to modify.
4

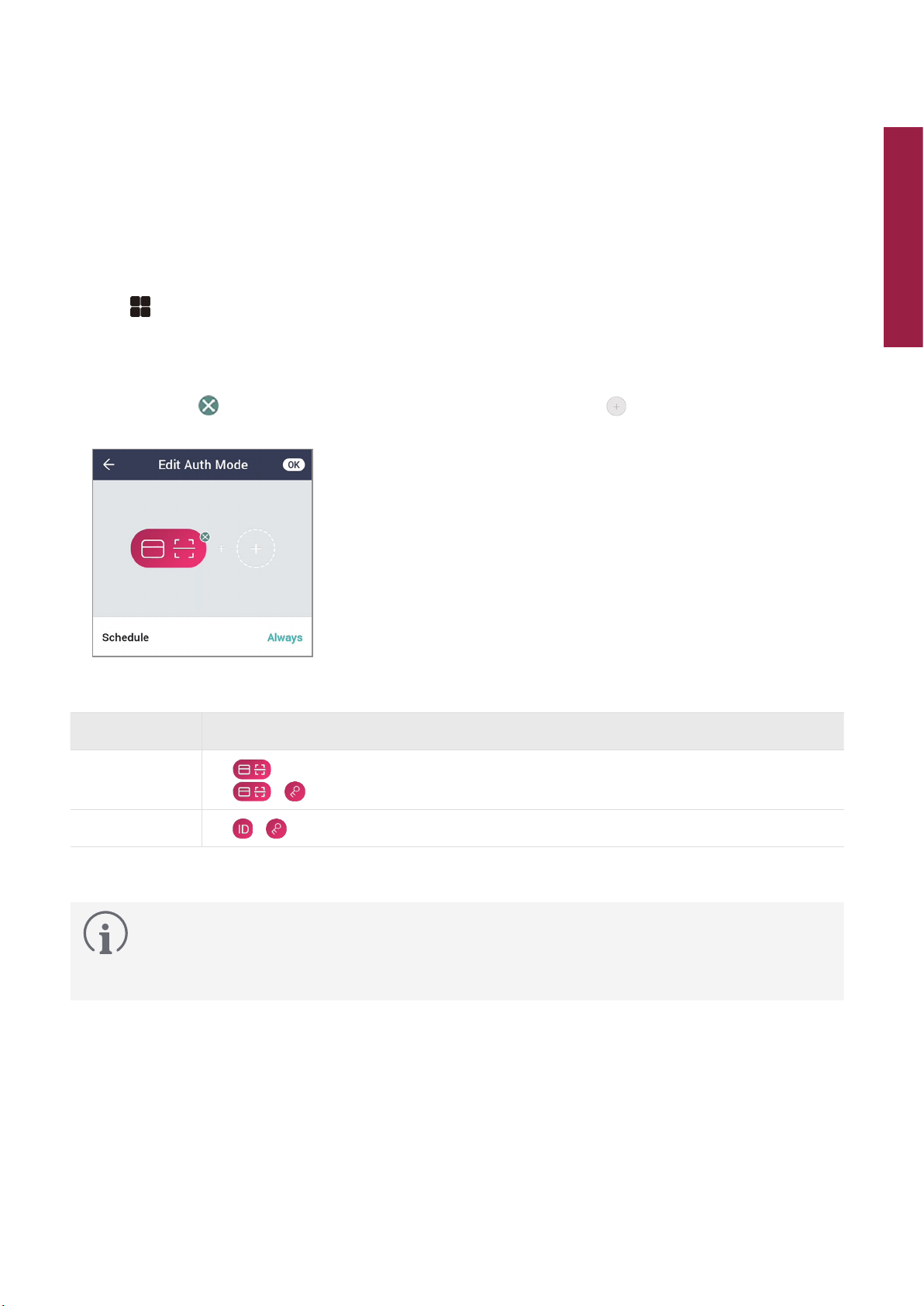

When you press ,the selected credential will be deleted, and when you press ,available credentials to be
added will be displayed on the screen.
5
Set the desired auth mode and select a schedule.
Category Description
Card / QR Code • :Mode to use a card or QR code only.
• + :Mode to authenticate with a card or QR code, and then enter PIN.
User ID • + :Mode to enter ID and then enter PIN.
6
When you press OK, settings will be saved.
• The icon image may differ depending on the model you use.
• A schedule can be set in BioStar 2. If there is no set schedule, only can be selected.
• For detailed contents regarding setting a schedule, refer to BioStar 2 Administrator’s manual.

14
Authentication
Delete Auth Mode
1
Press and authenticate with the Admin level credential.
2
Select AUTHENTICATION
→
Auth Mode.
3
Press and select the authentication mode to delete. You can select multiple options.
4
Press OK. To delete the selected option, press OK. Or, press Cancel to cancel the deletion.
Add Auth Mode
You can register up to 3 auth modes.
1
Press and authenticate with the Admin level credential.
2
Select AUTHENTICATION
→
Auth Mode.
3
Press .
4
Set the desired auth mode by pressing ,and then select a schedule.
5
When you press OK, the auth mode will be added.
Operation
1
Press and authenticate with the Admin level credential.
2
Press AUTHENTICATION and then modify items below Operation.
• Face Detection: When you set Face Detection, X-Station 2 can detect real face, and authentication can be done
only when a face is detected after authenticating with a card, QR code, or PIN.
• Auth Timeout: If the authentication is not completed during a set time, the authentication will fail. You can set a
time between 3 seconds and 20 seconds.
• Server Matching: When you set Server Matching, the user authentication is not carried out in the device,
but instead is carried out in BioStar 2. Server Matching can be useful when there is a large amount of user
information in the device or you do not wish to publicly expose the device where user credential information is
saved.

15
Authentication
QR/Barcode Operation
1
Press and authenticate with the Admin level credential.
2
Press AUTHENTICATION and then modify items below QR/Barcode Operation.
• QR/Barcode: Set to use QR code or Barcode to authenticate.
• QR/Barcode Scan Timeout: If you do not scan the QR code or Barcode within the set time, the authentication will
fail. You can set a time between 4 seconds and 10 seconds.
T&A Mode
You can set how to register T&A Mode.
1
Press and authenticate with the Admin level credential.
2
Press AUTHENTICATION and then modify items below T&A Mode.
3
Select and set the desired item.
• T&A Mode: Set the method to use T&A mode.
• T&A Code: You can register T&A events. Select T&A Code
→
to register a T&A event and set an icon, name of
T&A event, and schedule.
• T&A Required: Set to require a user to select a T&A event when authenticating.
• Fixed T&A Key: Set to use only a T&A event selected by the administrator. This option can be used when Fixed is
set for T&A Mode.
• Job Code: Select whether to use Job Code.
4
To save settings, press OK.

16
Display & Sound
Display & Sound
You can change the display and sound settings of the device.
1
Press and authenticate with the Admin level credential.
2
Select DISPLAY & SOUND.
3
Change the desired item.
• Home Screen: Select items to be displayed in the background of the home screen.
• Language: Set the language you wish to use.
• Device Private Msg.: Set whether to use a Private Message, which will be displayed on the screen when the user
authenticates. You can set Device Private Msg. by using the BioStar 2 Device SDK.
• Server Private Msg.: Set whether to use a Private Message, which will be displayed on the screen when the user
authenticates. You can set the Server Private Msg. by using the BioStar 2 API. If you have not set it on the server,
the device does not display a message when authentication is successful even if Server Private Msg. is enabled
on the device.
• Screen Saver: Set this option to use the screen saver feature. It reduces unnecessary energy consumption by
lowering the brightness of the LCD screen when the device is not in use.
• Menu Timeout: Set the time (sec) for the menu screen to disappear automatically. If there is no button input
during a set time, the screen will return to the home screen.
• Message Timeout: Set the time (sec) for a setting complete message or information message to disappear
automatically.
• Backlight Timeout: Set the time (second) to turn off the lighting of LCD screen.
• Voice Instruction: Set to use the voice instruction instead of alarm sounds.
• Volume: Set the volume.
Refer to the BioStar 2 Device SDK webpage on the Suprema Knowledge Base website
(kb.supremainc.com/bs2sdk/) for more information on the BioStar 2 Device SDK.

17
Network
Network
Network Settings
You can change the network settings of the device.
Ethernet
1
Press and authenticate with the Admin level credential.
2
Select NETWORK
→
Ethernet.
3
Change the desired item.
• DHCP: Set whether to use DHCP. If DHCP setting is disabled, the user can modify Port, IP Address, Gateway,
Subnet Mask, and DNS.
• Device Port: Set the device port.
• IP Address: View the IP address of the device. To modify, disable DHCP setting.
• Gateway: View the gateway of the device. To modify, disable DHCP setting.
• Subnet Mask: View the subnet mask of the device. To modify, disable DHCP setting.
• DNS: Set the DNS server address.
4
To save settings, press OK.

18
Network
Server
1
Press and authenticate with the Admin level credential.
2
Select NETWORK
→
Server.
3
Change the desired item.
• Device
→
Server: You can send a connection signal from the device to a server with the input information
directly. When you select Server
→
Device, Server IP, Server URL and Server Port cannot be entered.
• Server IP: Enter the IP address of the PC on which BioStar 2 is installed. Input is accepted only when Device
→
Server is set for Connection Mode.
• Server URL: Enter server URL instead of Server IP. Input is accepted only when Device
→
Server is set for
Connection Mode.
• Server Port: Enter the port of the PC on which BioStar 2 is installed. Input is accepted only when Device -> Server
is set for Connection Mode.
4
To save settings, press OK.
Serial Setting
1
Press and authenticate with the Admin level credential.
2
Select NETWORK.
3
Change the desired item.
• RS-485: Select the RS-485 mode.
• Baud Rate: Select the desired baud rate.
4
To save settings, press OK.

19
Device
Device
Relay
You can set the open time and the input port of the exit button in the device.
1
Press and authenticate with the Admin level credential.
2
Select DEVICE
→
Relay.
• Relay: You can set whether relay is enabled or not. To set the open time and the input port of the exit button,
activate this option.
• Open Time: Set the duration for the door to remain open when standard user authentication has been carried
out.
• Exit Button: Select the input port where the exit button is connected.
• Switch: Select the relay type (N/O or N/C).
Date & Time
You can set the open time and the input port of the exit button in the device.
1
Press and authenticate with the Admin level credential.
2
Select DEVICE
→
Date & Time.
3
Change the desired item.
• Date & Time: Check the current date and time. To modify it manually, disable Time Sync.
• Time Zone: Set the time reference of the current location.
• Time Sync: Synchronize the server and the time. If you wish to synchronize the server and the time, enable Time
Sync.
• Date Format: Set the date format. You can select among YYYY/MM/DD, MM/DD/YYYY and DD/MM/YYYY.
• Time Format: Set the time format. You can select either 24-Hour or AM/PM.
