Suspa MOVOTEC Series User manual

MOVOTEC
®
Crank Driven “Bolt-On”
Lift System Manual
by
Copyright © 2016 by
Suspa
®
Incorporated
All rights reserved. No part of this manual may be reproduced or transmitted
in any form or by any means, electronic or mechanical, including photocopying,
recording, or by any information storage and retrieval system
without permission in writing from Suspa
®
Incorporated.

03/01/16
670- 00017B
1
1.0 Table of Contents
2.0 Introduction................................................................................................................. 2
3.0 Safety Instructions...................................................................................................... 2
4.0 How it Works............................................................................................................... 4
4.1 Extension Cycle......................................................................................................... 4
4.2 Retraction Cycle:....................................................................................................... 5
5.0 Unpacking Instructions.............................................................................................. 5
6.0 Lift System Specifications .......................................................................................... 7
6.1 Lift Cylinder Specifications....................................................................................... 7
6.2 Crank Driven Pump Specifications ........................................................................... 8
6.3 Regulatory Information ............................................................................................. 8
7.0 Installation Instructions............................................................................................. 9
7.1 System Component Placement.................................................................................. 9
7.2 Crank Driven Pump Installation.............................................................................. 10
7.3 Lift Cylinder Installation......................................................................................... 11
7.4 Hydraulic Tubing Management............................................................................... 14
7.5 Workstation Leveling.............................................................................................. 14
8.0 Operation Instructions ............................................................................................. 16
8.1 Before Loading the Workstation ............................................................................. 16
8.2 System Extension Cycle.......................................................................................... 18
8.3 System Retraction Cycle ......................................................................................... 18
8.4 Stowing the Crank................................................................................................... 19
9.0 Troubleshooting ........................................................................................................ 20
10.0 Inspection and Maintenance.................................................................................. 21
10.1 Changing Load Conditions.................................................................................... 21
10.2 Contamination ....................................................................................................... 21
10.3 Hydraulic Tubing Damage .................................................................................... 21
11.0 Warranty ................................................................................................................. 22
12.0 Replacement Parts.................................................................................................. 23
13.0 Optional Accessories............................................................................................... 23
14.0 Disposal.................................................................................................................... 23
15.0 Contact Information............................................................................................... 23

03/01/16
670- 00017B
2
2.0 Introduction
For more than 30 years, Movotec® lift systems have been used to make work-surfaces
height adjustable. They have been used on industrial workbenches, small machine bases,
massage tables, physical therapy tables, packaging equipment, and many other
applications.
Years of experience, engineering, and research have resulted in a product that is proven,
time-tested and will deliver unparalleled performance.
Thank you for purchasing the Movotec® Crank Driven “Bolt-On” Lift System.
3.0 Safety Instructions
READ THE INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO
INSTALL, OPERATE, OR SERVICE THIS PRODUCT. FOLLOW THESE
SAFETY INSTRUCTIONS AT ALL TIMES.
This manual contains safety, installation, operation, maintenance and user service
instructions for the Movotec
®
Crank Driven “Bolt-On” Lift System. Suspa
®
Incorporated
is not responsible for any alteration, misuse, misapplication, or abuse of this product
resulting in property damage, personal injury or death.
FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS
MANUAL COULD RESULT IN PROPERTY DAMAGE,
PERSONAL INJURY OR DEATH.
If you have any questions about the use of this product, the safety practices outlined in
this manual or would like a printed copy of this manual, please contact us (see Section 15
for contact information).
VERIFY SYSTEM SELECTION. Before the installing or operating the system,
please review the application to confirm that the correct Movotec
®
Lift System has been
selected. Pay particular attention to the load capacity and adjustment range ratings listed
on the blue product label.
HANDLE COMPONENTS WITH CARE. Do not handle system by the hydraulic
tubing. Keep hydraulic tubing far from heat, sharp edges, and moisture. If hydraulic
tubing is damaged, discontinue use and have the tubing replaced immediately. Do not
ever attempt to repair a damaged hydraulic tubing line.
VISUALLY INSPECT COMPONENTS. Before installing and operating the system,
inspect all components for any damage that may have occurred during shipping and

03/01/16
670- 00017B
3
installation. Do not attempt to disassemble system or system components for any reason.
If a defective component is found, contact Suspa
®
Incorporated for repair or replacement.
USE OF TRAINED AND QUALIFIED PERSONNEL System installation, operation,
and repair should only be done by persons having sufficient knowledge of the lift system
and the contents of this manual. In addition, they must have an understanding of all
warnings and precautionary measures noted in these safety instructions.
AVOID HAZARDOUS ENVIRONMENT. Do not operate the system outside. Do not
expose the system to damp or wet conditions. Avoid any chemical or corrosive
environments. Do not operate the system in the presence of flammable solvents,
propellants, and/or explosive materials (i.e. gas, vapor, dust, etc.) Avoid temperatures
outside of the system rated operating temperature range 41°to 113°F (5° to 45°C). Do
not subject lift system components to vibration and/or impact load conditions.
INSTALLATION SAFEGUARDS. Do not use the system for any purpose other than
its intended function. Before operating system, make sure that the workstation has a
minimum clearance of 2 in. (51mm) from any other object or structure to prevent
pinching or crushing hazards. Do not allow wall, cabinet, electrical lines, hydraulic or
pneumatic lines, or any other fixed structures to obstruct the movement of the
workstation during operation.
KEEP CHILDREN AWAY. It is not recommended that children operate this lift
device. If this device is used by or near children, close supervision is absolutely
necessary.
USE OF ACCESSORIES. Use only spare parts and accessories authorized or supplied
by Suspa
®
Incorporated. Do not replace or replenish lift system hydraulic fluid unless the
fluid is supplied by Suspa
®
Incorporated.
MAINTENANCE SAFEGUARDS. Prior to performing any maintenance or service on
the device, remove the load from all lift cylinders. The workstation or structure that the
lift system is attached to should be stabilized to prevent personal injury or property
damage during maintenance or service procedures.
RETRACT SYSTEM BEFORE MOVING. To reduce the risk of property damage and
personal injury, always retract the lift system fully before moving the equipment.
UNPLUG BEFORE CLEANING. Retract the lift system before cleaning components.
Clean system components with a mild soap and water-damped cloth. Do not use
corrosive cleaning agents or high pressure wash systems to clean lift system components.
Make sure system is clean and dry before operating the system.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

03/01/16
670- 00017B
4
4.0 How it Works
Movotec
®
Crank Driven “Bolt-On” Lift Systems are comprised of three major component
subsystems; the crank, the pump and the lift cylinders. This section will explain how
each subsystem works together to make the lift system extend and retract.
Movotec
®
Crank Driven Schematic
4.1 Extension Cycle
The crank is mechanically coupled to the pump leadscrew shaft. When the crank is
rotated in a clockwise (CW) direction, the leadscrew shaft rotates in the same (CW)
direction. As the crank continues to rotate in a (CW) direction, the threaded pusherblock
moves up the leadscrew in the direction of arrow “A”. This action drives fluid from the
pressure elements, through the hydraulic tubing and into the lift cylinders causing them to
extend. As the cylinder load increases, the force required to rotate the crank increases.
Generally speaking, the crank force required to extend the system will always be greater
than the crank force required to retract the system. It is also important to note that when

03/01/16
670- 00017B
5
the pump has reached its upper limit, the user will feel increased resistance at the crank
handle.
4.2 Retraction Cycle: (Refer to Movotec
®
Crank Driven Schematic on page 6)
The crank is mechanically coupled to the pump leadscrew shaft. When the crank is
rotated in a counter-clockwise (CCW) direction, the leadscrew shaft rotates in the same
(CCW) direction. As the crank continues to rotate in a (CCW) direction, the threaded
pusherblock moves down the leadscrew in the direction of arrow “B”. As long as there is
sufficient load on the lift cylinder piston rods, the fluid in the lift cylinders flows back
through the hydraulic tubing and into the pressure elements. It is important to note that
the user will feel increased resistance at the crank handle when the pump has reached its
lower limit.
5.0 Unpacking Instructions
The system comes packaged in a cardboard carton. To unpack the system:
•Check the carton label to confirm that you have received the correct system; open
the carton and remove packaging material.
•Carefully remove the system from the carton, and verify all components are
present (reference chart below), and that the correct lift system was received.
Do not handle the lift cylinders and motorized pump by the hydraulic tubing. Incorrect
handling of hydraulic tubing could weaken the tubing material and system tubing
connections.
DAMAGE TO TUBING OR TUBING CONNECTIONS
COULD CAUSE FLUID LOSS AND UNCONTROLLED
DESCENT OF THE WORK-SURFACE.

03/01/16
670- 00017B
6
•Verify that all of the listed components are present; carton should contain:
System Component Quantity
(A) Crank Driven Pump 1
(B) Lift Cylinders 4
(C) Drill Templates 4
(D) Cable Ties 8
(E) Mounting Clips 8
•If the lift system is damaged or any component is missing, please first contact
Suspa
®
Incorporated to resolve the issue before installing the system.
•Dispose of the all packaging materials in an ecologically sound manner; if
uncertainty exists with regards to disposal / recycling details, please contact
Suspa
®
Incorporated.

03/01/16
670- 00017B
7

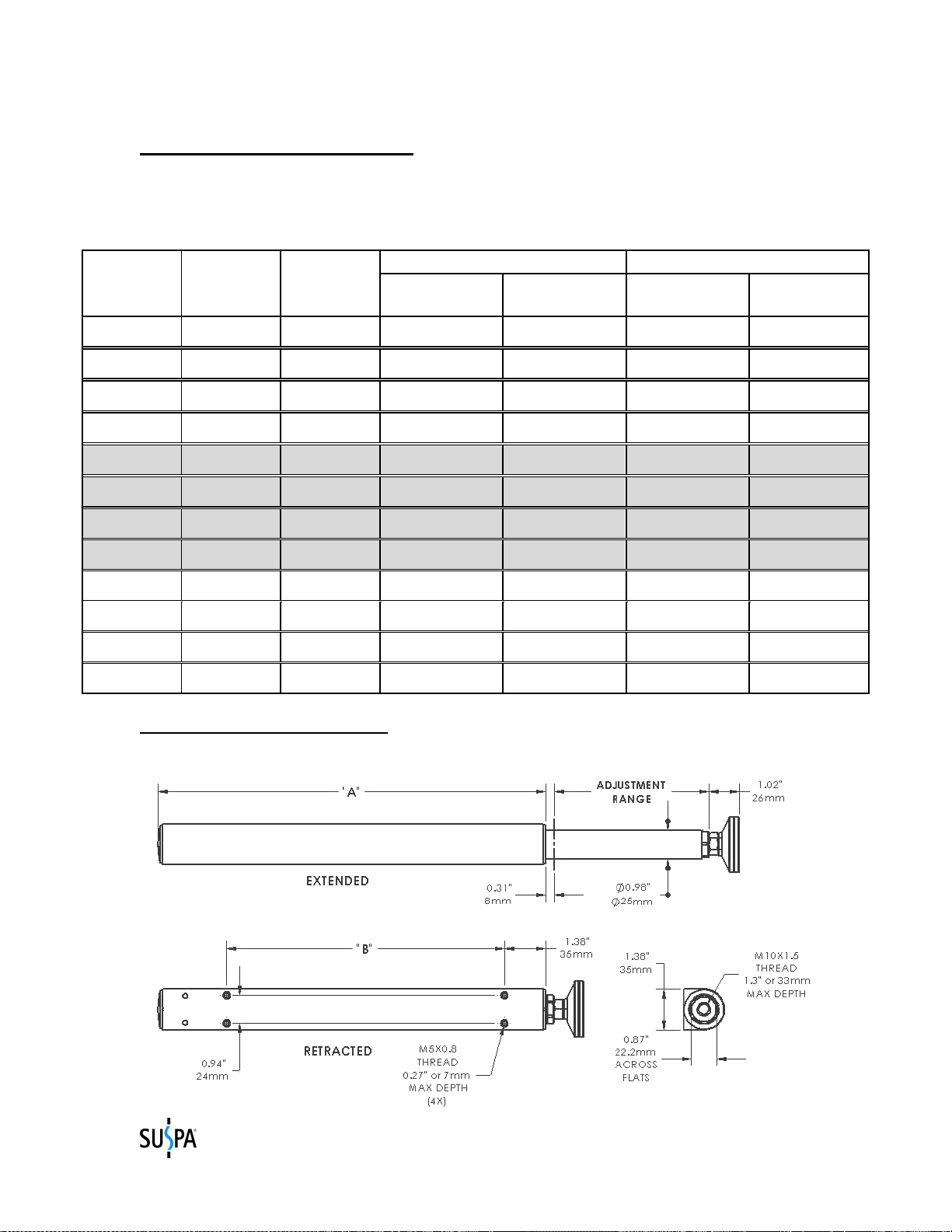

6.0 Lift System Specifications
The “A”, “B”, “X”, and “Y” dimensions shown in the table and drawings below vary
depending on the system lift capacity and the adjustment range of the selected system.
Lift System Adjustment System Lift CB "Bolt-On" Cylinder Crank Driven Pump
Part Range Capacity "A" "B" "X" "Y"
Number (mm/in) (kg/lbs) (mm/in) (mm/in) (mm/in) (mm/in)
MLS-00001 150/5.9 340/750 258.5/10.18 165/6.50 292/11.50 276/10.87
MLS-00002 200/7.9 340/750 333.5/13.13 240/9.45 352/13.86 336/13.23
MLS-00003 300/11.8 340/750 463.5/18.25 340/13.39 472/18.58 456/17.95
MLS-00004 400/15.7 340/750 558.5/21.99 340/13.39 594/23.39 578/22.76
MLS-00005 150/5.9 454/1000 258.5/10.18 165/6.50 352/13.86 336/13.23
MLS-00006 200/7.9 454/1000 333.5/13.13 240/9.45 412/16.22 396/15.59
MLS-00007 300/11.8 454/1000 463.5/18.25 340/13.39 594/23.39 578/22.76
MLS-00008 400/15.7 454/1000 558.5/21.99 340/13.39 722/28.43 706/27.80
MLS-00080 150/5.9 590/1300 258.5/10.18 165/6.50 412/16.22 396/15.59
MLS-00081 230/9.1 590/1300 463.5/18.25 340/13.39 594/23.39 578/22.76
MLS-00082 300/11.8 590/1300 463.5/18.25 340/13.39 722/28.43 706/27.80
MLS-00083 393/15.5 590/1300 558.5/21.99 340/13.39 898/35.35 882/34.72
6.1 Lift Cylinder Specifications
CB4xx cylinders are rated for a maximum load of 250lb (113.4kg) each.

03/01/16
670- 00017B
8
6.2 Crank Driven Pump Specifications (Refer to Chart on Page 7 for “X” and “Y”
dimensions)
6.3 Regulatory Information
RoHS Directive (2002/95/EC)
Suspa
®
Incorporated has examined all of the materials and processes utilized in the
production of Movotec
®
lift systems and has determined that this product is in compliance
with the European Union RoHS Directive 2002/95/EC.

03/01/16
670- 00017B
9
7.0 Installation Instructions
FOLLOW ALL SAFETY INSTRUCTIONS CONTAINED
IN SECTION 3.0 OF THIS MANUAL BEFORE
INSTALLING THIS PRODUCT. FAILURE TO
FOLLOW THE INSTRUCTIONS IN THIS MANUAL
COULD RESULT IN PROPERTY DAMAGE,
PERSONAL INJURY OR DEATH.
7.1 System Component Placement
Movotec
®
Crank Driven “Bolt-On” Lift System components are physically linked
together with hydraulic tubing. Therefore, it is very important to make sure that the
system components are located on the workstation so that each component can be
installed safely without damaging the hydraulic tubing. It is also important to make sure
that the crank has enough clearance to rotate freely beyond the work surface.
7.1.1 Crank Driven Pump Placement - The crank driven pump can be installed
in any orientation, however it is recommended to mount the unit horizontally.
The pump should be installed so that there is enough hydraulic tubing to reach
each lift cylinder and enough clearance for the minimum hydraulic tubing bend
radius of 2 in. (51mm) to be maintained. The crank should be located near the
edge of the work-surface. Suspa
®
Incorporated offers other cranks and crank
hardware options which can be purchased on our website at
https://shop.suspa.com/storefront.aspx.
7.1.2 Lift Cylinder Placement – The lift cylinders should be located on the
workstation so that the load on the system is balanced. Lift cylinders must also be
oriented vertically and parallel to one another to prevent cylinder binding during
extension and retraction cycles. Suspa
®
Incorporated offers an assortment of
brackets to reduce the number of holes to be drilled for lift cylinder mounting and
to facilitate system installation. These cylinder mounting brackets can be
purchased on our website at https://shop.suspa.com/storefront.aspx.
7.1.3 Hydraulic Tubing Placement – Hydraulic tubing must be kept away from
sharp edges and moving parts. Contact with moisture and heat must also be
avoided. Hydraulic tubing should fixed to the workstation or structure using
cable ties and mounting clips. Cable ties and mounting clips can be purchased on
our website at https://shop.suspa.com/storefront.aspx.

03/01/16
670- 00017B
10

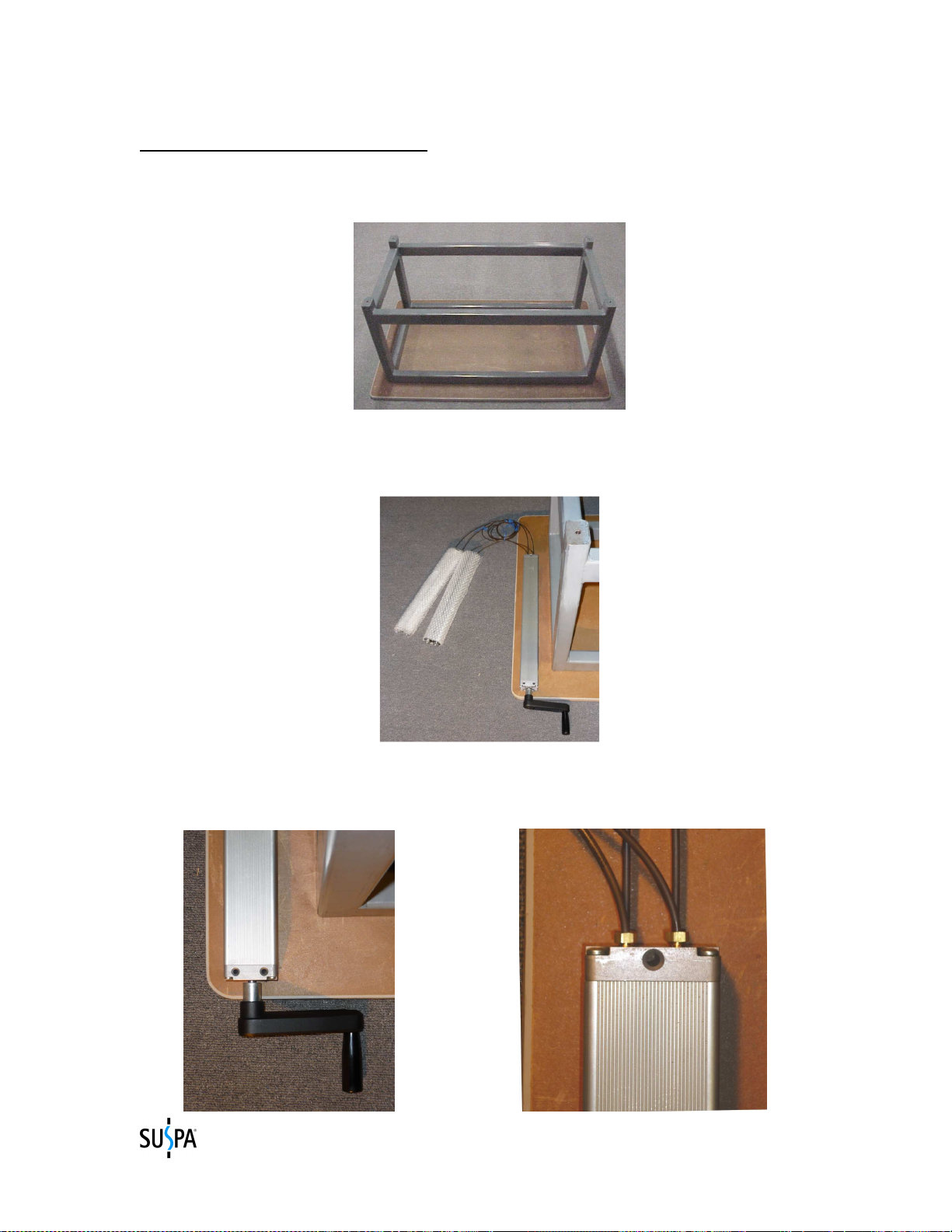

7.2 Crank Driven Pump Installation
•If possible, orient workstation as shown for ease of component placement and
installation.
•Place crank driven pump in the desired location, making sure sufficient clearance
exists for the crank to rotate freely beyond the work-surface.
•Mark and prepare three holes in the locations provided in the pump front and rear
mounting plates.

03/01/16
670- 00017B
11
•Mount the crank driven pump to the work-surface. Please note that mounting
screws are not provided with system.
•Check mounting screws to ensure that the unit is tightly secured.
7.3 Lift Cylinder Installation
•Unwrap lift cylinders and drilling templates from bubble wrapping. Dispose of
bubble wrapping material in an ecologically sound manner.
•Thoroughly clean all workstation leg mounting surfaces to ensure the cylinder
drilling templates will adhere. Apply the drilling templates parallel to the
workstation leg surfaces, making sure that the templates are oriented correctly.

03/01/16
670- 00017B
12
•Please note that the drilling templates are shown upside down due to the
orientation of the workstation.
Lift cylinder mounting hole locations vary depending
upon the lift cylinder model number. The lift cylinder
model number can be found on the product label.
“Bolt-On” lift cylinder model numbers begin with “CB”
(i.e. CB431).
Lift cylinder mounting instructions can also be found
printed on the drilling templates provided with the system.
•Drill (4) - 6mm holes in the appropriate locations indicated on each drill
templates.
•Select cylinder mounting screws with a property class of 8.8 or greater.
NOTICE

03/01/16
670- 00017B
13

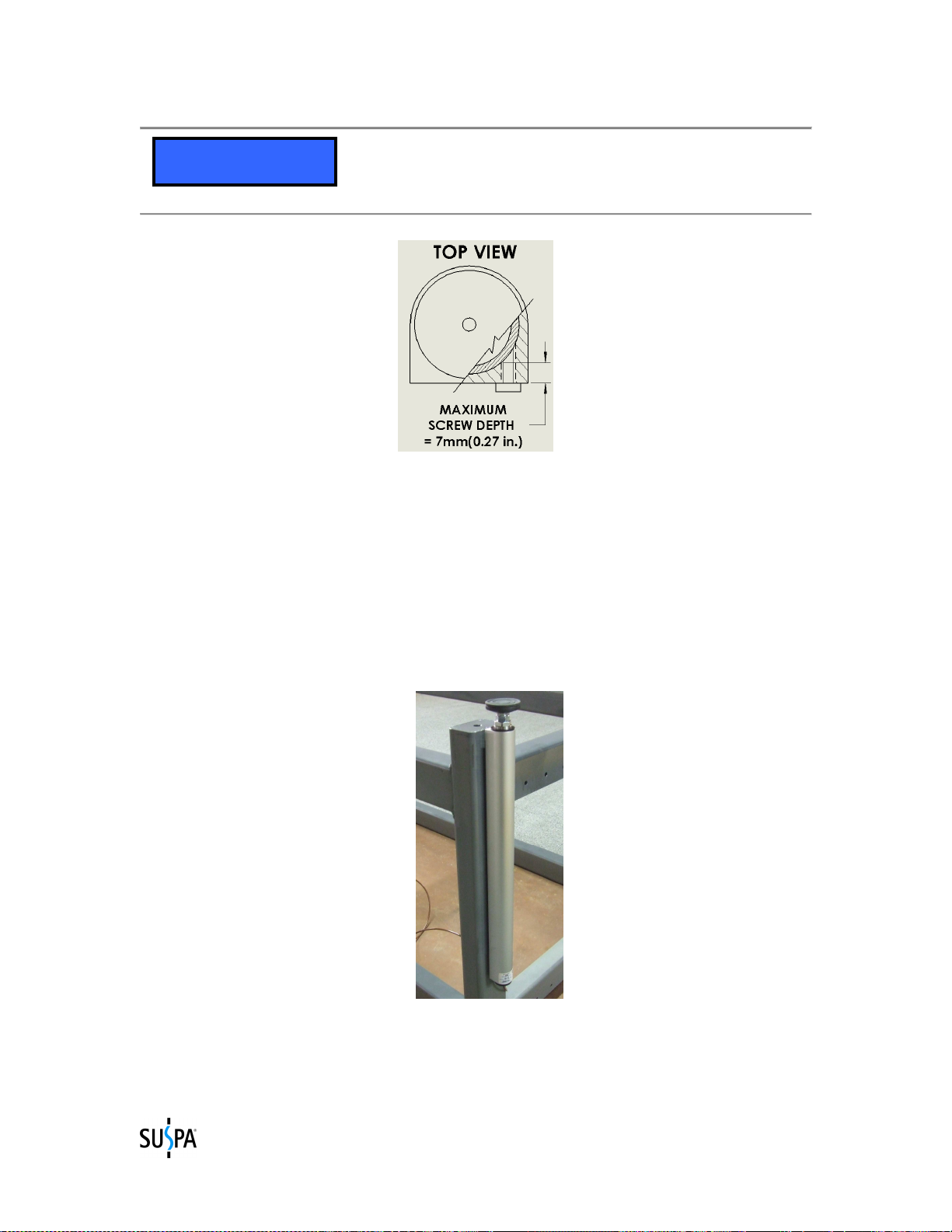

To avoid lift cylinder damage, the screw depth must not
exceed 7mm (0.27 in.) into the lift cylinder housing as
shown below.
•Install each cylinder to the workstation frame using (4) - M5 screws of the
appropriate length. Suspa
®
Incorporated recommends a lift cylinder mounting
screw thread engagement of 0.196-0.275in. (5-7mm).
•Ensure that there is enough flexible hydraulic tubing to reach each workstation leg
without putting any tension on the tubing and while maintaining the minimum
flexible tubing bend radius of 2in. (51mm). Each standard system is shipped with
hydraulic tubing cut-to-length and assembled to the unit, (2) lengths at 8.2 ft.
(2.5m), and (2) lengths at 10.2 ft. (3.1m). Custom lengths of tubing can also be
ordered.
•Check the lift cylinder mounting screws to ensure that they are tightly secured to
the workstation. Take special care not to over tighten lift cylinder mounting
screws. Suspa
®
Incorporated recommends a lift cylinder mounting screw
tightening torque of 4.0-4.5 N-m (35-40 lb-in).
NOTICE

03/01/16
670- 00017B
14
7.4 Hydraulic Tubing Management
•Coil up excess hydraulic flexible tubing into approximately 6 in. (150mm)
diameter coil(s) and attach to the workstation using the mounting clips and/or
cable ties. Take special care not to damage flexible tubing during this operation.
•While it is recommended to coil up excess tubing when hydraulic tubing lengths
are too long, the lines can be shortened. Contact Suspa
®
Incorporated for detailed
Movotec
®
Tube Shortening Instructions.
•If hydraulic tubing lengths are too short, it is only possible to make the tubing
lengths longer by replacing the line, using a Movotec
®
Refill Kit (part number
D99-00010 available at https://shop.suspa.com/storefront.aspx). Contact Suspa
®
Incorporated for a more information and instructions.
•Check flexible tubing to ensure it is secured to the workstation and that no
damage has been sustained during this operation.
7.5 Workstation Leveling
•Thread glides into all lift cylinders until the glide threads are fully engaged as
shown. This step will provide a good starting point for leveling the workstation.

03/01/16
670- 00017B
15
•Re-orient the workstation so that the glides are in contact with the floor as shown.
To prevent damage from occurring to the system, take
special care not to drop the workstation onto the lift
cylinders
•Place a level on the top of the work-surface. Unthread glide(s) from the lift
cylinder(s) as needed to achieve a level work-surface. Once the workstation is
level, tighten the lock nut on all four glides to ensure the workstation will remain
level during use.
NOTICE

03/01/16
670- 00017B
16
8.0 Operation Instructions
FOLLOW ALL SAFETY INSTRUCTIONS CONTAINED
IN SECTION 3.0 OF THIS MANUAL BEFORE
OPERATING THIS PRODUCT. FAILURE TO
FOLLOW THE INSTRUCTIONS IN THIS MANUAL
COULD RESULT IN PROPERTY DAMAGE,
PERSONAL INJURY OR DEATH.
Movotec
®
systems can lift relatively large loads, lasting for many years, as long as they
are installed and used correctly. The Movotec
®
Crank Driven “Bolt-On” Lift System is
not intended for continuous cycling or for applications requiring precision height
adjustment.
The Movotec
®
lift system is single-acting and will require a
minimum load of 35 lb (15.9 kg) per cylinder for even lift
system retraction.
8.1 Before Loading the Workstation
•Check all hydraulic connections.
•Check for damage to flexible hydraulic tubing that may have occurred while
unpacking or installing the system.
•Check all system components to ensure that they are tightly secured to the work
station.
•Confirm that a minimum load of 35 lb (15.9 kg) per cylinder is present for even
lift system retraction.
•Confirm the maximum system load is not being exceeded. The maximum system
load is the total load including the workstation being lifted and anything on top of
the work-surface.
NOTICE

03/01/16
670- 00017B
17
If the lift system does not operate as explained in Section 4.0
of this manual, remove the load from the system immediately
and contact Suspa
®
Incorporated technical support.
If technical support is needed, or any questions exist before operation, system
information can be found using the product labels located on the side of the pump
(reference photographs below).
Movotec pump part number and description
Movotec system number and description
Do not dismantle the system unless authorized by Suspa
®
Incorporated. Attempting to repair the system or system
components without authorization from Suspa
®
Incorporated
voids the warranty.
NOTICE

03/01/16
670- 00017B
18

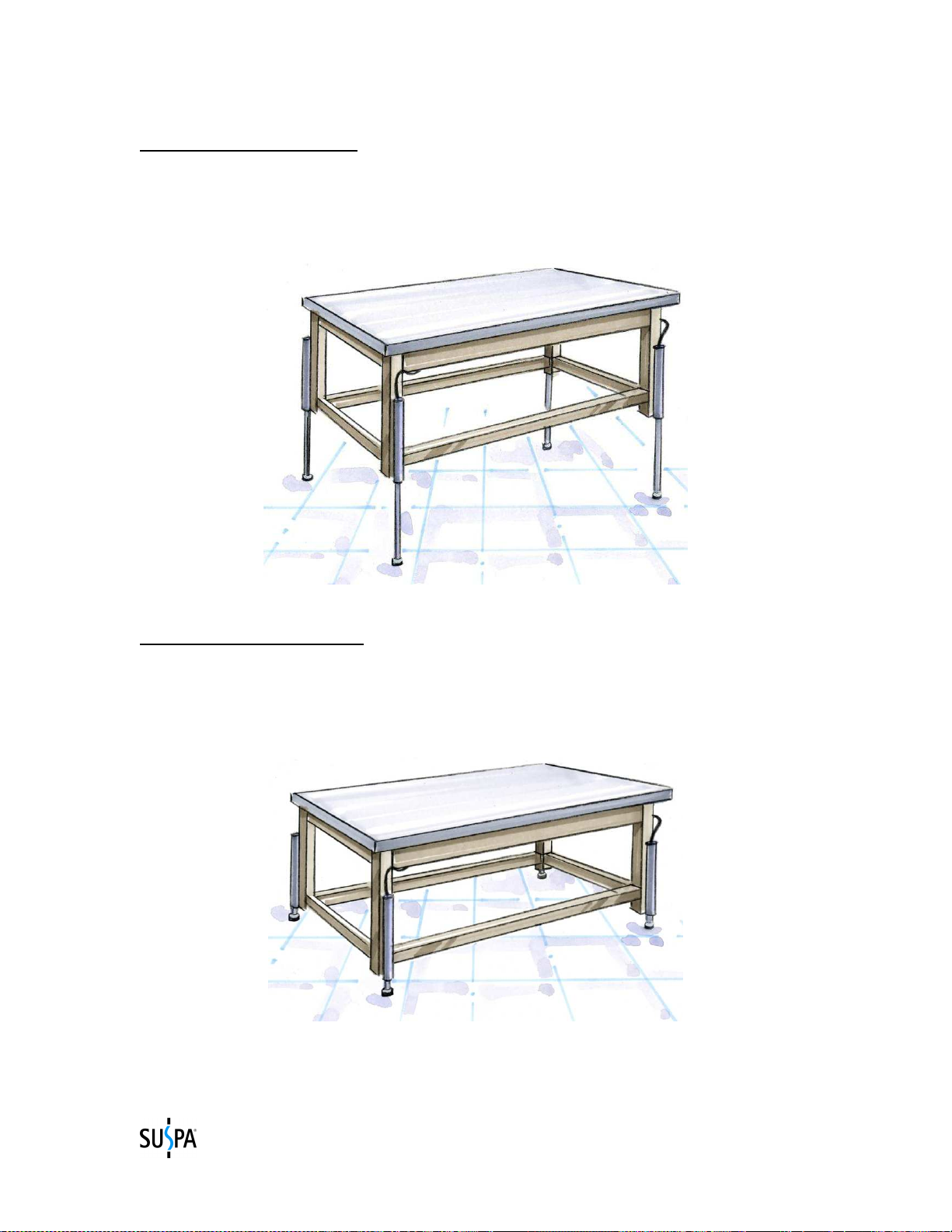

8.2 System Extension Cycle
Rotate crank in the clockwise (CW) direction. Continue rotating the crank in the (CW)
direction until the workstation has reached the desired height or the upper limit is
reached.
8.3 System Retraction Cycle
Rotate crank in the counter-clockwise (CCW) direction. Continue rotating the crank in
the (CCW) direction until the workstation has reached the desired height or the lower
limit is reached.

03/01/16
670- 00017B
19
8.4 Stowing the Crank
When not in use, the folding handle can easily be stowed inside the crank body.
Pull crank grip outward until crank mechanism begins to fold.
Note: Suspa, Inc. offers additional crank options. Please see the additional offerings at
https://shop.suspa.com/storefront.aspx or contact our sales team (see Section 15 for
contact information).
