Suunto SPARTAN ULTRA 1.8 User manual

SUUNTO SPARTAN ULTRA 1.8
USER GUIDE
2017-03-30

1 SAFETY .............................................................................................. 5
2 Getting started ................................................................................. 8
2.1 Touch screen and buttons ........................................................ 9
2.2 Displays ................................................................................... 10
2.3 Icons ........................................................................................ 12
2.4 Adjusting settings .................................................................. 16
3 Features .......................................................................................... 18
3.1 Activity monitoring ................................................................ 18
3.2 Airplane mode ........................................................................ 21
3.3 Altimeter ................................................................................. 21
3.3.1 FusedAlti ......................................................................... 22
3.4 Autopause .............................................................................. 22
3.5 Backlight ................................................................................. 23
3.6 Button and screen lock .......................................................... 24
3.7 Compass .................................................................................. 25
3.7.1 Calibrating compass ....................................................... 26
3.7.2 Setting declination ......................................................... 26
3.8 Device info .............................................................................. 27
3.9 Display theme ......................................................................... 27
3.10 Feeling .................................................................................. 28
3.11 FusedSpeed ........................................................................... 30
3.12 GPS accuracy and power saving .......................................... 32
3.13 Heart rate sensor .................................................................. 34
3.14 Interval training ................................................................... 35
3.15 Language and unit system ................................................... 37
3.16 Logbook ................................................................................ 37
3.17 Movescount .......................................................................... 38
3.17.1 SuuntoLink .................................................................... 39
2

3.17.2 Suunto Movescount App ............................................. 39
3.18 Notifications ......................................................................... 40
3.19 Outdoor insight .................................................................... 41
3.20 Pairing PODs and sensors ..................................................... 43
3.20.1 Calibrating foot POD ................................................... 45
3.20.2 Calibrating power POD ................................................ 45
3.21 Points of interest .................................................................. 46
3.21.1 Adding and deleting POIs ............................................ 46
3.21.2 Navigating to a POI ...................................................... 48
3.21.3 POI types ....................................................................... 50
3.22 Position formats ................................................................... 53
3.23 Recording an exercise .......................................................... 55
3.23.1 Navigating during exercise .......................................... 57
3.23.2 Sport mode power saving options .............................. 59
3.24 Recovery time ....................................................................... 60
3.25 Routes ................................................................................... 61
3.25.1 Altitude navigation ...................................................... 63
3.26 Software updates ................................................................. 64
3.27 Sport modes .......................................................................... 64
3.27.1 Swimming ..................................................................... 65
3.28 Stopwatch ............................................................................. 66
3.29 Time and date ...................................................................... 67
3.29.1 Alarm clock ................................................................... 67
3.30 Tones and vibration ............................................................. 69
3.31 Training insight .................................................................... 69
3.31.1 Training plans ............................................................... 71
3.32 Watch faces .......................................................................... 72
4 Care and support ............................................................................ 74
3

4.1 Handling guidelines ............................................................... 74
4.2 Battery .................................................................................... 74
4.3 Disposal ................................................................................... 75
5 Reference ........................................................................................ 76
5.1 Technical specifications .......................................................... 76
5.2 Compliance ............................................................................. 77
5.2.1 CE .................................................................................... 77
5.2.2 FCC compliance .............................................................. 77
5.2.3 IC ..................................................................................... 78
5.2.4 NOM-121-SCT1-2009 ...................................................... 78
5.3 Trademark .............................................................................. 79
5.4 Patent notice .......................................................................... 79
5.5 International Limited Warranty ............................................ 79
5.6 Copyright ................................................................................ 82
4

1 SAFETY
Types of safety precautions
WARNING: - is used in connection with a procedure or situation
that may result in serious injury or death.
CAUTION: - is used in connection with a procedure or situation
that will result in damage to the product.
NOTE: - is used to emphasize important information.
TIP: - is used for extra tips on how to utilize the features and
functions of the device.
Safety precautions
WARNING: Keep the USB cable away from medical devices such
as pacemakers, as well as key cards, credit cards and similar items.
The USB cable device connector includes a strong magnet which
may interfere with the operation of medical or other electronic
devices and items with magnetically stored data.
5

WARNING: Allergic reactions or skin irritations may occur when
the product is in contact with skin, even though our products
comply with industry standards. In such event, stop use immediately
and consult a doctor.
WARNING: Always consult your doctor before beginning an
exercise program. Overexertion may cause serious injury.
WARNING: Only for recreational use.
WARNING: Do not entirely rely on the GPS or battery lifetime of
the product. Always use maps and other backup material to ensure
your safety.
CAUTION: Do not apply solvent of any kind to the product, as it
may damage the surface.
CAUTION: Do not apply insect repellent on the product, as it
may damage the surface.
CAUTION: Do not throw the product away, but treat it as
electronic waste to preserve the environment.
6

CAUTION: Do not knock or drop the product, as it may get
damaged.
NOTE: At Suunto we use advanced sensors and algorithms to
generate metrics that can help you in your activities and
adventures. We strive to be as accurate as possible. However, none
of the data our products and services collect is perfectly reliable, nor
are the metrics they generate absolutely precise. Calories, heart
rate, location, movement detection, shot recognition, physical stress
indicators and other measurements may not match the real world.
Suunto products and services are intended for recreational use only
and are not meant for medical purposes of any kind.
7

2 GETTING STARTED
Starting your Suunto Spartan Ultra for the first time is quick and
simple.
1. Keep the upper button pressed to wake up the watch.
2. Tap the screen to begin the setup wizard.

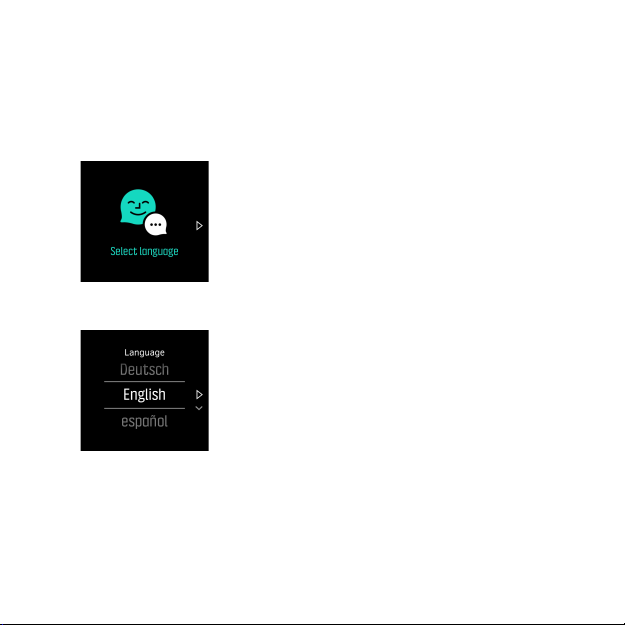

3. Select your language by swiping up or down and tapping on the
language.
4. Follow the wizard to complete initial settings. Swipe up or down
to select values. Tap the screen or press the middle button to
accept a value and go to the next step.
After completing the wizard, charge the watch with the supplied
USB cable until the battery is fully charged.
8

You need to download and install SuuntoLink on your PC or Mac to
get software updates for your watch. We strongly recommend
updating your watch when a new software release is available.
Visit www.movescount.com/connect for further information.
2.1 Touch screen and buttons
Suunto Spartan Ultra has a touch screen and three buttons you can
use to navigate through displays and features.
Swipe and tap
•swipe up or down to move in displays and menus
•swipe right and left to backwards and forwards in displays
•swipe left or right to see additional displays and details
•tap to select an item
•tap the display to view alternate information
•tap and hold to open in-context options menu
•double-tap to return to time display from other displays
(excluding launcher and settings)
Upper button
•press to move up in views and menus
Middle button
•press to select an item or view alternate information
•keep pressed to got back in settings menu
•keep pressed to open in-context options menu
Lower button
•press to move down in views and menus
9

While recording an exercise:
Upper button
•press to pause or resume recording
•keep pressed to change activity
Middle button
•press to change displays
•keep pressed to open in-context options menu
Lower button
•press to mark a lap
•keep pressed to lock and unlock buttons
2.2 Displays
Displays are customizable and subject to change with software
updates. The basic arrangement remains, however, the same, as
illustrated below.
10

1. Launcher
2. Notifications
11

3. Watch face
4. Activity
5. Training
6. Recovery
2.3 Icons
Suunto Spartan Ultra uses the following icons:
airplane mode
altitude
altitude difference
ascent
ascent time
back; go back in menu
breathing rate
button lock
cadence
calibrate (compass)
12

calories
current location (navigation)
charging
descent
descent time
distance
duration
EPOC
estimated VO2
exercise
failure
flat time
GPS acquired
heading (navigation)
13

heart rate
HR sensor signal acquired
highest point
incoming call
logbook
low battery
lowest point
message/notification
missed call
navigation
no ascents
no descents
off route
pace
14

planned Move
POD signal acquired
Power POD signal acquired
Peak Training Effect
recovery time
software update available
steps
stopwatch
stroke rate (swimming)
success
SWOLF
syncing
settings
temperature
15

2.4 Adjusting settings
You can adjust all watch settings directly in the watch or through
Suunto Movescount.
To adjust a setting:

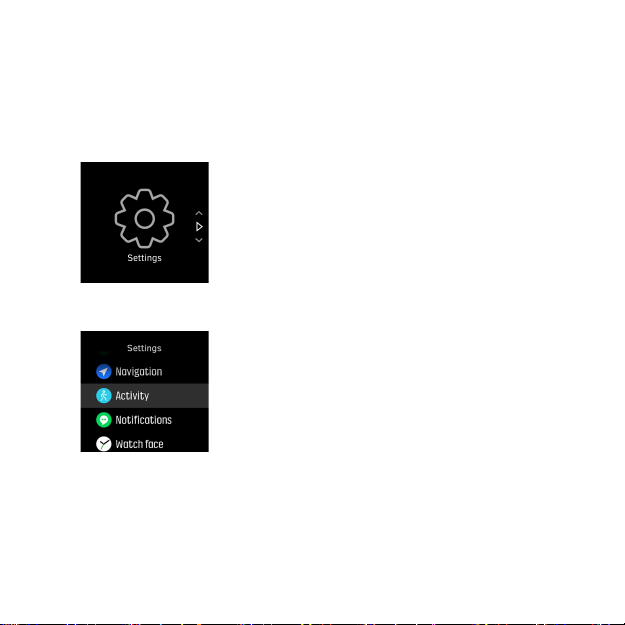

1. Swipe down until you see the settings icon and tap the icon.
2. Scroll through the settings menu by swiping up or down or by
pressing the upper or lower buttons.
3. Select a setting by tapping the setting name or pressing the
middle button when the setting is highlighted.
Go back in the menu by swiping right or selecting Back.
4. For settings with a value range, change the value by swiping up
or down or by pressing the upper or lower button.
16

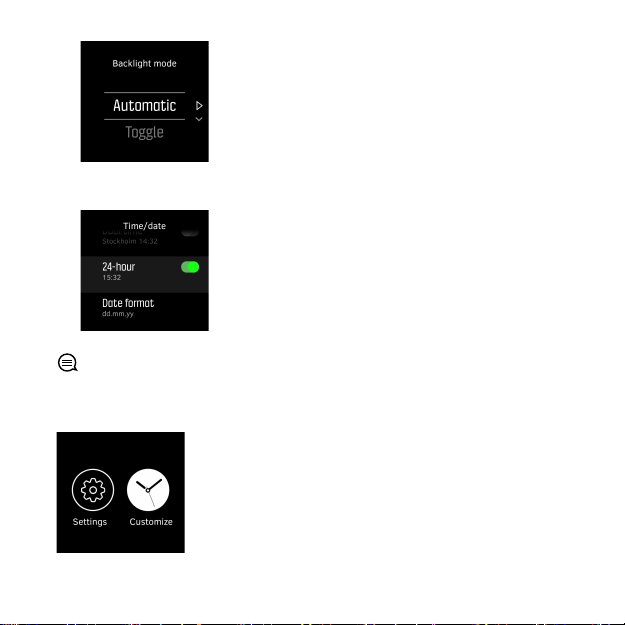

5. For settings with just two values, such as on or off, change the
value by tapping the setting or pressing the middle button.
TIP: You can also access general settings from the watch face by
tapping and holding your finger on the screen to open the in-
context menu.
17

3 FEATURES

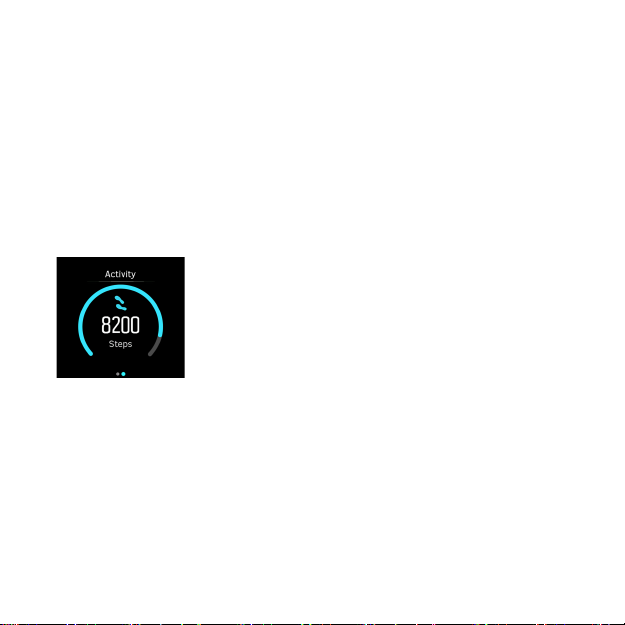

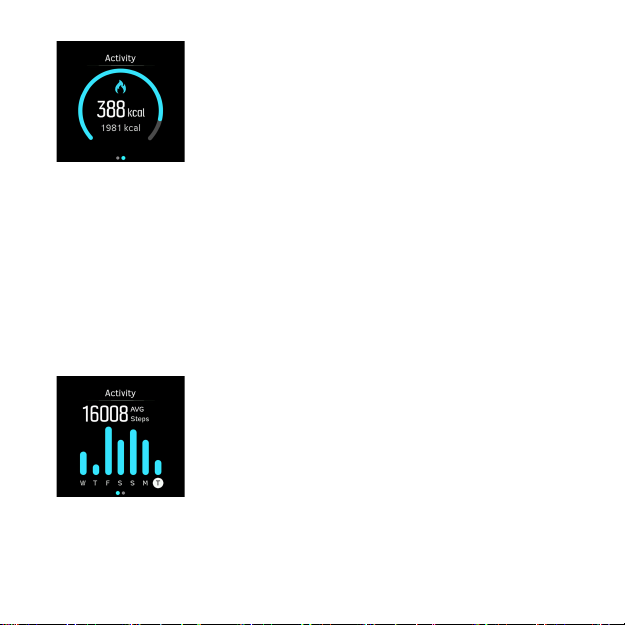

3.1 Activity monitoring
Your watch keeps track of your overall level of activity throughout
the day. This is an important factor whether you just aim to be fit
and healthy or you are training for an upcoming competition.
It is good to be active, but when training hard, you need to have
proper rest days with low activity.
From the watch face display, swipe up or press the lower button to
see your total steps for the day.
Your watch counts steps using an accelerometer. The total step
count accumulates 24/7, also while recording training sessions and
other activities. However, with some specific sports, such as
swimming and cycling, steps are not counted.
In addition to steps, you can tap on the display to see estimated
calories for the day.
18

The large number in the center of the display is the estimated
amount of active calories you have burned so far. Below this you
see the total calories burned. The total includes both active calories
and your Basal Metabolic Rate (see below).
The ring in both displays indicates how close you are to your daily
activity goals. These targets can be adjust to your personal
preferences (see below)
You can also check your activity over the last seven days with a
swipe to the right. Tap the screen or press the middle button to
switch between steps and calories.
19

Activity goals
You can adjust your daily goals for both steps and calories. While in
the activity display, tap and hold your finger on the screen or keep
the middle button pressed to open the activity goal settings.
When setting your steps goal, you define the total number of steps
for the day.
The total calories you burn per day is based on two factors: your
Basal Metabolic Rate (BMR) and your physical activity.
Your BMR is the amount of calories your body burns while at rest.
These are the calories your body needs to stay warm and perform
basic function like blink your eyes or beat your heart. This number is
based on your personal profile, including factors such as age and
gender.
20
