Model SL-240
Parts and
Operations Manual
Hoist Serial Number: ____________________
52H06 ~ REV B
SL-240
DECAL ASSEMBLY
OUTER TUBE ASS'Y
(REF) (51H76)
1
10
8
1
5
10
(ON DASHBOARD)
6
10
OUTER TUBE ASS'Y
(REF) (51H76) 12
28
12 2
10
9534
11
(ON VISOR)
7
TABLE OF CONTENTS
I.
INTRODUCTION
Letter to Customer
Warranty Statement
Safety Suggestions
Decal Assembly and Descriptions
Serial Number Locations
II. INSTALLATION
Initial Inspection
Hoist Installation
Controls Installation
Hydraulic Tank Installation
P.T.O. Selection
Pump Installation
Start Up Procedure
EHV Installation

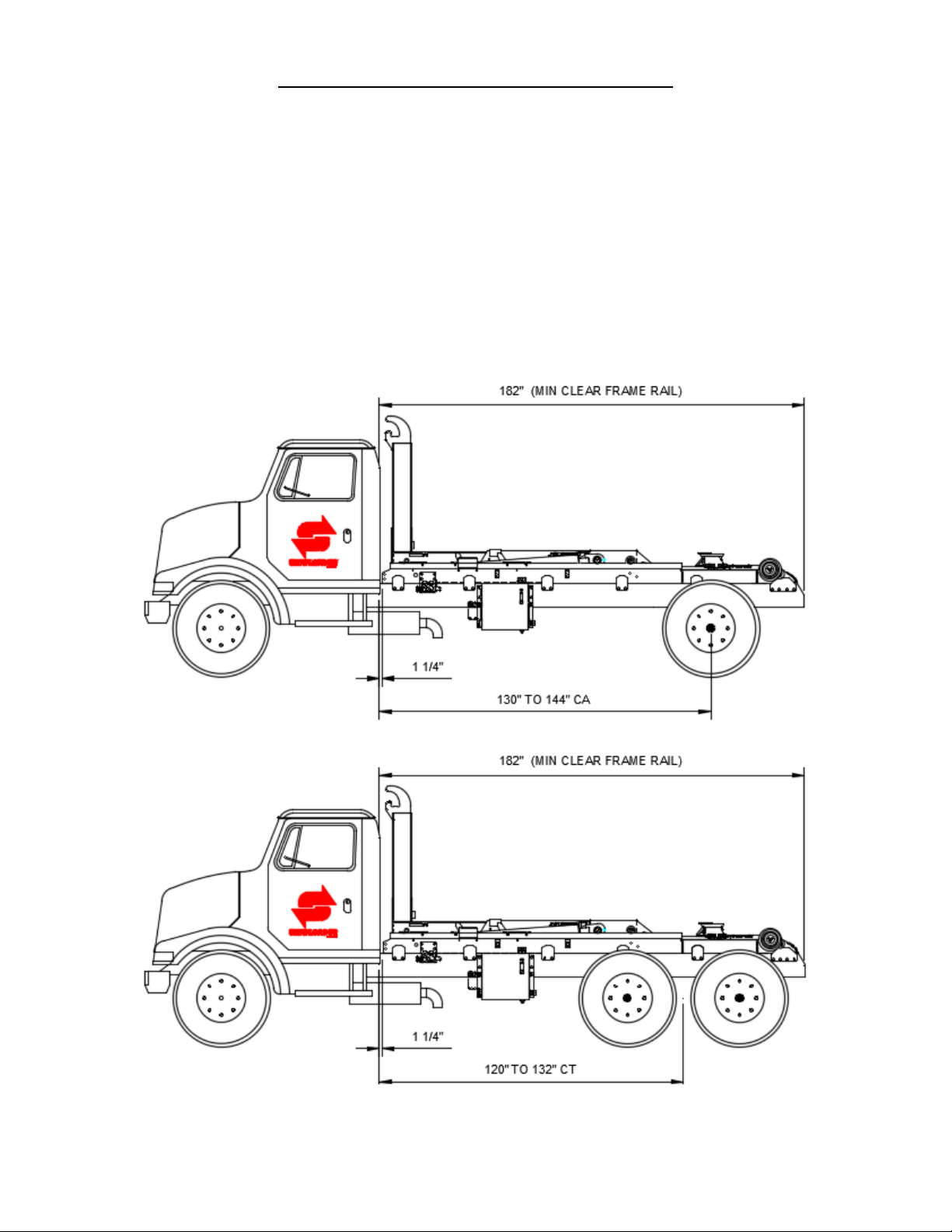

200 Series Subframe Dimensions
300 Series Subframe Dimensions
Accessory Installation
Bumper Assembly
Bumper Assembly, w/ Extension
Bumper Assembly, Folding
Bumper Assembly, Drop Down
Cab Guard Assembly
Container Variability System - (C.V.S.)
Fender Assembly, Single Axle
Fender Assembly, Tandem Axle
Rear Light Bar Assembly
Roller & Roller Mount
Toolbox Assembly
III. OPERATION
Loading a Container
Dumping a Container
Placing a Container on the Ground
Changing Hook Heights
Adjusting Jib (Optional)
Rear Roller Spacing Adjustment
IV. MAINTENANCE
Weekly Service (50 Operations)
Monthly Service (200 Operations)
Yearly Service
Lubrication Diagram
Hydraulic Oil Specifications
Hydraulic Filter Interchange
General Maintenance Parts List
Replacement Bearing List
IV.
MAINTENANCE (cont’d)
Mast Lock (Safety Latch) Inspection &
Adjustment Instructions
Pressure Check Instructions
Outer Tube Clamp Inspection and
Adjustment Instructions
EHV Manual Over-Ride Instructions
V. PARTS LIST
Base Assembly
Main Frame Sub-Assembly
Pivot Joint Sub-Assembly
Outer Tube Sub-Assembly
Mast Lock (Safety Latch) Assembly
Fixed Jib Sub-Assembly
Hoist Installation Kit Assembly
Manual Control Assembly, 2 Section
Hyd. Sub-Ass’y – Base Cylinder Circuit
Hyd. Sub-Ass’y – Chassis-Tank Circuit
Hydraulic Sub-Assembly – Pump Circuit
Decal Assembly
VI. OPTIONS
Air Shift Control Assembly, 2 Section
Air Circuit, 2 Section
Adjustable Jib Assembly
Hoist Installation Kit (EHV)
Tank Circuit (EHV)
Pump Circuit (EHV)
Hose Circuit (EHV)
SL-240 Rev. 05/2020
INTRODUCTION
INTRODUCTION 1-1
09/2009
SWAPLOADER U.S.A., LTD.
TO THE CUSTOMER
Your new SwapLoader Hoist was carefully designed and manufactured to give years of
dependable service. To keep it operating efficiently, read the instructions in this manual
thoroughly. It contains detailed descriptions and instructions for the efficient operation and
maintenance of your SwapLoader. Each section is clearly identified so you can easily find the
information that you need. Read the Table of Contents to learn where each section is located.
All instructions are recommended procedures only.
Throughout this manual you will come across "Dangers," "Warnings," or "Cautions"
which will be carried out in bold type and preceded by the symbol as indicated to the
left. Be certain to carefully read the message that follows to avoid the possibility of
personal injury or machine damage.
Record your SwapLoader Hoist serial number in the appropriate space provided on the title page.
Your SwapLoader dealer needs this information to give you prompt, efficient service when you
order parts. It pays to rely on an authorized SwapLoader Distributor for your service needs. For
the location of the Distributor nearest you, contact SwapLoader.
NOTE: It is SwapLoader's policy to constantly strive to improve SwapLoader products.
The information, specifications, and illustrations in this publication are based on
the information in effect at the time of approval for printing and publishing.
SwapLoader therefore reserves the right to make changes in design and
improvements whenever it is believed the efficiency of the unit will be improved
without incurring any obligations to incorporate such improvements in any unit
which has been shipped or is in service. It is recommended that users contact an
authorized SwapLoader Distributor for the latest revisions.
INTRODUCTION 1-2
09/2009
SWAPLOADER, U.S.A., LTD.
1800 N.E. BROADWAY, DES MOINES, IOWA 50313
LIMITED WARRANTY STATEMENT
Effective September 1, 2009
SwapLoader U.S.A., Ltd., (SwapLoader), warrants to the original purchaser of any new SwapLoader product sold by an
authorized SwapLoader distributor or service center, that such products are free of defects in material and workmanship. All
SwapLoader products with an original factory invoice date of September 1, 2009 or later qualify for warranty as defined in this
Limited Warranty Statement.
•Repair or replacement of parts on SwapLoader products are covered under warranty for forty-eight (48) months from
date of Retail Sale by an authorized SwapLoader Distributor or service center, subject to any applicable federal, state
or local taxes, and not to extend beyond sixty (60) months from the original factory invoice date. SwapLoader will, at
its discretion, either repair the defective parts or replace them with equivalent parts, subject to the conditions below.
•Labor charges authorized by the SwapLoader Warranty Department are covered under warranty for a period of twelve
(12) months from the date of Retail Sale by an authorized SwapLoader Distributor or service center, and not to extend
beyond twenty-four (24) months labor from the original factory invoice date.
•Warranty Registration Card must be returned within 15 days of Retail Sale of SwapLoader hoist to SwapLoader, Des
Moines, Iowa. If unit has not been registered, then the warranty start date will revert to the original factory invoice
date. Warranty Registration is the ultimate responsibility of the owner and may be accomplished by the completion
and return of the product registration form included in the SwapLoader hoist manual. If the owner is not sure that
product registration is completed, then SwapLoader encourages them to contact us at 888-767-8000 to confirm.
•Defective parts must be reported to SwapLoader within 30 days of discovery on a SwapLoader warranty claim report
form. A Return Goods Authorization (RGA) number must be issued to the claiming party prior to the return of any
defective part to be considered for warranty.
•Warranty service must be performed by a distributor or service center authorized by SwapLoader to sell and/or service
SwapLoader products, which will use only new or remanufactured parts or components furnished by SwapLoader
U.S.A., Ltd. SwapLoader will invoice the distributor or authorized service center for the replacement parts and freight.
Upon completion of the repair any defective parts to be returned for warranty consideration must be returned freight
prepaid with a copy of the SwapLoader issued RGA form and a copy of the completed warranty claim report form.
Upon evaluation of the returned parts, once warranty is approved, credit will be issued to the appropriate account for
the approved warranty costs which may include parts, labor, and/or freight.
•The warranty covers only defective material and workmanship. It does not cover depreciation or damage caused by
normal wear and tear, accident, mishap, untrained operators, or improper or unintended use. The owner has the
obligation of performing routine care and maintenance duties as stated in SwapLoader’s written instructions,
recommendations, and specifications. Any damage resulting from owner/ operator failure to perform such duties shall
void the coverage of this warranty. The cost of labor and supplies associated with routine maintenance will be paid by
the owner.
•In no event will SwapLoader, the SwapLoader distributor or any company affiliated with SwapLoader be liable for
business interruptions, costs of delay, or for any special, indirect, incidental or consequential costs or damages. Such
costs may include, but are not limited to loss of time, loss of revenue, loss of use, wages, salaries, commissions,
lodging, meals, towing, hydraulic fluid, travel, mileage, or any other incidental costs.
•SwapLoader is not responsible for the removal or replacement of accessories (fenders, toolbox, etc.).
•Warranty shall not apply if the equipment is operated at capacities in excess of factory recommendations.
•Warranty is expressly void if the seal on the main relief control valve has been broken.
•SwapLoader will ship the replacement part by the most economical, yet expedient means possible. Expedited freight
delivery will be at the expense of the owner.
•Warranty is expressly void if serial number plate or stamping is tampered with.
IT IS EXPRESSLY UNDERSTOOD AND AGREED THAT THERE ARE NO WARRANTIES MADE BY THE MANUFACTURER OR
ITS AGENTS, REPRESENTATIVES OR DISTRIBUTORS, EITHER EXPRESSED, IMPLIED, OR IMPLIED BY LAW, EXCEPT
THOSE EXPRESSLY STATED ABOVE IN THIS STANDARD LIMITED WARRANTY AGAINST DEFECTS IN MATERIAL AND
WORKMANSHIP. THE MANUFACTURER AND ITS AGENTS, REPRESENTATIVES AND DISTRIBUTORS SPECIFICALLY
DISCLAIM ANY IMPLIED WARRANTY OR MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
SWL Warranty 083109
