SWIT MUF50 User manual

USER MANUAL
SWIT Electronics Co.,Ltd.
MUF50
Out shooting portable tripod
Ver: A
Tel:[phone]
Fax:[phone]
http://www.swit.cc
E-mail: [email protected]
Thank you for choosing SWIT products, please read this user manual before using and keep it properly for future reference.
Appearance
1.Standard bolt
2.Lock bolt
3.Handle connection port
4.Fluid head handle
5.Handle protection
6.Quick release plate safety switch
7.Pitch damping knob
8. Horizontal damping lock knob
9.Quick adjusting ball bowl
10.Center column locking nut
11.Main frame
12.Angle adjustment button
13.Feet tube
14.Fixed frame
15.Lock buckle
16.Changeable feet
17.Central tube
18.Weight hook
TH50
MUF50
󾋸󾋸
󾋹󾋽󾋺
󾋺
󾋾󾋾
󾌀
󾌀
󾋸󾋾
󾋸󾋿
󾋸󾋸
󾋿󾋿
󾋸󾋷
󾋸󾋹
󾋸󾋺
󾋸󾋻
󾋸󾋼
󾋸󾋽
󾋻
󾋼
Model & Specification Packing list
No.
1
2
3
4
Description
Tripod kit
Quick release plate
Accessories tool
Fluid head
Quantity
1
1
1
1
Model
Material
Tube Diameter(mm)
Self-weight(kg)
Load(kg)
Fluid head
Number of feet socket
Fold height(cm)
Height(cm)
MUF50
Aluminum
15.5-26
2.23
5
TH50
4
43
43-159
Tips: Manual measurement has an error of 1-2cm, please refer to the actual object, thank you for understanding.

1.Camera installation
SLR camera or camcorder can be installed.
①Rotate the lock knob for release quick
release plate counterclockwise.
②Press the safety switch and take out the
quick release plate.
③Press the quick release plate diagonally
into the platform from the direction of
the safety bolt,Turn the knob to lock.

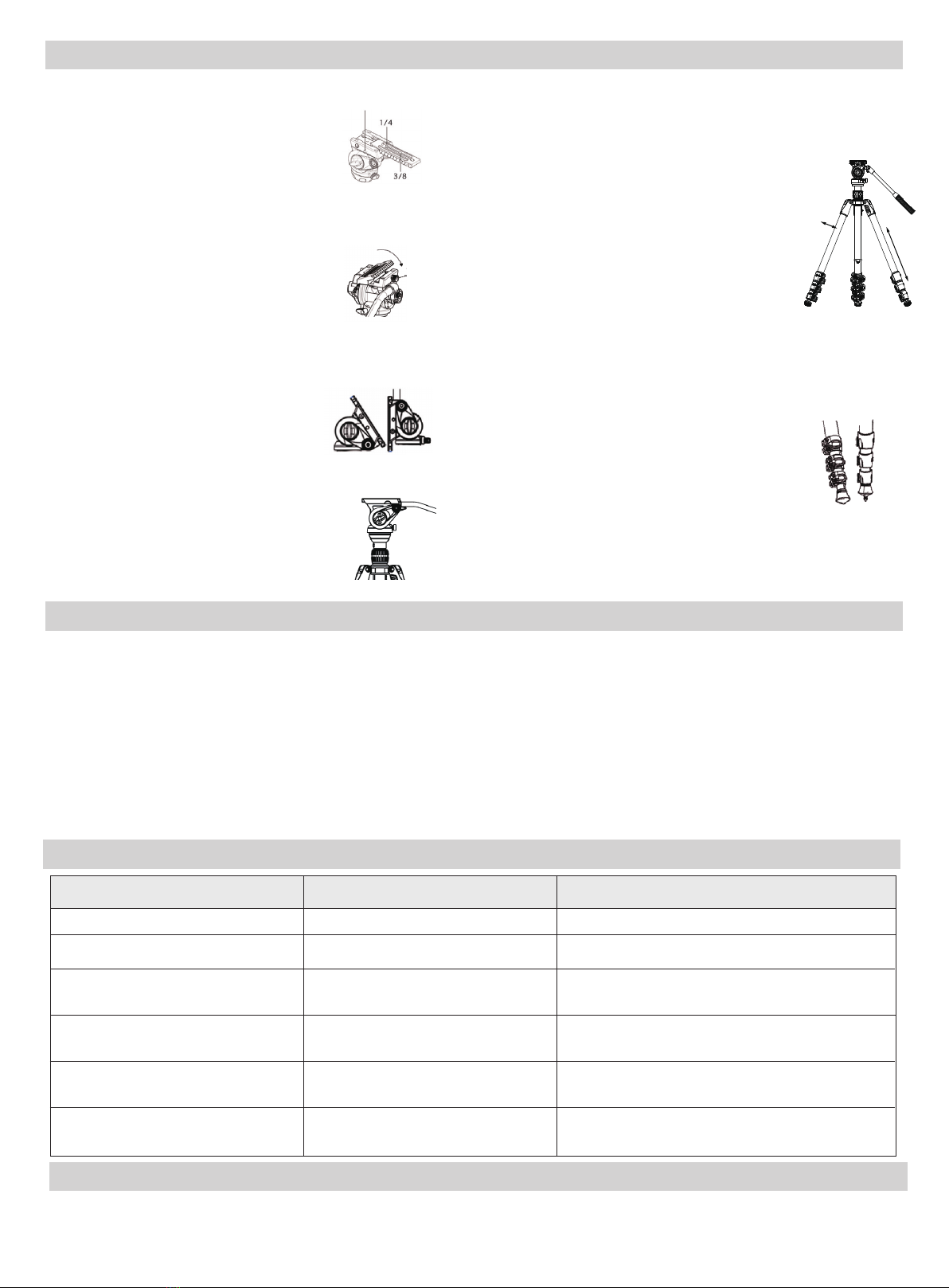

2.Accessories & other device installation
The external nut can be connected with the
rocker arm, display LED lights and other
equipment.Choose 1/4 or 3/8 screw according
to the equipment you have,you can locking
with the coin in the tool kit.
3. Adjust the head angle
①The head can be pitch adjusted the upper
and lower Angles can be adjusted is between
+90 and -70 degrees. If it needs to be fixed,
the pitch damping knob can be used for
locking. In the absence of load, the head will
be automatically return to a horizontal state.
②The head can rotate 360 degrees horizontally,
and the horizontally locked knob can be
used to control the horizontally damping.
4. The use of the bubble level
The tripod will be perpendicular to the
ground when Bubble inside the level is in the
most middle position.
5. Use of fast leveling ball bowl When the
level on the cradle
head is not level and the degree of skew of the tripod is
small, the fast leveling ball bowl above the tripod can
be used for quick level adjustment.
6. Unfold and fold the tripod
①When the foot is expanded, just pull down the foot tube
and it can be expanded.
② After the pin is expanded, press and hold the Angle
adjustment button on the upper side of the pin to fold
the pin back to the folded position.
7. Height adjustment
① Pull open the buckle and the foot frame will slide
automatically. According to the required height, buckle
the buckle again to fix the height of the foot frame.
② Open the pins of the tripod to an appropriate Angle.
For the foot of fixed middle tube, only fixed Angle can
be selected.The Angle can be adjusted for a moving
tube or a leg that extends to the ground.
8. Remove the monopod
Tripod pins with sheath and locking mark can be
removed directly for use as a monopod.Rotate the pin
according to the direction shown on the icon and spin
out.
9. Nail conversion
On loose ground, can use foot nail to increase tripod
stability.Rotate the rubber part of the convertible foot
pin to switch between the foot nail and the rubber
foot.When switching, make sure to rotate to a position
that cannot be rotated,but do not use brute force to
avoid damage to the tripod.
If you have any comments and suggestions about this product, you can contact us through the following ways to give us feedback.
Your comments are valuable resources for our growth.Thank you very much!
Customer service hotline: [phone]
E-mail: [e-mail] (European office) /Cont[email protected]c (China headquarters)
Quick release plate
safety switch
Take out the quick
release plate
Lock knob
Install quick
release plate
Adjust the head
pitching angle
-70° +90°
Directions
Contact
1. Do not use at temperatures below minus 40℃ and above 70℃.
2. When in damp, sand and dust environment, please wipe dry
with dry cloth after use When in a rain environment, after use,
please pull the pin to full elongation Until the inside of the pin is
dry and then closed; Not recommended for use in seawater.
3. Do not carry camera or photography equipment on the tripod.
4. The product does not need to be equipped with lubricating oil,
do not add improper lubricating products without authoriza-
tion, if necessary, use standard lubricants and oils Or please call
our customer service hotline [phone]for consultation.
5. Please do not disassemble the product under the guidance of
non-professionals. If you have any questions, please call SWIT customer
service hotline [phone].
6. In order to ensure personal safety, do not use this product with live
products, high voltage equipment and strong chemical exposure.
7. When adjusting the device, do not exert too much force to avoid compo-
nent damage.
8. Do not exceed the maximum load (see parameter description).
9. Do not expose the product to the sun or high temperature for a long time
in the car or under the glass.
10. When working, do not let the product be seen in a dangerous public
place out of the reach of children.
Notice
Common problems and solutions
Faults
The head shaking
The foot tube slides loose
Quick release plate can not be removed
Open the buckle foot tube and cannot fall
by itself
After installing the equipment,
The head tilt forward or backward
Quick release plate can not be inserted, or
the safety bolt loses its protective effect.
Reason
The head is not connect to the tripod
The buckle is not fastened well
Lock knob not loosened/
Failure to press safety bolt
Foreign matter between the wall of the
foot tube,or flip lock is too tight
Quick release plate is not in the right place
Insertion direction of quick release plate
is wrong
Treatment
Connect the head with the tripod
Fasten the clasp or lock the clasp with a medium wrench
Loose the lock knob,and press the safety bolt,
simultaneously pull out the quick release plate
Check if it has foreign matter or loose the flip clock
appropriately.
Adjust the front and back position of the quick release
plate until the platform is in a horizontal state.
Keep the arrows at the bottom of the quick release plate
in the same direction as the head.
Fast leveling
Angle
adjustment
Height
adjustment
Foot nail & Rubber
feet conversion
