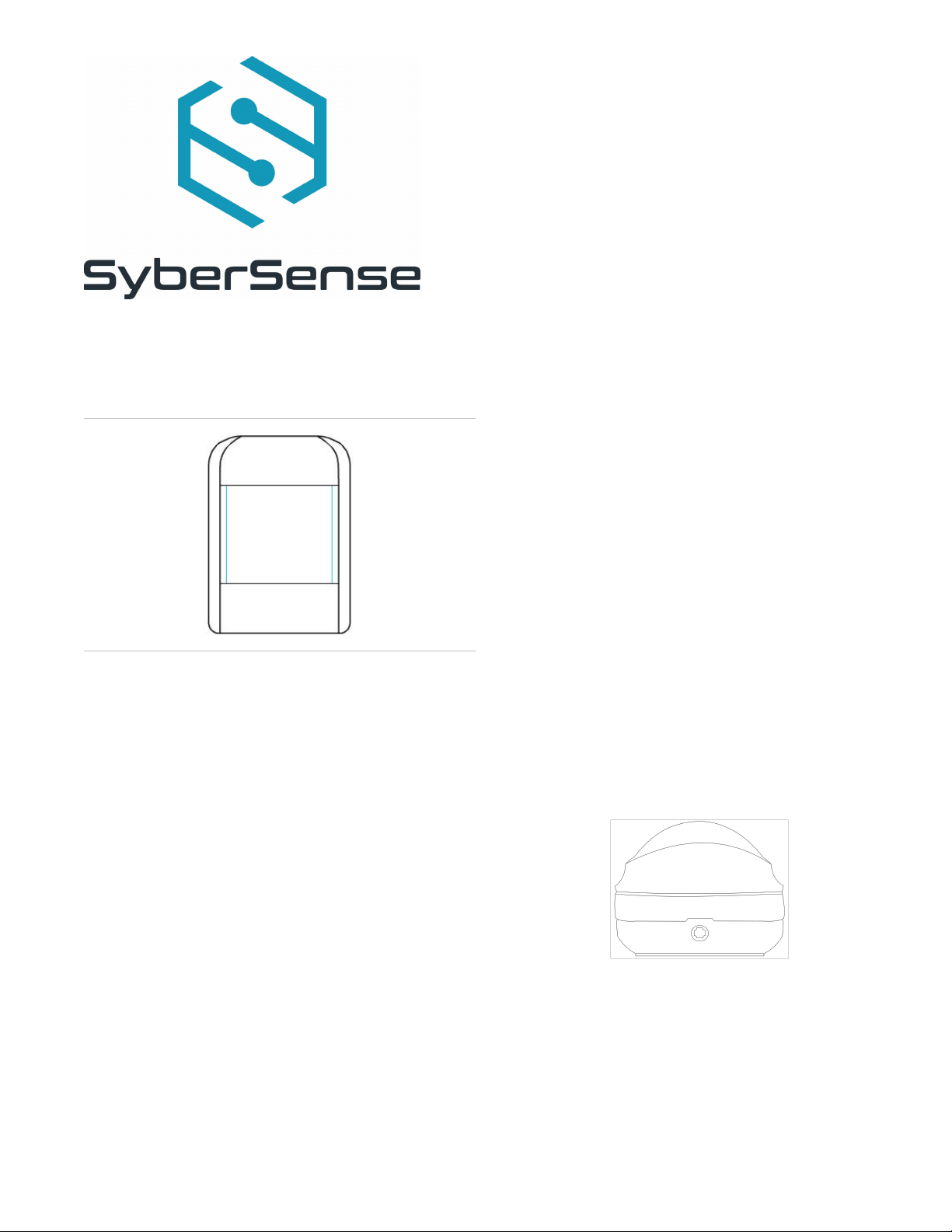

SyberSense XPM03 User manual

© 29DEC19 SyberSense 1/6DOC ID – 1706 • Rev 01
Description
Important safety instructions–
Before you install this sensor, be sure to:
Read, keep, and follow all instructions.
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
When there is a low battery, replace with a compatible
lithium ion battery.
Installation
Note: We recommend adding the motion sensor to a panel
before installation. Step 4 shows how to pair with a panel.
The motion sensor can be installed using the provided
adhesive and/or screws.
Note: We recommend using the provided screws for
installation. This method is more secure than using adhesive
alone.
To install the motion sensor:
1. Select the desired position for the sensor.
Note: The sensor only detects motion within 3.28 ft (1m)
in front of it (installed at 6.88 ft (2.1m) having a range of
32.80 ft (10m).
2. Remove the sensor’s battery pull tab.
3. Adhere the sensor to the wall using the provided screws or
adhesive.
Note: We recommend using the provided screws for
installation. This method is more secure than using
adhesive alone.
Screws
a. Locate the bottom of the sensor (the slotted flat
end), and then use a screwdriver to remove the
casing’s screw.
b.
Gently slide a fingernail/fingertip into the slot and
push the top casing of the sensor upward.
XPM03 Motion Sensor Manual
The XPM03 is designed to fit seamlessly in the corner or the
room or alongside a wall/door. When the PIR senses motion it
transmits an alarm notification to the panel.
Part number: XPM03-E-1433

© 29DEC19 SyberSense 2/6DOC ID – 1706 • Rev 01
c. Remove the adhesive film cover, and then place
the back plate against the wall, making sure that
the orientation is correct for the desired position.
Note: Once placed the sensor cannot be moved
without damaging the adhesive.
d. Insert the included mounting screw into the screw
breakaway screw hole, using a screwdriver to
fully secure the backplate to the wall.
e. Before finishing installation, set the PINs and
jumpers to the desired position. See, Pin function
on page 4.
f. Once the sensor is configured as desired, press
the sensor cover against the base, until there is
an audible snap.
g. Use the sensor’s casing screw to secure the
cover.
Adhesive
a. Locate the bottom of the sensor (the slotted flat
end), and then use a screwdriver to remove the
casing’s screw.
b. Gently slide a fingernail/fingertip into the slot and
push the top casing of the sensor upward.
c. Set the PINs and jumpers to the desired position.
See, Pin function on page 4.
d. Once the sensor is configured as desired, press
the sensor cover against the base, until there is
an audible snap.
e. Use the sensor’s casing screw to secure the
cover.
f. Peel the film cover off of the adhesive, and then
firmly press the sensor back plate against the
wall.
Note: Once placed the sensor cannot be moved
without damaging the adhesive.

© 29DEC19 SyberSense 3/6DOC ID – 1706 • Rev 01
4. Add the sensor to the panel, by putting the panel in
learning mode, then pressing the button on the side of the
sensor to pair the sensor to the panel.
5. Once added, test the sensor.
Look at the panel, and then open the door/window.
Notice that the added sensor displays faulted.
Note: Testing all sensors to the alarm monitoring
station is strongly advised.

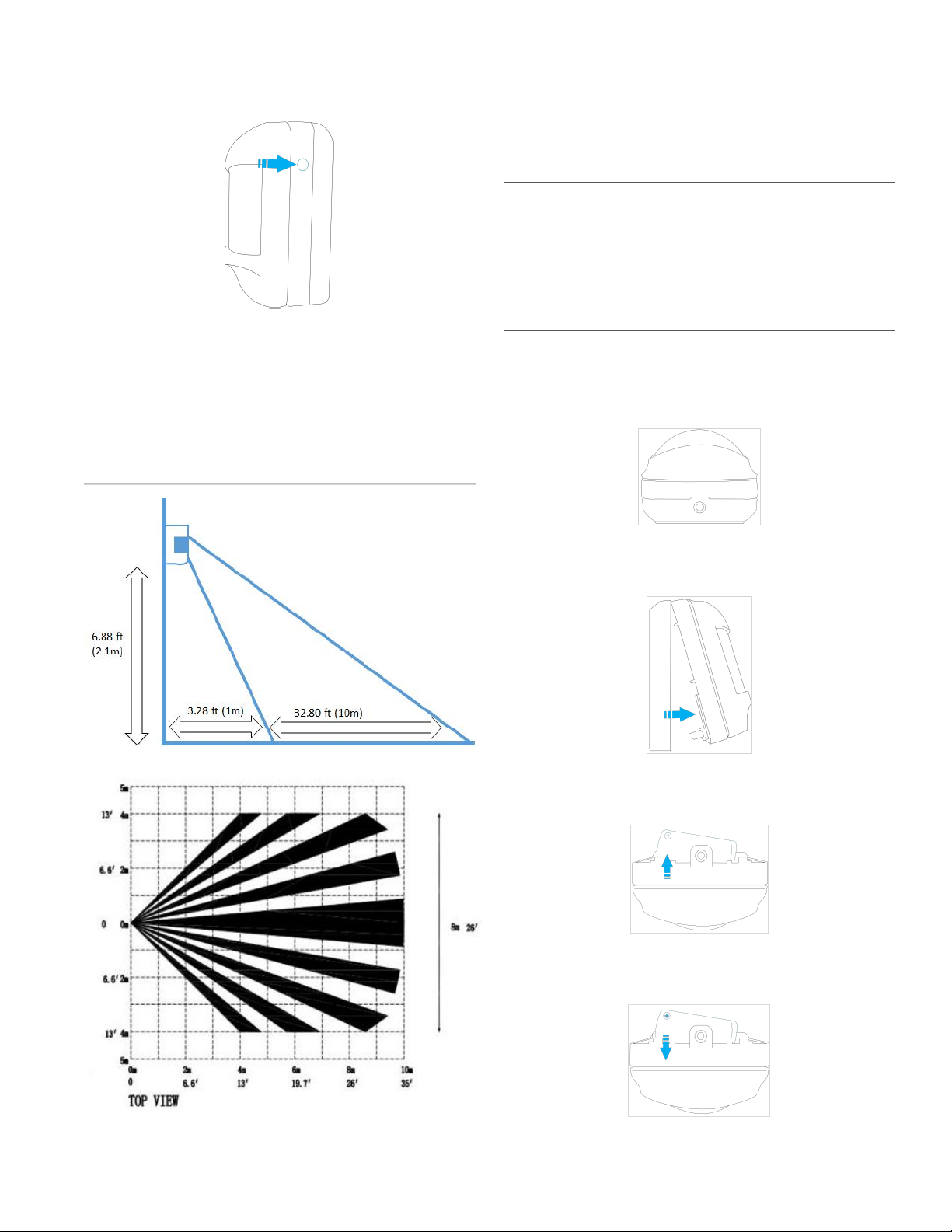

Figure 1: Sensor range and detection
WARNING: If an incompatible replacement battery is used, or
the battery is installed incorrectly explosion or damages may
occur.
AVERTISSEMENT: Si une batterie de remplacement
incompatible est utilisée ou si la batterie est installée de
manière incorrecte, une explosion ou des dommages peuvent
survenir.
To replace the battery:
1. Locate the bottom of the sensor (the slotted flat end), and
then use a screwdriver to remove the casing’s screw.
2. Gently slide a fingernail/fingertip into the slot and push the
top casing of the sensor outward, away from the wall.
3. Use a fingernail/fingertip to push the battery out of the
casing, noting the polarity of the battery.
4. Insert a new CR123A battery into the battery casing,
making sure that the polarity is correct.
Battery replacement
The XPM03 requires a CR123A battery. Once the battery is
low, the panel displays a low battery icon next to the sensor in
the devices list. The battery must be replaced within 7 days of
the first low battery notification. If the battery is not replaced
within 7 days, the sensor may not function properly.

© 29DEC19 SyberSense 4/6DOC ID – 1706 • Rev 01
5. Press the sensor cover back onto its back plate. There will
be an audible snap.
6. Use the sensor’s casing screw to secure the cover
7. Test the sensor.
Pin function
The PIR Motion Sensor has 2 sets of adjustable pins. The pins
adjust the Pet Immunity setting and the Sensitivity level. Each
set of pins has 2 settings that can be selected.

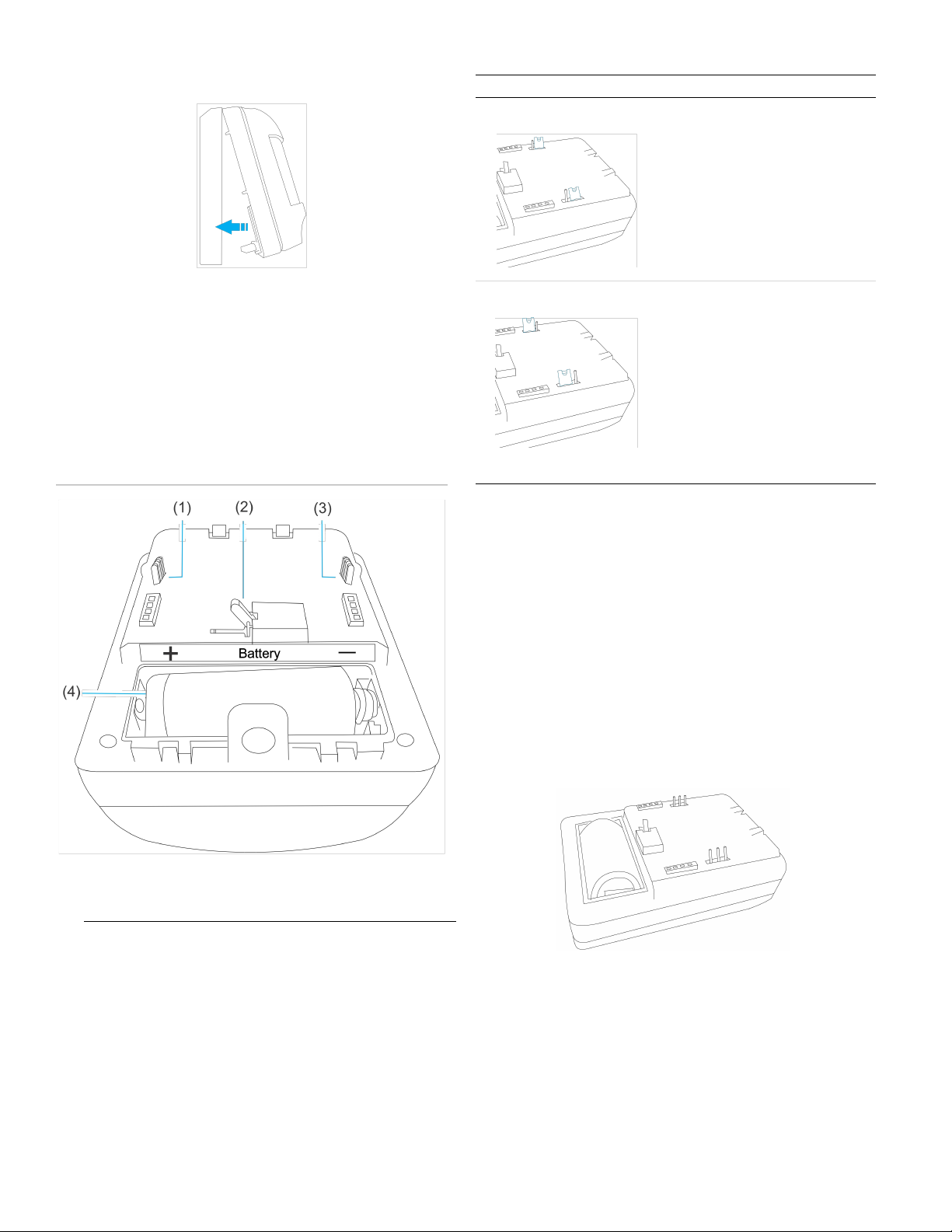

Figure 2: Sensor pins and tamper switch
(1) Pet immunity pins
(2) Tamper switch
(3) Sensitivity pins
(4) Battery
Table 1: Pin configuration
Configuration
Pet Immunity
Sensitivity
Top and middle pin
Up to 33lb dog
Low – max of 19ft
(6m) distance
range
Middle and bottom pin
Up to 55lb dog
High – max of 32ft
(10m) distance
range
Pet immunity
The pet immunity pins allow the user to select the desired
immunity level. Place the selector over the desired pin
configuration.

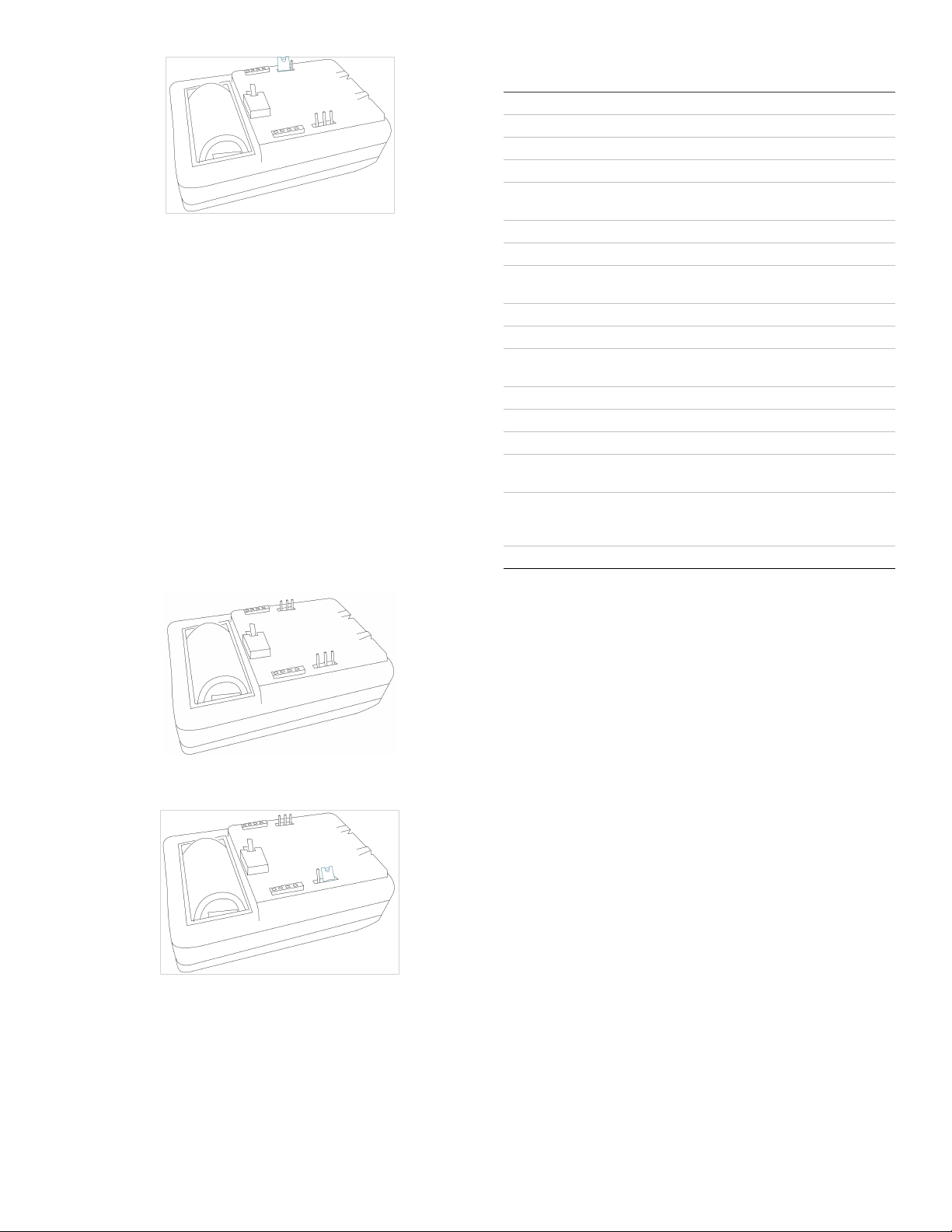

To change the pet immunity level:
1. Remove the back plate from the motion sensor.
2. Turn the sensor over so the battery faces up.
3. Locate the pet immunity pins on the left side.
4. Gently pinch the jumper and pull upward and away from
the sensor. All 3 pins are then visible.
5. Gently press the jumper on the desired pin set. See Table
1: Pin configuration, on page 4.

© 29DEC19 SyberSense 5/6DOC ID – 1706 • Rev 01
6. Replace the sensor plate, and then continue to installation.
– or –
Adjust the sensitivity level, and then and then continue to
installation.
Sensitivity
The sensitivity pins allow the user to select the desired
sensitivity level. Place the selector over the desired pin
configuration.
To change the sensitivity level:
1. Remove the back plate from the motion sensor.
2. Turn the sensor over so the battery faces up.
3. Locate the sensitivity pins on the right side.
4. Gently pinch the jumper and pull upward and away from
the sensor. All 3 pins are then visible.
5. Gently press the jumper on the desired pin set.
6. Replace the sensor plate, and then continue to installation.
– or –
Adjust the pet immunity level, and then and then continue
to installation.
Specifications
Wireless signal range
820.21 ft. (250 m)
Transmitter frequency
433.95MHz TX
Encrypted
Yes
Pet immunity
33 to 55lb dog
Detection length
Default: 32.80 ft. (10 m)
Optional: 19.68 ft. (6 m)
Detection angle
90 degree
Mounting height
7.5 to 9.5 ft. (2.28 to 2.89 m)
Transmitted indications
Tamper
Low battery
Screw size
M3 x 16mm
Adhesive
3M 4930
Pin function
Sensitivity (6m to 10m)
Pet immunity (33 to 55lb dog)
Test button
Pairing, 2-minute test mode for motion
Battery type
CR123A (1300mAh)
Battery life
5 years
Sensor dimensions
(W × H × D)
2.16 × 2.99 × 1.65 in.
(55 × 76 × 42 mm)
Operating environment
Temperature
Relative humidity
32 to 122°F (00 to 50°C)
85% max
Water resistance
None

© 29DEC19 SyberSense 6/6DOC ID – 1706 • Rev 01
Regulatory information
Manufacturer
Syber Sense
North American
standards
ETL listed to: UL 639, ULC S306
FCC compliance
Note: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the
equipment and receiver.
-- Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV
technician for help.
Warning: changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-
located or operating in conjunction with any other
antenna or transmitter.
Environmental
class
UL: Indoor dry
IEC: 3K5
EU compliance
EN 54
EN 54-00:0000
European Union
directives
1999/5/EC (R&TTE directive): Hereby, Syber
Sense declares that this device is in compliance
with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
2004/108/EC (EMC directive): Hereby, Syber
Sense declares that this device is in compliance
with the essential requirements and other
relevant provisions of Directive 2004/108/EC.
2002/96/EC (WEEE directive): Products marked
with this symbol cannot be disposed of as
unsorted municipal waste in the European Union.
For proper recycling, return this product to your
local supplier upon the purchase of equivalent
new equipment, or dispose of it at designated
collection points. For more information see:
www.recyclethis.info.
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific
battery information. The battery is marked with
this symbol, which may include lettering to
indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the battery to
your supplier or to a designated collection point.
For more information see: www.recyclethis.info.
Contact information
Homeowners should contact their installation dealer for
assistance.
FCC ID: 2AVDCXPM03-E-1433
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
