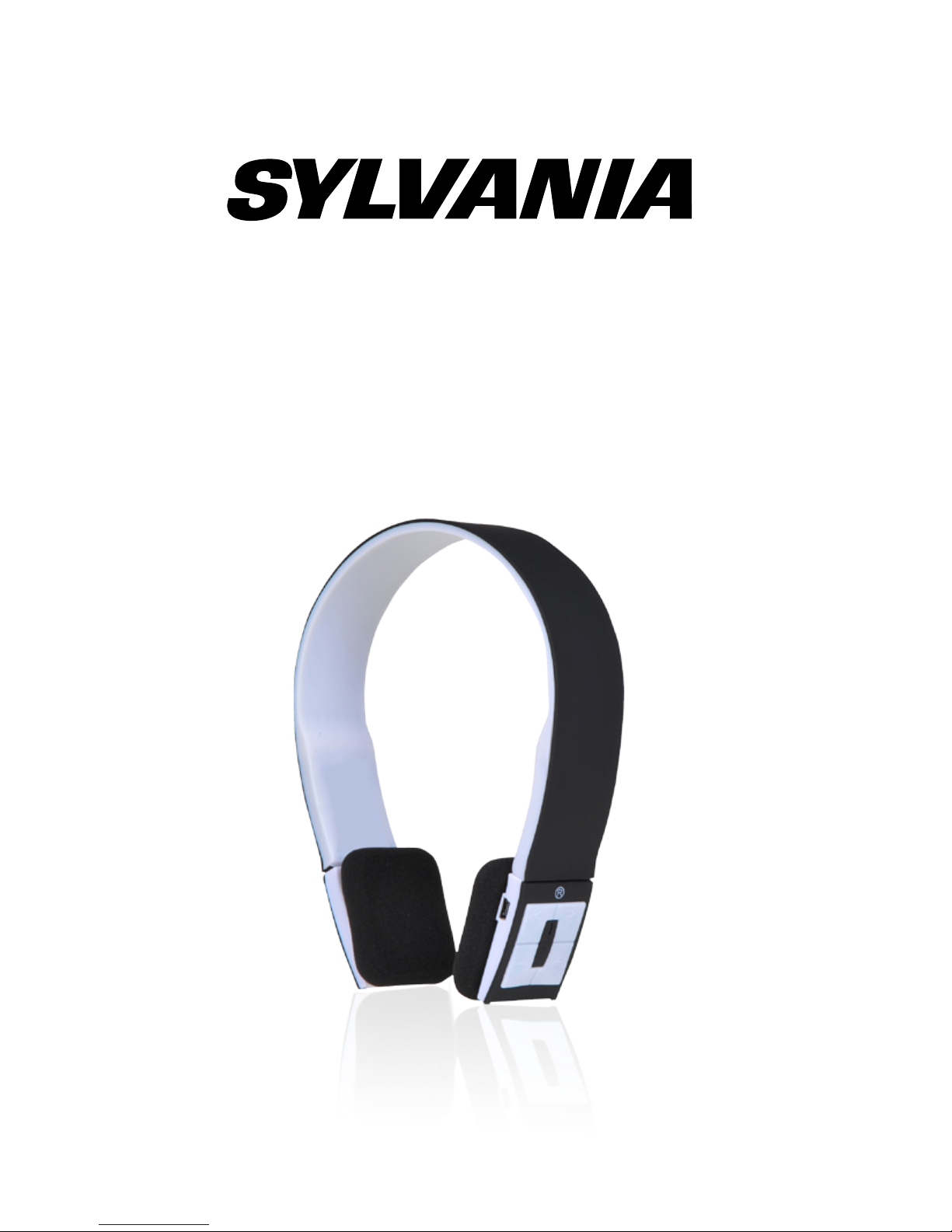

Sylvania SBT214 Instruction manual

Stereo Headphones
Casque Bluetooth
SBT214

ENEN
2 3
English Manual
Overview
1: Retractable string
2: “< “ Key:previous song
3: “>” key next song
4: led indicator
a)Charging
Led indicator Status of the headset
Red led is on Charging
Red led is off Finished charging
b)In use
Led indicator Status of the headset
Red and blue led blink alternately Pairing
Blue led blinks every 3 seconds Non-conversation
Blue led gradually turns on and off Conversation
5: “ ”Multifunction button(MFB):answer,end reject call,pause and play
6: “-“ key, short or long press volume down
7: “+” key,short or long press ,volume up
8: charging port
9: build-in microphone
1
8
How to use
Listen to music
A: Swiching on/off headset
Switch on :press and hold the MFB for 5 seconds ,blue led light is on for 1 second,
you can hear “Do”tone
Switch off” :press and hold the MFB for 5 seconds ,red led light is on for 1 second,
you can hear “Do”tone
B:Pairing the headset with Bluetooth devices
a) how to enter paring mode
Be sure SBT214 in power off status rst, press and hold the MFB for 5 seconds, till
red and blue led blink alternately, or you hear the indication sound ”Do Do” twice
,then release the MFB button , The unit will become pairing .
b) Pairing the headset with Bluetooth devices.
Make the headset enter into pairing mode(please refer to “how to enter paring
mode”)
After searched, select”Sylvania” in the device list
According to indication ,enter the password “0000” if needed. And press”connect”,
when successful connecting, the red led of the headset quickly blinks twice, then
the green led lighting every 4 seconds.
9

ENEN
4 5
Remark:make sure your device has Bluetooth function
Answer Calling
Switch on the headset and make sure in the well connection with mobile phone.
here are the table for operation.
Function Status of headset Operation
Answer calling Ringing Short press MFB
Volume up Conversation mode Short press or long
press”+”key,when the volume is
adjusted to Maximum, you will hear
an indication tone
Volume down Conversation mode Short press or long press”-”key,when
the volume is adjusted to Minimum,
you will hear an indication tone
Warning: Excessive pressurer from the headphones can cause the hearing loss.
How to wear the headset
The string of headset is retractable, please adjust according to your comfortable
size, logo”L” represents left ear, logo “R” represents right ear. See below photo.
Charging your headset
Insert the usb charging cable into use port of PC.
Connect charging cable with the charging port of headset
When the red light is on, the headset is charging .
When the red light is off, the headset is charging fully.
Re-connecting to Bluetooth device
A) Automatic connecting
Every time the headset is switched on ,it will connect to the nearest,and the last
connected device automatically .
When the headset is in standby mode and doesn’t connect to any device, short
press MFB button ,it will connect to last connected device automatically.
Specication
Bluetooth version V3.0+EDR
Support Bluetooth prole HSP,HFP,A2DP,AVRCP
Standard battery Build in rechargeable 300mAh lithium battery
Music play time Max 10 hours
Standby time 250hours
Charging time 3 hours
Talk time 10 hours
Dimension 14.5*10*6cm
Weight 112g
Operating range 10 meters
Frequency 2402MHz~2480MHz ISM Ban
Microphone specication -42dB(0dB=1V/Pa,1KHz)
Input DC 5V
Accessories User manual and usb cable
WARNING
Read Safety Instructions Before Making Volume Changes
Safe use depends on exposure time and volume levels.
Volume at 80 dB(A), exposure should be limited to 40 hours/week. At 89 dB(A)
exposure should not exceed 5 hours/week.

ENEN
6 7
The exclamationpoint
withinthe triangleis a
warning sign alerting
you o f importan t
instructions.
arrowhead within the
triangle is a warning
sign a lerting you of
"dangerous voltage"
inside the product.
CAUTION: TO REDUCE THE R ISK
OF E LECTRIC SHOCK, D O NOT
REMOVE C OVER (ON BACK). NO
USER SERVICEABLEPARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
IMPORTANT SAFET Y INSTRUCTIONS
INSTRUCTION MANUAL
WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,DO
NOT EXPOSETHISAPPLIANCETO RAIN OR MOISTURE.
1. READ INSTRUCTIONS - All the safety and operatingInstructions
should be read before the product Is operated.
2. RETAIN INSTRUCTIONS - The safety and operating Instructions
should be retained for future reference.
3. HEED WARNINGS -All warnings on the product and In the operating
Instructions should be adhered to.
4. FOLLOW INSTRUCTIONS - All operating and use Instructions
should be followed.
5. CLEANING- Unplug this productfrom the wall outlet beforecleaning,
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. ATTACHMENTS- Do not use attachmentsnot recommendedby the
product manufacturer as they may cause hazards.
7. WATER AND MOISTURE- Do not use this productnear water - for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub; In a wet
basement, or near a swimming pool, and the like.
8. ACCESSORIES - Do not place this product on an unstable cart,
stand tripod,bracket,or table. Theproductmay fall, causing seriousInjury
to a child or adult, and serious damage to the product. Use only with a
cart, stand, tripod, bracket, or table recommendedby the manufacturer,
or sold with the product. Any m ounting of the p roduct should follow
the manufacturer's Instructions, and should use a mounting accessory
recommended by the manufacture
9. A product and cart combinationshould be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the appliance and ca
combination to overturn.
10.VENTILATION - Slots and openingsIn the cabinet are provided for
ventilationand to ensure reliable operation of the product and to protect
It from overheating,and these openingsmust not be blocked or covered.
The openingsshould never be blockedby placing the product on a bed,
sofa, rug, or other similar surface.This product should not be placedIn a
built-inInstallationsuch as a bookcaseor rack unless properventilationIs
provided or the manufacturer's Instructions have been adhered to.
11.POWER SOURCES - This product should be operatedonly from the
type of power source Indicatedon the markinglabel.If you are not sure of
the type of power supply to you home, consult your product dealer or local
power company. For products Intendedto operatefrom batterypower, or
other sources, refer to operating Instruction.
12.GROUNDING OR POLARIZATION - This product m ay b e
equippedwith a polarized alternatingcurrent line plug (a plug having one
way. This is a safety feature.If you are unable to insert the plug fully into
your electricianto replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
ALTERNATE WARNINGS - This product is equippedwith a three-
wire grounding-typeplug, a plug having a third (grounding)pin. This plug
rt

ENEN
8 9
you are unable to insert the plug into the outlet, contact your electrician
to replace your obsolete outlet,Do not defeat the safety purpose of the
grounding-type plug.
13.POWER - CORD PROTECTION - Power supply cords should
be routedso that they are not likely to be walkedon or pinched by items
placedupon or againstthem, paying particular attentionto cords at plugs,
convenience receptacles, and point where they exit from the product.
14.PROTECTIVEATTACHMENT PLUG - The product is equipped
with an attachment plug having overload protection. This is a safety
feature.See InstructionManualfor replacementor resettingof protective
device. If replacement o f the plug is required, b e sure the s ervice
technician has used a replacement plug specified by the manufacturer
that has the same overload protection as the original plug.
15.OUTDOOR ANTENNA GROUNDING - If an outside antenna
is connected to the receiver, be sure the antenna system is grounded
so as to provide some protection against voltage surges and built-up
static charges. Article 810 of the National Electrical Code, ANSI/NFPA
70, providesinformationwith regard to proper groundingof the mast and
supporting structure, grounding of the lead-in wire to an antenna-discharge
unit, size of grounding conductors, location of antenna-discharge unit,
connection to groundingelectrodes, and requirements for the grounding
electrode.
16.LIGHTNING- For added protectionfor this product during a lightning
storm,or when It Is left unattendedand unused for long periodsof time,
unplugIt from the wall outletand disconnectthe antennaor cable system.
This will prevent damage to the product due to lightning and power-line
surges.
17.POWER LINES - An outsideantennasystem shouldnot be locatedIn
the vicinityof overheadpower lines or other electriclight or power circuits,
or where It can fall Into such power lines or circuits. When Installing an
outside antenna system, extreme care should be taken to keep from
touching such power lines or circuits as contact with them might be fatal.
18.OVERLOADING - Do not overload wall outlets, extension cords,
electric shock.
19.OBJECT AND LIQUID ENTRY - Never push objectsof any kind
Into this product through openings as they may touch dangerousvoltage
spill liquid of any kind on the product.
20.SERVICING - Do not attempt to service this product y ourself as
opening or removing covers may expose you to dangerous voltage or
l.
21.DAMAGE REQUIRING SERVICE - Unplug this product from
following conditions:
a) W hen the power-supply cord or plug Is damaged.
b) If liquid has been spilled, or objects have fallen Into the product.
c) If the product has been exposed to rain or water.
d) I f the product does not operate normally by following the operating
Instructions,adjust only those controlsthat are covered by the operating
Instructions as an Improper adjustment of other controls may result In
restore the product to Its normal operation.
e) If the product has been dropped or damaged In any way.
f) When the product exhibits a distinct change In performance - this Indicates
a need for service.

FR
11
EN
10
22.
REPLACEMENT PARTS -
When replacementparts are required,
the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other
hazards.
23.
SAFETY CHECK -
Upon completionof any serviceor repairs to this
product,ask the service technicianto performsafetychecks to determine
that the product is in proper operating condition.
24.
WALL O R CEILING MOUNTING -
The p roduct should be
mounted to a wall or ceiling only as recommended by the manufacturer.
25.
HEAT -
The product should be situated away from heat sources such
that produce heat.
Warning:
the party responsible for compliance could void the users' authority to operate
the equipment.
Manuel en français
Généralités
1 : Cordelette ajustable
2 : Bouton « < » : chanson précédente
3 : Bouton « > » : chanson suivante
4 : Voyant DEL
a) Chargement
Voyant DEL État du casque
Le voyant rouge est allumé Chargement
Le voyant rouge est éteint Chargement complet
b) En cours d’utilisation
Voyant DEL État du casque
Les voyants rouge et bleu clignotent alternativement Appariement
Le voyant bleu clignote toutes les 3 secondes Non-conversation
Le voyant bleu s'allume et s'éteint progressivement Conversation
5 : Bouton multifonction « » (MFB) : répondre, terminer, rejeter l'appel, pause et
lecture
6 : Bouton « - », appuyer brièvement ou longuement pour diminuer le volume
7 : Bouton « - », appuyer brièvement ou longuement pour augmenter le volume
8 : Port de charge
9 : Microphone intégré
1
8
9

FRFR
12 13
Comment faire pour utiliser
Écouter de la musique
A : Allumer/éteindre le casque
Allumer : appuyez et maintenez le bouton MFB pendant 5 secondes, le voyant
bleu s'allume pendant 1 seconde, vous pouvez entendre le ton « Do »
Éteindre : appuyez et maintenez le bouton MFB pendant 5 secondes, le voyant
rouge s'allume pendant 1 seconde, vous pouvez entendre le ton « Do »
B : Appariement du casque avec des appareils Bluetooth
a) Comment accéder au mode d'appariement
Assurez-vous que le SBT214 est hors tension, appuyez et maintenez le bouton
MFB pendant 5 secondes, jusqu'à ce les voyants rouge et bleu clignotent
alternativement, ou vous entendez l'indication sonore « Do Do » deux fois, puis
relâchez le bouton MFB. L'unité procédera à l'appariement.
b) Appariement du casque avec des appareils Bluetooth
Mettez le casque en mode d'appariement (voir la section « Comment accéder au
mode d'appariement »)
Après avoir cherché, sélectionnez «Sylvania » dans la liste des appareils
Selon l'indication, entrez le mot de passe « 0000 » si nécessaire. Appuyez sur «
Connecter ». Une fois la connexion réussie, le voyant rouge du casque clignote
rapidement deux fois, puis le voyant vert s'allume toutes les 4 secondes.
Remarque : Assurez-vous que votre appareil dispose de la fonction Bluetooth
Répondre aux appels
Allumez le casque et vériez qu'il est connecte au téléphone mobile.
Voici le tableau d'utilisation.
Fonction État du casque Utilisation
Répondre aux
appels
Sonnerie Appuyez brièvement sur MFB
Augmentation du
volume
Mode conversation Appuyez brièvement ou longuement
Appuyez sur le bouton « + ». Lorsque
le volume est réglé au maximum,
vous entendrez une indication sonore
Diminution du
volume
Mode conversation Appuyez brièvement ou longuement
sur le bouton « - ». Lorsque le
volume est réglé au minimum, vous
entendrez une indication sonore
Avertissement : Une pression excessive provenant du casque peut entraîner une
perte auditive.
Comment porter le casque
La cordelette du casque est ajustable. Veuillez l'ajuster en fonction de votre taille
confortable, le marquage « L » représente l'oreille gauche, tandis que le marquage
« R » représente l'oreille droite. Voir la photo ci-dessous.

FRFR
14 15
Charger le casque
Insérez le câble de chargement USB dans le port utilisation de PC.
Branchez le câble de chargement dans le port de chargement du casque.
Lorsque le voyant rouge est allumé, le casque est en cours de chargement.
Lorsque le voyant rouge est éteint, le casque est complètement chargé.
Reconnexion à un appareil Bluetooth
A) Connexion automatique
Lorsque le casque est allumé, il se connectera automatiquement au dernier
appareil connecté qui est le plus proche.
Lorsque le casque est en mode veille et n’est connecté à aucun appareil, appuyez
brièvement deux fois sur le bouton MFB pour qu’il se connecte automatiquement
au dernier appareil connecté.
Caractéristiques
Version Bluetooth V3.0+EDR
Prols Bluetooth HSP, HFP, A2DP, AVRCP
Batterie standard Batterie au Lithium-ion rechargeable de 300 mAh,
encastrée
Durée de lecture de
musique
10 heures max.
Autonomie en veille 250 heures
Temps de charge 3 heures
Temps de conversation 10 heures
Dimension 14,5*10*6 cm
Poids 112 g
Rayon d'action 10 mètres
Fréquence 2402MHz~2480MHz ISM Ban
Caractéristiques du
microphone
-42dB (0dB=1V/Pa, 1KHz)
Entrée CC 5V
Accessoires Manuel de l'utilisateur et câble USB
AVERTISSEMENT
Lire les Consignes de sécurité avant toute modication du volume.
Une utilisation sans risque dépend de la durée d'exposition et des niveaux de
volume.
L'exposition à un volume de 80 dB(A) doit être limitée à 40 heures par semaine.
L'exposition ne doit pas dépasser 5 heures/semaine à 89 dB (A).

FRFR
16 17

FR
18
