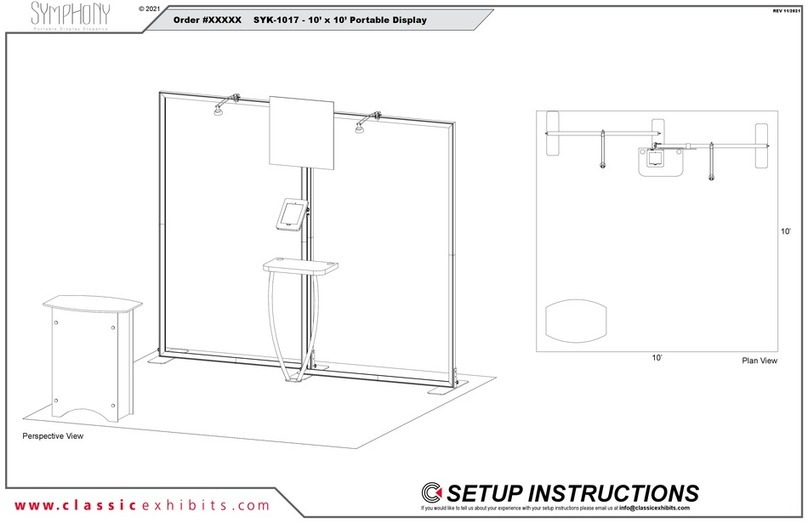

© 2021
Step 1 of 3
Order #XXXXX
Locked layer contains
placeholder marks.
When assembled

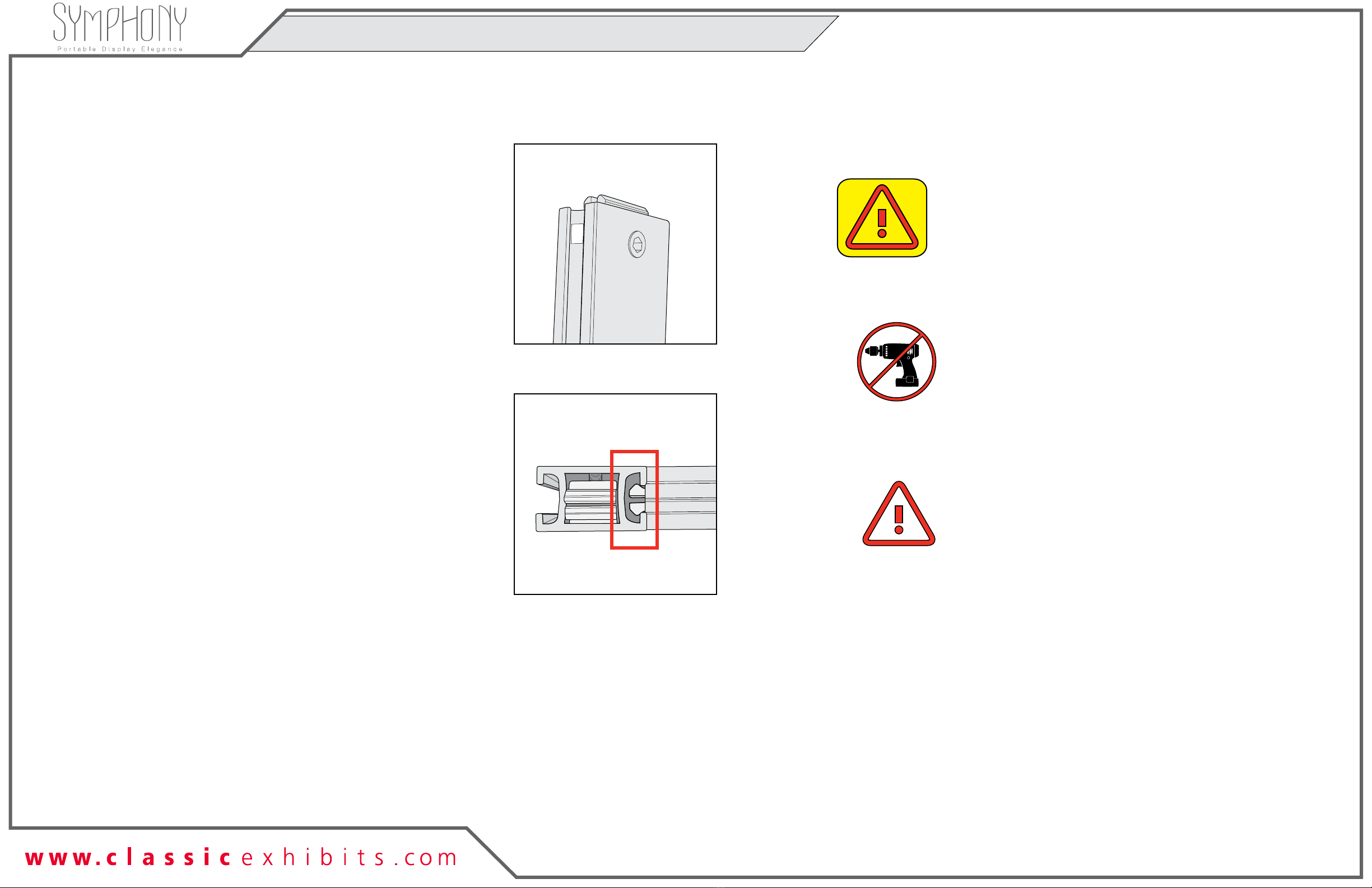

Connection Lock
w/ Knob
*
BACK VIEW
Knobs face back of assembly.

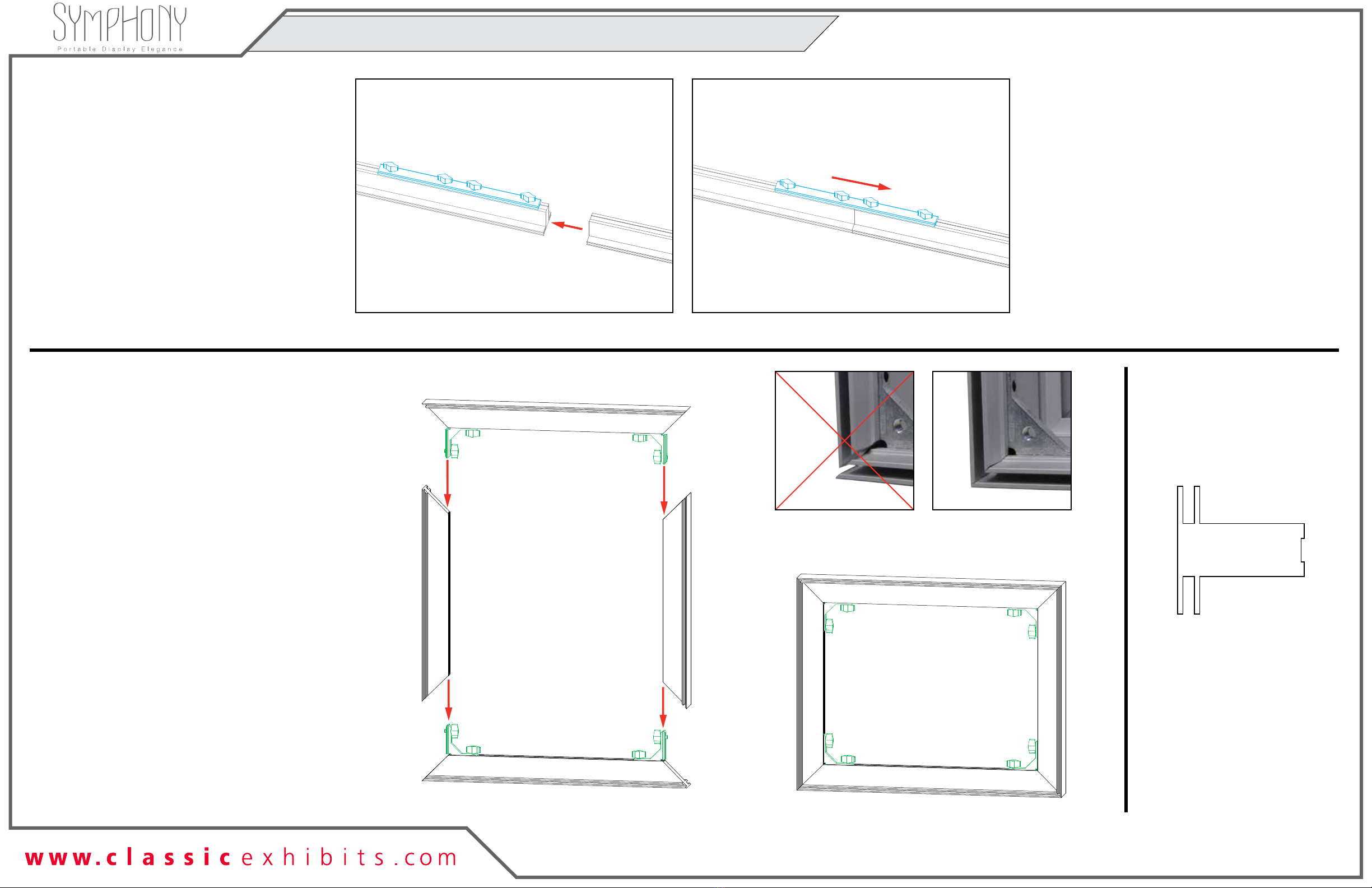

Tool-less Spline Connector
1. Place extrusions end-to-end.
2. Slide tool-less connectors
across seam of extrusions.
*
3. Tighten all knobs to secure connection.
Tool-less Corner Connector
1. Slide extrusion onto
Corner Connector.
2. Tighten all knobs to
secure connection.
*
Keep corner connectors attached to horizontal extrusions.
Assemble frame flat on ground.
1) Place key hole over bolt on panel
& slide down.
2) Twist knob to secure connection.
Base Plate Attachment
*
bolt
knob
Base Plate
threaded
hole
key hole
*
*
1
2
3
4
8
10
12
11
5
6
7
FRONT VIEW
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
Qty.
1
1
1
1
1
1
1
1
1
1
1
1
2
Description
45”h TSP49 Vertical Extrusion
31.305”h TSP49 Vertical Extrusion
45”h TSP49 Vertical Extrusion
31.305”h TSP49 Vertical Extrusion
36.467”w TSP49 Horizontal Extrusion
36.467”w TSP49 Horizontal Extrusion
36.467”w TSP49 Horizontal Extrusion
38.019”w TSP49 curved Horizontal Extrusion
38.019”w TSP49 curved Horizontal Extrusion
38.019”w TSP49 curved Horizontal Extrusion
43.209”h Z45 Vertical Extrusion
43.423”h Z45 Vertical Extrusion
6” x 22” End Base Plate w/ foot

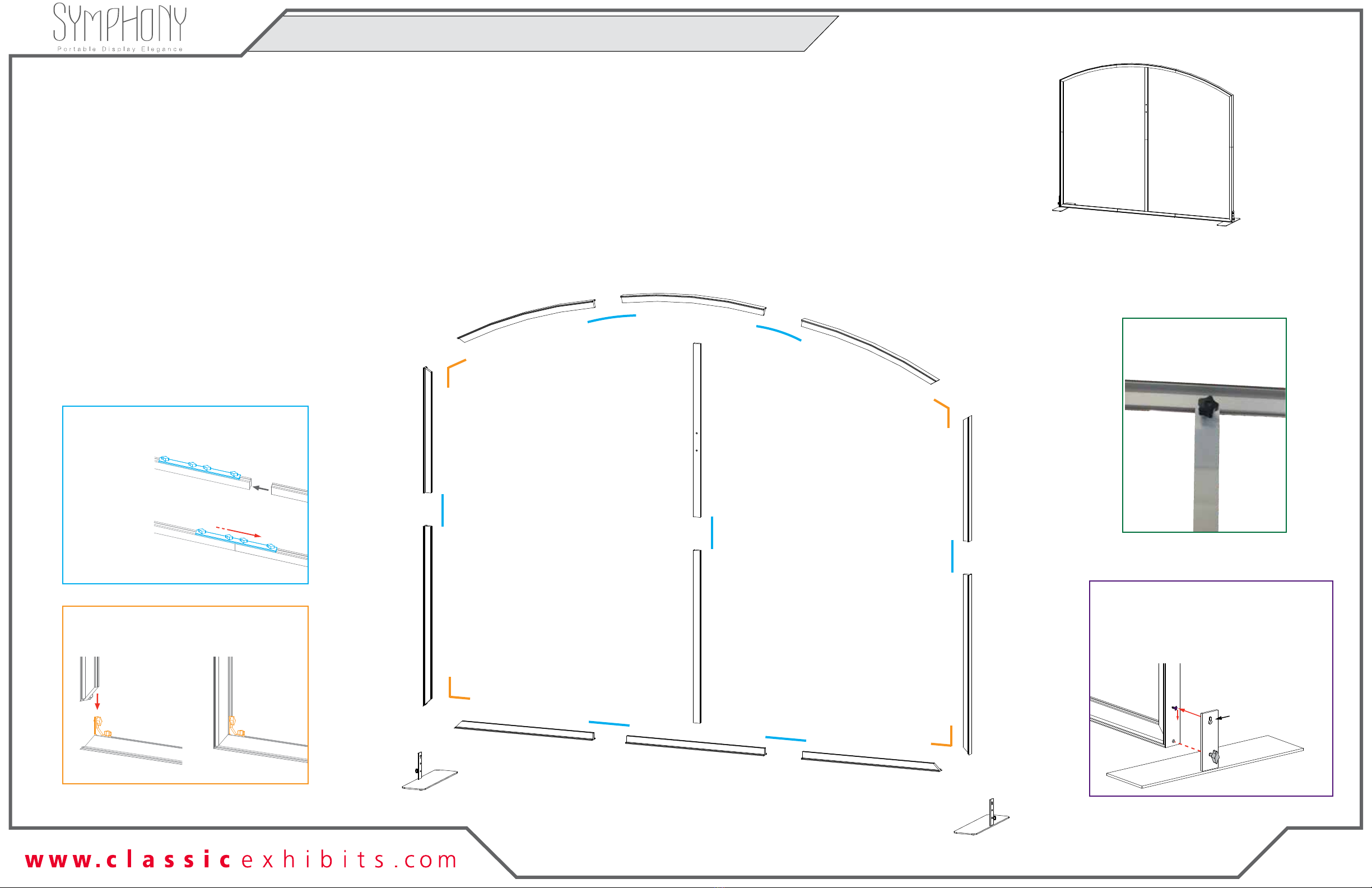

Steps:
Refer to the Tool-less Frame Assembly general information page.
1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10]
together, using Tool-less Spline connectors labeled [X] & [Y].
2) Connect vertical assemblies [1/2], [3/4] between horizontal
assemblies [5/6/7], [8/9/10], using Tool-less Corner Connectors labeled [A] & [B].
3) Install Base Plates [13] to bottom corners of frame assembly
as shown. See Base Plate Attachment detail.
4) Lift frame to upright position, then connect vertical assembly [11/12] between
horizontal assemblies [5/6/7], [8/9/10] using Connection Lock w/ Knob.
**
13
13
9
*
Y
*
X
*
Y
B
*
A
*
B*
A
*
*
X
*X
*X
*
X
Curved
connector
Arch corner
connector
Arch corner
connector
Curved
connector
Backwall Frame Assembly
