SL-340H RFID Locker Lock
Setup and User Guide
Thank you for purchasing the SL-340H RFID Locker Lock. This
user guide details the different functions of this product, please
keep a copy for your records.
Table of Contents
1. What’s in the box
2. General Specications
3. Initialization
4. Owner Card Programming
5. Master Card Programming
6. User Card Programming (Fixed Mode)
7. Lock Mode Setting (Auto/Manual)
8. Latch Alarm Setting (On/Off)
9. Low Battery Warning
10. Emergency Unlocking
Mounting hardware is provided for installation on doors with a
thickness of ≥11.5mm.
⚠

SL-340H Setup and User Guide ©2023 SYNOLOCKPage 2 of 7
1. What’s in the box
Each lock is packaged in its own box that includes the follow parts:
1 x SL-340H RFID Lock Housing (Installed Inside Locker Door)
2 x Phillips wood screws to secure the housing
1 x SM-340H Reader (Installed Outside Locker Door)
2 x Multi-head screws to secure the cover plate to housing
1 x Latch Stopper
3 x Phillips wood screws to secure the Latch Stopper
1 x Screw for Battery Cover
2. General Specications
Operating Frequency: 13.56 MHz or customized with minimum order quantity
Operating Temperature: -15°C~+55°C
Operating Humidity: 20~95%RH
Supported Standards: ISO 14443 (MIFARE) or custom
Power: 3 AA Batteries
Light blinks on front of lock when locked
Read Distance: Up to 5 cm
Housing: Zinc Alloy
Lock Outer Ring Dimensions: 45mm diameter
Lock Outer Thickness Dimensions: 37 mm
Inside Lock Housing Dimensions: 125 mm x 65mm x 20mm
Weight: 200g
What’s not included
RFID Cards: You will need 2-6 pcs RFID Card for initial set up
and ongoing lock management. These can be purchased from
SYNOMETRIX at time of order.
RFID Tags: No matter what type of locker lock system you
purchase, your guests will need an RFID wristband, key fob
or card to open the locker. These can also be purchased from
SYNOMETRIX at time of order.
⚠

SL-340H Setup and User Guide ©2023 SYNOLOCKPage 3 of 7
4. Owner Card Programming
Owner Card is used for programming only.
It cannot be used to lock or unlock.
🛑
Only One Owner Card is allowed for each lock.
ℹ
Use the same Owner Card for all locks of the
same project.
💡
Programming Owner Card
1. After initialization, scan the rst Mifare card near the inductive area.
2. The green LED will light up and a chime sound.
3. This card is now the Owner Card. Label the card and store in a secure location when not in
use.
Changing Owner Card
1. Remove the front lock housing from the door.
2. Follow initialization procedure in section 1.
3. Program a new Owner Card as instructed above.

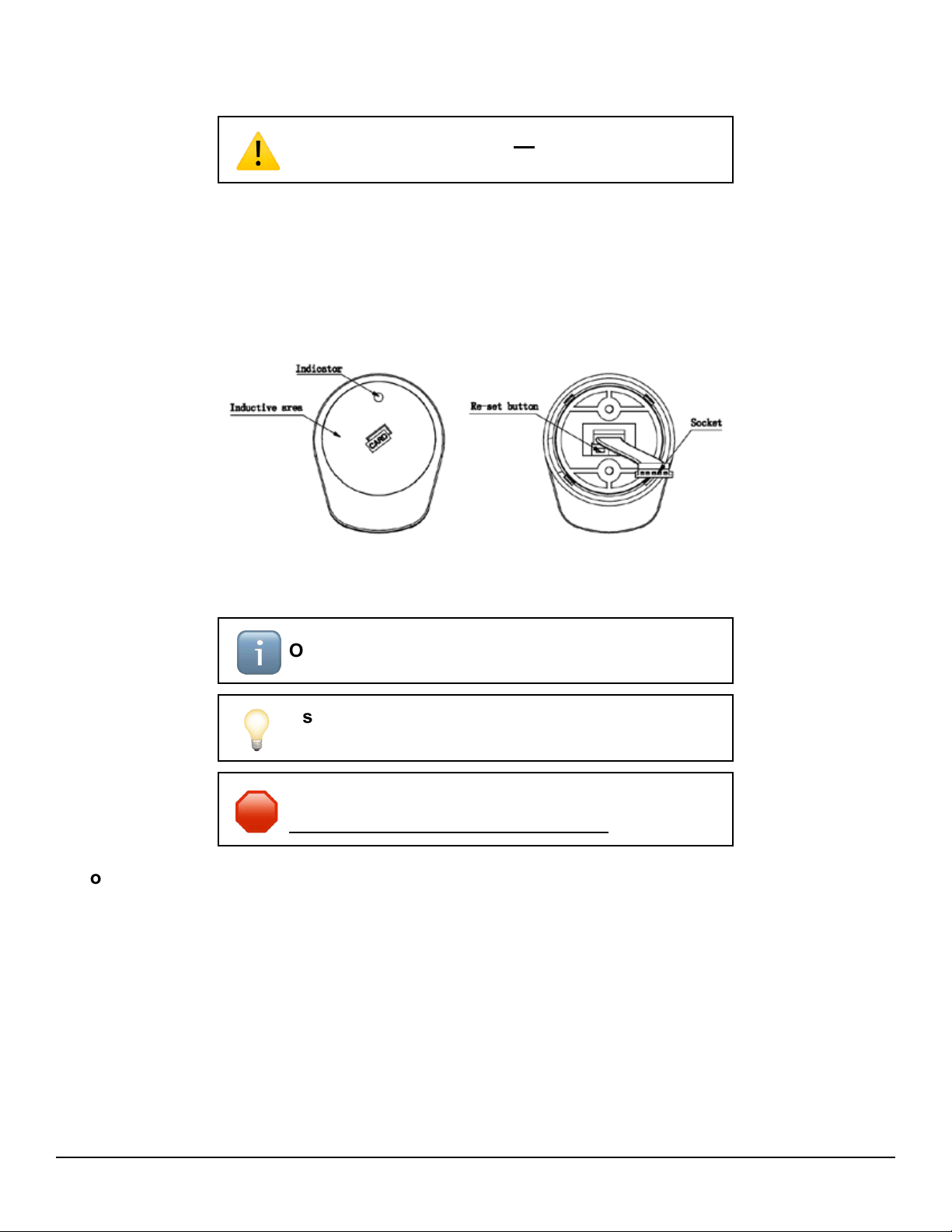

3. Initialization
1. Remove the battery compartment cover and insert 3 AA alkaline batteries into the holder.
2. Insert the plug of the rear panel into the socket of the front panel
3. Press the RESET button until a beep is heard, the red LED lights up, and a melody chime
sounds.
4. The lock is now initialized.
Initialization will remove all programmed cards
and return the lock to factory settings.
⚠

SL-340H Setup and User Guide ©2023 SYNOLOCKPage 4 of 7
Removing Select Master Card(s)
1. Scan the Owner Card. A chime will sound and both LEDs will blink for 6 seconds.
2. During these 6 seconds, scan the Master Card(s) to be removed.
3. A different chime will sound indicating that the card(s) has been removed.
5. Master Card Programming
Programming Master Card(s)
1. Scan the Owner Card. A chime will sound and both LEDs will blink for 6 seconds.
2. During these 6 seconds, scan up to 5 unused Mifare cards to be programmed.
3. The scanned card(s) is(are) now the Master Card(s). Label the card(s) and store in a
secure location when not in use.
1 to 5 Master Cards are allowed for each lock.
ℹ
Management Tip: Use different Master Cards
for locks in different areas.
E.g. men’s and ladies’ change rooms
💡
Removing ALL Master Cards
1. Scan the Owner Card twice. A chime will sound and both red and green LEDs will blink.
2. Scan the Owner Card a third time. A different chime will sound and all LEDs will turn off.
3. All Master and User Cards have now been removed.
This will also remove all programmed User
Cards.
⚠
Unlock Using Master Card
1. Scan the Master Card. A chime will sound and both LEDs will blink for 6 seconds.
2. After 6 seconds, a second chime sounds and the unit will unlock.
3. All User Cards have also been removed.
Unlocking with a Master Card will also remove
all programmed User Cards.
🛑

SL-340H Setup and User Guide ©2023 SYNOLOCKPage 5 of 7
Removing Select User Card(s)
1. Scan the Master Card. A chime will sound and both LEDs will blink for 6 seconds.
2. During these 6 seconds, scan the Master Card a second time. A chime will sound and
LEDs will blink for another 6 seconds.
3. Scan the card(s) to be removed during these 6 seconds.
4. A different chime will sound indicating that the card(s) has been removed.
6. User Card Programming
Programming User Card(s)
1. Scan the Master Card. A chime will sound and both LEDs will blink for 6 seconds.
2. During these 6 seconds, scan the Mifare card(s) to be programmed.
3. The scanned card(s) is(are) now the User Card(s). Label the card(s) and store in a secure
location when not in use.
Changing the Number of User Cards (Default 5)
1. Scan the Master Card continuously four (4) times.
2. Scan the Owner Card once.
3. After the chime, the lock will now only accept 1 User Card.
4. To change back to 5 Card mode, repeat steps 1 to 3.
The lock can be congured to accept up to 5
(default) or only 1 User Card
ℹ
Removing ALL User Cards
1. Scan the Master Card. A chime will sound and both LEDs will blink for 6 seconds.
2. After 6 seconds, a second chime sounds and the lock will unlock.
3. All User Cards have now been removed.
Unlock Using User Cards
1. Scan the User Card. A chime will sound and the green LED will light up.
2. The unit is unlocked.
Unregistered Card Alarm
1. An alarm will sound after 5 attempts to open the lock with an unregistered User Card.
2. Scan a registered User Card to deactivate the alarm.

SL-340H Setup and User Guide ©2023 SYNOLOCKPage 6 of 7
7. Lock Mode Setting
Locking In Auto Mode
1. After unlocking for 5 seconds, a chime will sound and the red LED will light up.
2. The unit is now locked. The red indicator LED ashes every 6 seconds.
Locking In Manual Mode
1. While the lock is unlocked, scan a User Card.
2. A chime will sound and the red LED will light up.
3. The unit is now locked. The red indicator LED ashes every 6 seconds.
Changing the Locking Mode (Default Auto)
1. Scan the Master Card continuously three (3) times.
2. Scan the Owner Card once.
3. After the chime, the unit is now in manual locking mode.
4. To change back to auto locking mode, repeat steps 1 to 3.
The lock can be toggled between automatic
(default) or manual locking.
ℹ
8. Latch Alarm Setting
Silencing the Latch Alarm
1. With the door open and latch accessible, place the unit in locked mode.
2. Scan the Owner Card and wait for the lights to blink.
3. Press the latch and listen for two “Beep” sounds.
4. The latch alarm is now off.
Activating the Latch Alarm
1. With the door open and latch accessible, place the unit in locked mode.
2. Scan the Owner Card and wait for the lights to blink.
3. Press the latch and listen for one “Beep” sound.
4. The latch alarm is now active.
While the unit is locked, an alarm will sound by
default if the latch is pressed by force.
⚠

SL-340H Setup and User Guide ©2023 SYNOLOCKPage 7 of 7
9. Low Battery Warning
Replacing the Batteries
1. Slide open the battery compartment cover.
2. Remove and safely discard used batteries according to local disposal guidelines.
3. Insert 3 new AA alkaline batteries in the holder and reattach the cover.
A warning chime will sound while unlocking
when the unit batteries are low.
⚠
Mixing old and new batteries, or batteries of
different types, is not recommended.
🛑
10. Emergency Unlocking
Required Parts (Not Included):
1. Connect the power bank to the lock with a USB cable (Micro-B connector).
2. With the power connected, scan a valid Card to open the lock.
A USB power source can be used to gain
access* to a locked unit with completely
drained batteries.
*Valid User or Master Card required.
⚠
USB Power bank USB Cable Micro-B Connector
