System Build 6550056COM User manual

6550056COM
36" STORAGE CABINET
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
B346550056COM3
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
WARNING
For the latest information on SystemBuild products
follow us at Ameriwood Home
Tube
You
Date of Purchase ___ / ___ / ___
Lot Number:
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-866-452-4081 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.systembuild.com
Assembly Difficulty Meter
Easy Tough

Contact Us!
Helpful Hints
2
systembuild.com
Do NOT return this product!
Contact our friendly customer service team first for help.
Call us!
1-866-452-4081
Monday-Friday
9am - 5pm CST
Visit systembuild.com to view the
limited warranty valid in the U.S. and Canada.
Assembly Tips
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a R (right) and L (left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
Tube
You
Tube
You
PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 1 HOUR

3
systembuild.com
Before You Start
P
Quick
Tip
Assembly
P
P
P

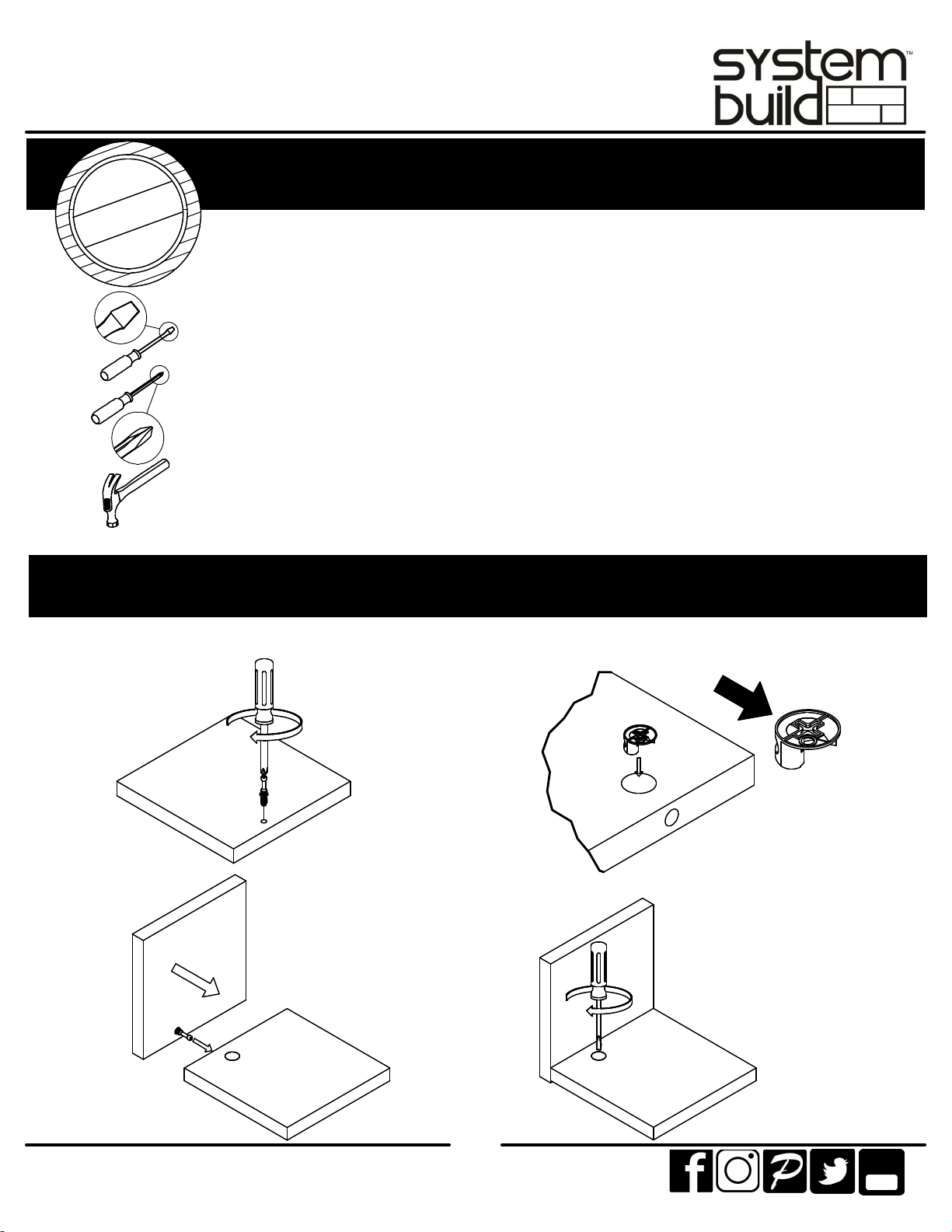

Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process.
1
3
2
4
Tube
You
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
P

4
systembuild.com
Board Identification
Not actual size
Tube
You
Left Panel
37360056013
Right Panel
37360056023
Bottom
37363056042
Shelf (x2)
37363056051
Adjustable Shelf (x3)
37363056060
Door (x2)
36550056070 Back Panel
K736305601
AB
DF
GH
This piece is paperboard construction.
It is not made from wood, but is
required for the assembly of your unit.
E

5
systembuild.com
Board Identification
Not actual size
Tube
You
A
B
D
E
G
H
E
F
F
F
This piece is paperboard construction.
It is not made from wood, but is
required for the assembly of your unit.
G

6
systembuild.com
Part List
Not Actual Size
Tube
You
(x2)
#A52395
pull
(x5)
#A44145
adjustable foot
12a
12b 12c
(x1)
#A84050
safety bracket kit
(x6)
#A65615
hinge
11
13
10
Actual Size
1
2
3
45
6
78
(x8)
#A22620
cam lock
(x8)
#A22610
cam bolt
(x10)
#A12420
#8 x 5/8" screw
(x4)
#A23030
confirmat
(x12)
#A80250
shelf support
(x4)
#A89210
rubber bumper
(x42)
#A21110
nail
(x4)
#A17400
machine screw
(x5)
#A12930
1-1/8" screw
9
12d

7
systembuild.com
STEP1
Tube
You
(x8)
#A22610
2
2
A
B
2
22
22
22

8
systembuild.com

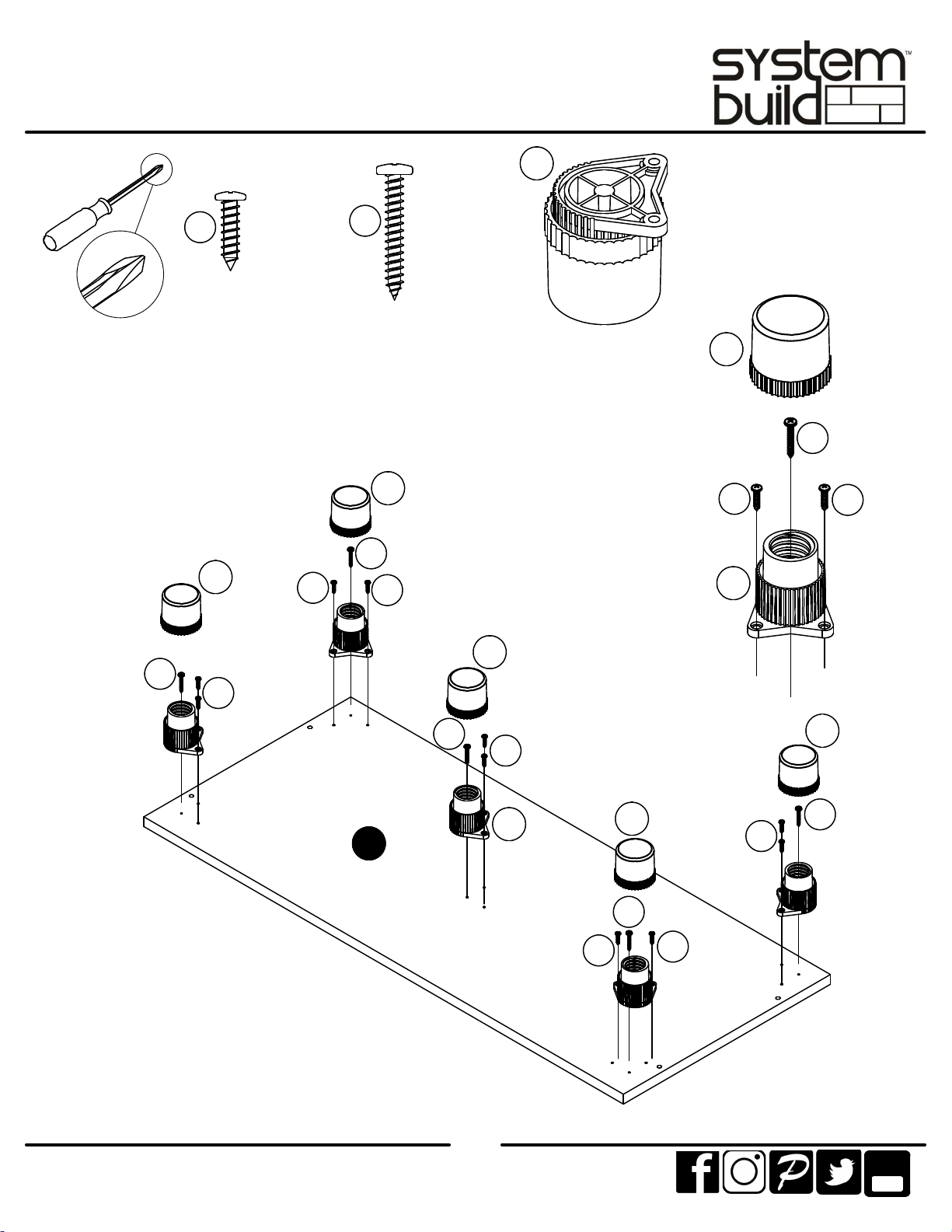

STEP2
Tube
You
1
E
E
12a
(x1)
#A84050
(x8)
#A22620
1
1
12a
12c
Proper orientation of CAM LOCK
Tip
Assembly
Quick
12c
1
1
Do not tighten this screw.

9
systembuild.com
STEP3
11
11
11
11
11
11
Unscrew the two piece foot as shown. After top part of
foot is attached to bottom shelf, screw on bottom part of
foot. Be sure all four feet are level with each other.
(x5)
#A12930
(x10)
#A12420
6
3
Tube
You
11
(x5)
#A44145
11
11
D
6
6
6
6
6
3
33
3
33
3
6
3
3

10
systembuild.com
STEP4
finished edge
borde acabado
bord fini
finished edge
borde acabado
bord fini
(x4)
#A23030
* raw edges are shaded
A
A
B
B
E
E
E
E
Tube
You
UNLOCKLOCK
APRETAR
DESAPRETAR
D
4
4
