System Build 7532396COM User manual

B347532396COM04GO
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
WARNING
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
Follow Ameriwood Home
Date of Purchase ___ / ___ / ___
Lot Number:
7532396COM

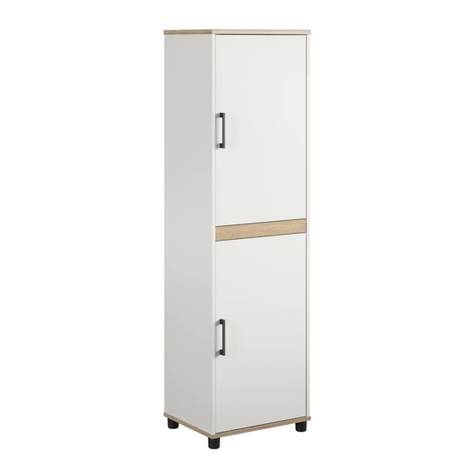

2 Door Storage Cabinet
Tube
You
Assembly Difficulty Meter
Easy Tough

Do NOT return this product!
Contact our friendly customer service team first for help.
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
Visit ameriwoodhome.com
Assembly Tips
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a R (right) and L (left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
Tube
You
PEOPLE NEEDED FOR ASSEMBLY: 2
ESTIMATED ASSEMBLY TIME: 1 HOUR
Helpful Hints
2
Tube
You
systembuild.com
Contact Us!

P
Quick
Tip
Assembly
P
P
P
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
P
Before You Start
This Cam Lock Fastening System will be used throughout the assembly process.
1
3
2
4
3
Tube
You
systembuild.com
Cam Lock Fastening System

Board Identification
Not actual size
TOP
T7532396010GO
QTY: 1 PC
A
4
Tube
You
systembuild.com
LEFT SIDE PANEL
T7532396021GO
QTY: 1 PC
B
RIGHT SIDE PANEL
T7532396031GO
QTY: 1 PC
C
FIXED SHELF
T7532396040GO
QTY: 1 PC
D
ADJUSTABLE SHELF
T7532396050GO
QTY: 2 PCS
E
DOOR
T7532396100GO
QTY: 2 PCS
J
LEFT APRON
T7532396110GO
QTY: 1 PC
L
RIGHT APRON
T7532396120GO
QTY: 1 PC
M
BACK PANEL
T7532396131GO
QTY: 1 PC
N
BOTTOM
T7532396060GO
QTY: 1 PC
F
TOP APRON
T7532396070GO
QTY: 1 PC
G
LOWER APRON
T7532396080GO
QTY: 1 PC
H
WOOD BLOCK
T7532396090GO
QTY: 1 PC
I

Board Identification
Not actual size
5
Tube
You
systembuild.com
A
B
C
D
E
E
F
G
I
H
J
J
L
M
N

Part List
Hardware Bag Reference number:
27532396COM1GO
Actual Size
×24 ×25
WOOD DOWEL
TGO2900
Ø8 x 30mm
Ø15 x 10mm
CAM LOCK
TGO2100
1 ×24
CAM BOLT
TGO2000
M8 x 20mm
6
Tube
You
23
systembuild.com
×30
SCREW
TGO1301
Ø3 x 12mm
8
×4
M4 x 19mm
×5
Ø4.2 x 45mm
SCREW
TGO1008
BOLT
TGO1608
×8
SCREW
TGO1012
Ø3 x 12mm
4 5
×4
45 x 12 x 1mm
STRIKE PLATE
TGO3525
79
×10
COVER
TGO2232
Ø20mm
13
No Actual Size
×2
HANDLE
TGO5510
15
×8
SHELF SUPPORT
TGO2800
14
x1
Ø6 x 30mm
WALL ANCHOR
TGO6501
17 x6
HINGE
TGO4306
18 x1
30x50x20mm
WALL BRACKET
TGO3502
19
×4
Ø3 x 15mm
SCREW
TGO1315
6
x25
Ø4.2 x 13mm
SCREW
TGO1304
11 ×1
SCREW
TGO1314
Ø4.2 x 28mm
12
x2
MAGNETIC CATCH
TGO6511
16

STEP 1
1.1 Screw (2) into (A) as illustrated.
1.2 Attach (G) & (I) to (A) with (3) & (9) as illustrated.
×4
7
Tube
You
2
systembuild.com
×3
3 ×5 9
2
9
3
A
G
I

STEP 2
8
Tube
You
×6
3 6
2.1 Insert (3) into (F) as illustrated.
2.2 Attach (16) to (F) & (I) with (6) as illustrated.
systembuild.com
×4 16 ×2
F
A
3
6
16
I
16
6

STEP 3
9
Tube
You
×10
2 11
3.1 Screw (2) into (L) & (M) as illustrated.
3.2 Attach (18) to (L) & (M) with (11) as illustrated.
systembuild.com
×12 18 ×6
18
11
2
L
M

4.1 Screw (2) into (B), (C) & (H) as illustrated.
4.2 Insert (3) into (B), (C), (D) & (H) as illustrated.
STEP 4
10
Tube
You
systembuild.com
×10
2 ×16
3
DH
B
C
3
2

5.1 Attach (L) to (B) with (1) as illustrated.
5.2 Attach (M) to (C) with (1) as illustrated.
5.3 Attach (H) to (F) with (1) as illustrated.
5.4 Use (13) to cover cam lock hole as illustrated.
STEP 5
11
Tube
You
Proper orientation of CAM LOCK
Tip
Quick
Assembly
UNLOCK
LOCK
×10
113
systembuild.com
×6
F
H
B
L
C
M
1
13

6.1 Attach (D), (F) to (B) & (C) with (1) as illustrated.
STEP 6
12
Tube
You
systembuild.com
Proper orientation of CAM LOCK
Tip
Quick
Assembly
UNLOCK
LOCK
×10
1
FINISHED EDGE
B
C
D
F
1

STEP 7
13
Tube
You
7.1 Attach (A) to sub-assembly B/C/D/F from previous step with (1) as illustrated.
7.2 Use (13) to cover cam lock hole as illustrated.
Proper orientation of CAM LOCK
Tip
Quick
Assembly
UNLOCK
LOCK
systembuild.com
×4
113 ×4
A
B
C
D
F
1
13

STEP 8
14
Tube
You
8.1 Attach (N) to sub-assembly A/B/C/F from previous step with (8) as illustrated.
Important: Assure that the unit is square. Distance from corner to corner must be
equal as shown.
systembuild.com
×308
IMPORTANT! THE BACK PANEL IS A STRUCTURAL PART
OF THIS UNIT AND MUST BE INSTALLED PROPERLY.
F
CB
N
A
Raw material side

STEP 9
15
Tube
You
9.1 Insert the shelf supports (14) at the desired level and place the adjustable
shelves (E) onto the shelf supports.
systembuild.com
14 ×8
14
E
E
FINISHED EDGE
B
C
A

STEP 10
16
Tube
You
10.1 Attach (J) to sub-assembly A/B/C/F from previous step with (11) as illustrated.
10.2 Attach (7) to (J) with (5) as illustrated.
10.3 Attach (15) to (J) with (4) as illustrated.
systembuild.com
×4
415 ×2 ×12 11
×85 ×4
7
J
15 4
J
J
7
5
11
C
B

STEP 11
17
Tube
You
systembuild.com
×1
12 17 ×1 ×1 11 19 ×1
12 19
17
11
Wall
Hole
11.1 Drill a 3/16" (5mm) diameter hole in the wall. Tap the wall anchor (17) into the hole until it is flush.
11.2 Fasten wall bracket (19) to wall anchor (17) with screw (12). Make sure screw (11) is fully tightened.
For Masonry, Concrete, or other wall materials:
Consult your local hardware store for appropriate
anchors to securely attach the safety bracket
IMPORTANT: THIS UNIT MUST BE SECURE TO THE WALL TO HELP PREVENT TIPOVER. FOLLOW THESE
INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT.
A

STEP 12
18
Tube
You
systembuild.com
B
A
Door
Door
Cabinet
Cabinet
To adjust the vertical heght:
Loosen screw "A" and adjust door.
Tighten screw "A".
Para ajustar la altura vertical.
Afloje el tornillo "A" y ajuste la puerta.
Apriete el tornillo "A".
Pour régler la hauteur verticale.
Desserrez la vis "A" et ajustez la porte.
Serrer la vis "A".
To adjust side ways.
Loosen screw "B" and adjust door.
Tighten screw "B".
Para ajustar las vías laterales.
Afloje el tornillo "B" y ajuste la puerta.
Apriete el tornillo "B".
Pour ajuster les voies latérales.
Desserrez la vis "B" et ajustez la porte.
Serrer la vis "B".

Maximum Loads
Certificate of Conformity
1. This certificate applies to the Dorel Home Furnishings, Inc. product identified by this instruction manual.
2. This certificate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint (16 CFR 1303).
3. This product is distributed by: Dorel Home Furnishings, Inc.
410 East First Street South
Wright City, MO 63390
636-745-3351
4. Site of Manufacture: Binh Duong, Viet Nam.
5. See front page of instruction manual for date of manufacture.
This unit has been designed to support the maximum loads shown. Exceeding these load limits could
cause sagging, instability, product collapse, and/or serious injury.
19
Tube
You
Warning: Risk of injury to persons - do not place a television on this furniture. This furniture is
not approved for use with a television.
systembuild.com
0 Lbs.
25lbs.
/11.3kg
25lbs.
/11.3kg
25lbs.
/11.3kg
30lbs.
/13.6kg

Register your product to receive the following:
* New trend details - sneak peek on what's new
* Surveys - have a voice within our community
* Exclusive deals and discount codes
* Quick and easy replacement part service
To register your product, visit ameriwoodhome.com
Visit your local retailer's website, rate your purchased
product and leave us some feedback!
We would like to extend a big "Thank You" to all of
our customers for taking the time to assemble this
Ameriwood Home product, and to give us your
valuable feedback.
