Introduction to the VOX111
The VoiceOFF® "VOX111" is a great way to automatically play pre-recorded messages to
visitors at your business.
It features a built-in PIR that plays a pre-recorded message stored in it, when movement is
detected, through a small built-in speaker. You can change the message stored in the
VOX111 with your own personal one to tailor the message to your particular requirements.
The automatic playing of messages is a great reminder to visitors of your policies helping
them and your staff to stay safe during the Covid outbreak. It’s non-confrontational and never
forgets to do its job!
With the ability to change the built in MP3 message, it’s really easy to then use the VOX111
to play other general messages as times change, so you could use it to welcome guests and
take a seat or suggest items you have on special offer.
The VOX111 can also be triggered to play a different MP3 message by triggering its alarm
input. This allows you to link it to others devices such as automatic doors, alarm panels, fire
alarms etc. Inside the VOX111 it has the ability to store the two MP3 messages, one is played
back from being triggered by the PIR, the second being trigged by something external
connected to its alarm input.

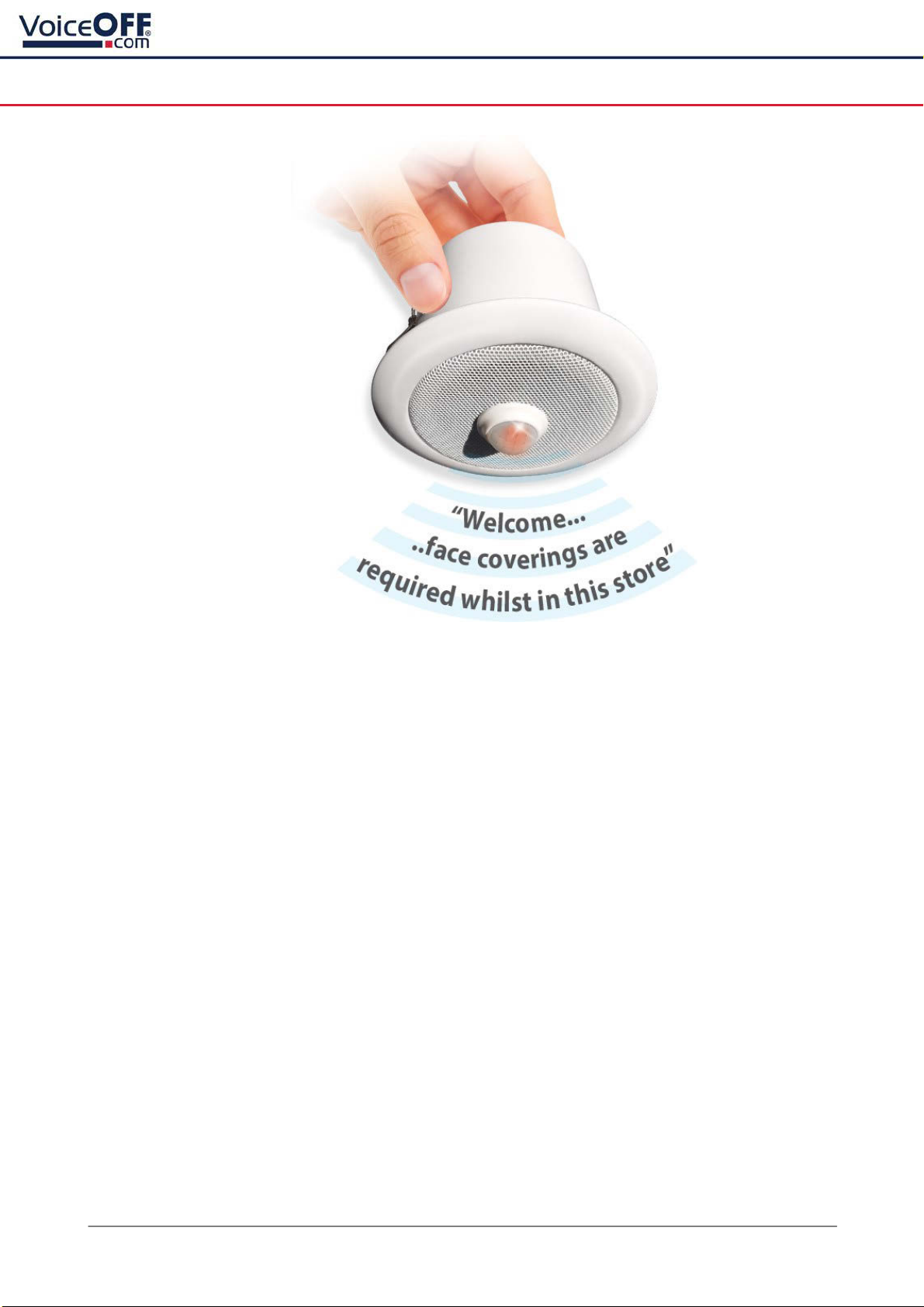

The VOX111 is an in-ceiling mount design so that it can sit in a ceiling tile or similar for a
clean and easy installation. It is 12V powered and requires a suitable PSU such as a POW151.
Alternatively you could run a 12V power supply from another 12V system within the
premises for a neat installation.
To change the MP3 sound files stored on the VOX111 you simply connect it to a suitable
computer or laptop and it will see it as a USB drive. Replace the MP3 files with your own
using the correct naming protocol as listed in these instructions.

© 2022 System Q Ltd
2
Index
VoiceOff.com
VOX111 - Movement Activated MP3 Message Player
Key Features
Built in PIR (up to 4M range)
PIR triggers Message 1
Alarm Input from a source such as a door contact, PIR or push button.
Alarm Input triggers Message 2
Ceiling Mounted 3W Speaker Design
Low voltage 12V DC
Low Current Consumption (20-300mA standby/playing)
2 Free MP3 Message (Easily swapped to your own if required)
Free Mini Remote Control for User Operation
External Audio Out put for additional amplifier
External Audio Input allows for general speaker user.

23/05/2022
3
VOX111
VoiceOff.com
Box Contents
The VOX111 contains the following items:
1 x VOX111 VoiceOff Movement Activated
MP3 Message Player
1 x Mini Remote Control handset
1 x Micro USB to USB Lead.
Required Tools / Handy Extras
Holesaw (Dia 108mm)
12V DC PSU (min 400mA) with a standard 2.1mm DC Plug
Screwdriver if adding additional alarm inputs
Alarm Cable if adding an alarm input extra to the built-in PIR
Alarm Input device (PIR, Door Contact) if adding a secondary alarm input
PC or Laptop (if intending to swap over the existing MP3 messages)
Phono Plugs or Leads (if connecting up the External Audio In and Outputs)

© 2022 System Q Ltd
4
Index
VoiceOff.com

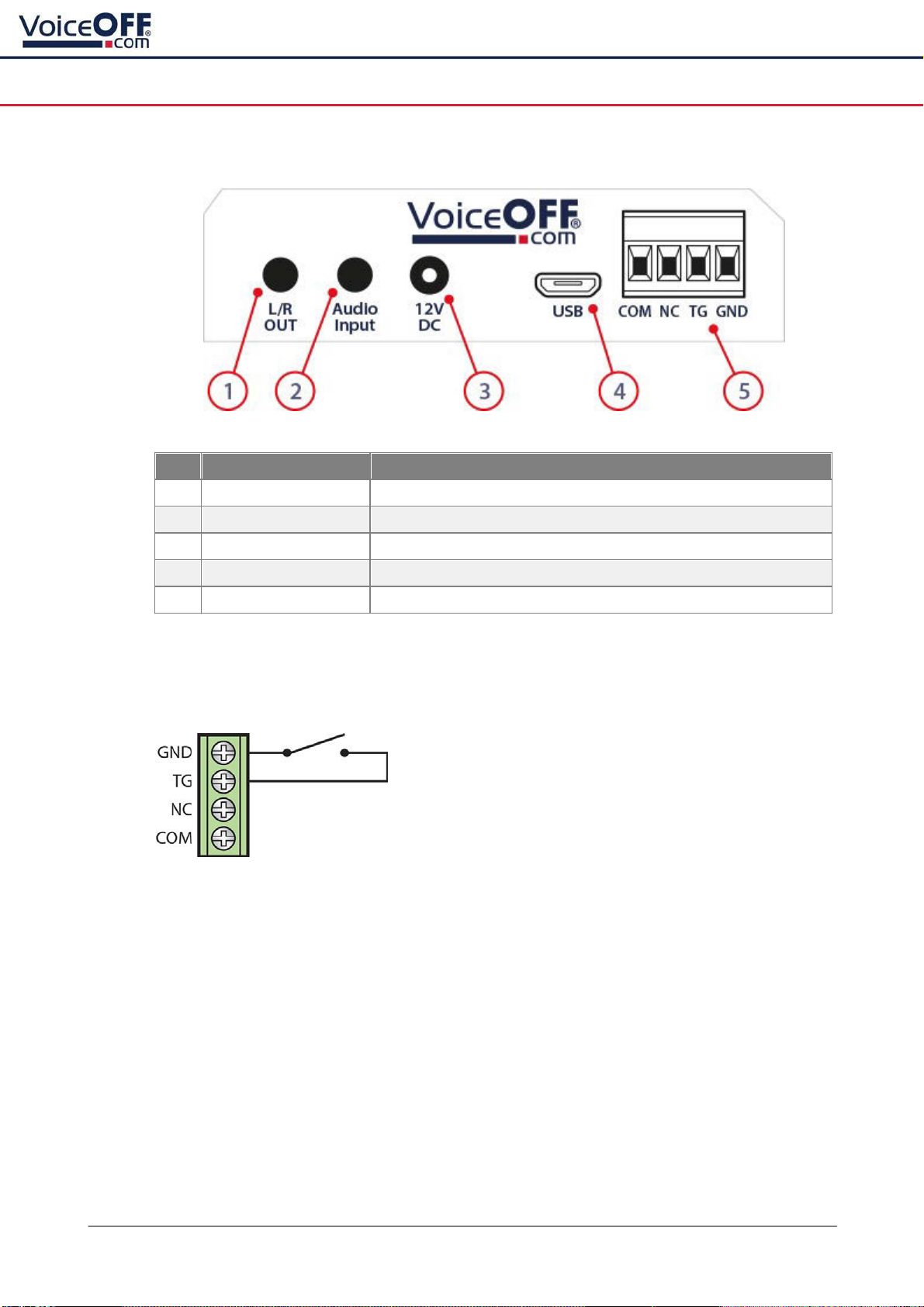

Connections & Wiring
No.
Label
Description
1
L/R Out
3.5mm audio socket for audio output
2
Audio Input
3.5mm audio socket for audio input
3
12V DC
2.1mm DC Socket for connecting PSU
4
USB
Micro USB Socket for connecting to PC
5
COM NC TG GND
Screw terminal block for connecting alarm input and ouput
5.1 Alarm Input
A 4-way terminal strip used in conjunction with an
external alarm input such as a wireless keyfob, door
contact, push button, a secondary PIR or a DVR/NVR
alarm output.
To trigger the second MP3 message (SQ02.mp3)
connect "TG" to "GND" on the VOX111's relay
terminals.

23/05/2022
5
VOX111
VoiceOff.com
5.2 Micro USB
Used for connecting the unit to a PC, the micro USB leads connects into the rear of the player
whilst the USB connects into the USB on your PC or Laptop. The player is seen as a USB drive
allowing the free message (MP3) files to be swapped over to meet your exact requirements.
When replacing your MP3 message files please ensure the following naming conventions are
adhered to:
SQ01.mp3 (PIR triggered message)
SQ02.mp3 (external alarm input triggered message)
Further free messages for the unit can be downloaded by visiting our website and entering
your unit’s serial number at:
voiceoff.com
5.3 Power
The unit requires 12V DC up to 300mA to operate. This is connected using the 2.1mm DC
socket on the rear of the speaker case.

© 2022 System Q Ltd
6
Index
VoiceOff.com
5.4 Audio Input
A standard 3.5mm audio jack input that allows the unit to be used as a standard (loud)
speaker unit.
Please note: when the unit detects an external input on this port, it will override any other
message functions.
5.5 L/R Out (Audio)
A standard 3.5mm audio jack socket connection for line audio output can be connected to an
external amplifier for playing messages in a second area.
The output is line level output (-10dBV) which is around 0.5V peak to peak. If the amplifier
being used does not have a line or mic input for lower line level inputs then a pre-amp may
be required.
Note this output is not an axillary output, which tends to have a high line level output of
around (0dBV) 1.0-1.2V peak to peak.
Powering Up
The VOX111 VoiceOFF® should be powered using a regulated 12V DC power supply of a
minimum rating of 400mA. This can be plugged in using the 2.1mm DC power socket on the
rear of the speaker case. The unit uses 20mA in standby mode and up to 300mA whilst
operating.

23/05/2022
7
VOX111
VoiceOff.com
Setup Considerations
It is worth taking a couple of minutes to conduct a site survey and bench test the unit to try
out the messages before before mounting the VOX111 in situ. It may be that you wish to
switch around the messages played by the unit and this is easier to do near a PC or laptop
rather than once it is installed.
7.1 Free MP3 Messages Supplied
The unit is supplied with 2 free messages that are named to automatically play once
triggered by their respective inputs as follows:
SQ01.mp3 (PIR triggered message)
The PIR input on the VOX11 has been wired to trigger the following message:
SQ01.mp3 - this is the following free message as shipped at time of writing:
“Welcome face coverings are required whilst in this store, thank you for helping to keep us all
safe.”
SQ02.mp3 (External alarm input triggered message)
The external alarm input connection has been setup to trigger the following message:
SQ02.mp3 - this is the following free message as shipped at time of writing:
“Please observe the social distancing measures we have in place during your visit.”
Other messages
A selection of free messages (plus 1000s of others) can be downloaded at our website for
numerous uses including:
Welcome Messages for Reception Areas, Health & Safety Announcements, Customer Service
Advice, CCTV In Operation Messages, Sirens and more...
Please visit: voiceoff.com
