T-SPA TRIANNA T920 User manual

1 | P a g e
T-SPA MFG, LLC
10510-10520 KINGHURST ST
HOUSTON, TX 77099
1(888) 508 -8772
www.tspallc.com
USER MANUAL
PLEASE SAVE THIS MANUAL FOR FUTURE REFERENCE
MODEL: TRIANNA T920

2 | P a g e
TABLE OF CONTENTS
CONTENT PAGE
SAFETY & PRECAUTION 3
SPECIFICATION 6
IDENTIFY YOUR FOOT SPA 7
FOOT-SPA CLEARANCE 8
INSTALLATIONS 9
OPERATION & USE 14
CLEANING, MAINTERNANCE & USE 16
WARRANTY & SERVICE 17

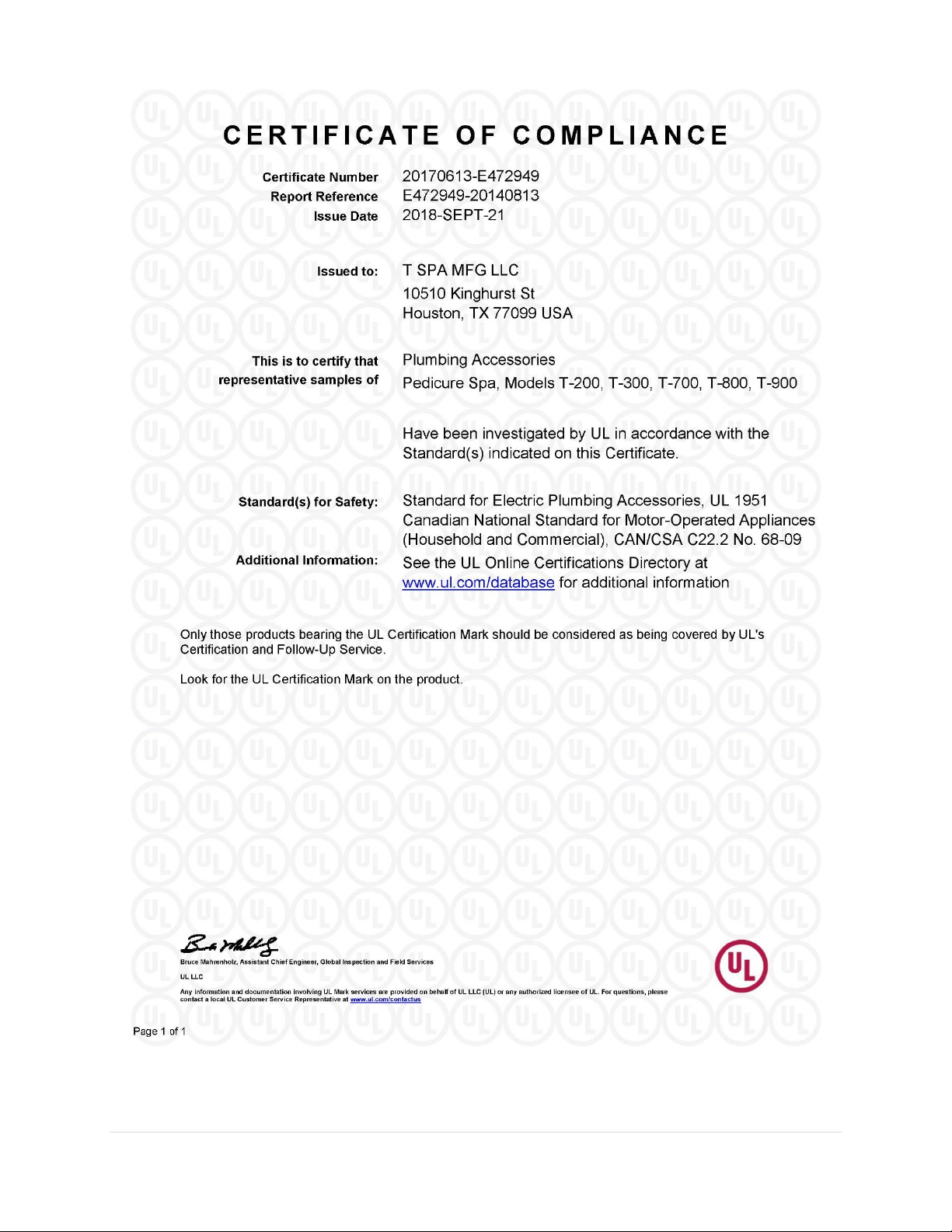

UL CERTIFICATE 18
WARRANTY REGISTRATION FORM 19

3 | P a g e
Before using your new pedicure spa, please read and observe these safety instructions carefully
to reduce the possibility of injury, serious bodily harm, death, fire and/or other property damage.
For additional questions, please call our Technical Support Department at: 888-508-8772
DANGER: Risk of Electric Shock. Connect only to a circuit protected by a ground fault circuit interrupted
GROUNDING IS REQUIRED. The unit should be installed by a qualified service representative and
grounded.
Install to permit access for servicing.
CAUTION: Risk of electric shock. Disconnect electric power before servicing.
WARNING: Risk of accidental injury or drowning; children should not use hydro massage bathtub with-
out adult supervision.
WARNING: Risk of accidental injury or drowning; do not use hydro massage bathtub
unless all suction guards are installed to prevent body and hair entrapment;
WARNING: To avoid injury, exercise care when entering or exiting the hydro massagebathtub;
WARNING: Riskofaccidental injury ordrowning,do not usedrugs or alcohol before or duringtheuseof a
hydro massage bathtub equipped with heater to avoid unconsciousness and possibledrowning
WARNING: Risk of fetal injury; pregnant or possibly pregnant women should consult a physician before
using a hydro massage bathtub equipped with heater;
WARNING: Riskof hyperthermia and possible drowning; do not use ahydro massage bathtub equipped
with heater immediately following a strenuous exercise
WARNING:Riskofelectricshock;donotpermitelectricappliances (suchasahairdryer,lamp,tele- phone,
radio, or television) within 1.SM (5feet) ofthis hydro massage bathtub;
CAUTION: Test the ground fault circuit interrupted protecting this appliance periodically in accordance
with the manufacturer’s instructions
WARNING: Risk of hyperthermiaand possibledrowning;watertemperatureinexcessof38°C(100.4°F)
may beinjuriousto yourhealth Checkand adjustwatertemperaturebeforeuse.
WARNING: Risk of hyperthermia; people using medications and/or having an adverse medical history
should consult a physician before using a hydro massage bathtub equipped with heater.
SAFETY & PRECAUTION

4 | P a g e
SAFETY & PRECAUTION
WARNING: It is important that you carefully follow the basin cleaning procedures on page 17 to
ensure that the spa is sanitized after each use. T-spa is not liable for any infections or disease that may
result from improper cleaning or failure to adhere to sanitation requirements.
Thispedicurespaunitshouldonlybeoperatedinroomtemperaturebetween40°F(4°C)and100°F(38°C). Do not
use unit outdoorsorin excessively humidordusty environments.
Do not use unit where aerosol (spray) products are being used or oxygen is being administered. Do not
operate unit if it has been damaged.
Always connect this unit to a properly grounded electrical outlet.
Thisunitisdesignedonlytooperateona standard110Volt60Hzcurrent.Exceedingthisstandardmay
cause injury and/or seriousbodily harmand/ordamage to property.
Do not use this unit if noise above normal sound is heard.
To reduce the risk of burns, fires, and electrical shock, never leave this unit unattended if plugged in and
always unplug when not in use for an extended period, before installation, cleaning, or removal of parts.
Keep the power cord away from heated surfaces.
Do not operate unit if the power cord or plug has been damaged.
If this unit is operating abnormally or malfunctioning, immediately turn off the power and
disconnect the power cord from the outlet; do not operate unit if it is not working properly.
Intheeventofapowerfailure,alwaysturnthepowerswitchtoitsOFFposition. Whennotinuse, always
turn the powerswitchto its OFFposition.
To disconnectunit,turnall controlsto OFFpositionandremovepowercord fromthe outlet. Keepall
electrical devices awayfromthisunit.
This unit only has a weight capacity of 300pounds (136.06 kg). Enter and exit the unit slowly and carefully.
Never drop or insert any object into any opening of the unit.
Closesupervisionisnecessary whenthisunitisusedby,on ornearchildren,invalids,anddisabled persons. Do
notstandorallowanyonetostandinthespabasin.
Please be aware that a spa basin filled with water is a potential drowning hazard.
Check the water temperature before each use; water temperature should not exceed 105°F (41°C)
and water temperature in heater should not exceed 150°F (65°C).
Disinfect the spa basin and jets, after each use with an approved cleaner.
Do not massage any area of the body that is swollen, inflamed, or covered with skin eruptions. Before
operating the massage chair, make sure the chair arms are down.
Ifthere is severe discomfort during the massage,discontinue use and consult aphysician. Donotusethe
massagechairformorethan15minutesatonetime.
Donotput hands orfingers near massage mechanism or rollers whilethechair isoperating; touchingthe
mechanismcan resultininjury fromthe rollerssqueezingtogether.
Keepthemassagechairanditsairopeningscleanandfreeoflint, hair, anddust;neveroperatethe
massage chair if the air openings are blocked.
Misuse or failure to properly clean pedicure spa unit may result in serious health issues, bodily
injury, and/or death.

5 | P a g e
SAFETY & PRECAUTION
Health Risk Warning
Use ofthepedicure spa unit should be pleasant and comfortable; if there is any pain ordiscomfort, stopuse of
the pedicure spaimmediately.
A physician should be consulted before use of the massage chair by anyone with the following
conditions: Malignant tumor, heart disease, pregnancy, Conditions requiring rest, and back disease or
trouble from an injury or accident.
A physician should be consulted before use of the spa basin and jets by anyone with diabetes, swelling,
fracture,or persistent pain.
Anyone with inflamed legs or feet, open wounds, or fungal infections should not use the spa basin and
jets.
Misuse or failure to properly clean pedicure spa unit may result in serious health issues, bodily injury,
and/or death.
WARNING - GROUNDING INSTRUCTIONS AND METHODS:
This unit must be grounded. If it should malfunction or break down, grounding provides a path of least
resistance for electrical current to reduce the risk of electric shock. All outlets connected to epicures as
must includea GFCI device (GroundFaultCircuitInterrupter). Thiswillreducetheriskofelectric shock.
This unit is for use on a standard 110 Volt 60Hz current.
This unit is equipped with a cord having an equipment grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
If you are in doubt as to whether this unit is properly grounded, check with a qualified electrician or
serviceman. Fatal electric shock and fire could occur with improper connection of the equipment-
grounding conductor. Do not modify the plug provided with the product for any reason; if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
WARNING: THERMAL RESETTING PROTECTION DEVICE
The massage chair is equipped with a thermal resetting protection device. This is a safety feature to
protect it from overheating. If the chair should suddenly stop and will not start, turn the main power
switch off, and do not operate the chair for at least 30 minutes. Failure to turn the chair off may result
in the chair starting unexpectedly when the device cools.

SPECIFICATION
6 | P a g e
Dimension & Weight (Shipping)
Pedicure Spa
Massage Chair
Stool
55L x 28W x 20H
44L x 31W x 24H
20.25L x 27.5W x 17H
125 lbs
176 lbs
19 lbs
Capacity of Tub
T-920
4.5 US Gallon
Switch
On/ Off Air Activated Switch
Power Source
Dedicated 15Amp Wall Outlet Require
Pipe-less whirlpool motor
120 Vac, 0.4 Amp.60 Hz
Discharge Pump (Optional)
Massage System
115 Vac, 3.2 Amp.60Hz
120 Vac, 60 Hz
Plumbing Source
Hot Water
3/8 inches
Cold Water
3/8 inches
Drain
1”1/4 – 1”1/2
Warranty
Unit
Optional Item
1 year
120 Days

7 | P a g e
IDENTIFY YOUR FOOT-SPA
60”
27”
22”
SEAT OPERATION
SPA DIMENSION
2
Reclining 25˚
1
Armrest can be raised up/down
3
Chair Sliding

8 | P a g e
FOOT-SPA CLEARANCE
WALL CLEARANCE
TYPICAL FOOT-SPAS
Wall
Distance from center drain to
the back of the spa
22”
23”
Clearance
24”
24”
50”

9 | P a g e
INSTALLATIONS
Align the seat with the pre-drilled holes on the base then tightly secure with the nuts and bolts provided.
Attach trays or remote stand to armrest with screws provided.
MODEL: TRIANNA T920

10 | P a g e
INSTALLATIONS
When using electrical equipment, Basic safety precautions must be followed to
reduce the risk of fire, electrical shock, and injury to Persons.
1. Read and follow all instructions before using the equipment.
2. Keep electrical cord out of heavy traffic area. To avoid fire hazard NEVER place
electrical cord under the rug, near heat Generating devices.
3. Always turn power off the equipment before service.
4. Do not drop or insert any object into any openings.
5. Do not operate any equipment with damaged parts.
6. Any other use not recommended by the manufacturer may cause electrical shock
or cause injury to person/s.
7. Never use it outdoors
8. Do not attempt to repair or adjust any electrical or mechanical.
Cleaning instruction
1. Turn off the unit and wait until the motor is fully stops.
2. Hold Hydro whirlpool jet cover firmly and pull to separate from the round
magnetic field.
3. Turn hydro whirlpool jet cover to left to open and pull out impeller.
4. Use Anti - Bacterial solution (EPA Registered) to clean all parts.
5. After sanitizing all parts, place impeller and close hydro whirlpool jet cover to
turn right to lock
6. Hold firmly the whirlpool cover jet and gently place it onto the round magnetic field.
Do not release the hydro whirlpool jet cover until Jet cover is on the round magnetic
housing.
