T-SPA Human Touch 138 User manual
2 | P a g e
TABLE OF CONTENTS
CONTENT
PAGE
SAFETY & PRECAUTION
3
SPECIFICATION
6
IDENTIFY YOUR FOOT SPA
7
FOOT-SPA CLEARANCE
8
INSTALLATIONS
9
OPERATION & USE
15
CLEANING, MAINTERNANCE & USE
17
WARRANTY & SERVICE
18
UL CERTIFICATE
19
WARRANTY REGISTRATION FORM
20
3 | P a g e
DANGER: Risk of Electric Shock. Connect only to a circuit protected by a ground fault circuit interrupted
GROUNDING IS REQUIRED. The unit should be installed by a qualified service representative and
grounded.
Install to permit access for servicing.
CAUTION: Risk of electric shock. Disconnect electric power before servicing.
WARNING: Risk of accidental injury or drowning; children should not use hydro massage bathtub with-
out adult supervision.
WARNING: Risk of accidental injury or drowning; do not use hydro massage bathtub
unless all suction guards are installed to prevent body and hairentrapment;
WARNING: To avoid injury, exercise care when entering or exiting the hydro massage bathtub;
WARNING: Riskofaccidental injury or drowning: do not use drugs or alcohol before or during the useof a
hydro massage bathtub equipped with heater to avoid unconsciousness and possibledrowning
WARNING: Riskof fetal injury; pregnant or possibly pregnant women should consult a physician before
using a hydro massage bathtub equipped with heater;
WARNING: Riskof hyperthermia and possible drowning; do not use a hydro massage bathtub equipped
with heater immediately following a strenuous exercise
WARNING:Riskofelectricshock;donotpermitelectricappliances (suchasahairdryer,lamp,tele- phone,
radio, or television) within 1.SM (5feet) of this hydro massage bathtub;
CAUTION: Test the ground fault circuit interrupted protecting this appliance periodically in accordance
with the manufacturer’s instructions
WARNING: Riskofhyperthermia andpossible drowning; water temperature inexcess of38°C(100.4° F)
may
beinjurioustoyourhealth.Checkandadjustwatertemperaturebeforeuse.
WARNING: Risk of hyperthermia; people using medications and/or having an adverse medical history
should consult a physician before using a hydro massage bathtub equipped withheater.
Before using your new pedicure spa, please read and observe these safety instructions carefully
to reduce the possibility of injury, serious bodily harm, death, fire and/or other property damage.
For additional questions, please call our Technical Support Department at: 888-508-8772
SAFETY & PRECAUTION
4 | P a g e
WARNING: It is very important that you carefully follow the basin cleaning procedures on page 17
to ensure that the spa is sanitized after each use. T-spa is not liable for any infections or disease
that may result from improper cleaning or failure to adhere to sanitation requirements.
Thispedicurespaunitshouldonlybeoperatedinaroom temperature between 40°F(4°C)and100°F(38°C).
Do
notuse unitout doorsorinexcessivelyhumidordustyenvironments.
Do not use unit where aerosol (spray) products are being used or oxygen is being administered. Do not
operateunit if ithasbeendamaged.
Always connect this unit to a properly grounded electrical outlet.
This unit isdesigned only tooperate on astandard 110 Volt 60Hzcurrent.Exceeding this standard may cause
injury and/or
seriousbodilyharmand/ordamagetoproperty.
Do not use this unit if noise above normal sound is heard.
To reduce the risk of burns,fires,and electrical shock,never leave this unit unattended if plugged in
and always unplug when not inuse for an extended period,before installation, cleaning, or removal
of parts.
Keep the power cord away from heated surfaces.
Do not operate unit if the power cord or plug has been damaged.
If this unit is operating abnormally or malfunctioning, immediately turn off the power and
disconnect thepower cord from the outlet;do not operate unit if it isnot working properly.
Intheeventofapowerfailure,alwaysturnthepowerswitchtoitsOFFposition. Whennotinuse,alwaysturn
thepowerswitchtoitsOFFposition.
Todisconnectunit, turnallcontrolstoOFFpositionandremovepowercordfromtheoutlet.
Keepallelectrical
devices awayfrom this unit.
Thisunitonlyhas aweight capacityof300pounds(136.06kg). Enterandexittheunitslowlyandcarefully.
Never drop or insert any object into any opening of the unit.
Close supervisionisnecessary whenthisunitisusedby,on,ornearchildren,invalids,anddisabled persons.
Do
notstandorallowanyonetostandinthespabasin.
Please be aware that a spa basin filled with water is a potential drowning hazard.
Check the water temperature before each use;water temperature should not exceed 105°F (41°C)
and water temperature inheatershouldnote Kceed150°F(65°C).
Disinfect the spa basin and jets, after each use with an approved cleaner.
Donotmassageanyareaofthebodythatisswollen,inflamed,orcoveredwithskineruptions.
Beforeoperating
themassage chair,makesurethechairarmsaredown.
If there is severe discomfort during the massage, discontinue use and consult a physician.
Donot use the
massagechairformorethan15minutesatonetime.
Donotput hands or fingers near massage mechanism or rollers while thechair isoperating; touchingthe
mechanismcan resultininjuryfromtherollerssqueezingtogether.
Keepthemassagechairanditsairopeningscleanandfreeoflint,hair,anddust;neveroperatethemassage
chair if the
airopenings are blocked.
Misuse or failure to properly clean pedicure spa unit may result in serious health issues, bodily
injury, and/or death.
SAFETY & PRECAUTION
5 | P a g e
Health Risk Warning
Use ofthe pedicure spa unit should be pleasant and comfortable; if there is any pain or discomfort, stopuse of the
pedicurespa
immediately.
A physician should be consulted before use of the massage chair by anyone with the following
conditions: Malignant tumor, heart disease, pregnancy, Conditions requiring rest, and back disease
or trouble from an injury or accident.
A physician should beconsulted before use ofthe spa basin andjets,by anyone with diabetes, swelling, fracture, or
persistent
pain.
Anyone with inflamed legs or feet, open wounds, or fungal infections should not use the spa basin and
jets.
Misuse or failure to properly clean pedicure spa unit may result in serious health issues, bodily
injury, and/or death.
WARNING - GROUNDING INSTRUCTIONS AND METHODS:
This unit must be grounded. If it should malfunction or break down, grounding provides a path of least
resistancefor electricalcurrenttoreducetheriskofelectricshock. Alloutletsconnectedto edicuresasmust
includeaGFCIdevice
(Ground Fault Circuit Interrupter). This will reduce the risk ofelectric shock.
This unit is for use on a standard 110 Volt 60Hz current.
This unit is equipped with a cord having an equipment grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
If you are in doubt as to whether this unit is properly grounded, check with a qualified electrician or
serviceman. Fatal electric shock and fire could occur with improper connection of the equipment-
grounding conductor. Do not modify the plug provided with the product for any reason; if it will not
fit the outlet, have a proper outlet installed by a qualified electrician.
WARNING: THERMAL RESETTING PROTECTION DEVICE
The massage chair is equipped with a thermal resetting protection device. This is a safety feature
to protect it from overheating. If the chair should suddenly stop and will not start, turn the main
power switch off, and do not operate the chair for at least 30 minutes. Failure to turn the chair off
may result in the chair starting unexpectedly when the device cools.
SAFETY & PRECAUTION
6 | P a g e
Dimension & Weight (Shipping)
Pedicure Spa
Massage Chair
Stool
55L x 28W x 20H
44L x 31W x 24H
20.25L x 27.5W x 17H
125 lbs
176 lbs
19 lbs
Capacity of Tub
T-813
4.5 US Gallon
Switch
On/ Off Air Activated Switch
Power Source
Dedicated 15Amp Wall Outlet Require
Pipe-less whirlpool motor
Discharge Pump (Optional)
Massage System
120 Vac, 0.4 Amp.60 Hz
115 Vac, 3.2 Amp.60Hz
120 Vac, 60 Hz
Plumbing Source
Hot Water
Cold Water
Drain
3/8 inches
3/8 inches
1”1/4 – 1”1/2
Warranty
Unit
Optional Item
1 year
120 Days
SPECIFICATION
MODEL: T-813
7 | P a g e

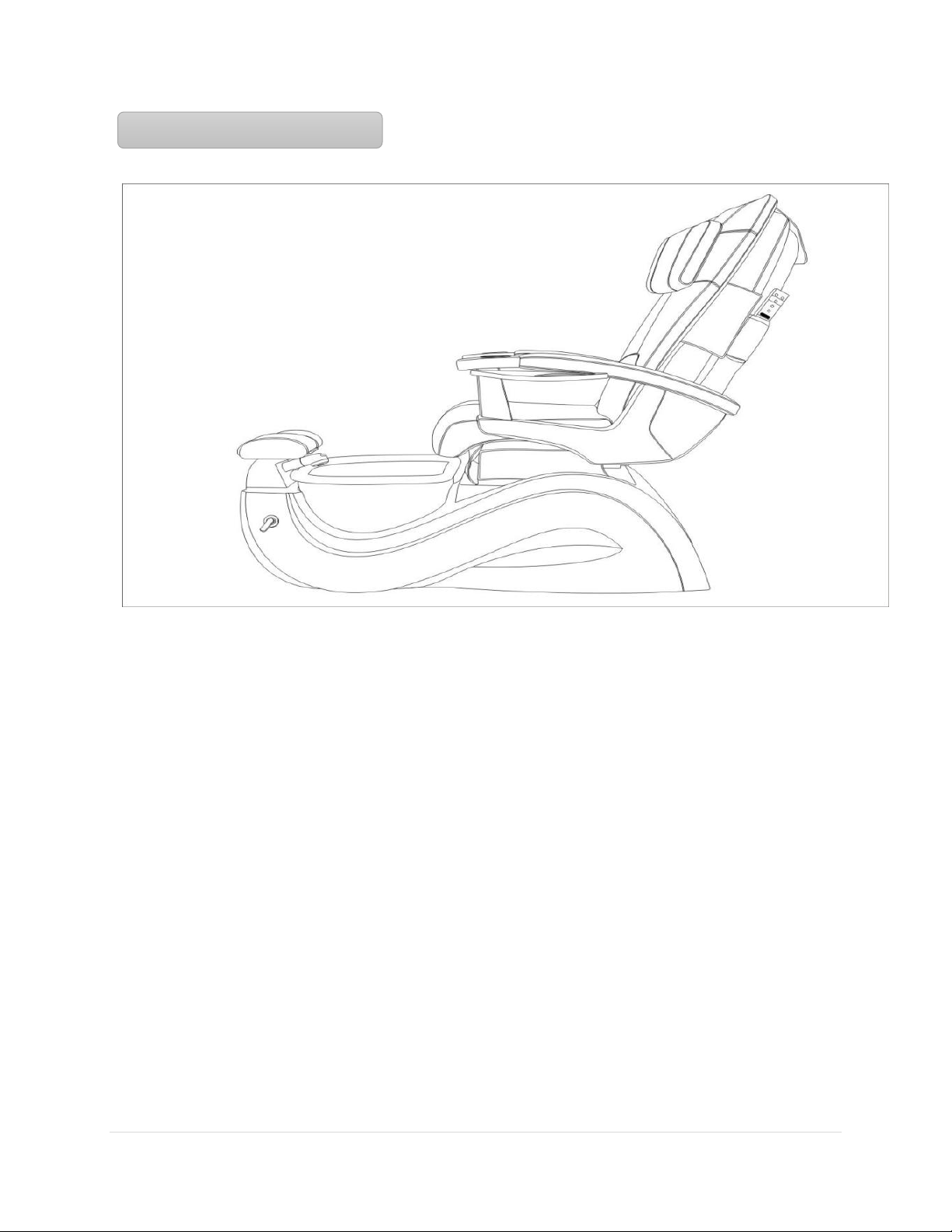

SEAT OPERATION
SPA DIMENSION
IDENTIFY YOUR FOOT-SPA
2
Reclining 25˚
1
Armrest can be raised up/down
3
Chair Sliding
60”
27”
22”
50”
8 | P a g e

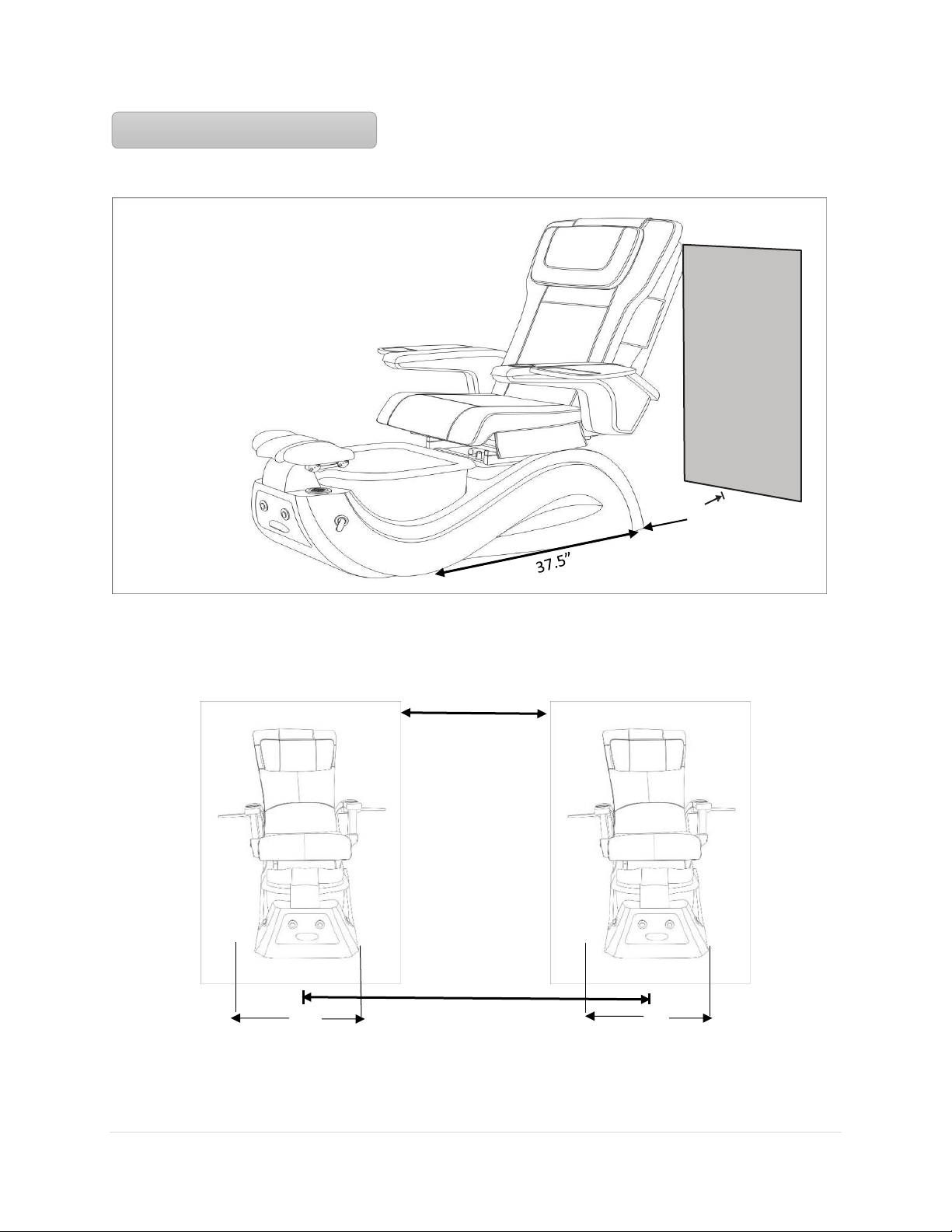

Wall
WALL CLEARANCE
TYPICAL FOOT-SPAS
1 2
FOOT-SPA CLEARANCE
Wall
22”
Distance from center drain
to the back of the spa
50”
Clearance
23”
22”
22”
9 | P a g e
Attaching the Seat to the Base
Align the seat with the pre-drilled holes on the base then tightly secure with the nuts and bolts provided.
Attach trays or remote stand to armrest with screws provided.
INSTALLATIONS
MODEL: T-813
10 | P a g e
When using electrical equipment, Basic safety precautions must be followed
to reduce the risk of fire, electrical shock, andinjury to Persons.
1.
Read and follow all instructions before using the equipment.
2.
Keep electrical cord out of heavy traffic area. To avoid fire hazard NEVER place
electrical cord under the rug, near heat Generating devices.
3.
Always turn power off the equipment before service.
4.
Do not drop or insert any object into anyopenings.
5.
Do not operate any equipment with damagedparts.
6.
Any other use not recommended by the manufacturer may cause electrical shock
or cause injury to person/s.
7.
Never use it outdoors
8.
Do not attempt to repair or adjust any electrical or mechanical.
Cleaning instruction
1. Turn off the unit and wait until the motor is fullystops.
2. Hold Hydro whirlpool jet cover firmly and pull to separate from the round
magnetic field.
3. Turn hydro whirlpool jet cover to left to open and pull out impeller.
4. Use Anti - Bacterial solution (EPA Registered) to clean all parts.
5. After sanitize all parts, place impeller and close hydro whirlpool jet cover to turn
right to lock
6. Hold firmly the whirlpool cover jet and gently place it onto the round magnetic field.
Do not release the hydro whirlpool jet cover until Jet cover is on the round magnetic
housing.
INSTALLATIONS
11 | P a g e

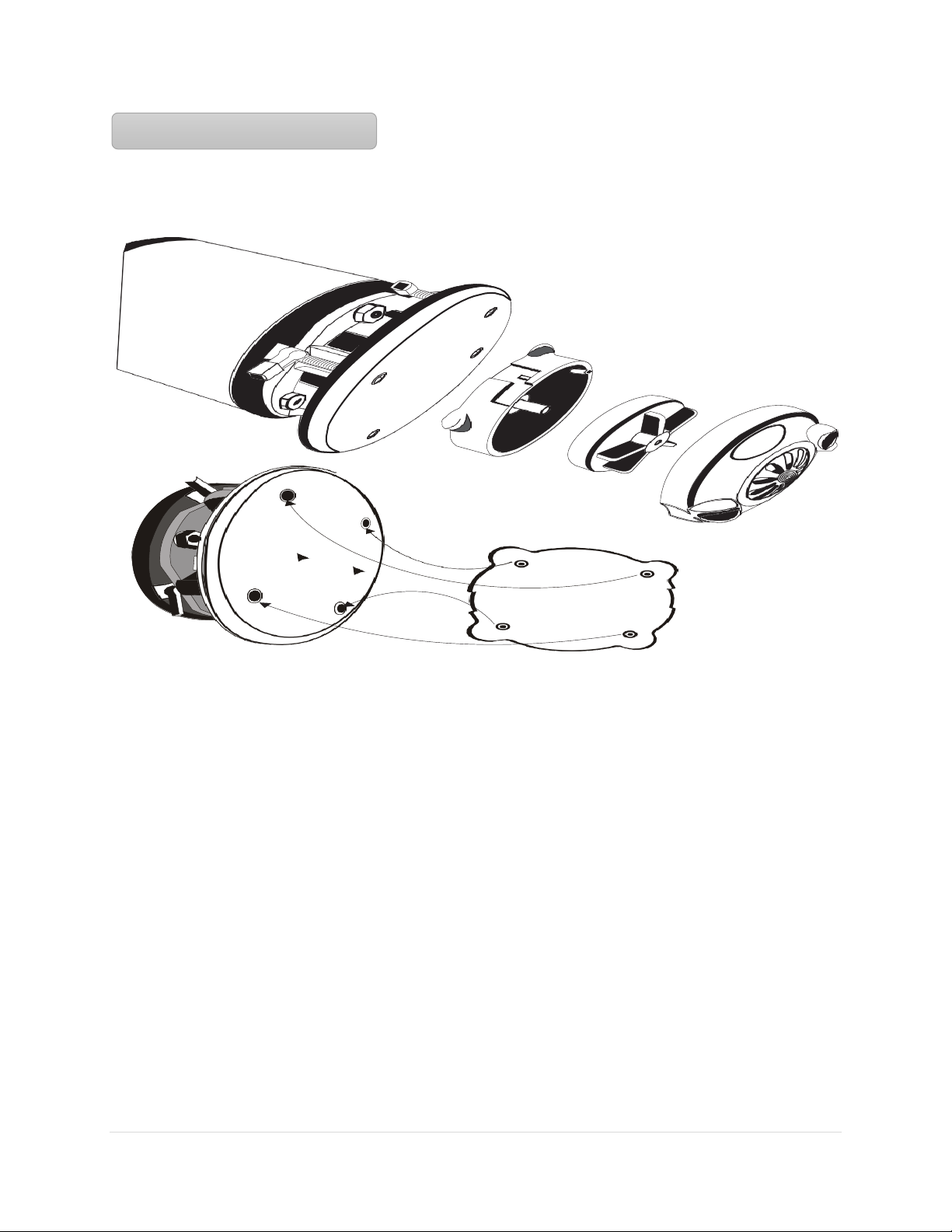

Jet Unit Components
Magnet Jet Feature
1. Hydro dual massage jet stream
2. Magnetic whirlpool jet cover can be remove for quick cleaning and sanitizing
3. Built in electronic sensor for pump control
4. AC Whirlpool motor (long life)
5. Very low power consumption (27W)
6. Manufactured in USA
Magnet Jet Specifications
Model: MAGNA JET -120 VAC, 60 Hz, 1.0 Amp
Pump: Hydro-Massage Dual Jet Flow
Mounting: single 3.5” hole Diameter
Auto tighten Mounting screws (4)
Motor
Magnetic Jet Base
Bottom view of magnetic jet
base
Magnetic Impeller
Magnetic
Whirlpool jet cover
INSTALLATIONS
12 | P a g e
Plumbing Connections

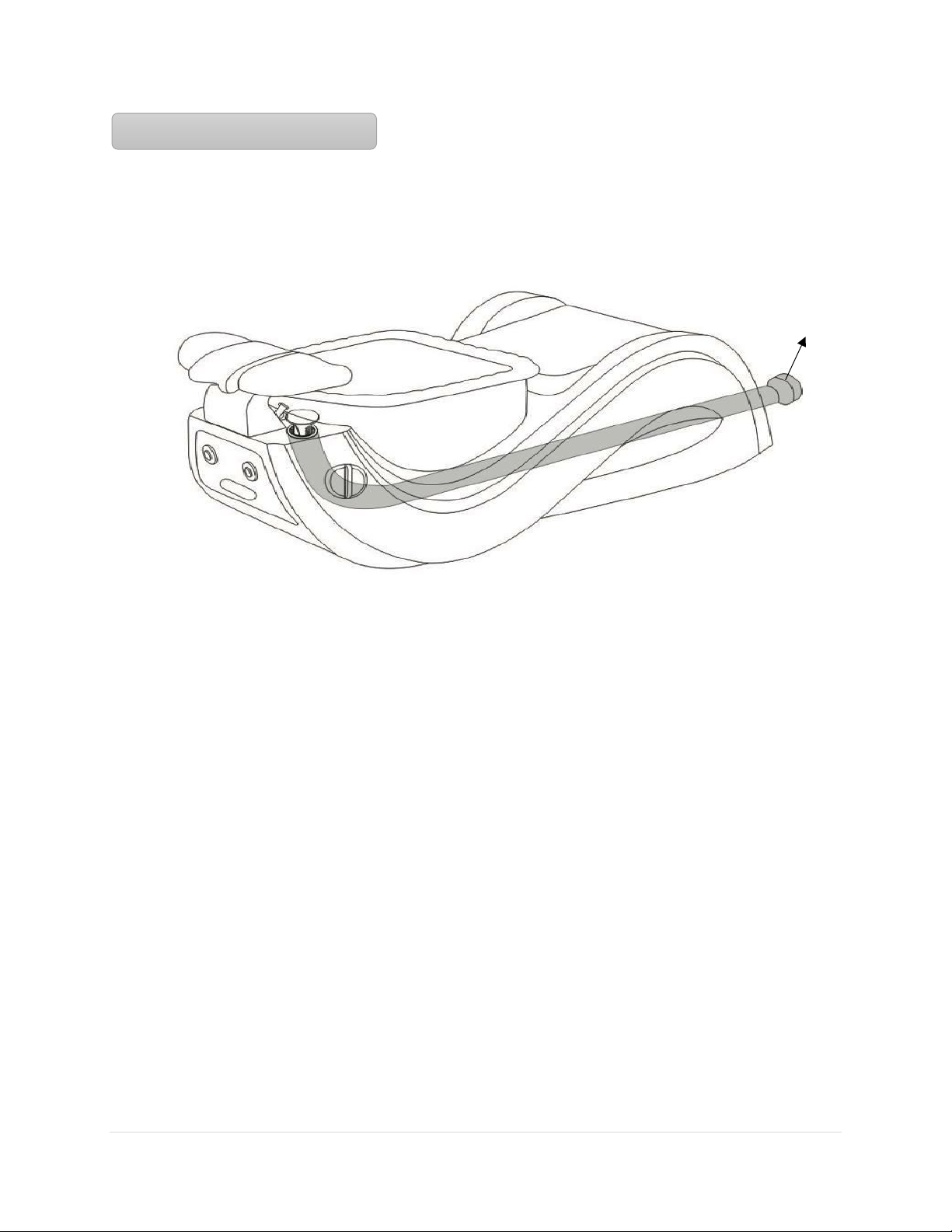

1. Discharge pump may be connected to an existing sink drain or floor drain. It can also pump up
to 7 ft high, but this will increase the length of the drain time. The drain connection is at the rear
of the unit by a 3/4” fitting.
2. Gravity drain uses a standard gravity drain. A floor drain is recommended. P-Trap is not
installed nor supplied. The floor drain should already have a P-Trap and the UPC codes do
not allow double P-Traps in thesystem.
3. Hot and cold water supply connections are located at the rear of the unit (½” fittings).
Please be advised that the hot and cold water supply lines are not fitted with optional back flow
Preventers unless ordered at initial sale.
4. Have a qualified licensed electrician to install the wiring according to local codes.
The Clean jets are 1/18 HP, 120V A.C., 0.55 AMP. 60HZ. GFI protected circuit must be used
to supply power to the unit. The roller back massage chair uses a 115V A.C. supply.
5. Spa base should be anchored securely to the floor. The base may be
anchored through the opening in the back of the base wherever
access is convenient for the installer.
6. Hand held sprayer. It has complied with applicable requirements of ASME A112.18.1-2005/CSA
B125.1-05
FAILURE TO ANCHOR THE BASE MAY RESULT IN PERSONAL INJURY OR DAMAGE TO THE UNIT.
DAMAGE AS A RESULT WILL VOID THE WARRANTY

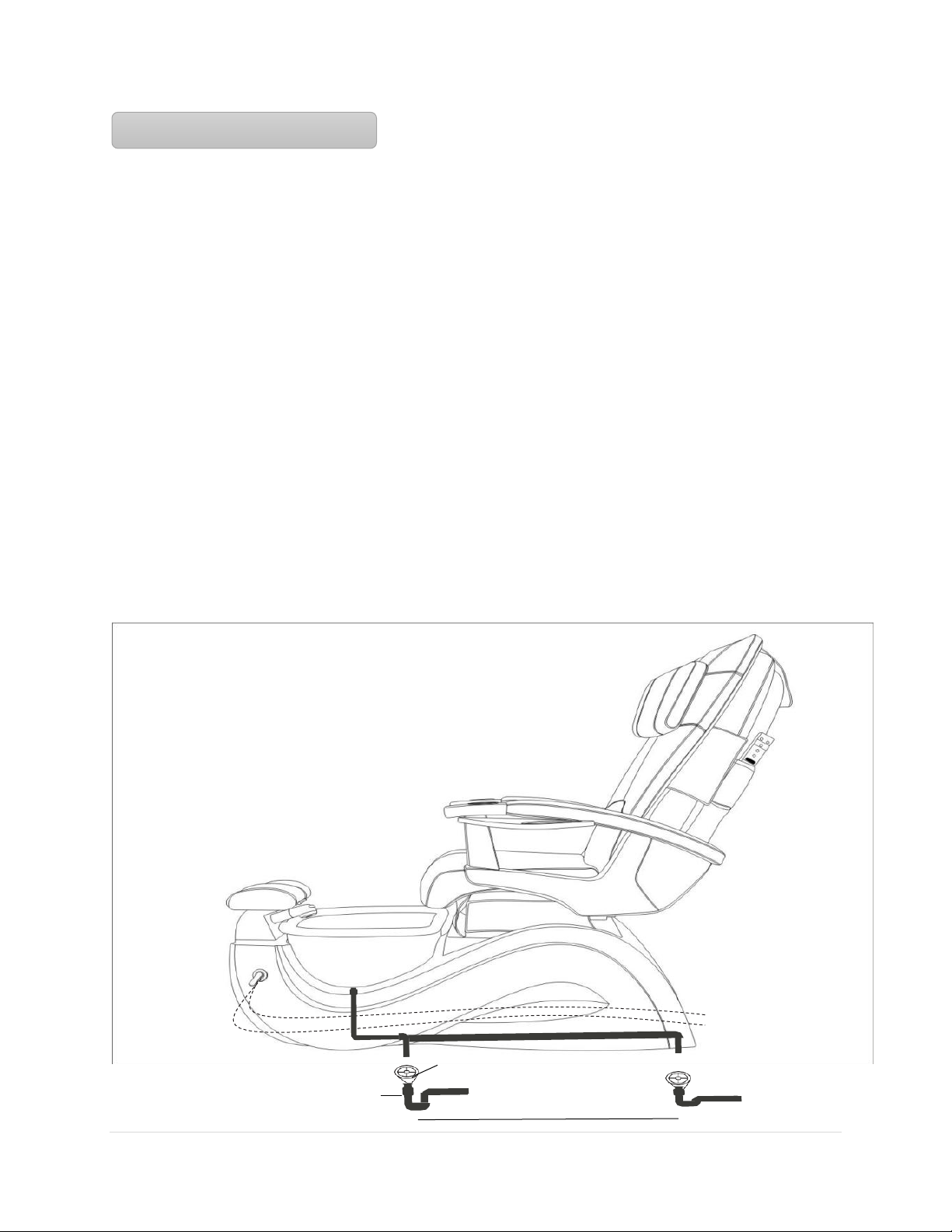

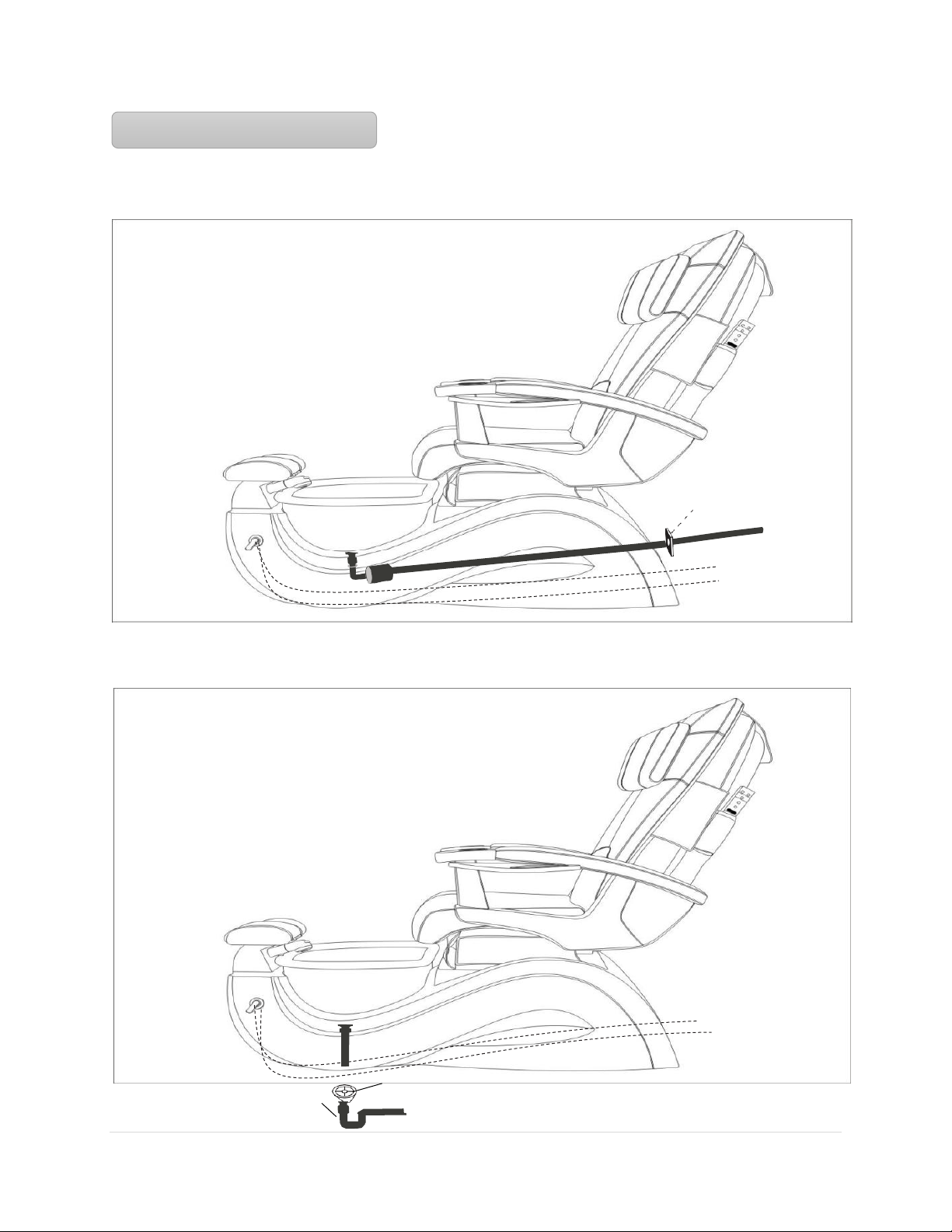

Typical Gravity Sink (Direct Drain) Installation
INSTALLATIONS
Optional
3/8 Hot and
Cold Hoses
Drain Elbow
Gravity Sink 2’-
3’ to sewer line
13 | P a g e
Typical Discharge Pump Installation (OPTIONAL)
Typical Gravity Sink (Direct Drain) Installation
INSTALLATIONS
3/8 Hot and
Cold Hoses
Backwater Valve
Supplied by
plumber
3/8 Hot and
Cold Hoses
Drain Elbow
Gravity Sink 2’-3’ drain
pipe to sewer line
14 | P a g e
Typical Vent System Installation (OPTIONAL)
INSTALLATIONS
Vent System
15 | P a g e
1. To fill water:
The foot-spa is provided with a single hot and cold mixing valve located on the front of your spa.
This is a pressure balance valve that requires you to lift the handle to start the water flow and to adjust to
the temperature that is desired. The clean jet body must be completely submerged in water.
CAUTION: DO NOT USE FOAMING, SUDSING OR MINERAL OIL BASED ADDITIVES IN THE WATER.
2. To start whirlpool:
Press the button as shown. This will start your Clean Jet motor. You may stop the whirlpool function at any
time by pressing the button again.
3. To drain Foot-spa bowl:
Turn drain control knob to “pop-up” drain plug.
- If gravity drain (no discharge pump); water in bowl empties with duration determined by waste water
plumbing
- If optional discharge pump has been installed; then press discharge pump button to activate 2-
minute timer controlled pump. Average drain time approximately one minute (depending on
plumbing characteristics).
4. The massage chair’s manual book will be send separately.
Note: Read and Follow Chair Manual Instructions
BASIC PRECAUTIONS SHOULD ALWAYS BE OBSERVED, INCLUDING THE
FOLLOWING:
1. Read and follow allinstructions
2. DANGER. To reduce the risk of injury, do not permit children to use this unit
unless they aresupervised at all times.
3. Use this unit only for its intended use as described in this manual. Do not
use attachments that are not recommended by the manufacturer.
4. Never drop or insert any object into anyopening.
5. Do not block jets during whirlpooloperation.
6. The unit must be connected to an electrical supply circuit that is protected by a ground
fault circuit interrupter.
7. The clean jet motor is magnetically driven and is insulated twice. Therefore it
does not require to bebonded. Save theseinstructions
OPERATION & USE
Mixer
Overflow
Pump Switch
Discharge
Pump Switch
(OPTIONAL)
16 | P a g e

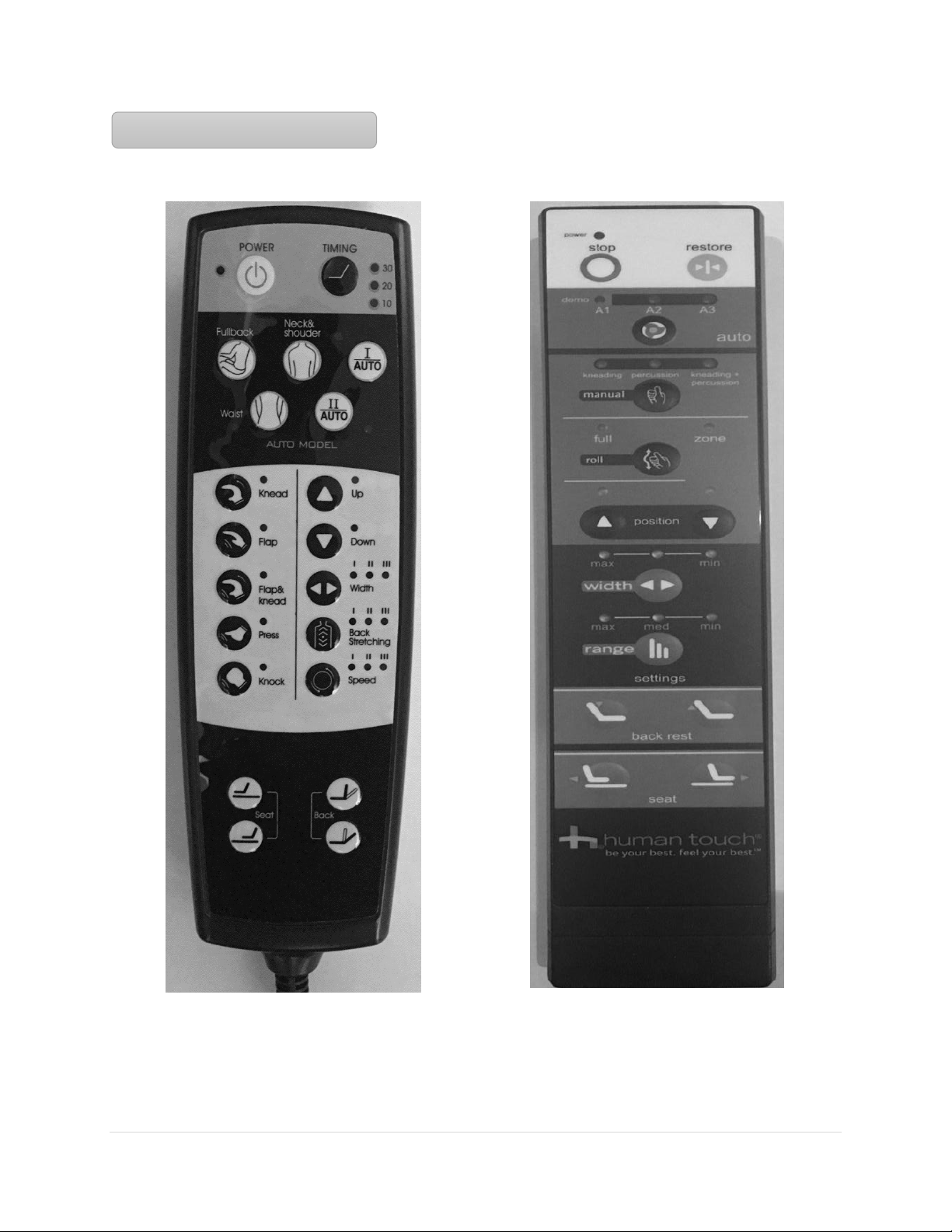

IRest SC 135/ SC 136
Human Touch 138
OPERATION & USE
17 | P a g e
Please refer the diagrams to remove jet covers for cleaning
T-spa MFG, LLC highly recommends the following cleaning regimen. You should always contact your
localgoverning agency for their specific cleaning and disinfecting requirements and regulations for
pedicure spas. For yourclients safety, always use the regulations as a minimum standard for cleaning
and disinfecting. Combining your states standards with the regimen listed below will provide your
clients with a safe and healthy pedicure spa environment experience.
Routine maintenance:
Powdered cleansers or abrasives are NOT RECOMMENDED. A clean towel or sponge, are all that
areusually needed. A soft bristled brush may be used when excessive residue is present. Use a
mild soap and water solution to clean the upholstery, but do not over wet. Wipe dry with a clean
towel. No internal maintenance of thespa components are necessary. Remove clean jet caps and
spray with disinfectant after each use. For extra protection, our recommendation is that the system
be flushed daily or weekly depending on use. To flush the clean jet systemfill the spa with hot water
to just above the jets. Add disinfectant. Run whirlpool for 15 minutes, drain and then wipe dry with
clean soft cloth.
NOTE:
The use of oil based products can build up in the whirlpool system, causing clogging in the jets.
Adherence to the above cleaning will minimize build up. Gulfstream Inc. does not recommend
the use of mineral oil based products.
TESTING/FLUSHING FOOT SPA
After the foot spa has been installed, fill tub with water just above the jets. Carefully check for leaks at
the drain and motor mount. After checking underside for leaks, turn on system by pushing whirlpool
button and watch for leaks as water circulates. Let tub run full cycle. Open drain plug for water
discharge.
CLEANING & MAINTENANCE & USE
Cleaning or sanitizing is NOT disinfecting. According to the Centers for Disease Control and
Prevention (CDC), and the US Environmental Protection Agency (EPA), disinfecting occurs only
when there is a reduction of pathogenic microbes at 99.999%. Sanitizing is only a reduction of
99.9%. Cleaning of whirlpool pedicure spas requires surfactant and chelating detergents that are
low-foaming and have the ability to remove body oils, organic oil additives, mineral oil, skin cells,
nail clippings etc. that can accumulate both in the basin and the jets which may become a fertile
area for micro organisms to grow
18 | P a g e
T-spa warrants to the original purchaser that the new pedicure spa will be free from defect during the
Standard Warranty Period (listed below). The shipping date and the uniquely-coded Serial Number on
the back of each spa chair will justify the start of the warranty period for the product. The warranty is
null and void if the pedicure spa is taken from its initial place of installation, or it is not installed in
accordance with federal, state or local codes and ordinances. Also, this warranty does not apply if the
pedicure spa has been subject to misapplication, improper installation or maintenance, negligence,
improper cleaning or other circumstances beyond Gulfstream's control.
WARRANTY
EXECLUSIONS
SERVICE
No dealer or other person has any authority to bind T-spa MFG, LLC to changes or additions to this warranty
or its products. Accordingly, T-spa MFG, LLC is not responsible for such warranties or representations.
WARRANTY & SERVICE
1. Limited Three (3) Years warranty on Spa Shell
2. Limited One (1) Year warranty on the Whirlpool Pump
3. Limited One (1) Year warranty on the Clean Jet
4. Limited One (1) Year warranty on the Glass Bowl
5. Limited One (1) Year Part-Only warranty which covers the Hydraulic System, Discharge Pump,
Massage System and All Electrical Component
6. T-spa will pay standard shipping charges on all replacement parts during the first 90 days of the
stated Warranty Period. After 90 days the consumer is responsible for all labor and shipping costs
incurred.
1. Damage to pump parts and/or motor parts due to obstruction in plumbing lines etc.
2. Staining, fading or discoloration of plastic surfaces due to exposure and/or the use of harmful
cleaning agents or chemicals.
3. Staining, fading or discoloration of the seat, armrest or footrest.
4. Staining, fading or discoloration caused by improper or poor water additives not related to the
maintenance of proper water are not covered by this warranty.
5. Freight damage, misuse, neglect, accident, natural disaster and abuse.
6. Unauthorized repairs
1. The dealer shall forward all warranty-related matters to our Customer Service Department
2. Serial Numbers and Original Invoice must accompany all warranty claims
3. Customers are responsible for shipping defective parts back to T-spa MFG, LLC. These parts must
be packaged correctly in order to protect against any further damage.
4. All parts are to be shipped by UPS Ground Service, average 2-5 days
5. All defective parts must be shipped back to T-spa MFG, LLC within 30 days of receiving the new
replacement parts or warranty will be void
6. Any warranty claim that cannot be determined over the phone, the customer must send photos
7. Any service performed on the product without T-spa MFG, LLC authorization will also void the
Warranty
8. Each service call from the customer will be assigned a Claim Number. The Claim Number will stay
open until the problem is resolved.
19 | P a g e
20 | P a g e
IMPORTANT
To validate the limited warranty, The Limited Warranty Registration Form MUST be filled
out completely and return to T-SPA MFG, LLC within 30 days of original purchased
date. This Limited Warranty is valid if T-SPA MFG, LLC received registrationform
SERIAL NO.: T……………………………………................INVOICE #: ……………………………………
DATE OF PURCHASE: …………………………………………………………………………………………
YOUR EMAIL ADDRESS: ……………………………………………………………………………………....
FULL NAME: ……………………………………………………………………………………………………
SALON NAME: ………………………………………………………………………………………………….
SALON ADDRESS: ……………………………………………………………………………………………
CITY: ………………………………………. STATE: ………………. ZIP CODE: …………………………
NAME OF DISTRIBUTOR: …………………………………………………………………………………….
CITY: …………………………………………STATE: ………………. ZIP CODE: ……………………….
Completed Warranty Registration Form To:
T-SPA MFG, LLC
6001 WESTLINE DR
HOUSTON, TX 77036
FAX: (346) 204-5128
EMAIL: info@tspallc.com
LIMITED WARRANTY REGISTRATION FORM
This manual suits for next models
3
Table of contents
Other T-SPA Pedicure Spa manuals
