T-SPA T-818 User manual
2 | P a g e
TABLE OF CONTENTS
CONTENT PAGE
SAFETY & PRECAUTION 3
SPECIFICATION 6
IDENTIFY YOUR FOOT SPA 7
FOOT-SPA CLEARANCE 8
INSTALLATIONS 9
OPERATION & USE 15
CLEANING, MAINTERNANCE & USE 17
WARRANTY & SERVICE 18

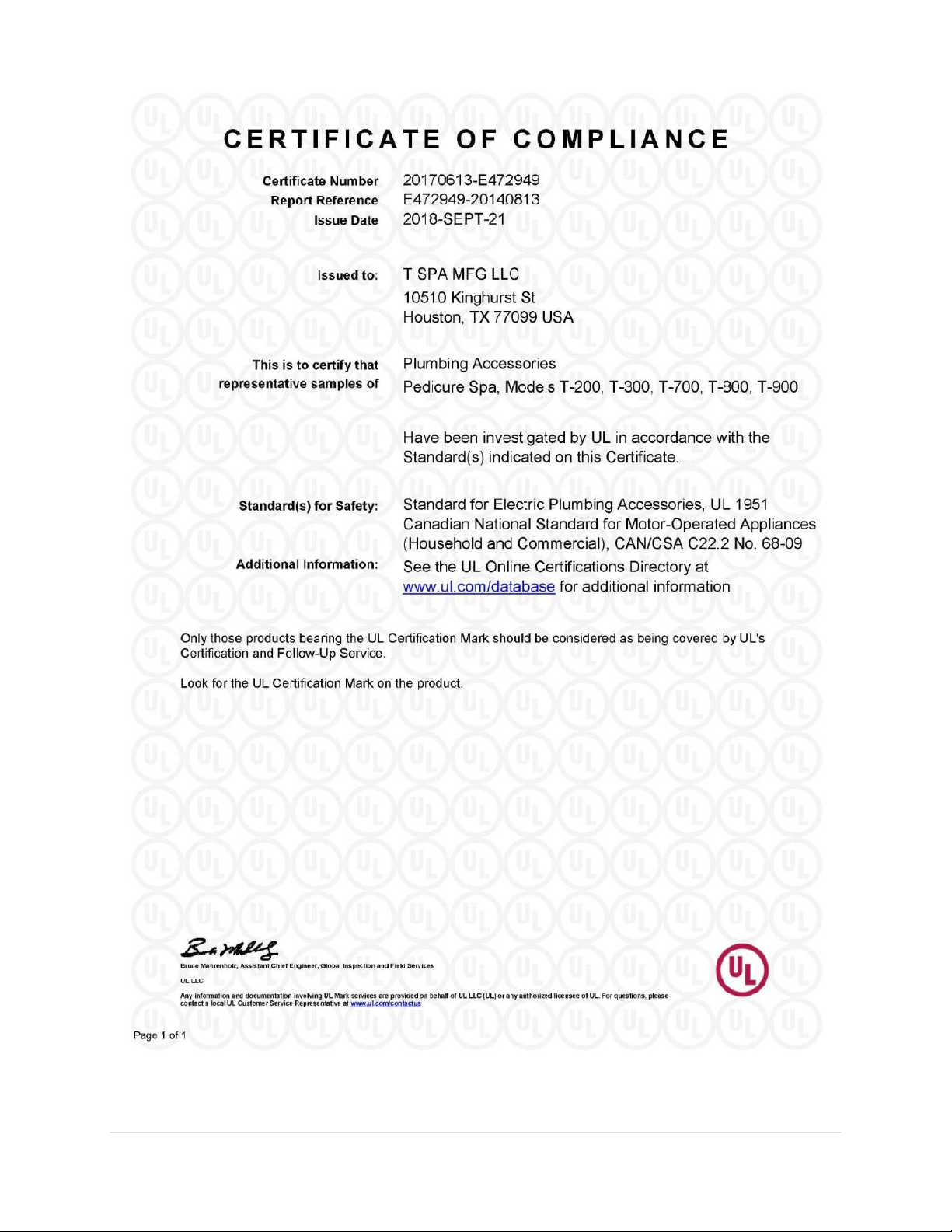

UL CERTIFICATE 19
WARRANTY REGISTRATION FORM 20
3 | P a g e
DANGER: Risk of Electric Shock. Connect only to a circuit protected by a ground fault circuit interrupted
GROUNDING IS REQUIRED. The unit should be installed by a qualified service representative and
grounded.
Install to permit access for servicing.
CAUTION: Risk of electric shock. Disconnect electric power before servicing.
WARNING: Risk of accidental injury or drowning; children should not use hydro massage bathtub with-
out adult supervision.
WARNING: Risk of accidental injury or drowning; do not use hydro massage bathtub
unless all suction guards are installed to prevent body and hair entrapment;
WARNING: To avoid injury, exercise care when entering or exiting the hydro massage bathtub;
WARNING: Riskofaccidental injury or drowning: do not use drugs or alcohol before or duringtheuseof a
hydro massage bathtub equipped with heater to avoid unconsciousness and possibledrowning
WARNING: Risk of fetal injury; pregnant or possibly pregnant women should consult a physician before
using a hydro massage bathtub equipped with heater;
WARNING: Riskof hyperthermia and possible drowning; do not use ahydro massage bathtub equipped
with heater immediately following a strenuous exercise
WARNING:Riskofelectricshock;donotpermitelectricappliances (suchasahairdryer,lamp,tele- phone,
radio, or television) within 1.SM (5 feet) of this hydro massage bathtub;
CAUTION: Test the ground fault circuit interrupted protecting this appliance periodically in accordance
with the manufacturer’s instructions
WARNING:Riskofhyperthermiaandpossibledrowning;watertemperatureinexcessof38°C(100.4°F)may
beinjurioustoyourhealth.Checkand adjustwatertemperaturebeforeuse.
WARNING: Risk of hyperthermia; people using medications and/or having an adverse medical history
should consult a physician before using a hydro massage bathtub equipped with heater.
SAFETY & PRECAUTION
Before using your new pedicure spa, please read and observe these safety instructions carefully
to reduce the possibility of injury, serious bodily harm, death, fire and/or other property damage.
For additional questions, please call our Technical Support Department at: 888-508-8772
4 | P a g e
SAFETY & PRECAUTION
WARNING: It is very important that you carefully follow the basin cleaning procedures on page 17 to
ensure that the spa is sanitized after each use. T-spa is not liable for any infections or disease that may
result from improper cleaning or failure to adhere to sanitation requirements.
Thispedicurespaunitshouldonlybeoperatedina roomtemperature between 40°F(4°C)and100°F(38°C). Do
notuse unitout doorsorin excessivelyhumidordusty environments.
Do not use unit where aerosol (spray) products are being used or oxygen is being administered. Do not
operate unit if it has been damaged.
Always connect this unit to a properly grounded electrical outlet.
Thisunitisdesignedonlytooperateonastandard110Volt60Hzcurrent.Exceedingthisstandardmaycause
injury and/or seriousbodily harmand/ordamage to property.
Do not use this unit if noise above normal sound isheard.
To reduce the risk of burns, fires, and electrical shock, never leave this unit unattended if plugged in and
always unplug when not in use for an extended period, before installation, cleaning, or removal of parts.
Keep the power cord away from heated surfaces.
Do not operate unit if the power cord or plug has been damaged.
If this unit is operating abnormally or malfunctioning, immediately turn off the power and
disconnect the power cord from the outlet; do not operate unit if it is not working properly.
Intheeventofapowerfailure,alwaysturnthepowerswitchtoitsOFFposition. Whennotinuse alwaysturn
the powerswitchOFFposition.
Todisconnectunit,turnallcontrolstoOFFpositionandremovepowercordfromtheoutlet. Keepallelectrical
devices awayfrom thisunit.
This unit only has a weight capacity of 300pounds (136.06 kg). Enter and exit the unit slowly and carefully.
Never drop or insert any object into any opening of the unit.
Closesupervisionisnecessary whenthisunitisusedby,on ornearchildren,invalids,anddisabled persons. Do
notstandorallowanyonetostandinthespabasin.
Please be aware that a spa basin filled with water is a potential drowning hazard.
Check the water temperature before each use; water temperature should not exceed 105°F (41°C)
and water temperature in heatershouldnote Kceed150°F(65°C).
Disinfect the spa basin and jets, after each use with an approved cleaner.
Do not massage any area of the body that is swollen ,inflamed,or covered with skin eruptions. Before
operating the massage chair, make sure the chair arms are down.
Ifthere is severe discomfort during themassage, discontinue use andconsult aphysician. Donotusethe
massagechairformorethan15minutesatonetime.
Donotputhands or fingers near massage mechanism or rollers whilethechair isoperating; touchingthe
mechanismcan resultininjury fromthe rollerssqueezingtogether.
Keepthemassagechairanditsairopeningscleanandfreeof hair anddust;neveroperatethemassage
chair if the air openings areblocked.
Misuse or failure to properly clean pedicure spa unit may result in serious health issues, bodily
injury, and/or death.
5 | P a g e
SAFETY & PRECAUTION
Health Risk Warning
Useofthepedicurespaunitshouldbepleasantandcomfortable; if thereisanypainordiscomfort, stopuseofthe
pedicure spaimmediately.
A physician should be consulted before use of the massage chair by anyone with the following
conditions: Malignant tumor, heart disease, pregnancy, Conditions requiring rest, and back disease or
trouble from an injury or accident.
Aphysicianshouldbeconsultedbeforeuseofthespabasinandjets,byanyonewithdiabetes,swelling,fracture,or
persistent pain.
Anyone with inflamed legs or feet, open wounds, or fungal infections should not use the spa basin and
jets.
Misuse or failure to properly clean pedicure spa unit may result in serious health issues, bodily injury,
and/or death.
WARNING - GROUNDING INSTRUCTIONS AND METHODS:
This unit must be grounded. If it should malfunction or break down, grounding provides a path of least
resistancefor electricalcurrentto reducetheriskofelectricshock.Alloutletsconnectedto edicuresas must
includeaGFCIdevice (GroundFaultCircuitInterrupter). Thiswillreducetheriskofelectric shock.
This unit is for use on a standard 110 Volt 60Hz current.
This unit is equipped with a cord having an equipment grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
If you are in doubt as to whether this unit is properly grounded, check with a qualified electrician or
serviceman. Fatal electric shock and fire could occur with improper connection of the equipment-
grounding conductor. Do not modify the plug provided with the product for any reason; if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
WARNING: THERMAL RESETTING PROTECTION DEVICE
The massage chair is equipped with a thermal resetting protection device. This is a safety feature to
protect it from overheating. If the chair should suddenly stop and will not start, turn the main power
switch off, and do not operate the chair for at least 30 minutes. Failure to turn the chair off may result in
the chair starting unexpectedly when the device cools.
SPECIFICATION
6 | P a g e
Dimension & Weight (Shipping)
Pedicure Spa
Massage Chair
Stool
55L x 28W x 20H
44L x 31W x 24H
20.25L x 27.5W x 17H
125 lbs
176 lbs
19 lbs
Capacity of Tub
T-818
4.5 US Gallon
Switch
On/ Off Air Activated Switch
Power Source
Dedicated 15Amp Wall Outlet Require
Pipe-less whirlpool motor
120 Vac, 0.4 Amp.60 Hz
Discharge Pump (Optional)
Massage System
115 Vac, 3.2 Amp.60Hz
120 Vac, 60 Hz
Plumbing Source
Hot Water
Cold Water
Drain
3/8 inches
3/8 inches
1”1/4 – 1”1/2
Warranty
Unit
Optional Item
1 year
120 Days
MODEL: T-818
7 | P a g e
IDENTIFY YOUR FOOT-SPA
60”
30”
25”
SEAT OPERATION
SPA DIMENSION
52”
2
Reclining 25˚
1
Armrest can be raised up/down
3
Chair Sliding
8 | P a g e
FOOT-SPA CLEARANCE
Wall
Wall
22”
WALL CLEARANCE
TYPICAL FOOT-SPAS Distance from center drain
to the back of the spa
1 23” 2
Clearance
25”
50”
25”
9 | P a g e
Align the seat with the pre-drilled holes on the base then tightly secure with the nuts and bolts provided.
Attach trays or remote stand to armrest with screws provided.
INSTALLATION
MODEL: T-818
10 | P a g e
INSTALLATIONS
When using electrical equipment, Basic safety precautions must be followed to
reduce the risk of fire, electrical shock, andinjury to Persons.
1.
Read and follow all instructions before using the equipment.
2.
Keep electrical cord out of heavy traffic area. To avoid fire hazard NEVER place
electrical cord under the rug, near heat Generating devices.
3.
Always turn power off the equipment before service.
4.
Do not drop or insert any object into any openings.
5.
Do not operate any equipment with damaged parts.
6.
Any other use not recommended by the manufacturer may cause electrical shock
or cause injury to person/s.
7.
Never use it outdoors
8.
Do not attempt to repair or adjust any electrical or mechanical.
Cleaning instruction
1. Turn off the unit and wait until the motor is fully stops.
2. Hold Hydro whirlpool jet cover firmly and pull to separate from the round
magnetic field.
3. Turn hydro whirlpool jet cover to left to open and pull out impeller.
4. Use Anti - Bacterial solution (EPA Registered) to clean all parts.
5. After sanitize all parts, place impeller and close hydro whirlpool jet cover to turn
right to lock
6. Hold firmly the whirlpool cover jet and gently place it onto the round magnetic field.
Do not release the hydro whirlpool jet cover until Jet cover is on the round magnetic
housing.
11 | P a g e
INSTALLATIONS
Jet Unit Components
Motor
Magnetic Jet Base
Magnetic Impeller Magnetic
Whirlpool jet cover
Bottom view of magnetic jet
base
Magnet Jet Feature
1.
Hydro dual massage jet stream
2.
Magnetic whirlpool jet cover can be remove for quick cleaning and sanitizing
3.
Built in electronic sensor for pump control
4.
AC Whirlpool motor (long life)
5.
Very low power consumption (27W)
6.
Manufactured in USA
Magnet Jet Specifications
Model: MAGNA JET -120 VAC, 60 Hz, 1.0 Amp
Pump: Hydro-Massage Dual Jet Flow
Mounting: single 3.5” hole Diameter
Auto tighten Mounting screws (4)
INSTALLATIONS
12 | P a g e
Plumbing Connections
1.
Discharge pump may be connected to an existing sink drain or floor drain. It can also pump up
to 7 ft high, but this will increase the length of the drain time. The drain connection is at the rear
of the unit by a 3/4” fitting.
2.
Gravity drain uses a standard gravity drain. A floor drain is recommended. P-Trap is not
installed nor supplied. The floor drain should already have a P-Trap and the UPC codes do
not allow double P-Traps in thesystem.
3.
Hot and cold water supply connections are located at the rear of the unit (½” fittings).
Please be advised that the hot and cold water supply lines are not fitted with optional back flow
Preventers unless ordered at initial sale.
4.
Have a qualified licensed electrician to install the wiring according to local codes.
The Clean jets are 1/18 HP, 120V A.C., 0.55 AMP. 60HZ. GFI protected circuit must be used
to supply power to the unit. The roller back massage chair uses a 115V A.C. supply.
5.
Spa base should be anchored securely to the floor. The base may be
anchored through the opening in the back of the base wherever
access is convenient for the installer.
6.
Hand held sprayer. It has complied with applicable requirements of ASME A112.18.1-2005/CSA
B125.1-05
FAILURE TO ANCHOR THE BASE MAY RESULT IN PERSONAL INJURY OR DAMAGE TO THE UNIT.
DAMAGE AS A RESULT WILL VOID THE WARRANTY
Typical Gravity Sink (Direct Drain) Installation
Optional
3/8 Hot and
Cold Hoses
Gravity Sink 2’-
3’ to sewer line
Drain Elbow
INSTALLATIONS
13 | P a g e
Typical Discharge Pump Installation (OPTIONAL)
Typical Gravity Sink (Direct Drain) Installation
Backwater Valve
Supplied by
plumber
3/8 Hot and
Cold Hoses
3/8 Hot and
Cold Hoses
Gravity Sink 2’-3’ drain
pipe to sewer line
Drain Elbow
INSTALLATION
14 | P a g e
Typical Vent System Installation (OPTIONAL)
Vent System Double
(OPTIONAL)
INSTALLATION
15 | P a g e
1.
To fill water:
The foot-spa is provided with a single hot and cold mixing valve located on the front of your spa.
This is a pressure balance valve that requires you to lift the handle to start the water flow and to adjust to
the temperature that is desired. The clean jet body must be completely submerged in water.
CAUTION: DO NOT USE FOAMING, SUDSING OR MINERAL OIL BASED ADDITIVES IN THE WATER.
2.
To start whirlpool:
Press the button as shown. This will start your Clean Jet motor. You may stop the whirlpool function at any
time by pressing the button again.
3.
To drain Foot-spa bowl:
Turn drain control knob to “pop-up” drain plug.
-
If gravity drain (no discharge pump); water in bowl empties with duration determined bywaste water
plumbing
-
If optional discharge pump has been installed; then press discharge pump button to activate 2-
minute timer controlled pump. Average drain time approximately one minute (depending on
plumbing characteristics).
4.

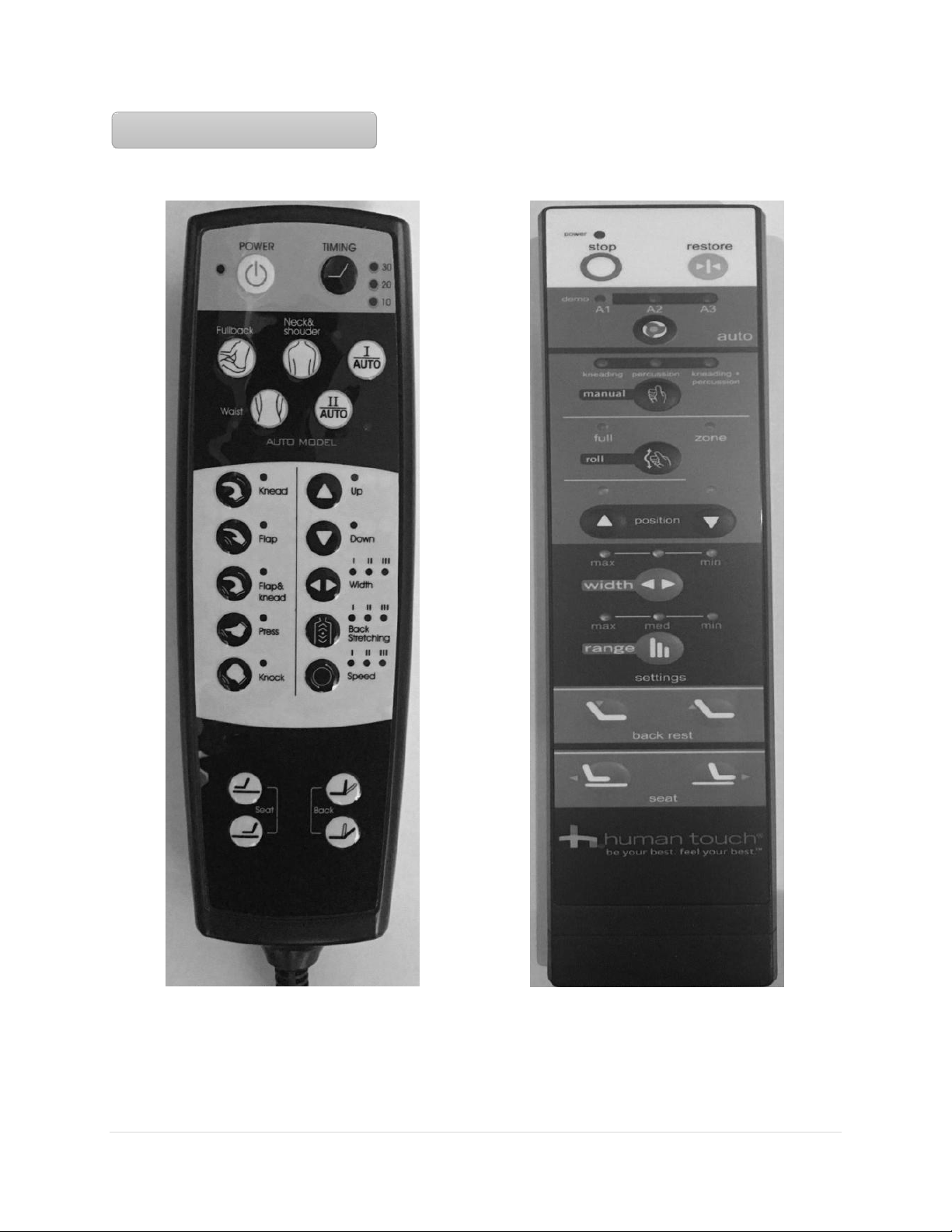

The massage chair’s manual book will be send separately.
Note: Read and Follow Chair Manual Instructions
Overflow
Mixer
Discharge
Pump Switch
(OPTIONAL)
Pump Switch
BASIC PRECAUTIONS SHOULD ALWAYS BE OBSERVED, INCLUDING THE
FOLLOWING:
Read and follow allinstructions
DANGER. To reduce the risk of injury, do not permit children to use thisunit
unless they are supervised at alltimes.
Use this unit only for its intended use as described in this manual. Donot
use attachments that are not recommended by the manufacturer.
Never drop or insert any object into anyopening.
Do not block jets during whirlpooloperation.
The unit must be connected to an electrical supply circuit that is protected by a ground
fault circuit interrupter.
The clean jet motor is magnetically driven and is insulated twice. Therefore it
does not require to bebonded. Save these instructions
INSTALLATION
16 | P a g e
IRest SC 135/ SC 136 Human Touch 138
16 | P a g e
Please refer the diagrams to remove jet covers for cleaning
T-spa MFG, LLC highly recommends the following cleaning regimen. You should always contact your
local governing agency for their specific cleaning and disinfecting requirements and regulations for
pedicure spas. For yourclients safety, always use the regulations as a minimum standard for cleaning
and disinfecting. Combining your states standards with the regimen listed below will provide your
clients with a safe and healthy pedicure spa environmentexperience.
Routine maintenance:
Powdered cleansers or abrasives are NOT RECOMMENDED. A clean towel or sponge, are all that
are usually needed. A soft bristled brush may be used when excessive residue is present. Use a
mild soap and water solution to clean the upholstery, but do not over wet. Wipe dry with a clean
towel. No internal maintenance of the spa components are necessary. Remove clean jet caps and
spray with disinfectant after each use. For extra protection, our recommendation is that thesystem
be flushed daily or weekly depending on use. To flush the clean jet systemfill the spa with hot water
to just above the jets. Add disinfectant. Run whirlpool for 15 minutes, drain and then wipe dry with
clean soft cloth.
NOTE:
The use of oil based products can build up in the whirlpool system, causing clogging in the jets.
Adherence to the above cleaning will minimize build up. Gulfstream Inc. does not recommend
the use of mineral oil based products.
TESTING/FLUSHING FOOT SPA
After the foot spa has been installed, fill tub with water just above the jets. Carefully check for leaks at
the drain and motor mount. After checking underside for leaks, turn on system by pushing whirlpool
button and watch for leaks as water circulates. Let tub run full cycle. Open drain plug for water
discharge.
CLEANING & MAINTENANCE & USE
Cleaning or sanitizing is NOT disinfecting. According to the Centers for Disease Control and
Prevention (CDC), and the US Environmental Protection Agency (EPA), disinfecting occurs only
when there is a reduction of pathogenic microbes at 99.999%. Sanitizing is only a reduction of
99.9%. Cleaning of whirlpool pedicure spas requires surfactant and chelating detergents that are
low-foaming and have the ability to remove body oils, organic oil additives, mineral oil, skin cells,
nail clippings etc. that can accumulate both in the basin and the jets which may become a fertile
area for micro organisms to grow
17 | P a g e
T-spa warrants to the original purchaser that the new pedicure spa will be free from defect during the
Standard Warranty Period (listed below). The shipping date and the uniquely-coded Serial Number on
the back of each spa chair will justify the start of the warranty period for the product. The warranty is
null and void if the pedicure spa is taken from its initial place of installation, or it is not installed in
accordance with federal, state or local codes and ordinances. Also, this warranty does not apply if the
pedicure spa has been subject to misapplication, improper installation or maintenance, negligence,
improper cleaning or other circumstances beyond Gulfstream's control.
WARRANTY
EXECLUSIONS
SERVICE
No dealer or other person has any authority to bind T-spa MFG, LLC to changes or additions to this warranty
or its products. Accordingly, T-spa MFG, LLC is not responsible for such warranties or representations.
WARRANTY & SERVICE
Limited Three (3) Years warranty on Spa Shell
Limited One (1) Year warranty on the Whirlpool Pump
Limited One (1) Year warranty on the Clean Jet
Limited One (1) Year warranty on the Glass Bowl
Limited One (1) Year Part-Only warranty which covers the Hydraulic System, Discharge Pump,
Massage System and All Electrical Component
T-spa will pay standard shipping charges on all replacement parts during the first 90 days of the
stated Warranty Period. After 90 days the consumer is responsible for all labor and shipping costs
incurred.
Damage to pump parts and/or motor parts due to obstruction in plumbing lines etc.
Staining, fading or discoloration of plastic surfaces due to exposure and/or the use of harmful
cleaning agents or chemicals.
Staining, fading or discoloration of the seat, armrest or footrest.
Staining, fading or discoloration caused by improper or poor water additives not related to the
maintenance of proper water are not covered by this warranty.
Freight damage, misuse, neglect, accident, natural disaster and abuse.
Unauthorized repairs
The dealer shall forward all warranty-related matters to our Customer Service Department
Serial Numbers and Original Invoice must accompany all warranty claims
Customers are responsible for shipping defective parts back to T-spa MFG, LLC. These parts must
be packaged correctly in order to protect against any further damage.
All parts are to be shipped by UPS Ground Service, average 2-5 days
All defective parts must be shipped back to T-spa MFG, LLC within 30 days of receiving the new
replacement parts or warranty will be void
Any warranty claim that cannot be determined over the phone, the customer must send photos
Any service performed on the product without T-spa MFG, LLC authorization will also void the
Warranty
Each service call from the customer will be assigned a Claim Number. The Claim Number will stay
open until the problem is resolved.
18 | P a g e
19 | P a g e
IMPORTANT
To validate the limited warranty, The Limited Warranty Registration Form MUST befilled
out completely and return to T-SPA MFG, LLC within 30 days of original purchased
date. This Limited Warranty is valid if T-SPA MFG, LLC received registrationform
SERIAL NO.: T……………………………………................INVOICE #: ……………………………………
DATE OF PURCHASE: …………………………………………………………………………………………
YOUR EMAIL ADDRESS: ……………………………………………………………………………………....
FULL NAME: ……………………………………………………………………………………………………
SALON NAME: ………………………………………………………………………………………………….
SALON ADDRESS: ……………………………………………………………………………………………
CITY: ………………………………………. STATE: ………………. ZIP CODE: …………………………
NAME OF DISTRIBUTOR: …………………………………………………………………………………….
CITY: …………………………………………STATE: ………………. ZIP CODE: ……………………….
Completed Warranty Registration Form To:
T-SPA MFG, LLC
10510 KINGHURST ST
HOUSTON, TX 77099
FAX: (832)230-0486
LIMITED WARRANTY REGISTRATION FORM
This manual suits for next models
1
Table of contents
Other T-SPA Pedicure Spa manuals
