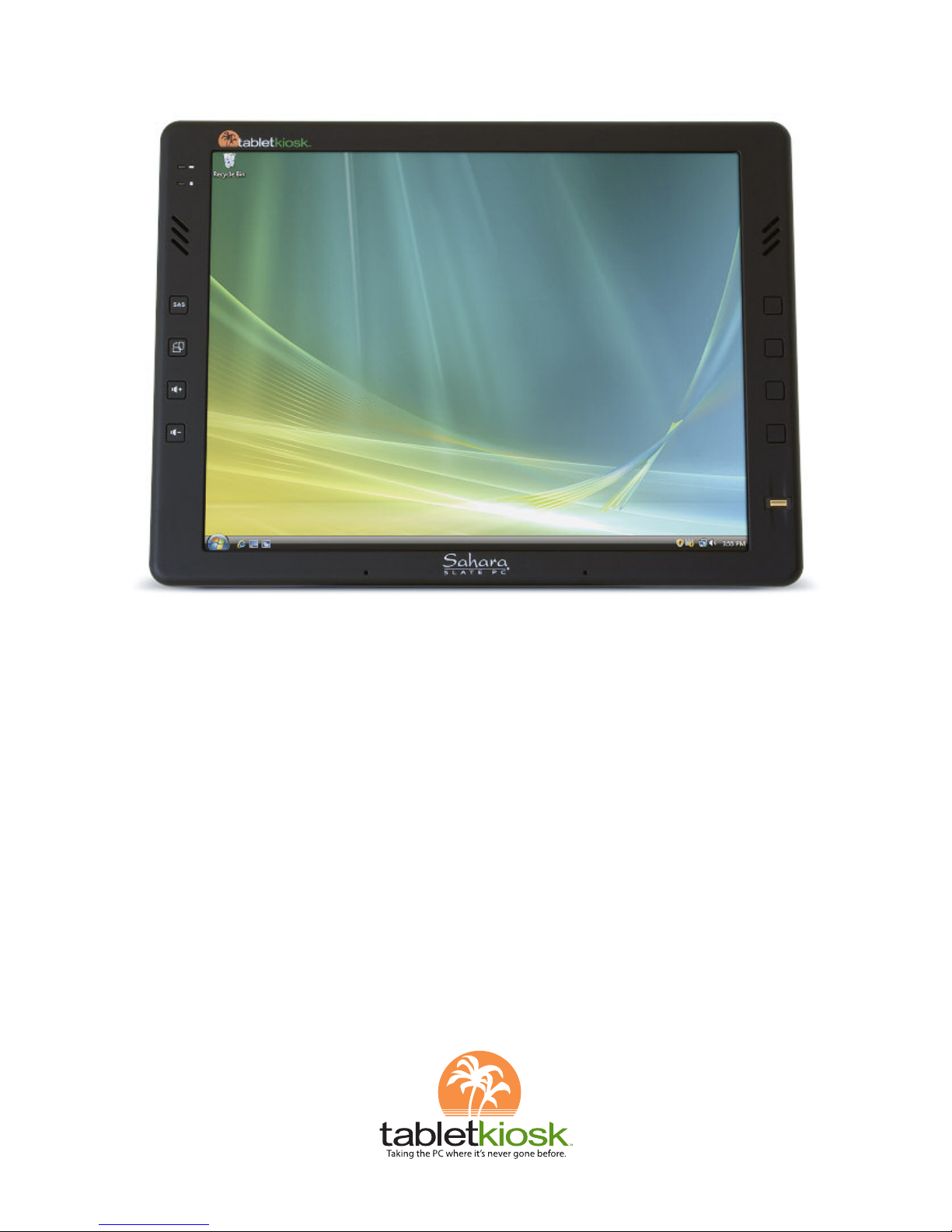

TabletKiosk Sahara Slate PC i400 Series User manual

User’s Guide
Sahara Slate PC® i400 Series
12.1”Tablet PC

Preface i
Preface
This manual will help you get the most out of your new
Sahara Slate PC®. If you are a new computer user, or just new to
Tablet PCs, read through this manual carefully before first using
your Sahara Slate PC. If after reading this manual you still have
questions, visit us online at www.tabletkiosk. om for additional
resources and information on using your Sahara Slate PC i400
Series Tablet PC.
Copyright
©2007 Sand Dune Ventures, Inc. All Rights Reserved. All product
information is subject to change without notice. Sahara Slate PC
is a registered trademark and Tablet iosk is a trademark of Sand
Dune Ventures, Inc. in the United States and/or other countries.
Microsoft, Windows XP, Windows Vista and the Windows logo are
either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries. Intel,
Core, Centrino Duo, Celeron, Core Duo Inside logo, Celeron
Inside logo and Centrino Duo Inside logo are trademarks or
registered trademarks of Intel Corporation in the United States
and/or other countries. The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any use of such marks by
Tablet iosk is under license. Linux is a registered trademark of
Linus Torvalds.

ii Preface
Dis laimer
The specifications and information in this manual are subject to
change without prior notice in order to improve reliability,
design and/or function. In no way does this represent a
commitment on the part of the manufacturer. The manufacturer
assumes no responsibility for errors or omissions in this
document.
In no event will the manufacturer be liable for direct, indirect,
special, incidental, or consequential damages arising from the
use, or inability to use, the Tablet PC or this documentation, even
if advised of the possibility of such damages.
This document contains proprietary information protected by
copyright laws. All rights are reserved. No part of this manual
may be reproduced by any mechanical, electronic, or other
means in any form without prior written permission of
Tablet iosk.
If you have any questions regarding the Sahara Slate PC, or the
information contained within this manual, please contact
Tablet iosk at [e-mail].
Important Safety Instru tions
For your own safety and the safety of your equipment, please
follow these rules for the handling and care of your Sahara
Slate PC. eep this User’s Manual for future reference by you
and other users.
Never use sprays, liquids or cleaning detergents to clean the
Sahara Slate PC. Use a micro fiber cloth to clean the touch
screen. Avoid the use of tissue paper since tissue fibers can easily
lodge between the touch screen and the top cover of the tablet.
Never pour liquids into any opening or directly on the Sahara
Slate PC. This could result in fire or electrical shock.

Preface iii
Check that the voltage range of the power outlet is between 100V
and 240V before connecting the Sahara Slate PC. Exceeding the
maximum rated voltage may cause damage to the AC adapter or
to the Sahara Slate PC. This could result in fire or electrical shock.
When the AC adapter is plugged into an electrical outlet, place the
power cord so it will not be stepped on or walked on. Do not place
objects over or on the power cord.
Use the Sahara Slate PC in a clean, dry, temperature controlled
environment. Do not use the Sahara Slate PC in areas of high
humidity, around water (for example: near a bathtub, washbowl,
kitchen sink or laundry tub, in a wet basement or near a swimming
pool) or outdoors while it is raining.
Never open or disassemble the Sahara Slate PC. For safety
reasons, and to prevent permanent damage, the equipment
should only be repaired by qualified service personnel.
Contact a qualified service center if any of the following issues
should arise:
1. AC adapter, power cord or plug is damaged;
2. Liquid has been spilled into the Sahara Slate PC;
3. The Sahara Slate PC has been exposed to excessive moisture;
4. The Sahara Slate PC exhibits errors and/or does not function
according to specifications;
5. The Sahara Slate PC has been dropped or otherwise
physically damaged.
Caution
Lithium-Ion batteries can be dangerous. There is a danger of
explosion if the battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to state or local hazardous
waste requirements.

iv Preface
Under no circumstances should the user attempt to disassemble
the power supply. The power supply has no user-replaceable
parts and its insides contain components that are electrically-
charged with hazardous voltage levels that can cause serious
personal injury. A defective power supply must be returned to
your dealer.
Safety Noti es for the Power Cord
This equipment has a 2 or 3-wire power cord. Replace the power
cord if it becomes damaged. Contact your dealer for an exact
replacement.
In the U.S.A. and Canada, the power cord must be a UL-listed
detachable power cord (in Canada, CSA-certified).
2-wire cord SPT-2 18AWG
3-wire cord SVT or SJT, 18 AWG, 3-conductor
The cord should be provided with a molded-on cord connector
body at the other end. The cord length must not exceed 3 meters
(9.8 feet).
Outside the U.S.A. and Canada, the plug must be rated for 250
VAC, 2.5 amp minimum, and must display an international
agency approval marking. The cord must be suitable for use in
the end-user’s country. Consult your dealer or the local electrical
authorities if you are unsure of the type of power cord to use in
your country. Voltage changes occur automatically in the power
supply.
Noti e of FCC Complian e
a. Federal Communi ations Commission (FCC)
Requirements, Part 15:
This device complies with Part 15 of the FCC rules.

Preface v
Operation is subject to the following two conditions:
1. this device may not cause harmful interference,and
2. this device must accept any interference
received,including interference that may cause
undesired operation.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and if not installed and used in accordance with the
instruction manual may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
the receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced technician for
help.
Use only shielded I/O cables to connect I/O devices to
this equipment.
You are cautioned that any changes or modifications
not expressly approved by Tablet iosk could void your
authority to use the equipment.

vi Preface
b. Regulatory information / Dis laimers
This device must be installed and used in strict
accordance with the instructions included in the user
documentation provided with the product. Any
changes or modifications (including the antennas)
made to this device that are not expressly approved by
the manufacturer may void the user’s authority to
operate the equipment. The manufacturer is not
responsible for any radio or television interference
caused by unauthorized modification of this device, or
the substitution of the connecting cables and
equipment other than the ones specified by
manufacturer. It is the responsibility of the user to
correct any interference caused by such unauthorized
modification, substitution or attachment. The
manufacturer and its authorized resellers or distributors
will assume no liability for any damage or violation of
government regulations arising from the failure to
comply with these guidelines.
. For portable devi es without a o-lo ation ondition (eg.
notebook p )
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
2. This equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled
environment. This device was tested for typical lap-held
operations with the device contacted directly to the
human body to the back side of the Tablet PC. To
maintain compliance with FCC RF exposure compliance
requirements, please follow operation instruction as
documented in this manual.

Preface vii
The availability of some specific channels and/or
operational frequency bands are country dependent
and are firmware programmed at the factory to match
the intended destination. The firmware setting is not
accessible by the end user.
d. SAR Exposure
This device has been tested for compliance with FCC RF
Exposure (SAR) limits in typical flat configurations.
In order to comply with SAR limits established in the
ANSI C95.1 standards, it is recommended that the
integrated antenna is positioned more than 1.5cm from
your body or from nearby persons during extended
periods of operation. If the antenna is positioned less
than 1.5 cm (0.6 inches) from the user, it is
recommended that the user limit the exposure time.
FCC Statement to Users for the FaxModem
Noti e of FCC Complian e for the Fax/Modem
This equipment complies with Part 68 of the FCC rules. The FCC
Registration Number and Ringer Equivalence Number for this
equipment are located on a label at the bottom of this
equipment. IF REQUESTED, THIS INFORMATION MUST BE GIVEN
TO THE TELEPHONE COMPANY.
The REN helps to determine the number of devices you may
connect to your telephone line while allowing all of those
devices to ring when your telephone number is called. In most,
but not all areas, the amount of devices connected to one line
should not exceed five (5).
To know precisely how many devices you may connect to your
line, as determined by the REN, you should contact your local
telephone company to determine the maximum REN for your
calling area.

viii Preface
If your telephone equipment causes harm to the telephone
network, the telephone company may disconnect your service
temporarily. They may notify you in advance, but if advance
notice is not practical, you will be informed of your right to file a
complaint with the FCC.
Your telephone company may make changes in its facilities,
equipment, operations or procedures that could affect the
proper functioning of your equipment. If they do, you will be
notified in advance and given the opportunity to maintain
uninterrupted telephone service.
The telephone company may ask you to disconnect this
equipment from the network until the problem has been
corrected or until you are sure that the equipment is not
malfunctioning. This equipment may not be used on coin service
provided by the telephone company.
The Telephone Consumer Protection Act of 1991 makes it
unlawful for any person to use a computer or an electronic
device to send any message via a telephone facsimile machine
unless such message clearly contains in a margin at the top or
bottom of each transmitted page or on the first page of the
transmission the following information:
The date and time of transmission
Identification of either business, business entity or
individual sending the message;
Telephone number of either the sending machine,
business entity or individual.
In order to program this information into your fax/modem, please
refer to the appropriate instructions in your fax/modem manual.
Note-TNV Safety Caution:
To redu e the risk of fire, use only No. 26 AWG or larger UL
Listed or CSA Certified Tele ommuni ation line ord. Avoid
using a telephone (other than a ordless type) during an

Preface ix
ele tri al storm. There may be a remote risk of ele tri sho k
from lightning. Do not use the telephone to report a gas leak
in the vi inity of the leak.
Canadian EMI Complian e Statement
This Class B digital apparatus meets all requirements of the
Canadian Interference - Causing Equipment Regulations.
IC Warning statement:
a. WLAN
“To prevent radio interference to the licensed service,
this device is intended to be operated indoors and away
from windows to provide maximum shielding.
Equipment (or its transmit antenna) that is installed
outdoors is subject to licensing.”
b. For LPD
“Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of the
device.”
This Class B digital apparatus complies with Canada RSS-210.
The abbreviation, IC, before the registration number signifies
that registration was performed based on a Declaration of
Conformity (DoC) indicating that Industry Canada technical
specifications were met. It does not imply that Industry Canada
approved the equipment.
European Union CE Marking De laration
This product has been tested and found to comply with the EMC
requirement subject to the EU directive for CE marking.

Table of Contents xi
Preface i
Copyright i
Disclaimer ii
Safety Instructions ii
otices of Regulatory Compliance iv
Getting Started 1
What’s in the Box 1
Setting Up Your Sahara Slate PC 2
Step 1: Inserting the Battery Pack 2
To Remove the Battery Pack 3
Step 2: Connecting the Tablet PC to an External Power Source 4
Step 3: Connecting Applicable Peripherals and etworking Cables 4
Step 4: Powering on the Sahara Slate PC 5
Step 5: Completing the Operating System Installation 5
Step 6: Using the Stylus Pen 6
Touch Screen mode 6
Active Digitizer mode (i440D only): 7
T uring Y ur Sahara Slate PC 9
Front View 10
Top View 12
Left Side View 14
Back View 16
Right View 18
Bottom View 18
Battery Usage and Care 21
Using the Battery for the First Time 21
Charging the Battery Under Typical Conditions 22
Problems Charging the Battery 23
Battery Status 23
Low Battery Warnings 23
About Battery Pack Usage 24
Real Time Clock Battery 24
Storing a Battery 25
Table of Contents

xii Table of Contents
Using Y ur Sahara Slate PC with Wind ws XP 27
Windows XP Professional Edition or Tablet PC Edition? 27
avigating with the Stylus Pen 28
Touch Screen Set-Up and Calibration 29
Operation Mode 29
Touch Sensitivity 30
Calibrating the Touch Screen 30
Digitizer Set-Up and Calibration (Tablet PC Edition only) 32
Programming the Function Buttons 33
Setting the Screen Brightness 34
Changing Screen Resolution, Color and Rotation 34
Display Settings 34
Color Correction 35
Launch Zoom 36
Entering Text with the On-Screen Keyboard 37
Entering Text with the Input Panels (Tablet PC Edition only) 38
Writing Pad 38
Character Pad 38
On-Screen Keyboard 39
Connecting to the Internet 40
Using a Wired LA 40
Using Both DHCP and a Static IP Address 42
Using a Wireless LA 43
Using a Modem 44
Bluetooth Wireless Connectivity 45
Using Y ur Sahara Slate PC with Wind ws Vista 49
avigating with the Stylus Pen 50
Selecting Multiple Items 50
Touch Screen Set-Up and Calibration 51
Operation Mode 51
Touch Sensitivity 52
Calibrating the Touch Screen 52
Digitizer Configuration and Calibration 54
Calibrating the Active Digitizer (i440D only) 55
Handwriting Recognition 56
Entering Text with the Input Panels 56
Writing Pad 57
Character Pad 57
On-Screen Keyboard 58
Input Panel Options 59
Improving Handwriting Recognition 59

Chapter 01: Getting Started xiii
Programming the Function Buttons 60
Changing Screen Resolution, Color and Rotation 61
Display Settings 62
Color Correction 62
Launch Zoom 63
Connecting to the Internet 64
Using a Wired LA 64
Using Both DHCP and a Static IP Address 66
Using a Wireless LA 67
Using a Modem 69
Bluetooth® Wireless Connectivity 69
Securi g Your Sahara Slate PC 73
BIOS Settings 74
Creating a Windows Login Password 75
Creating the Password In Windows XP 75
Creating the Password In Windows Vista 75
Taking Ownership of the TPM 77
Enrolling Your Fingerprints in VitaKey 77
Setting Up Your VitaKey Password Bank 79
How to use an enrolled password 80
Managing the Password Bank 80
Upgradi g Your Sahara Slate PC 83
Before you Begin A Y Upgrade Procedure 83
Upgrading Memory (RAM) 84
Upgrading the Hard Disk Drive (HDD) 86
Replacing the Wireless etworking Card (Advanced) 88
Troubleshooti g 91
General Hardware Problems / Possible Causes and Solutions 91
Audio Problems/Solutions 91
Battery Problems/Solutions 92
Internet Problems/Solutions 92
etworking Problems/Solutions 93
Power Problems/Solutions 93
Screen Display Problems/Solutions 94
Upgrade Problems/Solutions 95
USB Problems/Solutions 96
Contacting Your Dealer 96
Recovering Your System Using the System Restore Disc 96
Specificatio s 101

Chapter 01: Getting Started 1
Your Sahara Slate PC was designed to allow you to be up and
running as quickly as possible. Because the Sahara Slate PC ships
to various countries around the world, set-up may vary slightly
depending on where you are located.
If you have any questions after reading this manual, please visit
our website at www.t bletkiosk.com for more information or to
submit a support request.
Wh t’s in the Box
Your Sahara Slate PC 1should come securely packaged in its
shipping carton along with the items listed below 2. Please
contact your dealer immediately if you find that anything is
missing or damaged.
1. Power Cord and AC Adapter
2. Ultrafiber Cleaning Cloth
3. Sahara Slate PC Neoprene Slip Case
4. Simple Stand
5. This User’s Manual and uick Start Guide
6. Applicable Operating System uick Start Guide 3
7. Applicable System Restore Disc 4
8. Standard Lithium-Ion Battery Pack
Chapter 01
Getting St rted

2Chapter 01: Getting Started
1There are three models in the Sahara Slate PC i400 Series: i412T / i440T / i440D.
Please check to make sure you have received the correct model.
2Contents of the packaging may change without prior notice. Please check our
website at www.tabletkiosk.com for the most up-to-date list if your package
contents vary from this list.
3Please be sure to check that the uick Start Guide matches the Operating
System (OS) preloaded on your Sahara Slate PC. There will not be a uick Start
Guide included if you ordered your Tablet PC with openSUSE Linux.
4Please be sure to check that the System Restore Disc matches the Operating
System (OS) preloaded on your Sahara Slate PC. There will not be a System
Restore Disc included if you ordered your Tablet PC without an OS option.
Setting Up Your S h r Sl te PC
Please read the following steps to begin using your new Tablet
PC as quickly and easily as possible.
1. Inserting the Battery Pack if your Tablet PC shipped from the
dealer without a pre-inserted battery.
2. Connecting the Sahara Slate PC to an external power source.
3. Connecting applicable peripherals and networking cables.
4. Powering on the Sahara Slate PC
5. Completing the Operating System Installation
6. Using the Stylus Pen
Step 1: Inserting the B ttery P ck
Turn the tablet over and place it, screen down on a solid, clean,
flat surface.
CAUTION: When turning over the S h r Sl te PC, be c reful not to
pl ce it on surf ce th t could scr tch or d m ge the screen. You
c n pl ce the included slip c se on the surf ce before c refully
setting the computer down to protect the screen.
Align the battery into the battery compartment and then slide it
into the computer until it clicks securely into place.

Slide the battery-locking tab (the tab closest to the top of the
tablet) in the opposite direction of the unlocking arrow
engraved on the tab itself. Once the locking tab clicks into
position, the battery should be securely seated.
To Remove the B ttery P ck
Turn off the Sahara Slate PC and remove the power cord from the
“DC Power In” port. Turn over the tablet and place it on a solid,
clean flat surface. Slide the locking tab in the direction of the
arrow engraved on the tab to set it in the unlock position. Use
your other hand to slide the battery release latch in the direction
of the arrow engraved on the tab and hold it there. Use both
hands to carefully side the battery out of the bay.
Chapter 01: Getting Started 3
Inser ing he ba ery
Removing he ba ery

4Chapter 01: Getting Started
Step 2: Connecting the T blet PC to n Extern l Power Source
Locate the AC adapter and the power cord. Plug the power cord
securely into the AC adapter. Plug the AC adapter’s connection
cable into the “DC Power In” port on the top of the tablet. Once
the adapter plug is securely in place, plug the power cord into an
external power socket.
NOTE: When you first connect the t blet into n extern l power
source, the b ttery ch rge indic tor will begin to glow mber. When
the b ttery is fully ch rged the indic tor will turn green. See the
section entitled B ttery C re for tips on m ximizing b ttery life nd
perform nce.
Step 3: Connecting Applicable Peripherals and Networking Cables
If you would like to use any external peripheral with the tablet
(i.e. USB mouse, USB keyboard, etc.) or are planning to connect
to the Internet and/or a corporate LAN using a wired connection
(RJ45) as opposed to wirelessly, connect the external peripheral
now. See the section entitled Touring Your Sahara Sla e PC, to
identify which ports to use.
IMPORTANT: When you power on the t blet for the first time, you
will need to h ve n extern l USB keybo rd connected in order to
complete the Windows XP Profession l inst ll tion routine. An
Plugging in o an
ex ernal power source
!@

Chapter 01: Getting Started 5
extern l USB keybo rd is not required for completing the
inst ll tion of Windows XP T blet Edition or Windows Vist s they
include n on-screen keybo rd.
Step 4: Powering on the S h r Sl te PC
Locate the three power switches on the top on the tablet.
The switch (closest to the PCMCIA expansion slot) is the
computer’s main power toggle. Slide it away from the PCMCIA
slot and hold it there until it emits a blue glow (about 1-2
seconds) and then release it. The Sahara Slate PC will now
boot up.
Step 5: Completing the Oper ting System Inst ll tion
When your system powers on for the first time, Windows will
have a few questions for you to answer in order to localize your
installation.
NOTE: You’ll need USB keybo rd connected to your system in
order to nswer some of the questions th t require text input if
your S h r Sl te PC c me with Windows XP Profession l or
Windows Vist . If your S h r Sl te PC c me with Windows XP
T blet Edition, you c n use the stylus pen to input the required
inform tion vi the on-screen keybo rd.
Refer to your operating system’s manual for information on any
of the questions you are unsure how to answer.
Powering on he Sahara Sla e PC.
Slide and hold the toggle switch until it lights up blue.
