Tack life SGP17AC User manual

Model: SGP17AC
Electric Spray Gun
SGP17AC
User Manual
Electric Spray Gun

1
2
FIG. A
Electric Spray Gun
SGP17AC
- 01 -

FIG. A1
FIG. A2
30 31
32
33 34
35
36
37
- 02 -

FIG. B
FIG. B1
FIG. C
FIG. D1
- 03 -

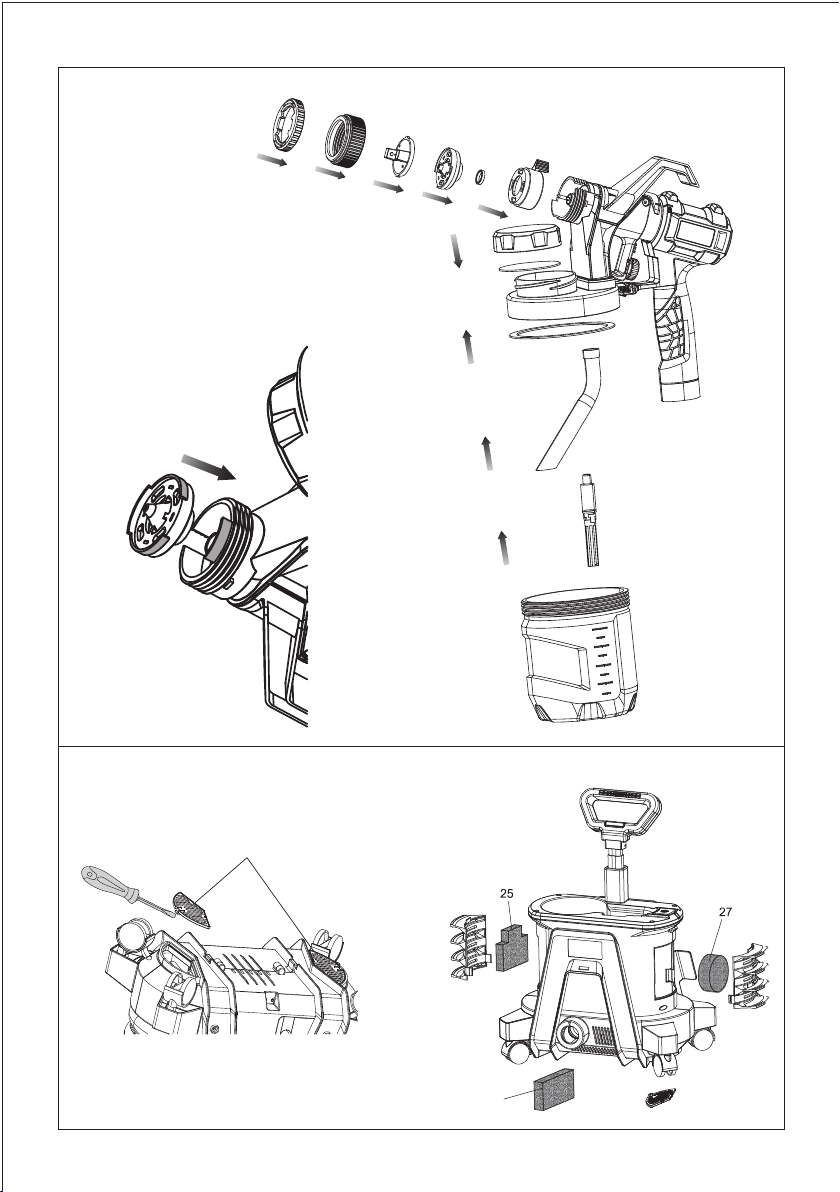

FIG. F
FIG. D2
FIG. E FIG. E1
- 04 -

FIG. G
FIG. H FIG. H1
FIG. I
8
3
- 05 -

FIG. J
FIG. K
FIG. L
50 to 300mm
- 06 -

FIG. M
FIG. N
FIG. O
FIG. P
- 07 -

FIG. Q
FIG. R
FIG. Q1
FIG. S
36
90°
9
- 08 -

FIG. T
FIG. T1
FIG. U1 FIG. U2
30
31
- 09 -

WARNING: READ INSTRUCTIONS MANUAL BEFORE USING PRODUCT.
TECHNICAL DATA
SAFETY GUIDELINES - DEFINITIONS
It is important for you to read and understand this manual.The information it contains relates
to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used
to help you recognize this information.
- 10 -
Vol.~Fre.
Rated Current
Flow Rate
Max. Viscosity
Nozzle Size
Canister Capacity
Air Hose Length
120V~60 Hz
8.5 A
1100 ml/min
150 DIN-s (runout time: 150seconds)
Φ2.5/Φ2.0/Φ1.0mm
1200 ml
3.5 metres
English
The following are explanations of important safety hazard picto-
rials in this manual.
Danger! Indicates an imminently hazardous situation which, if not avoided, will res-
ult in death or serious injury.
Warning! Indicates a potentially hazardous situation which, if not avoided, could re-
sult in death or serious injury.
Caution! Indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury.
Notice! Used without the safety alert symbol indicates a potentially hazardous situat-
ion which, if not avoided, may result in property damage.
Read and understand the instruction manual.
Fire hazard.
Explosion hazard.
Respiratory hazard.
Electric shock hazard.

IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS: To reduce the risks of fire or explosion, electrical shock and
the injury to persons, please read and understand all instructions included in this manual. Be
familiar with the controls and the proper usage of the equipment.
► This product is intended for household use only.
To avoid these risks, take the following preventions:
► Exhaust and fresh air introduction must be provided to keep the air within the spray area
free from accumulation of flammable vapors.
►Avoid all ignition sources such as static electricity sparks, open flames, pilot lights, hot
objects, lit tobacco products,and sparks from connecting and disconnecting power cords or
working light switches.
► Fire extinguisher equipment shall be present and working.
► Keep area clean and free of paint or solvent containers,rags, and other flammable materi-
als.
► Follow the material and solvent manufacturer’s safety precautions and warnings.
► Do not spray flammable or combustible materials near an open flame or sources of
ignition such as lit tobacco products, motors, and electrical equipment.
► Know the contents of the spray materials and their cleaning solvents. Read all Material
Safety Data Sheets (MSDS) and container labels provided with the spray materials and
solvents. Follow the spray material and solvent manufacturer’s safety instructions.
► Do not use materials with a flashpoint higher than 60ºC (140ºF). Flashpoint is the
temperature that a fluid can produce enough vapors to ignite (see coating supplies).
To avoid these risks, take the following preventions:
► Do not use bleach.
► Do not use halogenated hydrocarbon solvents such as methylene chloride and 1,1,1 -
trichloroethane. They are not compatible with aluminum and may cause an explosion. If
you are unsure of a material’s compatibility with aluminum, contact your coating supplier.
Warning! Fire or explosion hazard. Solvent and spray material
fumes can explode or ignite. Severe injury or property damage can
occur.
Warning! Explosion hazard due to incompatible materials. Severe injury or
property damage can occur.
Warning! Hazardous vapors. Spray materials, solvents, and other materi-
als can be harmful if inhaled or come in contact with the body.Vapors can
cause severe nausea, fainting, or poisoning.
- 11 -

To avoid these risks, take the following preventions:
► Use a respirator or mask if vapors can be inhaled. Read all instructions supplied with the
mask to be sure it will provide the necessary protection.
► Wear protective eyewear.
► Wear protective clothing as required by coating manufacturer.
To avoid these risks, take the following preventions
► Keep electrical cord plug and sprayer trigger free from spray material and other liquids.
Never hold cord at plug connections to support cord. Failure to observe may result in an
electrical shock.
► Never immerse electrical parts in water or any other liquid. Wipe the exterior of the spray-
er with a damp cloth for cleaning. Always make sure the sprayer is unplugged before taking
it apart for cleaning.
► Do not expose unit to rain or wet conditions.
► Do not abuse the cord. Never use the cord to carry the unit or pull the plug from an outlet.
Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords imme-
diately.
GENERAL SAFETY WARNINGS
To avoid these risks, take the following preventions:
► Do not use the gun aim at, or spray any person, including self, or animals.
► Do not spray outdoors on windy days
► Wear protective clothing to keep spray material off skin and hair.
► Hose may become hot and cause skin burn.
► Follow all operations that appropriate for local, state, and national codes governing
ventilation, fire prevention , and operation.
► Always use appropriate gloves, eye protection and a respirator or mask when spraying,
thinning, mixing, pouring, or cleaning.
► Do not operate or spray near children. Keep children away from equipment at all times.
Keep sprayer out of the reach of children.
► Do not overreach or stand on an unstable support.Keep effective footing and balance at
all times.
► Stay alert and watch what you are doing.
► Do not operate the unit when fatigued or under the influence of drugs or alcohol.
► Read all instructions and safety precautions for equipment and spray material before
operating any equipment.
► Hearing protection is recommended for extended use.
Warning! Electric shock hazard. May cause severe injury.
Warning! General. To Reduce the risk of severe injury or property damage.
- 12 -

ELECTRICAL SAFETY
Before using the spray gun or after replacing the nozzle, pay attention to check whether the
seal ring is put in palce; The seal ring should be carefully stored to avoid loss; The spray gun
is forbidden to be used without the seal ring.
► If the supply cord is damaged, it must be replaced by the manufacturer or an authorized
Service Center in order to avoid a hazard.
► When using the tool outdoors, only use extension cables intended for outdoor use. A
suitable rate dextension cable of up to 30 m can be used without loss of power.
► Electric safety can be further improved by using a high sensitivity.
EXTENSION CORD
3-blade grounding plug and a 3-slot receptacle that will accept the plug on the product. Make
sure your extension cord is in good condition. When using an extension cord, be sure to use
one heavy enough to carry the current your product will draw. An undersized cord will cause
a drop in line voltage resulting in loss of power and overheating. If an extension cord is to
beused outdoors, it must be marked with the suffix W-A after the cord type designation. For
example, a designation of SJTW-A would indicate that the cord would be appropriate for
outdoor use. For proper size cords see chart.
Guide for extension cord usage:
FEATURES (Fig. A, Fig. A1, Fig. A2 )
1. Sprayer
2. Power unit
3. Smart nozzle selector
4. Tip collar
5. Air cap
6. Nozzle (Φ2.0mm/Φ2.5mm/Φ1.0mm)
7. Y-type seal ring
8. Spray width lever
Type of cable
Paralel
Up to 5 metres
2x 1,0 mm2
from 5 to 10 metres
2x 1,5 mm2
This tool is double insulated; therefore no earth wire is required. Always check that
the power supply corresponds to the voltage on the rating plate.
Warning! Some spray materials contain chemicals known to the State of California
to cause cancer, birth defects or other reproductive harm. To reduce your exposure,
please wear appropriate safety equipment such as face masks, gloves,and other
appropriate protective equipment. Please review and follow the safety precautions
on the paint container.
9. Spray tip
10. Spray unit housing
11. Spray gun handle
12. Quick refill lid
13. Sealing linear
14. O-ring
15. Pickup tube
- 13 -

SET - UP

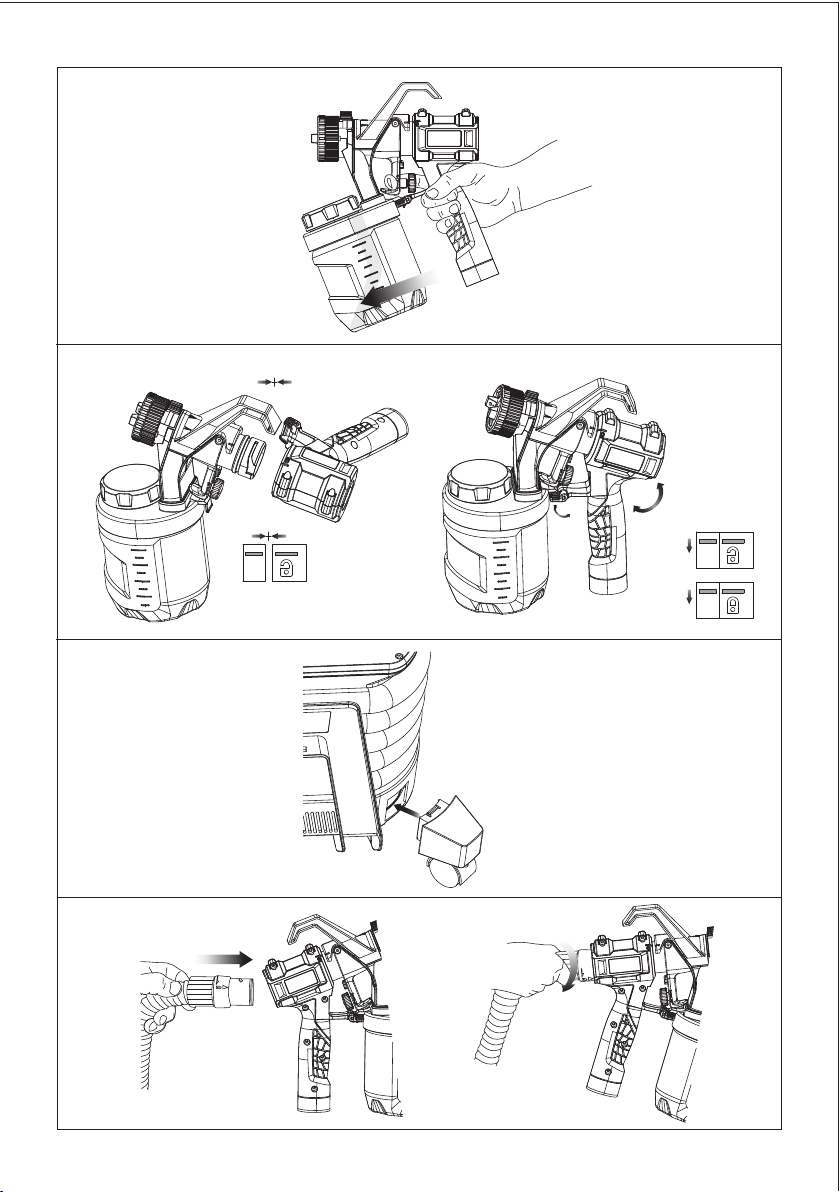

Aligning the pickup tube (Fig. B)
The pickup tube(#15) needs to be aligned in the direction toward the front of the canister
( Fig. B). This will ensure you spray as much material aspossible before you need to refill.
Make sure the pickup tube is assembled tight in place.
Attaching spray unit to spray gun handle (Fig. B1)
Align the marking line on the spray unit with the icon of unlock, then rotate the spray gun
handle clockwise until stop. Rotate the quick release lock (#20) and snap onto the hook on
the edge of canister lid.
Assemble the universal wheels (Fig. C)
Snap the universal wheels onto the 4 openings at the bottom side of the power unit
Note: Assemble 2 universal wheels with lock (#28) at the front side, and 2 universal
wheels without lock (#29) at the back side.
Attaching the air hose (Fig. D1, Fig. D2)
► Insert one end of the air hose into the hose connector of the back of the sprayer. A slight
twisting action when inserting the hose will help insure a snug fit. ( Fig. D1)
Insert the other end of the air hose into the hose connector of the front of the power unit. A
slight twisting action when inserting the hose will help insure a snug fit. (Fig. D2)
16. Check valve assembly
16.1 Check valve sleeve 1
16.2 Check valve
16.3 Spring
16.4 Check valve sleeve 2
16.5 Valve extension
17. Canister
18. Trigger
19. Flow control knob
20. Quick release lock
21. Telescopic tube handle grip
22. Telescopic tube lock on/off
23. Sprayer dock
24. Filtercover
25. Filter
26. On / off switch
27. Filter
28.Universal wheels with lock
29. Universal wheels without lock
30. Filter 2
31. Air ventilation cover
32. Air hose
33. Viscosity cup
34. Cleaning needle
35. Cleaning brush
36. Spray tip key
37. Spray width lever for 1.0mm nozzle.
Warning! Be sure to use appropriate protective gear and unplug unit.
Warning! Make sure area is well ventilated and free of flammable vapors.
- 14 -

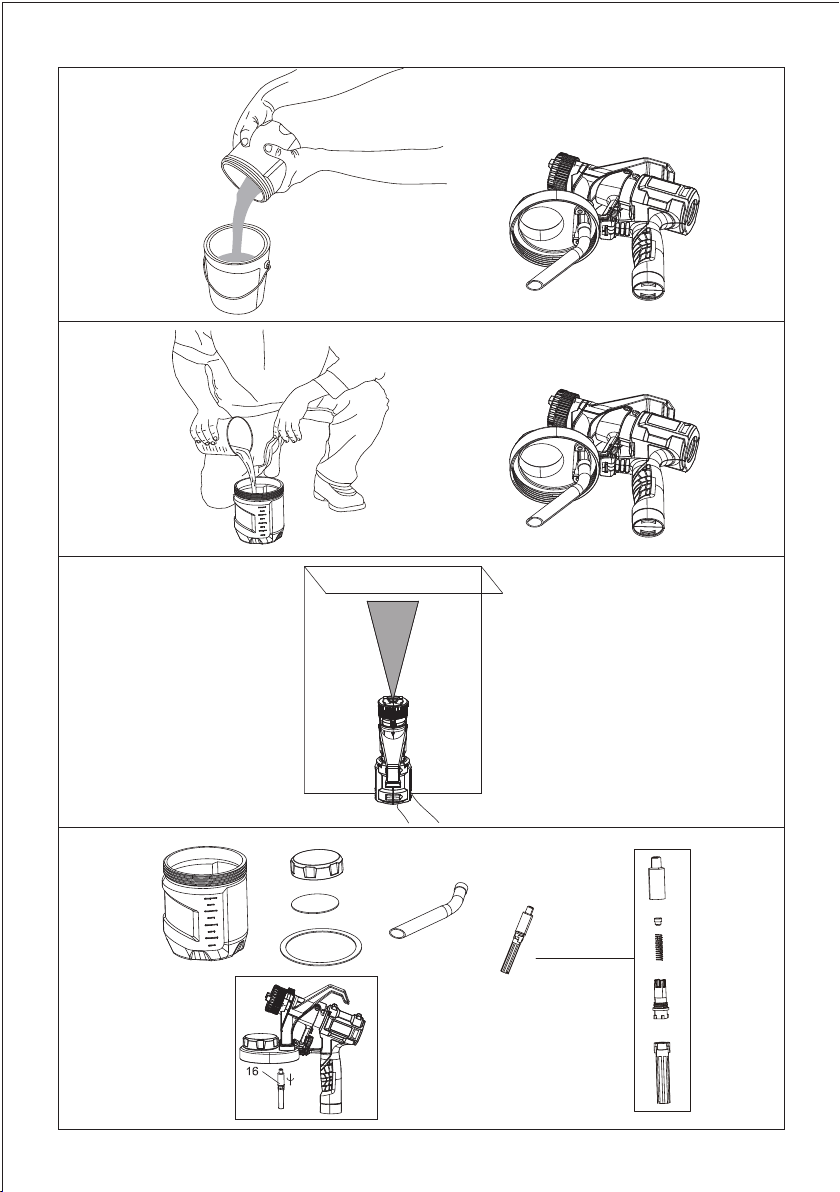

Liquid material preparation (Fig. E and E1)
Tip: Make sure the type of material you used can be cleaned with either mineral spirits or
paint thinner (for oil-based paints) or a warm water and soap solution (for water soluble
paints like latex). Use drop cloths during pouring,mixing, and viscosity testing of materials to
be sprayed to protect your floors and anything else in the spraying area that you wish to
remain untouched.
A viscosity test cup is provided to determine the“runout time” of the material being used.
► Before measuring for the proper viscosity, stir the material thoroughly.
► Dip the viscosity cup into the material being sprayed and fill the cup completely.
► With the cup held over the material container, measure the amount of time it takes for the
stream of material flowing out to “break” or stop being a constant stream out of the bottom of
the cup (150 seconds or less) (Fig. E). This is the “run out time”. Refer to the thinning table
for information on the thinning required for different materials.
►If material needs thinning, add the appropriate liquid, thinning material recommended by
the manufacturer(Fig. E1).
►It is possible to spray latex paint with this unit,however, the required thinning may exceed
materialmanu facturer’s recommendation. Thin latex paint so that it runs through viscosity
cup within150 seconds. The operator should consider the type of application and final
location of the project when spraying a material that requires more than 150 seconds to run
through the viscosity cup.
OPERATION
- 15 -
The liquid being sprayed may need to be thinned (diluted) before starting. When
thinning, use the proper liquid thinner recommended on the container by the material
manufacturer.
Warning! Do not use materials with a flash point higher than 60°C (140°F) .

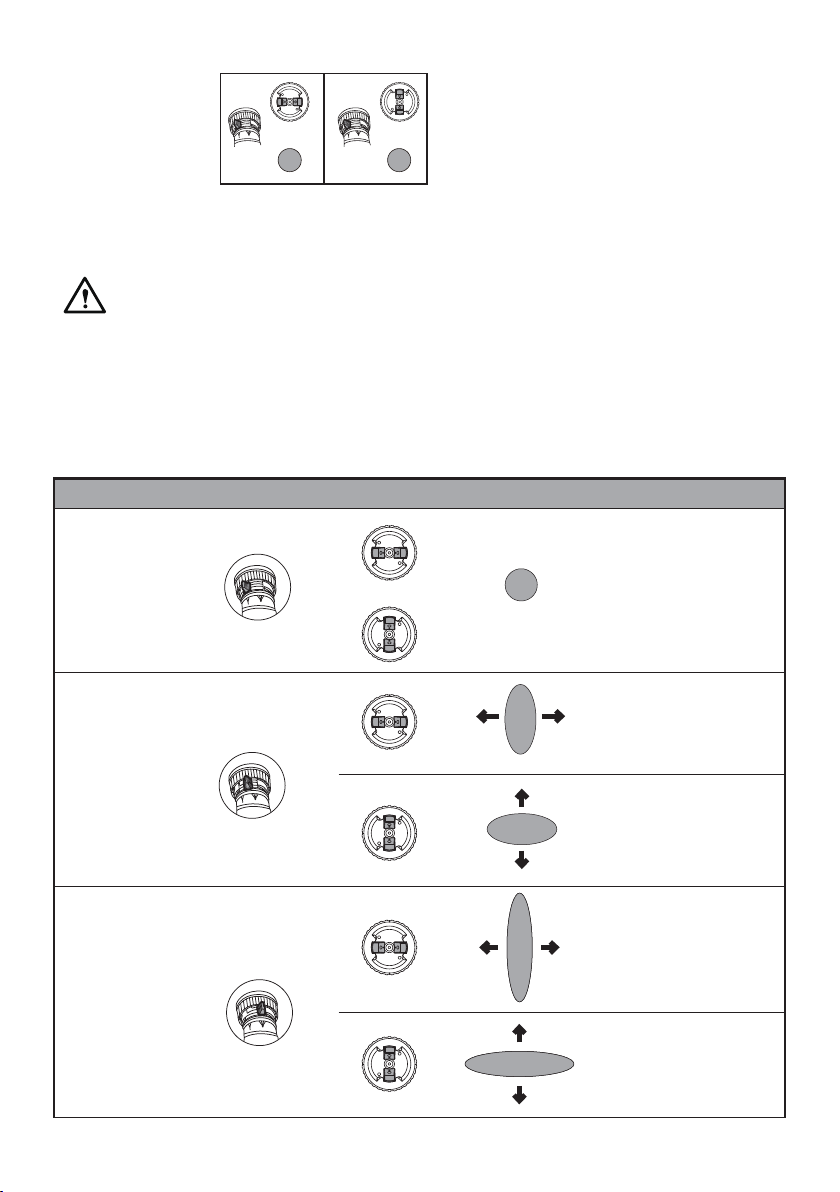

THINNING TABLE
SPRAY MATERIAL
Clear and semi-transparent
stains and sealers Oil based primers,
varnishes and polyurethane
No thinning required
(Less than 150 seconds runout)
RUNOUT TIME
Solid color water based stains
Water based or latex paints
Note: Not recommended for textured paint
May require thinning
(More than 150seconds runout)

- 16 -
PREPARATION TIPS
►Always stir and strain the material thoroughly before use.
►With any spraying job you should always ensure that you have properly prepared the
surface to get the best finish.That is, all surfaces are free from dust, dirt,rust and grease.
Lightly pressure wash decks orex terior surfaces and ensure that they are dry before spray-
ing.
► Even though HVLP sprayers have very little overspray,it is recommended that you mask
all edges and other areas and use drop cloths to protect your floors and anything else in the
spraying area that you wish to remain untouched.
►Skin that forms on the top of paint can clog the sprayer. Remove skin before mixing. Strain
with a funnel with a filter attached or through hosiery to remove any impurities that could clog
system.
►Before starting to have gloves, paper towels, rags, etc., so as not to cause accidental spill.
FILLING THE CANISTER (Fig. F)
► Check to make sure that the canister is completelys crewed onto the sprayer.
► Unscrew the quick refill lid (#12).
► Stand the sprayer firmly on an smooth and horizontal surface
► Pour the properly thinned and strained material to be sprayed into the canister (Fig. F).
► Clean any residual liquid from the threads or sides of the canister and sprayer.
► Starting the threads evenly, screw the lid completely onto the top fill canister. Check the
lid to make sure it is threaded on squarely and completely before picking up the sprayer.
ON / OFF SWITCH (Fig. G)
The on/off switch is located on the top of the power unit. Press the switch button to turn on
or turn off the power unit.
SMART SELECT NOZZLE SELECTION (Fig. H, Fig. H1)
There are three spray patterns to choose from:
- Vertical Flat Jet
To select Vertical Flat Jet , turn the air cap (#5) to
horizontal direction by turning the smart nozzle
selector (#3) clockwise until stop.
- Horizontal Flat Jet To select Horizontal Flat Jet, turn the air cap(#5)
to vertical direction by turning the smart nozzle
selector (#3) anti- clockwise until stop.

- 17 -
Note: Spray nozzle can only be assembled in one direction that the notch of the nozzle(#6)
must align with the skirt on spray unit housing(#10). Refer to (Fig. T1) for properas sembly
ADJUSTING WIDTH OF SPRAY PATTERN (Fig.H1)
By turning the Spray Width Lever (#8) between the Minimum marking and Maximum mark-
ing, the width of the spray patterns can be adjusted accordingly.
- Circular Jet To select Circular Jet, turn the Spray
Width Lever (#8) to the icon of Minimum.
Warning! Risk of injury. Never point the sprayer at any part of the body. Never pull
the trigger while adjusting the spray setting.

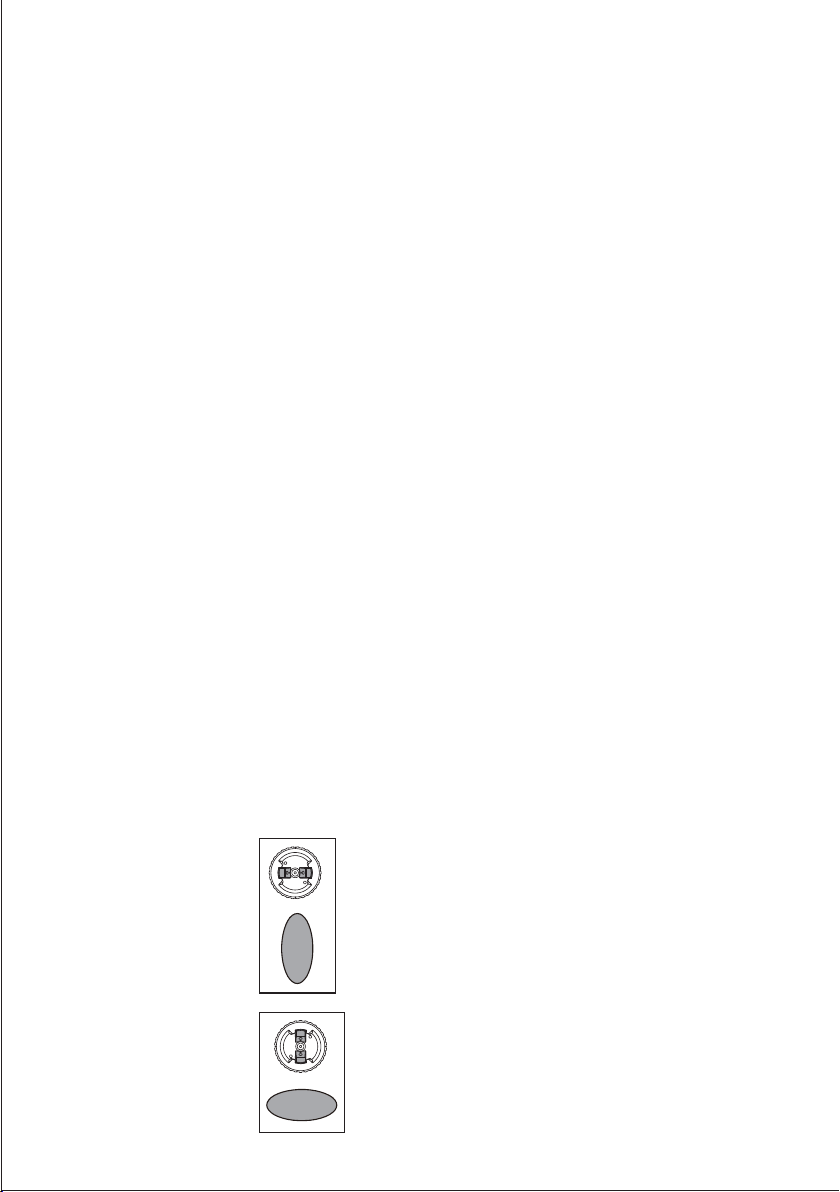

Application Spray Width Lever #8 Air Cap #5 Spray Jet Pattern
Initial coatings,
corners, edges,
and hard to reach
locations
Small circular jet
Small-medium
size surface
Vertical narrow jet for
horizontal coating
direction
Horizontal narrow jet
for vertical coatiang
direction
Vertical wide jet for
horizontal coating
direction
Horizontal wide jet
for vertical coating
direction
Large size
surface top
coating
Fig. H

FLOW CONTROL KNOB (Fig. I)
The flow control knob(#19) regulates the amount of liquid that can be sprayed. Turning the
flow knob clockwise increasesthe flow of liquid. Turning the knob counter anti-clockwise
decreases the flow of liquid.
Tip: Always test the spray pattern on scrap cardboardor similar material first. Begin with flow
control knob on the highest flow setting. If less flow is desired, dial the flow control knob
anti-clockwise to decrease the flow of liquid. Heavier, thicker materials should be sprayed
with the flow control knob on high flow setting. Thinnermaterials should be sprayed with the
flow control knob on low flow setting
DEVELOPING THE PROPER SPRAYING TECHNIQUE
► Practice spraying on a piece of scrap material such ascardboard to test your spray pattern
and becomefamiliar with the flow control feature of the sprayer.
► Ensure the surface to be sprayed is free of dust, dirt, and grease.
► Ensure spray area is clean and free of dust that couldbe blown onto newly sprayed surfac-
es.
► Cover any areas not intended to be sprayed.
► Always spray from a minimum of 50mm to amaximum of 300mm (Fig. J).
► A commonly used method for spraying a large surface is the “crisscross” pattern. This is
done by spraying in horizontal strips and then crossing over these strips with vertical strips.(-
Fig. L)
► To get an even spray distribution, always keep you rarm at the same distance (Fig. J) from
the surface you are spraying and avoid moving your wrist (Fig. K).
► Maintain smooth and consistent speed which will help avoid inconsistencies. Begin spray-
ing after the pass has begun and release trigger before stoppingthe pass.
►Avoid spraying too heavily in any one area. Several lighter coats are better than one
heavy coat which can lead to running and dripping. Remember that theflow control knob
regulates the amount of liquid that can be sprayed. Turning the flow knob clockwise increas-
es the flow of liquid. Turning the knob counter clockwise decreases the flow of liquid. If runs
or drips do occur,have a dry paint brush on hand to smooth them out.
► Turn the power unit off and place the sprayer in the built-in dock of the power unit when
not spraying forany length of time.
CLEANING
► Do not use materials with a flash point higher than 60°C(140°F). Flash point is the
temperature that afluid can produce enough vapors to ignite (see coating supplier).
► Make sure clean up area is well ventilated and free of flam mable vapors.
► Always spray outdoors when spraying cleaning solution through sprayer.
- 18 -
Warning! Be sure to use appropriate protective gear.

► Do not submerse power unit.
► Use drop cloths during pouring, mixing, and viscosity testing of materials to be sprayed to
protect your floors and anything else in the spraying area that you wish to remain untouched.
To begin cleaning:
► Turn the power unit off, unplug the cord and disconnect air hose from sprayer.
► Unscrew the canister from the sprayer and pour any remaining liquid back into the original
container(Fig. M).
► Pour a small amount of the appropriate cleaning solution into the canister (Fig. N).
- Warm soapy water for water based materials
- Manufacturers recommended cleaning solution for oil based materials
► Screw on the canister back to the sprayer securely and vigorously shake the sprayer.
► Unscrew the canister and properly dispose of cleaning solution.
► Refill the canister with a small amount of new cleaning solution (Fig. M). Screw on the
canister back the sprayer.
► Reattach the air hose to the sprayer, plug in the cord and turn on the power unit.
► Spray the cleaning solution through the sprayer onto scrap material for 2 to 3 seconds
(Fig. O).
► Turn the power unit off, unplug the cord and disconnect air hose from sprayer.
► Unscrew the canister from the sprayer.
► Remove the o-ring(#14), pickup tube(#15),check valve (#16), and quick refill lid(#12) from
the sprayer. Clean the parts with the cleaning brush in the appropriate cleaning solution (Fig.
P).
Note: When removing the check valve, twist the check valve clockwise and then pull it
out.(Fig. P)
► Unscrew the tip collar (#4) and remove all the parts of the spray nozzle(#3, #4, #5, #6, #7.
#8) from the sprayer. Remove the spray tip(#9) from the sprayer ( Fig.Q1). Clean all parts
with the cleaning brush in the appropriate cleaning solution (Fig. Q, Fig.Q1). Be sure to clean
around check valve with brush (Fig. Q).
► If using water based material, clean the sprayer by running water through pickup tube inlet
as shown in (Fig. R). If using oil based materials, clean pickuptu be inlet with the appropriate
cleaning solution. Repeat until sprayer is completely clean.
► Dry all parts thoroughly.
► Properly dispose of cleaning solution.
► Place a drop of household oil into the inside of the sprayer, convenient to assemble the
spray tip(Fig. S).
► Reassemble sprayer (Fig. T).
Note: Spray nozzle can only be assembled in one direction that the notch of the nozzle(#6)
must align with the skirt on spray unit housing(#10). Refer to (Fig. T1) for proper assembly
Note: The spray tip must be assembled in the sprayer with the bumps on the spray tip in
vertical direction
- 19 -
