TAD TAD-M700 User manual

TAD-M700
TAD-M700S

CAUTION
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL. D3-4-2-1-1_B1_En
WARNING
To prevent a fire hazard, do not place any naked flame
sources (such as a lighted candle) on the equipment.
D3-4-2-1-7a_A1_En
Operating Environment
Operating environment temperature and humidity:
+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH
(cooling vents not blocked)
Do not install this unit in a poorly ventilated area, or in
locations exposed to high humidity or direct sunlight (or
strong artificial light).
D3-4-2-1-7c*_A2_En
VENTILATION CAUTION
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat radiation
(at least 60 cm at top, 10 cm at rear, and 30 cm at each
side).
WARNING
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product,
and to protect it from overheating. To prevent fire
hazard, the openings should never be blocked or
covered with items (such as newspapers, table-cloths,
curtains) or by operating the equipment on thick carpet
or a bed.
D3-4-2-1-7b*_A1_En
WARNING
This equipment is not waterproof. To prevent a fire or
shock hazard, do not place any container filled with
liquid near this equipment (such as a vase or flower
pot) or expose it to dripping, splashing, rain or
moisture.
D3-4-2-1-3_A1_En
WARNING
Store small parts out of the reach of children and
infants. If accidentally swallowed, contact a doctor
immediately.
D41-6-4_A1_En
POWER-CORD CAUTION
Handle the power cord by the plug. Do not pull out the
plug by tugging the cord and never touch the power
cord when your hands are wet as this could cause a
short circuit or electric shock. Do not place the unit, a
piece of furniture, etc., on the power cord, or pinch the
cord. Never make a knot in the cord or tie it with other
cords. The power cords should be routed such that they
are not likely to be stepped on. A damaged power cord
can cause a fire or give you an electrical shock. Check
the power cord once in a while. When you find it
damaged, ask your dealer for a replacement.
S002*_A1_En
This product is for general household purposes. Any
failure due to use for other than household purposes
(such as long-term use for business purposes in a
restaurant or use in a car or ship) and which requires
repair will be charged for even during the warranty
period.
K041_A1_En
CAUTION
The POWER switch on this unit will not completely
shut off all power from the AC outlet. Since the power
cord serves as the main disconnect device for the
unit, you will need to unplug it from the AC outlet to
shut down all power. Therefore, make sure the unit
has been installed so that the power cord can be
easily unplugged from the AC outlet in case of an
accident. To avoid fire hazard, the power cord should
also be unplugged from the AC outlet when left
unused for a long period of time (for example, when
on vacation).
If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used
electronic products in accordance with legislation that requires proper treatment, recovery and recycling.
Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to
designated collection facilities or to a retailer (if you purchase a similar new one).
For countries not mentioned above, please contact your local authorities for the correct method of disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential
negative effects on the environment and human health.
K058b_A1_En
European model only
CAUTION
This equipment is not floor standing. Do not
install on the floor.

English
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
Only use attachments/accessories specified by
the manufacturer.
Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
Unplug this apparatus during lightning storms
or when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
D3-7-13-69_En
11)
12)
13)
14)
U.S. model only
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT
D3-4-2-1-1b_A1_En

Caution
To prevent fire hazard, the Class 2 Wiring Cable
should be used for connection with speaker, and
should be routed away from hazards to avoid damage
to the insulation of the cable.
D3-7-13-67*_A1_En
The Safety of Your Ears is in Your Hands
Get the most out of your equipment by playing it at a
safe level – a level that lets the sound come through
clearly without annoying blaring or distortion and, most
importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time, your hearing
“comfort level” adapts to higher volumes of sound, so
what sounds “normal” can actually be loud and
harmful to your hearing. Guard against this by setting
your equipment at a safe level BEFORE your hearing
adapts.
ESTABLISH A SAFE LEVEL:
• Set your volume control at a low setting.
• Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
• Once you have established a comfortable sound
level, set the dial and leave it there.
BE SURE TO OBSERVE THE FOLLOWING
GUIDELINES:
• Do not turn up the volume so high that you can’t
hear what’s around you.
• Use caution or temporarily discontinue use in
potentially hazardous situations.
• Do not use headphones while operating a motorized
vehicle; the use of headphones may create a traffic
hazard and is illegal in many areas.
S001a_A1_En
U.S., Canada model only
Information to User
Alterations or modifications carried out without
appropriate authorization may invalidate the user’s
right to operate the equipment.
D8-10-2_A1_En
IMPORTANT NOTICE
THE MODEL NUMBER AND SERIAL NUMBER OF
THIS EQUIPMENT ARE ON THE REAR OR BOTTOM.
RECORD THESE NUMBERS IN THE SPACE BELOW
FOR FUTURE REFERENCE.
MODEL NO.
SERIAL NO.
D36-AP9-2_A1_En
Meaning of symbols see below.
Shock hazard
Do not open, risk of electric shock.

English
5
TAD-M700 / TAD-M700S
CONTENTS
Thank you for buying this TAD product. Please read through these operating instructions so you will know how to operate
your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.
INTRODUCTION ...............................................................................................................................................6
Features........................................................................................................................................................................ 6
BEFORE YOU START........................................................................................................................................7
Checking what’s in the box......................................................................................................................................... 7

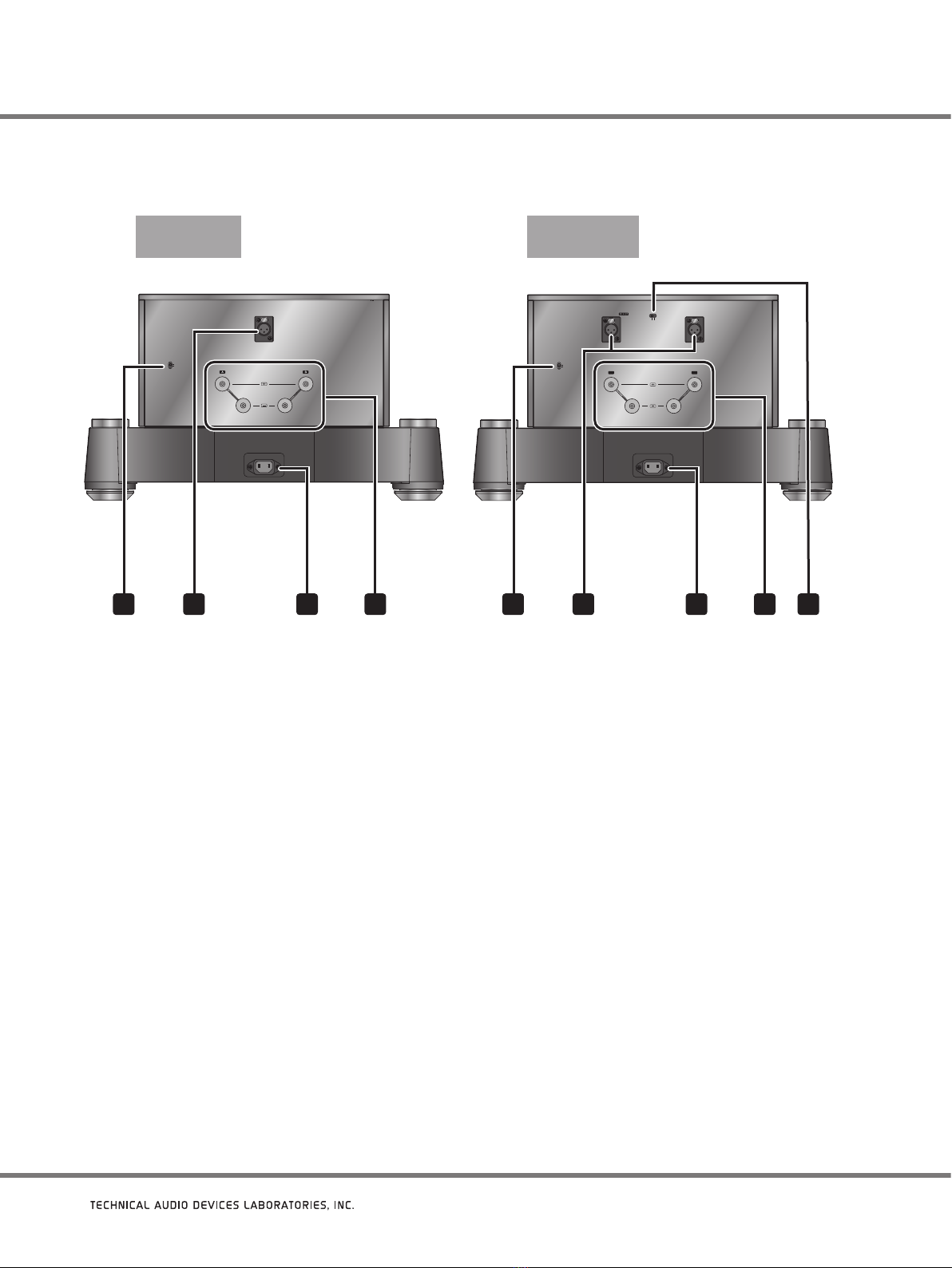

Controls and displays.................................................................................................................................................. 7
INSTALLATION AND CONNECTIONS ..............................................................................................................9
Installation.................................................................................................................................................................... 9
Removing Protective Spacers for Transportation.....................................................................................................................9
Adjusting the spike height........................................................................................................................................................10
Connecting your equipment..................................................................................................................................... 11
Connecting to the Pre-Amplifier...............................................................................................................................................12

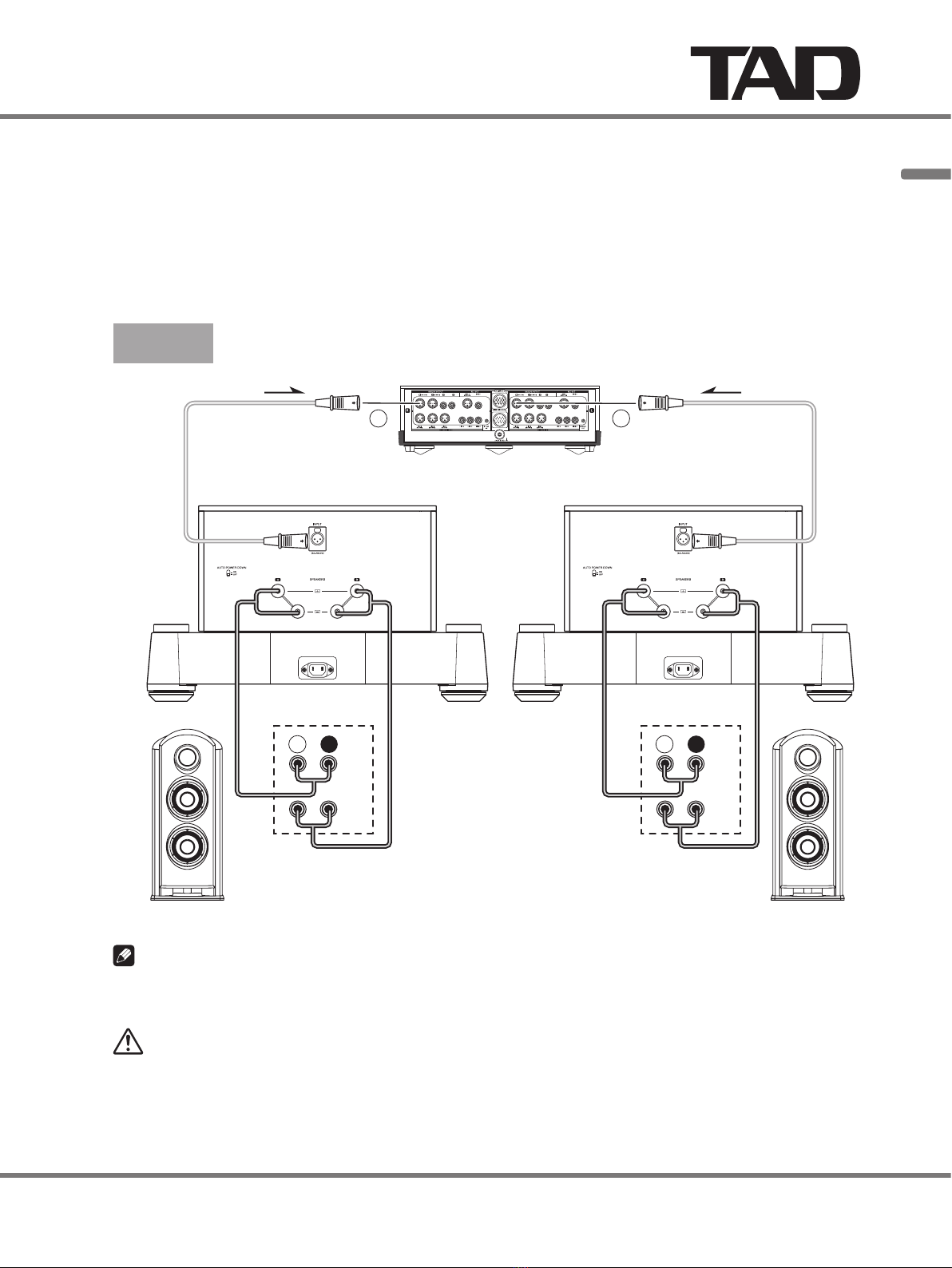

BI-wire connection ....................................................................................................................................................................13

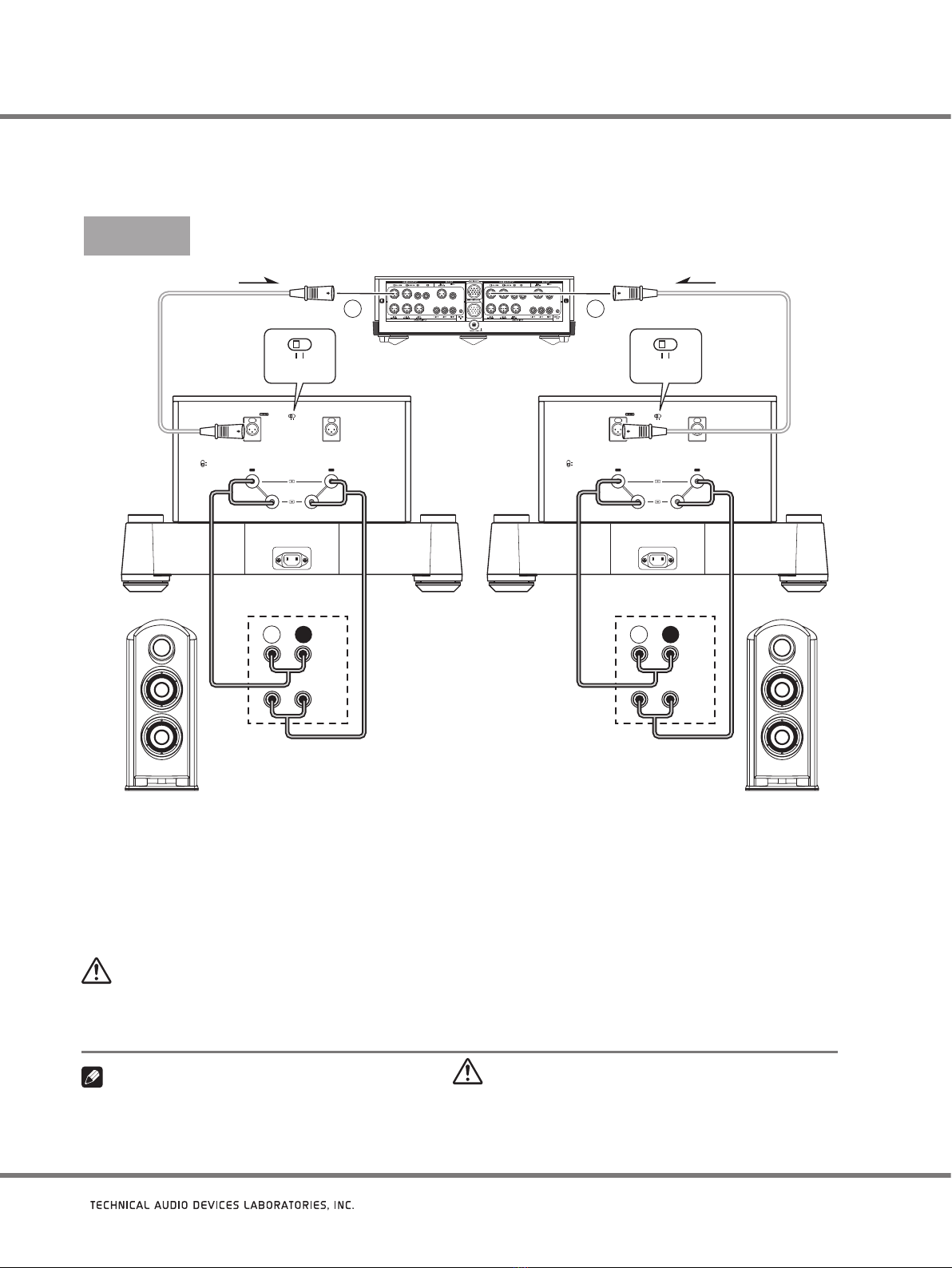

BI-AMP Connection ..................................................................................................................................................................14
Connecting to the speaker system...........................................................................................................................................15
Connecting the power cord ......................................................................................................................................................16
TO BEGIN PLAYBACK ....................................................................................................................................17
Before turning on the power.....................................................................................................................................................17
Playback .....................................................................................................................................................................................17
Protection circuit .......................................................................................................................................................................17
TROUBLESHOOTING......................................................................................................................................18
SPECIFICATIONS ............................................................................................................................................19
Maintenance ..............................................................................................................................................................................19

6
INTRODUCTION
Inspiring the joy of listening
Technical Audio Devices Laboratories, Inc. (TADL) grew from the spirit to discover technologies to perfectly recreate
the pure sound of live performances with uncompromising craftsmanship. We have inherited our philosophy from Bart
Locanthi—recognized across the globe as the ultimate sound technologist—who believed that genuine technology is
true to the basics and that genuine technology places greater importance on sound quality than on technology for its
own sake.
At TADL, we are honing our technology to create equipment that reproduces musical sounds that evoke both the energy
and impact of live music.
Features
Symmetry: Duallogic-Circuit Technology
The path of positive and negative current flowing through the voice coil must be completely symmetrical to accurately
drive the loudspeaker diaphragm.
Symmetry was of a particular concern for this product, with a complete balance pursued in amplifier circuit, power
source circuit and structural aspects.
Vibration control: Vibration-Absorber Technology
A new aluminum cast chassis that features a high degree of both high internal loss and low impedance was developed.
The arrangement of parts and components installed inside the chassis was reviewed and further optimized. Furthermore,
unwanted vibration is controlled and sound quality has been improved through the use of newly structured, adjustable
point support spikes.
Low center of gravity: Lower Weight-Balanced Frame
The cast aluminum chassis with more gradually rounded curves than the current model allows a stable foundation of the
component.
In addition, a wide-tread chassis structure with chassis stands arranged on the outside of the product was adopted to
lower the symmetrical center of gravity.
Rated output: Driving power of 700 W/4 (M700); 350 W + 350 W/4 (M700S)
The electrical amplifier circuit is connected to a balance amplifier via multi-emitter transistors with a superior upper
range to achieve high power output with plenty of headroom.
High capacity power supplies
There are two extra-large hand-made power source transformers that feature in total a capacity of 2800 VA. This is also a
high capacity power supply that is comprised of newly developed highcapacity smoothing capacitors (33000 uF x 4 units).
The speaker is driven with a high degree of fidelity, even with a high output.
Voltage amplifying circuit
The number of input circuit elements was significantly reduced by adopting a matched pair of FET input circuits, based
on a proprietary technology philosophy at TAD.
Signal amplification with a high degree of purity was made possible with a simple and clean structure for the first stage,
which then creates a powerful speaker drive.

English
7
TAD-M700 / TAD-M700S
BEFORE YOU START
Checking what’s in the box
Please check that you have received the following supplied accessories in the accessory box.
Controls and displays
1
2
Front panel
Hexagon wrench x 1
Operating Instructions (this document)
1. Power indicator
Indicates whether the power is turned on or off. The
indicator will light red during start up or if there is a
malfunction. The indicator will light yellow when the unit is
ready to operate.
If the power indicator light turns from yellow to red, turn
off the power and refer to Protection circuit on page 17. If
the trouble is still not resolved, ask your dealer.
2. Power switch
Switch Power from ON to Standby.
Power cord (U.S., Canada model)
Power cord (Europe, Asia model)
2 pins plug type
(For use in Europe except in the
UK)
3 pins plug type
(For use in the UK, Singapore, Hong
Kong)

8
Controls and displays
INPUT R
(BALANCED)
INPUT L
(BALANCED)
SPEAKERS
ON
OFF
STEREOBI-AMP
LR
AUTO POWER DOWN
INPUT
(BALANCED)
SPEAKERS
ON
OFF
AUTO POWER DOWN
Rear panel
4 756 3
Rear panel
3 4 56
TAD-M700 TAD-M700S
3. INPUT terminals (BALANCED)
Connect to Pre-Amplifier.
4. AC IN connector
Connect the accessory power cord here.
5. SPEAKER terminals
Connect speakers with impedance of 4 Ωto 16 Ω.
6. AUTO POWER DOWN switch (ON/OFF)
When this switch is set to ON, the unit will automatically
enter the standby mode after about two hours. When set
to OFF, the function is disabled.
7. BI-AMP Switch
Connect BI-AMP using 2 power amplifiers.

English
9
TAD-M700 / TAD-M700S
INSTALLATION AND CONNECTIONS
Installation
WARNING
As the unit is a large and heavy unit, make sure to move, unpack and install with four or more people.
When installing, choose a level and flat surface that can sufficiently withstand the weight of this unit. Failure to do so
could cause the unit to fall, resulting in an accident.
It is recommended that the unit be installed directly on a solid floor surface. If installed on a shelf, the user is
responsible for confirming that the location is fully able to support the heavy weight of the amplifier.
To promote heat-emission, do not put objects on top of this unit or cover with a sheet (such as cloth or curtains) while
operating. Failure to do so could cause the unit to malfunction through abnormal heating.
Leave 60 cm open
CAUTION
Install the unit with open space for at least 60 cm from the top surface and 10 cm from rear surface as well as at
least 30 cm from sides, to ensure sufficient clearance to dissipate heat. Failure to do so may result in heat being
trapped inside the unit, which can cause malfunction.
CAUTION
As the unit emits a large amount of heat, do not place this unit on top of soft surfaces (such as carpeting or cushions)
or in small spaces.
Removing Protective Spacers for Transportation
Remove protective spacers for transportation when installing the product. Protective spacers are easily removed by
holding and pulling the tape tab while lifting the product.
CAUTION
Since the product is heavy, lift one corner at a time to remove protective spacers.
Protective spacer

10
Adjusting the spike height
1. Remove the cover on the rear right leg of the unit as indicated below.
2. Insert the provided hexagon wrench and adjust the spike height so that the unit does not wobble.
3. Replace the cover removed in step 1.

English
11
TAD-M700 / TAD-M700S
Connecting your equipment
CAUTION
Do not turn on the power switch to the unit or the other components until all connections have been completed.
We recommend that you place the speakers at the desired location before performing connections. Use commercially
available speaker cables for connections. When connecting other components, make sure to turn the power off and
unplug the other components before connecting.
TAD-M700TAD-M700
+
−
+
−
TAD-M700
R L
To speaker terminalSpeaker
To balance output terminal Pre-Amplifier
To speaker terminal Speaker
To balance output terminal

12
(BALANCED)
INPUT L
(BALANCED)
SPEAKERS
ON
OFF
STEREOBI-AMP
LR
AUTO POWER DOWN
INPUT R
TAD-M700S
TAD-M700S
R L
R L
+
−+ −
STEREOBI-AMP
To balance output terminal To balance output terminal
Pre-Amplifier
Speaker SpeakerTo speaker terminal To speaker terminal
Connecting to the Pre-Amplifier
Connect a balance cable with an XLR plug (sold separately) to the INPUT (BALANCED) terminal of the unit and the
Pre-Amplifier’s balance output terminal.
1
2
3
INPUT
(BALANCED)
INPUT (BALANCED) terminal
(XLR-3-31 equivalent)
1: Ground
2: Hot
3: Cold

English
13
TAD-M700 / TAD-M700S
BI-wire connection
The bi-wire connection uses two speaker cables on one amplifier to connect to the speaker’s low-frequency input
terminal and high-frequency input terminal.
In order to connect speakers to this unit using a bi-wire connection, the speakers must be bi-wiring compliant. Align the
High and Low wires correctly to connect.
[An example of connections made to a speaker system with bi-wire connection terminals]
TAD-M700TAD-M700
High
Low
High
Low
+
−+ −
TAD-M700
R L
To balance output terminal
To balance output terminal Pre-Amplifier
Rear side of bi-wiring
compliant speakers
Rear side of bi-wiring
compliant speakers
Note
SPEAKERS A terminals and SPEAKERS B terminals produce the same output. High and Low connectors can be made
to either terminals A or B.
CAUTION
When using bi-wire connections, make sure to remove the short bar connectors on the High-Low terminals of the
speakers to prevent negative effects on the amplifier. Refer to the operating instructions of your speaker system for
further information.

14
BI-AMP Connection
[Example of BI-AMP connection using Speaker system with BI-AMP connection terminal]
(BALANCED)
INPUT L
(BALANCED)
SPEAKERS
ON
OFF
BI-AMPSTEREO
LR
AUTO POWER DOWN
(BALANCED)
INPUT L
(BALANCED)
SPEAKERS
ON
OFF
BI-AMPSTEREO
LR
AUTO POWER DOWN
INPUT R INPUT R
TAD-M700STAD-M700S
High
Low
High
Low
+
−+ −
TAD-M700S
R L
STEREOBI-AMP STEREOBI-AMP
To balance output terminal
To balance output terminal Pre-Amplifier
Rear side of bi-wiring
compliant speakers
Rear side of bi-wiring
compliant speakers
BI-AMP connection is a method of connecting Low / high sound input terminals of speaker using 2 pair amplifier and
speaker cords.
Two TAD-M700S are required in BI-AMP connection.
Make sure that power supply switch of this apparatus and each component is not Turn ON while connection and
switching over of Switch.
Connect the speaker corresponding to BI-AMP at the time of connection. Moreover, set the BI-AMP switch to “BI-AMP”.
Connect High and Low of each speaker to respective power amplifier speaker terminal pair (SPEAKER L terminal and
SPEAKER R terminal).
CAUTION
Input signal is connected to 2 apparatus with input R terminal. Signal from input L terminal is not output to speaker at
the time of BI-AMP settings.
Note
It can be connected to either High or Low as same
signals are output from SPEAKER L and R.
CAUTION
To avoid harmful effects on amplifier while BI-AMP of
speakers, make sure to remove High-Low short metal
fittings attached to speaker. For details, refer to Speaker
Operating Manual.

English
15
TAD-M700 / TAD-M700S
Connecting to the speaker system
CAUTION
The input terminals of speaker systems have a negative (–) pole and a positive (+) pole. Make sure to align these poles
correctly when connecting to the speaker terminals of this unit.
Make sure to use speakers with an impedance of 4 Ωto 16 Ω.
Use speaker cables with a large electrical capacity and make sure no warps or shorts are present. Using speaker
cables with a small electrical capacity or making imperfect connections could affect the sound quality of your
speakers or cause abnormal heating and shortage.
Make sure that all the bare speaker wire is twisted together and inserted fully into the speaker terminal. If any of the
bare speaker wire touches the back panel it may cause the power to cut off as a safety measure.
These speaker terminals carry HAZARDOUS LIVE voltage. To prevent the risk of electric shock when connecting or
disconnecting the speaker cables, disconnect the power cord before touching any uninsulated parts.
How to connect the speaker system
Connect the positive (+) terminal of the speaker system to the positive (+) terminal of this unit.
Connect the negative (–) terminal of the speaker system to the negative (–) terminal of this unit.
Connecting the speaker cable
1. Remove 15 mm (9/16 in.) of the protective insulation to the speaker cable, and twist the core wires together.
2. Turn the speaker terminal knob to the left. ( )
The terminal knob will slide out and create a gap.
3. Insert the speaker wire into the gap and turn the terminal knob to the right to tighten. ( )
1 3
2
Terminal knob
15 mm (9/16 in.) Speaker terminal Speaker cable
Y lug terminal
Y lug terminals may also be connected (refer to your plug’s operation
manual for further information).

16
Connecting the power cord
Once all connections have been made, connect the power cord to an AC power outlet.
• Although the power cord to the unit is removable, do not attempt to use a power cord other
than the supplied cord.
• Connect the power plug to a power outlet and the power switch is set to ON to power up the unit. Upon power up,
there will be an eight second mute period. While muted, the power indicator will light red. The power indicator will
turn yellow once the unit is ready to be operated.
• When not using the unit for a long period of time (due to travel or other reasons), be sure to unplug the power cord
from the power outlet.
• Always turn the power switch off before unplugging the power cord to the unit.
How to connect the power cord
1. Connect the supplied power cord to the AC IN connector of this unit.
2. Connect to AC outlet.
TAD-M700
1
2
Power outlet
Power cord (supplied)
CAUTION
As the unit has high power consumption, be sure to connect the plug to a power outlet providing sufficient electrical
capacity. (Connecting to a power outlet with low electrical capacity could result in abnormal heating of the plug
connection.)
Handle the power cord by the plug part. Do not pull out the plug by tugging the cord, and never touch the power cord
when your hands are wet, as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture,
or other object on the power cord or pinch the cord in any other way. Never make a knot in the cord or tie it with other
cables. The power cords should be routed so that they are not likely to be stepped on. A damaged power cord can cause
a fire or give you an electric shock. Check the power cord once in a while. If you find it damaged, ask your dealer for a
replacement.

English
17
TAD-M700 / TAD-M700S
TO BEGIN PLAYBACK
Before turning on the power
Make sure that the input terminals and output terminals are securely connected.
Playback
1. Turn the volume knob of the Pre-Amplifier to its lowest setting.
2. Set the Pre-Amplifier’s power switch to ON.
3. Set the unit’s power switch to ON.
The power indicator will light red for eight seconds. The light will turn yellow once the unit is ready to operate.
Use the Pre-Amplifier’s volume knob to adjust the volume.
4. To turn off the unit after use, first turn the volume knob of the Pre-Amplifier to its lowest setting, then turn off both
the Pre-Amplifier and the unit.
Protection circuit
The unit is provided with a built-in automatic protection circuit to prevent electrical damage to the amplifier and
speakers. When the protection circuit operates, the power indicator will light red, and no sound will be produced from
the speakers. The protection circuit may operate in the following circumstances:
When power is first turned ON
In order to silence potential noise during startup, the muting circuit operates for eight seconds; the indicator lights
red during this time.
In event of malfunction
In the event of a short-circuit between speaker terminals, excessive load, or abnormal heat generation, the protection
circuit will operate and the indicator will light red. In the event the protective circuit is triggered by an anomaly, turn
the power off once, then remove the cause of the anomaly and turn the power back on.
Precaution for instances protective circuit is triggered
The protective circuit is triggered if installation conditions are not appropriate and when the internal temperature of
the speaker becomes abnormally high, or if core wires of speaker cables are protruding out of speaker terminals and
come into contact with case metal portions of speaker base units. In such cases, turn the power off, verify and remedy
any inappropriate installation conditions or check and rectify connection of core wires in speaker cables that are
protruding out of speaker terminals and touching case metal portions of speaker base units, then turn the power back
on. If the protective circuit is still triggered, pull out the power cable and contact your dealer.

18
TROUBLESHOOTING
Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with
this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other
components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks
listed below, ask your dealer.
Symptom Possible cause Remedy
Power does not turn
on.
The power plug is not connected to the
power outlet.
The power cord is not connected to the AC
IN connector of this unit.
Firmly plug in the power cord to the power
outlet.
Firmly plug in the power cord to the AC IN
connector.
No sound output.
The speaker cable is disconnected or is
not connected correctly.
The terminal or the speaker cable plug is
dirty.
The power indicator light is red.
Firmly connect the speaker cable.
Clean the terminal and plug.
Refer to Protection circuit on page 17 and
eliminate the cause.

English
19
TAD-M700 / TAD-M700S
To ensure long product life, avoid installing this unit in the following locations:
• Locations exposed to direct sunlight.
• Humid or poorly ventilated areas.
• Areas of extreme temperatures.
• Areas with vibration.
• Dusty or smoky areas.
• Areas exposed to grease fumes, steam or heat (such as a kitchen).
Maintenance
Use a dry polishing cloth to wipe off dust and dirt. If the surface is extremely dirty, wipe with a soft cloth dipped in neutral
cleanser diluted five to six times with water and wrung out well. Do not use volatile chemicals such as paint thinner or
benzenes, as these may corrode the surface of the panels. Do not use sprays such as insecticides around the unit. If you plan
on using a chemical cleaning cloth, read the precautionary statements of the chemical cleaning cloth before using.
Amplifier Section
Power output
M700 ............................................................................................................................................................... 700 W (1 kHz, 4 Ω)
350 W (1 kHz, 8 Ω)
M700S........................................................................................................................................................350 W/ch (1 kHz, 4 Ω)
175 W/ch (1 kHz, 8 Ω)
Rated distortion
M700 ................................................................................................................................Less than 0.005% (1 kHz, 4 Ω, 350 W)
M700S..............................................................................................................................Less than 0.005% (1 kHz, 4 Ω, 175 W)
Signal-to-Noise Ratio (IHF, short circuited, A network) ......................................................................................125 dB or higher
Frequency response ................................................................................................................................... 1 Hz to 100 kHz, +0
–3 dB
Gain.........................................................................................................................................................................................29.5 dB
Input terminal (Sensitivity/ Impedance) ....................................................................................................................1.5 V / 100 kΩ
Power section/miscellaneous
Power requirements (Europe, Asia model)....................................................................................... AC 220 - 230 V, 50 Hz/60 Hz
(U.S., Canada model) ..........................................................................................................AC 120 V, 60 Hz
Power consumption ................................................................................................................................................................ 590 W
Power consumption in standby ..................................................................................................................................0.5 W or less
Dimensions................................................................................................................. 516 mm (W) × 296 mm (H) × 622 mm (D)
Weight
M700 ...................................................................................................................................................................................74.5 kg
M700S.................................................................................................................................................................................75.5 kg
Accessories
Power cord (Europe, Asia model) ...................................................................................................................................................2
(U.S., Canada model)...................................................................................................................................................1
Hexagon wrench...............................................................................................................................................................................1
Operating Instructions (this document).........................................................................................................................................1
Note
Specifications and the design are subject to possible modifications without notice, due to improvements.
SPECIFICATIONS

Ce point d’exclamation, placé dans un
triangle équilatéral, a pour but d’attirer
l’attention de l’utilisateur sur la présence,
dans les documents qui accompagnent
l’appareil, d’explications importantes du
point de vue de l’exploitation ou de
l’entretien.
Ce symbole de l’éclair, placé dans un
triangle équilatéral, a pour but d’attirer
l’attention de l’utilisateur sur la présence, à
l’intérieur du coffret de l’appareil, de
“tensions dangereuses” non isolées d’une
grandeur suffisante pour représenter un
risque d’électrocution pour les êtres
humains.
ATTENTION :
POUR ÉVITER TOUT RISQUE
D’ÉLECTROCUTION, NE PAS ENLEVER LE
COUVERCLE (NI LE PANNEAU ARRIÈRE).
AUCUNE PIÈCE RÉPARABLE PAR
L’UTILISATEUR NE SE TROUVE À
L’INTÉRIEUR. CONFIER TOUT ENTRETIEN À
UN PERSONNEL QUALIFIÉ UNIQUEMENT.
ATTENTION
DANGER D´ELECTROCUTION
NE PAS OUVRIR
IMPORTANT
D3-4-2-1-1_A1_Fr
AVERTISSEMENT
Pour éviter les risques d’incendie, ne placez aucune
flamme nue (telle qu’une bougie allumée) sur
l’appareil.
D3-4-2-1-7a_A1_Fr
Milieu de fonctionnement
Température et humidité du milieu de fonctionnement :
De +5 °C à +35 °C (de +41 °F à +95 °F) ; Humidité
relative inférieure à 85 % (orifices de ventilation non
obstrués)
N’installez pas l’appareil dans un endroit mal ventilé ou
un lieu soumis à une forte humidité ou en plein soleil
(ou à une forte lumière artificielle).
D3-4-2-1-7c*_A1_Fr
