TAG Heuer Pocket Pro HL400-P User manual

TAGHeuer Timing Page 1 / 20
P
OCKET PRO
HL400-P
PILOT
User Manual
Version 05/2016

TAGHeuer Timing Page 2 / 20
Contents Table
1. Concept 3
2. Standard Timing Mode 4
2.1. LCD description 4
2.2. General 4
2.2.1. How to navigate the different modes 4
2.2.2. Power 5
2.2.3. Time Memory 5
2.2.4. Delete Memory 6
2.3. Date Mode 6
2.4. STOPWATCH mode 7
2.5. Count Down mode (CD) 8
2.5.1. Count Down timing 8
2.6. TIME Mode 9
2.6.1. Internal Time of Day setting 9
2.6.2. Time of day synchronisation 9
2.6.3. To Synchronise at Zero 9
2.6.4. Timing 10
3. Specific Pilot Timing Modes 10
3.1. Flight Timer (mode A) 11
3.2. Fuel Timer (mode B) 13
4. Recommendations 17
5. Download a new version of Firmware 17
6. Technical specification 18
6.1. Pocket Pro characteristics 18
6.2. USB Connector 18
7. Quick Guide 19

TAGHeuer Timing Page 3 / 20
Concept 1.
The Pocket Pro Pilot App, Pocket Pro HL400-P, provides flight times and fuel times for
pleasure and general aviation pilots.
Thanks to the 2 specific modes, the pilot can record and monitor flight time and fuel time
consecutively (up to 100 flight times memorized).
The Pocket Pro electronic stopwatch is the latest in TAG Heuer's Professional Timing
development regime. In addition to the three exclusive timing modes dedicated to General
Aviation and Pleasure pilots, this 1/100th second handheld timepiece also encompasses
standard stopwatch modes, including Split / Lap time measurement, countdown, and timing
based on time of day.
Together with its integrated USB connector; free POCKET MANAGER Application and
Pocket-Pro 800 measurements internal memory, the device makes the downloading,
analysis, printing and archiving of results extremely simple.
Results can also be viewed or printed from your laptop or pc instantly.
Note:
Pressing the hard reset (to the right of the USB connector) resets the Lock
Time value to 0.01 sec (minimum)

TAGHeuer Timing Page 4 / 20
Standard Timing Mode 2.
Several standard timing modes are available including:
Date / Time / Count Down / Stopwatch
More specific event orientated modes are also available, see section 3
2.1. LCD description
4
1
2
35
1. Sequence Number of athlete / Memory status
2. Battery / Mode Setting / Running status
3. Timing Mode
4. Information Split / Lap
5. Timers
2.2. General
2.2.1. How to navigate the different modes
To navigate into a different mode:
- First the Pocket Pro has to be stopped (STOP)
- Reset memory (START/STOP + MEMORY)
- Pressing the MODE button now allows you to change the Timing Mode
Sequence:
DATE 

STOPWATCH 

TIME 

CD 

A 

B 

C

TAGHeuer Timing Page 5 / 20
2.2.2. Power
The Pocket Pro functions with an internal battery. It can be recharged when by
connecting to a PC (USB cable) or by a (USB – 5VDC) power supply
When not used for 36hours, the Pocket Pro will switch OFF automatically (LCD OFF)
To wake up the Pocket Pro, just press any button
It is also possible to switch OFF manually the Pocket Pro by simultaneously pressing
the MODE and MEMORY buttons for 5 seconds
When the Pocket Pro is OFF, all the times are stored in memory
The icon will indicate the level of the battery
During charge: 75% ON / 25% OFF blinking
Fully charged: with USB Cable: icon ON
Without USB cable: icon OFF
Low level (<10% charge): blinking 50% ON & 50% OFF
(you still have 2-3 days autonomy)
2.2.3. Time Memory
The Pocket Pro has a memory of 800 stored times
The number of memorized times is shown on the 3 digits (Memory status)
When the memory reaches 90% capacity (720 times), the 3 digits will flash
Wa
rning
Once the memory is full (800 times), the next time recorded will be stored
as 001 automatically overwriting the original time
The memorized time can be recalled and displayed on the LCD at any time (even
during a timing session)
By pressing the MEMORY button, the memorized time 001 will be displayed as the
button is held down. The number of the memory shown is displayed on the top-left of
the LCD
Press the MEMORY button again and the next stored time will be displayed

TAGHeuer Timing Page 6 / 20
2.2.4. Delete Memory
To delete the memory, press simultaneously START/STOP and MEMORY
buttons
Warning
You will not receive a request for you to “confirm Delete Memory”!
Once this step is made, all times are irretrievably deleted
2.3. Date Mode
This mode allows you to update the date of the Pocket Pro
To set the date:
- Press the MEMORY button: the first digit will flash and SET icon is ON
- Press the SPLIT/LAP button to change the value
- Press the MEMORY button to move to the next digit
Validate your setting with the MODE button (SET icon is OFF)
1. Icon Set ON = Setting
2. Day/Month ( red digit blinking 25.03 )
3. Year setting (2013)
4. Time of Day (set in menu TIME)

TAGHeuer Timing Page 7 / 20
2.4. STOPWATCH mode
This timing mode allows the timekeeper to make a Start/Finish, with split time
(SPLIT) and lap time (LAP) with 1/100th second precision
1. Number of split / Memory status
2. Running status
3. Split time
4. Lap Time
5. Running time
The time displayed is up to 59’59.99’’ (1 hour)
SPLIT : Split time, or cumulative time (SPLIT/LAP button)
LAP : Lap time (SPLIT/LAP button)
Running Time : Running time between Start and Finish
The running time always starts from 00:00:00
- To start, press the START/STOP button ( icon is ON)
- Three times are running and displayed
- To record a Split / Lap, press SPLIT/LAP Button
The SPLIT and LAP time is stopped. The running time (bottom) continues to run
At each press of the SPLIT/LAP button, the memory sequence increases
It is possible to recall and view previous split and lap times during a session by
pressing the MEMORY button
For simple viewing in this mode, it is possible to reduce the information, and display
only SPLIT or LAP. For this, during the race, press the button MODE

TAGHeuer Timing Page 8 / 20
2.5. Count Down mode (CD)
This mode allows you to make a unit count down or loop count-down
1. Number of split / Memory status
2. Running status
3. Counter
4. Count Down (max 59:59.9)
2.5.1 Set Count Down
To change the Count-Down value, the memory first has to be deleted
To set the Count-Down value:
- Press the MEMORY button: the first digit will flash and SET icon is ON
- Press the SPLIT/LAP button to change the value
- Press again the MEMORY button to change to the next digit
-Validate your setting with the MODE button (SET icon is OFF)
2.5.1. Count Down timing
- To start the count down, press START/STOP button ( icon is OFF)
- The count-down value decreases (on the bottom line)
- A timer (on the top) is started (increases)
At any time it is possible to PAUSE and RESTART the count-down
A long single beep will sound at the end of the Count-Down
The count-down will stop automatically at 00:00
To restart a new count-down, you have to reset the value by pressing the SPLIT/LAP
button
During the count-down sequence, by pressing the MODE button, it is possible to
change the Single Count-Down to Auto-Restart Count-down (loop mode)
The CD icon on the LCD will switch
In this Auto-Restart Count-Down, during the last 5 seconds, the Pocket Pro will sound
a single short beep and a then long beep at 00:00
The Pocket Pro will restart automatically from the pre-defined time of the count-down
The timer will run and show the full time since the first Start
To stop the sequence, you have to RESET the Pocket Pro

TAGHeuer Timing Page 9 / 20
2.6. TIME Mode
This timing mode allows you to memorize the time of day at each split
This mode is very useful as a back-up system during a timing session and functions
similarly to other timing systems working at “time-of-day” such as the CP545 Chrono-
Printer, Mini Timer or Start Clock
In Time mode, you have the running time on the top line of the LCD and the time of
day on the bottom line of the LCD
1. Number of split / Memory status
2. Running status
3. Running Time (hh:mm:ss)
4. Running Time (1/100)
5. Time of Day
2.6.1. Internal Time of Day setting
To set the Internal Time of Day on Pocket Pro:
- The Pocket Pro memory has to be reset (START/STOP + MEMORY)
- Press and hold the MEMORY button for 5 sec: the first digit will flash and
SET icon is ON
- Press the SPLIT/LAP button to change the value
- Press the MEMORY button to move to the next digit
2.6.2. Time of day synchronisation
- Press SPLIT/LAP and START/STOP buttons simultaneously
- The time of day of the Pocket Pro will be displayed on the top of the LCD with 1
minute in advance
- The synchro will be automatic at the end of the full minute
2.6.3. To Synchronise at Zero
- Press START/STOP button
The time automatically starts from zero

TAGHeuer Timing Page 10 / 20

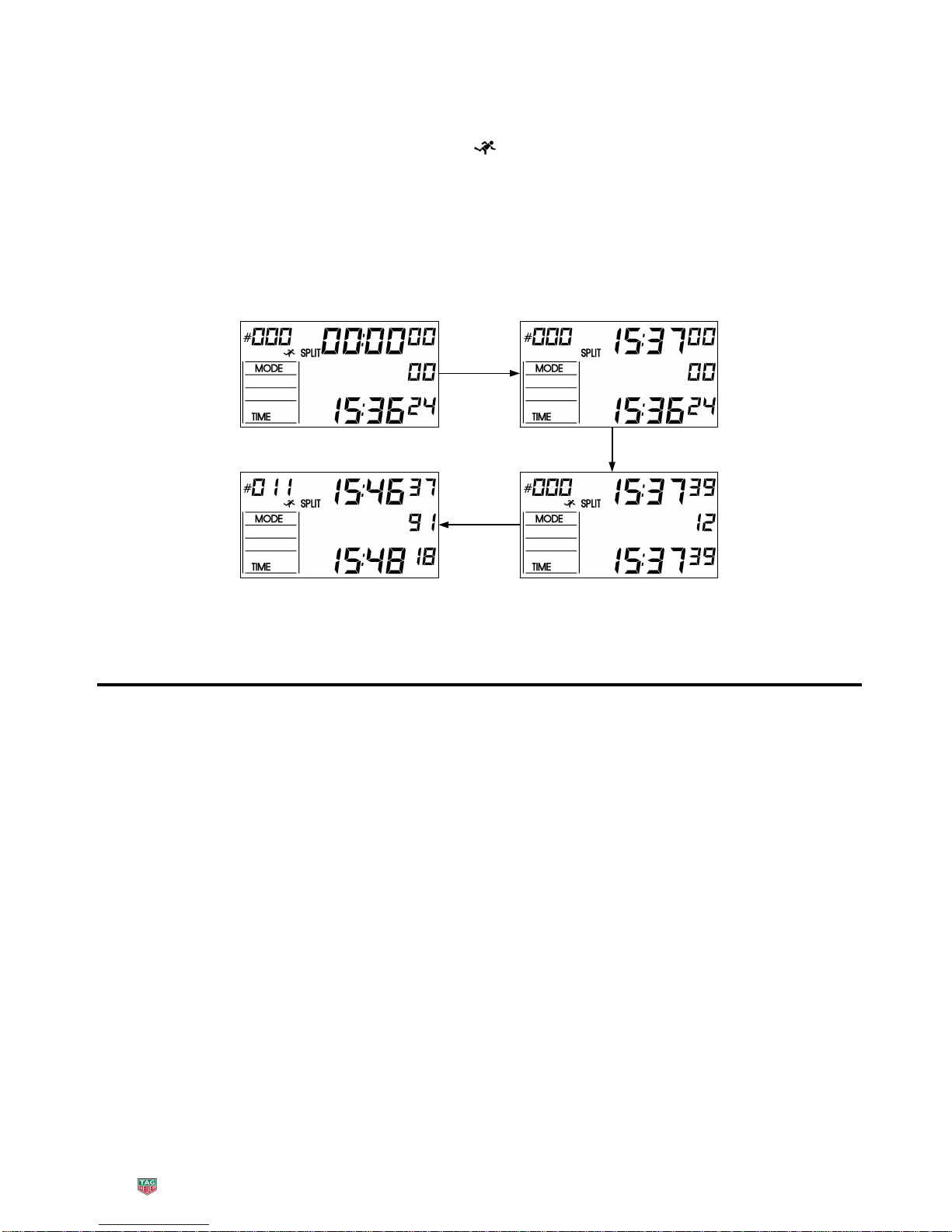

2.6.4. Timing
Once the Synchronization is made, the icon appears
To memorize the time of day, press the SPLIT/LAP button
The time on the LCD will stay and the passing counter (top-left) is increased
To see the time of the day running, press the MEMORY button
START/STOP
SPLIT/LAP
START/STOP
Before Set Time of the Day Set time of the Day + 1 min.
Manual Synchro / StartMemorized Split / Time of Day
SPLIT/LAP
Specific Pilot Timing Modes 3.
In the Pocket Pro Pilot, 2 specific modes are available
A: Flight Time
In this mode, it is possible to record and monitor flight time with the
date/time of take-off and date/time of landing.
Up to 100 flights can be stored on the Pocket Pro.
B: Tank operating time.
This mode enables the Pilot to define up to 6 fuel tanks. For each of them,
it is possible to set a count-down value, and reset them individually.
Specifics of Pocket Pro Pilot :
•Pocket Pro Pilot enables the user to use mode A and B simultaneously: It is
also possible to switch between A and B and vice versa, to monitor either the
fuel tank timer or flight timer as required.
•Reset Mode A or B, will erase only the time and information of the present
mode (reset : start/stop + Memory)
•It is possible so start and Stop the two modes A and B simultaneously from
Mode B only

TAGHeuer Timing Page 11 / 20
3.1. Flight Timer (mode A)
In this mode, it is possible to record and monitor the time of take-off and landing
for each flight. Pocket Pro Pilot stores the information of every flight (up to 100)
including date/time of take-off and date/time of landing.
1. Flight number (consecutive number until reset)
2. Battery / Mode Setting / Running status
3. Timing Mode
4. Time of day
5. Flight Time (hh:mm:ss)
Button Start/Stop: Take-off / Landing (start / finish)
Button Split/Lap: Change flight number (after landing)
Button Memory: Recall previous flight time history.
Button Memory + Start/Stop: Erase memory of Flight times (Mode A only)
Mode A, without flight time running, the LCD displays the date & time of day.
It is recommended to update the time of day regularly (see chapter Time and Date)
During flight, time can be paused with “fly back” function – press the button Start/Stop
Flight time will be stored only when the next flight is incremented (button Split/Lap).
1. Flight Number
2. Battery / Mode Setting / Running status
3. Timing Mode
4. Time of day
5. Date (06/02) – 6 February, Year (2016)
1
2
3
4
5
1
2
3
4
5

TAGHeuer Timing Page 12 / 20

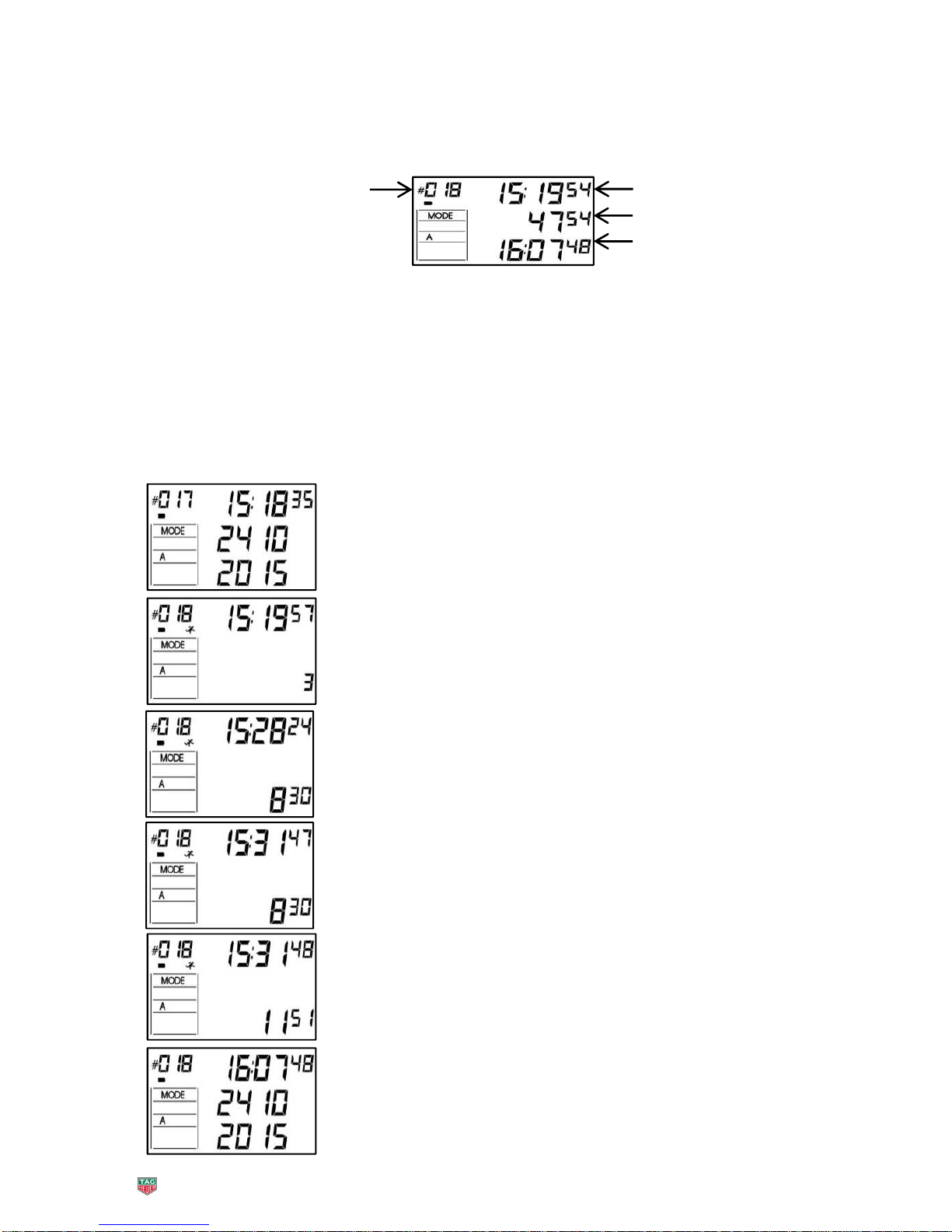

Memory Recall Button
Thanks to the Memory button, it is possible to see the latest flight time memorized
1. Flight Number
2. Take-Off time
3. Flight time (hh:mm.ss)
4. Landing Time
Using the Pocket Pro manager software utility will also provide date of all flights.
Example
1
2
4
3
Mode A
Time of day (15 :18 :35)
Date : 24.10.2015
Button
Start/Stop
–
Take off and Landing
Sequence Number of the flight : 018
Time of day (15 :19 :57)
Flight time (3 sec)
Button
Start/Stop
–
Stop of flight time
Time of day : 15 :28 :24
Stop time at 8’30’’
Time of day : 15 :31 :47
Flight time : 8’30’’ (frozen)
Button
Start/Stop
–
Restart
Time of day : 15 :31 :48
Flight time : 11’51 ‘’ (fly back function)
Button
Start/Stop
–
Landing
Time of Landing : 16 :07 :48
Button Split/Lap (memorization)
Time of day (16:07:48)
Date
: 24.10.2015

TAGHeuer Timing Page 13 / 20
3.2. Fuel Timer (mode B)
The Fuel Timer mode gives the ability to define up to 6 individual tanks.
For each of the tanks, it is possible to define the maximum time (count-down
value), and reset them individually
1. Fuel Tank in process
2. Battery / Mode Setting / Running status
3. Timing Mode
4. Number of the tank display on LCD
5. Count down value of the tank
Functions
Button Start/Stop : Start / Stop count-down of the selected fuel tank
Button Start/Stop: Press and hold for a minimum of 5 sec, allows to start or stop
simultaneously mode A (flight Time) and B (Tank)
Button Split/Lap : Select tank number
Button Memory : Press and hold for 5 sec
Reset the select count-down and set menu
Setting of a count-down value
When the mode B is totally reset (button Start/Stop + Memory), all the values
will be deleted on the Mode B, it is possible to set up to a 6 tank count down.
With the Pocket Pro stopped, it is possible to change individually the settings of
each count down.
Button Memory : To change the digit
Button Split/Lap : To change the value
Thanks to the Pocket Pro Manager, it is possible to easily define each count-down
value for each tank.
1
2
3
4
5

TAGHeuer Timing Page 14 / 20
Start/Stop simultaneously: Mode A and B
From the mode B (tank), it is possible to simultaneously start / stop the flight time fuel
timer.
Press the Start/Stop during 5 sec mini from Mode B only.
The message “Start” will be displayed on the LCD.
To stop simultaneously the mode A and B, press the Start/Stop button for 5 seconds.
The message “stop” will be displayed on the LCD.
Some caution for Start / Stop simultaneously
•Can only be from mode B (tank), to manage before the tank number which is
engaged
•After a stop simultaneously, Mode A will remain in «fly back » mode. The flight
is not memorized and request a manual operation from mode A (button
Split/Lap)

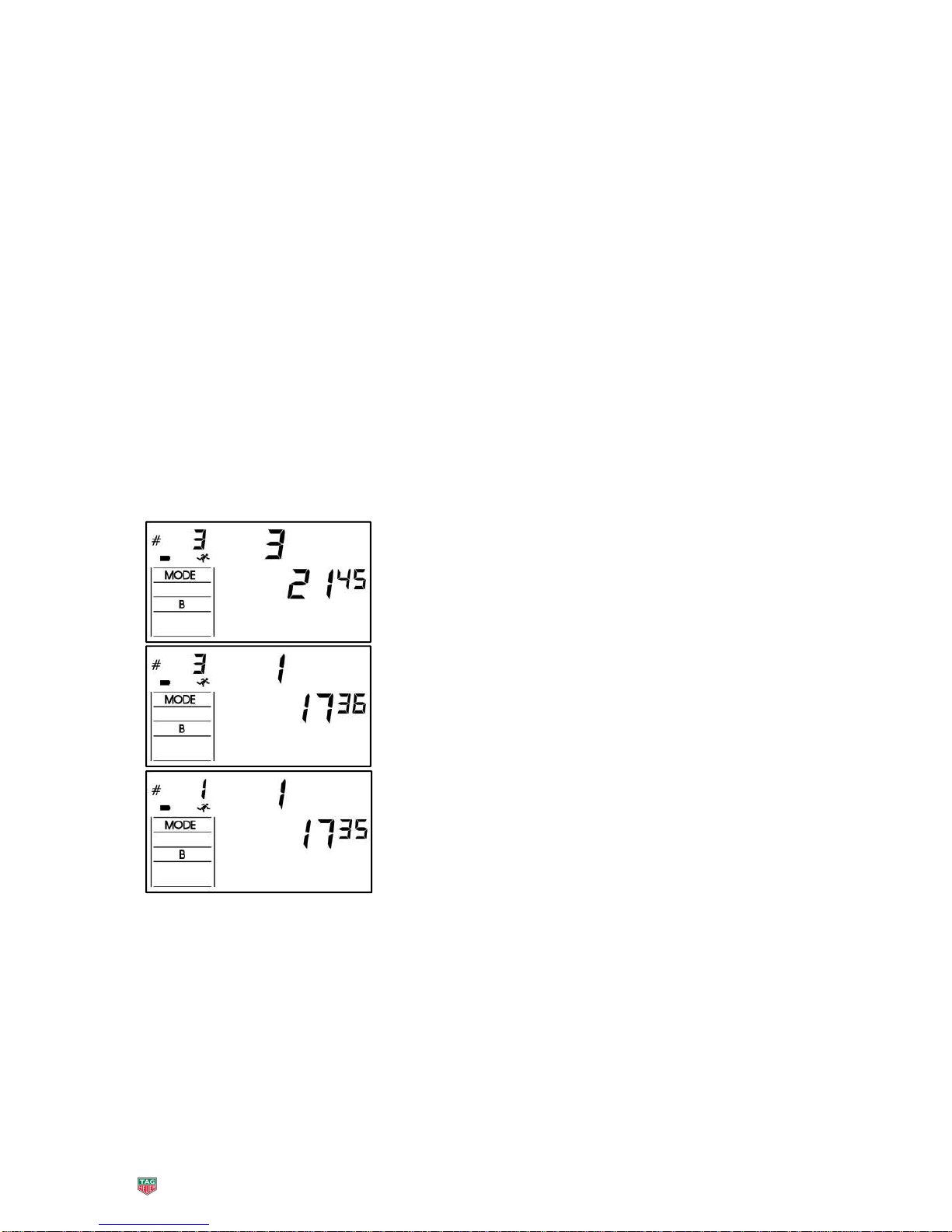

How to change tanks
Tank #3 is running
Visualization of the tank 3
Count-down value: 21’45’’
Button
Split/Lap
Visualization of tank n° 1
Value : 17’36’’
Button
Start/Stop
Stop count-down of the tank n° 3
Start count-down of the tank n° 1

TAGHeuer Timing Page 15 / 20
How to reset (default value) of each individual tank
The Pocket Pro has be stopped.
The Pocket Pro has to be stopped (# without number)
Button: Split/Lap to select tank : n° 4
Count-down value: 12’45’’
Holding 5 sec the
Memory
The default value of the count-down is displaying (30’)
It is possible with button Memory and Split/Lap to
change the setting

TAGHeuer Timing Page 16 / 20
Change the default value for each tank
The Pocket Pro has to be stopped
The Pocket Pro has to be stopped (# empty)
Button Memory
Selection of the tank (n°3)
Hold 5 sec the button
Memory
Change the mode in setting
The value comes back to original (as reset) (30’)
The first digit is flashing (in red on this document)
Release all buttons
Button
Memory
Change the digit (in red on this document)
Button
Memory
Change the digit (in red on this document)
Button
Split/Lap
Change the value of digit
Button
Mode
Validate your new selection (40’)

TAGHeuer Timing Page 17 / 20
Recommendations 4.
Although the Pocket Pro can be used indoors and outdoors, optimal viewing and
protection is best when the display is in the shade or covered from direct sunlight and rain
Never immerse the Pocket Pro in water
The Pocket Pro is developed to endure light rain.
The USB socket is protected by the black rubber, and prevents any water ingress
It is very important and recommended to keep the rubber in place at all times when not
using the USB connection
The optimal visibility of LCD is when the Pocket Pro is protected from direct sunlight
The Pocket Pro can overheat in excessive direct sunlight
The LCD Plexiglas is fragile. It is not recommended to clean it with a solvent or alcohol
IMPORTANT
A slightly damp cloth is recommended for cleaning the Pocket Pro
Download a new version of Firmware 5.
Program downloads and new releases of the TAG Heuer firmware “up loader” are
available free of charge on our website www.tagheuer-timing.com
For this operation, you need to have:
•Mini-USB cable HL545-3
•The software «TAGHeuerFirmmanager.exe » version minimum V10.0
Procedure
•Copy the software «TAGHeuerFirmManager.exe » onto your hard disk drive
•Connect the Mini-USB cable (HL545-3) to the PC and to the Pocket Pro
•Run the software « TAGHeuerFirmManager.exe »
•Select the COM Port
•Select the file: Update (HL400_xxx.dat)
•Press START on the software
•Press and hold the reset button on Pocket Pro and release when prompted
•As soon as the upgrade is downloaded into the HL400, validate the software with OK
•The HL400 is ready to use

TAGHeuer Timing Page 18 / 20
Technical specification 6.
6.1. Pocket Pro characteristics
-Power 5 VDC (rechargeable with USB cable)
-Internal battery 600mAh / 3.7V
-Autonomy 35 days (in use) after full charge
-Shell Aluminium – PVD surface treatment
-Weight 160 g
-Precision +/- 2 sec / month
Calibration available
-Display LCD 3 lines of 6 characters
Battery level / Timing Mode
-Size of characters 7mm height
-Accuracy 1/100
th
second
-Memory 800 stored times
-Temperature range –20°C to +60°C
6.2. USB Connector
Pin
Description
1 5V
2 D-
3 D+
4 TAG Heuer Photocell
5 GND

TAGHeuer Timing Page 19 / 20
Quick Guide 7.
Reset memory
Buttons: Start/Stop + Memory
Change mode:
Clear Memory (Start/Stop + Memory)
Button: Mode
Power off
Buttons: Memory + Mode (hold down together for 5 seconds)
Recall recorded times
Button: Memory
Setting (Date / Time / CD)
Button: Memory to select the digit
Button: Split/Lap to change value
Button: Mode to validate the selection
Stopwatch
Button: Start/Stop: start or stop counter
Button: Split/Lap: memorize Split/Lap
Button: Mode: select display Split or LAP or both
Button: Memory: recall split/lap memorized
Count Down
Button: Start/Stop: Start or Stop counter
Button: Split/Lap: reset the preselected Count Down
Button: Memory: countdown setting
Button: Mode: Select single Count Down or Multi Count Down (CD blinking)
Time (function manual back-up with Time-of-Day)
Button: Start/Stop + Split/Lap: Set Time-of-Day (+ 1 minutes)
Button: Start/Stop: Synchro + Start
Button: Split/Lap: Memorize Time-of-Day
Button: Memory: recall/view memorized time
Mode A
Button Start/Stop: Take-Off and landing (Start/Finish)
Button Split/Lap: Change flight number (next flight, after landing)
Button Mode : Switch Mode (A B)
Mode B
Button Start/Stop Count-down start of the selected tank
Button Start/Stop Hold during 5 sec: Start and Stop simultaneously Mode A
and B
Button Split/Lap Change selection of the tank
Button Memory Press and Hold for 5 sec: reset / setting
In setting mode (Memory hold down for 5 sec)
Button Memory Change digit
Button Split/Lap Change digit Value

TAGHeuer Timing Page 20 / 20
TAG Heuer
PROFESSIONAL TIMING
6A Louis-Joseph Chevrolet
2300 la Chaux-de-Fonds
Switzerland
Tel : [phone]
Fax : [phone]
E-mail: [email protected]
http: //www.tagheuer-timing.com
