TAG Heuer POCKET PRO HL400-R RALLY User manual

TAGHeuer Timing Page 1 / 24
PROCKET PRO
HL400-S
SWIMMING
User Manual
Version 09/2015

TAGHeuer Timing Page 2 / 24
Contents Table
1. Concept 3
2. Standard Timing Mode 4
2.1. LCD description 4
2.2. General 4
2.2.1. How to navigate the different modes 4
2.2.2. Power 5
2.2.3. Time Memory 5
2.2.4. Delete Memory 6
2.3. Date Mode 6
2.4. STOPWATCH mode 7
2.5. Count Down mode (CD) 7
2.5.1. Count Down timing 8
2.6. TIME Mode 9
2.6.1. Internal Time of Day setting 9
2.6.2. Time of day synchronisation 9
2.6.3. To Synchronise at Zero 9
2.6.4. Timing 10
3. Specifics Swimming Mode 11
3.1. Training with stroke record (mode A) 11
3.2. Dual competitor time training (mode B) 15
3.3. Training session up to 9 competitors (mode C) 18
4. Recommendations 20
5. Download a new version of Firmware 20
6. Technical specification 21
6.1. Pocket Pro characteristics 21
6.2. USB Connector 21
7. Quick Guide 22

TAGHeuer Timing Page 3 / 24
Concept 1.
The Pocket Pro Swimming App, Pocket Pro HL400-R, gives users access to timekeeping
functions dedicated to swimming training and events.
Three swimming-specific modes offer the possibility to record and analyse number of
strokes, differential times, average strokes as well as comparing the times of 2 swimmers at
the same time and even timing of up to 9 swimmers with a mass start method.
All 3 modes offer the complete solution for swimming teachers and coaches with the added
benefit to download all data and times for post training / event calculations and results.
Together with its integrated USB connector; free POCKET MANAGER Application and
Pocket-Pro 800 measurements internal memory, this device makes downloading, analysis,
printing and archiving of results extremely simple.
Results can also be viewed or printed from your laptop or pc instantly
The USB connector (HL400-4) enables connection to a photocell, a manual switch or a
wireless radio input (HL615, HL675).
Pocket Pro Manager adjusts a Lock Time for the USB Input.
Note:
Pressing the hard reset (to the right of the USB connector) resets the Lock
Time value to 0.01 sec (minium)

TAGHeuer Timing Page 4 / 24
Standard Timing Mode 2.
Several standard timing modes are available including:
Date / Time / Count Down / Stopwatch
More specific event orientated modes are also available, see section 3
2.1. LCD description
4
1
2
35
1. Sequence Number of athlete / Memory status
2. Battery / Mode Setting / Running status
3. Timing Mode
4. Information Split / Lap
5. Timers
2.2. General
2.2.1. How to navigate the different modes
To navigate into a different mode:
- First the Pocket Pro has to be stopped (STOP)
- Reset memory (START/STOP + MEMORY)
- Pressing the MODE button now allows you to change the Timing Mode
Sequence:
DATE 

STOPWATCH 

TIME 

CD 

A 

B 

C

TAGHeuer Timing Page 5 / 24
2.2.2. Power
The Pocket Pro functions with an internal battery. It can be recharged when by
connecting to a PC (USB cable) or by a (USB – 5VDC) power supply
When not used for 36hours, the Pocket Pro will switch OFF automatically (LCD OFF)
To wake up the Pocket Pro, just press any button
It is also possible to switch OFF manually the Pocket Pro by simultaneously pressing
the MODE and MEMORY buttons for 5 seconds
When the Pocket Pro is OFF, all the times are stored in memory
The icon will indicate the level of the battery
During charge: 75% ON / 25% OFF blinking
Fully charged: with USB Cable: icon ON
Without USB cable: icon OFF
Low level (<10% charge): blinking 50% ON & 50% OFF
(you still have 2-3 days autonomy)
2.2.3. Time Memory
The Pocket Pro has a memory of 800 stored times
The number of memorized times is shown on the 3 digits (Memory status)
When the memory reaches 90% capacity (720 times), the 3 digits will flash
Warning
Once the memory is full (800 times), the next time recorded will be stored
as 001 automatically overwriting the original time
The memorized time can be recalled and displayed on the LCD at any time (even
during a timing session)
By pressing the MEMORY button, the memorized time 001 will be displayed as the
button is held down. The number of the memory shown is displayed on the top-left of
the LCD
Press the MEMORY button again and the next stored time will be displayed

TAGHeuer Timing Page 6 / 24
2.2.4. Delete Memory
To delete the memory, press simultaneously START/STOP and MEMORY
buttons
Warning
You will not receive a request for you to “confirm Delete Memory”!
Once this step is made, all times are irretrievably deleted
2.3. Date Mode
This mode allows you to update the date of the Pocket Pro
To set the date:
- Press the MEMORY button: the first digit will flash and SET icon is ON
- Press the SPLIT/LAP button to change the value
- Press the MEMORY button to move to the next digit
Validate your setting with the MODE button (SET icon is OFF)
1. Icon Set ON = Setting
2. Day/Month ( red digit blinking 25.03 )
3. Year setting (2013)
4. Time of Day (set in menu TIME)

TAGHeuer Timing Page 7 / 24
2.4. STOPWATCH mode
This timing mode allows the timekeeper to make a Start/Finish, with split time
(SPLIT) and lap time (LAP) with 1/100th second precision
1. Number of split / Memory status
2. Running status
3. Split time
4. Lap Time
5. Running time
The time displayed is up to 59’59.99’’ (1 hour)
SPLIT : Split time, or cumulative time (SPLIT/LAP button)
LAP : Lap time (SPLIT/LAP button)
Running Time : Running time between Start and Finish
The running time always starts from 00:00:00
- To start, press the START/STOP button ( icon is ON)
- Three times are running and displayed
- To record a Split / Lap, press SPLIT/LAP Button
The SPLIT and LAP time is stopped. The running time (bottom) continues to run
At each press of the SPLIT/LAP button, the memory sequence increases
It is possible to recall and view previous split and lap times during a session by
pressing the MEMORY button
For simple viewing in this mode, it is possible to reduce the information, and display
only SPLIT or LAP. For this, during the race, press the button MODE
2.5. Count Down mode (CD)
This mode allows you to make a unit count down or loop count-down

TAGHeuer Timing Page 8 / 24

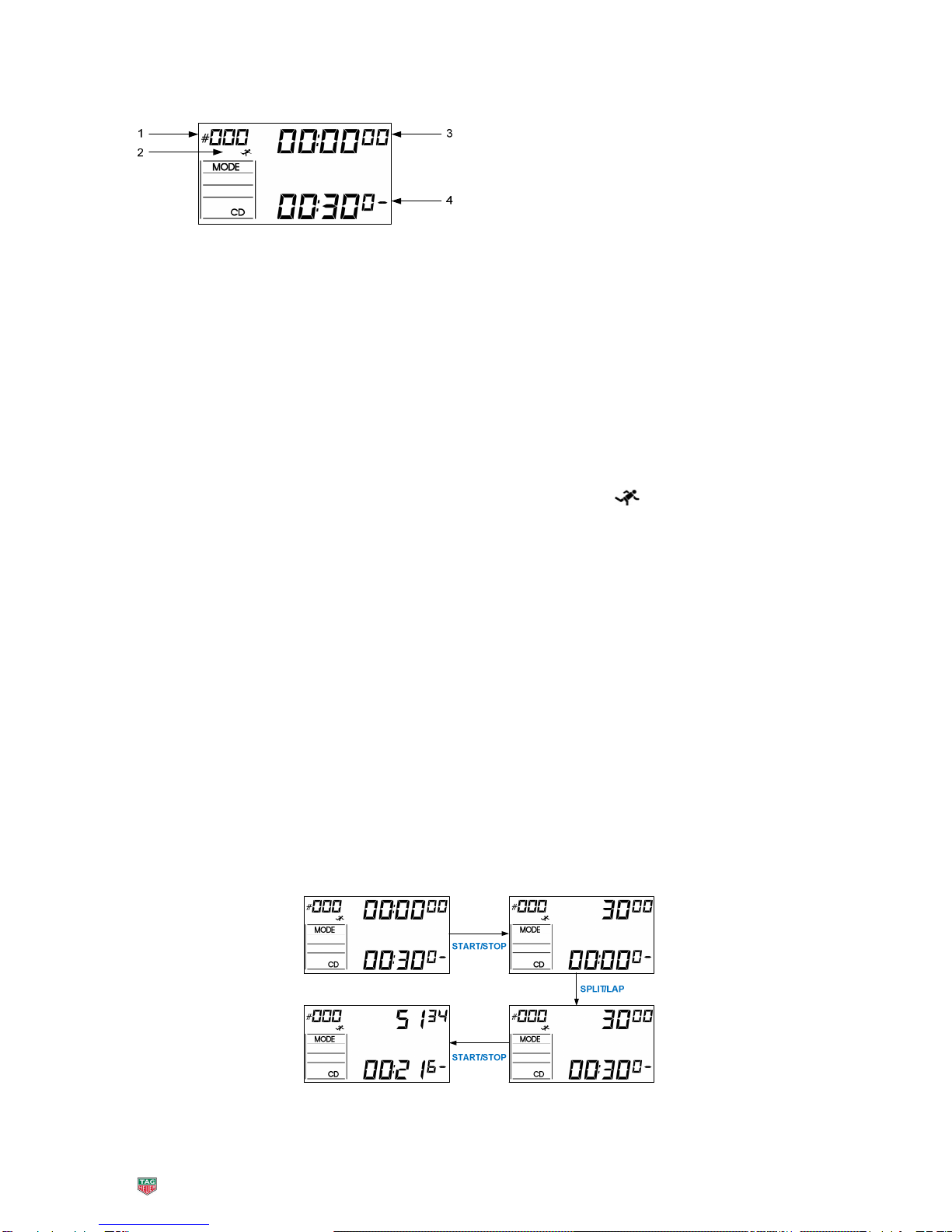

1. Number of split / Memory status
2. Running status
3. Counter
4. Count Down (max 59:59.9)
2.5.1 Set Count Down
To change the Count-Down value, the memory first has to be deleted
To set the Count-Down value:
- Press the MEMORY button: the first digit will flash and SET icon is ON
- Press the SPLIT/LAP button to change the value
- Press again the MEMORY button to change to the next digit
-Validate your setting with the MODE button (SET icon is OFF)
2.5.1. Count Down timing
- To start the count down, press START/STOP button ( icon is OFF)
- The count-down value decreases (on the bottom line)
- A timer (on the top) is started (increases)
At any time it is possible to PAUSE and RESTART the count-down
A long single beep will sound at the end of the Count-Down
The count-down will stop automatically at 00:00
To restart a new count-down, you have to reset the value by pressing the SPLIT/LAP
button
During the count-down sequence, by pressing the MODE button, it is possible to
change the Single Count-Down to Auto-Restart Count-down (loop mode)
The CD icon on the LCD will switch
In this Auto-Restart Count-Down, during the last 5 seconds, the Pocket Pro will sound
a single short beep and a then long beep at 00:00
The Pocket Pro will restart automatically from the pre-defined time of the count-down
The timer will run and show the full time since the first Start
To stop the sequence, you have to RESET the Pocket Pro

TAGHeuer Timing Page 9 / 24
2.6. TIME Mode
This timing mode allows you to memorize the time of day at each split
This mode is very useful as a back-up system during a timing session and functions
similarly to other timing systems working at “time-of-day” such as the CP545 Chrono-
Printer, Mini Timer or Start Clock
In Time mode, you have the running time on the top line of the LCD and the time of
day on the bottom line of the LCD

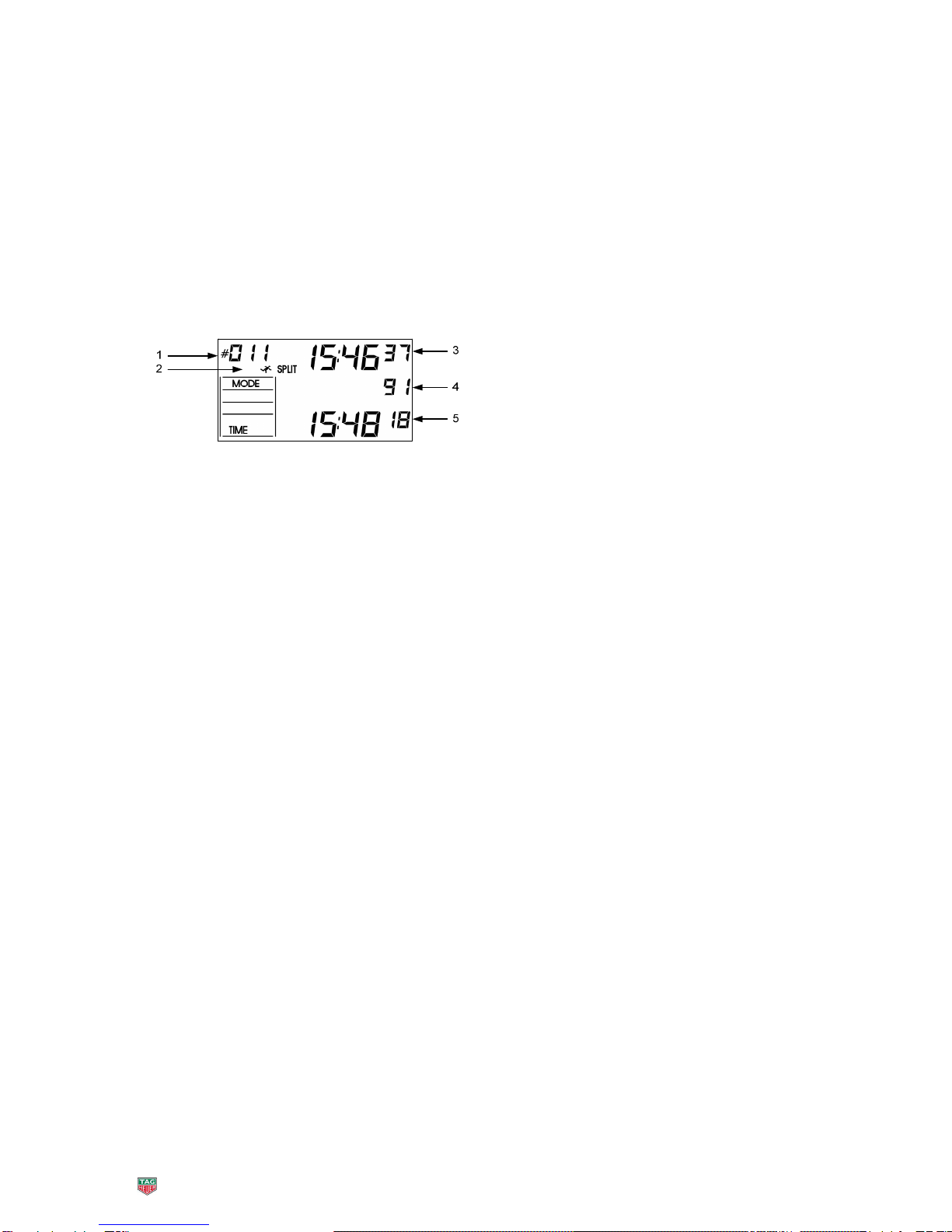

1. Number of split / Memory status
2. Running status
3. Running Time (hh:mm:ss)
4. Running Time (1/100)
5. Time of Day
2.6.1. Internal Time of Day setting
To set the Internal Time of Day on Pocket Pro:
- The Pocket Pro memory has to be reset (START/STOP + MEMORY)
- Press and hold the MEMORY button for 5 sec: the first digit will flash and
SET icon is ON
- Press the SPLIT/LAP button to change the value
- Press the MEMORY button to move to the next digit
2.6.2. Time of day synchronisation
- Press SPLIT/LAP and START/STOP buttons simultaneously
- The time of day of the Pocket Pro will be displayed on the top of the LCD with 1
minute in advance
- The synchro will be automatic at the end of the full minute
2.6.3. To Synchronise at Zero
- Press START/STOP button
The time automatically starts from zero

TAGHeuer Timing Page 10 / 24
2.6.4. Timing
Once the Synchronization is made, the icon appears
To memorize the time of day, press the SPLIT/LAP button
The time on the LCD will stay and the passing counter (top-left) is increased
To see the time of the day running, press the MEMORY button

TAGHeuer Timing Page 11 / 24
Specifics Swimming Mode 3.
Pocket Pro Swimming has 3 specific modes available for swim training sessions or
competitions. NOTE: You must erase all memorised data before moving between
modes. To do this press and hold the Memory button and also press the
Start/Stop button. You will then be able to select a different mode.
A: Training with stroke record
In this mode, you can define the length of the pool (25 or 50m), record the
number of strokes by pool crossings, as well as times for every length.
At the end of each session you are able to recall on Pocket Pro LCD or
download and view the number of strokes for every length, average stroke
rate, total swim distance, average lengths per minute and total time.

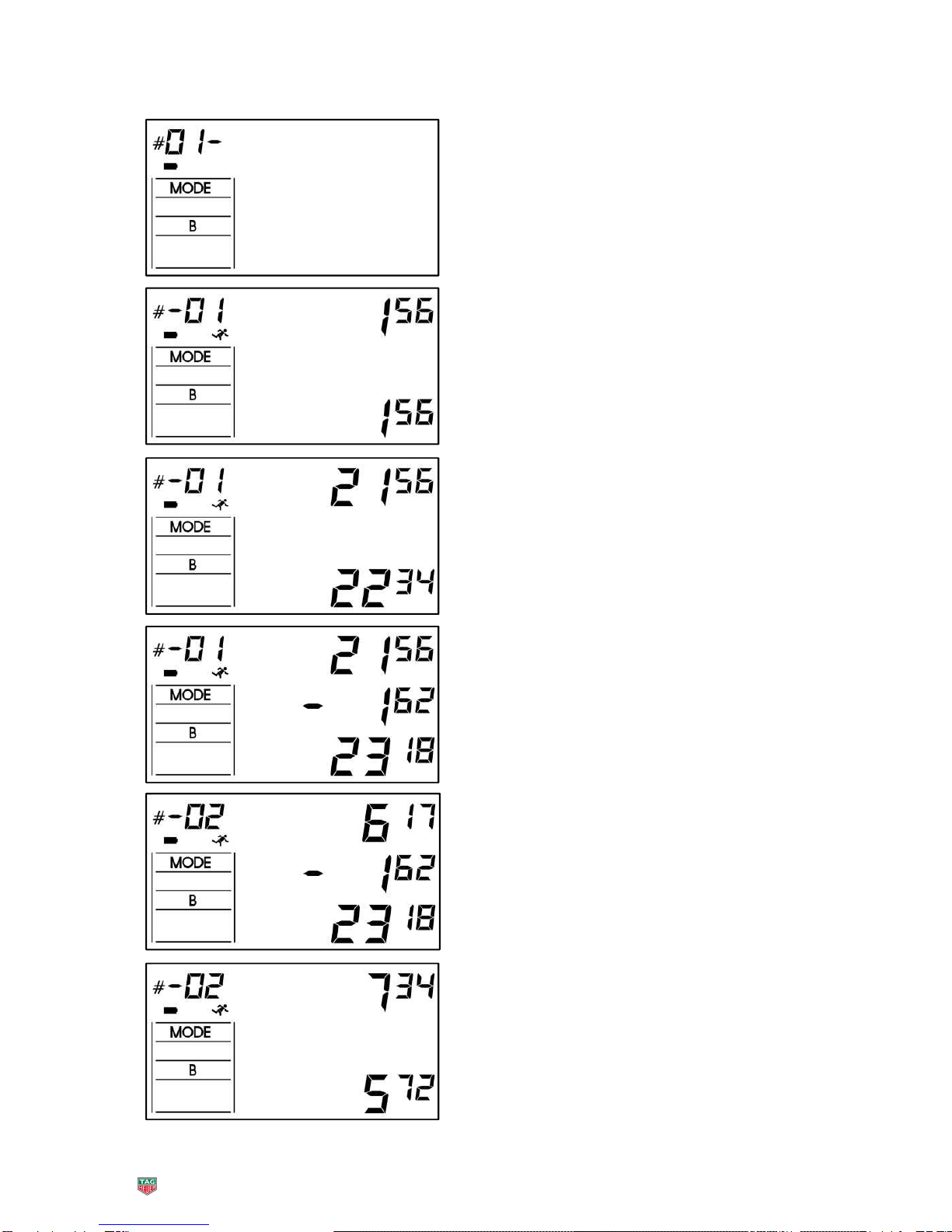

B: Dual competitor time training.
Dual mode allows comparative timing of two swimmers consecutively from
a single start for training or competition. Each length can be timed
individually for each swimmer. Post session analysis via the Pocket Pro
LCD or from the downloaded data provides you with times for every length
for each swimmer along with the gap times.
C: Training session up to 9 competitors
This timing mode allows you to time up to 9 competitors with a single
mass start and individual finishes.
The result shows you individual swimmers time and gap time.
3.1. Training with stroke record (mode A)
In this mode, you define the length of the pool (25m or 50m), record the number of
strokes for each length as well as each split time.

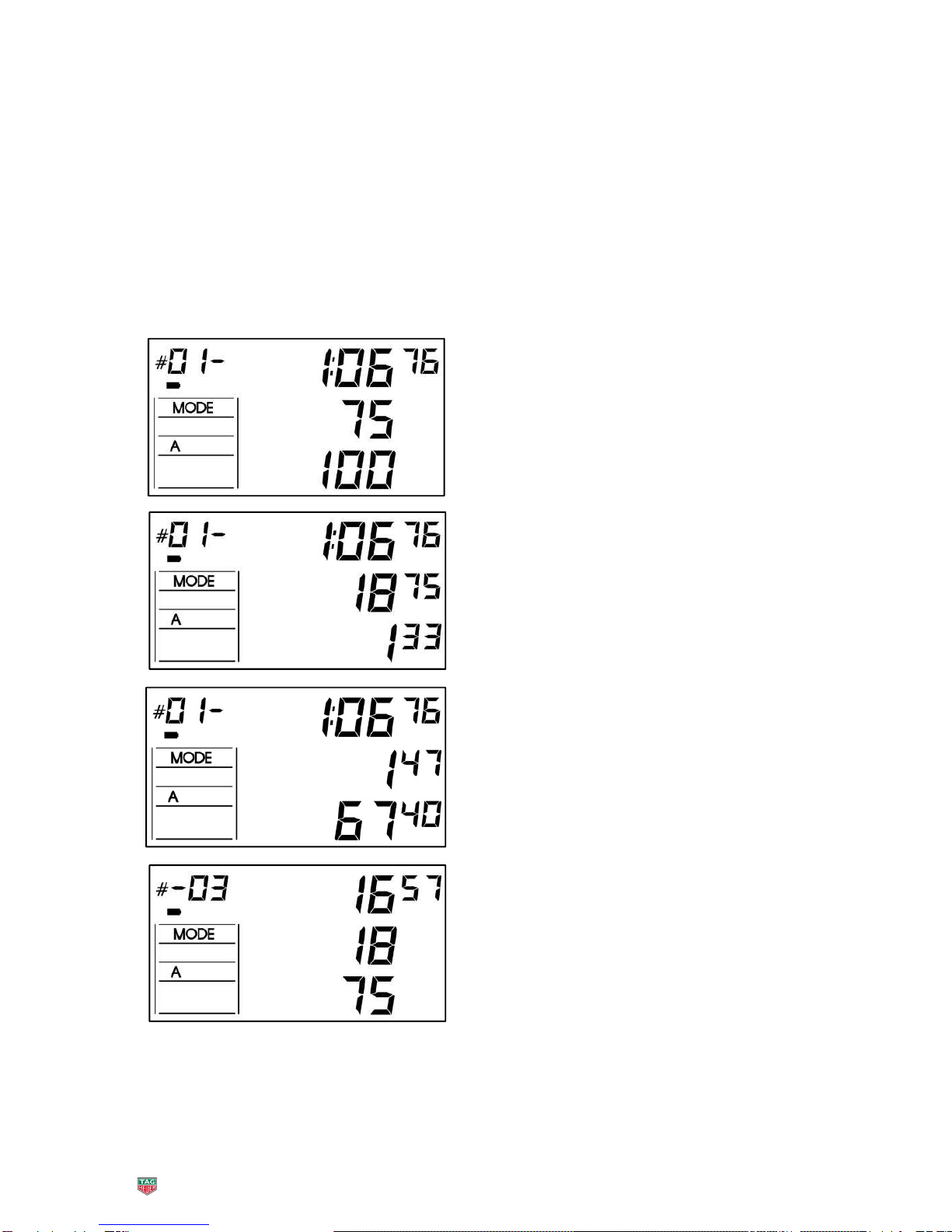

Post session you will be able to view every length with split times, strokes and
distance covered. Downloading the data from Pocket Pro using the Pocket Pro
Manager software provides you with an even more detailed analysis.

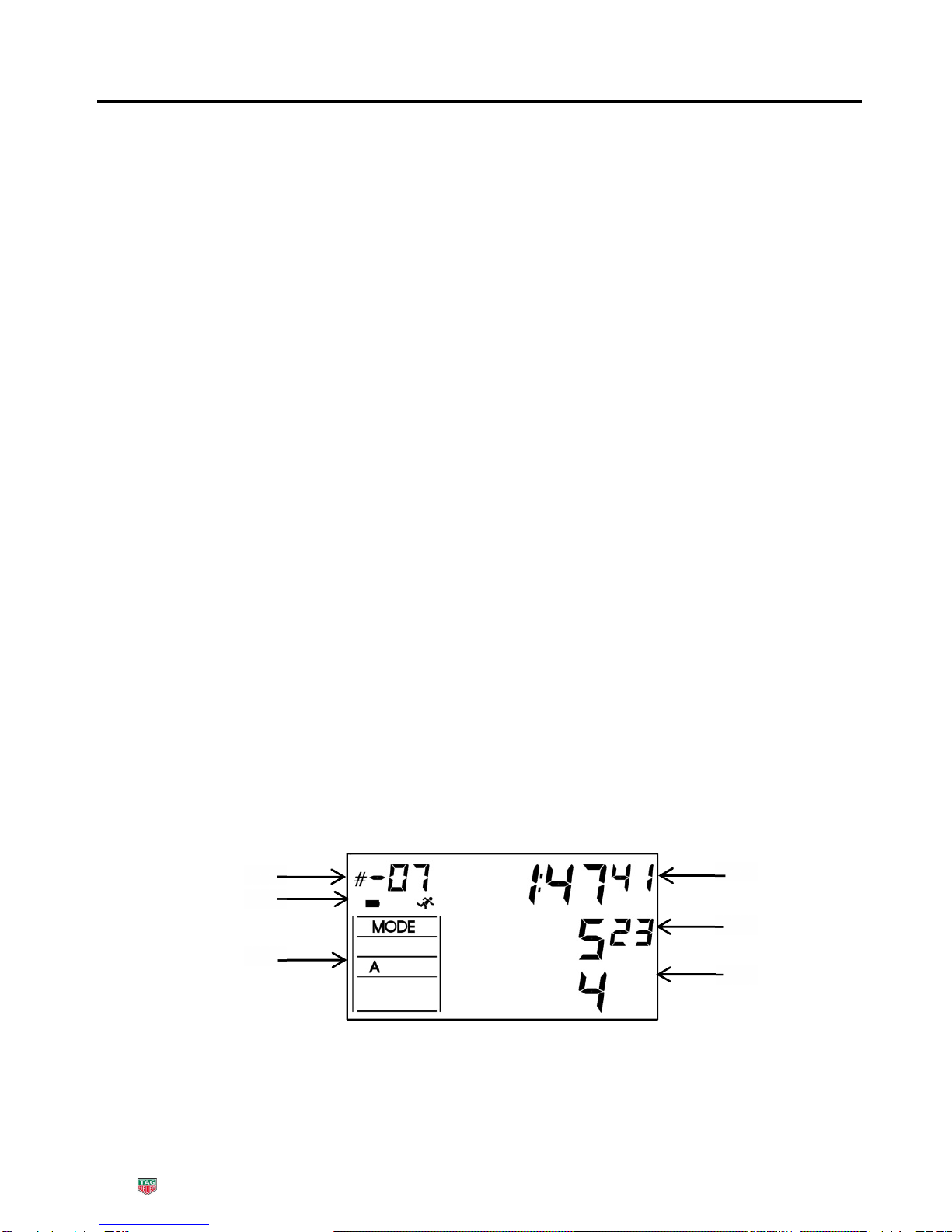

1. Nb of training session / number of pool lengths covered
2. Battery / Mode Setting / Running status
3. Timing Mode
4. Total Running time (mm:ss.dc)
1
2
3
4
5
6

TAGHeuer Timing Page 12 / 24
5. Running time of current length (mm:ss.dc)
6. Number of strokes recorded on current length
Training setting
Button Split/Lap: Select the pool size (25m or 50m)
Training session
Button Start/Stop : Start, Stop after each pool crossing (maximum 60)
Hold down for 5 seconds : stops the training session
Button Split/Lap : Increase the number of strokes
End of training session
Button Split/Lap : Proceed to next training session (maximum 6)
Button Memory : Select the training session to recall data (1 to 6)
Button Split/Lap Hold down with together with the Memory button:
View mode of selected training session
Button Split/Lap (in view mode)
Next page
Button Mode (in view mode)
Previous Page
Button Memory (in view mode)
Back to timing mode
Set parameters before a training session
Before a training session, it is possible to select the size of the pool (25m or 50m)
Press Split/Lap to select pool size
By pressing the button Start/Stop, you validate the pool size and start the first training
session
Maximum lengths to time is 60
This allows a training session of 1500m (with a pool length of 25m) and 3000 (with a
pool length of 50m)

TAGHeuer Timing Page 13 / 24
Example
4 lengths with 25m pool
Mode A
Set the pool length of 25m (Split/Lap)
Button
Start/Stop
Start training session
Each press of Split/Lap button: increases the
number of strokes
Button
Start/Stop
End of length n° 1
Start new length (n° 2)
Stroke counter : Button Split / Lap
Button
Start/Stop
End of length n° 2
Start new length (n° 3)
Stroke counter : Button Split / Lap
Button
Start/Stop
End of length n° 3
Start new length (n° 4)
Stroke counter : Button Split / Lap
Button
St
art/Stop
(push and hold down 5 sec)
End of training session
Length Counter returns back to n°4
Button
Split / Lap
to move to the next training
session (maximum 6)

TAGHeuer Timing Page 14 / 24
View (button Memory)
Using the Memory button, it is possible to scroll and view all the training sessions
(from 1 to 6).
To select the training session you want to view, hold down the Memory button and
press the button Split/Lap button
Next page: button Split/Lap
Previous page: button Mode
The first 3 pages (1 to 3) display global results of the training session.
The next page (4 to 63) display results for each individual length
Page 1
:
Total time of training (1’06.76’’)
Total number of strokes (75)
Total distance covered (100m)
Page 2
:
Total time of training (1’06.76’’)
Average strokes per length (18.75)
Average distance per stroke (1.33m)
Page 3
:
Total time of training (1’06.76’’)
Average Speed (m/min) : (1.47 metres/min)
Number of strokes / min : (67.40)
Page 4
-
63:
(60 pool lengths maximum)
Length n° 3 (-03)
Time of Length (16.57 sec)
Number of strokes (18)
Total distance from start (75)

TAGHeuer Timing Page 15 / 24
3.2. Dual competitor time training (mode B)
Dual mode allows comparative timing of two swimmers consecutively from
a single start for training or competition. Each length can be timed
individually for each swimmer. Post session analysis via the Pocket Pro
LCD or from the downloaded data provides you with times for every length
for each swimmer along with the gap times.
1. Training session / number of lengths
2. Battery / Mode Setting / Running status
3. Timing mode
4. Time of Lane A
5. Gap Time
6. Time of Lane B
Functions
Button Start/Stop : Single Start for both competitors (mass start)
Hold down for 5 seconds : end of training session
Button Split/Lap : Finish of each length, Lane A
Button Mode : Finish of each length, Lane B
Button Split/Lap (at the end of the training session)
Next training session
Button Memory &: Select the training session to view
Split/Lap
At the end of each pool crossing (Lane A or B), the time is displayed for 5 seconds.
When the second competitors time is displayed you will also see the gap time.
To stop the training session, hold down Start/Stop Button for 5 seconds
To move to the next training session press Split/Lap Button and the session number
will increment ready for the next start.
It is possible to time up to 9 training sessions and up to 44 lengths for each competitor
1
2
3
4
5
6

TAGHeuer Timing Page 16 / 24
Example
Training session n° 1
Training Session n° 1
Mass start : Start/Stop
Length (n° 01)
Finish of Lane A (button Split / Lap)
Time : 21.56
Lane B : still swimming
Length (n° 01)
Lane A time : 21.56
Finish of Lane B (Button Mode)
Time : 23.18
Gap : - 1.62
Length (n° 02)
Running time continues for Lane A after
5 seconds of display split time
Length (n° 02)
Running time of both Lanes.

TAGHeuer Timing Page 17 / 24
View
To recall and view timing data press the Memory button and hold down on the
session you wish to view, whilst holding down the Memory button also press the
Split/Lap button. Now you have selected your session to view you can view all split
and gap times by pressing again the Split/Lap button to increment to the next length.
Use the Mode button to move back to the previous length.
The first page shows you the last split result of the training session. The following
pages show you each length with Time for Lane A and Lane B and the gap time.
Page 1
Training Session (n° 03)
Lane A 3’47.65’’
Gap -6.39’’
Lane B 3’41.26’’
Page 13
Training Session (n° 03)
Length n° 12 (-12)
Lane A 14.73’’
Gap -0.29’’
Lane B 15.02’’

TAGHeuer Timing Page 18 / 24
3.3. Training session up to 9 competitors (mode C)
This timing mode allows you to time up to 9 competitors with a single mass start and
individual finishes. Also a maximum of 60 sessions can be recorded.
The result displays every finisher (in order of arrival) the time and the gap time with
best time
1. Training session / arrival number in sequential mode
2. Battery / Mode Setting / Running status
3. Timing mode
4. Running time from start
5. Finish time of each competitor
6. Gap with the best time
Functions
Button Start/Stop : Mass start / individual finish (maximum 9)
Button Split/Lap : Press to finish the training session (when all competitors are
finished) to move to the next session
Button Memory : Press the Memory button and hold down on the session you
wish to view. Whilst holding down the Memory button also
press the Split/Lap button and release. Now press
Split/Lap button to move through each competitors time and
gap time. To move back to the previous time press the Mode
button.
To exit viewing press the Memory button and you are ready
to start the next session.
1
2
3
4
5
6

TAGHeuer Timing Page 19 / 24
Example
Training session n° 2 (02-)
Button
Start/Stop
Running time
Button
Start/Stop
Competitor finish n°1 (3’12.65’’)
Gap : 0.00’’ (first arrival)
Button
Start/Stop
Competitor n° 2 (3’19’23)
Gap : 6.58’’

TAGHeuer Timing Page 20 / 24
Recommendations 4.
Although the Pocket Pro can be used indoors and outdoors, optimal viewing and
protection is best when the display is in the shade or covered from direct sunlight and rain
Never immerse the Pocket Pro in water
The Pocket Pro is developed to endure light rain.
The USB socket is protected by the black rubber, and prevents any water ingress
It is very important and recommended to keep the rubber in place at all times when not
using the USB connection
The optimal visibility of LCD is when the Pocket Pro is protected from direct sunlight
The Pocket Pro can overheat in excessive direct sunlight
The LCD Plexiglas is fragile. It is not recommended to clean it with a solvent or alcohol
IMPORTANT
A slightly damp cloth is recommended for cleaning the Pocket Pro
Download a new version of Firmware 5.
Program downloads and new releases of the TAG Heuer firmware “up loader” are
available free of charge on our website www.tagheuer-timing.com
For this operation, you need to have:
•Mini-USB cable HL545-3
•The software «TAGHeuerFirmmanager.exe » version minimum V10.0
Procedure
•Copy the software «TAGHeuerFirmManager.exe » onto your hard disk drive
•Connect the Mini-USB cable (HL545-3) to the PC and to the Pocket Pro
•Run the software « TAGHeuerFirmManager.exe »
•Select the COM Port
•Select the file: Update (HL400_xxx.dat)
•Press START on the software
•Press and hold the reset button on Pocket Pro and release when prompted
•As soon as the upgrade is downloaded into the HL400, validate the software with OK
•The HL400 is ready to use
